PS1916D1U - Electric charger Tripp Lite - Free user manual and instructions

Product Type	16-Outlet AC Charger
Brand	Tripp Lite
Model	PS1916D1U
Number of Outlets	16 x NEMA 5-15R
Input Voltage	120 V AC, 50/60 Hz
Input Current	12 A
Output Current per Outlet	12 A
Power Cord Length	4.57 m (15 ft)
Plug Type	NEMA 5-15P
Mounting	1U Rackmount (rackable)
Dimensions (HxWxD)	57 x 483 x 241 mm (2.25 x 19 x 4 in)
Housing Material	Metal
Power Switch	Illuminated, on/off
Circuit Breaker	15 A
Operating Temperature	0° to 40° C
Operating Humidity	5 to 95% RH non-condensing
Warranty	2-year limited
Certifications	UL 60950, NOM (Mexico), RoHS
Package Contents	Charger, mounting hardware, user manual
Safety Instructions	Yes, included in manual

Frequently Asked Questions - PS1916D1U Tripp Lite

How many devices can I plug into this charger?

You can plug up to 16 devices into the NEMA 5-15R outlets.

What is the required input voltage?

The charger requires an input of 120 V AC at 50/60 Hz.

Can I mount this charger in a rack?

Yes, the PS1916D1U is designed for 1U rackmount with adjustable depth up to 60 mm.

What is the power cord length?

The power cord is 4.57 m (15 ft) long with a NEMA 5-15P plug.

Is this charger compatible with laptops?

Yes, it is designed to charge laptops, netbooks, tablets and other electronic devices.

Is there a protective circuit breaker?

Yes, it includes a 15 A circuit breaker for overcurrent protection.

What is the warranty of this product?

The charger comes with a 2-year limited warranty against defects in materials and workmanship.

How do I install the charger in a rack?

Secure the charger to the rack by inserting four user-supplied screws through the mounting brackets into the rear rail holes. The mounting ears are adjustable.

What should I do if the charger does not work?

First check the AC power and the on/off switch. If the problem persists, contact Tripp Lite for inspection.

Is this charger suitable for medical use?

No, it is not recommended for medical applications where failure could affect life-support equipment.

USER MANUAL PS1916D1U Tripp Lite

1U Rack Mountable 16-Outlet AC Charger Unit

Model: PS1916D1U

1. Important Safety Instructions 2
2. Package Contents 2
3. Product Description 2
4. Features 2
5. Mounting and Installation 3
6. Powering the AC Charger Unit 3
7. Connecting Devices to the 3 AC Charger Unit
8. Specifications 4
9. Warranty and Product Registration 4

Espanol 5

Français 9

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a $50 value!

www.triplite.com/warranty

Manufacturing Excellence.

1. Important Safety Instructions

SAVE THESE INSTRUCTIONS

This Manual contains instructions and warnings that must be followed during the installation and operation of the product described in this manual. Failure to comply may invalidate the warranty and cause property damage or personal injury.

• To remove the AC charger unit from the supply mains, the appliance inlet serves as a disconnect device.
• If any of the following situations arise, schedule an appointment to have your equipment inspected by a service technician:

The equipment has been exposed to moisture
The equipment has been dropped and damaged
- The equipment shows obvious signs of breakage
The equipment is not functioning properly or is not functioning according to the instructions described in this Owner's Manual

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
• Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

2. Package Contents

• PS1916D1U 16-Outlet AC Charger Unit

• Mounting Hardware

• Owner's Manual

3. Product Description

The PS1916D1U is a 1U, rack-mountable AC charger unit that supports charging of up to 16 notebooks, netbooks, tablets or any other battery-intensive personal electronic device that uses a 5-15P power adapter.

4. Features

• 1U, rack-mountable housing can be configured for professional, educational or personal installations
  16 x NEMA 5-15R output receptacles
  15-ft. AC cord with NEMA 5-15P plug
• Lighted power switch confirms power on/off status
  15A electrical capacity with circuit breaker
  120V AC, 50/60Hz electrical compatibility

Front
Rear

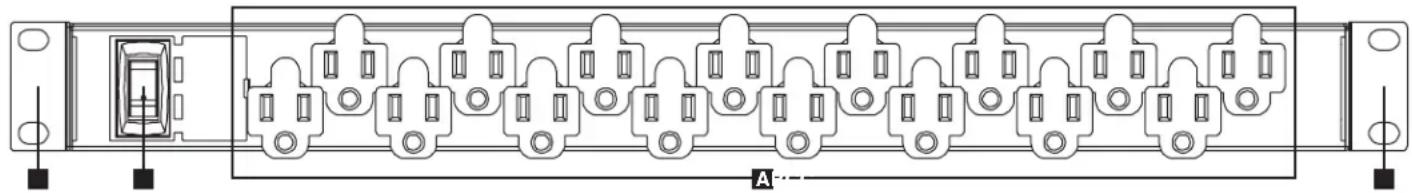

A 5-15R Dongs (16 total)
Lighted On/Off Power Switch
Mounting Ears (Detachable)

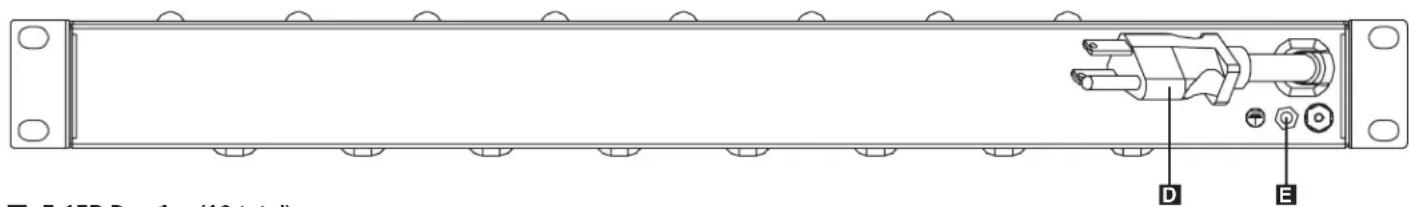

D 15-ft. Power Cord with 5-15P Plug
Grounding Lug

5. Mounting and Installation

The PS1916D1U can be mounted with any 2- or 4-post rack with an available 1U port. Mounting hardware is included for easy mounting.

Rack Installation

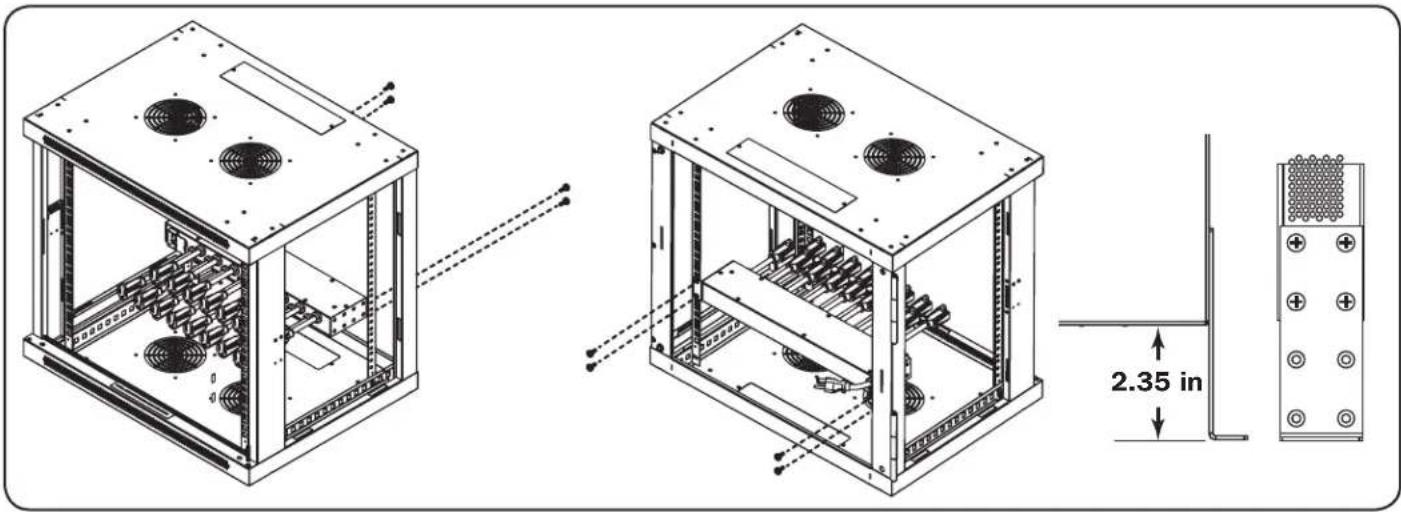

Attach the PS1916D1U to the rack by inserting four user-supplied screws through the mounting brackets and into the mounting holes of the rear vertical rack rails.

Note: The PS1916D1U rack mounting depth is adjustable to a maximum depth of 2.35 inches. To adjust the unit's mounting depth, reattach the mounting ears to a different position on the unit using the provided M4 Phillips flat-head screws (four per side).

6. Powering the AC Charger Unit

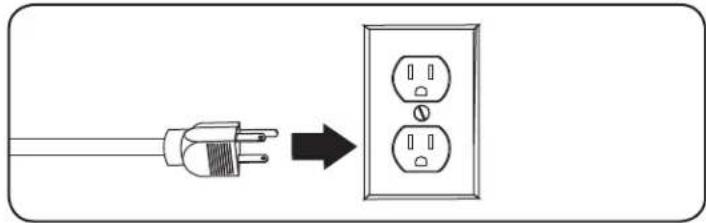

Insert the 5-15P plug located on the rear of the unit into the nearest 3-prong, grounded power outlet.

7. Connecting Devices to the AC Charger Unit

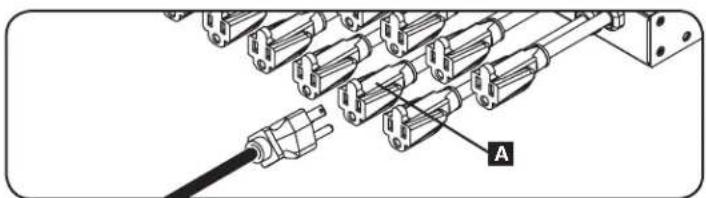

Connect the device's power plug into one of the AC charger unit's dongle receptacles A.

8. Specifications

Item Description
AC Receptacles Dongles 16 x 5-15R
Power Requirement Input: 120V AC,	50/60 HZ, 12 Amps / Output: 12A per Dongle Receptacle
Input Plug / Cord Length 5-15P / 15 ft.
Operating Temperature 32° to 104° F / 0° to 40°C
Operating Humidity 5 to 95% RH, Non-Condensing
Dimensions (H x W x D) 2.25 x 19 x 4" (57 x 483 x 241 mm)
Enclosure Material Metal
Regulatory Approvals UL 60950, NOM (Mexico) and RoHS

Specification is subject to change without further notice.

9. Warranty and Product Registration

2-Year Limited Warranty

Sell wth t i r t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t t s e

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTY OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTYES, INCLUDING ALL WARRANTYES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCUSES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!

• No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice.
