Product Type	PC Power Supply
Brand	Seasonic
Model	S12III500
Rated Power	500 W
Form Factor	ATX
Dimensions (L x W x H)	150 x 140 x 86 mm
Weight	1.8 kg
Main Connector	20+4 pin ATX
CPU Connector	1 x 4+4 pin EPS12V
PCIe Connectors	2 x 6+2 pin
SATA Connectors	6
Molex Connectors	3
Fan	120 mm with intelligent S³FC control
Operating Mode	Normal, hybrid (silent), fanless
Integrated Protections	Overvoltage (OVP), Undervoltage (UVP), Overcurrent (OCP), Short Circuit (SCP), Overload (OPP)
Certifications	80 PLUS Bronze, ErP 2013, FCC, RoHS
Test Method	Power supply tester or paperclip start
Maintenance	Do not open the unit; clean grilles with a dry cloth
Safety Precautions	High internal voltages; use only provided Seasonic cables
Warranty	Manufacturer's warranty according to conditions (see Seasonic website)
Package Contents	Power supply, modular cable set, manual, power cord, accessory bag
Repairability	Not user-serviceable; contact support for any failure

Frequently Asked Questions - S12III500 SEASONIC

How to install my Seasonic S12III500?

Unplug the old power supply, secure the new one with the 4 provided screws, connect the modular cables (ATX, CPU, PCIe, peripherals) observing the keying, then plug in the power cord and turn on the switch.

The fan on my power supply is not spinning, is that normal?

Yes, in Hybrid or Fanless mode, the fan stays still until a certain load or temperature is reached. In Normal mode, it spins constantly.

Can I use cables from other brands with this power supply?

No, use only the provided Seasonic cables. Incompatible cables can damage the hardware.

How to test my power supply before installing it in the PC?

You can use a power supply tester on the 24-pin connector, or the paperclip method: short the PS-ON pin and a ground (see diagram in the manual) to start the unit without load.

What is the maximum power delivered on the +12V rail?

The S12III500 delivers up to 480 W on the +12V rail, which represents the majority of the total power.

What if my PC does not turn on after installation?

Check the switch position (I), the power cord connection, all connectors fully seated, and test the power supply with the paperclip method. If the motherboard is faulty, the unit will not start.

Is this power supply compatible with powerful graphics cards?

Yes, it has two 6+2 pin PCIe connectors. For a very demanding card, Seasonic recommends using two separate PCIe cables rather than a single daisy-chained one.

How to clean my power supply?

Unplug the power supply and use a dry cloth or low-power vacuum for the grilles. Never open the casing.

What is the warranty period?

The Seasonic warranty covers manufacturing defects. The exact duration depends on the seller and region; check the Seasonic website or your point of purchase.

Can I mount the power supply with the fan facing down?

Yes, in Normal mode. But check that your case has a ventilation opening at the bottom. In Hybrid mode, Seasonic recommends the fan facing up to optimize natural convection.

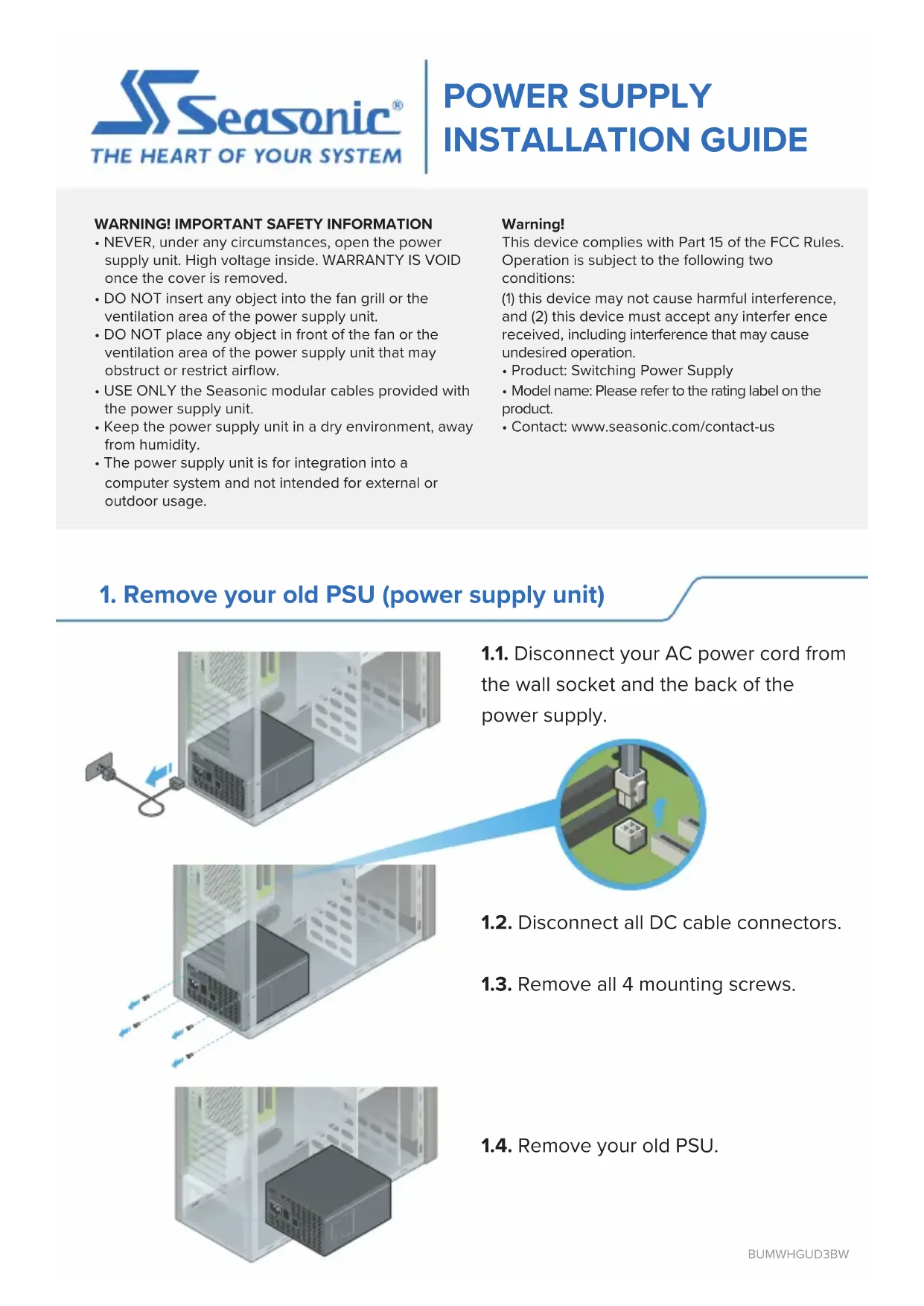

USER MANUAL S12III500 SEASONIC

WARNING! IMPORTANT SAFETY INFORMATION

• NEVER, under any circumstances, open the power supply unit. High voltage inside. WARRANTY is Void once the cover is removed.
  DO NOT insert any object into the fan grill or the ventilation area of the power supply unit.
  DO NOT place any object in front of the fan or the ventilation area of the power supply unit that may obstruct or restrict airflow.
• USE ONLY the Seasonic modular cables provided with the power supply unit.
• Keep the power supply unit in a dry environment, away from humidity.
  The power supply unit is for integration into a computer system and not intended for external or outdoor usage.

Warning!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product: Switching Power Supply
- Model name: Please refer to the rating label on the product.
- Contact: www.seasonic.com/contact-us

1. Remove your old PSU (power supply unit)

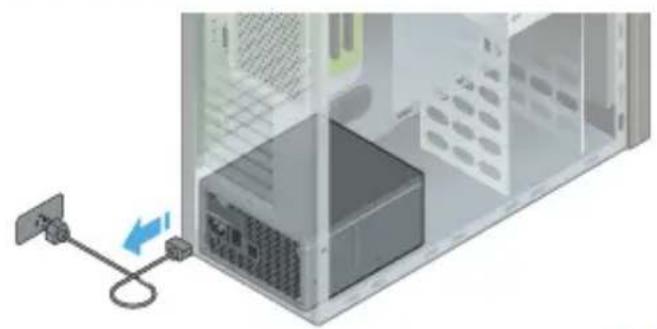

1.1. Disconnect your AC power cord from the wall socket and the back of the power supply.

1.2. Disconnect all DC cable connectors.

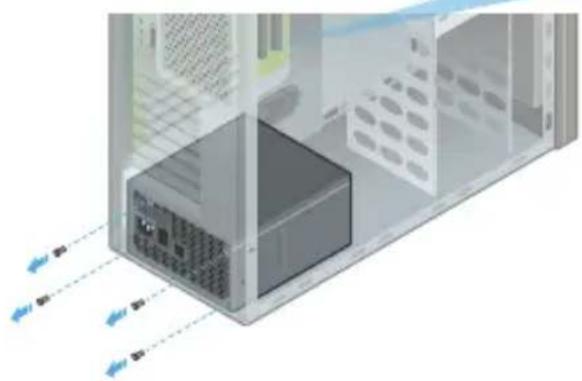

1.3. Remove all 4 mounting screws.

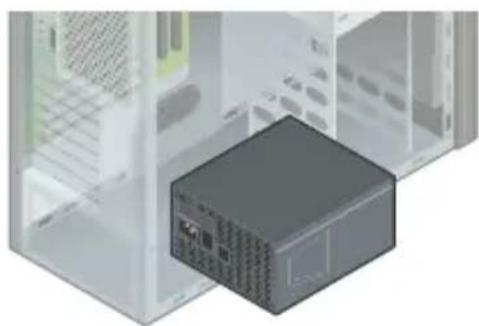

1.4. Remove your old PSU.

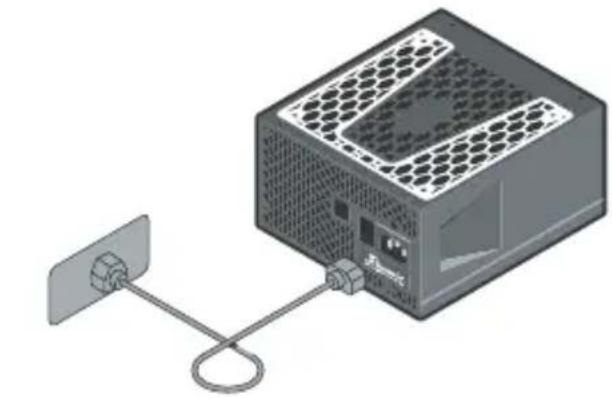

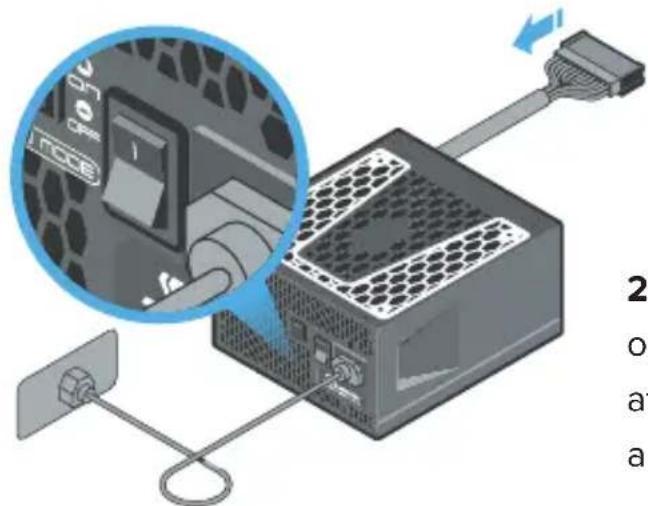

2.1. Plug the AC power cord into the PSU. Make sure that the AC power is coming directly from the wall outlet.

It is recommended to use a high quality surge protector to protect the PSU and the system.

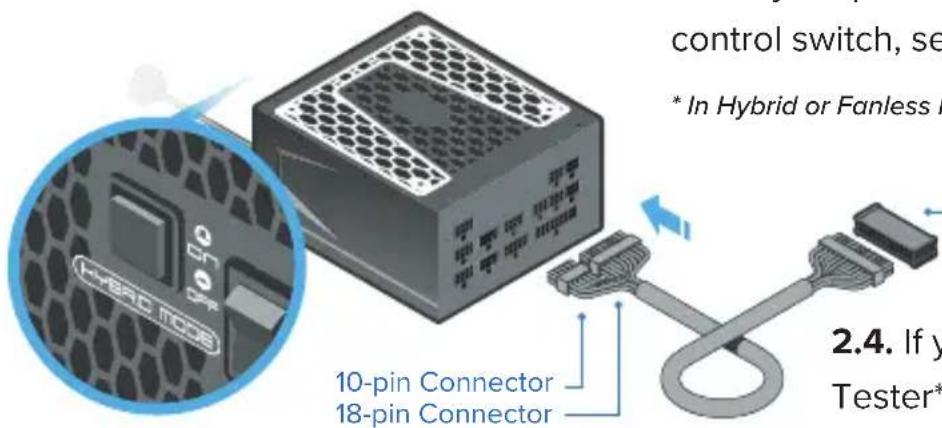

2.2. Connect both the 18-pin and 10-pin connectors of the motherboard cable to the PSU.
2.3. If your power supply features a fan control switch, set it to "Normal" Mode.
In Hybrid or Fanless Mode (S³FC) the fan will not turn.

Power Supply Tester

2.4. If you have a Power Supply Tester**, attach it to the 24-pin motherboard connector. There is a notch on the Tester that helps to make a perfect fit with the 24-pin connector.

** If you do not have a power supply tester, refer to the paper clip method described below.

2.5. (Optional) For testing a Fanless PSU or a PSU without the fan control switch, attach an external fan or LED light using a Molex cable to the PSU.

2.6. Turn on the power supply by setting the I/O switch to the "1" (ON) position.

If the power supply fan starts spinning (or the externally attached LED light turns on), then your PSU is working.

Paper clip method

Use a paper clip or a piece of wire to create a short circuit on the 24-pin motherboard connector by connecting the pins shown on the illustration.

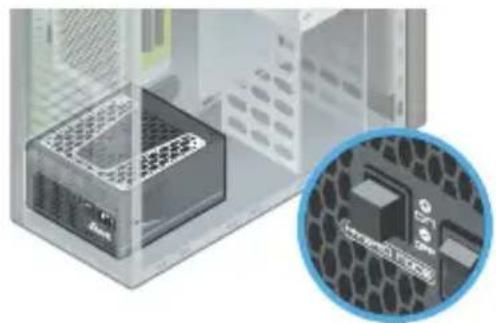

3.1. Bottom of the case

The fan control setting determines the optimal PSU placement.

In "Hybrid" mode

Seasonic recommends to install your PSU with ventilation top cover facing UPWARD, towards the direction of the motherboard. This will ensure natural heat dissipation.

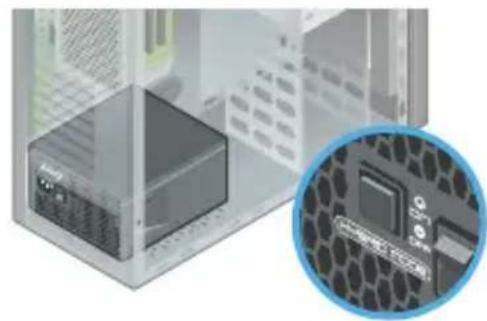

Fanless PSU

The PSU must be mounted into the computer case with the ventilation top cover facing UPWARD.

In "Normal" mode

Although the direction of mounting is optional, it is not recommended to install the PSU with the ventilation top cover facing downward if there are no ventilation holes on the bottom of the case. There should always be enough clearance left between the PSU and the bottom case panel.

To learn about the ventilation of your computer case, please refer to the case manufacturer's instruction manual.

3.2. Flat Desktop-, SFX- or ITX systems

In general, it is recommended to mount the PSU with the ventilation top cover facing the motherboard. Due to the different varieties of case layouts, however, please also consult the case manufacturer's instruction manual for more information.

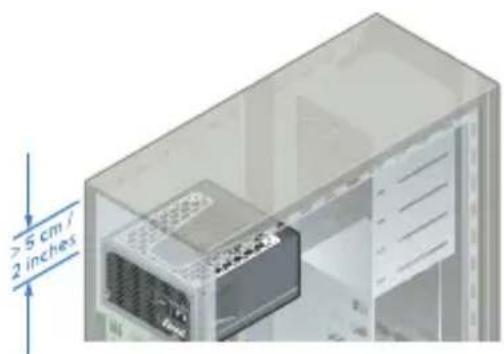

3.3. Top of the case

Seasonic recommends the PSU to be mounted with its ventilation top cover facing DOWNWARD.

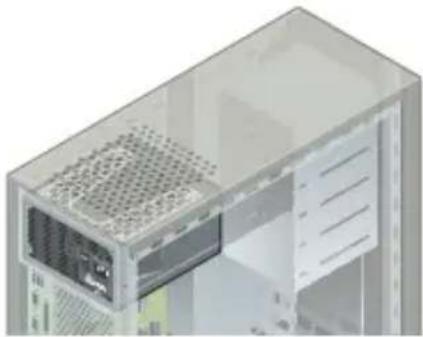

3.3. Top of the case

Mount the power supply with the ventilation top cover facing UPWARD only if there is enough space (at least 5 cm / 2 inches) available between the PSU ventilation top cover and the metal plate of the case, and only if the case has a ventilation panel on top.

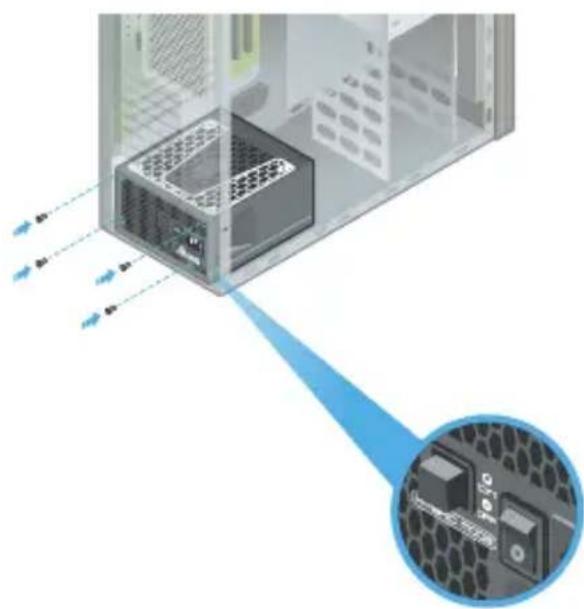

4. Install your Seasonic PSU

4.1. Secure all 4 mounting screws.
4.2. Make sure the PSU power switch is in the "O" (OFF) position.
4.3. Select the fan control type if your PSU has this option.

Note: First power OFF the PSU before changing the fan control to take effect.

Hybrid Mode

Normal Mode

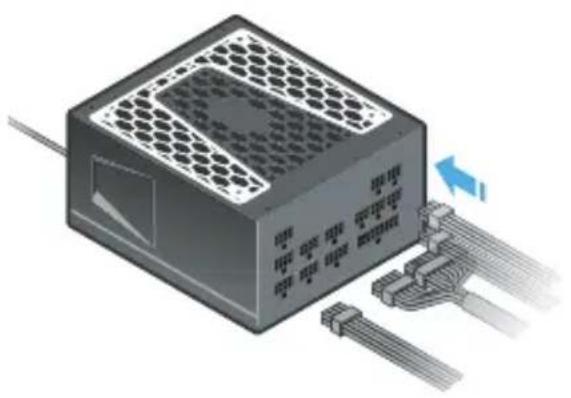

4.4. Connect all the necessary system DC cables (Motherboard, CPU, VGA, HDD, Optical Drivers, etc). The connectors should click to lock in.

ATTENTION! Use only cables provided by Seasonic! Should you require additional cables, please contact Seasonic.

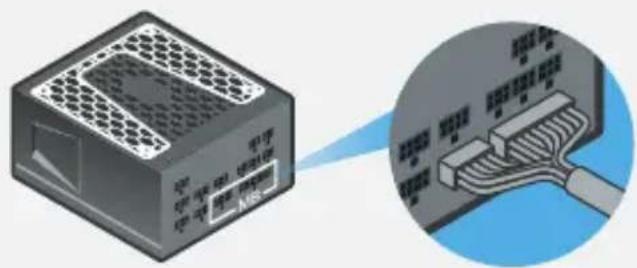

Motherboard Cable

Please make sure both connectors on the power supply side are properly connected.

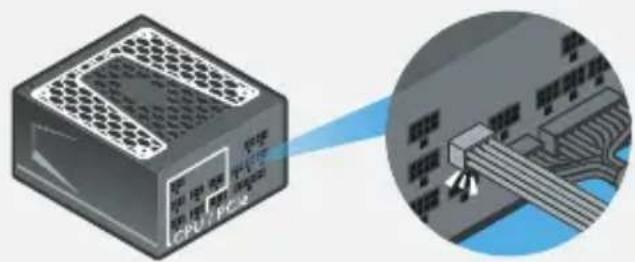

CPU and PCIe Cables (8-pin connectors)

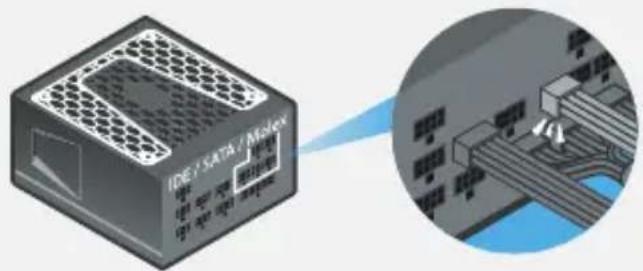

Peripheral Cables (6-pin connectors)

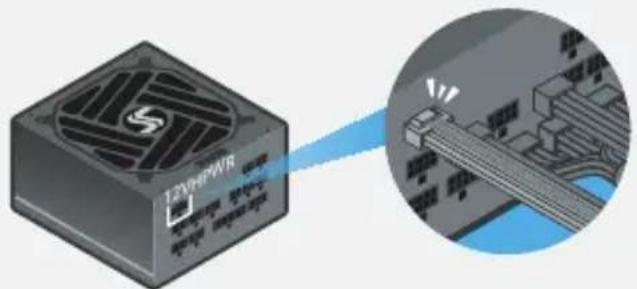

ATX 3.0 Compatible 12VHPWR Cable (16-pin connector)

High powered graphics cards are usually outfitted with two or three PCIe power connector slots. Seasonic prefers the use of two or three separate PCIe cables to connect these cards to your power supply.

Recommendations

Two PCIe power connector slots

Three PCIe power connector slots

ATTENTION! The intended use of the PSU is to power PC systems. For mining usage, please contact Seasonic for special cables.

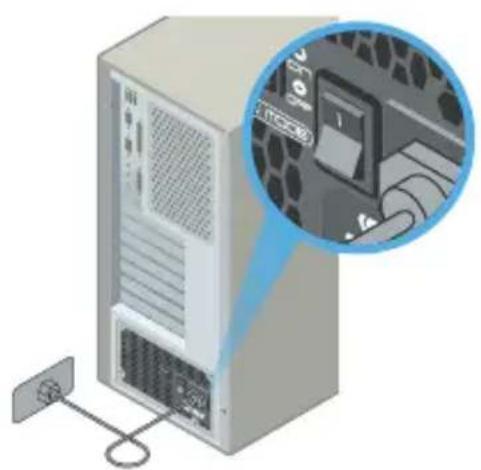

4.5. Connect the AC power cord to the PSU. Plug the AC power cord into the wall socket.
4.6. Click the AC ON/OFF switch to the "I" (ON) position.

User Manual
seasonic.com/ user-manual

Product Registration
seasonic.com/ product-registration

Headquarters

Sea Sonic Electronics Co., Ltd.

American Office

Seasonic Electronics, Inc. 16025 Arrow Hwy Suite A/B Irwindale, CA, 91706, USA

European Office

Sea Sonic Europe B.V.
Rietveld 7, NL - 5258 ED
Berlicum, The Netherlands

Seasonic seasonal seasonal

seasonic

Tech Support Online Chat on SEASONIC.COM

FR

seasonic.com/ user-manual

seasonic.com/ product-registration

Headquarters

Sea Sonic Electronics Co., Ltd.

American Office

Seasonic Electronics, Inc. 16025 Arrow Hwy Suite A/B, Irwinddale, CA, 91706, USA

European Office

Sea Sonic Europe B.V. Sea Rietveld 7, NL - 5258 ED Berlicum, The Netherlands

Tech Support Online Chat on SEASONIC.COM

Erinnerung

seasonic.com/ user-manual

Enregistrement Produkt

seasonic.com/ product-registration

Headquarters
Sea Sonic Electronics Co., Ltd.

American Office
Seasonic Electronics, Inc.
16025 Arrow Hwy Suite A/B, Irwindale, CA 91706, USA

European Office
Sea Sonic Europe B.V.
Rietveld 7, NL - 5258 ED
Berlicum, The Netherlands

Seasonic®

POWER SUPPLY USER'S MANUAL

NETZTEIL BENUTZERHANDBUCH

BLOC D'ALIMENTATION MANUEL D'UTILISATEUR

Power supply
Modular cable pack
- User manual
AC power cord
- Accessory bag

II. WARNING! IMPORTANT SAFETY INFORMATION

NEVER, under any circumstances, open the power supply unit. High voltage inside. WARRANTY IS Void once the cover is removed.
DO NOT insert any object into the fan grill or the ventilation area of the power supply unit.
DO NOT place any object in front of the fan or the ventilation area of the power supply unit that may obstruct or restrict airflow.
USE ONLY the Seasonic modular cables provided with the power supply unit.
- Keep the power supply unit in a dry environment, away from humidity.
The power supply unit is for integration into a computer system and not intended for external or outdoor usage.

III. Power Supply Removal

1. Please first read Chapter II. Warning! Important Safety Information above.
2. Make certain that your system is entirely powered off; set the power supply's AC power switch to the "O" (OFF) position and disconnect the power cord from the AC outlet.
3. Open the computer case (please refer to the manufacturer's user manual).
4. Carefully disconnect all the power supply's connectors from the mainboard and the peripherals.
5. Unscrew the mounting screws securing the power supply unit to the back panel of the case.
6. Carefully remove the power supply from the case.

IV. Power Supply Installation

1. Place the Seasonic power supply into the space provided within the case and use the four mounting screws provided in the accessory bag to secure it to the back panel of the case. Do not over-tighten the screws.

a. For power supplies with a built-in fan, the fan side top cover should be facing the mainboard. (Depending on the type of computer case, this can mean either upwards or downwards facing fan cover.)

b. For fanless power supplies, Sea Sonic recommends to mount fanless power supplies into the computer case with their ventilation cover facing UPWARDs. However, there are extra mounting-screw holes provided on the back of the power supply to allow for reverse mounting, if necessary

1. Mainboard connection:

a. DO NOT force the connectors into place; the connectors are "keyed" so they can only fit one way. Make sure the connectors lock in their place securely.
b. Connect the power supply end of the 24/20-Pin convertible connector to the appropriate receptor on the power supply unit.
c. Connect the mainboard end of the 24/20-Pin convertible connector to the mainboard. Depending on the mainboard, you may need to either attach or detach the 4-Pin module of the 24/20-Pin connector.
d. Connect the +12V 4-Pin connector and the EPS + 12V connector, if applicable.

e. If your system requires dual EPS + 12 V connectors, please connect the 8-Pin end of the second CPU 8-Pin connector into the appropriate 8-Pin receptor on the power supply unit. Then connect the mainboard end of this 8-Pin connector to the mainboard.

1. Peripheral components connection:

a. Connect one end of the peripheral cable to the power supply and the other end to the component.

b. DO NOT use excessive force to attach the connectors; the connectors are "keyed" so they can only fit one way.
c. Make sure that the connectors lock in tightly and securely.

1. Close the computer case according to the manufacturer's instructions.
2. Plug in the AC power cord provided in the box and switch the AC On/Off switch on the back panel of the power supply to the "I" (On) position.
3. You are now ready to start your computer powered by Seasonic.

V. Troubleshooting

If the power supply unit fails to function properly, please go through the below checklist.

1. Check to make sure the AC power cord is properly connected to the AC source and the power supply unit.
2. Check to make sure the AC source is On.
3. Check to make sure the AC On/Off switch on the back panel of the power supply unit in the "1" (On) position.
4. Check and secure all mainboard and peripheral connectors.

5. The AC on/off switch on the back of the power supply unit can be toggled between "l" and "O" a few times with a 0.5 second delay in between to make sure the power supply unit is reset.

6. If you are still experiencing difficulties to get the power supply unit to function properly, please visit www.seasonic.com for further technical support instructions.

Notes

• The operation of power supply is a "pull" technology, which means that the unit only provides the power as demanded by the mainboard and the system components.
  If there is a mainboard malfunction, the power supply will not turn on.
  If there is a peripheral component malfunction, the power supply will not provide power to that particular component.
• This power supply complies with the newest ErP 2013 requirements. For proper system function please update your main-board BIOS to the newest version and configure the BIOS in accordance to ErP 2013 requirements - enable all Energy Savings functions for standby and normal operations and disable audio always-on. Please consult your motherboard manufacturer for further assistance.

VI. Warranty

Seasonic's warranty covers all power supplies beginning from the date of purchase, against defects in materials or workmanship. During the warranty period, Sea Sonic maintains the discretion to either repair units or replace broken components with parts of similar or equal performance, provided that:

The product is returned to the point of purchase, postage prepaid.
The product was properly used according to the manufacturer's intended purposes.
The product was not damaged due to acts of nature, such as lightening, flood or fire.
The product's cover was never removed and the warranty sticker was not broken.

For additional details, please visit www.seasonic.com/rma

Notes

Warranty terms may vary between different geographic regions.
- For consumers in Australia – Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Local distributor:

Powerhouse PC Australia

[e-mail]

www.powerhousepc.com.au

PO Box 6139 Silverwater, NSW 2128, Sydney, Australia

Tel: [phone]

Fax: [phone]

VII. Disclaimer

All efforts have been made to ensure accuracy of all information provided herein. Sea Sonic assumes no liability, expressed or implied, for any damage(s) occurring to your system's components or other devices as a result of any mistake or omission during power supply installation or removal, or due to any defect or failure of the product itself.

Please visit our homepage www.seasonic.com for further details.

DEUTSCH

I. Lieferumfang

1. Anschlüsse am Mainboard:

yOtnpIKoHTaKTmmoynb 24/20-KoHTaKTHoro po3'Emy.

d. RaKIOe Heo6xIDHO, nIKIIOHTb YoTNpIKoHTaKTTHn po3'EM +12 B Ta KOHeKTop EPS +12 B.
e. RaKoBaWiCnCTeMI nOTpi6HdBA po3'EMN EPS +12 B, 6yNb IaCKa, NiKIOUcITb 8-KoHTaKTHi pO3'EM dpyrOro 8-KoHTaKTHO rpo3'Em JxNBHeHHa CEHTpaIbHOrO npocepa y BiINOBiDhe 8-KoHTaKTHe rH3do 6NOKy JxNBHeHHa. NOTIM NiKIOUcITb dpyrN KHeCb Zboro 8-KoHTaKTHO Ka6eJIIO DO MaTePunHcbKOI PnATN.
