USER MANUAL ICD-SX750 SONY

English This Quick Start Guide describes only basic operations, such as how to record, play back, or erase messages. The operating instructions explaining all the features and functions are supplied with the IC recorder as PDF files in 20 languages stored on the supplied CD-ROM. You can copy the PDF files of the operating instructions to your computer. Insert the supplied CDROM into the CD-ROM drive of your computer, and just follow the instructions shown on the screen. If the instructions are not shown on the screen, rightclick the CD-ROM on Windows Explorer to open, and double-click [SetupLauncher.exe]. The English edition of the operating instructions is supplied as a booklet as well. For customers in Europe Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please

contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Applicable accessories: USB connecting cable, cradle Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Notice for the customers: the following information is only applicable to equipment sold in the countries applying EU directives The manufacturer of this product is Sony Corporation, 1-7-1, Konan, Minato-ku, Tokyo, 108-0075 Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

The recorded music is limited to private use only. Use of the music beyond this limit requires permission of the copyright holders. Sony is not responsible for incomplete recording/downloading or damaged data due to problems of the IC recorder or computer. Depending on the types of the text and characters, the text shown on the IC recorder may not be displayed properly on device. This is due to: The capacity of the connected IC recorder. The IC recorder is not functioning normally. Content information is written in the language or the character that is not supported by the IC recorder. Notice for users Program © 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Sony Corporation Documentation ©2009 Sony Corporation All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from Sony Corporation. IN NO EVENT SHALL SONY CORPORATION BE LIABLE

FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL

DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE OR OTHER

INFORMATION CONTAINED HEREIN OR THE USE

THEREOF. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein may also be governed by the terms of a separate user license agreement. This software is for Windows and cannot be used for Macintosh. The supplied connecting cable is for the IC recorder ICD-SX750/SX850. You cannot connect other IC recorders. You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Table of Contents Checking the Contents of the Package........................................................... 4 Checking the Contents of the Package IC Recorder (1) NH-AAA (size AAA) rechargeable batteries (2) Stereo headphones* (1) USB connecting cable (1) Wind Screen (1) Application Software, Digital Voice Editor (CD-ROM) Application Software, Dragon NaturallySpeaking (DVD-ROM)* Cradle* (1) Stand (1) Carrying pouch (1) Telephone recording microphone* (1) Battery case (1) Operating Instructions

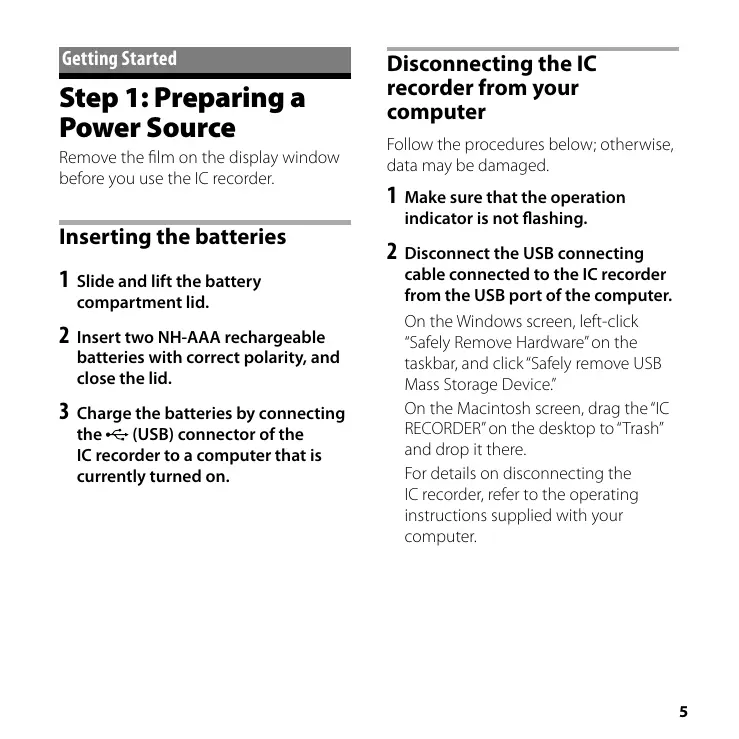

• The stereo headphones, the cradle, the microphone, and some of the software are supplied with some models in some regions only. Getting Started Step 1: Preparing a Power Source Remove the film on the display window before you use the IC recorder. Inserting the batteries 1 Slide and lift the battery compartment lid. 2 Insert two NH-AAA rechargeable batteries with correct polarity, and close the lid. 3 Charge the batteries by connecting the (USB) connector of the IC recorder to a computer that is currently turned on. Disconnecting the IC recorder from your computer Follow the procedures below; otherwise, data may be damaged. 1 Make sure that the operation indicator is not flashing. 2 Disconnect the USB connecting cable connected to the IC recorder from the USB port of the computer. On the Windows screen, left-click “Safely Remove Hardware” on the taskbar, and click “Safely remove USB Mass Storage Device.” On the Macintosh screen, drag the “IC RECORDER” on the desktop to “Trash” and drop it there. For details on disconnecting the IC recorder, refer to the operating instructions supplied with your computer.

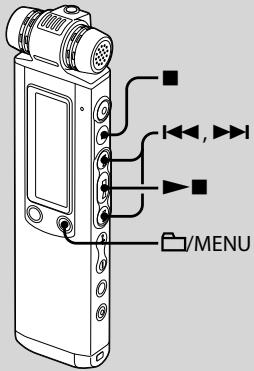

Step 2: Setting the Clock Setting the clock after recharging batteries 1 Press or to set the year, month, day, hour, and minute in sequence, then press .

/MENU “EXECUTING….” appears and the clock is set. 2 Press (stop) to return to the display of the stop mode. You need to set the clock to use the alarm function or record the date and time. Clock setting display appears when you insert batteries for the first time, or when you insert batteries after the IC recorder has been without batteries for a certain period of time, “SET DATE & TIME” appears, and then the year section flashes in the display window.

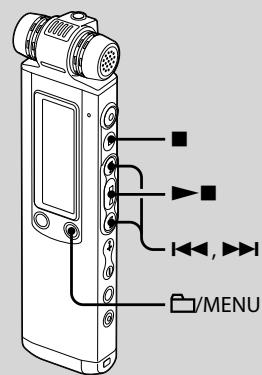

Step 3: Setting the Language to Be Used in the Display Window

/MENU You can select the language to be used for messages, menus, folder names, file names, etc. from 6 languages (European model)/11 languages (other models). the menu mode. MENU,” then press . 3 Press or to select “MENU LANGUAGE,” then press . 4 Press or to select the

1 Press and hold 2 Press or to select “DETAIL /MENU to enter The menu mode window will be displayed. language that you want to use, then press . You can select the following languages. European model : Deutsch (German), English, Español (Spanish), Français (French), Italiano (Italian), Pyccкий (Russian) Other models : Deutsch (German), English, Español (Spanish), Français (French), Italiano (Italian), Pyccкий (Russian), (Japanese), (Korean), (Chinese), (Chinese), (Thai) 5 Press (stop) to exit the menu mode.

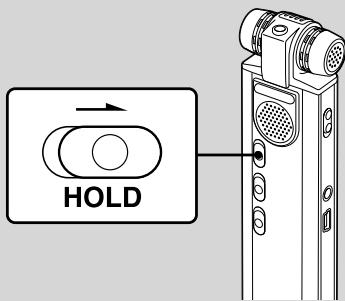

Turning the power off Slide the HOLD switch in the direction of the arrow in the stop mode. “HOLD” with the key mark and the current time is displayed, then “POWER OFF” is displayed. The IC recorder turns off within a few seconds. Turning the power on Slide the HOLD switch in the opposite direction from that of the arrow. The IC recorder turnes on, and an accessing animation is displayed. When you are not using the IC recorder, you can prevent the batteries from getting weak quickly by turning the power off.

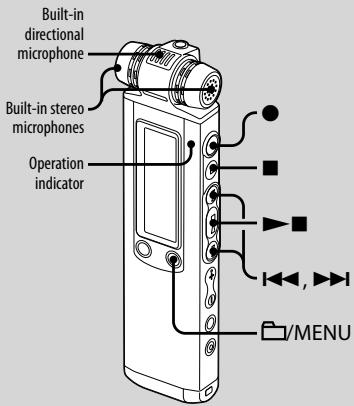

Tips When you are not going to use the IC recorder for a long time, we recommend to turn off the IC recorder. About 10 minutes after you have turned on the IC recorder and left it without doing anything, the display goes off automatically and the IC recorder turns off. (Press any button to show the display.) 2 Start recording. Recording Recording Messages Built-in directional microphone Built-in stereo microphones

/MENU Press (record/pause) in the stop mode. The operation indicator lights in red. (When “LED” is set to “OFF” in the menu, the operation indicator does not light.) You do not need to press and hold (record/pause) while recording. When you press and hold (record/ pause), the IC recorder enters the recording pause mode. The new message will be automatically recorded after the last recorded message. Speak into the built-in microphones. 3 Press (stop) to stop recording. The IC recorder stops at the beginning of the current recording. 1 Select a folder. Press /MENU to display the folder selection window. Press or to select the folder in which you want to record messages, then press .

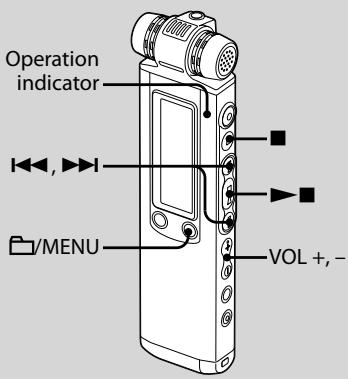

3 Press to start playback. Playback The operation indicator lights in green. (When “LED” is set to “OFF” in the menu, the operation indicator does not light.) Playing Back Messages 4 Press VOL + or – to adjust the volume. Operation indicator 5 Press (stop) to stop playback.

/MENU VOL +, – 1 Select a folder. Press /MENU. Press or to select the folder, then press . 2 Press or to select the message you want to play.

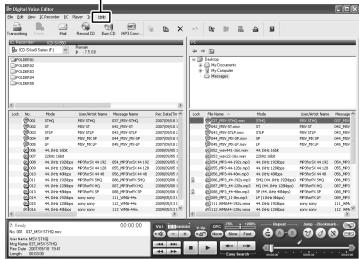

Utilizing Your Computer Using the Supplied Digital Voice Editor Software System requirements To use the supplied software, your computer must meet the operating system requirements and hardware environment described below. Operating Systems: Windows® 7 Ultimate Windows® 7 Professional Windows® 7 Home Premium Windows® 7 Home Basic Windows® 7 Starter Windows Vista® Ultimate Service Pack 1 or higher Windows Vista® Business Service Pack 1 or higher Windows Vista® Home Premium Service Pack 1 or higher Windows Vista® Home Basic Service Pack 1 or higher Windows® XP Media Center Edition 2005 Service Pack 3 or higher Windows® XP Media Center Edition 2004 Service Pack 3 or higher Windows® XP Media Center Edition Service Pack 3 or higher Windows® XP Professional Service Pack 3 or higher Windows® XP Home Edition Service Pack 3 or higher Windows® 2000 Professional Service Pack 4 or higher Pre-Installed Hardware Environment: Computer: IBM PC/AT or compatible CPU: 1 GHz Pentium® III processor or higher (for Windows® 7), 800 MHz Pentium® III processor or higher (for Windows Vista®), 266 MHz Pentium® II processor or higher (for Windows® XP or Windows® 2000) RAM: 1 GB or more (for Windows® 7 (32 bit version)), 2 GB or more (for Windows® 7 (64 bit version)), 512 MB or more (for Windows Vista®), 128 MB or more (for Windows® XP or Windows® 2000) Hard disk space: 300 MB or more CD-ROM drive (When creating an audio CD or data CD, a CD-R/RW drive is needed) Port: USB port Sound board: Sound cards compatible with any of the supported Microsoft® Windows® operating systems Display: High color (16 bit) or more and 800×480 dots or more Internet access for Voice Mail function and CD database service Note The following systems are not supported:

64 bit versions of Windows® XP Any operating systems other than the ones indicated above Personally constructed computers or operating systems Upgraded operating systems Multi-boot environment Multi-monitor environment For the latest version information and compatibility with your operating system, please access the support home page for the IC recorder: European areas: http://support.sony-europe.com/DNA Asian areas: http://www.sony-asia.com/support

Installing the software Install the Digital Voice Editor software on your computer’s hard disk. 1 Make sure that the IC recorder is not connected, then turn on your computer and start up Windows. 2 Insert the supplied CD-ROM into

the CD-ROM drive. The [IC Recorder Software Setup] menu starts up automatically and the [Welcome to IC Recorder Software Setup] window appears. If the [Welcome to IC Recorder Software Setup] menu does not start up, open the [DVE] folder in the [Setup] folder on the CD-ROM, then double click [setup.exe]. 3 Make sure that you accept the terms of the license agreement, select [I accept the terms of the license agreement], then click [Next]. The [Software Install] window appears. 4 Select [Digital Voice Editor], then click [Install]. Follow the instructions on the screen to make the settings required for installation. If you have already installed a previous version of the Digital Voice Editor or any version of the “Memory Stick Voice Editor” The dialog box used to uninstall a previous version of the Digital Voice Editor or any version of the “Memory Stick Voice Editor” will be displayed. Follow the instructions on the screen to uninstall the software. The message files are not removed. Note If any illegal data modification is attempted, or a file is used for other than private purposes, the file may become unplayable or the Digital Voice Editor may become inoperable. When the dialog box used to select how to save files is displayed When you save files recorded using the IC recorder onto the computer named above, you can select whether you wish to convert them into the MP3 format. Select the desired setting. Referring to the help files For details on each operation, refer to the help files. Help When the dialog box used to select an ICD-P series is displayed Select [Yes] to edit messages recorded using ICD-P series. When the dialog box used to select the language to be used for the help is displayed Click the language you want to use for the help. 5 When the [Ready to Install the Program] window appears, click [Install]. The installation starts. 6 When the [InstallShield Wizard Complete] window appears, select [Yes, I want to restart my computer now], then click [Finish]. The computer will be restarted. When the computer has been restarted, installation is completed.

Additional Information On noise Precautions

Operate the unit only on 2.4 V or 3.0 V DC. Use two NH-AAA rechargeable batteries or two LR03 (size AAA) alkaline batteries. On safety

Do not operate the unit while driving, cycling or operating any motorized vehicle. On handling

Do not leave the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock. Should any solid object or liquid fall into the unit, remove the batteries and have the unit checked by qualified personnel before operating it any further.

Noise may be heard when the unit is placed near an AC power source, a fluorescent lamp or a mobile phone during recording or playback. Noise may be recorded when an object, such as your finger, etc., rubs or scratches the unit during recording. On maintenance

To clean the exterior, use a soft cloth slightly moistened in water. Do not use alcohol, benzine or thinner. If you have any questions or problems concerning your unit, please consult your nearest Sony dealer. Backup recommendations To avoid potential risk of data loss caused by accidental operation or malfunction of the IC recorder, we recommend that you save a backup copy of your recorded messages on a tape recorder or to a computer, etc. Français Piles rechargeables NH-AAA (AAA) (2) Windows® 2000 Professional Service Pack 4 o superior Pre-instalado 6 Wanneer het venster [InstallShield Wizard Complete] verschijnt, selecteert u [Yes, I want to restart my computer now] en klikt u op [Finish].
