Product type	Multifunction food processor
Brand	Black & Decker
Model	FX775
Voltage	220-240 V
Frequency	50/60 Hz
Power	750 W
Maximum preparation capacity (per batch)	1200 ml per batch
Functions	Chopper, emulsion disc, slicing and grating blade, citrus juicer, kneading blade, blender, grinder
Safety	Double insulation, thermal cut-out, safety switch
Care and cleaning	Removable parts washable in warm soapy water; wipe base with damp cloth
Warranty	2 years
Bowl material	Not specified in the manual (plastic likely)
Number of included accessories	16 pieces (chopper, blades, discs, blender, grinder, etc.)
Repairability	Spare parts available through authorized repairer
Country of manufacture	Not specified

Frequently Asked Questions - FX775 BLACK & DECKER

How long can I use the food processor continuously?

Do not use for more than one minute without stopping. Let it cool for 10 minutes between cycles. After 5 cycles, let it cool for 90 minutes.

What should I do if the appliance stops during use?

It may be the thermal cut-out. Unplug the appliance and let it cool for about 15 minutes before reusing.

Can I chop hard ingredients like chocolate or cheese?

Yes, but in small quantities (≤100 g for chocolate, ≤200 g for cheese) and using pulses to avoid overheating.

How to clean the blades and accessories?

Wash removable parts in warm soapy water, rinse and dry. Do not immerse the motor base in water.

What accessories are provided with the FX775?

Chopper, emulsion disc, thick/thin slicing blade, grating blade, blade holder, citrus juicer, blender (jug + blade), coffee grinder, kneading blade.

Can I use the food processor without the lid?

No, the bowl lid must be properly locked to activate the safety switch.

Can the food processor be used to knead bread dough?

Yes, with the provided kneading blade, for flour quantities ≤300 g and eggs ≤5 units. Standard duration 20 seconds.

How to change the slicing blade?

Unplug the appliance, remove the lid, then insert the desired blade onto the blade holder before placing it onto the drive.

Can the blender crush ice?

The manual does not specify. It is designed for liquid and semi-liquid preparations. Avoid adding ice cubes without precautions.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by an authorized BLACK+DECKER repairer.

USER MANUAL FX775 BLACK & DECKER

BLACK+ DECKER™

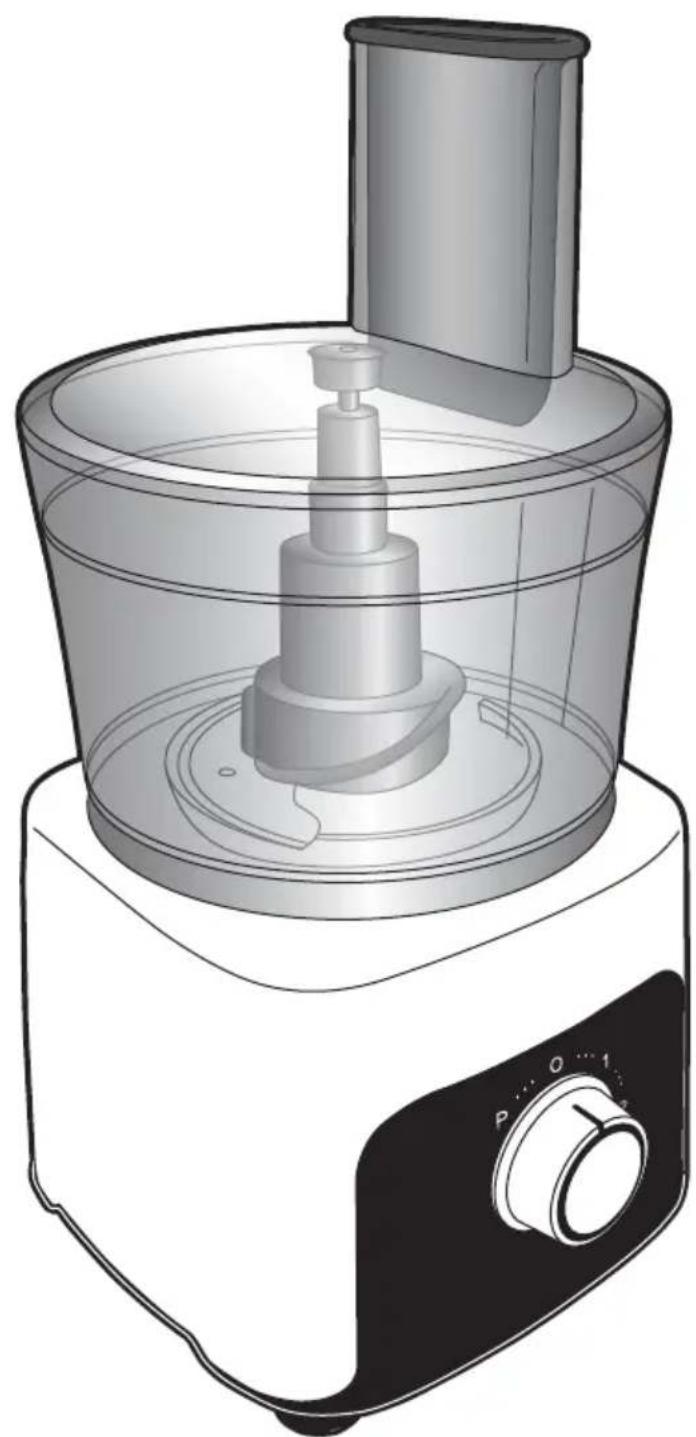

Illustration of a kitchen blender with a handle and control knob (no text or symbols)

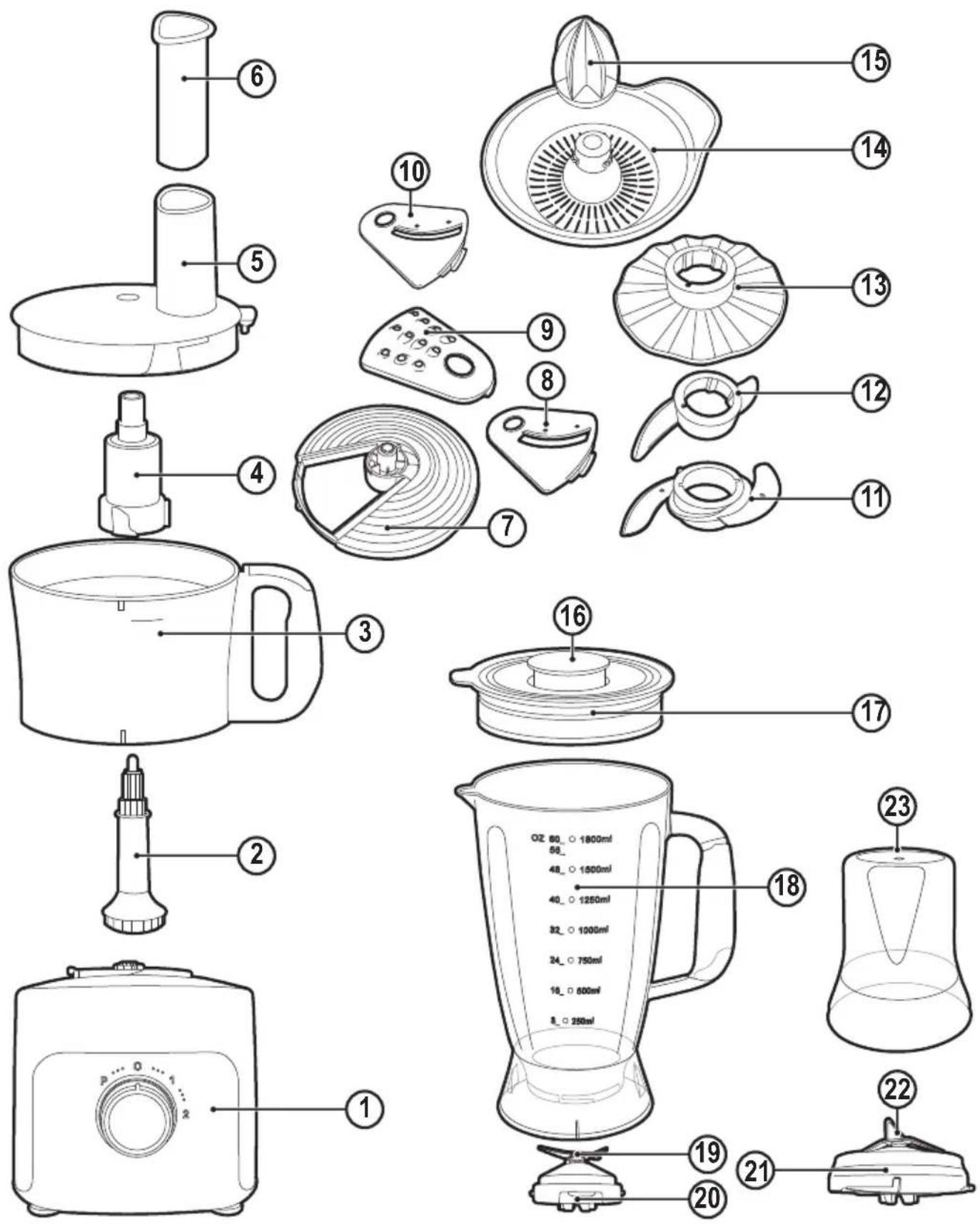

Exploded view diagram of a kitchen appliance with numbered parts for identification

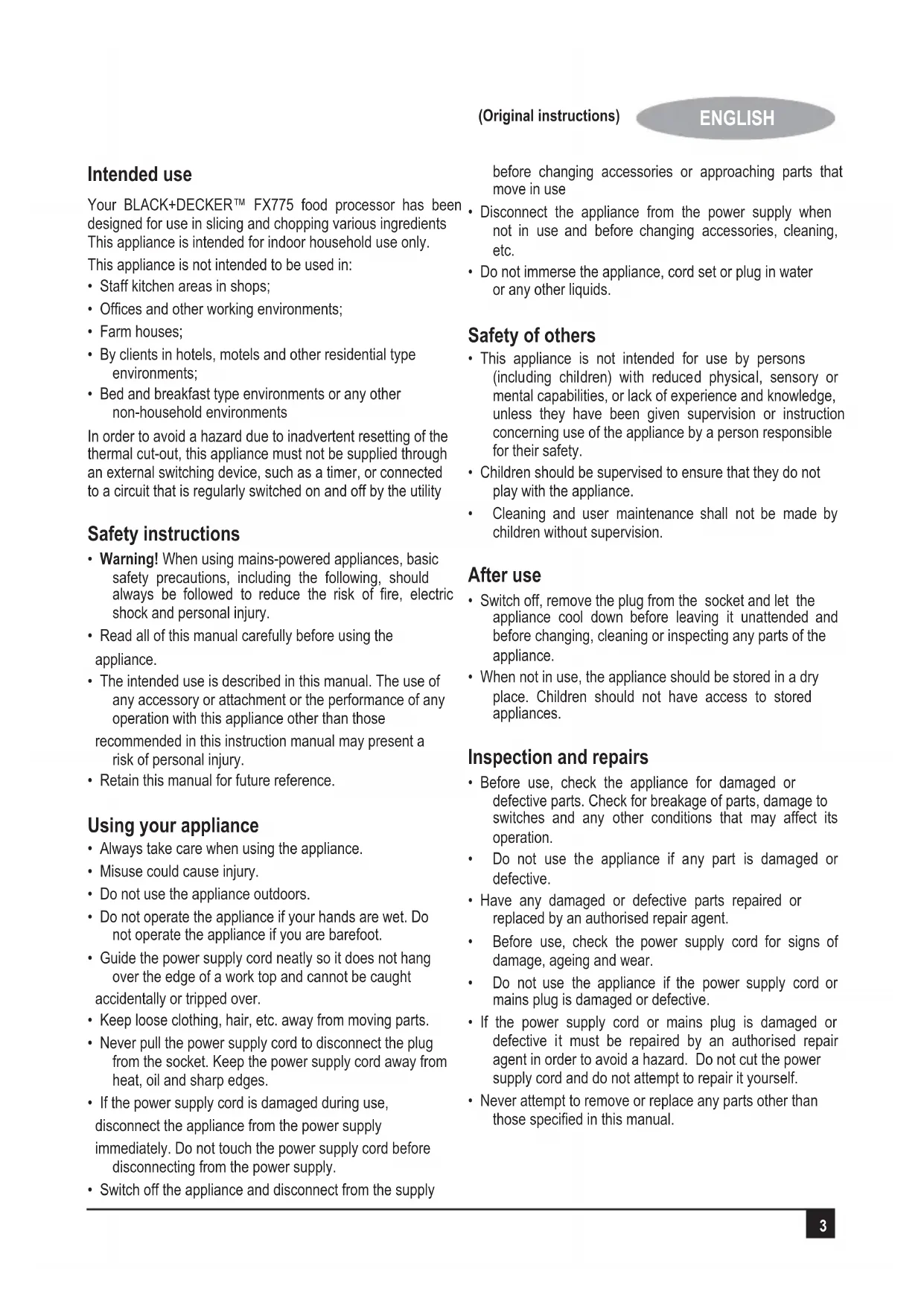

Intended use

Your BLACK+DECKER™ FX775 food processor has been designed for use in slicing and chopping various ingredients. This appliance is intended for indoor household use only.

This appliance is not intended to be used in:

• Staff kitchen areas in shops;
• Offices and other working environments;
• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments or any other non-household environments

In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility

Safety instructions

• Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury.
• Read all of this manual carefully before using the appliance.
• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.

Using your appliance

• Always take care when using the appliance.
- Misuse could cause injury.
- Do not use the appliance outdoors.
- Do not operate the appliance if your hands are wet. Do not operate the appliance if you are barefoot.
- Guide the power supply cord neatly so it does not hang over the edge of a work top and cannot be caught accidentally or tripped over.

- Keep loose clothing, hair, etc. away from moving parts.

- Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.

- If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.

- Switch off the appliance and disconnect from the supply

before changing accessories or approaching parts that move in use

• Disconnect the appliance from the power supply when not in use and before changing accessories, cleaning, etc.
• Do not immerse the appliance, cord set or plug in water or any other liquids.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.

After use

• Switch off, remove the plug from the socket and let the appliance cool down before leaving it unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Before use, check the power supply cord for signs of damage, ageing and wear.
• Do not use the appliance if the power supply cord or mains plug is damaged or defective.
• If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.
• Never attempt to remove or replace any parts other than those specified in this manual.

Additional safety instructions for food processors

Warning! Do not place near a hot Gas or electric oven.

• Do not Immerse Food Processor, Cord or Plug in any liquid.
• Allow all moving parts of the appliance to come to a stop before approaching.
  • Always use on a clean work surface and clean the surface thoroughly after use.
• Allow the appliance to cool before storing.
• Keep hands, long hair and loose clothing away from the beaters.
  • Always take care when handling the sharp cutting blades when emptying the bowl and during cleaning.

Electrical safety

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.
• This appliance includes a safety switch which prevents operation unless the accessories are securely installed.
• This appliance incorporates a protective device against high temperatures. If the temperature becomes too high, the unit will turn off automatically and will resume operation when the motor has cooled sufficiently (after about 15 minutes).
• Do not operate the appliance for more than a minute at a stretch.
• If operation is not finished within 1 minute, turn off the machine and let it cool for 10 minutes before the next round of operation. If more than 5 rounds of operation are required, cool the machine for 90 minutes to room temperature before the next 5 rounds. This can lengthen lifespan of the machine.

Using an extension cable

- Always use an approved extension cable suitable for the power input of this tool (see technical data). Before use, inspect the extension cable for signs of damage, wear and ageing. Replace the extension cable if damaged or defective. When using a cable reel, always unwind the cable completely.

Features

1. Motor base

2. Driver

3. Processing bowl

4. Blade adapter
5. Bowl cover
6. Pusher
7. Blade holder
8. Coarse slicing blade
9. Shredding blade
10. Fine slicing blade
11. Chopper
12. Kneading blade
13. Emulsifying disc
14. Citrus juicing plate
15. Citrus juicing head
16. Blender measuring cup
17. Blender jar cover
18. Blender jar
19. Blender blade
20. Transmission head
21. Grinder base
22. Grinding blade
23. Grinding cup

Assembly

Warning! Before performing any assembly or maintenance, switch off and remove from power supply.

Use

Warning! Let the appliance work at its own pace. Do not overload.

• Clean the processing bowl, bowl cover, pusher, blade holder, cutting blades, chopper, kneading blade, emulsifying disc, citrus juicing head and plate and blender assembly before use.
• Place the appliance on a flat, steady surface.
• Ensure that the power cord is unplugged from the power outlet and the speed selector is set to the "0" position.

Chopper assembly

• Position the driver (2) on the motor base (1).
• Position the processing bowl (3) into the driver (2) and turn clockwise to seat firmly on the motor base (1).
• Place the blade adaptor (4) onto the driver (2).

• Place the chopper (11) onto the blade adaptor (4).

• Place the bowl cover (5) onto the bowl (3), turn clockwise until the cover interlocks on thebowl.

• Place the pusher (6) into feeding chute located on the bowl cover

Processed Food Measurement per batch
Chocolate ≤100g
Cheese ≤200g
meat ≤500g
Tea or Spice 50 ~ 100g
Fruit & Vegetable 1000 ~ 300g
Onion	≤500g

Note: Always keep the chopper inside the bowl before feeding food.

Use the 'pulse' function several times to avoid cutting too fine. Do not run for too long while cutting hard cheese or chocolate, otherwise these materials will overheat and begin to melt.

Standard chopping period: 30 - 60 sec.

Emulsifying disc assembly

• Position the driver (2) on the motor base (1).
• Position the processing bowl (3) into the driver (2) and turn clockwise to seat firmly on the motor base (1).
• Place the blade adaptor (4) onto the driver (2).
• Place emulsifying disc (13) onto the blade adaptor (4).
• Place the cover (5) on bowl (3), turn clockwise until the cover locks onto the bowl.
• Place the pusher (6) into the feeding chute.

Processed Food	Measurement per batch	Time per batch
Egg	2 ~ 5pcs	30 ~ 70sec
Cheese	125 ~ 350ml	20sec

Note: Emulsifying disc can be used to mix cheese and egg, to make mayonnaise and pudding rapidly.

Warning! Do not use emulsifying disc to knead flour.

Slicing and shredding blade assembly

• Position the driver (2) on the motor base (1).
• Position processing bowl (3) into the driver (2) and turn clockwise to seat firmly on the motor base (1).
  • Install desired blade onto the disc holder (8), (9) or (10).

• Place the blade holder (7) onto the driver (4).

• Place the cover (5) on the bowl (3).

• Turn the cover (5) clockwise until cover interlocks on the bowl.
• Put food into the feeding chute.
• Use the pusher (6) to push the food down for processing.

Note: Choose the desired blade according to the processed food and desired shape of food.

Push softly when feeding food.

Pre-cut the food into smaller pieces according to the diameter of the feeding tube.

Feed gradually for better effect.

When cutting soft food, choose a lower speed to avoid the food liquifying.

If large quantities of food need to be cut, please cut it for several batches.

1200ml for one batch.

Citrus juicer assembly

• Position the driver (2) on the motor base (1).
• Position the processing bowl (3) into the driver and turn clockwise to seat firmly on the motor base (1).
• Place the citrus juicing head (15) into the citrus juicing plate (14) and place onto the bowl (3) and turn 30 degrees clockwise.

Note: Lower speed should be chosen when using the citrus juicer.

Kneading blade assembly

• Position driver (2) on motor base (1).
• Position processing bowl (3) into the driver (2) and turn clockwise to seat firmly on motor base (1).
• Place blade adaptor (4) onto the driver (2).
• Place kneading blade (12) onto the blade adaptor (4).
• Place the cover (5) onto the bowl (3), turn clockwise until the cover interlocks on the bowl.
• Place pusher (6) into feeding chute.

Processed Food Measurement per batch
Flour / Soft Cheese	≤300g
Egg	≤5pcs

Note: Always attach kneading blade in the bowl before feeding in food.

Standard kneading period: 20 sec.

Blender assembly

• Make sure the blender blade (19) and transmission head are fixed tightly to the base of blender jar (18).
• Put required food into the jar (18).
• Install blender measuring cup (16) and blender jar cover (17) properly.
• Put blender jar (18) onto the motor base (1) vertically, and then rotate the jar clockwise to lock it into place.

Grinder assembly

• Put the motor base on a flat and dry surface.
• Turn anticlockwise to remove the grinder base (21) from the grinder cup (23), put required coffee beans into the cup, then replace the the grinder base and turn clockwise to secure them firmly.
• Put the complete grinder assembly onto motor base (1), turn clockwise to secure firmly.
• Make sure that the switch is in "0" position, plug in the motor base and use pulse 'P' 1 - 2 times for pre-grinding, then choose '1' or '2' speed for finished grinding.

Cookery tips

• Refrigerated ingredients, such as butter and eggs, should be at room temperature before processing begins. Set these ingredients out ahead of time.
• To eliminate the possibility of egg shells in your recipe, break eggs into separate container first, then add to the mixture.
• Be careful that you only mix/blend mixtures as recommended in your recipe. Fold dry ingredients until they are just combined using the low speed setting.
• Climatic conditions. Seasonal temperature changes, temperature of ingredients and their texture variation all play a part in the required mixing time and the results achieved.
• Always start processing at lower speed. Gradually increase to the recommended speed as stated in the recipe.

Cleaning and maintenance

Warning! Before performing any maintenance:

• Switch off and disconnect from the mains supply.
• Wait for the appliance to completely cool down.
• If necessary scrape excess food particles from the tools.

Warning! The motor base must not be immersed in water or other liquid.

• Wipe over the outside surface of the base with a damp cloth and polish with a soft dry cloth.
• Wipe any excess food particles from the power cord.
• Immerse the processing bowl, bowl cover, pusher, blade holder, cutting blades, chopper, kneading blade, emulsifying disc, citrus juicing head and plate and blender assembly in warm soapy water for complete cleaning. Then rinse under running water and wipe dry.

Mains plug replacement

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in the new plug.
• Connect the blue lead to the neutral terminal.
• If the product is class I (earthed), connect the green/yellow lead to the earth terminal

Note! If your product is class II double insulated (only 2 wires in the cord set), no connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs. Any replacement fuse must be of the same rating as the original fuse supplied with the product.

Warning! The above section on mains plug replacement is for authorized service centre persons.

Protecting the environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.

- BLACK+DECKER provides a facility for recycling BLACK+DECKER products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

- You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual. Alternatively, a list of authorized BLACK+DECKER repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.

Technical data

FX775
Voltage 220	-240V
Frequency 50/60Hz
Power 750W

Warranty

BLACK+DECKER is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

If a BLACK+DECKER product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, BLACK+DECKER warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;

The product has been subjected to misuse or neglect;

The product has sustained damage through foreign objects, substances or accidents;

Repairs have been attempted by persons other than authorised repair agents or BLACK+DECKER service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local BLACK+DECKER office at the address indicated in this manual.

Alternatively, a list of authorised BLACK+DECKER repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

Usage prévu

Names & Addresses for BLACK + DECKER Service Concessionaries

COUNTRY NAME ADDRESS TELEPHONE NO. EMAIL
BAHRAIN	Alfouz Services Co. WLL	P.O. Box 26562, Tubli, Manama	[phone] / 17879987	[e-mail]
BAHRAIN	Kewalram & Sons Co. WLL	P.O. Box 84, Manama,Kingdom of Bahrain	(00973) 1721311017210617	[e-mail]@batelco.com.bh
EGYPT	Anasia Egypt for TradingS.A.E. (Mentrade)	P.O. Box 2443, 9, Mostafa Refaat Street,Sheraton Heliopolis 11361, Cairo	[phone]Hotline19311	[e-mail]@anasia.com
JORDAN	Mega Hardware -(Sami Bashiti & Partners Co.)	93 King Abdullah II St.,P.O.BOX 3005 AMMAN 11953	(009626) 5349098	[e-mail]
KSA	Fawaz Ebrahim Al ZayaniTrading Est.	P.O. Box 76026, Al Raka : 31952	(009663) 8140914	[e-mail]
KSA	United Trading & Marketing Co;(U-MARK)	#15, Khamis Mushait 62411, Abha,Military city road – Near City maxand Ghunaim Market	(00966) 172500378	[e-mail]
KSA	United Trading & Marketing Co;(U-MARK)	#116, Prince Fahad Ibn IbrahimAl Saud Street - Near Nawan Hotel	(00966) 11473-3258	[e-mail]
KSA	United Trading & Marketing Co;(U-MARK)	Ash Shiqah, Al Hamr, Buraydah52371 Al Hamr Road near JaryatAl Umran & Khub Ath Thinayan	(00966) 16-3694969	[e-mail]
KSA	United Trading & Marketing Co;(U-MARK)	King Abdulaziz St, Al AziziyahDammam 32424 near Dat ASSihha Medical Center	(00966) 138179319138172654	[e-mail]
KSA	United Trading & Marketing Co;(U-MARK)	Jabal Ar-Rubabah, Misrifah,Jeddah 23331 Falastin Road NearNew Jeddah National Hospital	(00966) 126612552	[e-mail]
KSA	United Trading & Marketing Co; (U-MARK)	#356, Al Talah Medina 42322	(00966) 148423339	[e-mail]
KUWAIT	Al Omar Technical Co.	P.O. Box 4062, Safat 13041, Kuwait	[phone] / 24840039	[e-mail]
KUWAIT	The Sultan Centre	P.O. Box 26567-13126 Safat, Kuwait	[phone]Etn. 432	[e-mail]@sultan-center.com
LEBANON	Aces Service Centre(Est. F.A.Ketaneh SA)	P.O. Box 90-102, Nahr El Mot,Seaside Highway, PharaonBuilding, Beirut	(009611) 898989 / 262626	[e-mail]@Aces.com.lb
LIBYA	Homeworld Co.	Senidal St. Amr Ibn Elaas Road,Benghazi, Libya (P.O. Box 18182 Salmany)	(0021861) 9094183ext. 103	[e-mail]
LIBYA	North Africa Trading(El Ghoul Brothers)	P.O. Box 348, 7 OctoberStreet 11, Benghazi	(00218061) 3383994	[e-mail]
LIBYA	North Africa Trading(El Ghoul Brothers)	AlBarniq Dewalt Center,Mokhazin-elsukar St. ElFallah, Tripoli	(00218021) 3606430	[e-mail]@gmail.com
MAURITIUS	The Brandhouse Ltd.	Rogers Industrial Park 1, RicheTerre, Mauritius	(00230) 20694502071700	claims([e-mail]@gmail.com
MOROCCO	Electronia	Bd, Sidi Abdelrahman- Gr ceintureresidence Rio - Ain Diab - 20050.Casa Blanca	(00212) 618532680	[e-mail]
OMAN	Oman Marketing & Service Co.(Omasco)	P.O. Box 2734,Behind HondaShowroom,Wattayah,Oman	(00968) 2456023224560255	[e-mail]@omasco.com.om
OMAN	Oman Marketing & Service Co. (Omasco)	Al Ohi, Sohar,Oman	[phone]	[e-mail]
OMAN	Oman Marketing & Service Co. (Omasco)	Sanaya, Salalah,Oman	[phone]	[e-mail]
PAKISTAN	Ammar Service & Spares	Office No 6068 6th Floor CentralPlaza Behind Gul Plaza MarstonRoad.KARACHI	(009221) 32775252	[e-mail]
QATAR	Al Muftah Service Centre	Al Wakrah Road, P.O. Box 875,Doha,Qatar	(00974) 4465088044650110	[e-mail]@almuftah.com
SRI LANKA	Delmege Forsyth & Co. Ltd	Delmege Forsyth & Co. LtdLifestyle Cluster 101, VinayalankaraMawatha Colombo 10 Sri Lanka	(009477) 2211111	[e-mail]@delmege.com
TUNISIA	Societe Tunisienne DeMaintenance(STM)	RUE DE LA.PHYSIQUE. NOUVELLEZONE INDUSTRIELLE BEN AROUS.2013 BEN AROUS, TUNISIA.	(0021679) 389687	[e-mail]
UAE	Light House Electrical	P.O. Box 120, Abu Dhabi	(009712) 6726131	[e-mail]
UAE	Light House Electrical	P.O. Box 120, Abu Dhabi	(009712) 5548315	[e-mail]
UAE	Black & Decker (Overseas) GmbH	P.O. Box 5420, Dubai	(009714) 8127400 / 8127406	[e-mail]
UAE	Zillion Equipment and	P.O. Box 10584, Ras Al Khaimah	(009717) 2277095	[e-mail]
UAE	Zillion Equipment and Spare PartsTrading LLC	P.O. Box 19740, Opp. Bin Sadal /Trimix Redymix Sanaiya, Al Ain	(009713) 7216690	[e-mail]
YEMEN	Middle East Trading Co. (METCO)	5th Flr.Hayel Saeed AnamBldg. Al-Mugamma St. Taiz, Yemen	(009674) 213455	[e-mail]@metcotrading.com
YEMEN	Middle East Trading Co. (METCO)	Mualla Dakka, Aden	(009672) 222670	[e-mail]@metcotrading.com
YEMEN	Middle East Trading Co. (METCO)	Hayel st.,Sana'a,Yemen	(009671) 204201	[e-mail]@metcotrading.com

WARRANTY REGISTRATION CARD

YOUR NAME/ VOTRE NOM/الإسم

YOUR ADDRESS/ VOTRE ADRESSE/العنوان.
