| Product Type | Wall-mounted Range Hood |
| Brand | Wolf |
| Model | PW482418 |
| Usage | Ordinary ventilation only (do not exhaust dangerous or explosive vapors) |
| Controls | 3 recessed buttons: halogen light (left), infrared lamps (center, optional), variable speed motor (right) |
| Sentry Heat Detection | Automatically activates the motor or increases its speed above 95°C; returns to previous setting below 85°C |
| Halogen Lighting | GU10 bulbs 50 W max, replacement with provided suction cup |
| Infrared Lamps (optional) | E27 R125 bulbs 260 W max (only on models of depth 686 mm) |
| Filters | Removable, dishwasher safe, with grease recovery cups |
| Hood Material | Stainless steel |
| Stainless Steel Cleaning | Non-abrasive cleaner, soft lint-free cloth, wipe in the direction of the grain |
| Button Cleaning | Damp cloth, mild soap or aerosol degreaser; do not spray directly |
| Fire Safety | Never leave cooking unattended on high flame; clean fans and filters regularly |
| Exhaust | Must be exhausted to the outside with metal ducts |
| Installation | Must be carried out by a qualified professional, in accordance with local standards |
| Warranty (parts and labor) | 2 years total, 5 years limited on certain parts (tray, hinges, cups, electronic boards, heating elements) |
| After-sales Service | Service provider approved by the Wolf factory |
| Rating Plate | Inside the hood (model reference and serial number) |
| Supplied Tools | Suction cup device for replacing halogen bulbs |
| Child Compatibility | Use by children aged 8 and over with supervision; cleaning and maintenance by children not allowed without supervision |
Frequently Asked Questions - PW482418 WOLF
User questions about PW482418 WOLF
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Basket in PDF format for free! Find your manual PW482418 - WOLF and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PW482418 by WOLF.
USER MANUAL PW482418 WOLF
GUIDA ALL'USO E ALLA MANUTENZIONE


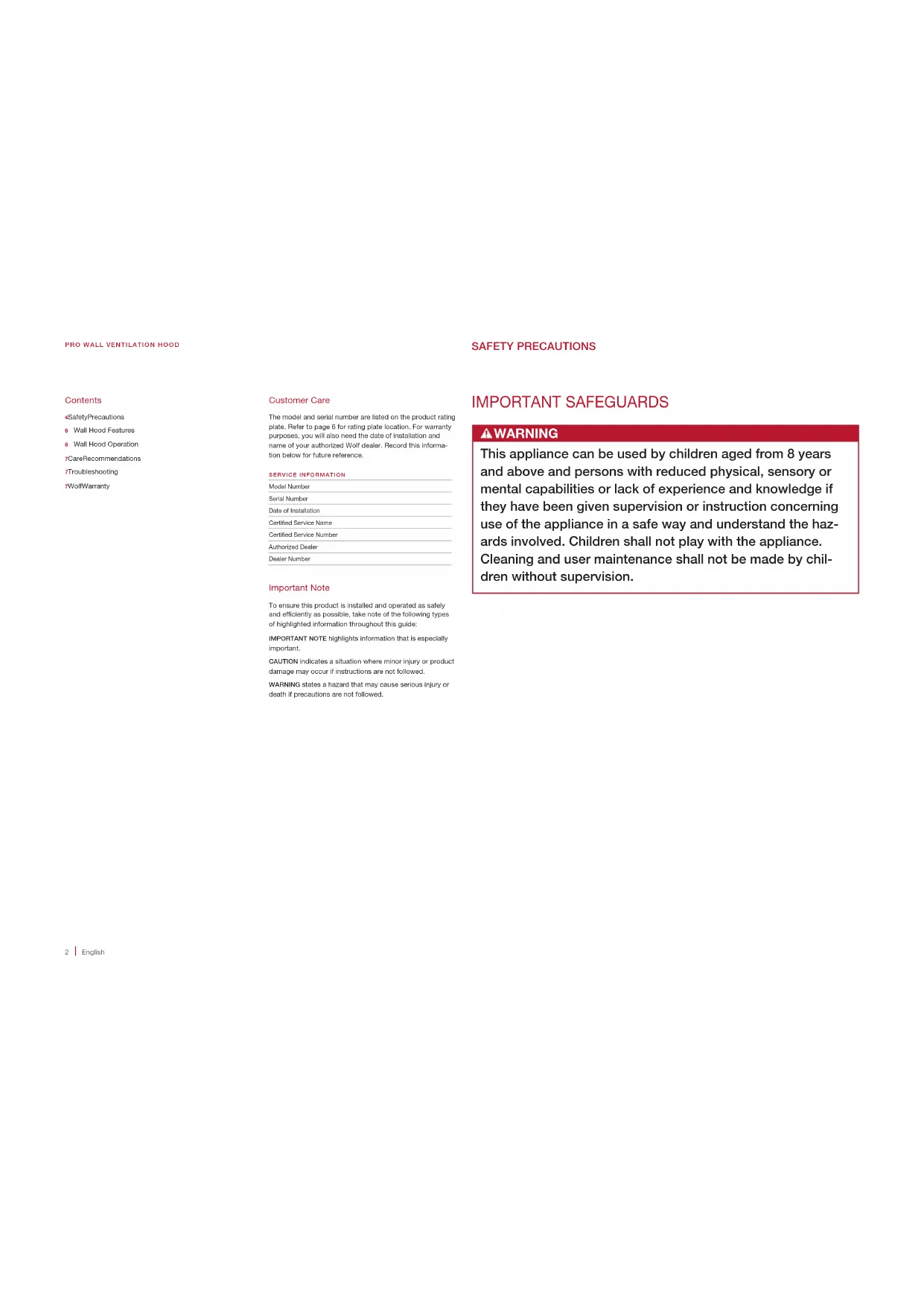

SAFETY PRECAUTIONS
