USER MANUAL DS 12DVF3 METABO

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

DS 14DVF3 DS 18DVF3 Model Cordless Driver Drill Modèle Perceuse-visseuse sans fil Modelo Taladro atornillador a bateríaDesigned for operating in USA & Canada only.When this product is used in areas other than the USA & Canada,we cannot guarantee the product quality and performance.

REMOVAL AND INSTALLATION METHOD

• OF BATTERY p. 12
• CHARGING METHOD p. 12
• BEFORE USE p. 13
• OPERATION p. 13

THE SCOPE AND SUGGESTIONS

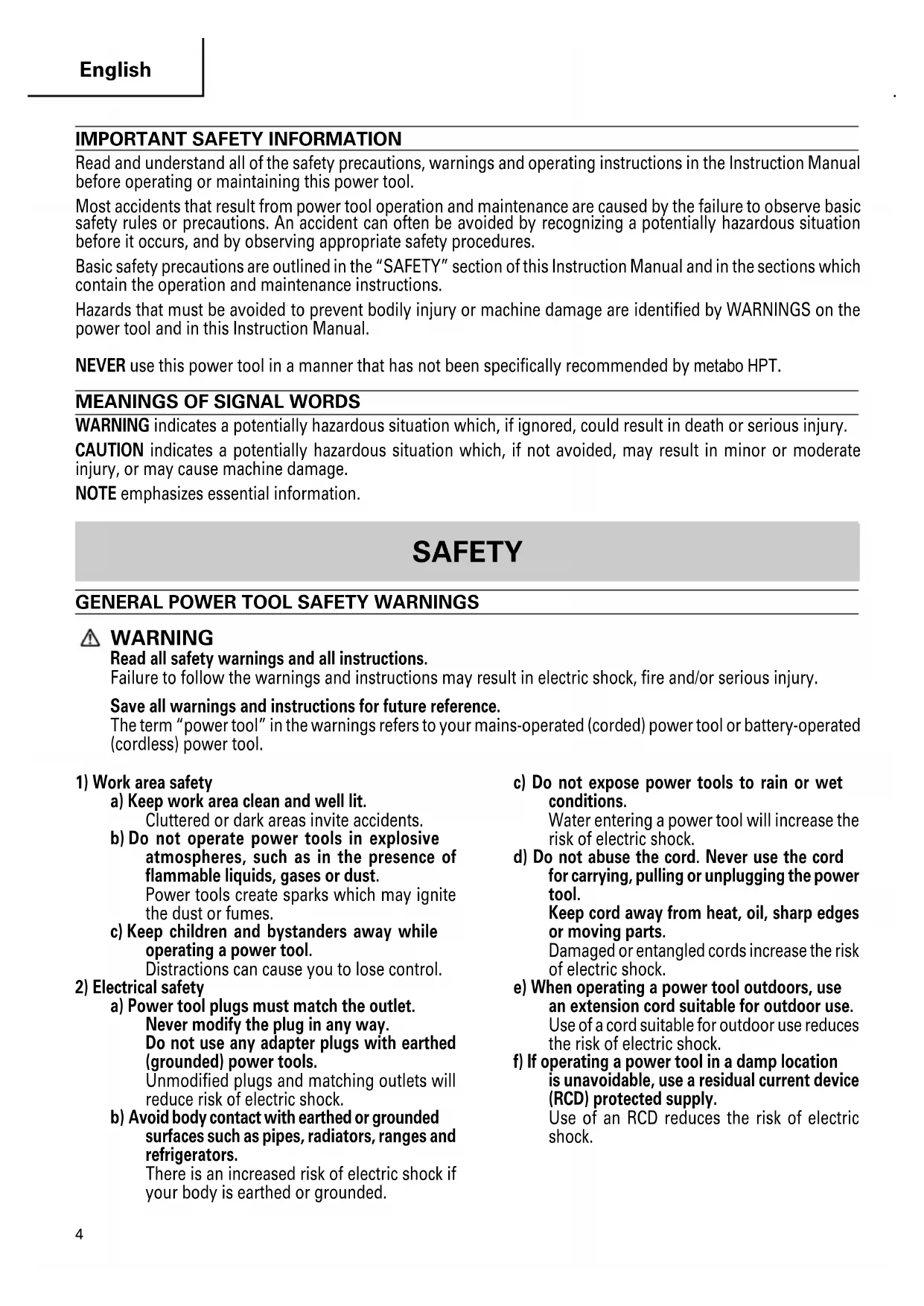

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifically recommended by metabo HPT.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situation which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 01Eng_DS12DVF3_US 4/9/13, 13:504English

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. –WARNING– To reduce the risk of injury, user must read instruction manual. 01Eng_DS12DVF3_US 4/9/13, 13:505English

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Wear ear protectors when impact drilling.

Exposure to noise can cause hearing loss.

2. Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal injury.

3. Hold power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

4. Hold power tool by insulated gripping surfaces,

when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

5. NEVER place hands or other body parts near the

drill bit or chuck during operation. Hold the drill by its handle only.

6. Because the cordless driver drill operates by

battery power, be aware of the fact that it can begin to operate at any time.

7. When working at elevated locations, clear the area

of all other people and be aware of conditions below you.

8. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the tool’s moving parts.

9. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.

11. NEVER use a power tool for applications other

than those specified. NEVER use a power tool for applications other than those specified in the Instruction Manual.

12. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

13. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

14. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

15. Blades and accessories must be securely mounted

to the tool. Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

16. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a metabo HPT authorized service center.

17. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

18. Do not wipe plastic parts with solvent. Solvents

such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

19. ALWAYS wear eye protection that meets the

20. Definitions for symbols used on this tool.

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and

operating instructions for battery charger Model UC18YG.

2. Before using battery charger, read all instructions

and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

To reduce risk of injury, charge metabo HPT rechargeable battery types EB1214S, EB1414S, EB1814SL and EB1820L. Other type of batteries may burst causing personal injury and damage.

4. Do not expose battery charger to rain or snow.

5. Use of an attachment not recommended or sold

by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.

6. To reduce risk of damage to electric plug and cord,

pull by plug when disconnecting battery charger.

7. Make sure cord is located so that it will not be

stepped on, tripped over, or otherwise subjected to damage or stress.

8. An extension cord should not be used unless

absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must be used make sure: a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger: b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for AC ampere rating of battery charger as specified in Table

AC Input Rating Amperes* AWG Size of Cord Equal to or but less Length of Cord, Feet (Meter) greater than than 25 (7.5) 50 (15) 100 (30) 150 (45)

If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating–for example:

9. Do not operate battery charger with damaged cord

or plug-replace them immediately.

10. Do not operate battery charger if it has received a

sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.

11. Do not disassemble battery charger; take it to a

qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.

12. To reduce risk of electric shock, unplug charger

from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

CHARGER You must charge the battery before you can use the cordless driver drill. Before using the model UC18YG battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual. REMEMBER: USE ONLY metabo HPT BATTERY TYPES EB1214S, EB1414S, EB1814SL, AND EB1820L. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY! 01Eng_DS12DVF3_US 4/9/13, 13:507English

Follow these instructions to avoid the risk of injury:

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.

2. NEVER incinerate the battery, even if it is

damaged or is completely worn out. The battery can explode in a fire.

3. NEVER short-circuit the battery.

4. NEVER insert any objects into the battery

charger’s air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away

from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below

50°F (10°C) or above 104°F (40°C).

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the

battery or the battery charger.

11. NEVER store the battery or battery charger in

places where the temperature may reach or exceed 104°F (40°C).

12. ALWAYS operate charger on standard household

electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

13. ALWAYS wait at least 15 minutes between

charges to avoid overheating the charger.

14. ALWAYS disconnect the power cord from its

receptacle when the charger is not in use.

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

SAVE THESE INSTRUCTIONS

FUNCTIONAL DESCRIPTION NOTE:The information contained in this Instruction Manual is designed to assist you in the safe operation andmaintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.Some illustrations in this Instruction Manual may show details or attachments that differ from those on yourown power tool.MODELDS12DVF3: with charger and caseDS14DVF3: with charger and caseDS18DVF3: with charger and caseNAME OF PARTS1. Cordless Driver Drill<DS12DVF3><DS14DVF3>Switch TriggerClutch DialKeyless ChuckShift KnobHandlePush ButtonNameplateHousing

2. Battery Charger (UC18YG)

1. Cordless Driver Drill

Model UC18YG Input power source Single phase: AC 120 V 60 Hz Charging time Approx. 30 min...... EB1214S, EB1414S, EB1814SL (At a temperature of 68°F (20°C)) Approx. 50 min...... EB1820L Charging voltage DC 7.2 – 18 V Charging current DC 2.6 A Weight 0.7 lbs. (0.3 kg)

Fig. 3 Latch Push Handle Pull out Insert Battery Latch Handle Insert Battery Push Pull out CHARGING METHOD NOTE: Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.

The cord is not damaged.

Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Insert the plug of battery charger into the

Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery to the battery charger.

Insert the battery into the battery charger as shown in Fig. 4. Make sure it contacts the bottom of the battery charger. Pilot Lamp Fig. 4 Battery (EB1214S) Battery (EB1414S) Battery (EB1814SL or EB1820L) APPLICATIONS

Use as a drill Drilling of soft steel, wood, plastic and aluminum materials.

Use as a screwdriver Tightening and loosening of machine screws, wood screws and tapping screws.

REMOVAL AND INSTALLATION METHOD

How to install the battery. Align the battery with the groove in tool handle and slip it into place. Always insert it all the way until it locks in place with a little click, If not, it may accidentally fall out of the tool, causing injury to you or someone around you (Fig. 3).

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light on. NOTE: If the pilot lamp dose not light, pull out the plug from the receptacle and check if the battery is properly mounted.

In approx. 30 – 50 min., when the battery is fully charged, the pilot lamp will go out. NOTE: The battery charging time becomes longer when a temperature is low or the voltage of the power source is too low. When the pilot lamp does not go off even if more than four hour has passed after start of the charging, stop the charging and contact your metabo HPT AUTHORIZED SERVICE CENTER.

4. Disconnect battery charger from the receptacle.

CAUTION: Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger. CAUTION:

When the battery charger has been continuously used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, wait 15 minutes rest until the next charging.

If the battery is recharged when it is warm due to battery use or exposure to sunlight, the pilot lamp may not light. The battery will not be recharged. In such a case, let the battery cool before charging. Regarding electric discharge in case of new batteries, etc. As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the first and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2 – 3 times. How to make the batteries perform longer. (1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter. (2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while. BEFORE USE Check the work area to make sure that it is clear of debris and clutter. Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate. OPERATION

1. Using the hook (Hook with bit holder or Light

When using the hook, pay sufficient attention so that the main equipment does not fall. If the tool falls, there is a risk of accident. CAUTION:

Do not attach the tip tool except phillips bit to the tool main unit when carrying the tool main unit with the hook suspended from a waist belt. Injury may result if you carry the equipment suspended from the waist belt with sharp tipped components such as drill bit attached. The hook can be installed on the right or left side and the angle can be adjusted in 5 steps between 0° and 80°. (1) Operating the hook (a) Pull out the hook toward you in the direction of arrow (A) and turn in the direction of arrow (B) (Fig. 5).

If the tool falls, there is a risk that malfunction and/or physical damage can occur. It is recommended that you also use fall-preventing wires, etc.

Incomplete installation of the hook may result in bodily injury when used. (a) Securely hold the main unit and remove the screw using a slotted head screwdriver or a coin (Fig. 6).

1.1 Using the bit holder (Hook with bit holder)

Installing the bit Slide the bit from the side, and then insert firmly until the groove on the bit locks in the protruded section of the hook.

Removing the bit Securely hold the main unit and pull out the bit by holding the tip with your thumb (Fig. 9). Fig. 6 Loosen Screw Fig. 7 Spring Hook (b) Remove the hook and spring (Fig. 7). (c) Install the hook and spring on the other side and securely fasten with screw (Fig. 6). NOTE: Pay attention to the spring orientation. Install the spring with larger diameter away from you (Fig. 8). Fig. 9 Fig. 10 Switch Hook CAUTION:

Only metabo HPT STANDARD ACCESSORIES phillips bit (No. 2 × 65L; Code No. 983006) may be used. Do not use other bits since they may come loose.

1.2 Using as an auxiliary light (Light equipped hook)

(1) Press the switch to turn off the light. If forgotten, the light will turn off automatically after 15 minutes (Fig. 10). (2) The direction of the light can be adjusted within the range of hook positions 1 - 5 (Fig. 5).

Lighting time N manganese batteries: approx. 15 hrs. N alkali batteries: approx. 30 hrs. CAUTION:

Do not look directly into the light. Such actions could result in eye injury.

1.3 Replacing the batteries (Light equipped hook)

(1) Loosen the hook screw with a phillips-head screwdriver (No. 1) (Fig. 11). Remove the hook cover by pushing in the direction of the arrow (Fig. 12). Fig. 8 Screw Larger diameter faces away 01Eng_DS12DVF3_US 12/6/07, 11:3714English

(2) Remove the old batteries and insert the new batteries. Align with the hook indications and position the plus (+) and minus (–) terminals correctly (Fig. 13). Hook main body Protube- rance Inden- tation

batteries Indentation Protube- rance Hook cover Fig. 13 Fig. 12 Arrow Hook cover Fig. 11 Hook Phillips-head screwdriver Screw (3) Align the indentation in the hook main body with the protuberance of the hook cover, press the hook cover in the direction opposite to that of the arrow shown in Fig. 12 and then tighten the screw. Use commercially available N batteries (1.5 V). NOTE: Do not tighten the screw excessively. Such action could strip the screw threads. CAUTION:

Failure to observe the following can result in battery leakage, rust or malfunction. Position the plus (+) and minus (–) terminals correctly. Replace both batteries at the same time. Do not mix old and new batteries. Remove exhausted batteries from the hook immediately.

Do not discard batteries together with normal trash and do not throw batteries into fire.

Store batteries out of the reach of children.

Use batteries correctly in accordance with the battery specifications and indications.

2. Using the bit holder.

Stow the bit in the specified location on the tool. If the tool is used with the bit stowed improperly, the bit may fall and cause bodily injury.

Do not stow bits that are of a different length, gauge or dimension than the plus driver bit (65 mm long) included in the STANDARD ACCESSORIES. The bit may fall and cause bodily injury. (1) Removing the bit Securely hold the main unit and pull out the bit by holding the tip with your thumb (Fig. 14). Fig. 14 Bit Fig. 15 Insert so that bit does not protrude from main unit (2) Installing the Bit Install the bit with steps opposite of when removing. Insert the bit so that the right and left sides are equal, as shown in Fig. 15. 01Eng_DS12DVF3_US 12/6/07, 11:3715English

3. Mounting and dismounting of the bit.

(1) Mounting the bit. Insert a screwdriver bit etc. into the keyless drill chuck. Firmly grasp the ring and tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front) (See Fig. 16). Fig. 16 Tighten Loosen SleeveRing NOTE: If the sleeve becomes loose during operation, tighten it further. The tightening force becomes stronger when the sleeve is tightened. (2) Dismounting the bit Firmly grasp the ring and loosen the sleeve by turning it toward the left (in the counterclockwise direction as viewed from the front) (See Fig. 16). CAUTION: When mounting a bit into the keyless chuck, tighten firmly. If the sleeve is not tight, the bit may slip or fall out, causing injury. NOTE: Loosening stuck or hard to move sleeves. Grasp the bit installed in the keyless chuck, in a vise or similar tool. Set the clutch dial position to “1-11” and turn on the switch. The motor then starts. Finally, rotate the sleeve to the left, and it will loosen.

4. Confirm that the battery is mounted correctly.

5. Check the rotational direction.

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the selector button. The L-side of the selector button is pushed to turn the bit counterclockwise (See Fig. 17). (The

marks are provided on the body.)

When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops.

The rotational speed of the drill can be controlled by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.

When releasing the trigger of the switch, the brake will be applied for immediate stopping.

6. Change rotation speed.

Fig. 18 Shift knob High speed Fig. 19 Shift knob Low speed Operate the shift knob to change the rotational speed. Move the shift knob in the direction of the arrow (see Figs. 18 and 19). When the shift knob is set to “LOW”, the drill rotates at a low speed. When set to “HIGH”, the drill rotates at a high speed. 01Eng_DS12DVF3_US 12/6/07, 11:3716English

When changing the rotational speed with the shift knob, confirm that the switch is off. Changing the speed while the motor is rotating will damage the gears.

When a large force is required for operation (operations indicated in the following chart) set the shift knob to “LOW”. If “HIGH” is set and the unit is used, it may cause the motor to burn out or malfunction prematurely. Table 2 Model DS12DVF3 / DS14DVF3 DS18DVF3 Metal Drilling Wood Drilling Wood Screw Tightening When the diameter of the hole exceeds 1/4 in. (6.5 mm). When the diameter of the hole exceeds 15/32 in. (12 mm). When the size of the wood screw exceeds 5/32 in. (3.8 mm) diameter × 1-31/32 in. (50 mm). When the diameter of the hole exceeds 5/16 in. (8 mm). When the diameter of the hole exceeds 15/16 in. (24 mm). When the size of the wood screw exceeds 3/16 in. (4.8 mm) diameter × 1-9/16 in. (40 mm).

7. Confirm the clutch dial position (see Fig. 20).

The tightening torque of this unit can be adjusted according to the clutch dial position, at which the clutch dial is set.

8. Tightening torque adjustment.

(1) Tightening torque Tightening torque should correspond in its intensity to the screw diameter. When too strong power is used, the screw head may be broken or be injured. Be sure to adjust the clutch dial position according to the screw diameter. (2) Tightening torque indication (See Fig. 20) The tightening torque differs depending on the type of screw and the material being tightened. The unit indicates the tightening torque with the numbers “1, 3, 5 ... 22” on the clutch dial, and a dot. The tightening torque at position “1” is the weakest and the torque is strongest at the highest number. (3) Adjusting the tightening torque (See Fig. 20) Rotate the clutch dial and line up the numbers “1, 3, 5, ... 22” on the clutch dial, or the dot, with the triangle mark on the outer body. Adjust the clutch dial in the weak or the strong torque direction according to the torque you need. CAUTION:

The motor rotation may be locked to cease while the unit is used as drill. While operating the driver drill, take care not to lock the motor. Clutch dial Triangle mark Fig. 20 Weak mark Strong Line mark Fig. 21 Triangle mark (1) When using this unit as a screwdriver, line up the one of the numbers “1, 3, 5 ... 22” on the clutch dial, or the black dot, with the triangle mark on the outer body. (2) When using this unit as a drill, line up the clutch dial drill mark “ ” with the triangle mark on the outer body. CAUTION:

The clutch dial cannot be set between the numbers “1, 3, 5 ... 22” or the black dot.

Do not use with the clutch dial set at the line between the number “22” and the drill mark “ ”. Doing so may cause damage (See Fig. 21). 01Eng_DS12DVF3_US 12/6/07, 11:3717English

When setting the shift knob to “HIGH” (high speed) and the position of the clutch dial is “17” to “22”, it may happen that the clutch does not engaged and that the motor is locked. In such a case, please set the shift knob to “LOW” (low speed).

THE SCOPE AND SUGGESTIONS FOR USES

If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.

Too long hammering may cause the screw broken due to excessive tightening.

A buzzing noise is produced when the motor is about to rotate; This is only a noise, not a machine failure. Work Clutch dial position Suggestions Wood Drilling Steel Use for drilling purpose. Aluminum Machine 1 – 22 Use the bit and socket matching the Screw screw screw diameter. tightening Wood 1 – Use after drilling a pilot hole. screw

HOW TO SELECT TIGHTENING TORQUE

Table 4 Clutch dial Tightening torque Operation example position Approximately 9 in.-lbs. (10 kg-cm) Approximately 15 in.-lbs. (17 kg-cm) Approximately 23 in.-lbs. (26 kg-cm) Approximately 35 in.-lbs. (40 kg-cm) Approximately 43 in.-lbs. (49 kg-cm) Approximately 52 in.-lbs. (60 kg-cm) High speed: approximately 61 in.-lbs. (70 kg-cm) (DS12DVF3) approximately 71 in.-lbs. (82 kg-cm) (DS14DVF3) approximately 97 in.-lbs. (112 kg-cm) (DS18DVF3) Low speed: approximately 230 in.-lbs. (265 kg-cm) (DS12DVF3) approximately 300 in.-lbs. (347 kg-cm) (DS14DVF3) approximately 400 in.-lbs. (459 kg-cm) (DS18DVF3) Machine screw tightening Screw tightening for soft wood material Screw tightening for hard wood material Thick screw tightening When used as a drill.

CAUTION: Pull out battery before doing any inspection or maintenance.

1. Checking the condition of the bit

The bits should be checked regularly. If worn or broken bits can slip or decrease the efficiency of the motor and burn it out. Replace worn bits with new ones. CAUTION: If you use a driver bit of which point is worn or broken, it will be dangerous since it slips. So replace it with a new one.

Loose screws are dangerous. Regularly inspect them and make sure they are tight. CAUTION: Using this power tool with loosened, screws is extremely dangerous.

Dust may be removed with a soft cloth or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

4. Disposal of the exhausted battery

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

Storing in a place below 104°F (40°C) and out of the reach of children.

6. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY.

7. Service parts list

CAUTION: Repair, modification and inspection of metabo HPT Power Tools must be carried out by an metabo HPT Authorized Service Center. This Parts List will be helpful if presented with the tool to the metabo HPT Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS: metabo HPT Power Tools are constantly being improved and modified to incorporate the latest technological advancements. Accordingly, some parts (i.e. code numbers and/ or design) may be changed without prior notice. NOTE: The selected content shown in Table 4 indicates the differences according to screw type, screw size and material used. CAUTION:

While operating the Cordless driver drill, take care not to lock the motor. If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery will be burnt.

Do not tighten too strongly as the screw heads will be damaged. 01Eng_DS12DVF3_US 12/6/07, 11:3719English

TROUBLESHOOTING GUIDE

To avoid injury from an accidental start, turn the switch OFF and remove the plug from the power source or remove the battery from the main body before making any adjustments.

All electrical or mechanical repairs should be done only by qualified service technicians. Contact metabo HPT Authorized Service Center. WARNING Problem Possible Cause Possible Solution Tool will not start. Battery will not charged. Battery not installed properly. Battery not charged. Battery overheated. Battery pack not installed into Charger properly. Charger not plugged in. Battery temperature too hot Battery temperature too cold Check the battery installation. Charge battery using appropriate charger. Remove battery from tool and let battery cool for while. Insert battery into charger until charge status lamp (red) appears. Plug charger into a working receptacle. Remove battery from charger, cool battery. For more detail, refer to “Charging Method”. Remove battery from charger, move battery and charger to a surrounding air temperature of above 50°F (10°C). For more detail, refer to “Changing Method”. 01Eng_DS12DVF3_US 12/6/07, 11:3720English

• ALWAYS use Only authorized metabo HPT replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE: Accessories are subject to change without any obligation on the part of the metabo HPT. STANDARD ACCESSORIES DS12DVF3 DS14DVF3 1 Phillips bit (No. 2 × 65L) (Code No. 983006) p. 1
• 2 Battery (EB1214S) p. 2
• or 1 3 Battery Charger (UC18YG) p. 1
• 4 Plastic Case p. 1
• 1 Phillips bit (No. 2 × 65L) (Code No. 983006) p. 1
• 2 Battery (EB1414S) p. 2
• or 1 3 Battery Charger (UC18YG) p. 1
• 4 Plastic Case p. 1
• 1 Phillips bit (No. 2 × 65L) (Code No. 983006) p. 1
• 2 Battery (EB1814SL) p. 2
• or 1 3 Battery Charger (UC18YG) p. 1
• 4 Plastic Case p. 1

OPTIONAL ACCESSORIES.....sold separately

NOTE: Specifications are subject to change without any obligation on the part of the metabo HPT. 01Eng_DS12DVF3_US 12/6/07, 11:3722Français

Mèche Phillips (No. 2 × 65L) (Code No. 983006)

Mèche Phillips (No. 2 × 65L) (Code No. 983006)

Mèche Phillips (No. 2 × 65L) (Code No. 983006)
