Product Type	Countertop Oven-Toaster (Toast-R-Oven™)
Brand	Black & Decker
Model	TRO651W
Dimensions (L x D x H)	Approximately 38 x 35 x 28 cm
Weight	Approximately 5 kg
Power Supply	120 V, 60 Hz, 1500 W
Power Cord Type	Short cord with grounded plug (3-prong)
Main Functions	Toast, Bake, Broil
Temperature Range	Not exactly specified, continuous adjustment from OFF to maximum for baking
Timer	30-minute mechanical timer with bell
Toast Shade Control	Rotary control with multiple levels
Included Accessories	Slide rack, slide crumb tray, baking pan, broiler pan
Interior Material	Non-stick coating
Exterior Material	Painted metal, glass door
Care and Cleaning	Clean accessories with warm soapy water or dishwasher; wipe non-stick interior with sponge; removable crumb tray; no chemical or abrasive cleaners
Safety	Grounded plug; hot surfaces; do not immerse; use oven mitts; do not use metal utensils or aluminum foil
Replacement Parts and Repairability	Consumer replaceable parts: rack (No. 30), crumb tray (No. 4648W), baking pan (No. 44), broiler pan (No. 41); for repair, contact customer service
Warranty	1-year limited warranty (USA and Canada); replacement with similar product
General Information	Household use only; made in People's Republic of China

Frequently Asked Questions - TRO651W BLACK & DECKER

How to use the 30-minute timer?

Turn the timer selector past the 10 mark, then back to the desired setting. A bell rings at the end of the time.

How to clean the crumb tray?

Pull the crumb tray by the handle at the front of the oven. Discard crumbs, wash with warm soapy water, then dry thoroughly before replacing.

Why is my second toast too dark?

If you make consecutive toasts, the oven remains hot. Select a slightly lower toast shade than the previous setting to compensate for residual heat.

Why does condensation form on the glass door?

Condensation is normal during toasting, especially with frozen or moist foods. It usually disappears during the cycle. No action is needed.

What to do if smoke comes out of the oven?

Turn off and unplug the oven. Clean the crumb tray and interior walls thoroughly. Follow the care and cleaning instructions in the manual.

The heating elements don't seem to work, what to do?

The elements cycle on and off to maintain temperature. In toast mode, only the top element works. Verify that the controls are set correctly.

Should I preheat the oven before use?

For baking, it is recommended to preheat for 5 minutes. For toasting, preheating is not necessary. For broiling, preheat for 5 minutes.

What types of containers can I use in this oven?

Use metal, heat-resistant glass, or ceramic containers (without glass lid). Ensure there is at least 3.81 cm (1½ in) between the top of the container and the upper heating element.

What are important safety precautions?

Always use oven mitts. Do not touch hot surfaces. Do not let the cord hang. Do not place flammable materials on the appliance. Always unplug before cleaning.

How to benefit from the warranty?

Keep your sales receipt. Visit www.prodprotect.com/applica or call 1-800-231-9786 to obtain a one-year warranty replacement (USA and Canada).

USER MANUAL TRO651W BLACK & DECKER

Please Read and Save this Use and Care Book

Countertop Oven/Broiler

Horno/asador para el主義

Register your product online at www.prodprotect.com/applica,

for a chance to WIN $100,000!

For US residents only

Accessories/Parts (USA/Canada)

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against risk of electrical shock, do not immerse cord, plug, or any non-removable parts of this oven in water or other liquid.
Close supervision is necessary when any appliance is used by or near children.
Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment. Or, call the appropriate toll-free number listed on the cover of this manual.
The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
Do not use outdoors.
Do not let cord hang over edge of table or counter, or touch hot surfaces.
Do not place on or near a hot gas or electrical burner, or in a heated oven.
Extreme caution must be used when moving an appliance containing hot oil or other hot liquid.
To disconnect, turn any control to OFF (O), them remove plug from wall outlet.
Do not use appliance for other than intended use.
- Oversized foods or metal utensils must not be inserted in this appliance, as they may create a fire or risk of electric shock.
A fire may occur if the toaster oven is covered or touching flammable material including curtains, draperies, walls and the like, when in operation. Do not store any item on top of unit when in operation.
Extreme caution should be used when using containers constructed of other than metal or glass.
- Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts resulting in a risk of electric shock.
Do not store any material, other than manufacturer's recommended accessories, in this oven when not in use.
Use extreme caution when removing tray or disposing of hot grease.
- Do not place any of the following materials in the oven: paper, cardboard, plastic wrap, and the like.
- Do not cover crumb tray or any parts of the oven with metal foil. This will cause overhealing of the oven.
To stop toasting, turn toastbrowning control to OFF (O). To stop baking or broiling, turn temperature control OFF and Timer to 0.

SAVE THESE INSTRUCTIONS.

GROUNDED PLUG

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

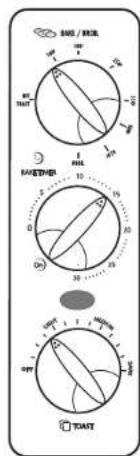

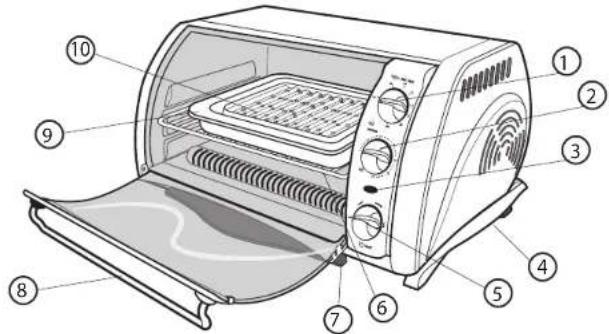

1. Toast/Bake/Broil temperature control
2. 30-minute bake timer
3. On indicator light
4. Side handle
5. Toast browning control
   +6.Slide rack (Part # 30)
   +7. Slide-out crumb tray
   TRO651 (Part #4648)
   TRO631W (Part #4648)
6. Door handle

Important: When using the TIMER function, always turn the dial past 10 and then turn back or forward to desired setting.

How to Use

This product is for household use only.

CAUTIO

THIS OVEN GETS HOT WHEN IN USE. ALWAYS USE OVEN MITTS OR POT HOLDERS WHEN TOUCHING ANY OUTER OR INNER SURFACE OF THE OVEN.

GETTING STARTED

• Wash all parts as instructed in the Care and Cleaning section.
• Insert the crumb tray underneath the bottom heating elements.
• Plug the unit into a standard outlet.

OVERVIEW OF FUNCTIONS TOASTING

1. Insert the slide rack in the rack slot. It is not necessary to preheat the oven forasting.

1. Set the toast browning control as desired (A). For best results, select the medium setting for your first cycle, then adjust lighter or darker to suit your taste.

2. Turn temperature control to TOAST setting. The on indicator light comes on and stays on during theasting cycle. When toasting is done, you hear a bell sound. The on indicator light goes out.

3. To stop toasting at any time, open the oven door. The heating elements and the on indicator light go out.

4. Turn the toastbrowning control to OFF.
5. Using an oven milt or pot holder, open the door and slide out the slide rack to remove food.

Caution: The oven is hot. Do not let your skin touch any surface.

Tip for Multiple Toasting Cycles:

For best results, when making consecutive batches of toast, allow a short cool down period between toasting cycles.

BAKING

1. Place bake pan containing food to be cooked, on the slide rack.

1. Turn the temperature control to the desired temperature setting (B).

a. If not using the bake timer, turn the control to On and monitor the food.

b. If using the 30-minute bake timer, turn the control to the desired number of minutes.

Important: When using the TIMER function, always turn the dial past 10 and then turn back or forward to desired setting.

Note: For best results, always preheat the oven for 5 minutes.

1. The upper and lower heating elements will cycle on and off to maintain the temperature. To stop cooking, open the oven door. To continue cooking, close the door. Check food for doneness at minimum time.
2. When finished cooking, turn the temperature control to OFF.
3. If using the 30-minute bake timer, you will hear a bell sound once it reaches the set time. If not, when cooking is done, turn the timer to 0 (off). The on indicator light goes out.
4. Using an oven mitt or pot holder, open the door and slide out the slide rack to remove the bake pan.

Caution: The oven is hot. Do not let your skin touch any surface.

BROILING

Note: When broiling, preheat oven for 5 minutes.

1. Insert the broil rack in the bake pan and place both on the slide rack (C).

Note: Be sure the top edge of the food or container is at least 112 (3.81 cm) away from the

upper heating elements.

1. Turn the temperature control to broil and the 30-minute bake timer control to on.

2. To stop cooking, open the door. Check food for doneness at minimum cooking time.

3. When finished broiling, using an oven mitt or pot holder, slide out slide rack to remove bake pan.

Caution: The oven is hot. Do not let your skin touch any surface.

1. Turn temperature control to OFF and 30-minute bake timer to 0 (off).

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Turn off unit, unplug from wall outlet and let it cool before cleaning.
2. Clean the glass door with a nylon pad and sudsy water. Do not use a spray glass cleaner.
3. To remove slide rack, open the door and pull the rack forward and out. Wash in warm, sudsy water or in the dishwasher. To remove stubborn spots, use a polyester or nylon pad. To replace the slide rack, open the door completely, slide into the rack slot and close the door.
4. Wash the bake pan and broil rack in warm, sudsywater or in the dishwasher. To minimize scratching, use a polyester or nylon pad.

1. To remove the crumb tray, grasp the handle at the front of the oven and pull it out (D). Dispose of crumbs and wash the tray in warm, sudsy water. Remove stubborn spots with a nylon mesh pad. Be sure to dry thoroughly before inserting the tray back into the oven.

NONSTICK EASY-CLEAN INTERIOR

1. Unplug the oven and let it cool, then wipe with a soapy sponge or nylon pad after each use.
2. Do not use a chemical oven cleaner. Do not use any abrasive cleansers or scouring pads as they may harm the coating. Dry with paper towel or soft cloth.

EXTERIOR

Let the oven cool completely before cleaning any outer surface. Wipe with a damp cloth or sponge and dry with paper towel or soft cloth.

COOKING CONTAINERS

Metal, ovenproof glass or ceramic bakeware without glass lids can be used in your oven. Follow manufacturer's instructions. Be sure the top edge of the container is at least 112 (3.81 cm) away from the upper heating elements.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Unit is not heating or stops heating.	Electrical outlet is not working or oven is unplugged.
Second toasting is too dark. Setting on toast is too dark. If doing repeated toasting in the oven, select a shade slightly lighter than the previous setting.
Moisture forms on the inside of the glass door during toasting.	The amount of moisture differs in different products, whether bread, bagels or frozen pastries.
Food is overcooked or undercooked.	Temperature and cook time may need to be adjusted.
There is burnt food odor or smoking when oven is being used.	There are remnants of food in crumb tray or on the walls of the oven.
Heating elements do not seem to be on.	The heating elements cycle on and off during baking.

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

One year after date of purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

Save your receipt as proof of date of sale.
- Visit the online service website at www.protectc.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

NECESITA AYUDA?

San Jose, Costa Rica

Tel.: [phone]

223-0136

Ecuador

Copyright © 2008 Applica Consumer Products, Inc.

Made in People's Republic of China

Printed in People's Republic of China

Importado por:

Applica Manufacturing S. de R.L de C.V

Col. Chapultepec Morales, Mexico D.F

Delegacion Miguel Hidalgo

CP 11570

Mexico

Del interior marque sin costo

01 [phone]
