C4284 - Watch Candino - Free user manual and instructions

Product type	Bracelet watch
Brand	Candino
Model	C4284
Category	Watch
Movement	Quartz
Display	Hands (hours, minutes, seconds, chronograph counters)
Main functions	Simple chronograph, addition, split time; time setting; date correction; stop-second; time zone correction
Number of chronograph counters	3 (60 seconds, 30 minutes, 1/10 second)
Power supply	Button cell battery
Reset of counters	Possible via crown in position II or III
Date correction	Via crown in position II
Water resistance	Not specified; avoid prolonged contact with water
Care and cleaning	Wipe with a soft, dry cloth; avoid chemicals
Safety	Do not expose to strong magnetic fields or violent shocks
Spare parts and repairability	Entrust to an authorized watchmaker for any repairs or battery replacement
General information	Use according to the provided manual; selective collection at end of life (WEEE)

Frequently Asked Questions - C4284 Candino

How to set the time on the Candino C4284 watch?

Pull the crown to position III (time setting position). Turn it to adjust hours and minutes. The date corrects automatically when passing midnight. In position III, the second hand stops (stop-second function).

How to use the chronograph?

Make sure the chronograph hands are at zero (otherwise, see the reset procedure). Press the START/STOP button to start or stop timing. Press the RESET button to reset the counters to zero.

How to perform timing with addition?

Press START, then STOP to read the first time. Press RESTART to continue timing without resetting. Repeat as needed. To reset, press RESET after a stop.

How to use the split-time function (intermediate times)?

Press START, then press SPLIT to freeze the display of the intermediate time while internal timing continues. Release SPLIT to resume real-time display. Press STOP, then RESET.

How to reset the chronograph counters?

Pull the crown to position II or III. Press the corresponding button to reset the 60-second, 30-minute, or 1/10-second counter hand. Refer to the manual for the exact assignment of the buttons.

How to correct the date?

Pull the crown to position II (date correction position). Turn it to adjust the date. The date corrects independently of the time.

Is the watch waterproof?

The manual does not specify the degree of waterproofing. As a precaution, avoid prolonged contact with water, showering, or swimming. Protect it from splashes.

How to change the watch battery?

Battery replacement must be done by an authorized watchmaker. Opening the case yourself may damage the water resistance and the movement.

What to do if the watch stops or runs slow?

First check if the battery is drained. If the battery is new, the watch may need adjustment by a watchmaker. Also avoid magnetic fields (magnets, speakers) that disturb the quartz movement.

How to clean the Candino C4284 watch?

Gently wipe the case and strap with a soft, dry cloth. Do not use chemicals, solvents, or ultrasonic cleaners that could damage the watch.

USER MANUAL C4284 Candino

2501 Bienne Switzerland

a company of the Festina Group

www.candino.com

CANDINO

SWISS WATCH

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

-Display 12
- Setting the timers to zero. 13
- Setting the time. 14
-Timing Mode. 15-18
- Correction Mode. 19

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

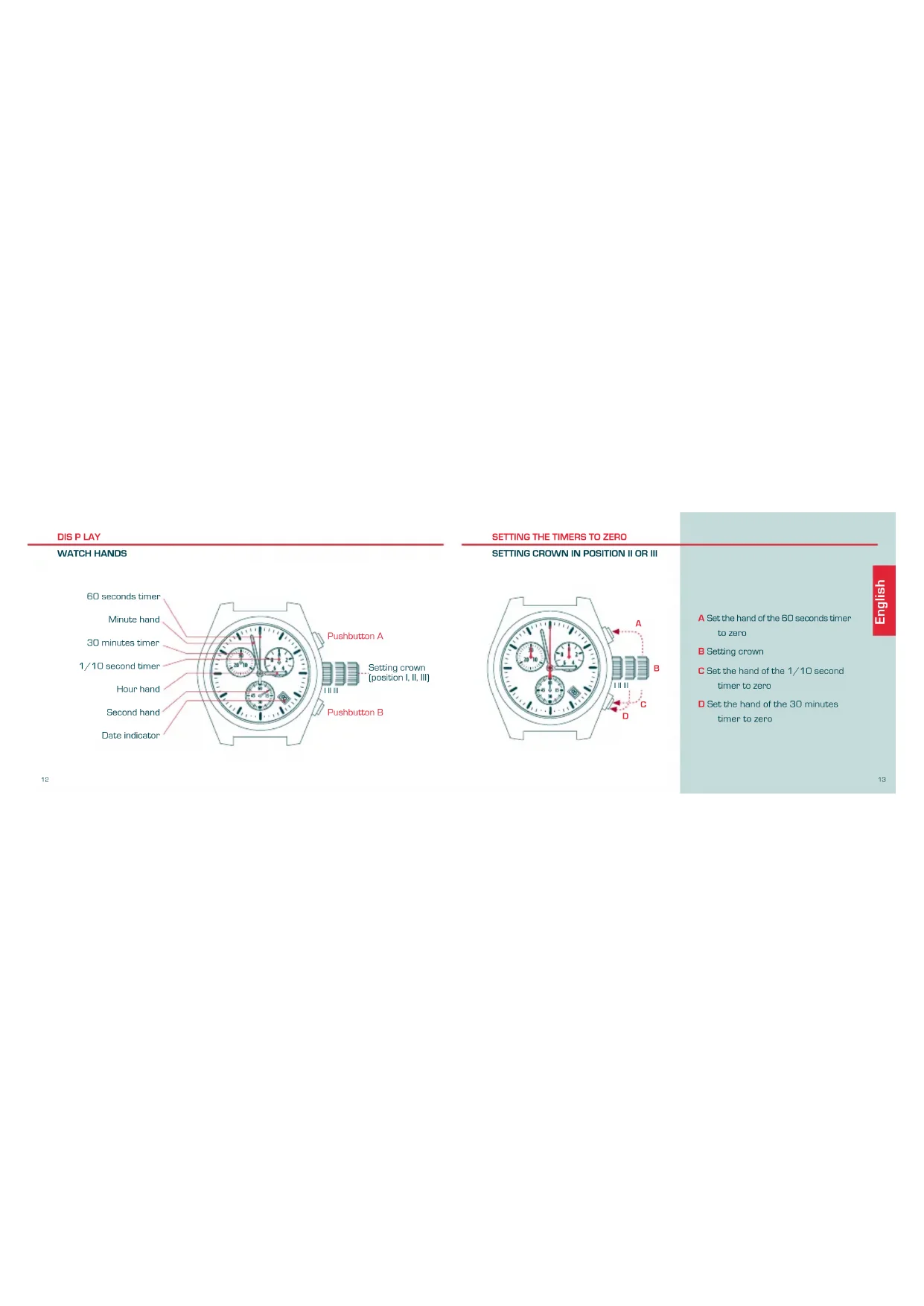

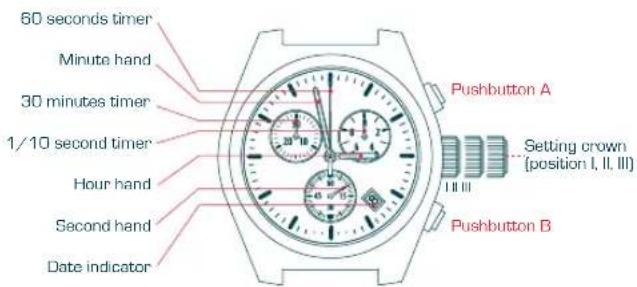

DISPLAY

WATCH HANDS

A Set the hand of the 60 seconds timer to zero.
B Setting crown
C Set the hand of the 1/10 second timer to zero
D Set the hand of the 30 minutes timer to zero

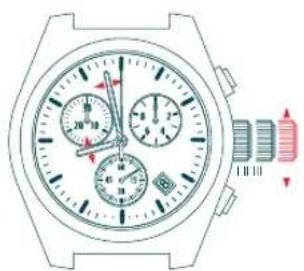

SETTING THE TIME

SETTING CROWN IN POSITION III

14

Correction of hour and minute hand and date every passing to midnight.

Note

Setting crown in position III: STOP-SECOND

TIMING MODE

SIMPLE TIMING FUNCTION
Setting crown in position I

1 START/STOP
Read time: -5 minutes -57 seconds -7/10 sec
3 Reset to zero
1 to 3 order of functions

WARNING

Before starting the time, put back the chronograph hands to their original position If necessary, see paragraph SETTING THE TIMERS TO ZERO.

TIMING MODE

ADD FUNCTION
Setting crown in position I

1E

1 to X order of functions

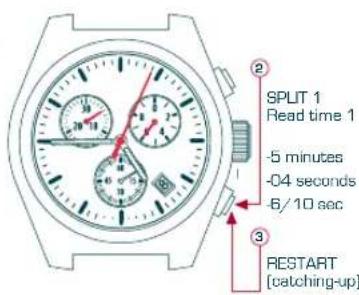

TIMING MODE

SPLIT-TIME OR INTERMEDIATE TIMES FUNCTION
Setting crown in position I

① to ③ order of functions

17

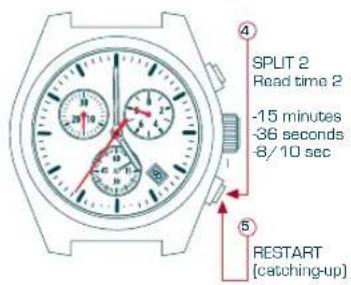

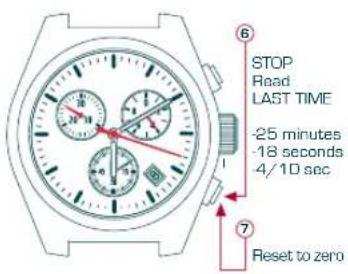

TIMING MODE

SPLIT-TIME OR INTERMEDIATE TIMES FUNCTION

4 to 7 order of functions

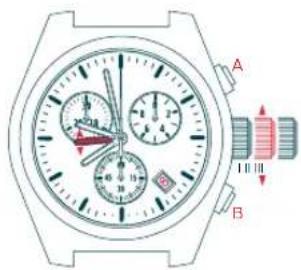

CORRECTION MODE

TIME ZONE CORRECTION CORRECTION OF DATE

Setting crown in position II

Note: Date correction every passing to midnight

MODE D'EMPLOI

Stellkrone in Position III:

SEKUNDEN-STOPP

ZEITMESSAGENS-MODUS

Stellkrone in Position I

START/STOPP

1. Abiesen der Zeit

-5 Minutes

-57 Sekunden

-7/10 Sekunden

3 Nullstellung

FUNCTION ADD
Stellkrone in Position I

36
