Product type	Immersion blender
Brand	Tefal
Model	Hapto Click & Mix HB470D
Category	Immersion blender
Included accessories	0.8 L beaker, crushed ice filter, 4 detachable accessories (mixer, emulsion, crushed ice, chopper)
Accessory types	Mixer (green), Emulsion (yellow), Crushed ice (blue), Chopper (red)
Optional accessory	Mini chopper 150 ml (ref. 5981760)
Number of speeds	2 (light pressure = speed 1, firm pressure = speed 2)
Eject function	Yes, EJECT button to remove the shaft
Maximum usage time	45 seconds continuous
Beaker capacity	0.8 L
Motor unit material	Plastic
Mixing shaft material	Metal (unspecified, likely stainless steel)
Cleaning the motor unit	Do not immerse, clean with a damp sponge
Cleaning the shaft and accessories	Dishwasher safe (tools facing up)
Assembly of accessories	Fit onto the shaft until the « Click »
Safety	Do not leave children unsupervised, unplug before cleaning, do not touch blades while in operation
Recommended use	Fill the container to a maximum of 2/3, cover the accessory for effective blending

Frequently Asked Questions - Hapto Click & Mix HB470D TEFAL

How to use the blender for the first time?

Before first use, clean the accessories with soapy water, rinse and dry thoroughly. Then, fit the desired accessory onto the shaft until it « Click ». Then fit the shaft onto the motor unit until it engages. Plug in the appliance and press the start button.

How to assemble the accessories?

Align the accessory with the shaft in the indicated direction and press until you hear a « Click ». To remove the shaft from the motor unit, press the EJECT (C) button. To eject the accessory from the shaft, simultaneously press the tabs P1 and P2 after unplugging the appliance.

How long can I use the appliance continuously?

Do not exceed 45 seconds of continuous use. After preparing egg whites, run the shaft under cold water for 30 seconds before reusing.

How to change speed?

Press the start button (B) lightly for speed 1, and press harder for speed 2. A sound difference is audible between the two speeds. Start the appliance before immersing the tool in the preparation.

How to eject the shaft?

First unplug the appliance. Then press the EJECT (C) button on the motor unit to remove the shaft. To eject the accessory from the shaft, simultaneously press the tabs P1 and P2.

Can I put the motor unit in the dishwasher?

No, never immerse the motor unit (A), power cord, or plug in water or dishwasher. Clean it with a damp sponge. However, the shaft (driver facing up), beaker, and accessories (tools facing up) are dishwasher safe.

Which accessories are compatible with this appliance?

Only use Tefal accessories and spare parts suitable for your model. You can purchase the mini chopper 150 ml (ref. 5981760) from your retailer or an authorized center.

How to prepare meringue with the emulsion accessory?

Place 2 egg whites from the refrigerator and a pinch of salt in the 0.8 L beaker. Use the emulsion (yellow) accessory and emulsify by moving up and down at speed 1 (mandatory).

How to chop meat with the chopper accessory?

Debone and remove sinew from the meat beforehand. Place it in a tall container and use the chopper (red) accessory at speed 2. For optimal results, do not exceed 100 g of meat.

What to do if the appliance does not start?

Check that the appliance is properly plugged in and the voltage matches your installation. Make sure the accessory is correctly fitted onto the shaft until it « Click » and the shaft is engaged on the motor unit. If the problem persists, contact an authorized service center.

USER MANUAL Hapto Click & Mix HB470D TEFAL

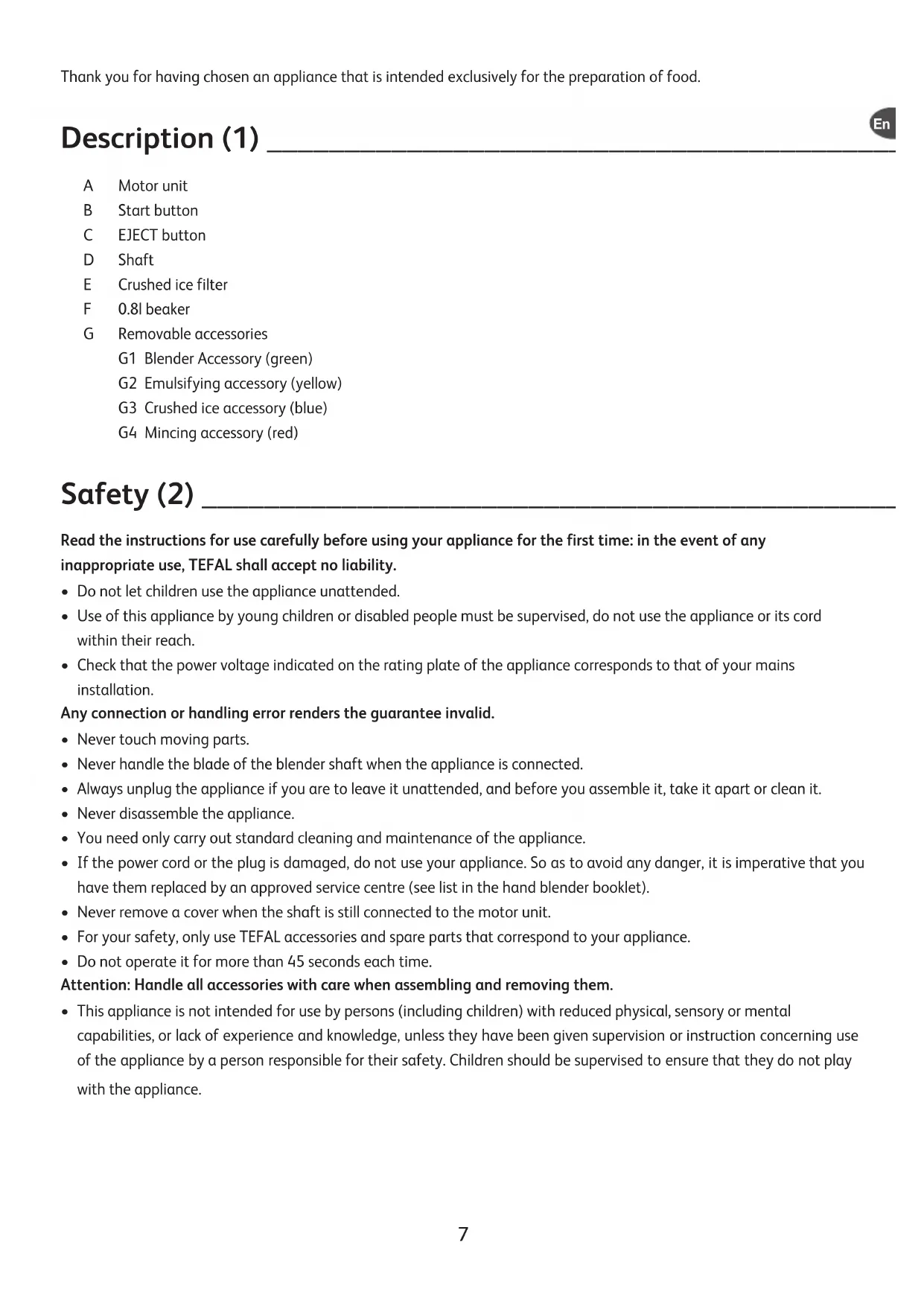

Description (1)

A Motor unit
B Start button
C EJECT button
D Shaft
E Crushed ice filter
F 0.8l beaker
G Removable accessories
G1 Blender Accessory (green)
G2 Emulsifying accessory (yellow)
G3 Crushed ice accessory (blue)
G4 Mincing accessory (red)

Safety (2)

Read the instructions for use carefully before using your appliance for the first time: in the event of any inappropriate use, TEFAL shall accept no liability.

• Do not let children use the appliance unattended.
• Use of this appliance by young children or disabled people must be supervised, do not use the appliance or its cord within their reach.
• Check that the power voltage indicated on the rating plate of the appliance corresponds to that of your mains installation.

Any connection or handling error renders the guarantee invalid.

• Never touch moving parts.
• Never handle the blade of the blender shaft when the appliance is connected.
  • Always unplug the appliance if you are to leave it unattended, and before you assemble it, take it apart or clean it.
• Never disassemble the appliance.
• You need only carry out standard cleaning and maintenance of the appliance.
• If the power cord or the plug is damaged, do not use your appliance. So as to avoid any danger, it is imperative that you have them replaced by an approved service centre (see list in the hand blender booklet).
• Never remove a cover when the shaft is still connected to the motor unit.
• For your safety, only use TEFAL accessories and spare parts that correspond to your appliance.
• Do not operate it for more than 45 seconds each time.

Attention: Handle all accessories with care when assembling and removing them.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Use (3) (4)

• Before using for the first time, clean the accessories in soapy water. Rinse and dry thoroughly.
• Fit the required accessory onto the shaft in the direction shown (see diagram 2) and push until you hear a “click”.
• Fit the shaft onto the motor unit until it clicks in.
• Plug the appliance in and press the start button (B) (diagram 5) gently for speed 1, hard for speed 2. There is an audible difference between the two speeds.
• Turn the appliance on before placing the tool into your mixture.
• Turn the appliance on and press the start button (B).
• Press the Eject button (C) to remove the shaft once you have finished.
• Press on tabs P1 and P2 simultaneously to eject the accessory once you have removed the shaft (D) from the motor unit (A) and unplugged your appliance from the mains.
• Do not use the appliance for more than 45 seconds at any one time.
• After you have whisked egg whites to the stiff peak stage, run the shaft under cold water for 30 seconds to cool it down before using again.

Practical advice (5)

• The container that you are using should be a maximum of 2/3 full to avoid any overflow. The mixture should at least cover the accessory to ensure efficient blending.
• For fruit-based preparations, chop and stone the fruit beforehand.
• For the Mincing accessory (RED), remove bones and tendons from the meat before mincing.
• Use the appropriate accessory for each kind of preparation.

Cleaning

• Always unplug the appliance before cleaning it.
- Never put the appliance, the power cord or the plug in water or any other liquid.
- Never put the motor unit (A) in the dishwasher. Never immerse it in water or put it under running water. Clean it with a damp sponge.
- The shaft (blade pointing upwards), the beaker and the accessories (tools pointing upwards) are dishwasher safe.
• We advise you to quickly clean the blender shaft as well as the covers after each use, once you have taken them apart.
- Should the plastic parts become stained with foodstuffs such as carrots, rub over them with a cloth dipped in a little cooking oil and then clean and dry as usual.

Accessories

You can purchase the following accessory from your retailer or an approved centre:

• Mini-chopper 150 ml: ref. 5981760

This accessory will allow you to mince 35 g of pork (belly pork) in 8 seconds.

ACCESSORIES PREPARATION INGREDIENTS TIPS
GREEN	Soup 500 g potatoes, 400 g	carrots,1 leek, 1.8 L water	Atspeed2, fill your container up to at least 2/3 of its height in order to ensure efficient blending.
	Mayonnaise 1 whole egg, 1	teaspoonmustard, 1 tablespoon vinegar,250 ml oil, salt, pepper	Place all of the ingredients in the 0.I beaker (F) then blend for a few seconds atspeed2.
	Pancake mixture 200 g flour	a pinch of salt,200 ml milk, 40 g melted butter,3 eggs.	Atspeed2, fill your container up to at least 2/3 of its height in order to obtain a smooth mixture.
BLUE	Crushed ice 3 ice-cubes max	mum Fit the filter (E) and the 0.8 L	beaker (F),place 3 ice cubes maximum in the filter and then crush atspeed2.Carry on until you have obtained the quantity desired. For the Margarita, add the ingredients to the crushed ice.
	Margarita(Drink AwarenessPlease drink alcohol in moderation)	3 ice cubes, 60 ml tequila, 30 ml cointreau, 10 ml lemon juice.
	Gaspacho 4 tomatoes, 1/2 clove ofgarlic, 60 g sliced bread,100 g cucumber, 1 red pepperand 1 green, 150 ml water,1 tablespoon of vinegar, salt,5 ice cubes.		Atspeed2, fill your container up to at least 2/3 of its height in order to ensure efficient blending. If you want a finer mixture, you can finish off using the mincer (red).
YELLOW	Stiff peak egg whites 1 pinch of salt, 2 egg whitesfresh from the refrigerator.		Place the ingredients in the 0.8 L beaker and then stir, moving the blender up and down, atspeed1, imperatively.
RED	Meats 100 g raw or cooked meat. In a container with steep sides, placethe chunks of meat and mince for a few seconds, moving the hand blender around the container atspeed2.
	Baby food 50 g ham, 50 g carrots, 50 gpotato, 50 g water		Place all the ingredients into a wide-bottomed container and mince atspeed2.
	Köfte (minced meat balls)	For 10 meatballs: 100 g lamb,150 g veal, 1/4 onion, 2 slices of stale bread.	Place all the ingredients into a wide-bottomed container and then mince atspeed2. By hand, roll out the meatballs and then cook them in a frying pan.

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

If you have any product problems or queries, please visit our website – www.tefal.co.uk
