USER MANUAL H8BEH 183 O3 W HOTPOINT

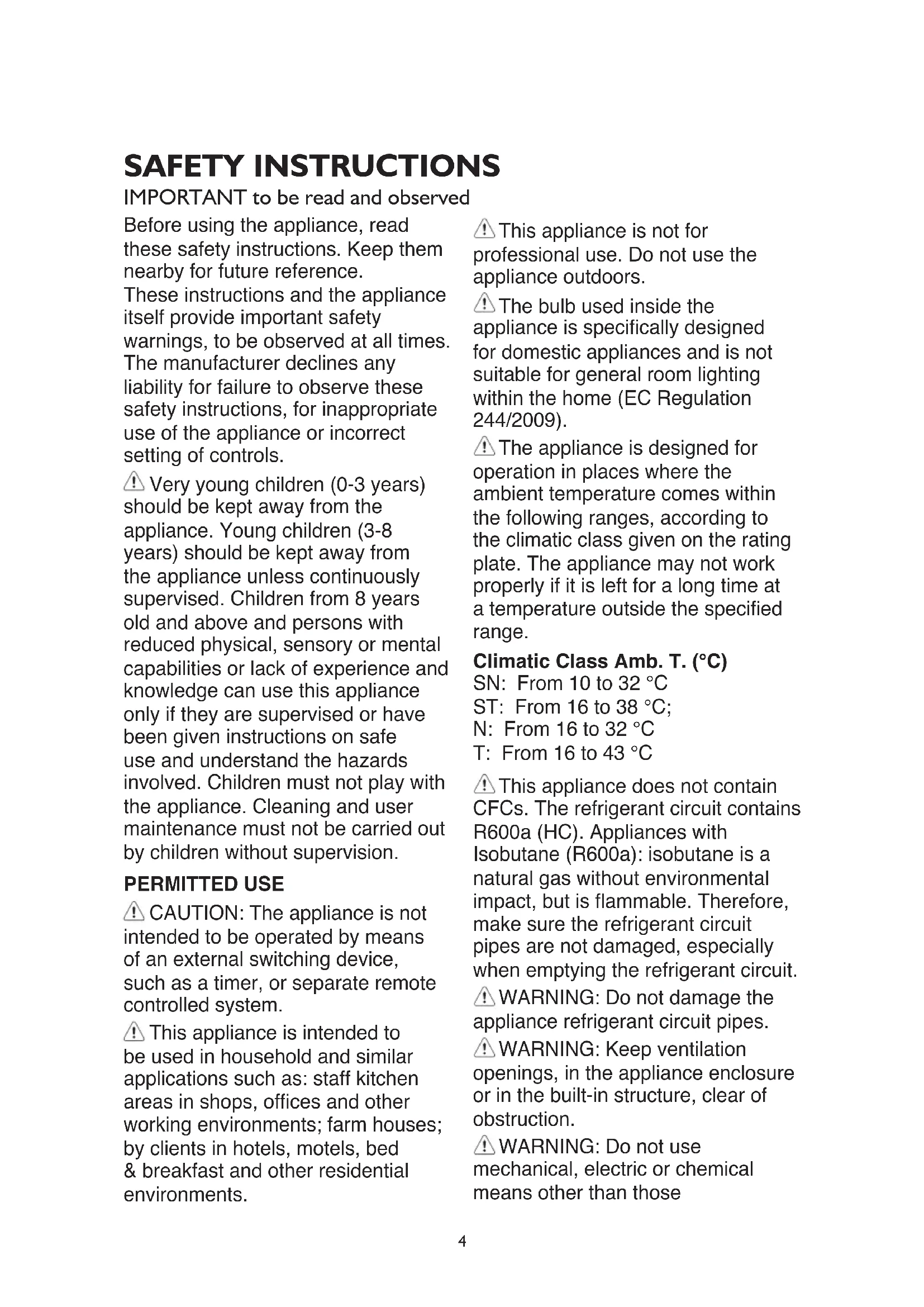

SAFETY INSTRUCTIONS IMPORTANT to be read and observed Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls. Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. PERMITTED USE CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, ofces and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments. This appliance is not for professional use. Do not use the appliance outdoors. The bulb used inside the appliance is specically designed for domestic appliances and is not suitable for general room lighting within the home (EC Regulation 244/2009). The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specied range. Climatic Class Amb. T. (°C) SN: From 10 to 32 °C ST: From 16 to 38 °C; N: From 16 to 32 °C T: From 16 to 43 °C This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is ammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.

WARNING: Do not damage the

openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

mechanical, electric or chemical means other than those5 recommended by the Manufacturer to speed up the defrost process.

WARNING: Do not use or

place electrical devices inside the appliance compartments if they are not of the type expressly authorised by the Manufacturer.

WARNING: Ice makers and/

or water dispensers not directly connected to the water supply must be lled with potable water only.

WARNING: Automatic ice-makers

and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.17 and 0.81 MPa (1.7 and 8.1 bar). Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance. Do not swallow the contents (non- toxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns. For products designed to use an air lter inside an accessible fan cover, the lter must always be in position when the refrigerator is in function. Do not store glass containers with liquids in the freezer compartment since they may break. Do not obstruct the fan (if included) with food items. After placing the food check that the door of the compartments closes properly, especially the freezer door. Damaged gaskets must be replaced as soon as possible. Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes. Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments. Appliances could have special compartments (Fresh Food Compartment, Zero Degree Box, etc.). Unless specied in the specic booklet of product, they can be removed, maintaining equivalent performances. C-Pentane is used as blowing agent in the insulation foam and it is a ammable gas. INSTALLATION The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. Installation, including water supply (if any) and electrical connections, and repairs must be carried out by a qualied technician. Do not repair or replace any part of the appliance unless specically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of re or electric6 shock. Only activate the appliance when the installation has been completed. Be careful not to damage the oors (e.g. parquet) when moving the appliance. Install the appliance on a oor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the oor, adjust as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efcient.

WARNING: To avoid a hazard

due to instability, positioning or xing of the appliance must be done in accordance with the manufacturer instructions. It is forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil). All dimensions and spacing needed for installation of the appliance are in the Installation instruction booklet. ELECTRICAL WARNINGS It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards. Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard - risk of electric shock.

WARNING: When positioning the

appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple

portable socket-outlets or portable power suppliers at the rear of the appliance.

CLEANING AND MAINTENANCE

WARNING: Ensure that the

appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock. Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, ammable uids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.7

DISPOSAL OF PACKAGING

MATERIALS The packaging material is 100% recyclable and is marked with the recycle symbol

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD

APPLIANCES This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.negative sull’ambiente e sulla salute umana. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

To guarantee adequate ventilation follow installation instructions. Insufcient ventilation at the back of the product increases energy consumption and decreases cooling efciency. Frequent door opening might cause an increase in Energy Consumption. The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance. Temperature setting should take into consideration these factors. Reduce door opening to a minimum. When thawing frozen food, place in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance. Positioning of the shelves in the refrigerator has no impact on the efcient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept). You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf. Do not worry about noises coming from the compressor which are described as normal noises in this product’s Quick Guide.8 Information about New Generation Cooling Technology Fridges with new generation cooling technology have a different working system than static fridges. Other fridges may experience ice build up in the freezer compartment due to door openings and humidity in the food. In such fridges regular defrosting is required; the fridge has to be periodically turned off, the frozen food moved to a suitable container and the ice which has formed in the freezer compartment removed. In fridges with new generation cooling technology, dry cold air is pumped evenly into the fridge and freezer compartments using a fan. The cold air cools your food evenly and uniformly, preventing humidity and ice build up. In the refrigerator compartment, air blown by the fan located at the top of refrigerator compartment is cooled while passing through the gap behind the air duct. At the same time, the air is blown out through the holes in the air duct evenly spreading cool air throughout the refrigerator compartment. As there is no air passage between the freezer and refrigerator compartments there will be no odor mixing. As a result of this, your fridge with new generation cooling technology gives you ease of use as well as huge volume and aesthetic appearance. Display and control panel Use of control panel

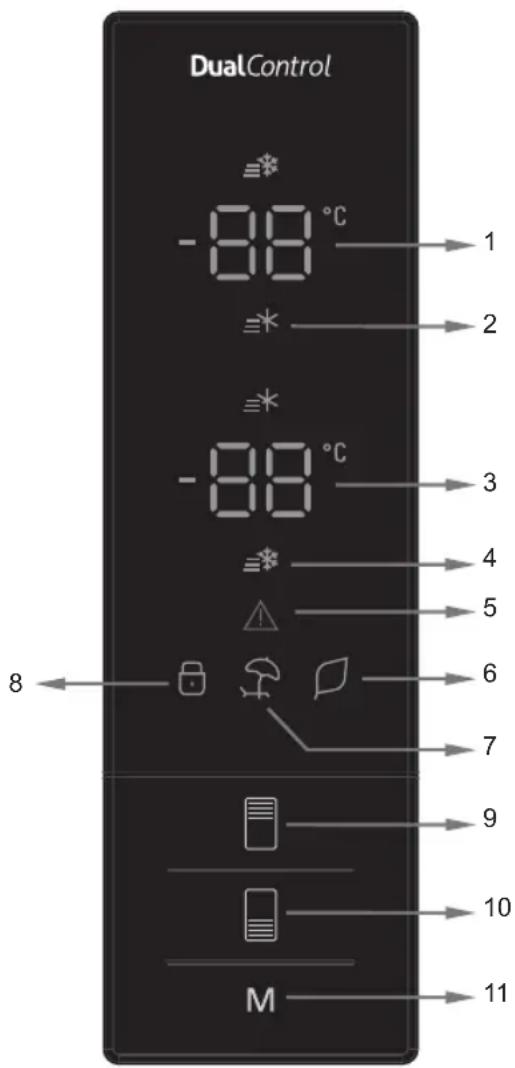

1. It is cooler set value screen.

2. It is super cooling indicator.

3. It is freezer set value screen.

4. It is super freeze indicator.

5. It is alarm symbol.

6. It is economy mode symbol.

7. It is holiday mode symbol.

8. It is child-lock symbol.

9. It enables the setting value of cooler to be modied

and super cool mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C super cool.

10. It enables the setting value of freezer to be modied

and super freeze mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24°C super freeze.

11. It enables the modes (economy, holiday…) to be

activated if desired.

Operating your fridge Super freeze mode How would it be used?

• Press freezer set button until Super freeze symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set. During this mode:

• Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.

• Economy and Holiday mode can not be selected.

• Super freeze mode can be cancelled by the same operation of selecting. Note: “Super Freeze” mode will be automatically cancelled after 24 hours or if the freezer sensor temperature is lower than -25°C Super cool mode How would it be used?

• Press cooler set button until Super cool symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set. During this mode:

• Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.

• Economy and Holiday mode can not be selected.

• Super cool mode can be cancelled by the same operation of selecting.3 Economy mode How would it be used?

• Push “mode button” until eco symbol appears.

• If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3 times. When mode is set, buzzer will sound beep beep.

• Freezer and refrigerator temperature segments will show “E”.

• Economy symbol and E will light till mode nishes. During this mode:

• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.

• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.

• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.

• Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated.

• To cancel, you will just need to press on mode button. Holliday mode How would it be used?

• Push “mode button” until holiday symbol appears

• If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink 3 times. When mode is set, buzzer will sound beep beep.

• Cooler temperature segment will show “--”.

• Holiday symbol and “--” will light till mode nishes. During this mode:

• Freezer may be adjusted. When holiday mode will be cancelled , the selected setting values will proceed.

• Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.

• Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.

• Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.

• To cancel, you will just need to press on mode button.10 Drink cool mode How would it be used?

• This mode is used to cool the drinks within adjustable time. During this mode:

• Press freezer button for 5 seconds.

• Special animation will start on freezer set value screen and 05 will blink on

• When you select the time the numbers will blink 3 times on screen and sound beep beep.

• If no button is pressed within 2 seconds the time will be set.

• The countdown starts from the adjusted time minute by minute.

• Remaining time will blink on the screen.

• To cancel this mode press freezer set button for 5 seconds. Function of Child lock How would it be used?

• To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance. Activating Child Lock

• Press on Freezer and Cooler buttons simultaneously for 5 seconds. During this mode:

• Press on Freezer and Cooler buttons simultaneously for 5 seconds. Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged. Screen saver mode How to use?

• This mode will be activated when you press on mode button for 5 seconds.

• If no button is pressed within 5 seconds when he mode is active, lights of the control panel will go off.

• If you press any button when lights of control panel are off, the current settings will appear on the screen, and then you can maket he adjustment as you want. If you neither cancel screen saver mode nor press on any button in 5 seconds, the control panel will go off again.

• To cancel screen saver mode press on mode button for 5 seconds again.

• When screen saver mode is active you can also activate child lock. Cooler temperature settings

• Initial temperature value for Cooler Setting Indicator is +4 °C.

• Press cooler button once.

• When you rst push this button, the last value appears on the setting indicator of the cooler.

• Whenever you press on this button, lower temperature will be set. (+8°C, +6°C, +5°C, +4°C, +2°C, supercool)

• When you push the cooler set button until supercool symbol appears, and if you do not push any button in 1 seconds Super Cool will ash.

• If you continue to press, it will restart from +8°C.

• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.11 Freezer temperature settings

• Initial temperature value for Freezer Setting Indicator is -18°C.

• Press freezer set button once.

• When you rst push this button, the last set value will blink on screen.

• Whenever you press on this button, lower temperature will be set (-16°C, -18°C, -20°C, -22°C, -24°C superfreeze).

• When you push the freezer set button until superfreeze symbol appears, and if you do not push any button in 1 seconds Super Freeze will ash.

• If you continue to press, it will restart from -16°C.

• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Warnings about Temperature Adjustments

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.

• Do not pass to another adjustment before completing an adjustment.

• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.

• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

• This appliance is designed for use at an ambient temperature within the 10°C - 43°C range. Accessories Twist Ice (In some models)

• Take out the ice making tray

• Fill the water to the line.

• Place the ice making tray in its original position

• When ice cubes are formed, twist the lever to drop ice cubes into the icebox. Note:

• Do not ll the icebox with water to make ice. This may damage it.

• The movement of the ice maker may be difcult while the refrigerator is running. In such a case it should be cleaned by removing the glass shelves. Ice tray (In some models)

• Fill the ice tray with water and place in freezer compartment.

• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube. Chiller Shelf (In some models) Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food to retain freshness and avour longer, while preserving its fresh appearance. When the chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0°C, but foods containing salt or sugar freeze at temperatures lower than that) Normally the chiller compartment is used to store raw sh, lightly pickled food, rice, etc... Do not put foods you want to freeze or ice trays onto the chiller shelf. Climatic Class Amb. T. (°C) SN: From 10 to 32 °C ST: From 16 to 38 °C; N: From 16 to 32 °C T: From 16 to 43 °C12 Removing the Chiller shelf

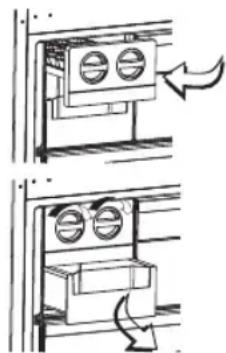

• Pull the chiller shelf towards you by sliding it on the rails.

• Pull the chiller shelf up from the rail and remove it from the fridge. Freezer box The freezer box allows foods are maintained more regularly. Removing The freezer box;

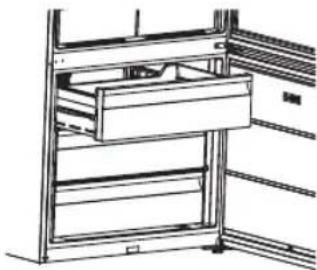

• Pull the box out as far as possible

• Pull the front of box up and out. ! Make the inverse of the same operation for the resetting the sliding compartment. Note: Always Keep the handle of box while removing the box. Humidity Control When the Humidity Control is in the closed position, it allows fresh fruit and vegetables to be stored for longer. If the crisper is completely full, open the fresh dial located in front of the crisper. This allows the air in the crisper and humidity rate to be controlled and the storage life of the food in the crisper will be increased. If you see any condensation on the glass shelf, the Humidity Control should be set in the open position. Adjustable door shelf (In some models) Five different height adjustments can be made to provide storage areas that you need by adjustable door shelf. To change the position of adjustable door shelf; Lift up front of the shelf (1) and move up or down adjustable door shelf (2) with both hands(Fig 1) Before releasing the door shelf make sure the door shelf is located at door positions. Active Oxygen (In some models) Active Oxygen spreads negative ions which neutralize particles of unpleasant smell and dust in the air, improving freshness of food. By removing these particles from the air in the refrigerator, Active Oxygen improves air quality and eliminates odours.

• This feature is optional. It may not exist on your product.

• The location of your ioniser device may vary from product to product. Active Fresh Filter (In some models) Active Fresh Filter technology helps to remove ethylene gas (a bioproduct released naturally from fresh foods) and unpleasant odors from the crisper. In this way, food stays fresh for a longer time.

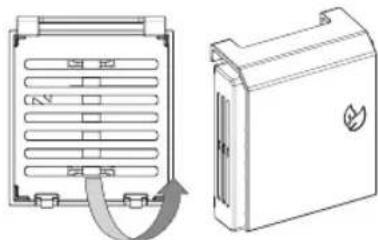

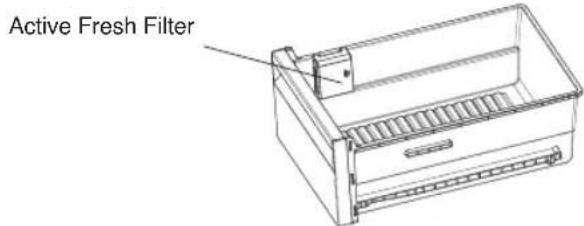

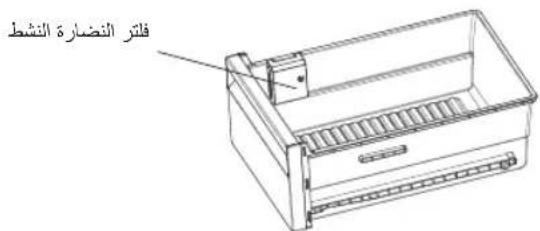

• Active Fresh Filter must be cleaned once in a year. The lter should be waited for 2 hours at 65°C in a oven.

• To clean the lter, please remove the back cover of the lter box by pulling it in the direction of the arrow (A).

• The lter should not be washed with water or any detergent. Notes: The assembly position of the lter may vary depending on the crisper design. Please see the related images. For some models, the lter cannot be attached as shown in the images. In this case it can be simply put into the drawer. Visual and text descriptions on the accessories section may vary according to the model of your appliance. Fig 1 Active Oxygen Active Fresh Filter13 Operating your fridge

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4°C will be enough.

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.

• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.

• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.

• Arrange the meat and cleaned sh(wrapped in packages or sheets of plastic) which you will use in 1-2 days,in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.

• You can put the fruits and vegetables into crisper without packing. Some recommendations have been specied below for the placement and storage of your food in the cooling compartment. Food Maximum Storing time Where to place in the fridge compartment Vegetables and fruits 1 week Vegetable bin Meat and sh 2 - 3 Days Wrapped in plastic foil or bags or in a meat container (on the glass shelf) Fresh cheese 3 - 4 Days In special door shelf Butter and margarine 1 week In special door shelf Bottled products milk and yoghurt Until the expiry date recommended by the producer In special door shelf Eggs 1 month In the egg shelf Cooked food All shelves NOTE: Potatoes, onions and garlic should not be stored in the refrigerator. Freezer compartment

• For normal operating conditions, a• Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice.

• To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section. For bottom section, please use lower basket.

• Please do not place the food you shall newly freeze nearby the already frozen food.

• You should freeze the food to be frozen (meat, minced meat, sh, etc.) by dividing them into portions in such a way that they can be consumed once.

• Please do not refreeze the frozen food once they are thawed. It may pose a danger for your health since it might cause problems such as food poisoning.

• Do not place the hot meals in your deep freeze before they become cold. You would cause the other food frozen beforehand in the deep freeze to become putreed.

• When you buy frozen food, makes sure that they were frozen under appropriate conditions and the package is not torn.

• While storing the frozen food, the storage conditions on the package should certainly be observed. If there is not any explanation, the food must be consumed within the shortest time possible.

ARRANGING FOOD IN THE APPLIANCE14

• If there had been humidication in the frozen food package and it has a foul smell, the food might have been stored under unsuitable conditions previously and gone rotten. Do not purchase this type of foods!

• The storage durations of frozen food change depending on the ambient temperature, the frequent opening and closing of the doors, thermostat settings, food type and the time elapsed from the purchase time of the food to the time it is placed into the freezer. Always abide by the instructions on the package and never exceed the indicated storage duration. Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It’s quite normal! After reaching equilibrium condition, the door will be opened easily. Important note:

• Frozen foods, when thawed, should be cooked just like fresh foods. If they are not cooked after being thawed they must NEVER be re-frozen.

• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period. Therefore, the frozen food should be added little amount of spices or the desired spice should be added after the food has been thawed.

• The storage period of food is dependent on the oil used. The suitable oils are margarine, calf fat, olive oil and butter and the unsuitable oils are peanut oil and pig fat.

• The food in liquid form should be frozen in plastic cups and the other food should be frozen in plastic folios or bags. Meat and sh Preparation Maximum Storing time (month) Steak Wrapping in a foil 6 - 8 Lamb meat Wrapping in a foil 6 - 8 Veal roast Wrapping in a foil 6 - 8 Veal cubes In small pieces 6 - 8 Minced meat In packages without using spices 1 - 3 Giblets (pieces) In pieces 1 - 3 Bologna sausage/salami Should be packaged even if it has membrane Chicken and turkey Wrapping in a foil 4 - 6 Goose and Duck Wrapping in a foil 4 - 6 Deer, Rabbit, Wild Boar In 2.5 kg portions and as llets 6 - 8 Fresshwater shes (Salmon, Carp, Crane, Siluroidea) After cleaning the bowels and scales of the sh, wash and dry it; and if necessary, cut the tail and head.

Lean sh; bass, turbot, ounder

Fatty shes (Tunny, Mackarel, bluesh, anchovy)

Shellsh Cleaned and in bags 4 - 6 Caviar In its package, aluminium or plastic container

Snail In salty water, aluminum or plastic container

NOTE: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it should never be frozen again.15 Vegetables and Fruits Preparation Maximum Storing time (month) String beans and beans Wash and cut to small pieces and boil in water

Beans Hull and wash and boil in water 12 Cabbage Cleaned and boil in water 6 - 8 Carrot Clean and cut to slices and boil in water 12 Pepper Cut the stem, cut into two pieces and remove the core and boil in water

Spinach Washed and boil in water 6 - 9 Cauliower Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while

Eggplant Cut to pieces of 2cm after washing 10 - 12 Corn Clean and pack with its stem or as sweet corn

Apple and pear Peel and slice 8 - 10 Apricot and Peach Cut into two pieces and remove the stone 4 - 6 Strawberry and Blackberry Wash and hull 8 - 12 Cooked fruits Adding 10 % of sugar in the container 12 Shellsh Cleaned and in bags 4 - 6 Plum, cherry, sourberry Wash and hull the stemsr 12 Dairy Products Preparation Maximum Storing time (month) Storing Conditions Packet (Homogenize) Milk In its own packet 2 - 3 Pure Milk – In its own packet Cheese-excluding white cheese In slices 6 - 8 Original package may be used for short storing period. It should be wrapped in foil for longer periods. Butter, margarine In its package 6 Maximum Storing time (months) Thawing time in room temperature (hours) Thawing time in oven (minutes) Bread 4 - 6 2 - 3 4-5 (220-225 °C) Biscuits 3 - 6 1 - 1,5 5-8 (190-200 °C) Pastry 1 - 3 2 - 3 5-10 (200-225 °C) Pie 1 - 1,5 3 - 4 5-8 (190-200 °C) Phyllo dough 2 - 3 1 - 1,5 5-8 (190-200 °C) Pizza 2 - 3 2 - 4 15-20 (200 °C)16

• Unplug the fridge before starting to clean it.

• Do not wash your fridge by pouring water into it.

• Wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

• Remove the parts individually and clean with soapy water. Do not wash in a dishwasher.

• Never use ammable, explosive or corrosive material, such as thinner, gas or acid for cleaning. Some recommendations have been specied below for the placement and storage of your food in the cooling compartment. Make sure that your fridge is unplugged while cleaning. Replacing LED Lighting If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only. Note: Numbers and location of led strips may be changed according to the model.

CLEANING AND MAINTENANCE

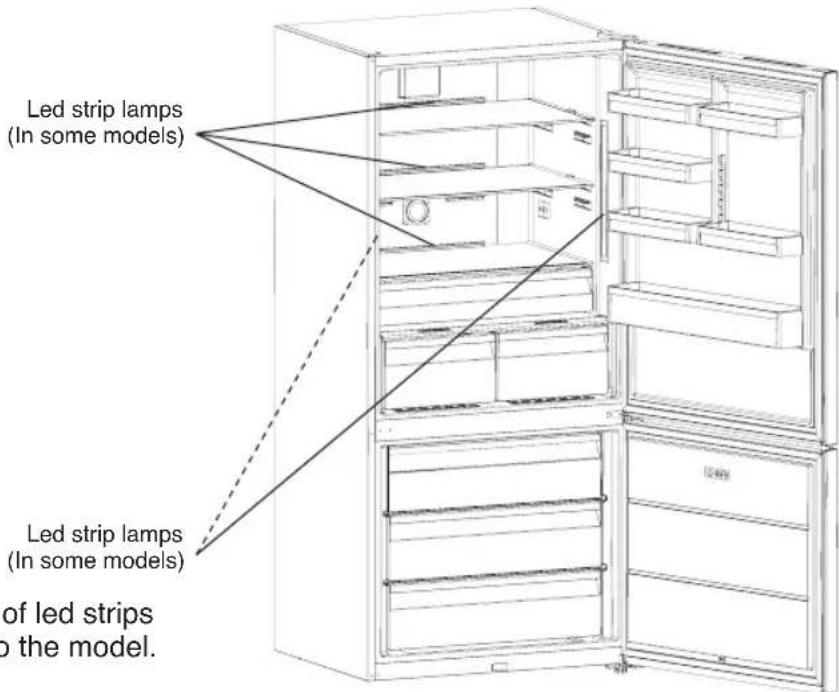

Led strip lamps (In some models) Led strip lamps (In some models)

• The original packaging and foam may be kept for re-transportation (optionally).

• You should fasten your fridge with thick packaging, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

• Remove movable parts (shelves, accessories, vegetable bins etc.) or x them into the fridge against shocks using bands during re-positioning and transportation. Always carry your fridge in the upright position.

TRANSPORTATION AND CHANGING OF

INSTALLATION POSITION17 Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.

• It is possible to change the opening direction of the door on models without any handles.

• If the door opening direction of your fridge can be changed, you should contact the nearest Authorised Service to have the opening direction changed. Check Warnings; Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators. ERROR TYPE MEANING WHY WHAT TO DO SR “Failure Warning” There is/are some part(s) Out of order or there is a failure in cooling process Call Service for assistance as soon as possible. SR – Set value blink on freezer set value screen Freezer comp. Not Cold enough This caution will be seen especially after long term of power failure

1. Do not freeze the foods that

are thaw and use in short time period.

2. Set the freezer temperature

to colder values or set the super freeze , until the compartment gets to normal temperature.

3. Do not put fresh food until

this failure is off. SR – Set value Blink on cooler set value screen “Refrigerator comp. Not Cold enough” Ideal temperature for Ref. Compartment is +4 oC. If you see this warning your foods have risk of spoiling.

1. Set the refrigerator

temperature to colder values or set the super cooling mode until the compartment gets to normal temperature.

2. Do not open the door much

until this failure is off. SR – Set value blink on freezer and cooler set value screen “not cold enough Warning” It is combination of “not cool enough” error for both of the compartments. You will see this failure when rst starting the appliance. It will be off after the compartments gets normal temperature SR – Set value blink on cooler set value screen Refrigerator comp. too Cold The foods starts to freeze because of the too much cold temperature

2. Decrease the refrigerator

“Low voltage Warning” When the power supply gets lower than 170 V the appliance gets to steady position. This is not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required level

BEFORE CALLING YOUR AFTER SALES

SERVICE18 If your fridge is not operating;

• Is there a power failure?

• Is the plug connected to the socket correctly?

• Is the fuse of the socket to which the plug is connected or the main fuse blown?

• Is there any failure at the socket? To check this, plug your refrigerator to a socket this is surely operating. If your fridge is not cooling enough;

• Is the temperature adjustment right?

• Is the door of your fridge opened frequently and left open for a long while?

• Is the door of fridge closed properly?

• Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?

• Is your fridge lled excessively?

• Is there adequate distance between your fridge and the rear and side walls?

• Is the ambient temperature within the range of values specied in the operating manual? If the food in your refrigerator compartment is over cooled

• Is the temperature adjustment right?

• Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food. If your fridge is operating too loudly; To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?

• Is there anything behind your fridge?

• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.

• Are the items placed on your fridge vibrating?. Normal Noises; Cracking (Ice cracking) Noise:

• During automatic defrosting.

• When the appliance is cooled or warmed (due to expansion of appliance material). Short cracking: Heard when the thermostat switches the compressor on/off. Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated. Bubbling noise and splash: This noise is caused by the ow of the refrigerant in the tubes of the system. Water ow noise: Normal ow noise of water owing to the evaporation container during defrosting. This noise can be heard during defrosting. Air Blowing Noise (Normal fan noise): This noise can be heard in No-Frost fridge during normal operation of the system due to the circulation of air. If humidity builds up inside the fridge;

• Are all food packed properly? Are the containers dried before placing them in the fridge?

• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.19 If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?

• Are the door compartments, shelves and drawers placed properly?

• Are door gaskets broken or torn?

• Is your fridge on a level surface? If the edges of fridge cabinet that the door joint contact are warm; Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal. IMPORTANT NOTES:

• Compressor protection function will be activated after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 5 minutes, there is nothing to worry about.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to Part 4 and leave the door open to prevent humidity and smell.

• If the problem persists after you have followed all the instructions above, please consult to the nearest authorized service.

• The appliance you bought is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period. Tips for saving energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat

sources (radiator, cooker.. etc. ). If you install it near heat sources, use an insulating plate.

2. Allow warm food and drinks to cool down before putting them in the refrigerator or freezer

3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the

frozen food will help to cool the refrigerator compartment while it is thawing, reducing the energy required.

4. When placing liquids in the appliance, make sure they are covered. Otherwise humidity increases

inside the appliance and the time taken to cool them is longer. Also covering drinks and liquids helps preserve the smell and taste.

5. When placing food and drinks in the appliance, open and close the appliance door as quickly as

possible to keep the temperature inside the appliance stable.

6. Keep the covers closed of any compartments with different temperature requirements in the

appliance (crisper, chiller ...etc. ).

7. Make sure the door gasket is clean and pliable. Replace gaskets if they are worn or damaged.20

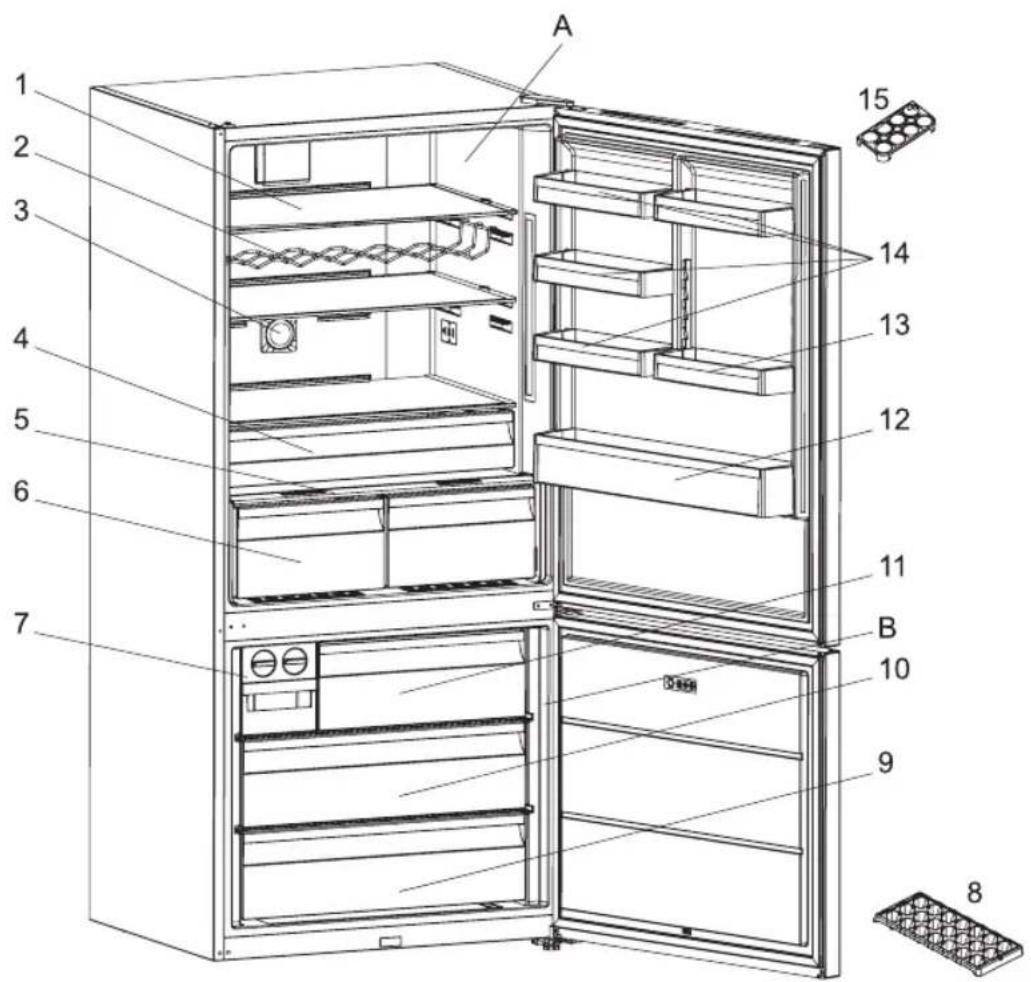

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

A. FRIDGE COMPARTMENT

B. FREEZER COMPARTMENT

1. Fridge compartment shelves

14. Cooling compartment door shelves

• In some models This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.21

SN10 ST3816 N16 T431610
