HTD 8005 CB - Hair dryer BOMANN - Free user manual and instructions

Product Type	Hair Dryer
Brand	Bomann
Model	HTD 8005 CB
Power Supply	110/230 V~, 50/60 Hz
Power Consumption	1300 W max
Protection Class	II
Net Weight	0.35 kg
Heat and Airflow Settings	Position I: gentle airflow and medium temperature; Position II: strong airflow and high temperature
Accessories Included	Concentrator nozzle, diffuser, transparent bag
Handle	Foldable for easy storage
Hanging Loop	Yes
Safety	Do not use near water; clean the air intake grille regularly
Maintenance	Clean the body with a soft dry cloth; brush the air intake grille
Usage	For curly hair or targeted drying with attachments
Warranty	Refer to the warranty card provided

Frequently Asked Questions - HTD 8005 CB BOMANN

How to connect the hair dryer?

Before plugging in, check that the voltage of your outlet matches the appliance (110/230 V~). Use the voltage selector under the handle to choose the correct voltage. Then plug into a grounded outlet.

What settings are available?

The switch on the handle offers three positions: 0 for off, I for gentle airflow and medium temperature, II for strong airflow and high temperature.

How to change accessories (nozzle, diffuser)?

Remove the accessory in place by pulling it, then attach the new accessory until you hear a click. Make sure it is securely fastened.

Can I use the hair dryer in the bathroom?

The appliance must not be used near bathtubs, washbasins, or other containers filled with water. If used in a bathroom, unplug it after use because proximity to water poses a risk even when switched off.

How to clean the hair dryer?

Always unplug the appliance before cleaning. Clean the body with a soft dry cloth. Regularly clean the air intake grille with a very fine brush to avoid overheating. Never immerse the appliance in water.

What to do if the power cord is damaged?

Do not repair the appliance yourself. Have the cord replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any danger.

What is the maximum power?

The maximum power consumption is 1300 W.

How to store the hair dryer after use?

Allow the appliance to cool, then fold the handle and store it in the transparent bag provided. You can also hang it by the hanging loop.

Can the hair dryer be used by children?

It can be used by children aged 8 and above under supervision, and by persons with reduced capacities if they have received instructions. Children should not play with the appliance nor perform cleaning without supervision.

How to dispose of the appliance at end of life?

Do not throw the appliance in household waste. Take it to a collection point for waste electrical and electronic equipment. Check with your local municipality.

USER MANUAL HTD 8005 CB BOMANN

HARRONERHTD 800 CB 5

Red BOMANN 1300 W hair dryer with black handle and white head (no visible text or symbols on device body)

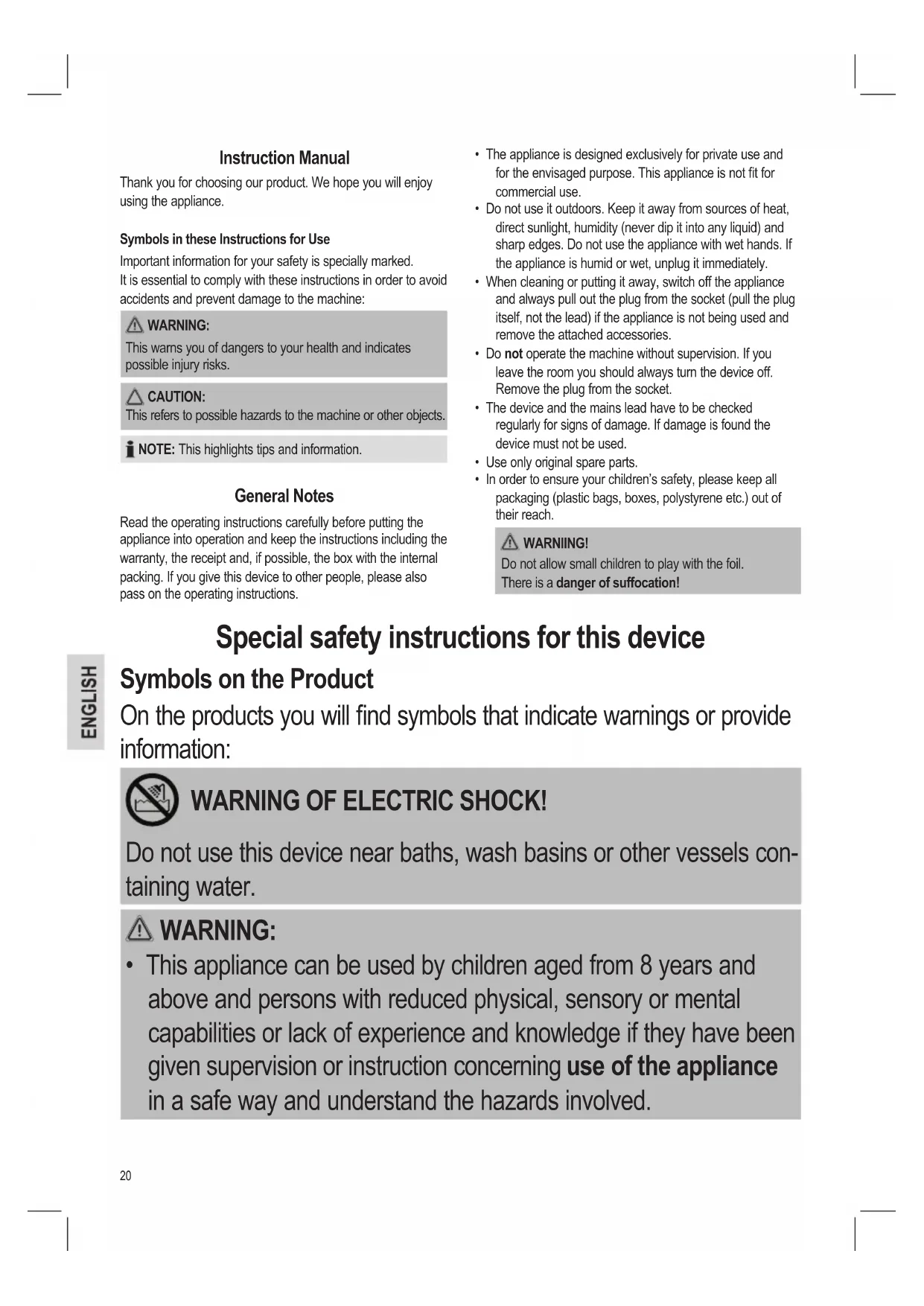

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety instructions for this device

Symbols on the Product

On the products you will find symbols that indicate warnings or provide information:

WARNING OF ELECTRIC SHOCK!

Do not use this device near baths, wash basins or other vessels containing water.

WARNING:

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

WARNING:

• Children must not play with the appliance.
- Cleaning and user maintenance must not be carried out by children, unless they are supervised.
- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• The nozzles become hot during operation!
- If the appliance is used in the bathroom, disconnect it from the mains after use as nearby water presents a hazard. This also applies if the appliance is switched off.
- Please ensure that the inlet grille remains free of fluff and hairs. Danger of fire!

- As additional protection we recommend the installation of a fault current protection device (FI/RCD) with a rated current of not more than 30 mA in the wiring system of the bathroom. Please contact an authorised electrician for advice. - Please observe the instructions that we have included for you in the chapter “Maintenance and care”.

Commissioning

• Unwind the mains cable completely. Fold out the handle.
• Attach a nozzle if necessary.

- You can dry single hair locks by concentrating the flow of hot air with the hairdressing nozzle.

- The diffuser is the ideal solution to dry curly hair without losing volume.

- In order to replace the attachment, first remove the old attachment by pulling it off and then pushing on the new one until it clicks into place.

Electrical Connection

• Before inserting the plug into the socket. Make sure that the mains voltage to be used matches that of the device. You can find this information on the nameplate. Switch the voltage from 110 V to 230 V using the voltage selector on the bottom of the handle.
• Connect the appliance to a properly installed earthed socket.

Use

Slide the switch on the handle to the desired heat / blower setting:

Position 0: off

Position I: gentle air flow and medium temperature

Position II: strong air flow and high temperature

Switch-off

After use, slide the switch to position "0" and disconnect from the mains.

Storage

• Leave the device to cool before putting it away! To do so, place the appliance onto one side of the housing or hang it up by the suspension eye.
• Fold the handle up to save space and keep the appliance in the see-through bag.

Mains Cable

• The mains cable should only be wound up loosely.
• Never tie the cable tightly round the device, as over time this may result in the cable breaking.
• Check the mains cable regularly for damage.

Maintenance and care

WARNING:

• Before cleaning remove the mains lead from the socket.
• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.

Clean the housing with a soft, dry cloth without additives.

Air Intake Grill

Please clean the grill on the air intake side of the hairdryer regularly in order to avoid excessive temperatures as a result of heat accumulation.

• Remove any dirt that is present.
• If necessary, a fine brush can be used.

Noise development

The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744.

Sound pressure level detected: 79 dB(A) (no limit).

Technical Data

Model:....HTD 8005 CB

Power supply: 110/230 V\~; 50/60 Hz

Power consumption: max 1300 W

Protection class: II

Net weight: 0.35 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
