CB 850 - Hair dryer BOMANN - Free user manual and instructions

Product type	Hair dryer
Brand	Bomann
Model	CB 850
Power supply	230 V, 50 Hz
Number of speeds	2 (low, high)
Number of temperatures	3 (cool, medium, high)
Cool Shot function	Yes, interrupts heat
Turbo function	Yes, increases airflow
Included nozzles	Concentrator and diffuser
Dust filter	Removable and washable with clean water
Body maintenance	Soft dry cloth
Intake opening maintenance	Soft brush
Safety	Do not use near water; unplug after use; recommended to install a 30 mA RCD
Warranty	24 months from purchase date
Spare parts	Individually replaceable accessories
Intended use	Private, indoor
Compliance	EC directives on interference suppression and low voltage safety
Manual page count	40 pages

Frequently Asked Questions - CB 850 BOMANN

How to use the Cool Shot function?

Press the Cool Shot button during drying to interrupt heat and set the style. This allows a personalized cool air mixture.

How to clean the dust filter?

Remove the filter by turning it 30° counterclockwise. Wash it with clean water, dry thoroughly before reinstalling.

Can I use the hair dryer in the bathroom?

Yes, but always unplug after use, even when off. For added safety, have a 30 mA residual current device (RCD) installed.

What to do if the device does not heat up?

Check that the temperature selector is on a position other than 1 (cool air). If the problem persists, the device may be defective. Contact a qualified technician.

How to adjust temperature and speed?

Use the right button (temperature): position 1 (cool air), 2 (medium), 3 (high). The left button (speed): 0 (off), 1 (low), 2 (high).

What to do if the power cord is damaged?

Do not repair yourself. Have it replaced by a qualified professional, the manufacturer, or its after-sales service with an equivalent cord.

How to install the nozzles?

Simply clip the desired nozzle onto the front of the device. The concentrator allows targeted drying, the diffuser preserves volume for curly hair.

What is the power (wattage) of the device?

The power is not specified in the manual. However, Bomann hair dryers in this range typically have a power output between 1500 and 2000 W.

How to benefit from the 24-month warranty?

Keep your receipt as proof of purchase. In case of defect, return the complete device in its original packaging with the receipt to your dealer.

Can I use the diffuser on curly hair?

Yes, the diffuser is specially designed to dry curly hair without losing volume, by distributing air evenly.

USER MANUAL CB 850 BOMANN

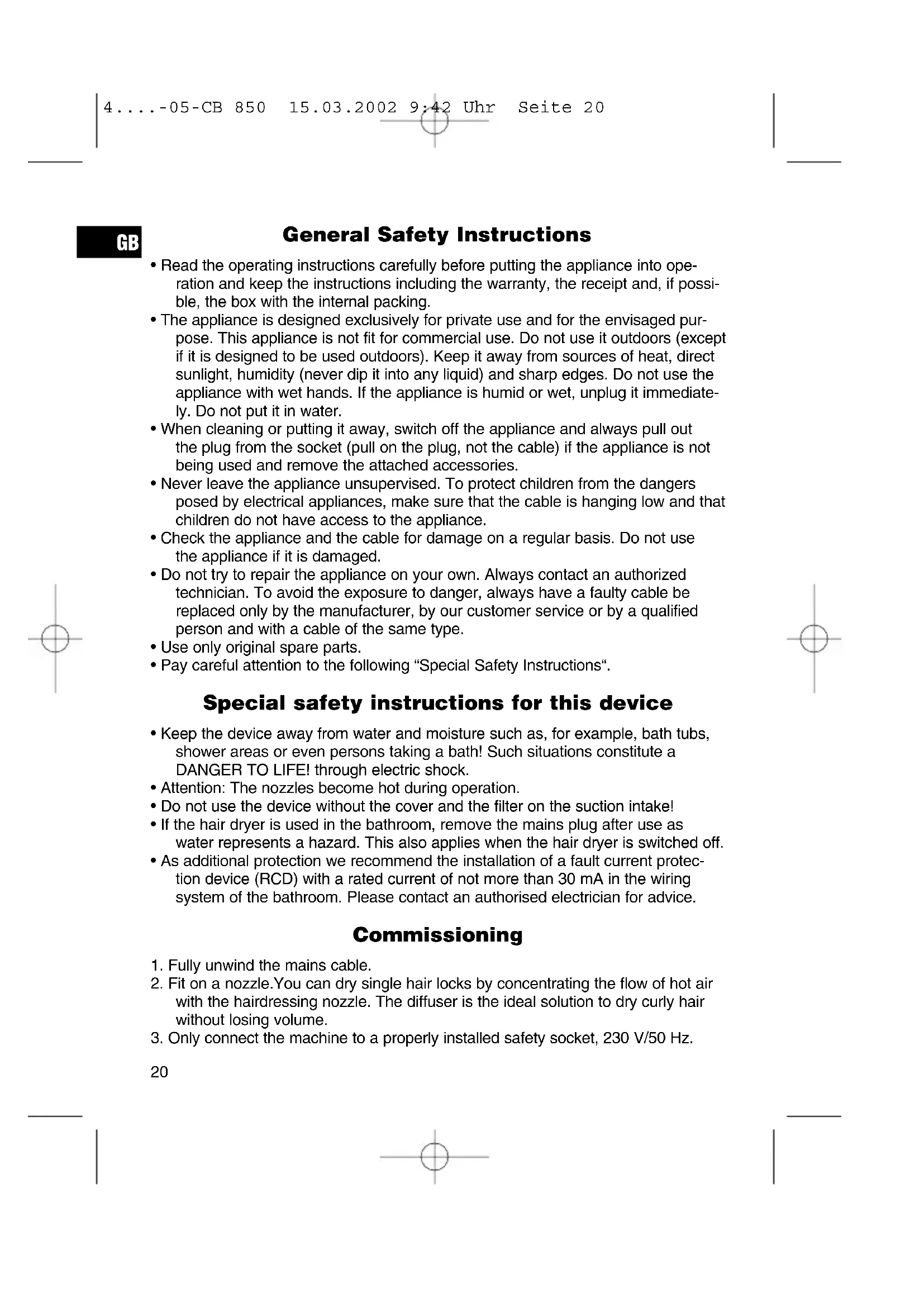

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special safety instructions for this device

• Keep the device away from water and moisture such as, for example, bath tubs, shower areas or even persons taking a bath! Such situations constitute a DANGER TO LIFE! through electric shock.
• Attention: The nozzles become hot during operation.
• Do not use the device without the cover and the filter on the suction intake!
• If the hair dryer is used in the bathroom, remove the mains plug after use as water represents a hazard. This also applies when the hair dryer is switched off.
• As additional protection we recommend the installation of a fault current protection device (RCD) with a rated current of not more than 30mA in the wiring system of the bathroom. Please contact an authorised electrician for advice.

Commissioning

1. Fully unwind the mains cable.
2. Fit on a nozzle. You can dry single hair locks by concentrating the flow of hot air with the hairdressing nozzle. The diffuser is the ideal solution to dry curly hair without losing volume.
3. Only connect the machine to a properly installed safety socket, 230V / 50Hz

4. Setting the Temperature Level (right switch):

Position 1: cold air

Position 2: medium temperature for gentle drying and shaping

Position 3: high temperature for rapid drying

Setting the desired blower strength (left switch):

Position 0: OFF

Position 1: gentle stream of air

Position 2: strong stream of air

COOL-Shot: With this switch it is possible to interrupt the heating process so that the air can be mixed according to individual requirements.

TURBO button: By pressing the turbo button you can increase the air current even further.

Cleaning and care

Clean the air suction opening from time to time with a fine brush. Clean the housing with a soft, dry cloth without additives.

Removing the air suction cover

Remove the cover after turning the cap through approximately 30 degrees against a clockwise direction. Remove the intake filter and clean under running water. Dry the filter well before mounting again!

This appliance conforms with the CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements.

Subject to technical changes without prior notice!

Guarantee

We undertake to guarantee the appliance sold by our company for 24 months as of the date of purchase (cash receipt).

During the life of the warranty we shall provide for the repair or replacement of the appliance owing to material or manufacturing defects absolutely free of charge.

Proof for the warranty is provided by the purchase document. The replacement and repair will not be performed free of charge without this proof of purchase.

Should the warranty be valid, please consign the complete appliance in its original packing together with the cash receipt to your local dealer.

You are not entitled to the replacement of the appliance owing to broken glass parts and faulty accessories. However, said parts will be replaced free of charge. In this

GB

case only the faulty accessory needs to be ordered without sending back the whole appliance!

The cleaning, servicing and replacement of wear parts are not covered by this warranty and hence are to be paid for.

The warranty is terminated in case of handling on the part of Third parties.

After the warranty

Once the warranty has expired, repairs can be carried out by specialized technicians or repair services against the payment of the service.
