USER MANUAL F6729 FESTINA

CALIBRE FS06/16/26 FS07/17/27

INSTRUCTION MANUAL Basic specifications Features Displays and buttons Reading the watch Setting the time Setting the date Using the time different correction Using the cronograph Chronograph reset (incl. after replacing battery)

CALIBRE FS06/16/26 FS07/17/27

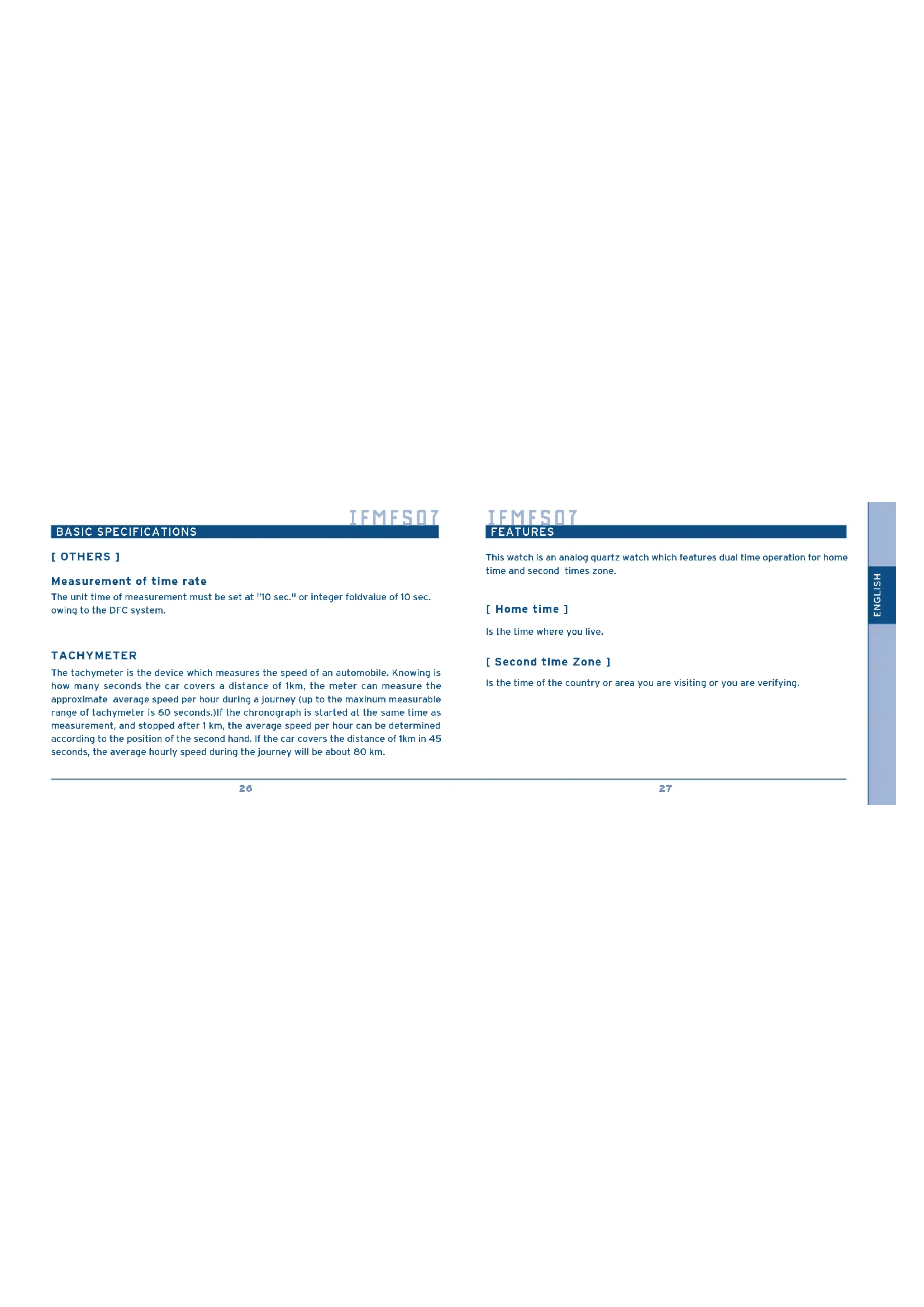

BASIC SPECIFICATIONS [ OTHERS ] The unit time of measurement must be set at "10 sec." or integer foldvalue of 10 sec. owing to the DFC system. TACHYMETER The tachymeter is the device which measures the speed of an automobile. Knowing is how many seconds the car covers a distance of 1km, the meter can measure the approximate average speed per hour during a journey (up to the maxinum measurable range of tachymeter is 60 seconds.)If the chronograph is started at the same time as measurement, and stopped after 1 km, the average speed per hour can be determined according to the position of the second hand. If the car covers the distance of 1km in 45 seconds, the average hourly speed during the journey will be about 80 km. Measurement of time rate FEATURES This watch is an analog quartz watch which features dual time operation for home time and second times zone. [ Home time ] Is the time where you live. [ Second time Zone ] Is the time of the country or area you are visiting or you are verifying. IFMFS07

DISPLAYS AND BUTTONS

Button (B) Minute hand Hour hand (local time) Second hand Button (A) Chronograph second hand Normal Crown Position Chronograph minute hand 24-Hour hand (home time) 12-Hour hand (home time) Calendar (local time)

• The minute and second hands are the same under home and local time.

• The 24 small hand (C) is synchronized with 12hours (B).

• The date is synchronized with hour hands-A (local time). IFMFS07

24-Hour hand (A) Local time 12-Hour hand (B) Home time When the watch hands appear in the diagram;

• Home time in GMT is 13:10:35 (12hours-B & 24 hours-C display).

• Local time in Tokyo is 10:10:35(hour hands-A display). [ Note ] 24-Hour hand (C) Home time

There are 2 ways to use the 12 hour hand(B) and setting the time depends on which way to use. Using the 12 hour hand(B) and 24 hour hand(C) for the "home time "In other word, using hour hand and minute hand to see the "second time zone" while the 12 hour hand(B) and 24 hour hand ( C ) to see the "home time". (When you use in domestic, the 12 hour hand will be hidden under the normal hour hand). TYPE 1 IFMFS07

TYPE 1 24-Hour hand (A) Local time 12-Hour hand (B) Home time 24-Hour hand (C) Home time [ Setting the home time ] 2nd position Time correction position

1.Pull the crown out to the second position when the second hands has reached the 0 position.

2. Turn the crown to set the current time, paying attention to the motion of 12hour hand

and 24 hour hand and minute hand. 3.Return the crown to the normal position. Setting the 12 hour hand(B) and 24 hour hand ( C ) and minute hand has been now completed.

4. Pull the crown out to the first position when the second hands has reached the 0 position.

Turn the crown anticlockwise to set the current time. Please also set the date together. Hour hand is linked with calander. Please be careful if it is in morning or afternoonwhen you set the time.

5. Return the crown to the normal position.

TYPE 2 [ Setting the home time ] When you use the 12 hour hand (B) and 24 hour hand (C) for the "second time zone". In other word, you can select this type when using the 12 hour hand (B) and 24 hour hand (C) to see the "second time zone" (the time which has time lag), while the hour and minute hand and 12 hour hand (B) (linked with 24 hour hand) to see the "dual time". For example, if you set the 12 hour hand (B) and 24 hour hand (C) to GMT (Greenwich Mean Time) and the normal hour and minute hand for the "second time zone", you can check GMT anytime and anyplace. 1.Pull the crown out to the second position when the second hands has reached the 0 position.

2. Turn the crown to set the current time, paying attention to the motion of 12hour hand

and 24 hour hand and minute hand. 3.Return the crown to the normal position. Setting the 12 hour hand(B) and 24 hour hand ( C ) and minute hand has been now completed.

4. Pull the crown out to the first position when the second hands has reached the 0 position.

Turn the crown anticlockwise to set the current time. Please also set the date together. Hour hand is linked with calander. Please be careful if it is in morning or afternoonwhen you set the time.

5. Return the crown to the normal position.

1. Pull the crown out to the first position when the second hands has reached the

2. Turn the crown clockwise to set the date. If the date is set between the hours

of around 9:00PM and 1:00PM, the date may not changeon the following date.

3. After the date has been set, push the crown back to the normal position.

24-Hour hand (A) Local time 12-Hour hand (B) Home time 24-Hour hand (C) Home time 1st position Date

24-Hour hand (A) Local time 12-Hour hand (B) Home time 24-Hour hand (C) Home time 1st position Date When moving to a country or area which is in a different timezone, the current time in the "second time zone" can be corrected. As the date calander is linked with time, the date in the "second time zone" is also corrected. IFMFS07

1. Pull the crown out to the first position when the second hands has reached the

0 position. Turn the crown anticlockwise to set the "second time zone". Date may gain in some countries or regions. In this case, please set the date also when you set the time. (As for details, please refer to the page "the setting date". 2.After the date has been set, push the crown back to the normal position.

USING THE TIME DIFFERENT CORRECTION

ESPAÑOLFRANÇAISDEUTSCHITALIANO ENGLISH[ The time difference between the cities and UTC time ] IFMFS07

Reset Time measurement Stop

B B This chronograph is able to measure and display time in 1/1 second united up to maxinum of 1 hour. [ Measuring time with the chronograph ]

1. The chronograph can be started and stopped each time button "A" is pressed.

2.To reset, press button "B" and the chronograph second & minute hands return to their 0 positions. Normal Crown Position ESPAÑOLFRANÇAISDEUTSCHITALIANO ENGLISH1. Pull the crown out to the 2nd position. 2.Press button "A" to set the chronograph second hand to the 0 position. 3.The chronograph hands can be advanced rapidly by continuously pressing button "A". 4.Once the hands have been zeroed, reset the time and return the crown to its normal position.

• Do not return crown to normal position while chronograph second hand return to 12:00 (ZERO) position. Hand stops on the way when crown are returned to normal position and these positions are recognized as 12:00 (ZERO) position. IFMFS07

CHRONOGRAPH RESET (Incl. after replacing battery) IFMFS07

CHRONOGRAPH RESET (Incl. after replacing battery) This procedure shoud be performed when the chronograph second hand do not return to the 0 second position after the chronograph has been reset, and including after the battery has been replaced. Normal Crown Position

IFMFS07 By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health. 42IFMFS07
