USER MANUAL F20442 FESTINA

Basic specifications 24

Features 26

Displays and buttons 27

Reading the watch 28

Setting the time 29

Setting the date 34

Using the time different correction 35

Using the cronograph 37

Chronograph reset (after replacing battery) 38

IFMFS16/26-17/27 IFMFS16/26-17/27

BASIC SPECIFICATIONS BASIC SPECIFICATIONS

CALIBER

FS16/26

is for slanted push buttons

FS17/27

is for pallale! push buttons

TIME STANDARD

Type of quartz: Tuning fork type quartz crystal

Frequency: 32,768Hz

Accuracy: ± 20 s/month at the normal temperature

+5^ a + 35^ / 41^ a 95^

Operating -10^ to +60^ / 14^ to 140^

temperature:

BATTERY & LIFE

SR626SW 2 YEARS

*based on 1hour/day chronograph

FUNCTION

Time: Hour, minute, second

Date

Dual Time

Chronograph 1/1 sec. Basis (Up to 59 min. 59 sec.)

EYE POSITION

24-hour hand (12H)

(nome time)

Second hand

Chrono 60 min (9h) Chrono 60 min (9h)

24-hour hand (12H)

Second hand (home time)

IFMFS16/26-17/27 IFMFS16/26-17/27

FEATURES

This watch is an analog quartz watch which features dual time operation for home time and second times zone.

HOMETIME

Is the time where you live.

SECOND TIME ZONE

Is the time of the country or area you are visiting or you are verifying

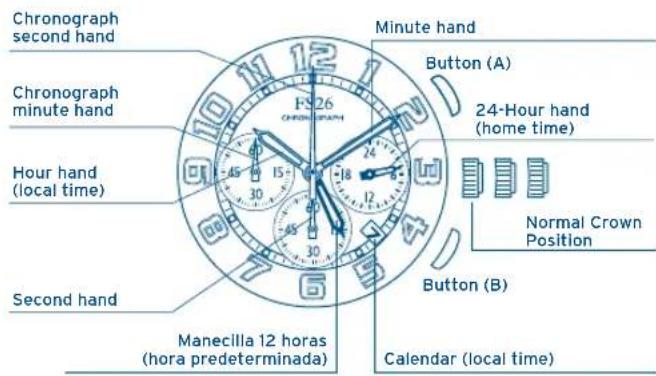

DISPLAYS AND BUTTONS

READING THE WATCH SETTING THE TIME

When the watch hands appear in the diagram;

Home time in GMT is 13:10:35 (12hours-B & 24 hours-C display).
- Local time in Tokyo is 10:10:35(hour hands-A display).

12-Hour hand (A) Local time

12-Hour hand (B) Home time

24-Hour hand (C) Home time

NOTE

The minute and second hands are the same under home and local time.
The 24 small hand (C) is synchronized with 12hours (B).
The date is synchronized with hour hands-A (local time). local.

There are 2 ways to use the 12 hour-hand (B) and setting the time depends on which way to use. Please be very careful and follow the instructions below for setting the time for both ways (Type1 & Type2).

TYPE1

Using the 12 hour hand (B) and 24 hour hand (C) for the "home time". In other word, using hour hand and minute hand to see the "second time zone" while the 12 hour hand (B) and 24 hour hand (C) to see the "home time". (When you use in domestic, the 12 hour hand will be hidden under the normal hour hand).

IFMFS16/26-17/27 IFMFS16/26-17/27

SETTING THE TIME SETTING THE TIME

TYPEI TYPEI

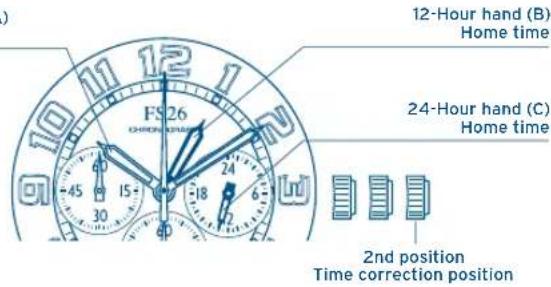

SETTING THE HOME TIME

12-Hour hand (A) Local time

1. Pull the crown out to the second position when the second hands has reached the O position.
2. Turn the crown to set the current time, paying attention to the motion of 12 hour hand (B) and 24 hour hand (C) and minute hand.
3. Return the crown to the normal position. Setting the 12 hour hand (B) and 24 hour hand (C) and minute hand has been now completed.

4. Pull the crown out to the first position when the second hands has reached the O position. Turn the crown anticlockwise to set the current time. Please also set the date together.

5. Hour hand is linked with calander. Please be careful if it is in morning or afternoonwhen you set the time.

6. Return the crown to the normal position.

IFMFS16/26-17/27 IFMFS16/26-17/27

SETTING THE TIME SETTING THE TIME

TYPE2 TYPE2

When you use the 12 hour hand (B) and 24 hour hand (C) for the "second time zone". In other words, you can select this type when using the 12 hour hand (B) and 24 hour hand (C) to see the "second time zone" (the time which has time lag), while the hour and minute hand and 12 hour hand (B) (linked with 24 hour hand) to see the "dual time".

For example, if you set the 12 hour hand (B) and 24 hour hand (C) to GMT (Greenwich Mean Time) and the normal hour and minute hand for the "second time zone", you can check GMT anytime and anyplace.

SETTING THE HOME TIME

1. Pull the crown out to the second position when the second hands has reached the O position.

2. Turn the crown to set the current time, paying attention to the motion of 12 hour hand (B) and 24 hour (C) hand and minute hand.

3. Return the crown to the normal position. Setting the 12 hour hand (B) and 24 hour hand (C) and minute hand has been now completed.

4. Pull the crown out to the first position when the second hands has reached the O position.

Turn the crown anticlockwise to set the current time.
Please also set the date together.
Hour hand is linked with calander.
Please be careful if it is in morning or afternoon when you set the time.

1. Return the crown to the normal position.

SETTING THE DATE USING THE TIME DIFFERENT CORRECTION

1. Pull the crown out to the first position when the second hands has reached the O position.
2. 2Turn the crown clockwise to set the date. If the date is set between the hours of around 9:00PM and 1:00PM, the date may not change on the following date.
3. After the date has been set, push the crown back to the normal position.

When moving to a country or area which is in a different timezone, the current time in the "second time zone" can be corrected.

As the date calander is linked with time, the date in the "second time zone" is also corrected.

1. Pull the crown out to the first position when the second hands has reached the O position.
   Turn the crown anticlockwise to set the "second time zone".
   Date may gain in some countries or regions.
   In this case, please set the date also when you set the time.
   (As for details, please refer to the page "setting the date".
2. After the date has been set, push the crown back to the normal position.

IFMFS16/26-17/27 IFMFS16/26-17/27

USING THE TIME DIFFERENT CORRECTION

THE TIME DIFFERENCE BETWEEN THE CITIES AND UTC TIME

City	Time difference	Summer time
UTC	±0	—
LONDON	±0	○
PARIS	+1	○
ROME	+1	○
CAIRO	+2	○
ISTANBUL	+2	○
MOSCOW	+3	○
KUWAIT	+3	×
DUBAI	+4	×
KARACHI	+5	×
DACCA	+6	×
BANGKOK	+7	×
SINGAPORE	+8	×

City	Time difference	Summer time
HONG KONG	+8	×
TOKYO	+9	×
SYDNEY	+10	○
NOUMEA	+11	×
AUCKLAND	+12	○
HONOLULU	-10	×
ANCHORAGE	-9	○
LOS ANGELES	-8	○
DENVER	-7	○
CHICAGO	-6	○
NEW YORK	-5	○
CARACAS	-4	×
RIO DE JANEIRO	-3	○

USING THE CRONOGRAPH

This chronograph is able to measure and display time in 1/1 second united up to maximum of 1 hour.

MEASURING TIME WITH THE CHRONOGRAPH

1. The chronograph can be started and stopped each time button "A" is pressed.
2. To reset, press button "B" and the chronograph second & minute hands return to their 0 positions.

IFMFS16/26-17/27 IFMFS16/26-17/27

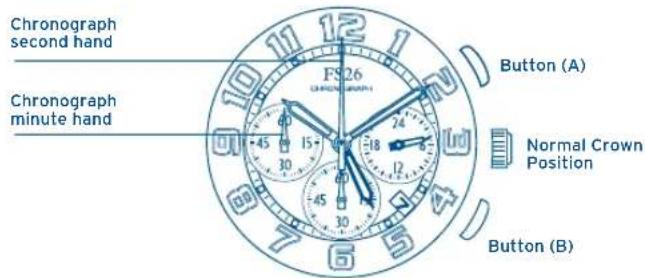

CHRONOGRAPH RESET [after replacing battery] CHRONOGRAPH RESET

This procedure should be performed when the chronograph second hand do not return to the O second position after the chronograph has been reset, and including after the battery has been replaced.

placing battery]

1. Pull the crown out to the 2nd position.
2. Press button "A" to set the chronograph second hand to the O position.
3. The chronograph hands can be advanced rapidly by continuously pressing button "A".
4. Once the hands have been zeroed, reset the time and return the crown to its normal position.
5. Do not return crown to normal position while chronograph second hand return to 12:00 (ZERO) position. Hand stops on the way when crown are returned to normal position and these positions are recognized as 12:00 (ZERO) position.

IFMFS16/26-17/27

IFMFS16/26-17/27

MANUEL D'INSTRUCTION

DUAL TIME

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
