Product type	Wristwatch
Brand	Jaguar
Model	J639
Movement	Quartz
Display	Analog with hands (hours, minutes, seconds)
Main functions	Time, date, chronograph (1/10 s, minutes, seconds, hours)
Power supply	Battery 395 (SR927SW, Ø 9.5 mm × 2.6 mm)
Running accuracy	+20 / -10 seconds per month
Case dimensions	Approx. Ø 42 mm, thickness 12 mm
Approximate weight	100 g
Case material	Stainless steel (assumed)
Strap	Leather or metal (depending on version)
Time setting	Crown in position III
Quick date correction	Crown in position II
Chronograph – Start/Stop	Push button A
Chronograph – Reset	Push button B
Chronograph – Intermediate times	Push button B (display/catch-up)
Chronograph hand adjustment	Crown in III, then push buttons A and B simultaneously
Maintenance	Battery change, cleaning with a soft cloth
Recycling	Selective collection WEEE (waste electrical and electronic equipment)

Frequently Asked Questions - J639 JAGUAR

How to set the time on the Jaguar J639 watch?

Pull the crown to position III (the second hand stops). Turn the crown to the desired time, then push it back to position I. For a precise second setting, pull the crown when the second hand is at 60.

How to quickly correct the date?

Pull the crown to position II (the watch continues running). Turn it to the current date, then push back to position I. Avoid correcting between 9 PM and midnight to avoid disturbing the calendar.

Which battery to use for the Jaguar J639?

Use a battery of type 395 (SR927SW) (Ø 9.5 mm × 2.6 mm).

How to use the basic chronograph?

Press push button A to start, again to stop, then push button B to reset. Read the counters: minutes (30 min), central seconds (60 s), 1/10 s (1 s, then hours after 30 min).

How to measure a time with totalization?

Press A (start), then A (stop) for a first time, A (restart), then A (stop) to add a second time. The total is displayed. Finish with B to reset.

How to time intermediate times?

Press A (start). To display an intermediate, press B: the hands freeze then catch up to real time. Press B again for a new intermediate. End with A (stop), then B (zero).

What to do if a chronograph hand is not at zero?

Pull the crown to position III. Press A and B simultaneously for 2 seconds to activate correction mode. Use A to adjust each hand step by step or continuously, then B to move to the next hand. Push the crown back to position I.

How to set the date and time after a battery change?

Pull the crown to II to display the previous day of the current date. Pull to III (second hand stopped). Turn to scroll to the current date, then to the correct time (respect the 24-hour cycle). Push back to I.

Is the Jaguar J639 watch waterproof?

The manual does not specify the water resistance level. Avoid prolonged contact with water and remove it before showering or swimming.

How to maintain my Jaguar J639 watch?

Clean it with a soft, dry cloth. Have the battery replaced by a watchmaker. At the end of its life, dispose of it at a WEEE collection point.

USER MANUAL J639 JAGUAR

Blank white image with a thin black border (no text, symbols, or markings)

FESTINA GROUP

Via Layetana 20

08003 BARCELONA

USER GUIDE IJM5040A COMPANY OF TH

INDEX

Español > p.3

English > p.17

Français > p.31

Deutsch > p.45

Italiano >p.59

Manual del usuario

-Brief specifications....18
- Description of the display and control buttons ..... 19
- Setting the time / date .....20 - 23
- Operation of the chronograph....24 - 29

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

Brief specifications

Time/Date

• Hour hand
• Minute hand
• Small second hand (position 3h)
  • Date (position 12h)

Chronograph

• 1/10 second counter / hour counter after 30 minutes (position 6h)
• Minute counter up to 30 minutes (position 9h)
- Centre stop-second

General

• Battery type: 395 (diameter 9.5mm x 2.6mm / SR 927 SW)
  • Accuracy: +20 / -10 seconds per month

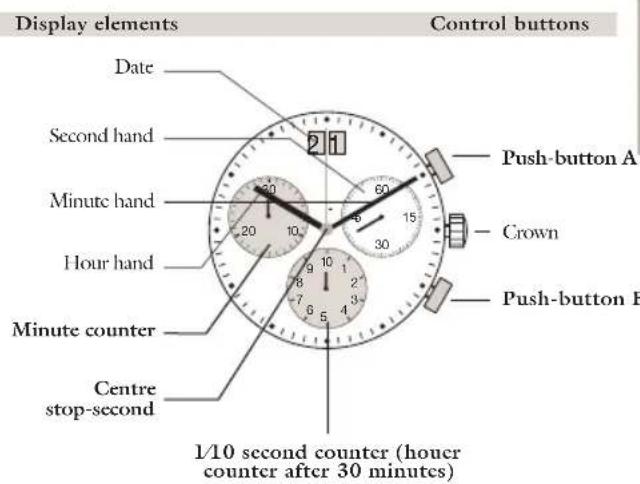

Description of the display and control buttons

Setting the time

Setting the date (quick mode)

1 *Pull out the crown to position III (the watch stops).
② Turn the crown until you reach the correct time 8.45.
3 *Push the crown back into position I.

Please note:

*In order to set the time to the exact second, 1 must be pulled out when the second hand is in position «60» (I).

Once the hour and minute hands have been set, ③ must be pushed back into position I at the exact second.

1 Pull out the crown to position II (the watch continues to run).
2 Turn the crown until the correct date 01 appears.
3 Push the crown back into position I.

Please note:

The date can be changed during the date changing phase between 9.00 PM and 12.00 PM; please note that the date must be set to the date of the following day as in this case the automatic date changing does not occur at midnight.

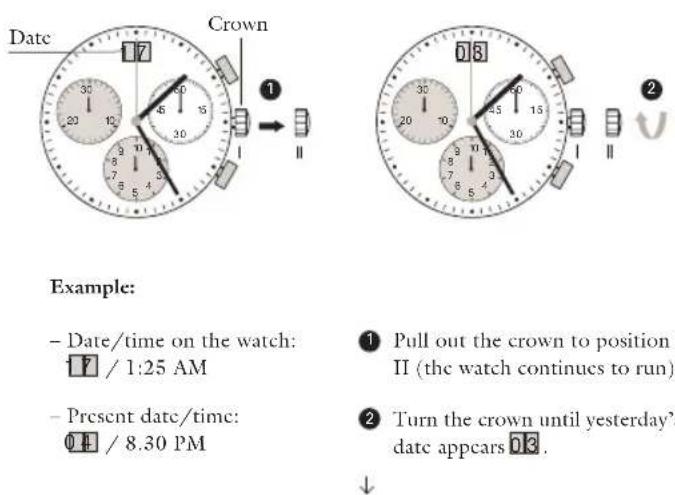

Setting the date/time following a battery change

Example:

- Date/time on the watch:

17 / 1:25 AM

- Present date/time:

04 / 8.30 PM

1 Pull out the crown to position II (the watch continues to run).
2 Turn the crown until yesterday's date appears 03.

↓

↓

3 *Pull out the crown to position III (the watch stops).
4 Turn the crown until the correct date 0.4 appears.
5 **Continue to turn the crown until the correct time 8.30 PM appears.

6 Push the crown back into position I.

Please note:

*To set your watch to the exact second, please refer to the chapter entitled «setting the time».
**Please observe the AM/PM clock rhythm.

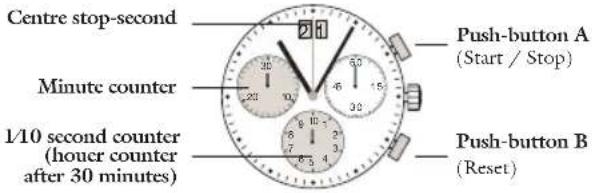

Chronograph:

• The minute counter measures 30 minutes per rotation.
• The center stop-second measures 60 seconds per rotation.
- The 1/10 second counter measures 1 second per rotation. After 30 minutes this counter works as hour counter. The how counter measures 10 hours per rotation.

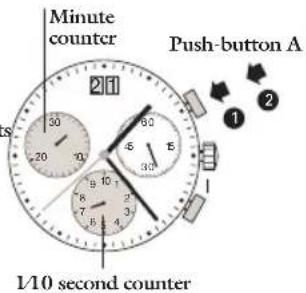

Chronograph: basic function
(start / stop / reset)
Control buttonsDisplay elements

Example:

Please note:

Before using the chronograph functions, please ensure that:

→ the crown is in position I (= normal position).

→ the 3 chronograph hands are precisely at zero position following activation of push

button B. Should this not be the case, the positions of the hands must be adjusted (see the chapter entitled «adjusting the chronograph hands to zero position»).

1 Start: Press push-button A.
2 Stop: to stop the timing, press push-button A. once more and read the three chronograph hands: 4min/38sec/7/10 sec

3 Zero positioning: Press push-button B. (The three chronograph hands will be reset to their zero positions).

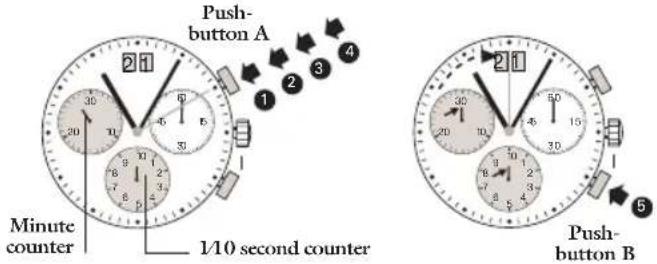

Chronograph: accumulated timing

Example:

1 Start: (start timing)
2 Stop: (e.g. 15 min 5 sec following 1)
3 Restart: (timing is resumed)
4 *Stop: (c.g. 13 min 5 sec following 3) = 28 min 10 sec (The accumulated measured time is shown)

5 Reset: The three chronograph hands are returned to their zero positions.

Please note:

* Following 4, the accumulation of the timing can be continued by pressing push button A (Restart / Stop, Restart / Stop, ...)

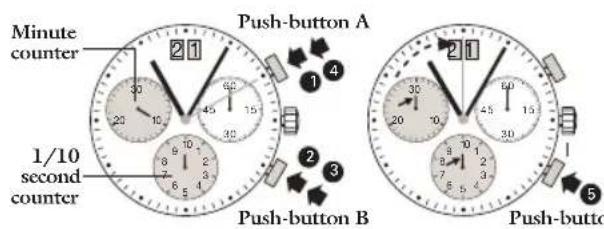

Chronograph: intermediate or interval timing

Example:

1 Start: (start timing)
2 Display interval: ↑ c.g. 10 minutes 10 seconds (timing continues in the background)
* 3 Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
4 Stop: (Final time is displayed)

⑤ Reset: The 3 chronograph displays are returned to their zero position

Please note:

* Following 3, further intervals or intermediates can be displayed by pressing push-button B (display interval / make up measured time, ...)

Adjusting the chronograph hands to zero position

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

1 Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).

2 Keep push-buttons A and B depressed simultaneously for at least 2 seconds (the centre stop-second rotates by 360^ →corrective mode is activated).

↓

↓ Adjusting the centre stop second
Single step • Al x short
Continuous • A long
Adjusting the 1/10 second counter hand (position 6h)
Single step • Al x short
Continuous • A long
