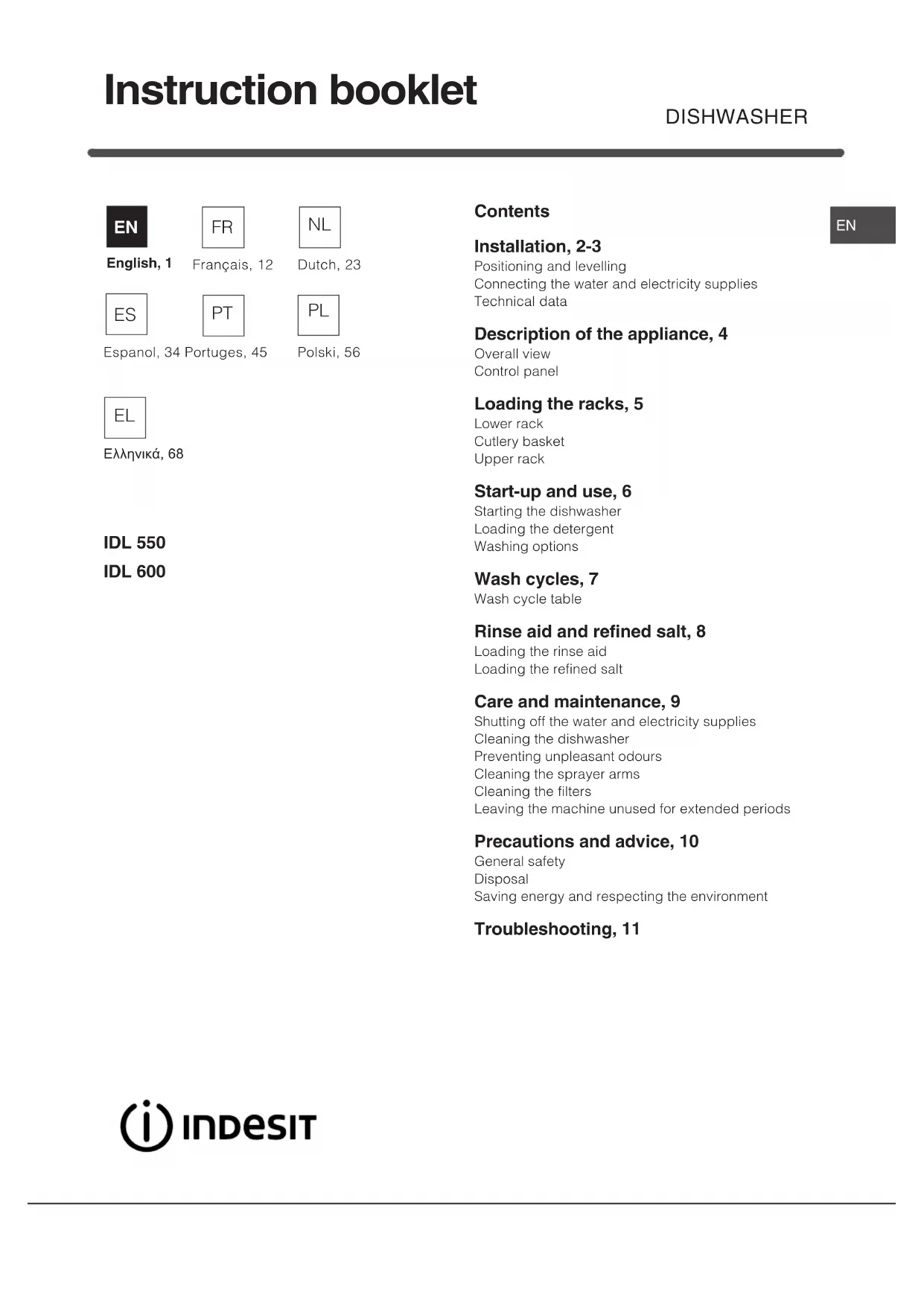

Instruction booklet IDL 550 IDL 600 Contents Installation, 2-3 Positioning and levelling Connecting the water and electricity supplies Technical data Description of the appliance, 4 Overall view Control panel Loading the racks, 5 Lower rack Cutlery basket Upper rack Start-up and use, 6 Starting the dishwasher Loading the detergent Washing options Wash cycles, 7 Wash cycle table Rinse aid and refined salt, 8 Loading the rinse aid Loading the refined salt Care and maintenance, 9 Shutting off the water and electricity supplies Cleaning the dishwasher Preventing unpleasant odours Cleaning the sprayer arms Cleaning the filters Leaving the machine unused for extended periods Precautions and advice, 10 General safety Disposal Saving energy and respecting the environment Troubleshooting, 11

Keep this instruction manual in a safe place for futurereference. If the appliance is sold, given away ormoved, please ensure the manual is kept with themachine, so that the new owner may benefit from theadvice contained within it. Please read this instruction manual carefully: itcontains important information regarding the safeinstallation, use and maintenance of the appliance. If the appliance must be moved at any time, keep itin an upright position; if absolutely necessary, it maybe tilted onto its back. Positioning and levelling 1. Remove the appliance from all packaging andcheck that it has not been damaged duringtransportation.If it has been damaged, contact the retailer and do notproceed any further with the installation process.2. Check the dishwasher by placing it so that its sidesor back panel are in contact with the adjacentcabinets or even with the wall. This appliance can alsobe recessed under a single worktop ( see the Assembly instruction sheet

3. Position the dishwasher on a level and sturdy floor. Ifthe floor is uneven, the front feet of the appliance maybe adjusted until it reaches a horizontal position (theangle of inclination must not exceed 2 degrees). If theappliance is levelled correctly, it will be more stable andmuch less likely to move or cause vibrations and noisewhile it is operating. Connecting the water and electricity supplies Connection to the water and electricity suppliesshould only be performed by a qualified technician. The dishwasher should not stand on top of the waterhoses or the electricity supply cable.The water inlet (A) and outlet (B) hoses and theelectricity supply cable may be positioned towards theright or the left in order to achieve the best possibleinstallation ( see figure

Connecting the water inlet hose• To a suitable cold water connection point: beforeattaching the hose, run the water until it is perfectlyclear so that any impurities that may be present inthe water do not clog the appliance; afterperforming this operation, screw the inlet hosetightly onto a tap with a ¾ gas threadedconnection.• To a suitable hot water connection point: yourdishwasher may be provided with hot water fromthe mains supply (if you have a central heatingsystem with radiators) provided that it does notexceed a temperature of 60°C.Screw the hose to the tap as described forconnection to a cold water supply. If the inlet hose is not long enough, contact aspecialist store or an authorised technician ( see Assistance

The water pressure must be within the valuesindicated in the Technical data table ( see below

The hose should not be bent or compressed.Anti-flooding protectionTo ensure floods do not occur, the dishwasher:- is provided with a special system which blocks thewater supply in the event of anomalies or leaks frominside the appliance.- is provided with a Water Stop

• safety device, in otherwords it has a water inlet hose that consists of atransparent hose on the outside and a red hose on theinside: both the hoses can withstand extremely highpressure. If the internal hose breaks, the external hosebecomes a bright red colour and carries the waterinstead, thus avoiding any leakage. It is very important to check the external hoseregularly: if it is a bright red colour, it must be replacedby an authorised technician as soon as possible ( see Assistance

• Only available in selected models.

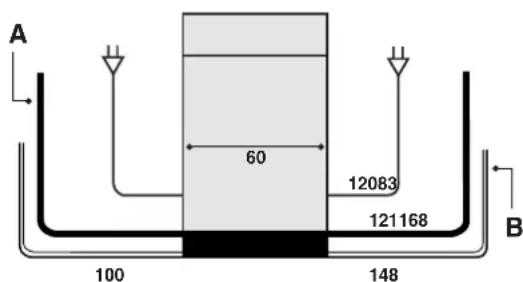

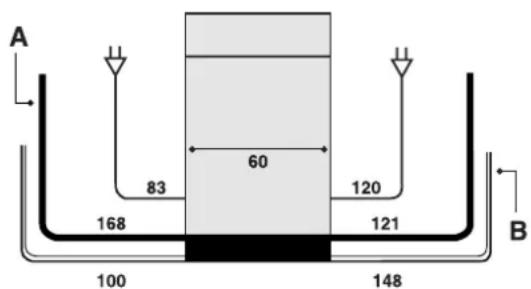

Connecting the water outlet hose Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Alternatively, rest it over a sink or tub; the free end of the hose should not remain immersed in water. The special plastic elbow* makes it easier to find the best layout: fix the elbow to the wall securely in order to prevent the outlet hose from moving and spilling the dirty water. The part of the hose marked with the letter A should be between 40 and 100 cm above the ground ( see figure

We advise against the use of hose extensions. Electrical connection Before inserting the plug into the electrical socket, make sure that:

• the socket is earthed and complies with current regulations;

• the socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door ( see Description of the appliance

• the power supply voltage falls within the values indicated on the data plate on the inside of the door;

• the socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug ( see Assistance ); do not use extension cables or multiple sockets. Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible. The cable should not be bent or compressed. The cable should be checked regularly and replaced by authorised technicians only ( see Assistance

The Company shall not be held responsible for any incidents that occur if these regulations are not observed. Advice regarding the first wash cycle After the appliance has been installed, immediately before running the first wash cycle, completely fill the salt dispenser with water and add approximately 2 kg of salt ( see Rinse aid and refined salt ). The water may overflow: this is normal and is not a cause for concern. It is also normal that the LOW SALT* indicator light continues to flash for a few cycles after the salt has been loaded.

• Only available in selected models. Dimensions width 60 cm height 85 cm depth 60 cm Capacity 12 standard place-settings Water supply pressure 30 Kpa ÷ 1Mpa (0.3 ÷ 10 bar) 4.3 psi – 145 psi Power supply voltage See appliance data plate Total absorbed power See appliance data plate Fuse See appliance data plate This dishwasher conforms to the following European Community Directives: -73/23/EEC dated 19/02/73 (Low Voltage) and subsequent modifications -89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent modifications -97/17/EC (Labelling) -2002/96/ CE Waste Electrical and Electronic Equipment (WEEE) Technical data4

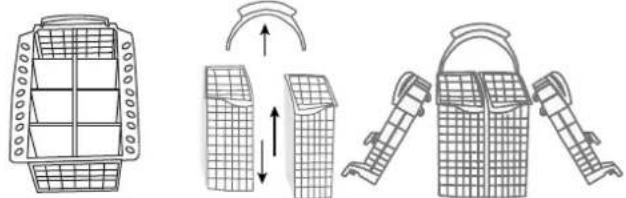

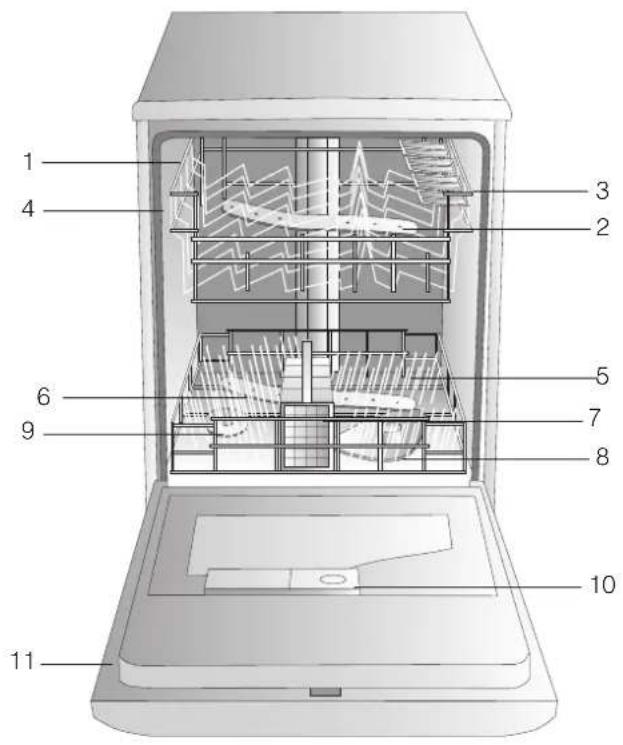

3. Tip-up compartments

6. Lower sprayer arm

• Only available in selected models.

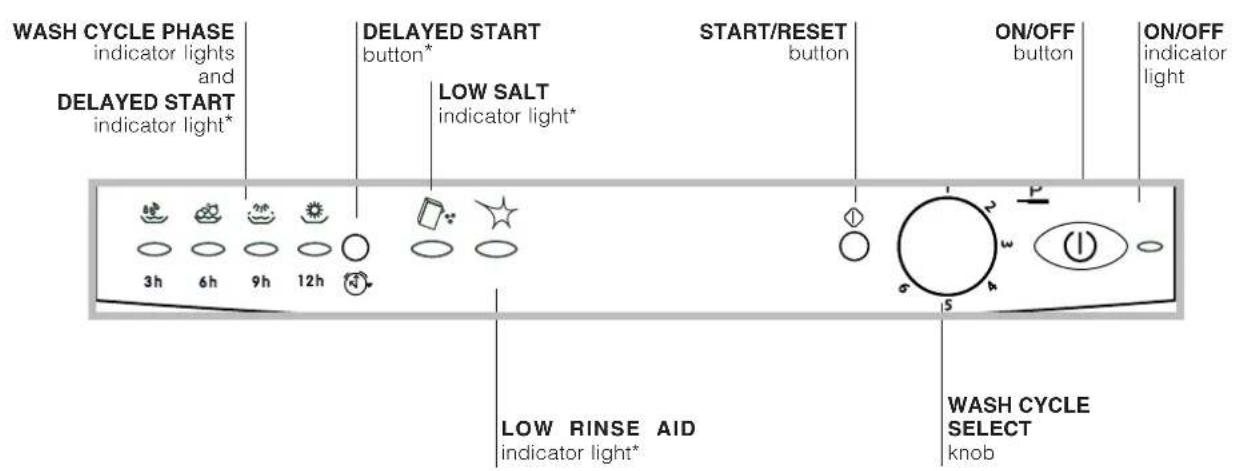

Control panel Description of the appliance

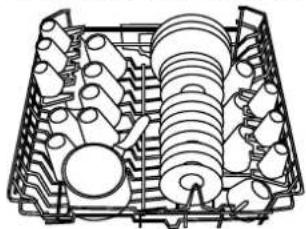

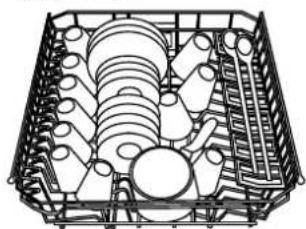

wheels are in place and close thestops (see figure If the rack is equipped with theclick clack handles* (see figure pull them upwards or downwardsto adjust the height. Loading examples for the upper rack Loading examples for the lower rack Just you Tip-up compartments** These special tip-upcompartments can be used toarrange mugs and cups.Spoons, forks and knivesshould be placed in the slotsprovided. Stemmed glassescan be hooked on by threading the stems into the slits.Items that should not be washed in the dishwasher• Wooden items, objects with wooden or horn handles orglued-on parts.• Items made from aluminium, copper, brass, pewter or tin.

• Items made from plastic that is not heat-resistant.• Antique or hand-painted porcelain.• Antique silver. Silver that is not antique may, however, bewashed in the dishwasher using a delicate wash cycle,provided that it does not come into contact with othermetals. When buying crockery and cutlery we recommend that youcheck whether it can be washed using the dishwasher. Washing the handles* To wash the upper and lower rack handles: remove the twofastening plugs, lift out the handles and rinse them underrunning water, then fasten them to the rack using the sameplugs. Before loading the rack, remove all food residue from thecrockery, leave saucepans and frying pans with burnt-onresidue to soak and empty all remaining liquid from cupsand glasses. After loading the appliance, check that thesprayer arms can rotate freely. Lower rack Arrange the more difficult items to wash using the Loadingexamples as a guide and use the collapsible supports*where needed.• Serving dishes and lids: place these at the sides of therack.• Saucepans and salad bowls: always turn these upsidedown.• Very deep dishes: position these at an angle.In order to guarantee the best washing and dryingperformance, the surface of the lower rack is moreuneven than that of the upper rack. Cutlery basket The type of cutlery basket may vary according to thedishwasher model. Knives and other sharp utensils should be placed in thecutlery basket with the point facing downwards.To divide the central basket* into two separate pieces: pullout the handle. The two detachable side compartments*may be hooked onto the upper or lower rack.The two grids* may be positioned in the basket to separatethe cutlery: place the pieces of cutlery into the appropriatecompartments with the handles at the bottom. Upper rack Load this rack with delicate and lightweight crockery:glasses, tea and coffee cups, saucers, small salad bowls,saucepans and small saucepans that are not too soiled,using the Loading examples as a guide.• Lightweight crockery: position these dishes so that theywill not be moved by the jets of water.• Mugs and cups: place these on the tip-upcompartments**.• Long sharp knives and serving utensils: place these onthe tip-up compartments**. Adjusting the height of the upper rack In order to make it easier toarrange the crockery, the upperrack may be moved to a higher orlower level.Open the left and right guide railstops and pull out the rack; positionit higher or lower as required, slideit along the guide rails until the front

• Only available in selected models.** The number and position may vary.6

• Only available in selected models. Starting the dishwasher 1. Turn the water tap on.2. Press the ON/OFF button: the indicator light willilluminate.3. Open the door and pour in a suitable amount ofdetergent (see below 4. Load the racks (see Loading the racks) and shut thedoor.5. Select the desired wash cycle depending on the dishesand how dirty they are (see table of wash cycles), byturning the knob clockwise.6. Select the wash options (see below 7. Start the cycle by pressing the START/RESET button: themachine will emit a confirmation beep. The WASHCYCLE PHASE indicator lights display the status of thecycle:Pre-wash, Wash, Rinse, or Drying.8. At the end of the cycle three short beeps will sound andthe DRYING indicator light will flash.9. Switch off the appliance by pressing the ON/OFF button,shut off the water tap and unplug the appliance from theelectricity socket.10. Open the door and wait for a few minutes beforeremoving the crockery, in order to avoid burns. Unloadthe racks, beginning with the lower level. Modifying the duration of a wash cycle already in progress If a mistake was made during the wash cycle selectionprocess it is possible to change the cycle, provided that ithas only just begun: press and hold the START/RESETbutton for 4 seconds. After one long beep and three shortbeeps, the WASH CYCLE PHASE indicator light will switchoff: select the new cycle and switch the machine back on bypressing the START/RESET button. Adding extra crockery Press the ON/OFF button and open the door, taking care toavoid the escaping steam, and place the crockery inside thedishwasher. Press the ON/OFF button again: the cycle startsfrom the point at which it was interrupted. Accidental interruptions If the door is opened during the wash cycle, or if there is apower cut, the cycle stops. It starts again from the point atwhich it was interrupted once the door has been shut or theelectricity supply is restored. Loading the detergent A successful wash also depends on the correct amount ofdetergent being used, as recommended by themanufacturer. Exceeding the recommended amount doesnot result in a more effective wash and pollutes theenvironment.compartment A: Washing detergentcompartment B: Pre-wash detergent1. Open cover C bypressing button D.2. Pour in the detergent afterconsulting the Wash cycletable

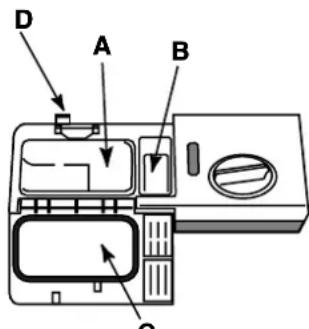

• for powder detergent usecompartments A and B• for tablets, usecompartment A and thebottom of the appliance, i.e.when the cycle requires 1tablet, place it incompartment A and closethe cover; when it requires 2, place the second tablet atthe bottom of the appliance.3. Remove detergent residues from the edges of thecompartment and close the cover until it clicks. Washing options Delayed start It is possible to delay the start time of the cycle by 12, 9, 6or 3 hours.1. Press the DELAYED START button: every time the buttonis pressed, a beep is emitted and the selected delayedstart indicator light illuminates.2. Select the wash cycle and press the START/RESETbutton: after the beep sounds, the timer begins countingdown.3. Once this time has elapsed, the indicator light switchesoff and the wash cycle begins.To adjust the delay time and select a smaller period of time,press the DELAYED START button. To cancel it, press thebutton repeatedly until the wash cycle begins and the WASHCYCLE PHASE indicator light corresponding to the start ofthe cycle in progress illuminates. 3in1 button* When using multi-use tablets (2-in-1, 3-in-1, 4-in-1 etc.),press the 3in1 button. This option optimises the results ofthe wash. The overall duration of the programme increasesby approximately 10 minutes. This option is not recommended for use with wash cycles which do not specify the use of multi-use tablets (see tableof wash cycles ).7

Wash cycle table Note To make it easier to measure out the detergent, it is worth remembering that: 1 tablespoon = 15 grams of powder = approximately 15 ml of liquid 1 teaspoon = 5 grams of powder = approximately 5 ml of liquid Wash cycles INDESIT dishwashers are equipped with an automatic filter cleaning system so that they do not become clogged with food residues. This function may extend the duration of the wash cycles. If there is a high level of dirt contained in the filters, the dishwasher will stop operating (see Troubleshooting - Blocked filter alarm)

The number and type of wash cycles varies according to the model of dishwasher. Detergent (A) = compartment A (B) = compartment B Wash cycle selection instructions Wash cycle Powder Liquid Tablets Pre-wash Drying Wash cycle duration (tolerance ±10%) Extremely soiled dishes and pans (not to be used for delicate items).

30 g (A) 5 g (B) 30 ml (A) 5 ml (B) 1 (A) 1 (bottom of the appliance)

120' Normally soiled pans and dishes. Standard daily wash cycle.

88' Environmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes.

145' Economic and fast wash cycle to be used for lightly soiled dishes. (Run cycle immediately after use.)

25 g (A) 25 ml (A) 25' Preliminary wash cycle for dishes while the load is awaiting completion with the dishes from the next meal.

12' Special wash cycle, ideal for frequent washes and a reduced load of dishes. Normal soiling in the lower rack and light soiling in the upper rack.

Only use products that have been specifically designed for dishwashers. Do not use table salt or industrial salt. If using a multi-functional product (2-in-1, 3-in-1, 4-in-1) it is not necessary to add rinse aid; however, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. If you do not add salt or rinse aid, the LOW SALT* and LOW RINSE AID* indicator lights will flash continuously. Loading the rinse aid Rinse aid makes it easier for the crockery to dry, as water runs off surfaces more readily and therefore does not leave streaks or marks. The rinse aid dispenser should be filled:

• whenever the indicator light (H) signals that it is empty. Illuminated light: add rinse aid; unlit light: there is no shortage of rinse aid in the dispenser.

• when the LOW RINSE AID* indicator light on the panel flashes;

1. Open the dispenser by

making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a sponge.

3. Screw the lid back on.

Adjusting the amount of rinse aid If you are not completely satisfied with the washing or drying results, you may adjust the quantity of rinse aid used. Use a screwdriver to turn the dosage adjuster to one of the 6 pre-set positions (the default position is set to 4):

• if there are white streaks on the crockery, set the adjuster to a lower number (1-3).

• if drops of water remain on the crockery or there are limescale marks present after the cycle has finished, set the adjuster to a higher number (4-6). If you are using multi-functional tablets (2-in-1, 3-in-1, 4-in-1) and you wish to further improve the drying performance of the appliance, fill the dispenser and set the dosage adjuster to 2. Loading the refined salt In order to obtain the best possible results from a wash cycle, make sure that the dispenser is never empty. Refined salt removes limescale from the water, thus avoiding the formation of deposits on crockery. The salt dispenser is located in the lower part of the dishwasher ( see Description ) and should be filled:

• when the green float* cannot be seen by simply looking at the cap of the salt dispenser;

• when the LOW SALT* indicator light on the panel flashes;

• if your machine is not equipped with an indicator light or a green float: approximately every 30 wash cycles;

1. Remove the lower rack and unscrew the cap of the

dispenser (in an anti-clockwise direction).

2. For the first wash cycle only:

fill the dispenser up to the edges with water.

3. Position the funnel provided

correctly ( see figure ) and fill the salt dispenser up to the edges (approximately 2 kg); it is normal for a little water to leak out.

4. Remove the funnel, wipe away any salt residue from

the thread and screw the cap on tightly, so that detergent does not leak into the dispenser during the wash cycle (this could damage the water softening system beyond repair). When salt has been added, run a wash cycle immediately, without crockery, in order to remove any salt solution that has leaked out and to avoid corrosion. Adjusting the amount of salt* It is possible to adjust the amount of salt used according to the hardness of the water in your area (this information is available from your local water board).

1. Unscrew the dispenser cap.

2. Turn the arrow on the neck of the

dispenser ( see figure ) towards the + or - symbols, using the table below as a guide. The default setting of the water softening system is +. - If using multi-functional tablets (2-in-1, 3-in-1, 4-in-1) fill the salt dispenser and set the adjuster to -; if the hardness of the water is greater than 60°fH, set it to +.

• Only available in selected models.

Rinse aid and refined salt9

Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle toavoid leaks.• Remove the plug from the socket when cleaningthe machine and when carrying out maintenancework. Cleaning the dishwasher
• The external surfaces of the machine and thecontrol panel may be cleaned using a clothdampened with warm soapy water. Do not usesolvents or abrasive products.• Any marks on the appliance interior may beremoved using a cloth dampened with water and alittle vinegar. Preventing unpleasant odours

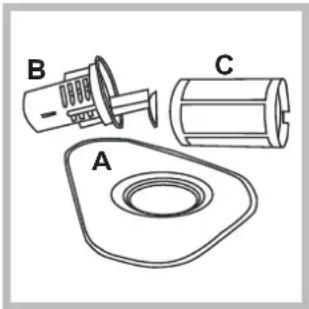

• Always keep the door of the appliance ajar in orderto avoid moisture from forming and being trappedinside the machine.• Clean the seals around the door and detergentdispensers regularly using a damp sponge. Thiswill avoid food becoming trapped in the seals,which is the main cause of the formation ofunpleasant odours. Cleaning the sprayer arms Food residue maybecome encrusted ontothe sprayer arms andblock the holes used tospray the water. It istherefore recommendedthat the arms arechecked from time totime and cleaned with asmall non-metallicbrush. Cleaning the filters The filters remove food residue from the water used inthe wash cycle: to obtain the best results from eachwash, they should be cleaned. Clean the filters regularly. After cleaning check that the filter assembly hasbeen replaced correctly. The dishwasher should not be used without filters.1. Remove the filters by pulling the handle upwards.2. Clean the filters:• after every washcycle, remove thelargest pieces of residuefrom semicircular plateA and glass B (thesemay be removed bypulling the handle) byrinsing them underrunning water.• The entire filter assembly should be cleanedthoroughly once amonth: this includes thesemicircular plate A, theglass B and the cylinderC (this may be removedby turning it in an anti-clockwise direction).Use a small non-metallicbrush to clean theseparts.3. Reconstruct the filter assembly and replace it in thecorrect position, following movements 1 and 2 asshown in the figure, until it clicks into place. Leaving the machine unused for extended periods
• Run a wash cycle when the dishwasher is empty.• Unplug the appliance and disconnect the watersupply.• Leave the door of the appliance ajar.

The appliance was designed and manufactured in compliance with current international safety standards. The following information has been provided for safety reasons and should therefore be read carefully. General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must be used by adults only, to wash domestic crockery according to the instructions in this manual.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.

• Do not touch the appliance when barefoot.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• The water supply tap must be shut off and the plug should be removed from the electrical socket before cleaning the appliance or carrying out any maintenance work.

• If the appliance breaks down, do not under any circumstances touch the internal parts in an attempt to carry out the repair work yourself.

• Never touch the heating element.

• Do not lean or sit on the open door of the appliance: this may cause the appliance to overturn.

• Keep detergent and rinse aid out of reach of children.

• The packaging material should not be used as a toy: it can become a choking or suffocation hazard. Disposal of old electrical appliances The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Saving energy and respecting the environment Saving water and energy

• Only start a wash cycle when the dishwasher is full. While waiting for the dishwasher to be filled, prevent unpleasant odours with the Soak cycle

• Select a wash cycle that is suited to the type of crockery and to the soil level of the crockery using the Wash cycle table

- for dishes with a normal soil level, use the Eco wash cycle, which guarantees low energy and water consumption levels. - if the load is smaller than usual activate the Half load option ( see Start-up and use

• If your electricity supply contract gives details of electricity saving time bands, run wash cycles during the periods when a lower tariff is applied. The Delayed start* button ( see Start-up and use

helps you organise the wash cycles accordingly. Phosphate-free and chlorine-free detergents containing enzymes

• We strongly recommend that you use detergents that do not contain phosphates or chlorine, as these products are harmful to the environment.

• Enzymes provide a particularly effective action at temperatures around 50°C, and as a result detergents containing enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the same results as a normal 65°C wash cycle.

• To avoid wasting detergent, use the product in appropriate quantities based on the manufacturer’s recommendations, the hardness of the water and the soil level and quantity of the crockery. Even if they are biodegradable, detergents contain substances that may alter the balance of nature.

• Only available in selected models. Precautions and advice11

Troubleshooting Malfunction: Possible causes / Solutions: The dishwasher does not start. The plug has not been inserted into the electrical socket properly, or there is no power in the house. The dishwasher door has not been shut properly. A delayed start has been programmed (see Start-up and use). No water enters the dishwasher. There is no water in the mains supply. The water inlet hose is bent (see Installation). No water drains out from the dishwasher.

The dishwasher cycle has not yet finished. The water outlet hose is bent (see Installation). The drain duct is blocked. The filter is clogged up with food residues. The dishwasher makes excessive noise. The dishes are rattling against each other or against the sprayer arms. The dishes and glasses are covered in a white film or limescale deposits. The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt). The lid on the salt dispenser is not closed properly. The rinse aid has been used up or the dosage is too low. The crockery is made from non-stick material. The dishes and glasses are streaked or have a bluish tinge. The rinse aid dosage is too high. The crockery has not been dried properly. The rinse aid has been used up or the dosage is too low (see Rinse aid and salt). The rinse aid dispenser setting is not high enough. A wash cycle without a drying programme has been selected. The dishes are not clean. The racks are overloaded (see Loading the racks). The crockery has not been arranged well. The sprayer arms cannot move freely. The wash cycle is too gentle (see Wash cycles). The detergent has not been measured out correctly or it is not suited to the type of wash cycle (see Start-up and use). The filter is dirty or blocked (see Care and maintenance). The refined salt level is low (see Rinse aid and salt). Tap shut-off alarm. (several short beeps are emitted) (the second and third WASH CYCLE PHASE indicator lights flash, beginning from the right). Turn on the tap and the appliance will start after a few minutes. The appliance lock has been activated because no action was taken when the beeps sounded. Switch off the machine using the ON/OFF button, turn on the tap and switch the machine back on after 20 seconds by pressing the same button. Re- programme the machine and restart the wash cycle. Clogged filter alarm (the second and fourth WASH CYCLE PHASE indicator lights flash, beginning from the right). Switch off the machine by pressing the ON/OFF button and clean the filters (see Maintenance), then switch the dishwasher back on by pressing the same button. Re- programme the machine and restart the wash cycle. Water loading solenoid valve malfunction alarm (the third WASH CYCLE PHASE indicator light flashes, beginning from the right). Switch off the appliance by pressing the ON/OFF button and switch it back on after a minute. If the alarm continues, shut off the water tap to eliminate the risk of flooding, remove the plug from the electrical socket and call Assistance. Whenever the appliance fails to work, check for a solution from the following list before calling for Technical Assistance Centre. Some problems are indicated by one or two lights flashing rapidly: make a note of which lights are flashing before calling Assistance.12 Mode demploi LAVE-VAISSELLE Français, 12 Sommaire Installation, 13-14 Mise en place et mise à niveau Raccordements eau et électricité Caractéristiques techniques Description de lappareil, 15 Vue d’ensemble Bandeau de commandes Charger les paniers, 16 Panier inférieur Panier à couverts Panier supérieur Mise en marche et utilisation, 17 Mettre en marche le lave-vaisselle Charger le produit de lavage Options de lavage Programmes, 18 Tableau des programmes Produit de rinçage et sel régénérant, 19 Charger le produit de rinçage Charger le sel régénérant Entretien et soin, 20 Coupure de l’arrivée d’eau et de courant Nettoyer le lave-vaisselle Eviter les mauvaises odeurs Nettoyer les bras de lavage Nettoyer les filtres Si vous vous absentez pendant une longue période Précautions et conseils, 21 Sécurité générale Mise au rebut Economies et respect de l’environnement Anomalies et remèdes, 22 IDL 550 IDL 600 FR13
