10030498 - Steamer Klarstein - Free user manual and instructions

Brand	Klarstein
Model	10030498
Product type	Steam cooker
Power supply	220-240 V ~ 50-60 Hz
Power	1500 W
Maximum cooking time	90 minutes (recommended)
Time setting	Yes, via timer
Foldable	Yes, for easy storage
Locking	Yes, for secure closure
Indicator lights	Yes, operation indicators
Included parts	Base, water tank, cooking basket, drip tray, lid
Number of baskets	1
Cleaning	Hand wash, do not put in dishwasher
Descaling recommended	Yes, with a water-vinegar mixture every 2-3 months
Usage	Household use only
Safety	Do not touch hot parts, do not immerse base in water
Maintenance	Clean after each use, dry thoroughly
Control type	Mechanical buttons (timer)

Frequently Asked Questions - 10030498 Klarstein

Why is there no steam coming out?

Check that the appliance is plugged in, the plug is fully inserted, the cooking basket is correctly positioned (it must touch the switch), a cooking time has been selected, and the water tank contains water. If everything is in order, wait about 25 seconds after starting; steam may take a while to escape.

How to clean the steam cooker?

Unplug the appliance and let it cool down. Clean the removable parts (basket, drip tray, lid) with cold water and a soft sponge. Do not use soap, abrasive products, steel wool, or dishwasher. Wipe the base with a damp cloth. Dry all parts before storing.

How to descale the appliance?

After 2 to 3 months of use, limescale deposits may appear. Mix a little water with white vinegar (no chemicals), pour into the tank up to the MAX mark. Plug in and set the timer to 20-25 minutes. Let the steam circulate, then unplug and discard the mixture. Rinse by heating distilled water for 10 minutes, empty and refill with fresh water.

What foods can I cook and for how long?

The manual provides indicative cooking times: milk (5 min), eggs (10 min), steam dumplings (12 min), broccoli (12 min), fish (15 min), carrots (15 min), ham (15 min), eggplant (20 min), pumpkin (20 min), peas (25 min), chicken (25 min). Adjust according to your preferences.

Can I leave the appliance unattended?

It is not recommended to leave the appliance unattended while operating. In addition, do not use for more than 90 minutes to prevent the drip tray from overflowing. Always be present in case of steam release.

How to safely open the lid?

Be careful of hot steam. Use oven mitts and open the lid by lifting it away from you to avoid burns. Do not touch hot parts.

What to do if the indicator lights do not turn on?

Check that the appliance is plugged in and the outlet works. If the problem persists, contact customer service.

Can I use chemical products for descaling?

No, the manual only recommends a water and vinegar mixture. Chemical products may damage the appliance.

What is the maximum operating time?

The appliance must not operate for more than 90 minutes to prevent the drip tray from overflowing. Set the timer accordingly.

How to store the appliance?

After cleaning and thorough drying, fold the appliance (it is foldable) and store it in a dry place. Make sure all parts are clean and dry before folding.

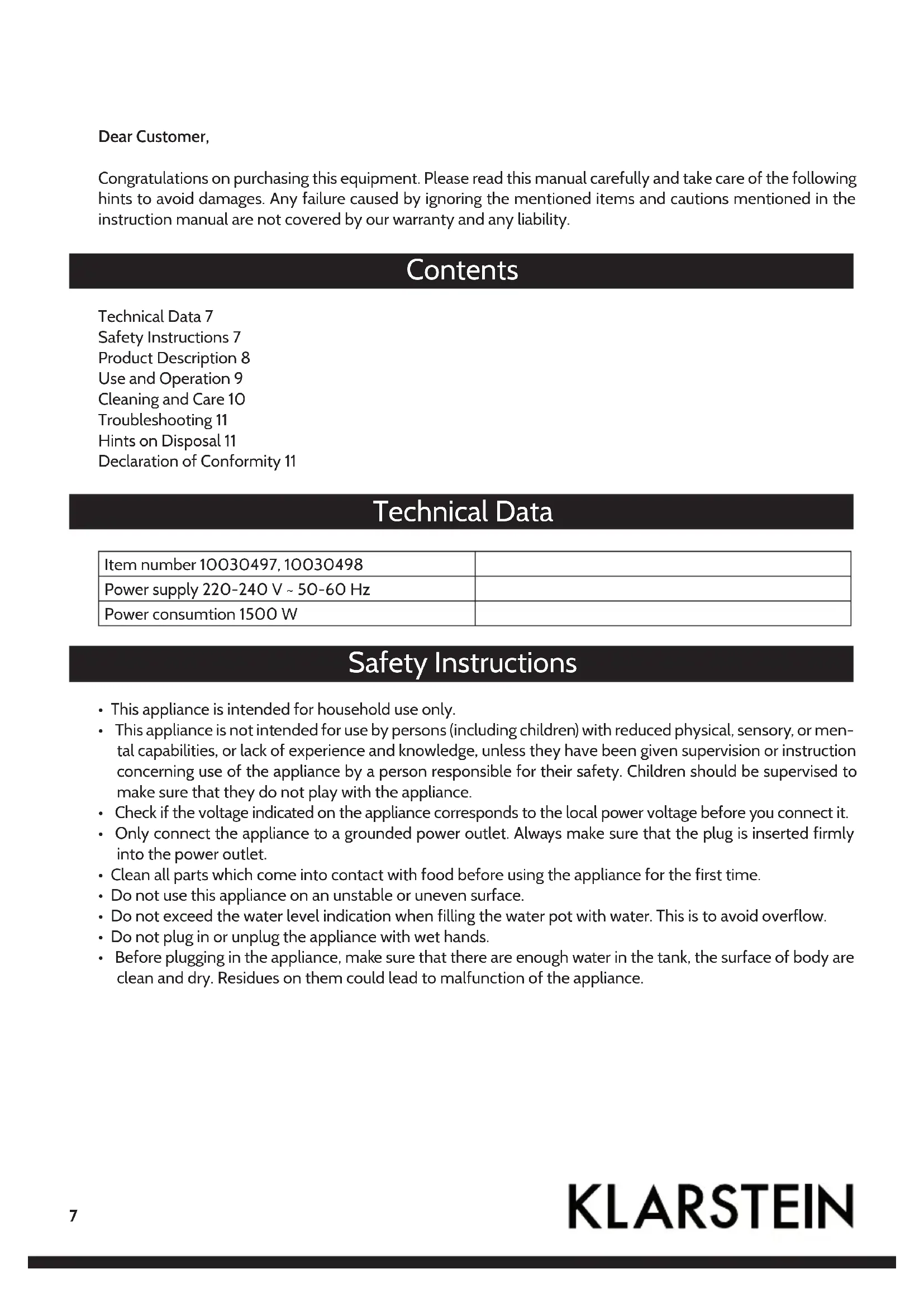

USER MANUAL 10030498 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Contents

Technical Data 7

Safety Instructions 7

Product Description 8

Use and Operation 9

Cleaning and Care 10

Troubleshooting 11

Hints on Disposal 11

Declaration of Conformity 11

Technical Data

Item number 10030497, 10030498
Power supply 220-240 V ~ 50-60 Hz
Power consumption 1500 W

Safety Instructions

• This appliance is intended for household use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to make sure that they do not play with the appliance.
• Check if the voltage indicated on the appliance corresponds to the local power voltage before you connect it.
• Only connect the appliance to a grounded power outlet. Always make sure that the plug is inserted firmly into the power outlet.
• Clean all parts which come into contact with food before using the appliance for the first time.
• Do not use this appliance on an unstable or uneven surface.
• Do not exceed the water level indication when filling the water pot with water. This is to avoid overflow.
• Do not plug in or unplug the appliance with wet hands.

• Before plugging in the appliance, make sure that there are enough water in the tank, the surface of body are clean and dry. Residues on them could lead to malfunction of the appliance.

• Beware of the hot steam that comes out of the steam vent during steaming or when you remove the steamer lid. Keep your hands and face away from the steam vent of the food pot and the one on the steamer lid to avoid scald yourself with the steam.

• The steamer lid and removable drip tray becomes hot during cooking. Do not get too close to the steamer or touch it with your hands to avoid scalding.
• When you open the steamer lid during cooking, beware of the hot steam coming out of the steamer lid to avoid scalding. When you check the food status, use an utensil with a longer handle.
• Do not remove the appliance when it is working.
• Do not remove removable drip tray before it cools down to room temperature and the appliance is unplugged.
• After the cooking is finished, take extra caution when removing the steamer lid and keep it away from your body. Beware of the condensation to avoid scalding.
• Do not clean the electric folding steamer parts before they have cooled down to room temperature.
• Do not immerse the steamer in water nor rinse it under the tap.
• Do not expose the appliance to high temperature, nor put it on or near an operating or still hot stove or cooker.
• Do not connect the appliance to an external timer to avid hazards.
• Do not use the appliance if the plug, the power cord, the base, or the appliance itself is damaged.
• Do not use the steamer too long time(Within 1.5hours) to avoid liquid flows out from removable drip tray
• Do not plug the tank frequently to avoid the leakage because of tank sealing ring damage.
• There may be water left on the removable drip tray, clean before use.
• If water left on steamer surface, power off immediately, clean and dry before use.

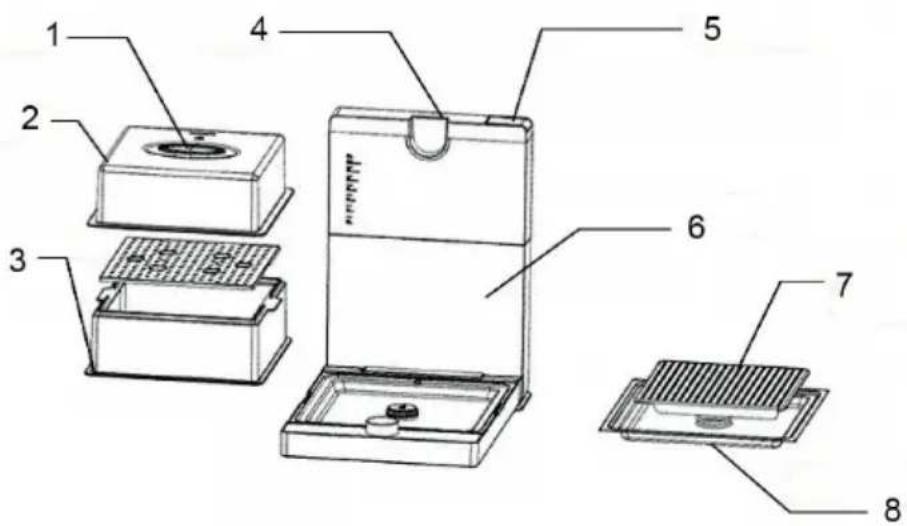

Product Description

1. Lid handle
   2 Lid
   3 Steamer basket
   4Tank
   5 Water cover
   6 Body
   7 Drip tray
   8 Steaming tray

Use and Operation

Step 1 Step 2 Step 3
Take out the folding electric stea-mer, keep flat on a flat surface.	Add water to the water level indi-cation, and put all the ingredients on the steaming tray before coo-king.	Cover with lid, plug in. Adjust the cooking time

Step 4 Step 5
After the cooking is finished, take out the ingredients, pour the condensed water when the removable drip tray cools down.	Clean the steamer, fold and store steamer.

Cooking Time

Food Time
milk 5 min
egg 10min
steamed bun 12 min
broccoli 12 min
fish 15 min
carrot 15 min
ham 15 min
eggplant 20 min
pumpkin 20 min
pea 25 min
chicken 25 min

Cleaning and Care

Clean the steamer after each use, before cleaning, unplug the power cord, pour the condensed water from removable drip tray. Do not use soap, gasoline, thinner, alcohol, bleach, polishing powder, metal brush, nylon brush, steel wool abrasive cleaners, steel wool to clean steamer, as these can damage the surface; do not was any part of the steamer in a dishwasher. Use clear water to clean steamer parts, clean steamer with a soft cloth. Ensure all parts cleaned and dried before store, prevent water vapor into the hair enzyme.

Steam generator cleaning

After using 2-3 months, mineral deposits may accumulate in the steam generator, it a normal phenomenon. How much of the precipitate sediment depends on the hardness of water, It is recommended to de-scale regularly to prolong the life of your steamer. (We recommend to use purified water)

1. Add mixture of white vinegar and water into the tank (Do not use other chemicals).
2. Connect the power.
3. Turn the timer dial to 20-25 minutes and allow steam to circulate.
4. When the timer rings, unplug the power cord and pour out the white vinegar.
5. Add purified water into the tank and heat 10 mins, then can cook food.

Troubleshooting

Problem Possible Cause Solution
Always no steam out. The appliance	is not plugged in. Put the mains plug	in an earthed wall socket.
	The plug looses. Plug in again.
	Steamer basket does not connect switch.	Cover the steamer gasket again.
	Do not turn the timer knob. Connect power.
	No water in the tank. Add water into the tank.
No steam out when starts. Steamer	delay protection function.	Wait 25 seconds, steam comes out.
Knob does not work. Does not connect power. Connect power.
Indicator does not light up. Does not connect power. Connect power.
Water leaks out of the tank. There are food residues on the valve.	Remove the residues.
The appliance cannot be attracted and folded.	strong magnetic weaken under High temperature.	Away from high temperature

Hints on Disposal

According to the European waste regulation 2002/96/EG this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2004/108/EC (EMC)

2011/65/EU (RoHS)

2006/95/EC (LVD)
