Product type	Beverage dispenser (beer tap)
Brand	Klarstein
Model	10030663
Power supply	220-240 V~ / 50 Hz
Capacity	5-liter keg
Cooling capacity	2-12 °C
Ideal serving temperature	0-4 °C (after 19-21 hours of cooling)
Sound power level	≤ 38 dB(A)
Dimensions (W x H x D)	27.2 x 47 x 48 cm
Weight	6.4 ± 0.3 kg
Pressure system	16 g CO2 cartridges (not needed for Heineken kegs)
Compatible keg type	5 L kegs with universal cap or Heineken system
Cooling water reservoir	800 ml (improves performance)
Drip tray	450 ml (removable)
Temperature adjustment	6 preset levels (2, 4, 6, 8, 10 or 12 °C)
Display	Current temperature LED
Safety functions	Minimum ventilation 12 cm around, do not expose to rain, unplug before cleaning
Maintenance and cleaning	Manual cleaning of dosing mechanism with cleaning kit and hot water; do not use dishwasher
Spare parts and repairability	Sealing rings, CO2/beer fittings, hoses, piercing pin, cleaning cartridges
General information	Domestic use; CE certified (2014/30/EU, 2014/35/EU, 2011/65/EU)

Frequently Asked Questions - 10030663 Klarstein

How long does it take to cool the beer?

It takes 19 to 21 hours to reach an ideal temperature of 0-4 °C (for an ambient temperature of 22-24 °C). It is recommended to place the keg in a cool place at least 12 hours before installation.

What types of kegs can I use?

The appliance accepts 5-liter kegs with universal cap (models 20, 21, 22, 23, 24) as well as Heineken kegs (with included adapter). For Heineken kegs, no CO2 cartridge is needed.

How to install a CO2 cartridge?

Detach the cartridge holder, insert a 16 gram cartridge, screw until it clicks (piercing the seal), then replace the holder in the lid. Check the seal.

What to do if the beer does not flow or foams too much?

Check the tap connection, CO2 level, pressure (set to « + »). For foam: ensure the beer is at 3-5 °C, the keg has not been shaken, and reduce pressure if necessary.

How to clean the appliance?

Use the included cleaning kit: fill it with hot water, connect it to the piercing point, circulate water through the beer hose. Never clean parts in the dishwasher or with chemicals.

How often to change the cooling reservoir water?

Change the water once a week. To drain, open the siphon duct: the water flows into the drip tray (450 ml). Then fill with 800 ml of clean water.

How to replace an empty keg?

Close the CO2 regulator to « - », lift the lid, lower the handle to release residual gas. Disconnect the hoses, remove the keg, clean the mechanism, then install a new keg following the instructions.

Can I use kegs other than Heineken or universal?

Only kegs with a cap compatible with the illustrated models (no. 20-24) or the Heineken system are suitable. Check compatibility before use.

What to do if the beer hose leaks?

Replace the hose or the sealing ring. To replace the hose, detach it from the fittings by pressing the lock, then install a new one. Check the seal of the rings.

Is the appliance guaranteed?

The manual does not mention a specific warranty period, but the manufacturer (Chal-Tec GmbH) is subject to European directives. In case of defect, contact customer service.

USER MANUAL 10030663 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 21

Safety Instructions 22

Product Overview 23

Installation and Operation 24

Troubleshooting 38

Disposal Considerations 39

Declaration of Conformity 39

Technical Data

Item number 10030663
Power supply 220-240 V~/Volume 5 litre kegCooling performance 2-12 °C	50 Hz
Noise level ≤ 38dB(A), (ambient noise ≤ 25 dB(A))Dimensions (W x H x D) 27.2x 47 x 48 cmWeight 6.4 ± 0,3 kg

This is a household beer cooler, equipped with a CO_2 cartridge pressure system to keep the beer fresh. It brings the beer to the best temperature for cold storage (0 to 4^ ) within 19-21 hours.

The beer cooler will keep the 5L Keg cool for an almost indefinite period. We do, however, suggest that you initially cool your beer keg for at least 12 hours in your refrigerator before placing it into the beer cooler.

Safety Instructions

• Before use it, check whether the power cord is well connected or not; if not, please don't use it, and call service centre;
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Before use it, check whether the plug conform with the socket or not; if not, please don't use it, and call service centre;
• Do not connect or disconnect the electric plug when your hands are wet.
• Place the beer cooler on a dry and horizontal surface.
• To ensure proper ventilation for the beer cooler, make sure the beer cooler is at least 5 inches / 10cm away on either side so as to allow correct ventilation on the appliance.
• Never put the beer cooler under the sunlight.
• Never cover the beer cooler when it is operating by some other object.
• The beer cooler must be installed in an area protected from the elements, such wind, rain, water spray or drips.
• Before proceeding with cleaning and maintenance operation, make sure the power line of the unit is disconnected. Failure to do so can result in electric shock or death.
• Do not immerse the beer cooler or power plug in the water or other liquid.
• Do not use coarse cloth, abrasive stuff to clear the beer cooler
• Do not take beer keg out from the beer cooler if the beer is not drunk out completely.
• Do not take the CO2 cartridge off before the inside CO2 use out.
• Do not use the CO_2 cartridge if the room temperature is over 49^ C / 120^ F . Failure to do so can result in explosion or death.
• Never allow children to operate, play with or crawl inside the beer cooler.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  Children should be supervised to ensure that they do not play with the appliance.
• Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and similar applications such as

a. staff kitchen areas in shops, offices and other working environments;
b. farm houses and by clients in hotels, motels and other residential type environments;
c. bed and breakfast type environments;
d. catering and similar non-retail applications.

Product Overview

1 Top cover
2 CO2 cartridge sheath
3 Tap handle
4 Tap
5 Keg lifter
6 Drain switch
7 Drip tray
8 CO2 pressure relief valve/ knob
9 LED display Drain switch/ Digital control button Drip tray
10 Door lock button
11 Rear cover
12 Power cord & plug
13 AC power switch

Installation and Operation

Installation

1. Take out the beer cooler from its package. Place the beer cooler on a steady and horizontal surface, and make sure the beer cooler is at least 5 inches/10 cm away from other appliances or wall on each side so as to allow correct ventilation on the appliances to get better performance.

1. Install the tap handle connect the tap, make sure both end fit together perfectly.
2. Set the water drip tray into the notch provided.
3. Plug the beer cooler.

Note: Do not connect or disconnect the electric plug when your hands are wet. Before use it, make sure the voltage is conformity with plug mark, and check whether the power cord is well connected or not; if not, please don't use it, and call service center;

1. Put 800ml water into the cooling cavity or pour the water to the max mark (It can work without water, but it can't display the best performance).

Note: Make sure the drain switch is at "Off" position, and no extra objects in the cooling cavity

How to select a keg

• Sealed 5L universal keg and Heineken keg applies only
• Pay close attention to safety and storage messages about the keg / on the keg.
• Check the keg is neither damaged nor beer out-of-date before purchasing.
• Protect the top surface from being damaged. Otherwise it could be difficult of accession for the suction tube.
• Keep the keg in a rather cold for 12 hours but not too cold place (e.g. refrigerator) until next use.
• Never shake the keg before use.
• Never put the beer keg under the sunlight.

Beer keg sealant

All 5 litre beer kegs with the below various appearance sealants can apply to the beer cooler, however, you should follow the information as below.

The sealants with code No. 20 and 21 can be pierced simply by the cooler piercing pin.

The sealants with code No. 22 need to be removed off the marking ring from the sealant and pierce the keg by cooler piercing pin.

The difference between code No 23 and 24 is the safety clasp quantity. Pull up the safety clasp carefully, turn around and take it out from the keg; replaced it by the sealant (like code No 20 sealant) provided in the beer cooler, attach it to the beer keg, and pierce it by cooler piercing pin.

Important: Before replacing the sealants or piercing the cooler kit, you must always follow the instructions marked on the keg to eliminate the excess gas and ensure that the keg has rested long enough to avoid foam coming out through the cooler piercing pin /tap faucet. And it is no need to release the gas and replace the seal rubber if you use Heineken keg, because Heineken keg has its own CO2 pressure inside, and no need to be provided from outer CO2 pressure system.

KLARSTEIN

Universal 5L beer keg

1. Before piercing the plug on the top of the keg, you must always follow the instructions marked on the keg to eliminate the excess gas and ensure that the keg has rested long enough to avoid foam coming out through the tap faucet.
2. Uprightly direct the piercing pin against the sealant on the upper centre of the keg (maybe you need to tear off the marking ring or change a proper sealant), press the piercing pin/keg lifter to poke the sealant and then push the piercing pin all immerse in the keg quickly. To assemble the tap mechanism until you hear a cling sound that will indicate the tap mechanism fixes on the beer keg.

1. Open the beer cooler with 30-40N strength and place the well-assembled keg into the cooling cavity; Connect the CO2 connector tube and beer outlet tube with the keg lifter tube connector.

NOTES: make sure all connection of tap mechanism is well connected, and without damage. And make sure tap valve is on close status, and the CO2 pressure regulator knob is at "Off" status.

1. Loosen the CO₂ bottle sheath (Show as figure 15), insert a 16gram CO₂ cartridge in the sheath), and screw the sheath tightly until you will hear a "Click"(Figure 17), which indicates that the cartridge seal has been pierced and the CO₂ gas can flow into the keg freely. Make us the bottle sheath is fixed tightly to avoid the CO₂ leakage. Then put CO₂ bottle sheath into the top cover.

Note:

• Turn off the CO_2 knob when cooling the beer.
• Turn off when the beer flow is paused.

• Turn off when changing the CO_2 cartridge.
  If the beer cannot be tapped out (there is still beer in the keg), or beer foams are not enough, turn the knob to ^+ position for 5 seconds then turn it off again.

• Close the top cover of the beer cooler; When pouring out the beer, the turn the knob on the top cover to “+” position to release the CO2, and turn it to “-” position when pause or stop pouring beer to close the CO2. Please refer to the notice label on the top cover.

• Turn on the power switch to "I" position to power on the beer cooler. (While "O"position is to power it off)

NOTE: Please make sure your hands are dry when you operate the beer cooler, to avoid electric shock.

1. It will take 19-21 hours to cool the beer to 0 - 4^ at 22 - 24^ ambient temperature. And it can keep the temperature as set and displayed on the LED. (The LED will display the real temperature of the beer). We

do, however, suggest that you initially cool your beer keg for at least 12 hours in your refrigerator before placing it into the beer cooler, especially when the ambient temperature is higher than 25^ .

1. The beer cooler has 6 preset temperatures.

Press and hold " - " button, it enter the 6 preset temperatures, then you can press " - " button to choose a certain preset temperature, 12^ C,10^ C,8^ C,6^ C,4^ C and 2^ C .

Press and hold " + " button, it enter the 6 preset temperatures, then you can press ^ 十 button to choose a certain preset temperature, 2^ 4^ 6^ 8 ^ C 10^ and 12^

The PCB has the memory function, when you power on the cooler, it memories the set temperate of last time.

The LED will default display the real temperature of beer. You can see the set temperature by pressing "+" button 1 second, it will display the set temperature, and 3 seconds later, it will recover and display the real temperature.

1. Adjust the CO _2 pressure regulator knob to "+" position, to pour the beer out by pulling down the tap mechanism, and you can adjust the pressure regulator knob to control the beer flow rate and beer bubble.

Note: Clean the glass before pouring beer out; if the beer or beer cup/glass is in high temperature or the beer is not cool enough, there are many bubbles when pouring beer out.

1. When taping the beer, lean your beer glass against the pouring spout and slowly straighten it up with the beer rising, then open the tap mechanism completely to avoid much bubble; It is advisable to pour half-glass, make a short pause before continuing the rest.

NOTES: Never immerse the pouring spout into the beer glass to avoid much bubble; Remember to lock the tap after finishing pouring.

1. It is normal to have more bubbles when pouring the first 3 cup of beer.
2. There will be a sharp and high-speed jet when pouring the last cup of beer from keg.

Heineken Keg

Heineken legs are pre-charged with CO2 , and do not require the use of regulator, no need to install the CO2 cartridge. And the knob on the top cover does not work.

1. The Heineken connector that comes with your beer cooler can work with all Heineken 5 litre kegs. However you must use a flat head screwdriver to remove the green base from the keg in order to install the new connector, provided with the beer cooler.
2. When install the new connector to the Heineken keg, you must firstly install the clear beer tube one end to the connector, one end to the tap mechanism, then install the connector to the Heineken keg.

Take out the Heineken adaptor with collect ways. Press it according the arrow indication, or will damage the fastener.

When the beer in the keg runs out, before changing a new beer keg:

1. Adjust the CO, pressure regulation knob to "-" switch to shut off the CO2 supplying and save the CO2 .
2. Open the top cover of the beer cooler, pull down the tap handle to release the rest gas in the keg (maybe with some beer bubble).
3. Then put the piercing pin into the new keg and put into the beer cooler. Connect the gas-tube and beer tube from the keg lifter, by pressing the white parts of keg lifter.
4. Disconnect the gas-tube and beer tube from the keg lifter,
5. Take out the keg by the keg lifter, and pull out the piercing pin from the keg.
6. It is recommended to clean the tap mechanism when changing the beer keg each time. Please refer to the below contents about cleaning.

When you take out the fastener of beer dispensing unit, you can move this unit towards arrow indication.

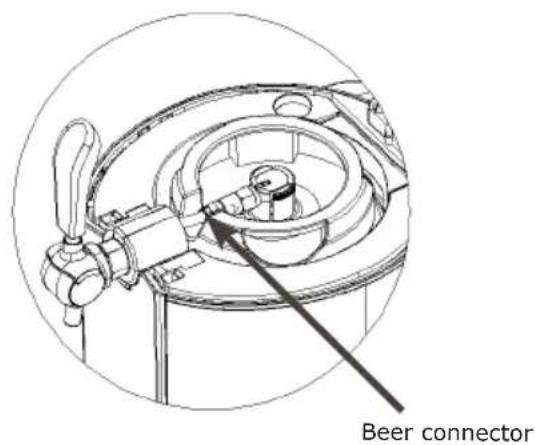

When you take out the beer connector and CO_2 connector, please press the white button down.

Change a new CO_2 cartridge

Please change the CO2 cartridge if you cannot pour beer out when the CO2 pressure knob is at "on" position and has been in keg.

1. When turn the CO₂ pressure knob to “-” position, to close the CO₂ supplying.
2. Open the top cover, loose the cartridge sheath, and take out the empty CO 2 cartridge.

Insert a new 16gCO_2 cartridge in the sheath, and screw the sheath tightly until you will hear a "Click", which indicates that the cartridge seal has been pierced and the CO2 gas can flow into the keg freely. Make us the bottle sheath is fixed tightly to avoid the CO2 leakage. Then put CO2 bottle sheath into the top cover.

1. Close the top cover of beer cooler;
2. Turn the CO _2 pressure knob to "+" position to turn on the CO _2 supply, and it is ready to pour beer out.

Reminder: each 16gCO_2 cartridge can pressure more than 5L beer out.

Warning:

• Please use the qualified CO _2 cartridge.
• The below CO_2 cartridge information for your reference. Never use Nitrogen gas cartridge in the beer cooler to avoid the explosion, because of its much higher pressure;
• New CO _2 cartridge need good reserve,any play if forbidden,or will cause hazards.

NW

Volume 20 ml

GW

Cartridge weight 42-42.6 g

A

15,5-16,5

57-58,6

gB

C

88-89

21.7-22

D

Pressure 60 kgf/cm

mm Blast pressure 45 bar

-11

2

Replace water inside cool cavity

It is recommended replacing the water inside the cavity once each week. (No need to replace the water for each beer keg, one week one time recommended).

Open the drain switch, water flow into the S shape drainpipe from this end.

Drip tray
Water flow into drip tray from this end.

1. Open the drain switch to drain out the water from the cavity into the drip tray. Make sure the drip tray is fit into the notch to avoid water flow to the desk; the drip tray can load 450ml water;
2. After all water drain out, close the drain switch and put 800ml fresh water into the cavity.
3. Open the drain switch (drag the switch forward to 90 degree angle), and drain out the water inside the cavity to drip tray, and need twice to drain out the water.

Warning:

a. clean water is necessary;
b. make sure the drip tray is fit into the notch to avoid water flow to the desk;
c. the drip tray can load 450ml water.

Cleaning beer tap mechanism

Beer cooler need conformity with hygienically demand, it need clean before the first use or for long time use, clean the whole machine with dry cloth. Otherwise two cleaning way is recommended as following:

1. Load the warm water into the cleaning kit.
2. And connect the end of piercing pin, press the water into the pin to clean the pin tube, and push the water out from the beer tube at the other end. And repeat this cleaning work till the beer tube clean (need 3 bottles warm water at least); please clean the beer tap mechanism as figure 30. Note: Please disassemble the tap when make the cleaning.

Beer connector must connect with dispensing unit

Please open the faucet when you are cleaning the beer tube

This connector must connect with cleaning bottle

Never put the tap mechanism parts in the washing machine or dishwasher; Never use the chemical cleaning detergent to clean the parts, warm or purified water is recommended.

Changing spare parts

Items Name	Qty. Installment	Picture Spare parts
1 Connector	seal 6 Regulator valve 5 pcs
2 CO	2 connector 2	Regulator valve 1 pc nector	a	1 pc
3 Beer tube	2 Beer-out con- circle 4 Beer-in pipe
4 Tube seal				3 pcs
5 Keg seal	2 Standard tub	3 Heineken tub	a	2 pcs
6 Heineken adaptor				1 set
7 CO	2 car-tridge	3 Regulator valve as-sembly	a	3 pcs
8	Cleaning bottle 1		a	1 pc

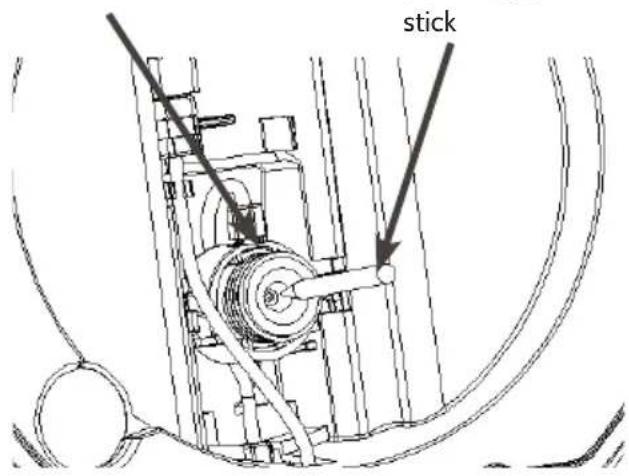

Cartridge pierced probe and seal washer

Cartridge pierced probe and seal washer maybe damaged when wrong usage or other reasons, please replace a new one.

1. Firstly, pick out the seal washer with a tiny metal stick and take out Cartridge pierced probe. Be careful not damage other parts of regulator.

2. Install a new cartridge pierced probe in the regulator (leave the sharp end outside toward), and install the seal washer (Show as figure 32). Don't remove other parts of regulator in the replacing process.

Regulator assembly

Cartridge connector

Warning: Remember press the seal circle with empty cartridge instead of new cartridge, or will cause hazard.

To change beer tube

Please replace the beer tube if beer tube is damaged and cause beer leakage.

1. Loose out the tube from the connection 1, draw out the tube. Pull down the lock setting, and draw the tube out.
2. Screw out nut at connection 2, and draw the tube out.
3. Replace a new beer tube, and install the beer tube according with reverse procedure

NOTES: Don't move other screws when processing tube replacement, otherwise, it may cause the beer leakage or gas leakage.

Replace the seal circle of beer tube

Replace the new seal circle of beer tube if the connector has leakage

1. Turn out the beer tube as indication of bellowing figure
2. Take out the seal circle of beer tube
3. Replace a new seal circle on same position
4. Turn the seal circle tightly to avoid any leakage.

Troubleshooting

If the beer cooler does not work properly, please call the service centre;

To save time and money, before you call for service, check the Troubleshooting Guide. It lists cause of minor operation problems that you can correct yourself.

Trouble Cause Solution
The tap does not work / can't pour beer out	1. The pouring tube is in poor connection or CO2 supplying is cut off2. No keg or no beer in the keg;3. No gas in the CO2 cartridge4. The CO2 pressure regulator knob is close	1. Well connect the pouring tube and CO2 supplying2. Change a new keg3. Change a new CO2 cartridge4. Turn the CO2 pressure regulator knob on “+” position
Too much bubble pouring out	1. Use a wrong way to pour beer out2. The beer temp is high (better at 3-5 °C)3. The keg is shaken before usage4. Almost no beer in the keg5. Too much pressure in the keg	1. Use the right way to pour beer out2. Cool the beer down to 3-5 °C3. Put the beer keg aside a while till no bubble inside4. Change a new keg5. Adjust the pressure knob to “-” direction to decrease the pressure or close the knob
Beer flows out too slowly	1. Inside CO2 pressure isn’t high enough2. The connection tube or pouring tube has leakage	1. Adjust the pressure knob to release much CO2 pressure or replace a new one.2. Check whether the tube is leakage or not, if so replace the tube

Disposal Considerations

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

CE

Producer: Chal-Tec GmbH, Wallstraße 16,10179 Berlin, Germany

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

Chere cliente, cher client.
