Technical Features	Built-in oven, 70-liter capacity, energy class A.
Cooking Modes	Convection, grill, traditional cooking.
Dimensions	Width: 60 cm, Height: 60 cm, Depth: 55 cm.
Weight	Approximately 30 kg.
Usage	Control panel with digital display, touch controls.
Cleaning	Catalytic cleaning function, enamelled interior.
Safety	Safety lock, cool door.
Included Accessories	Grill rack, roasting pan.
Warranty	2 years.

Frequently Asked Questions - OVM436MAT Pelgrim

Why is my Pelgrim OVM436MAT oven not heating?

Check if the oven is properly plugged in and the outlet is working. Make sure the thermostat is set to the correct temperature and the selected cooking mode is active.

How do I clean the inside of my Pelgrim OVM436MAT oven?

Use a suitable oven cleaner and a soft cloth. Avoid abrasive products that could scratch the surfaces. For a deep clean, remove the racks and trays.

What is the capacity of the Pelgrim OVM436MAT oven?

The Pelgrim OVM436MAT oven has a capacity of about 65 liters, making it ideal for cooking multiple dishes at once.

My oven is displaying an error code, what should I do?

Refer to the user manual to identify the error code. If the problem persists, contact customer service for assistance.

How do I set the temperature on my Pelgrim OVM436MAT oven?

Use the temperature control knob to select the desired temperature. Check the digital display to ensure the setting is correct.

The fan in my oven is not working, what should I do?

Make sure the oven is in fan cooking mode. If the fan still does not work, it may be necessary to call a technician.

Can I use glass dishes in my Pelgrim OVM436MAT oven?

Yes, you can use oven-safe glass dishes. Make sure they are heat resistant.

How can I program a delayed cooking time on my oven?

Refer to the user manual for specific instructions on programming delayed cooking. Generally, you need to set the start time and cooking duration.

The oven is making strange noises, what should I do?

A slight noise can be normal when the fan is running. If the noise is loud or unusual, unplug the oven and contact a technician.

USER MANUAL OVM436MAT Pelgrim

Instructions for use

Oven

(ook regulier 250^

Selecting additional functions 17

Cleaning

Cleaning the oven 19

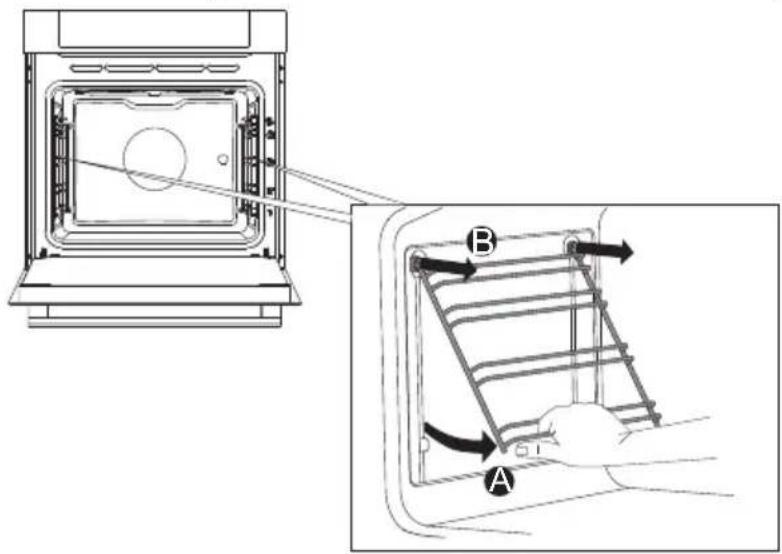

Removing and cleaning the guide rails. 19

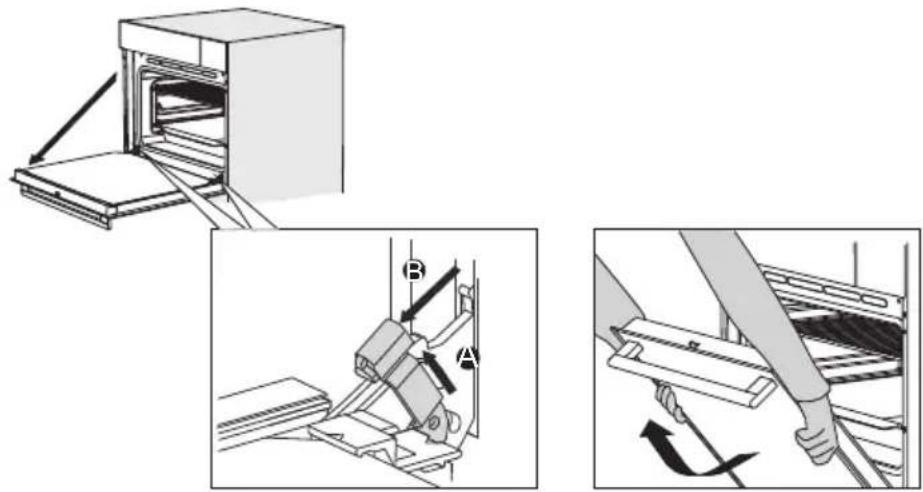

Removal and reinsertion of the oven door 20

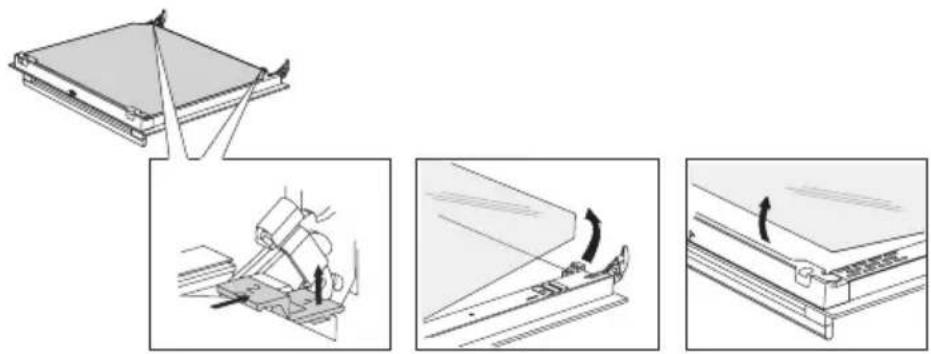

Removal and reinsertion of oven door glass 20

Aquacleanfunction21

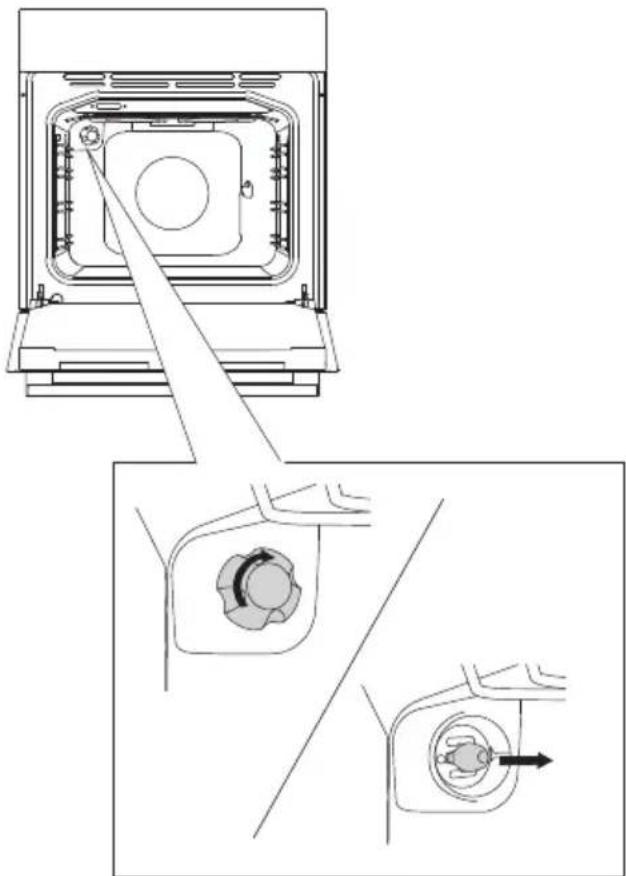

Replacing the oven lamp 22

Solving problems

General 23

Your oven and the environment

Disposal of the appliance and packaging 25

Introduction

Congratulations on the purchase of this Pelgrim oven. This product is designed to offer optimum user-friendliness. The oven has a wide range of settings enabling you to select the correct cooking method every time.

This manual shows how you can best use this oven.
In addition to information about operating the oven, you will also find background information that may be useful when using the appliance.

Please read the separate safety instructions carefully before using the appliance!

Read this manual before using the appliance and keep it in a safe place for future use.

Installation instructions are supplied separately.

Register your appliance for warranty purposes

We are convinced of the quality of our products. This is why we offer a warranty period of up to 8 years*. All you need to do is register your appliance on pelgrim.nl (when purchased in the Netherlands) and pelgrim.be (when purchased in Belgium).

*Visit www.pelgrim.nl or www.pelgrim.be for full warranty terms and conditions.

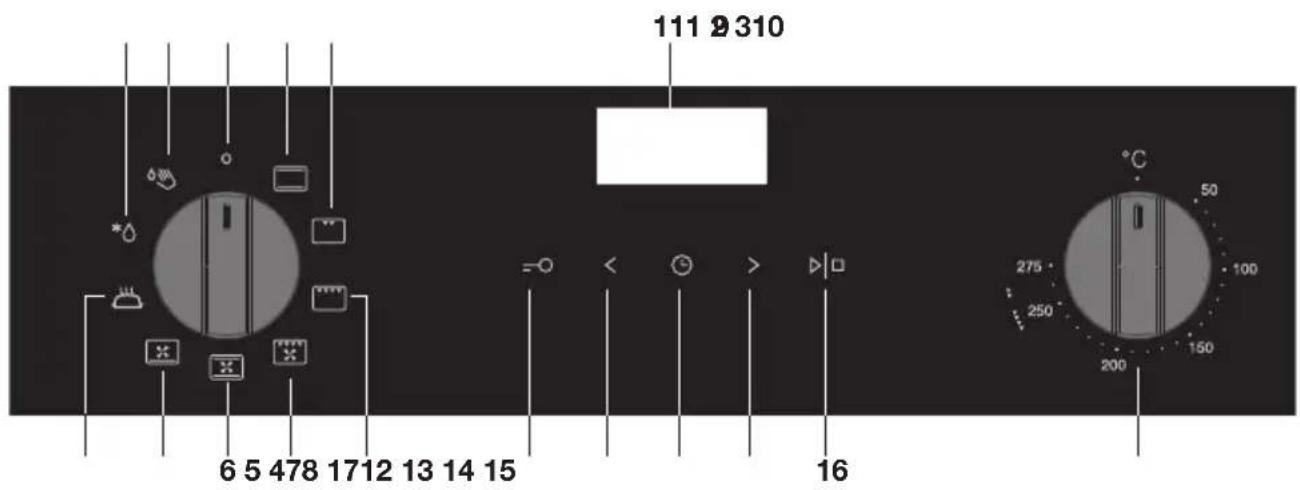

Control panel

1. Off
2. Top heat + bottom heat
3. Small grill
4. Large grill
5. Grill with fan
6. Top heat + bottom heat + fan
7. Bottom heat with fan
8. GentleBake
9. Defrosting
10. Aqua Clean
11. Display (cooking information and timer)
12. Child lock
13. Less
14. Timer
15. More
16. Start/Stop
17. Temperature dial

Note:

For the best touch response, touch the buttons with the main part of your fingertip. Every time you press a button during use, a short signal will sound.

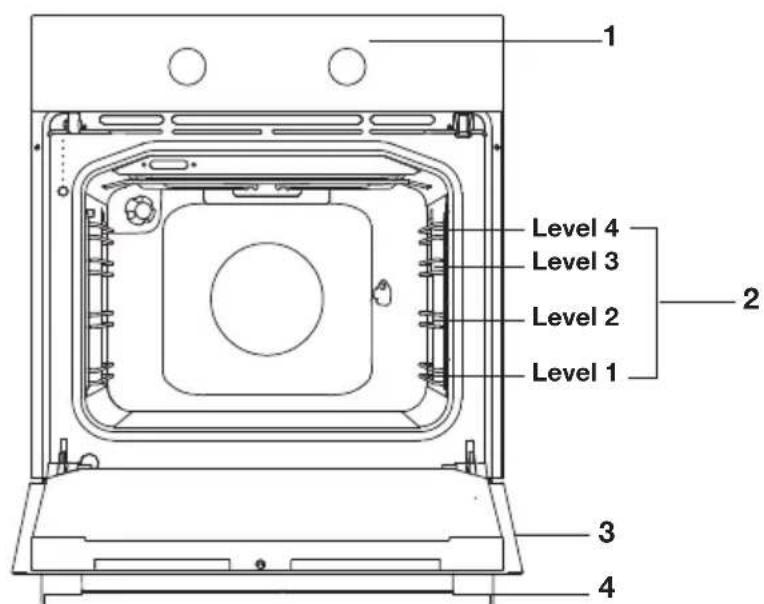

Description

1. Control panel
2. Rack levels
3. Oven door
4. Handle

Guide rails/Telescopic guide rails

• The oven has four or five guide rails (Level 1 to 4/5), depending on the model. Level 1 is mainly used in combination with bottom heat. The two upper levels are mainly used for the grill function.

• Place the oven rack, baking tray or steam dish in the gap between the guide rail sliders.

• A number of shelf levels can have fully-retractable telescopic guide rails, depending on the model.

Pull the telescopic guide rails out of the oven cavity completely and place the oven rack / baking tray / steam dish on them. Then slide the oven rack / baking tray / steam dish on the telescopic guide rails, back into the oven cavity.

Only close the oven door when the telescopic guide rails have been returned completely back into the oven cavity.

Accessories

Your appliance is accompanied by a range of accessories, depending on the model. Only use original accessories; they are specially suited to your appliance. Be sure that all the accessories that are being used are able to withstand the temperature settings of the chosen oven function.

Note: not all accessories are suitable/available for every appliance (it may also differ by country). When purchasing, always provide the exact identification number of your appliance. Please see the sales brochures or check online for more details about optional accessories.

Accessories that can be supplied with your appliance (depending on the model)
	Enamelled baking tray; to be used for pastries and cakes. • Do not use the enamelled baking tray for microwave functions! • Suitable for pyrolysis cleaning.
	Oven rack; mainly used for grilling. A steam dish or pan with food can also be placed on the oven rack. • The oven rack is equipped with a safety peg. Lift the rack slightly at the front to slide it out of the oven. • Do not use the oven rack for microwave functions!
	Deep enamelled baking tray; to be used for roasting meat and baking moist pastry. It can also be used as a drip tray. Place the deep baking tray into the first level for use as a drip tray during grilling. • Do not use the deep enamelled baking tray for microwave functions! • Suitable for pyrolysis cleaning.
	Glass baking tray; for microwave and oven use. • NOT suitable for pyrolysis cleaning.

Initial use

Less and more button

Start/Stop button

Timer button

Oven function dial

Temperature dial

Grill setting (also usually 250^

Set the current time

When you connect the appliance to the mains electricity for the first time, the display lights up. After three seconds the clock symbol and '12:00' will flash on the display.

1. Press the 'less or more button' to set the current time.

You can set the values in the display faster by holding down the buttons for longer.

1. Confirm the settings by pressing 'start/stop'.

If you do not press anything, the settings will be saved automatically after three seconds.

You can always set the current time by pressing the 'timer button' twice. Then set the current time using the 'less or more button'.

Confirm the settings by pressing 'start/stop'.

Using your oven

The oven has 8 oven functions and 1 cleaning function. Consult the table to select the correct oven function for the dish.

1. Place the dish in the oven.

For most dishes you should first preheat the oven.

1. Turn the 'oven function dial' to the desired setting.

The 'in operation' symbol will appear on the display.

1. Set the oven to the desired temperature using the 'temperature dial' (between 50-275 °C).

If you select a setting with 'small grill/large grill', you should turn the 'temperature dial' to the grill setting.

1. If desired, set a cooking time by pressing the 'timer button' and use the 'less or more button' to set the desired time.

2. Press the 'start/stop' button.

The set oven function will be started and the oven will be heated to the selected temperature. The temperature symbol will flash. When the oven reaches the set temperature, the symbol will light up and a short beep will be sounded.

Notes

• The temperature can be changed during cooking.
• Cooking times are rough estimates and can vary depending on a number of conditions.
• For certain dishes, the oven should be preheated.
• If you use baking paper, this should be able to withstand high temperatures.
• A lot of steam is released when cooking larger pieces of meat or dishes using dough, such as pies. This can cause condensation on the oven door. This is a normal occurrence and does not influence the functioning of the appliance. When the cooking process has ended, dry the door and the glass.
• Prevent condensation from forming and do not allow hot food to cool in a closed oven.

Oven settings

Use the table to select the right oven function. Also consult the cooking instructions on the food packaging.

Function	Description Recommended	temp. °C
	Top heat + bottom heat Heat is generated by the heating elements at the top and bottom of the appliance. This setting is suitable for baking and roasting.	200
	Small grill Food is heated by the top grill heating element.	240
	Large grill Food is heated by the heating element (the grill) at the top of the oven. The top heating element is activated simultaneously to increase the effect of the elements.	240
	Grill + fan The fan distributes the heat generated from the top heating element. You can use this function for grilling meat and fish.	200

Top heat + bottom heat + fan The combination of top heat, bottom heat and fan provides even heating and is ideal for baking.	180
Bottom heat + fan The bottom element heats the dish and the heat is distributed by the fan.	180
GentleBake This feature allows gentle, slow, and even baking that leaves the food soft and juicy. It is suitable for roasting meat, cooking fish, and baking pastry on a single rack.	140-220
Defrosting The air circulates with no heaters activated. Only the fan will be activated. This is used to slowly thaw frozen food.
Aqua Clean The hot steam dampens the interior of the oven, so you can clean the oven easily. The Aqua Clean programme takes just 30 minutes.	70

Each oven function has a number of basic or standard settings that you can adjust.

You adjust the settings by pressing the relevant button (before pressing the 'start/stop' button). Certain settings are not available for all programs; if this is the case you will be alerted by a sound signal.

Adjusting the cooking temperature

• Turn the 'oven function dial' to the desired oven function.
• Set the oven to the desired temperature using the 'temperature dial'.

Oven functions

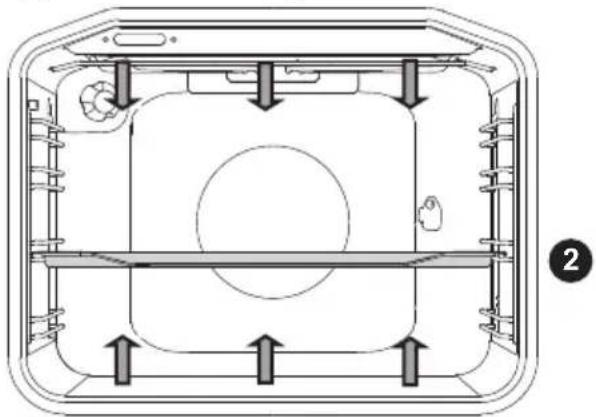

Top and bottom heat

Top heat + bottom heat

Heat is generated by the heating elements at the top and bottom of the appliance. This setting is suitable for traditional baking and roasting.

• The baking tray or the grill rack is usually placed at level 2.
• Temperature setting: 50 - 275 °C*

• Preheating is recommended.

• Any glass dishes you use must be able to withstand temperatures of 50 - 275 °C.

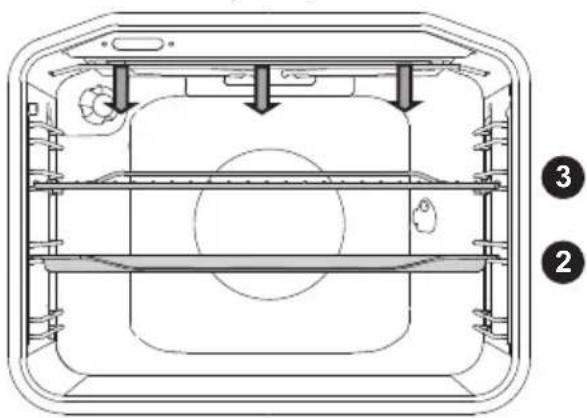

Small grill

Small Grill

Food is heated by the grill element.

• For grilling, the grill rack is usually placed at level 3 and the baking tray at level 2.

Grill setting

• For this oven function turn the 'temperature dial' to the grill setting.
• Keep an eye on the cooking process. At high temperatures, meat can burn quickly.
• Preheat the oven for 5 minutes.

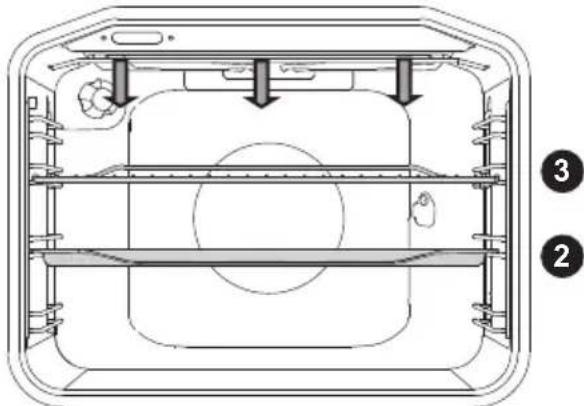

Large grill

Large grill

The heat comes from the top element and the grill element. This setting is particularly useful for dishes and baked food that require a real bottom or browning. Use this just before the end of the baking or roasting time.

Grill setting

• For grilling, place the oven rack on the third shelf level and the baking tray on the second shelf level.
• For this oven function turn the 'temperature dial' to the grill setting.

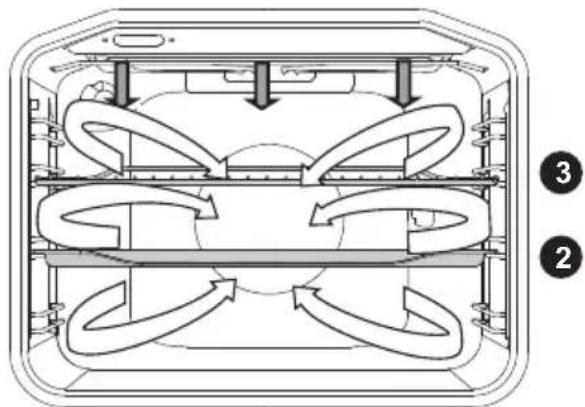

Grill and fan

Grill + fan

The fan distributes the heat generated from the top heating element. You can use this function for grilling meat, fish, poultry and vegetables. It gives food a crispy texture without it needing to be turned over.

• For grilling, the grill rack is usually placed at level 3 and the baking tray at level 2.
• Temperature setting: 50 - 275 °C
• Keep an eye on the cooking process. At high temperatures, meat can burn quickly.
• Preheat the oven for 5 minutes.

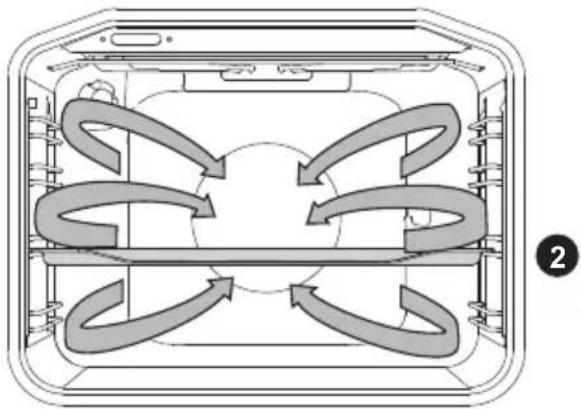

Top and bottom heat and fan

Food is heated by hot air originating from the top and bottom elements, which the fan distributes evenly throughout the oven. This setting uses even heating and is ideal for baking.

• Place the tray at level 2.
• Temperature setting: 50 - 275^ C^ *
• Preheating is recommended.
• Any glass dishes you use must be able to withstand temperatures of 50 - 275 °C.

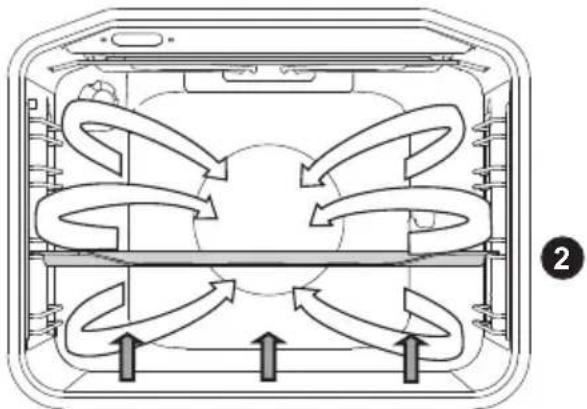

Bottom heat and fan

Bottom heat + fan

The bottom element heats the dish and the heat is distributed by the fan. This setting is used for baking yeasted pastry and preserving fruit and vegetables.

• Place the tray at level 2.
• Temperature setting: 50 - 275 °C*

• Preheating is recommended.

• Any glass dishes you use must be able to withstand temperatures of 50 - 275 °C.

GentleBake

GentleBake

This feature allows gentle, slow, and even baking that leaves the food soft and juicy. It is suitable for roasting meat, cooking fish, and baking pastry on a single rack.

Defrosting

Defrosting

In the defrost function the fan circulates the air.

No heat elements are switched on. Use this function for slow defrosting of frozen dishes (cakes, biscuits, cookies, bread, bread rolls and frozen fruit).

• If desired, set a defrost time by pressing the 'timer button' and use the 'less or more button' to set the desired time.
• Turn the food over after half the defrosting time has elapsed; stir the food or break up large pieces if these are frozen together.

Timer

Setting the timer

• Press the 'timer button' twice.
• Press the 'less or more button' to set the current time.
• Press the 'timer button' to confirm.

Setting the cooking time

• In this setting you can set how long the oven needs to operate (cooking time).

Setting the 'end time'

• In this setting you can set the time the oven should switch off.
  A cooking time first needs to be set. Ensure that the clock is set precisely to the current time.

Setting a preparation time

• Select an oven function using the 'oven function knob' and set the temperature.
• Press the 'timer button' to select the preparation time' function. The pictogram for the preparation time' lights up on the display.
• Press the 'less or more button' to set the preparation time.
• Press the 'timer button' to save the set time.
• Press the 'start/stop button' to start the cooking process. The elapsed preparation time will be displayed.

Setting a preparation time and end time

• Select an oven function using the 'oven function knob' and set the temperature.

• Press the 'timer button' to select the preparation time' function.

• The pictogram for the 'preparation time' lights up on the display.

• Press the 'less or more button' to set the preparation time.
• Press the 'timer button' to save the set time.
• Press the 'timer button' again twice.
• The pictogram for the 'end time' lights up on the display.
• Press the 'less or more button' to set the end time.
• Press the 'start/stop button' to start the cooking process. The oven starts at the set time minus the preparation time. The elapsed preparation time will then be displayed.

Example:

Current time: 12:00
- Cooking time: 2 hours
End of cooking: 18:00 hours
- First set the preparation time, for example 2 hours (see 'Setting a preparation time'). Then set the end time (6 p.m.) (see 'Setting an end time').

• Press the 'start/stop button' to start the cooking process.

The timer will delay the cooking process until the appropriate time. The pictogram will now light up. The oven will switch on automatically (16:00 hours) and switch off at the selected time (18:00 hours).

The oven will switch off automatically once the set time has elapsed (end of cooking). A signal will sound that you can switch off by pressing the 'start/stop' or 'timer' button. The sound signal will stop automatically after one minute.

'Timer alarm' function

• The 'timer alarm' function can be used independently of the oven. The highest possible setting is 23 hours and 59 minutes. The last minute of the run time is displayed in seconds.

You can cancel all timer functions by setting the time to '0'. If the appliance has been inactive for a few minutes, it will switch to standby. The current time appears and the selected timer function will light up.

Selecting additional functions

Certain settings are not available for all programs; if this is the case you will be alerted by a sound signal.

Child lock button

Child lock

With the oven's childproof lock you can lock the control panel to prevent unintended use of the oven.

• You can activate the child lock by pressing the 'child lock button' for a few seconds.

The display will read "Loc' for 5 seconds.

This indicates that all functions are locked.

• To deactivate the child lock, press the button again for a few seconds.

Note:

Once the child lock is activated and no timer function has been set (only the clock is displayed), the oven will not work. If the child lock is activated after a timer function has been set, the oven will work; however, the settings cannot be changed.

When the child lock is activated, oven functions or additional functions cannot be changed. The cooking process can only be ended by turning the 'oven function dial' to '0'.

The child lock remains activated even after the oven has been switched off. The child lock needs to be deactivated before you can select a new programme.

Oven lamp

• The oven lamp will light automatically if an oven function is selected and 'start/stop' is pressed.

Sound signal

The volume of the sound signal can be set if no timer function has been activated (only the time is displayed).

• Press and hold the 'less button' for 5 seconds.

'Full' appears on the display followed by several bars that are fully lit.

• Press the 'less or more button' to select one of three volume levels (one, two or three bars) or no sound (Off).

• The setting will be saved automatically after 3 seconds and the time will be displayed.

Less button

Less and more button

More button

Less and more button

Reduce display contrast

• Press and hold the 'more button' for 5 seconds.
  'Bri' appears on the display followed by several bars that are fully lit.
• Press the 'less or more button' to adjust the dimming level (one, two or three bars).

The setting will be saved automatically after three seconds.

Note! Turn the function knob and temperature knob to 'Off' position after each use.

Following a power failure the additional function settings will only be saved for a few minutes. All settings, except the sound signal and child lock, will then revert to factory settings.

Cleaning the oven

Clean the oven regularly to prevent fat and leftover food from accumulating, especially on interior and exterior surfaces, the door and seal.

• Clean exterior surfaces with a soft cloth and soapy warm water. Wipe afterwards with a clean, damp cloth and dry the surfaces.
• Remove splashes and stains on the interior surfaces with a soapy cloth. Wipe afterwards with a clean, damp cloth and dry the surfaces.
• Clean the interior of the oven

Important

Take care that NO water enters the vents.
- NEVER use abrasive cleaning materials or chemical solvents.
- ALWAYS ensure that the door seal stays clean.

This prevents accumulation of dirt and allows you to close the door properly.

Removing and cleaning the guide rails.

Use conventional cleaning products to clean the guide rails.

• Grasp the guide rails at the bottom and tilt them towards the middle of the oven (A).
• Remove the guide rails from the holes in the back wall (B).

Removal and reinsertion of the oven door

1. Open the door completely to the horizontal position.
2. Slightly pull up the locking pins on both sides (A) and then tilt them all the way forward (B).
3. Now slowly close the door until you feel a slight resistance.
4. Then lift it upwards and pull it out.

To reinsert the door repeat the procedure backwards. If you have trouble closing or opening the door, check if the hinge grooves are properly inserted into their slots.

Always make sure the lock latches are correctly positioned in their slots. Never let the hinge locks spring out, as the central springs are very strong and may cause injuries.

Removal and reinsertion of oven door glass

Oven door glass may be cleaned from the inside, but you will have to remove the glass from the door. First remove the oven door (see chapter 'Removal and Reinsertion of Oven Door').

1. Slightly lift the brackets on the left and the right side of the door (mark 1 on the bracket) and pull them slightly away from the glass (mark 2 on the bracket).
2. Grab the door glass at the bottom edge and lift it slightly upwards to remove it from the support.
3. The inner third glass (depending on the model) is removed by lifting it slightly and pulling it out. Remove also the rubber seal around the glass.

Remount the glass in reverse order. Marks engraved on the oven door and the glass (semicircle) must coincide.

Aquac Clean function

With the Aqua Clean function and a damp cloth, you can easily remove grease and dirt from the oven walls.

Aqua Clean function

Using the Aqua Clean function

Only use the cleaning programme if the oven is cold. If the oven is hot, it is more difficult to remove dirt and grease using this programme.

1. Remove all accessories and guide rails from the oven.
2. Pour approximately 0.15 litres of water into the bottom of the empty oven.
3. Turn the 'oven function dial' to 'Aqua Clean'.
4. Set the temperature at 70^ and the time at 30 minutes.
5. Food remains on the enamel walls will be sufficiently soaked after 30 minutes so that they can be removed with a damp cloth.

Please note:It is not possible to change the length of the cleaning programme during cleaning. Turn the 'oven function dial' to position '0' to interrupt the cleaning programme.

Replacing the oven lamp

The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.

The lamp is a consumer item and therefore does not fall under the guarantee.

Cut the power to the appliance by removing the plug from the socket or switching off the fuse in the fuse box!

Rear wall lamp

1. Turn the cover to the left to remove it.
2. Remove the bulb from the fitting.

Please note: the lamp can be very hot! Use protection to remove the bulb.

General

Try the solutions below if you have problems with your oven.

You could save yourself the time and effort of an unnecessary phone call to customer services.

The food is not cooked

• Check whether the timer has been set and you have pressed the 'start button'.
• Close the door properly.
• Check whether a fuse has blown and whether a circuit breaker has been activated.

Food is overcooked or undercooked

• Check whether the correct cooking time has been set.
• Check whether the temperature has been set.

The display will be reset following power failure

• Remove the plug from the socket and put it back in again.
• Set the time again.

There is condensation on the interior of the oven

• This is normal. Wipe the oven clean after use.

The fan keeps working after the oven is switched off

• This is normal. Once the oven has been switched off, the cooling fan may continue to run for a little while.

Air flow can be felt at the door and the exterior of the appliance

This is normal.

Light reflects on the door and the exterior of the appliance

This is normal.

Steam escapes from the door or the vents

This is normal.

Clicking sounds can be heard when the oven is working, particularly in the defrost setting

This is normal.

Storing and repairing the oven

Repairs may only be performed by a qualified service technician. If maintenance is required, remove the plug from the socket and contact Pelgrim customer services.

Have the following information to hand when you call:

• The model number, serial number and article number/index (stated on the inside of the oven door)
• Guarantee details
  A clear description of the problem

Choose a clean, dry place if you have to store the oven temporarily, as dust and moisture can damage the appliance.

Disposal of the appliance and packaging

This product is made from sustainable materials. However, the appliance must be disposed of responsibly at the end of its useful life. The government can provide you with information about this.

The appliance packaging is recyclable. The following materials have been used:

cardboard
polyethylene wrapping (PE)
CFC-free polystyrene (hard PS foam)

Dispose of these materials responsibly in accordance with legal provisions.

The product has a pictogram of a rubbish bin with a cross through it. This indicates that household appliances must be disposed of separately. This means that the appliance may not be processed via the regular waste flow at the end of its useful life. You should take it to a special municipal waste depot or a sales outlet that offers to do this for you.

Collecting household equipment separately prevents harm to the environment and public health. The materials used in manufacturing this appliance can be recycled, which provides considerable savings in energy and raw materials.

Declaration of conformity

We hereby declare that our products comply with the relevant European directives, standards and regulations as well as all requirements referred to in the standards.

The appliance identification card is located on the bottom of the appliance.

When contacting the service department,

have the complete type number to hand.

You will find the addresses and phone numbers of the service organisation on the

guarantee card.

795338

Pelgrim
