RI.078 - Heating Beper - Free user manual and instructions

Product type	Fan heater
Brand	Beper
Model	RI.078
Power	2000 W
Power supply	220-240 V ~ 50/60 Hz
Main functions	Heating, fan only, oscillation, timer (0.5 to 7.5 h), thermostat (18-45 °C)
Remote control	Yes, with CR2025 battery included
Overheat protection	Yes, automatic shut-off
Tip-over protection	Yes, automatic shut-off if tipped over
Protective grille	Yes, to prevent direct contact
Assembly	Base to be fixed with supplied screws
Cleaning	Soft damp cloth; filter can be cleaned with vacuum cleaner
Filter	Yes, to be cleaned at least once a year
Warranty	24 months
Use	Household indoor use only
Colour	White (estimate)

Frequently Asked Questions - RI.078 Beper

How to turn on and adjust the Beper RI.078 heater?

Plug in the appliance, then set the rear switch to I. Press button D to turn on the fan mode. Use buttons C to toggle between low, high and fan. Button B allows you to program the timer (0.5 to 7.5 h) and by pressing and holding for 3 seconds to set the temperature (18-45 °C). Button A activates oscillation.

How to use the remote control?

Remove the protective film from the battery compartment. The remote control operates with a CR2025 battery included. The buttons are identical to those on the control panel.

What to do if the heater suddenly turns off?

The product is equipped with overheat protection. Turn it off, unplug it and let it cool down for a few minutes. If the problem persists, contact support.

How to clean the heater?

Unplug the appliance. Use a soft damp cloth with soapy water. Do not use abrasive products. For the filter, clean it with a vacuum cleaner without opening the grille.

Can I use the heater in a bathroom?

No, the product is intended for household indoor use only. Do not install it near water (shower, sink) to avoid any risk of electrocution.

How to assemble the base?

Attach part A to part B to form the base. Position it under the appliance and screw the supplied screws firmly.

Can the heater tip over easily?

The product is equipped with tip-over protection: it automatically turns off if it falls or is no longer stable.

What is the range of the remote control?

The remote control has a standard range (about 5 meters) in line of sight. Replace the battery if the range decreases.

Can I program the heater to turn off after a certain time?

Yes, press button B to set the timer from 0.5 to 7.5 hours. The appliance will turn off automatically.

What to do in case of malfunction during warranty?

The warranty is 24 months. Contact your retailer or [e-mail] to find the nearest authorized center. Keep the receipt.

USER MANUAL RI.078 Beper

Exterior view of a beper heat exchanger with a black base and digital display (no text or symbols visible on the device itself)

IL PRESENTE PRODOTTO E' ADATTO SOLO A AMBIENTI CORRETTAMENTE ISOLATI O AD UN USO OCCASIONALE THIS PRODUCT IS SUITABLE FOR PROPERLY INSULATED SPACES O FOR OCCASIONAL USE ONLY

For further information and/or for instructions for use in other languages, please visit: beper.com

REFERENCES TO THE MODEL :CODE: RI.078 DESCRIPTION:
					Ceramic Tower Fan Heater
ITEM	SYMBOL	VALUE	UNIT		Item
Heat Output					Type of heat input, for electric storage local space heaters only
Nominal heat output	P nom	2.0	KW		Manual heat charge control, with integrated thermostat (no)
Minimum heat output	P min	1.0	KW		Manual heat charge control with room and/or outdoor temperature feedback (no)
Maximum continuous heat output	P Max,c	2.0	KW		Electronic heat charge control with room and/or outdoor temperature feedback (no)
Auxiliary electricity consumption					Fan assisted heat output (no)
At nominal heat output	el max	N/A	KW		Type of heat output/room temperature control
At minimum heat output	el min	N/A	KW		Single stage heat output and no room temperature control (no)
In standby mode	el SB	0.00076	KW		Two or more manual stages, no room temperature control (no)
					With mechanic thermostat room temperature control (no)
					With electronic room temperature control (yes)
					Electronic room temperature control plus day timer (no)
					Electronic room temperature control plus week timer (no)
					Other control options
					Room temperature control, with presence detection (no)
					Room temperature control, with open window detection (no)
					With distance control option (no)
					With adaptive start control (no)
					With working time limitation (yes)
					With black bulb sensor (no)
Contact: [e-mail] - Phone: [phone]Name and address of the factory and/or legal representative: BEPER SRL - Via A.Salieri, 30-37050 Vallese di Oppeano (Verona) Italy

AVVERTENZE GENERALI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPAREC-CHIO.

Close-up of a red rectangular electronic switch with two white circular terminals (no text or symbols visible)

Tasto di accensione

"0" significa "SPENTO" "I" significa "ACCESO".

A B C D

UTILIZZO

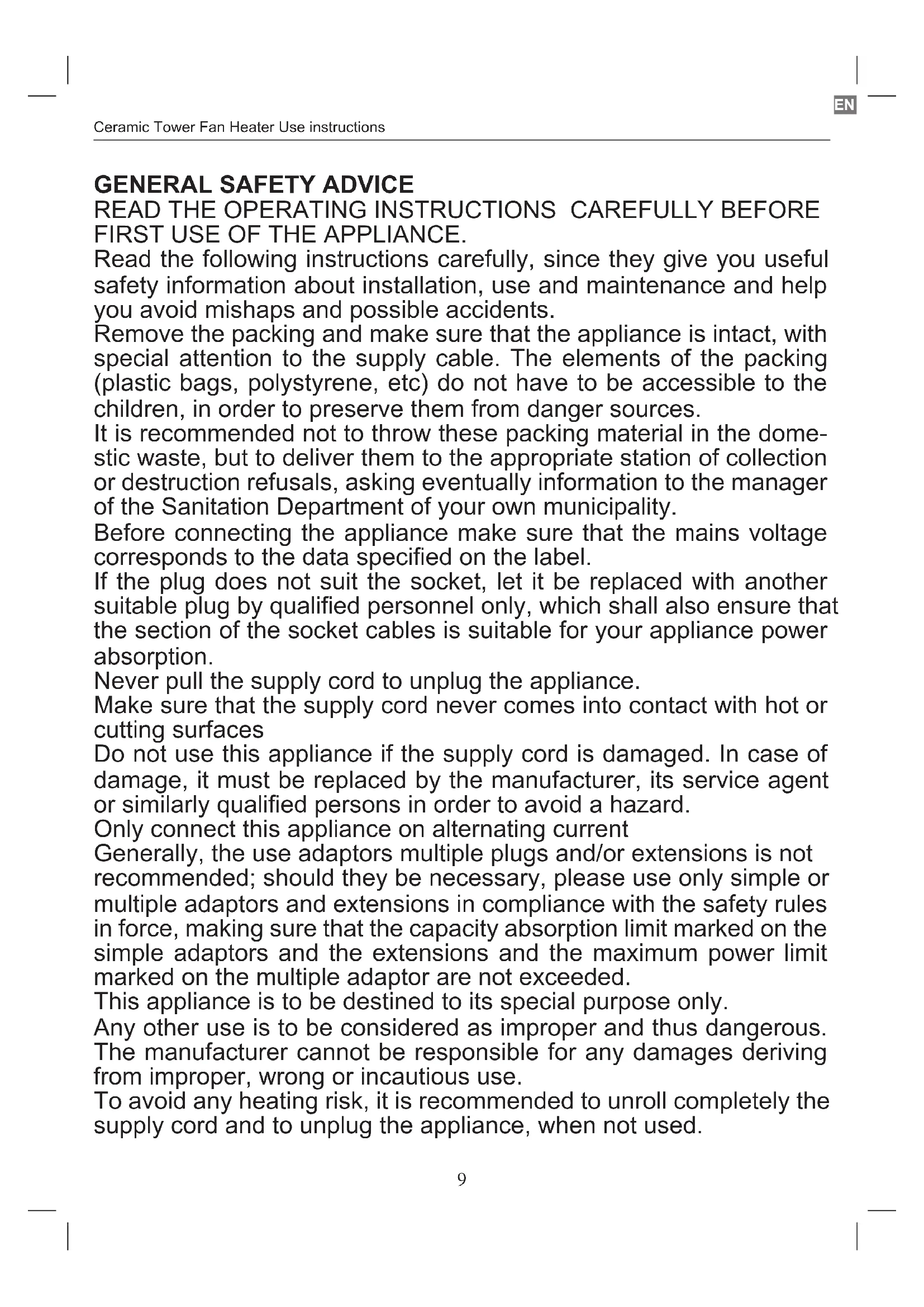

GENERAL SAFETY ADVICE

READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE FIRST USE OF THE APPLIANCE.

Read the following instructions carefully, since they give you useful safety information about installation, use and maintenance and help you avoid mishaps and possible accidents.

Remove the packing and make sure that the appliance is intact, with special attention to the supply cable. The elements of the packing (plastic bags, polystyrene, etc) do not have to be accessible to the children, in order to preserve them from danger sources.

It is recommended not to throw these packing material in the domestic waste, but to deliver them to the appropriate station of collection or destruction refusals, asking eventually information to the manager of the Sanitation Department of your own municipality.

Before connecting the appliance make sure that the mains voltage corresponds to the data specified on the label.

If the plug does not suit the socket, let it be replaced with another suitable plug by qualified personnel only, which shall also ensure that the section of the socket cables is suitable for your appliance power absorption.

Never pull the supply cord to unplug the appliance.

Make sure that the supply cord never comes into contact with hot or cutting surfaces

Do not use this appliance if the supply cord is damaged. In case of damage, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Only connect this appliance on alternating current

Generally, the use adaptors multiple plugs and/or extensions is not recommended; should they be necessary, please use only simple or multiple adaptors and extensions in compliance with the safety rules in force, making sure that the capacity absorption limit marked on the simple adaptors and the extensions and the maximum power limit marked on the multiple adaptor are not exceeded.

This appliance is to be destined to its special purpose only.

Any other use is to be considered as improper and thus dangerous.

The manufacturer cannot be responsible for any damages deriving from improper, wrong or incautious use.

To avoid any heating risk, it is recommended to unroll completely the supply cord and to unplug the appliance, when not used.

Before cleaning, always unplug the appliance.

To protect against electric shock, do not immerse cord, plug or any parts of the appliance into water or other fluids.

Do not hold the appliance with wet hands or feet.

Do not hold the appliance with naked feet.

Do not expose the appliance to atmospheric agents such as rain, wind, snow, hail.

Do not use the appliance near explosives, highly flammable materials, gases, burning flames, heaters.

DO NOT ALLOW CHILDREN, DISABLED PEOPLE OR EVERY PEOPLE WITHOUT EXPERIENCE OR TECH-NICAL ABILITY TO USE THE APPLIANCE IF THEY ARE NOT PROPERLY WATCHED OVER. CLOSE SUPERVISION IS NECESSARY WHEN ANY APPLIANCE USED BY OR NEAR CHILDREN.

MAKE SURE THAT CHILDREN DO NOT PLAY WITH THIS APPLIANCE.

IF YOU DECIDE NOT TO USE THE APPLIANCE ANY LONGER, MAKE IT UNSERVICEABLE BY SIMPLY CUTTING THE SUPPLY CABLE AFTER DISCONNECTING THE PLUG FROM THE SOCKET.

ALSO MAKE ANY DANGEROUS PARTS UNSERVICE-ABLE, ESPECIALLY FOR CHILDREN WHO COULD PLAY WITH THE APPLIANCE.

SOME WARNINGS:

• After removing the product from the packaging, check that it is in good condition.
- Do not cover or obstruct the grid in any way.
- Do not install the product near sources of heat, or possible sources of ignition.
- Do not install the product near curtains.
- During operation the product will become very hot, so do not touch the product to avoid burns.
- Never insert or allow objects to enter the opening of the grid.
- Do not immerse the product in water or other liquids.

• Do not allow water and / or other liquids to enter the product.
• Do not install the product near possible splashes of water (shower, sink ...)
• If the cable is damaged, contact the service centre immediately.
  • This product is for home use only.
• Do not use the product with the knotted power cord.
• Do not turn off the product by pulling the power cord but use the appropriate button.
• Disconnect the electrical outlet when the product is not in use.
• Do not allow the power cord to come into contact with hot surfaces.
• Do not store the product in closed spaces until it has completely cooled down.
• Do not connect to external timers.
• Do not install the product outdoors.
• Place the appliance on a flat and stable surface.
• The product is equipped with an overheating protection system, which will automatically block the operation of the product if it will become too hot. So if the product should stop suddenly it is advisable to turn it off and let it cool down for a few minutes, then turn it on again. If the product does not light up again, contact the assistance.

Diagram of a mechanical component with labeled sections A and B, showing internal parts and directional arrows (no text or symbols beyond labels)

ASSEMBLING OF THE BASE

Connect part A with part B

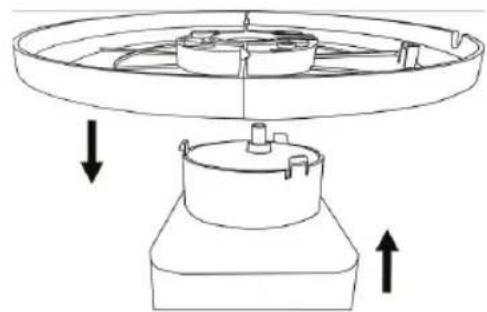

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Connect the base you get with lower part of the appliance

Technical line drawing of a circular mechanical component with internal components and mounting base (no text or symbols)

Fix the base and the appliance with the equipped screws

Close-up of a red toggle switch with an 'I' and 'O' button (no text or symbols beyond basic markings)

Switch button

"0" means "OFF" "I" means "ON"

A B C D

USE

1, Turn on the product by placing the switch button on the back of the product on "I", the product will turn on in standby mode.
2, Press the "D" button: the product turns on "ON" (only the fan works), pressing the product again the appliance will turn off "OFF" (The fan will continue to run for about 20 seconds)
3, Press "C", LOW, HIGH, VENTILATION FUNCTION
4, Press "B" button to set the timer, 0.5h, 1.0h, 1.5h ..... 7.5h

Press “B” for about 3 seconds, then the temperature can be set. The temperature can be set between 18 and 45 °C. If the set temperature is the same as that of the environment, the product will not start to work.

5, Press the button "A" to switch on the oscillating function.
6, If the product should fall and / or no longer rest on the ground, a protection will be activated which will automatically shut off the product.

Attention: Depending on the selected function, the corresponding indicator will light on the control panel.

REMOTE CONTROL

The remote control uses a CR2025 - 3V button battery included.

To make it operative, remove the protective film placed near the battery compartment.

The remote control shows the same keys indicated above for the control panel:

CLEANING AND MAINTENANCE

Before carrying out any cleaning operation, make sure that the product is switched off and unplugged from the socket.

For cleaning it is advisable to use only a soft cloth slightly moistened with a little water and neutral soap.

Do not use abrasive or too aggressive products as they could damage the product.

The product is also equipped with a filter that we recommend cleaning at least once a year.

To clean the filter, do not open the rear grill, but simply clean it with a vacuum cleaner.

TECHNICAL DATA:

Power: 2000W

Power supply: 220-240V \~ 50 / 60Hz

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

The guarantee is valid only with a guaranty certificate and proof of purchase (fiscal receipt) indicating the date of purchase and the model of the appliance

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

GUARANTEE CONDITIONS

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• The appliance has not been tampered with, otherwise it is not maintainable.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) the aesthetic parts are excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, carelessness, wrong or improper installation, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

In any case, if the part to be replaced for defect, breakage or malfunction is an accessory and/or a detachable part of the product, Beper reserves the right to replace only the very part in question and not the entire product

CONTACT YOUR DISTRIBUTOR IN YOUR COUNTRY OR ATER SALES DEPARTMENT BEPER. E-MAIL [e-mail] WHICH WILL FORWARD YOUR ENQUIRIES TO YOUR DISTRIBUTOR.

PRECAUTIONS GENERALES

LIRE ATTENTIVEMENT LES INSTRUCTIONS SUIVANTES AVANT LA PREMIERE UTILISATION DE L'APPAREIL.

Close-up of a red toggle switch with an 'I' and 'O' button (no text or symbols beyond the labels)

PULSANT D'ALLUMAGE

"0" signifie "ÉTEINT"

"I": signifie ALLUMÉ

A B C D

UTILISATION

CONDITIONS DE GARANTIE

Close-up of a red rectangular electronic switch with two white circular buttons (no text or symbols visible)

Ein- / Ausschalter

"0" bedeutet "AUS"

"I": bedeutet "EIN"

A B C D

ANWENDUNG

Close-up of a red toggle switch with two white circular buttons (no text or symbols visible)

Botón de encendido

"0" significa "APAGADO" "I": significa "ENCENDIDO"

A B C D

MODO DE EMPLEO

Close-up of a red toggle switch with two white circular buttons (no text or symbols visible)

Διακόπτης On/Off

Diagram of a mechanical or electrical component with labeled sections A and B, showing internal components and directional arrows (no text or symbols beyond labels)

ASAMBLAREA BAZEI

Technical line drawing of a mechanical component with downward and upward arrows indicating motion (no text or symbols)

Technical line drawing of a circular mechanical component with internal components and mounting base (no text or symbols)

Close-up of a red rectangular electronic switch with an 'I' and 'O' button (no text or symbols beyond the labels)

Διακόπτης On/Off

Exterior view of a modern office building (no signage)

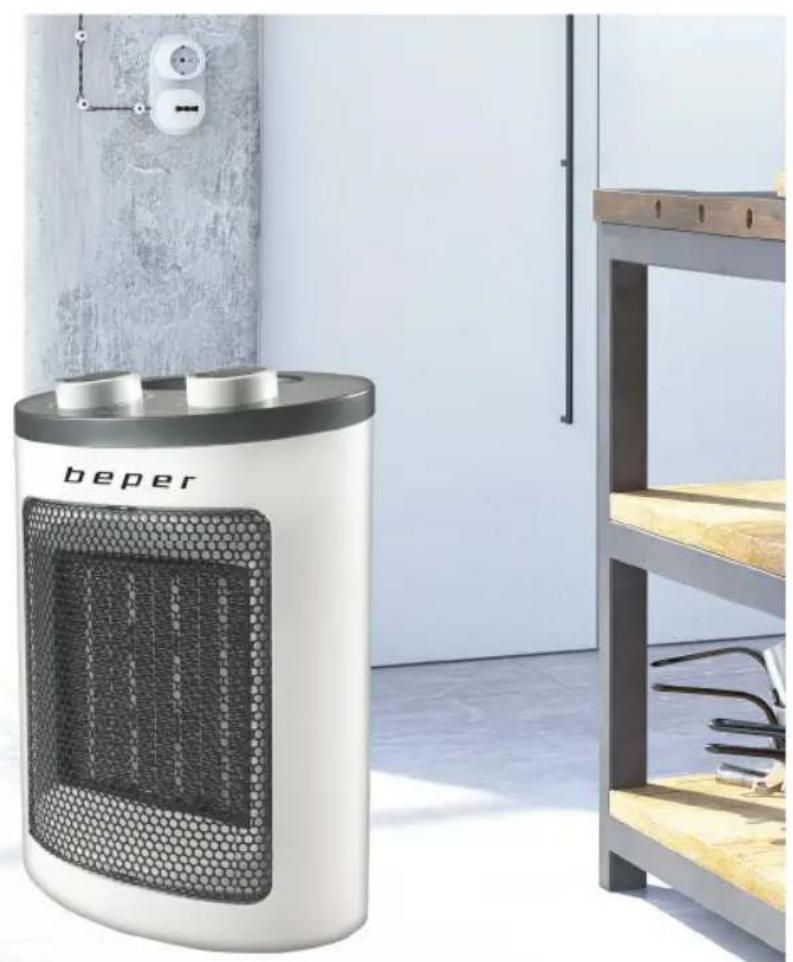

Modern beper appliance with mesh grille next to a wall-mounted electrical outlet (no visible text or symbols on main device)

beper

BEPER SRL

Via Salieri, 30
