USER MANUAL FR 20203 PN ROSIERES

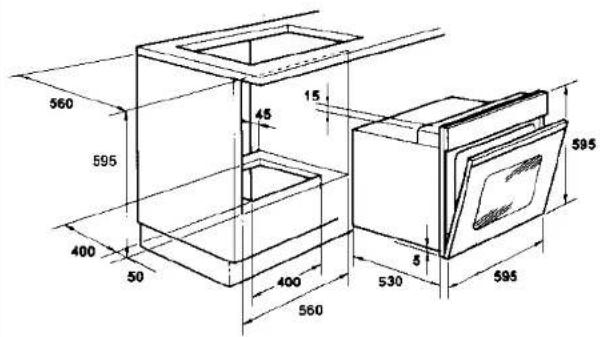

FRThe installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or things. The manufacturer cannot be held responsible for such harm or injury. FITTING THE OVEN INTO THE KITCHEN UNIT Fit the oven into the space provided in the kitchen unit: it may be fitted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the four fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances indicated in the diagram on page 11 must be adhered to when fitting the oven. Note: For ovens that are combined with a hob unit the instructions contained in the manual for the hob unit must be followed. IMPORTANT If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant mate- rial. Ensure that the glues of units made of veneered wood can withstand temperatures of at least 120 °C. Plastics or glues that cannot withstand such temperatures will melt and deform the unit. Once the oven has been lodged inside the unit, the electrical parts must be comple- tely insulated. This is a legal safety requirement. All guards must be firmly fixed into place so that it impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear light of at least 45 mm. Connecting to the power supply Plug into the power supply. Ensure first that there is a third contact that acts as earthing for the oven. The oven must be properly earthed. If the model of oven is not fitted with a plug, fit a standard plug to the power cable. It must be able to bear the power supply indicated on the specifications plate. The earthing cable is yel- low-green. The plug must be fitted by a properly qualified person. If the socket and the plug are incompatible the socket must be changed by a properly qualified person. A properly qualified person must also ensure that the power cables can carry the cur- rent required to operate the oven. An ON/OFF switch with a minimum distance of 3 mm between contacts may also be connec- ted to the power supply. The connections must take account of the current supplied and must comply with current legal requirements. The yellow-green earthing cable must not be gover- ned by the ON/OFF switch. The socket or the ON/OFF switch used for connecting to the power supply must be easily accessible when the oven has been installed. Important: During installation, position the power cable in such a way that it will not subjected to temperatures of above 50°C at any point. The oven complies with safety standards set by the regulatory bodies. The oven is safe to use only if it has been adequately earthed in compliance with current legal requirements on wiring safety. You must ensure that the oven has been adequately earthed. The cabling and wiring system must be able to bear the maximum electric power required by the oven. This is indicated on the specifications plate. If you are in any doubt at all, use the services of a professionally qualified person. The manufacturers cannot be held responsible for any harm or injury to persons, ani- mals or things caused by failure to properly earth the oven.

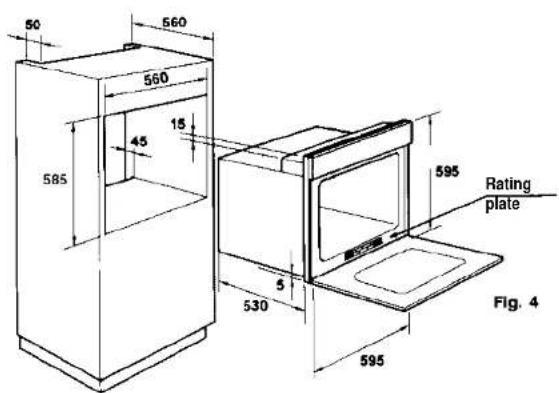

WARNING: the voltage and the supply frequency are showed on the rating plate (fig. 4 -

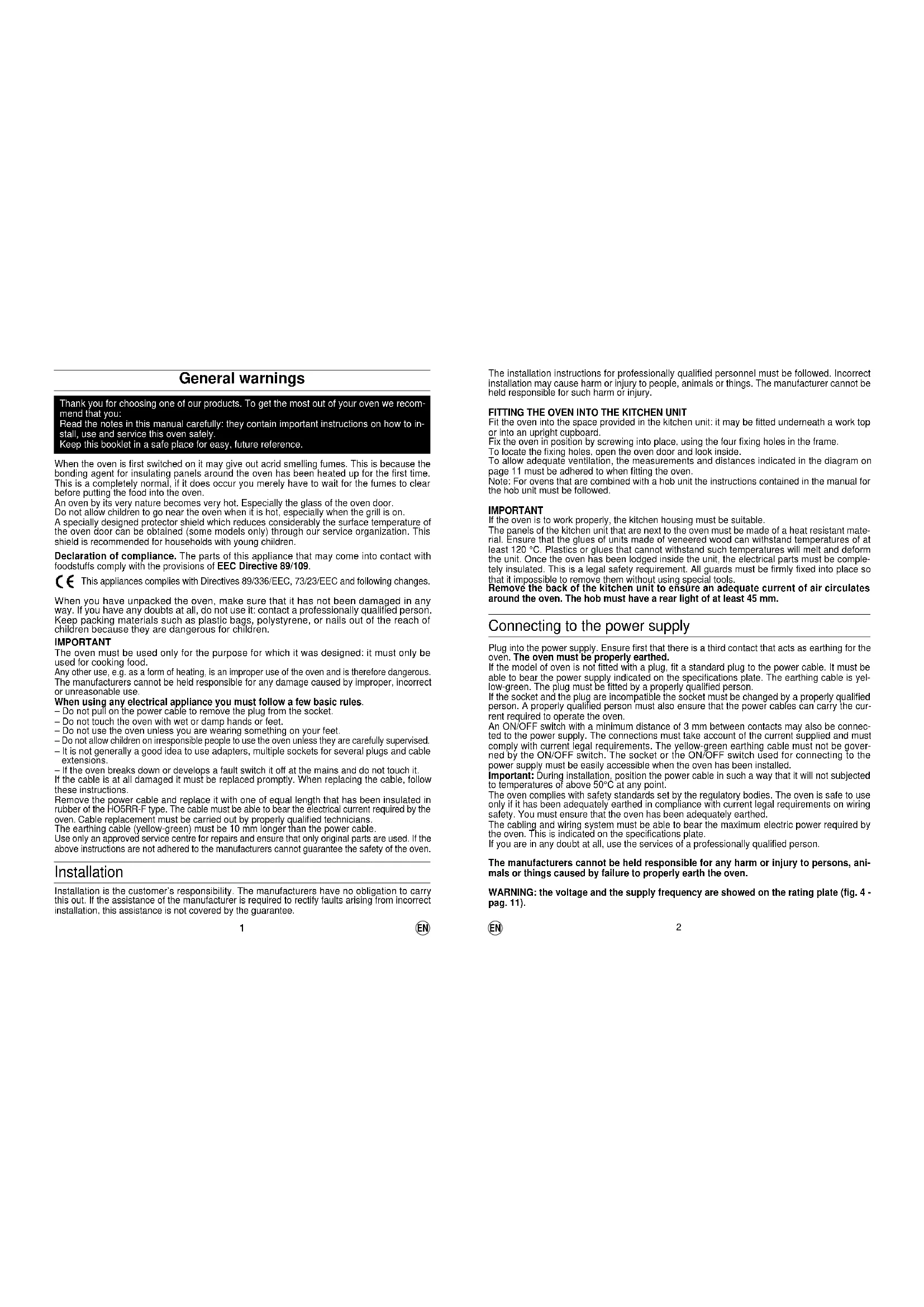

General warnings Thank you for choosing one of our products. To get the most out of your oven we recom- mend that you: Read the notes in this manual carefully: they contain important instructions on how to in- stall, use and service this oven safely. Keep this booklet in a safe place for easy, future reference. When the oven is first switched on it may give out acrid smelling fumes. This is because the bonding agent for insulating panels around the oven has been heated up for the first time. This is a completely normal, if it does occur you merely have to wait for the fumes to clear before putting the food into the oven. An oven by its very nature becomes very hot. Especially the glass of the oven door. Do not allow children to go near the oven when it is hot, especially when the grill is on. A specially designed protector shield which reduces considerably the surface temperature of the oven door can be obtained (some models only) through our service organization. This shield is recommended for households with young children. Declaration of compliance. The parts of this appliance that may come into contact with foodstuffs comply with the provisions of EEC Directive 89/109. This appliances complies with Directives 89/336/EEC, 73/23/EEC and following changes. When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person. Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because they are dangerous for children. IMPORTANT The oven must be used only for the purpose for which it was designed: it must only be used for cooking food. Any other use, e.g. as a form of heating, is an improper use of the oven and is therefore dangerous. The manufacturers cannot be held responsible for any damage caused by improper, incorrect or unreasonable use. When using any electrical appliance you must follow a few basic rules. – Do not pull on the power cable to remove the plug from the socket. – Do not touch the oven with wet or damp hands or feet. – Do not use the oven unless you are wearing something on your feet.

Do not allow children on irresponsible people to use the oven unless they are carefully supervised. – It is not generally a good idea to use adapters, multiple sockets for several plugs and cable extensions. – If the oven breaks down or develops a fault switch it off at the mains and do not touch it. If the cable is at all damaged it must be replaced promptly. When replacing the cable, follow these instructions. Remove the power cable and replace it with one of equal length that has been insulated in rub ber of the HO5RR-F type. The cable must be able to bear the electrical current required by the oven. Cable replacement must be carried out by properly qualified technicians. The earthing cable (yellow-green) must be 10 mm longer than the power cable. Use only an approved service centre for repairs and ensure that only original parts are used. If the above instructions are not adhered to the manufacturers cannot guarantee the safety of the oven. Installation Installation is the customer’s responsibility. The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee.

Minute timer or timer for completecooking periodFor information on the minute timer orthe timer for a complete cooking period see the relevant section a pag. 6.The oven is fitted with:• a bottom resistance;• a top resistances for infra-redheat up or grillingTurn the control dial to The light will remain on during allthe successive phases.Natural convectionBottom and top oven resistance are used. This is the traditionalform of baking and roasting. It is ideal for roasting joints of meatand game, baking biscuits and apples and making the food nice 50 ÷ MAXand crunchy. You will get the best results if you put the food on thesame shelf and set the temperature between 50° C and 240° C.GrillingThis use the infra-red grill resistance. MAXGrill fanThe air is heated by the grill resistance and the fan blows theair onto the food at the required temperature. This ranges from50°C to 200°C. the grill/fan is an excellent alternative to roast- 50 ÷ 200 ing on the spit. It is ideal for roasting even large quantities ofpoultry, sausages and red meats.Fan ovenAir that has been heated to a temperature between 50 and 240is blown by the fan onto the different levels. It is ideal for cooking different types of food at the same time (e.g. meat and fish) 50 ÷ MAX without mixing tastes and smells. It cooks very gently and is idealfor sponge cakes, pastries, etc.DefrostingWhen the dial is set at this position. The fan circulates room tem-peraure air around the frozen food so that it defrost in a fewminutes without the protein content of the food being changed 0 ÷ 50 or altered.

thermostat dialfunction dial

** Tested in accordance with the ** CENELEC EN 50304.** Tested in accordance with the ** CENELEC EN 50304 used for definition** of energy class. MULTI-FUNCTION OVEN

WITH ELECTRONIC PROGRAMMER

For information on the electronicprogrammer see the relevant sectionon pages 7-8.The oven is fitted with• a bottom element;• a top element for infra-red heat up or grilling.• a circular element which surrounds the fan.Turn the control dial to The light will remain on during allthe successive phases.Natural convectionBottom and top oven resistance are used. This is the traditionalform of baking and roasting. It is ideal for roasting joints of meatand game, baking biscuits and apples and making the food nice 50 ÷ MAX and crunchy. You will get the best results if you put the food on thesame shelf and set the temperature between 50° C and 240° C.Fan ovenAir that has been heated to a temperature between 50 and 240is blown by the fan onto the different levels. It is ideal for cooking different types of food at the same time (e.g. meat and fish) MAX without mixing tastes and smells. It cooks very gently and is idealfor sponge cakes, pastries, etc.Grill fanThe air is heated by the grill resistance and the fan blows theair onto the food at the required temperature. This ranges from50°C to 200°C. the grill/fan is an excellent alternative to roast- 50 ÷ 200 ing on the spit. It is ideal for roasting eve large quantities ofpoultry, sausages and red meats.Top and bottom elements + fanThe top and bottom elements and the fan are used. This combination is ideal for roasting meat and baking fish and cakes. It is especially 50 ÷ MAX suitable for cooking dishes on different levels at the same time at atemperature between 50 and 240°C. DefrostingWhen the dial is set at this position. The fan circulates room tem-peraure air around the frozen food so that it defrost in a fewminutes without the protein content of the food being changed 0 ÷ 50 or altered. Electronic programmer1 2 function dialthermostat dial

Door closed GrillingThe setting of this function switches on the infrared grill element.This function is ideal for cooking meats of medium thickness(sausages and bacon).Function pizzaThis function with hot air circulated in the oven ensure perfect result fordishes such as pizza or focaccia.Door closed fan grillThe air is heated by the grill element and the fan blows the air onto thefood at the required temperature. This ranges from 50°C to 200°C. Thegrill/fan is an excellent alternative to roasting on the spit. It is ideal forroasting even large quantities of poultry, sausages and red meats.DefrostingWhen the dial is set to this position. The fan circulates air at room tem-perature around the frowen food so that it defrosts in a few minuteswithout the protein content of the food being changed or altered.Fan ovenAir that has been heated to a temperature between 50 and 240 isblown by the fan onto the different levels. It is ideal for cooking differenttypes of food at the same time (e.g. meat and fish) without mixing ta-stes and smells. It cooks very gently and is ideal for sponge cakes, pa-stries, etc.Fan plus lower elementThis function is ideal for delicate dishes (pies-souffle).Natural convectionBottom and top oven elements are used. This is the traditional form ofbaking and roasting. It is ideal for roasting joints of meat and game,baking biscuits and apples and making the food nice and crunchy. Youwill get the best results if you put the food on the same shelf and set thetemperature between 50°C and 240°C.Turn the function knob to the on position the light will be on forall the following operations. The cooling fan is also switched on.The oven is fitted with:• a bottom element;• a top element for infra-red heat up or grilling.function dialthermostat dial 50 ÷ MAX 50 ÷ MAX 50 ÷ 200 50 ÷ MAX 50 ÷ MAX 50 ÷ MAX

To set the cooking time, turn dial one complete revolution and then position the index to the required time. When the time has lapsed, the signal will ring for a few seconds.

This mechanism makes it possible to programme the whole cooking period so that the oven automatically switches off the end of set time (max. 2 hours). Switch on the oven and set to the re- quired temperature. Turn the dial clockwise and position the index at the required time, expressed in minutes. When the set cooking time has elapsed the dial will have returned to the O position and the signal will ring automatically. When the oven is to be used normally, without programming the automatic switching off, the switch knob has to be position .7 8 EN EN Semi-Automatic Programming (end of cooking time) Select oven temperature and cooking function. To program only the shut-off (and not the turn-on) time of the oven proceed as follows. Press the button along with either the or button, and, while holding the buttons, set the display to the desired cooking time. Release the buttons. The display responds by lighting the symbol and «AUTO», indicator. The symbol on the display means the oven has begun to cook. At the end of the cooking time, the oven shuts-off automatically, the programmer sounds a tons, the symbol vanishes from the display, and the «AUTO» indicator begins to blink. Remember that when the «AUTO» indicator is blinking, the button must be pressed to re- turn the oven to manual operation. To display the cooking time remaining while cooking, press the button. Pressing the button shows the time when cooking will end Automatic Programming (beginning and end of cooking time) Select oven temperature and cooking function. To program not only the oven shut-off time, but also the cooking time (and hence the turn-on time) the following steps must be performed:

1) Press and hold the button and use the and buttons to set the display to the

desired cooking time. Upon releasing the buttons, the display will again show the current time, the «AUTO» indicator, and the symbol.

2) Press and hold the button and use the and buttons to set the display to the

time cooking is to finish. When the buttons are released, the display will again show: — The current time; — The «AUTO» indicator. Once the above steps are completed, the oven will automatically turn on and off at the desired times. The oven turn-on time will automatically be determined by the oven, based on the cooking times. When the oven begins operation, the programmer will display with symbol and the «AUTO» indicator. When the oven shuts-off, the tone sounds and the symbol disappears. The «AUTO» indicator begins to blink. Remember that when the «AUTO» indicator is blinking, the button must be pressed to return the oven to manual operation. The tone signaling the end of the cooking time can be canceled by pressing the button. To display the cooking time remaining while cooking, press the button. Pressing the button shows the time when cooking will end.

Warning: The symbols on the buttons may vary from model to model, but their functions

remain the same. To operate the Electronic Clock/Programmer

1. ELECTRONIC PROGRAMMER

Preliminary Operations to Perform After Plugging-in the Oven. After initially plugging-in the unit, and after each interruption in power, the lighted display on the control panel will respond by flashing «AUTO» Press the and buttons along with the or buttons to set the exact time. When the symbol appears on the display, the oven is ready to be used manually. Available Functions — Manual operation — Timed operation — Semi-automatic operation (programmed end to the cooking time) — Automatic operation (programmed beginning and end of cooking time) Manual Operation (of the oven): This has already been described in the section of PRELIMINARY OPERATIONS. Just press the button to make the corresponding symbol appear in the center and remove the AUTO indicator. Using the Electronic Programmer As described in the PRELIMINARY OPERATIONS section, the electronic programmer allows the oven to be operated manually or by: — The timer; — Programming the end of the cooking time (semi-automatic operation); — Programming the beginning and end of the cooking time (automatic operation). Using the Timer While pressing the button, use the and buttons to select the desired time (23:59 maximum). Setting the desired time will light the symbol. (Note: This function can be used either as a manual function or automatic along with another program). At the end of the set time the programmer sounds an intermittent signal, to cancel the signal press . While cooking, to display the time remaining press . Adjusting the Tone of the Timer Signal Three different tones are available on the acoustic timer signal. To choose the bone desired, press the — button while the signal is sounding.USEFUL TIPS Grilling Grilling makes it possible to give food a rich brown colour quickly. For browning we recommend that you insert the grill onto the fourth level, depending in the proportions of the food. Almost all food can be cooked under the grill except for very lean game and meat rolls. Meat and fish that are going to be grilled should first be lightly doused with oil. Cleaning and maintenance Clean the stainless steel and enamelled surfaces with warm, soapy water or with suitable brand products. On no account use abrasive powders that may damage surfaces and ruin the oven’s appearance. It is very important to clean the oven each time that it is used. Melted fat is deposited on the si- des of the oven during cooking. The next time the oven is used this fat could cause unpleasant odours and might even jeopardise the success of the cooking. Use hot water and detergent to clean; rinse out thoroughly. To make this chore unnecessary all models can be lined with ca- talytic self-cleaning panels: these are supplied as an optional extra (see the section SELF- CLEANING OVEN WITH CATALYTIC LINING). Use detergents and abrasive metal pads like «brillo pads» for the stainless steel grills. The glass surfaces as the top, oven door and warming compartment door must be cleaned when they are cold. Damage that occurs to them because this rule was not adhered to are not covered by the guarantee. To replace the interior light: switch off the mains power supply and unscrew bulb. Replace with an identical bulb that can withstand very high temperatures.
