USER MANUAL ASL 60 V Ariston Thermo

Contents TUMBLE DRYER ASL60V Instruction booklet Installation, 2-3 Where to put your dryer Ventilation Electrical connection Before you start using your dryer Dryer description, 4 The front The back Control panel Start and programmes, 5-7 Choosing a programme Table of programmes The controls Laundry, 8-9 Sorting your laundry Wash care labels Special clothing items Drying times Warnings and Suggestions, 10 General safety Disposal Saving energy and respecting the environment Maintenance and Care, 11 Switching off the electricity Cleaning the filter after each cycle Check the drum after each cycle Cleaning the dryer Troubleshooting, 12 Service, 13 Spare parts

! Ensure that the end of the tube is not directed toward the air intake vent at the rear of the dryer. ! The vent tube should not exceed 2.4 metres in length and should be kept free of any possible accumulation of fluff, lint and water by shaking it out frequently. Always ensure that the tube is not squashed. Permanent venting In conjunction with the vent tube we recommend using a Wall/Window Vent Kit, available at a retail location or the nearest Spare Parts Dealer. Wall mounting

1. Leave an opening in

the wall to the left of the dryers proposed position.

2. Keep the tube as short

and straight as possible to prevent condensed moisture from backing up into the dryer.

3. Similarly, the duct in

the wall should slope downwards towards the outside. Window mounting

1. With a stacked dryer

the hole in the window should ideally be made below the vent.

2. The tube should be

kept as short as possible. Depending on how often you use your dryer, it is essential that areas A and B are checked periodically to remove lint or debris. The vent tube adaptor must be fitted securely thus preventing any humid air from being emitted back into the room. ! The Dryer should not be pushed so far back that the tube adaptor is pulled out of position or the tube is squashed or bent. ! The tube should be kept clear of the air intake vent and kinks or ‘U’ bends must be avoided as these will obstruct the tube or trap condensation. Installation ! Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and, should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the dryer so that the new owner may be informed about warnings and suggestions on how the dryer works. ! Read these instructions carefully; the following pages contain important information on installation and suggestions on how the appliance works. Where to put your dryer

Place your dryer at a distance from gas ranges, stoves, heaters, or cook tops because flames can damage the appliance.

If you are going to install the appliance under a work counter, be sure to leave a 10mm space between the top and any other objects on or above the machine and a 15mm space between the sides and lateral furnishings or walls. This is to ensure proper air circulation. Make sure that the back vents are not obstructed.

Make sure you put your dryer in an environment that is not damp and has proper air circulation throughout. Ventilation The Dryer dries your laundry by drawing in cool, clean and relatively dry air, heating it, and then distributing it through the clothes as they are gently tumbled. For optimum performance, the moist air is then blown out through a vent tube at the back of the dryer. When the dryer is in use, there has to be adequate ventilation to avoid the back flow of gases into the room from appliances burning other fuels, including open fires. Mobile venting A vent tube must always be fitted when the dryer is used in conjunction with Mobile Venting. The tube must be fitted securely into the back of the dryer (see Dryer Description). If possible, it is always best to connect the tube to a permanent outlet close to the dryer. If permanent installation is not possible, the dryer will work just as well with the tube passing through a partly-opened window.! Do not use extension cords. ! The power cord must not be bent or squashed. ! The power supply cord should be checked periodically and replaced by a cord specially prepared for this dryer and fitted only by authorised technicians (see Service). New or longer power cords are supplied at an extra charge by authorised dealers.. ! The manufacturer denies any responsibility should any of these rules not be followed. ! If in doubt about any of the above consult a qualified electrician. Before you start using your dryer Once you have installed your dryer and before you use it, clean the inside of the drum to remove any dust that could have accumulated during transport. Open window venting

1. The end of the tube

should be directed downwards, to prevent warm moist air from condensing in the room or in the dryer. ! Ensure that the dryer is adequately ventilated and that the end of the vent tube is not directed towards the air intake duct. ! The vent tube must always be fitted for optimum performance. ! Make sure that the vent tube and air intake vents are not obstructed or blocked. ! The dryer must not recycle exhaust air. ! Misusing a tumble dryer may create a fire hazard. ! Do not discharge exhaust air into a flue which is used for exhaust fumes from other appliances that burn gas or other fuels. Electrical connections Make sure of the following before you insert the plug into the the electrical socket:

The socket must be grounded.

The socket must be able to sustain the machines maximum power, which is indicated on the rating label (see Dryer Description).

Power voltage must be within the values indicated on the rating label (see Dryer Description).

The socket must be compatible with the dryers plug. Should this not be the case, replace the plug or the socket. ! The dryer must not be installed outdoors, even if the space is sheltered. It can be very dangerous if it is exposed to rain or storms. ! Once installed, the dryers electrical wire and plug must be within easy reach. Installation Description Start and Programmes Laundry Warnings and Suggestions Maintenance and Care Troubleshooting Service

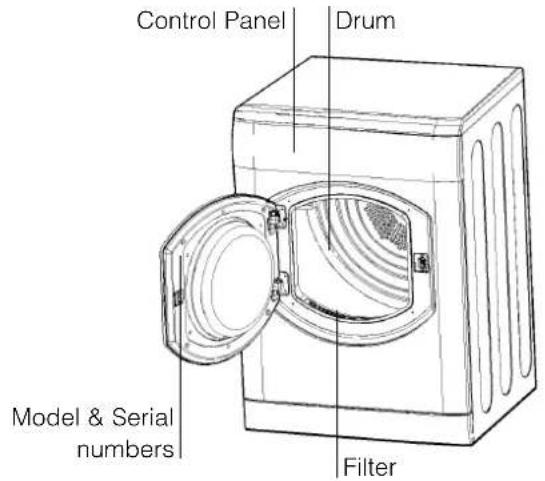

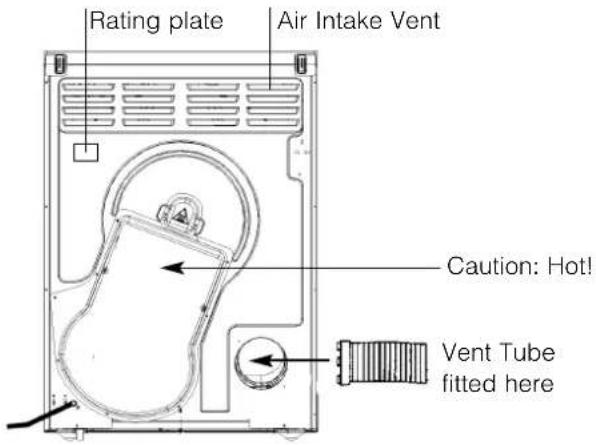

The On/Off indicator light signals that your dryer is in use or ready to select a programme. The ON/OFF button : If the dryer is running and this button is pressed, the dryer stops. Press again, the dryer restarts. The Progress lights show you the status of the programme. As each stage of the programme starts the corresponding light turns on. The Heat Icons indicate the heat setting of the selected programme. High or Low . Does not light if a Wool, Airing or Cool Tumble programme has been selected. The PROGRAMMES knob sets the programme: rotate it until the indicator is pointing to the programme you want to select (see Start and Programmes). The START/CANCEL button starts a selected programme. When you press this button there will be one beep and the progress lights will flash to confirm the action. If you have not set a programme, the buzzer will beep three times. When a programme is running, holding this button cancels the programme and stops the dryer (see Start and Programmes). The OPTION buttons select available options for your selected programme (see Start and Programmes). The Option lights indicate that the option to the left of the light has been selected. The Programme Guide allows you to consult a user friendly table of the available programmes. The Clean Filter light gives you a reminder before every programme that it is essential to clean the filter every time the dryer is used (see Maintenance and Care). Control panel Dryer Description Clean Filter Light Programme Guide PROGRAMMES Knob DISPLAY START/CANCEL Button Indicator Progress Lights OPTION Buttons Option Lights On/Off Light Heat Icons ON/OFF Button The front The back Control Panel Drum Air Intake Vent Caution: Hot! Vent Tube fitted here Rating plate Model & Serial numbers Filter5 Choosing a programme

1. Plug the dryer into the electrical socket.

2. Sort your laundry according to fabric type (see

3. Open the door and make sure the filter is clean

and in place (see Maintenance).

4. Load the machine and make sure items are not

in the way of the door seal. Close the door.

5. If the On/Off light is not lit: Press the ON/OFF

6. Choose a programme by checking the Programmes

Guide (see Programmes) as well as the indications for each type of fabric (see Laundry). - Select a programme by rotating the PROGRAMMES knob clockwise.

7. Set a delay time and other options if necessary.

8. If you wish to select the buzzer sound, at the end

show the estimated time to end. Installation Description Start and Programmes Laundry Warnings and Suggestions Maintenance and Care Troubleshooting Service

During the drying programme, you can check on your laundry and take out items that are dry while others continue drying. When you close the door again, press the START button in order to resume drying.

10. During the last few minutes of Drying

Programmes, before the programme is completed, the final COOL TUMBLE phase is entered (fabrics are cooled), this phase should always be allowed to complete.

11. The buzzer (if Alarm Option was selected) will

warn you when the programme is complete. Open the door, take the laundry out, clean the filter and replace it (see Maintenance). If the Post Creasecare Option has been selected and you do not remove the laundry immediately, the dryer will tumble occasionally for 10 hours or until you open the door.

12. Unplug the dryer.

Start and Programmes Easy Iron Programme ‘Easy Iron’ is a short 10 minute programme (8 minutes of heat followed by a 2 minute cool tumble period) which fluffs the fibres of clothing that have been left in the same position/location for an extended period of time. The cycle relaxes the fibres and makes them easier to iron and fold. ! ‘Easy Iron’ is not a drying programme and should not be used for wet articles of clothing. For best results:

1. Do not load more than the maximum capacity.

These numbers refer to the dry weight: Fabric Maximum load Cotton and Cotton mixtures 2.5kg Synthetics 2kg Denim 2kg

2. Unload the dryer immediately after the end of the programme, hang, fold or iron the articles and put

them away in the closet. Should this not be possible repeat the programme. The ‘Easy Iron’ effect varies from one fabric to the next. It works well on traditional fabrics like Cotton or Cotton mix, and less well on acrylic fibres and on materials such as Tencel®. Wool Programme

This is a programme for tumble dryer safe garments marked with the symbol .

It can be used for load sizes up to 1kg (approximately 3 sweaters).

We recommend that garments are turned inside out before drying.

This programme will take about 20 to 40 minutes, but may take longer depending on the size and density of the load and the spin speed used in your washer.

Loads dried using this programme are usually ready to wear, but on some heavier garments the edges may be slightly damp. Allow these to dry naturally as over-drying could damage garments. ! Unlike other materials, the mechanism of wool shrinkage is irreversible; i.e. it will not stretch back to original size and shape. ! This programme is not suitable for Acrylic garments.6

Programmes ! If the On/Off light is not lit; Press the ON/OFF button and then select programme. Programme What it does... How to set it... Note:

Cottons Ready to Iron Dries your clothes on High heat setting , ready for ironing.

Cottons Hanger Dry Dries your clothes on High heat setting , ready for hanging.

Timed Drying (120, 90, 60 or 30 minutes) Dries wet clothing that you wish to dry on low heat or small loads (less than 1kg). Can be used with high heat option if you prefer to use a timed programme. Options available: Alarm , High Heat , Delayed Start , Pre Creasecare , Post Creasecare . Consult suggested drying times (see Laundry). The last 10 minutes of these programmes is the Cool Tumble. Options available: Alarm .

Brief programme (approximately 10 minutes) that cools fibres or clothing.

Cool Tumble Brief programme (approximately 10 minutes) that softens fibres of clothing that is ready for ironing. ! This is not a drying programme (see previous page). Options available: Alarm .

Cottons Cupboard Dry Dries your clothes on High heat setting , ready for putting away.

Synthetics Ready to Iron Dries your clothes on High heat setting , ready for ironing.

Synthetics Hanger Dry Dries your clothes on High heat setting , ready for hanging.

Synthetics Cupboard Dry Dries your clothes on High heat setting , ready for putting away.

Delicates (e.g. Acrylics) Dries your clothes on Low heat setting , ready to be worn. Options available: Alarm , Delayed start , Pre Creasecare , Post Creasecare .

Wool Dries your Woollen clothes, (see previous page). Options available: Alarm .

Easy Iron Airs your clothes with cool air, use also to cool warm clothes. Options available: Alarm .

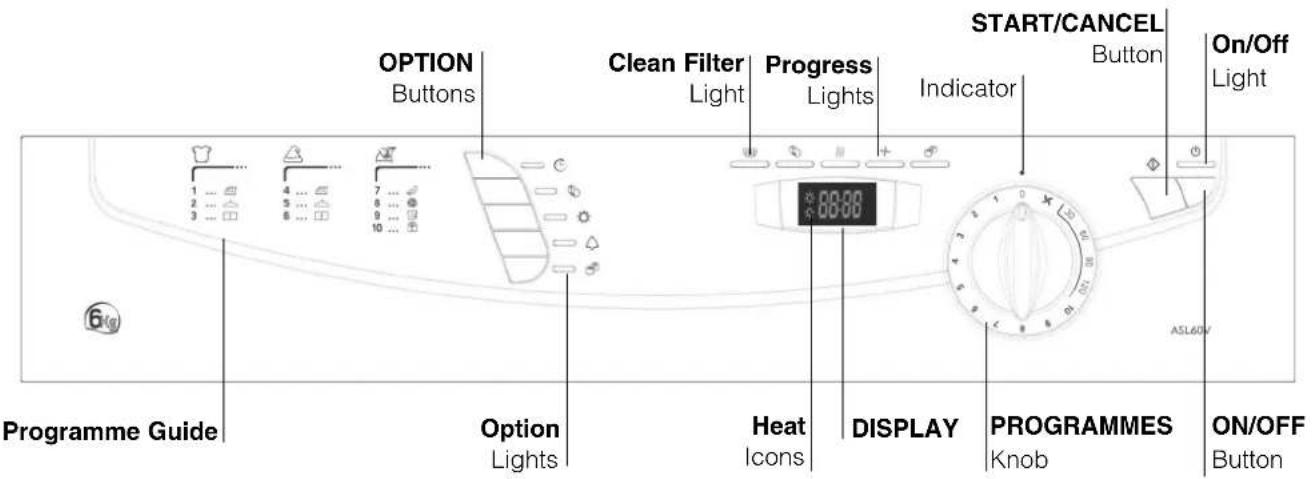

DISPLAY The display shows either the amount of time delay remaining or an indication of the amount of time left for a drying programme. The delay time is displayed in hours and counts down each hour. The time to end is displayed in hours and minutes and counts down each minute, this includes the cool tumble phase. When timed programmes are selected the time displayed throughout the cycle is the actual time remaining. When a sensing programme is selected the time displayed is an estimate of the time remaining. When the programme is selected the display shows the time required to dry a full load, after around 10 minutes the controller calculates a better estimate of the cycle time. The colons between the hours and minutes in the display flash to show that the time is counting down. When the programme finishes its cool tumble phase the display will show . The display also shows if there is a problem with your dryer, if this occurs the display will show F followed by a fault code number (see Troubleshooting).

Door Opening Opening the door during a programme will stop the dryer and have the following effects:

All 4 progress lights come on.

During a delay phase the delay will continue to count down. The start button must be pressed to resume the delay programme. The progress lights will change to show current status.

During the drying part of the programme, the time to end count continues but the colons do not flash. The start button must be pressed to resume the programme. The progress lights will change to show the current status.

During the cool tumble or post creasecare phase of a drying programme and anytime during an Airing or Cool Tumble programme, the programme will finish. Pressing the start button will re-start a new programme at the beginning.

Changing the programmes knob will select a new programme, after you press the start button. You can use this to select the Cool Tumble programme to cool the clothes, if you find them dry enough.

Note If you have a power cut, switch off the power or remove the plug, press the START button and the programme will resume.

PROGRAMMES knob ! Warning, if after pressing the start button, the programmes knob position has changed, the new position will NOT change the programme selected. ! Position 0, turning the knob to position 0 resets and cancels a programme, the display shows .

OPTION buttons / lights These buttons are used to customise the selected programme to your requirements. A programme must have been selected on the programme knob before an option can be selected. Not all options are available for all programmes (see Start and Programmes). If an option is not available and you press the button, the buzzer will beep three times. If the option is available there will be one beep and the option light next to the button lights to confirm the selection. After the start button has been pressed only the Alarm, Pre Creasecare and Post Creasecare options can be changed. Time Delay The start of some programmes (see Start and Programmes) can be delayed for up to 18 hours. Press this button, the display shows and the option light comes on. Press again and a 1 hour delay is selected and the display indicates 1hr, each further press of the button adds 1hr to the delay. When 18hr is displayed a further press the display shows and after a couple of seconds cancels the delay. You can also cancel the delay by turning the programmes knob to 0, wait for the buzzer to beep and then turn back to your selected programme. Pre Creasecare This option is only available if a delayed start has been selected. It tumbles the clothes occasionally during the delayed period to help prevent creases developing. High Heat When available this button selects high heat. Press this button and a high heat setting is selected and the light alongside the button comes on. Timed programmes have a default of low heat, if the light alongside the button is on then pressing the button selects a low heat setting and the light goes out. The heat icon on the display will also change. Alarm Available on all programmes and allows the buzzer to give a signal at the end of the drying cycle, to remind you that the clothes are ready to be removed. Press the button and the light will show that the option is selected. Post Creasecare When available and selected, the clothes are occasionally tumbled after the end of the drying and cool tumble cycles, to help prevent creases developing should you not be available to remove the load immediately the programme is complete.

Sorting your laundry

Check symbols on clothing labels to make sure that the articles can be tumble dried.

Sort laundry by fabric type.

Empty pockets and check buttons.

Close zippers and hooks and tie loose belts and strings.

Wring out each item in order to eliminate as much excess water as possible. ! Do not load dripping wet clothes into the dryer. Maximum load size Do not load more than maximum capacity. These numbers refer to dry weight: Natural fibres: 6kg max (13lb) Synthetic fibres: 3kg max (6.6lb) ! DO NOT overload the dryer as this could result in reduced drying performance. Typical load Clothes Blouse Cotton 150g 5oz Other 100g 3oz Dress Cotton 500g 1lb 2oz Other 350g 12oz Jeans 700g 1lb 6oz 10 nappies 1000g 2lb 3oz Shirt Cotton 300g 10oz Other 200g 7oz T-Shirt 125g 4oz Household Items Duvet cover Cotton 1500g 3lb 5oz (Double) Other 1000g 2lb3oz Large Tablecloth 700g 1lb 6oz Small Tablecloth 250g 9oz Tea Towel 100g 3oz Bath Towel 700g 1lb 6oz Hand Towel 350g 12oz Double Sheet 500g 1lb 2oz Single Sheet 350g 12oz At the end of a drying cycle, cottons could still be damp if you grouped cottons and synthetics together. If this happens simply give them an additional short period of drying. Wash Care Labels Look at the labels on your garments, especially when tumble drying for the first time. The following symbols are the most common: May be tumble dried Do not tumble dry Tumble dry at high heat setting Tumble dry at low heat setting Items not suitable for tumble drying

Articles that containing rubber or rubber-like materials or plastic film (pillows, cushions, or PVC rainwear), any other flammable articles or objects that contain flammable substances (towels soiled with hair spray).

Glass fibres (certain types of draperies)

Items which have been dry cleaned

Items with the ITCL Code (see Special clothing items). These can be cleaned with special at-home dry cleaning products. Follow instructions carefully.

Large bulky items (quilts, sleeping bags, pillows, cushions, large bedspreads etc). These expand when drying and would prevent airflow through the dryer. Laundry9 Special clothing items Blankets and Bedspreads: acrylic items (Acilan, Courtelle, Orion, Dralon) must be dried with special care on LOW heat setting. Avoid drying for a long period of time. Pleated or creased garments: read the manufacturer’s drying instructions on the garment. Starched articles: do not dry these with non- starched items. Make sure that as much of the starch solution is removed from the load as possible before placing it in the dryer. Do not over-dry: the starch will become powdery and leave your clothing limp, which defeats the purpose of starch. Drying times The table below presents APPROXIMATE drying times in minutes. Weights refer to dry garments: Cottons High (full) Heat Drying times 800-1000rpm in washing machine Half Load Full Load 1kg 2kg 3kg 4kg 5kg 6kg 20-30 35-45 45-60 60-70 70-80 80-100 Synthetics High (full) Heat Drying times on reduced spin in washing machine Half Load Full Load 1kg 2kg 3kg 20-40 30-50 40-70 Delicates (e.g.Acrylics) Low (gentle) Heat Drying times on reduced spin in washing machine Half Load Full Load 1kg 2kg 50-70 90-130 Times are approximate and can vary depending upon:

Amount of water retained in clothes after spin cycle: towels and delicates retain a lot of water.

Fabrics: items that are the same type of fabric but different textures and thicknesses may not have the same drying time.

Quantity of laundry: single items or small loads may take longer to dry.

Dryness: If you are going to iron some of your clothes, they can be taken out while still a bit damp. Others can be left longer if you need them to be completely dry.

Room temperature: if the room where the dryer is located is cold, it will take longer for the dryer to dry your clothes.

Bulk: some bulky items can be tumble dried with care. We suggest that you remove these items several times, shake them out, and return them to the dryer until finished. ! Do not over-dry your clothes. All fabrics contain a little natural moisture, which keeps them soft and fluffy. Laundry Installation Description Start and Programmes Laundry Warnings and Suggestions Maintenance and Care Troubleshooting Service GB10

! The appliance has been designed and built according to international safety standards. These warnings are given for safety reasons and must be read carefully. This appliance conforms to the following EEC Directives: - 72/23/EEC and 93/68/EEC (Low Voltage Equipment) - 89/336/EEC, 92/31/EEC and 93/68/EEC (Electromagnetic Compatibility) General safety

This tumble dryer has been designed for home, and not professional use.

This dryer must be used by adults, and the instructions in this booklet should be followed carefully.

Do not touch the appliance while barefoot or with wet hands or feet.

Unplug the machine by pulling on the plug, not the cord.

Children must not be in proximity of the dryer when in use. After using the dryer, turn it off and unplug it. Keep the door closed to make sure that children do not use it as a toy.

The appliance must be installed correctly and have proper ventilation. The air intake vents behind the machine, the outlet vents and the vent tube should never be obstructed (see Installation).

Never direct the vent tube outlet vent towards the air intake at the back of the machine.

Never allow the tumble dryer to recycle exhaust air.

Never use the dryer on carpeting where the pile height would prevent air from entering the dryer from the base.

Check to see if the dryer is empty before loading it.

The back of the dryer could become very hot. Never touch it while in use.

Do not use the dryer unless the filter is securely in place (see Maintenance).

Do not use fabric softeners or dryer sheets in the dryer.

Do not overload the dryer (see Laundry) for maximum loads.

Do not load items that are dripping wet.

Tumble dry items only if they have been washed with detergent and water, rinsed and been through the spin cycle. It is a fire hazard to dry items that HAVE NOT been washed with water.

Carefully check all instructions on clothing labels (see Laundry).

Do not dry garments that have been treated with chemical products.

Never dry articles that are contaminated with flammable substances (petrol, oil, paint, hair spray, creams, cooking fat or oils).

Do not tumble dry rubber, foam rubber, plastic, plastic foam, nappy pants or liners, polythene or paper.

Do not tumble dry large, very bulky items.

Do not tumble dry acrylic fibres at high temperatures.

Complete each programme with its Cool Tumble Phase.

Do not turn off the dryer when there are still warm items inside.

Clean the filter after each use (see Maintenance).

Do not allow lint to collect around the dryer.

Never climb on top of the dryer. It could result in damage.

Always follow electrical standards and requirements (see Installation).

Always buy original spare parts and accessories (see Service). Disposal

Disposing of the packaging material: follow local regulations, so the packaging can be recycled.

Disposal of your old dryer: cut the power cord and remove the door before disposing of an old dryer. Saving energy and respecting the environment

Wring out items to eliminate excess water before tumble drying (if you use a washing machine first, select a high spin cycle). Doing this will save time and energy during drying.

Always dry full loads - you save energy: single items or small loads take longer to dry.

Clean the filter after each use to contain energy consumption costs (see Maintenance). Warnings and Suggestions11 Installation Description Start and Programmes Laundry Warnings and Suggestions Maintenance and Care Troubleshooting Service

External parts in metal or plastic and rubber parts can be cleaned with a damp cloth.

Periodically check the vent tube and any permanent venting fixture to make sure that there has been no accumulation of fluff or lint, and remove it.

Periodically clean the surface of the stainless steel sensor inside the drum with vinegar to remove water contaminates. Apply carefully with a cloth, this will maintain the drying performance of the dryer. The sensor is located on the plastic vane inside the drum towards the front of the dryer. Rotate the drum if necessary to locate it.

Remove lint that collects around the filter and the outlet vents. ! Do not use solvents or abrasives. ! Your dryer uses special bearing components which do not need lubrication. ! Have your dryer checked regularly by authorised technicians to ensure electrical and mechanical safety (see Service). Maintenance and Care Switching off the electricity Unplug your dryer when not using it, when cleaning it and during all maintenance operations. Clean the filter after each cycle The filter is an important part of your dryer: it accumulates lint and fluff that is formed while drying. Small items could also become trapped in the filter. When finished drying, therefore, clean the filter by rinsing it under running water or with your vacuum cleaner. Should the filter become clogged up, the airflow inside the dryer will be seriously compromised: drying times lengthen and you will consume more energy. It may also damage your dryer. The filter is found in front of the dryer trim (see diagram). Removing the filter:

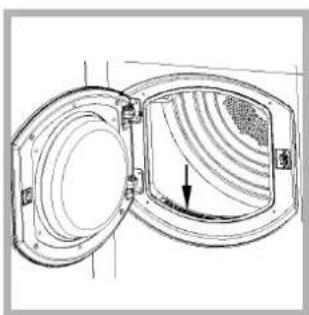

1. Pull the plastic grip of

the filter upwards (see diagram).

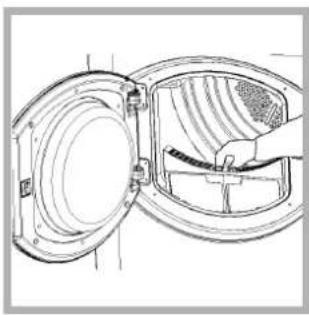

2. Clean the filter and

replace it correctly. Ensure the filter is fully located flush into the tumble dryer trim. ! Do not use the dryer without replacing the filter. Check the drum after each cycle Turn the drum manually in order to remove small items (handkerchiefs) that could have been left behind.12

Troubleshooting Problem: The tumble dryer won’t start. Drying cycle will not begin. Its taking a long time to dry. Programme finishes and clothes are damper than expected. The display shows a fault code F followed by one or two numbers. Possible causes / Solution:

The plug is not plugged into the socket, or not making contact.

There has been a power failure.

The fuse has blown. Try to plug another appliance into the socket.

You are using an extension cord? Try to plug the dryer’s power cord directly into the socket.

The door is not closed securely?

The PROGRAMMES knob has not been set properly (see Start and Programmes).

The START button has not been pressed (see Start and Programmes).

You have set a delayed time (see Start and Programmes).

The filter has not been cleaned (see Maintenance).

The correct programme has not been selected for the load (see Start and Programmes).

The flexible vent tube is obstructed (see Installation).

The air intake vent is obstructed (see Installation).

The permanent ventilation flap on the storm cover is obstructed (see Installation).

The items were too wet (see Laundry).

The dryer was overloaded (see Laundry). ! For safety the dryer has a maximum programme time of 3 hours. If an automatic programme has not sensed the required final moisture in this time the dryer will complete the programme and stop. Check the above points and run the programme again, if the results are still damp, contact the Service Centre (see Service).

Note down the code and contact the Service Centre (see Service). One day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the following troubleshooting suggestions:13 Spare Parts This dryer is a complex machine. Repairing it yourself or having a non-authorised person try to repair it could cause harm to one or more persons, could damage the machine and could invalidate the spare parts warranty. Call an authorised technician if you experience problems while using the machine. The spare parts have been designed exclusively for this appliance and not for other uses. Service Before calling the Service Centre:

Use the troubleshooting guide to see if you can solve the problem yourself (see Troubleshooting).

If not, turn off the dryer and call the Service Centre closest to you. What to tell the Service Centre:

name, address and post code.

the type of problem.

the date of purchase.

the appliance model (Mod.).
