Retention of this Instruction Book This Instruction Book must be kept handy for reference as it contains important details on the safe and proper use of the appliance. If you sell or pass the appliance to someone else, or move house and leave it behind, make sure this Book is also provided so the new owner can become familiar with the appliance and safety warnings.2 For your safety NEVER ● Allow children to play with or otherwise interfere with the dryer. NEVER ● Allow the air inlet at the back of the dryer, the air outlet or vent hose to be obstructed. NEVER ● Direct the vent hose outlet towards the air intake at the back of the machine. NEVER ● Allow the tumble dryer to recycle exhaust air. NEVER ● Switch the machine off leaving a hot load in the drum. NEVER ● Tumble dry without the filter in position. NEVER ● Exceed the maximum load capacity recommended or place dripping wet items in the drum. NEVER ● Use the dryer on a carpeted floor where the pile height would prevent air from entering the dryer from the base. NEVER ● Allow lint to collect around the dryer. NEVER ● Add liquid or sheet fabric conditioner to the dryer, use liquid conditioner in the final rinse of your wash. NEVER ● Use the dryer for commercial drying, the dryer is only suitable for domestic use. NEVER ● Dry Acrylics on the high heat setting. NEVER ● Tumble dry articles that have NOT been well washed in water and detergent then well rinsed and spun. NEVER ● Tumble dry articles that have had chemicals used for cleaning. NEVER ● Dry articles that are contaminated with flammable substances such as: petrol, oil, paint, hair lacquer, creams, cooking fat or oil. NEVER ● Tumble dry: rubber, foam rubber, plastic, plastic foam, nappy pants or liners, polythene or paper. Large, very bulky items including duvets and sleeping bags. NEVER ● Never attempt to stand on top of your dryer, it is not designed for such use and you could injure yourself or damage the dryer by such abuse. NEVER ● Switch electricity On or Off with wet hands. IMPORTANT Using your Tumble Dryer is easy. Nevertheless, for your own safety and to get the best results it is important to know your Dryer by reading right through this handbook before using your dryer for the first time. A CHILD COULD CLIMB INTO OR TAMPER WITH AN UNATTENDED TUMBLE DRYER. WHEN THE MACHINE IS NOT IN USE SWITCH OFF, REMOVE THE PLUG AND CLOSE THE DOOR. IMPORTANT For your safety ALWAYS ● When the dryer is not in use, switch off, remove plug, and close the door. ALWAYS ● Comply with the specified electrical requirements. ALWAYS ● Ensure that your dryer is installed correctly and has adequate ventilation. (see “Where to put and vent your dryer”) ALWAYS ● Use the vent hose for optimum drying performance. ALWAYS ● Finish every programme with the cool tumble cycle provided on the control. ALWAYS ● Clean the filter, it is essential that the filter is kept clear of fluff at all times. ALWAYS ● Observe the rules for drying garments: In particular woollen articles should not be dried in a tumble dryer unless they are labelled ‘Superwash’, ‘Machine washable’ or have the ‘May be tumble dried’ symbol: If in any doubt do not dry wool in the machine. Unlike other materials, the mechanism of wool shrinkage is irreversible, i.e. it will not stretch back to the original size and shape. ALWAYS ● Buy genuine accessories and spares. Electrical Requirements REFER TO THE RATING PLATE FOR VOLTAGE AND CURRENT REQUIREMENTS. (See diagram for location.) The dryer should be connected to the mains supply via a suitable socket which is accessible after installing your dryer. The wires in the mains lead are coloured in accordance with the following:

If a replacement plug is to be fitted, the appropriate wire must be connected to the correct terminal,the cut-off plug must be disposed of safely. DO NOT leave where it can be inserted into a socket and create a shock hazard. Should the mains lead ever require replacing at any time please contact your nearest Service Centre. A charge will be made for the replacement of the mains lead or if you require a longer lead. The mains lead must only be replaced by a specially prepared cable obtainable from your Spares Stockist and fitted by a qualified electrician.

WARNING:This appliance must be earthed!

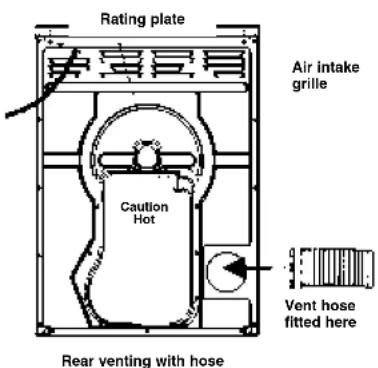

Changing the mains cable NOTE: IF IN DOUBT ABOUT ANY OF THE ABOVE CONSULT A QUALIFIED ELECTRICIAN. CAUTION: When the dryer is in use avoid touching the rear of the dryer as it may be hot!3 Features - Get to know the main parts of your dryer Model and serial numbers NOTE: if your dryer is new wipe out the inside of the drum before you first use it to remove any dust which may have accumulated during transit. NOTE: When the dryer is in use, avoid touching the back of the machine as it may be hot. See “The Controls” FLUFF FILTER Clean after each use Rating plate Air intake grille Vent hose fitted here Caution Hot Rear venting with hose Drum Where to put and vent your dryer Your Tumble Dryer should NOT be located adjacent to a gas hob cooker, heater, or eye level grill as flames from the burners could cause damage to your machine. When the dryer is fitted under a work surface allow space for air to enter the rear grille, 10mm above the dryer minimum. DO NOT use 2-way adaptors or extension leads. The Dryer dries your washing by drawing in air that is cool, clean and relatively dry, heating it and then blowing it through the clothes as they are gently tumbled. The moisture laden air is then blown out at the back of the dryer through the vent hose which is recommended for optimum performance. When operating the dryer, there has to be adequate ventilation to avoid the back flow of gases into the room from appliances burning other fuels, including open fires. A vent hose must always be fitted when the dryer is used in conjunction with Mobile Venting. The hose must be fitted securely into the back of the dryer (see diagram on previous page). If possible, it is always best to connect the hose to a permanent outlet close to the dryer (see instructions below). Ensure that the end of the hose is not directed towards the air intake grille at the rear of the dryer. If permanent installation is not possible, the dryer will work just as well with the hose passed through a partly-opened window. NOTE: The vent hose should not exceed 2.4 metres in length and should be kept free of any possible accumulation of fluff, lint (and water) by frequently shaking it out. Always ensure that the hose is not squashed. See diagram on previous page. Ventilation Mobile Venting Fitting the Vent Hose Kit4 Where to put and vent your dryer In conjunction with the vent hose we recommend the use of a Wall/Window Vent Kit. These are available from your retailer or nearest Spares Centre. Fitting instructions are supplied with the kits, which can be mounted through a wall or window. Details of positioning for wall mounting are as follows:- Break a hole through the wall to the left of the proposed position for the dryer. Keep the hose as short and straight as possible to prevent condensed moisture running back into the dryer. Similarly the duct inserted into the wall should slope downwards to the outside. For window venting with stacked dryer, the hole in the window should ideally be made below the outlet and the hose should be kept as short as possible. Depending on the frequency of use, it is essential that the areas A and B in the illustrations are checked periodically and any fluff or debris removed. It is particularly important that the vent hose adaptor is fitted securely thus preventing any moisture laden air from being emitted back into the room. NOTE: The dryer should not be pushed so far back that the hose adaptor is pulled out of position or the hose squashed. The hose should be kept clear of the air intake grille and kinks or ‘U’ bends avoided as these will obstruct the hose or trap condensation. For open window venting it must be possible for the end of the hose to be directed downwards to prevent warm, moist air condensing in the room or in the dryer. Permanent Venting Wall/Window Venting

GRILLES ARE NOT OBSTRUCTED OR BLOCKED.

Storm cover How to use your dryer

dry (see section “Sorting Your Laundry”)

Check that the fluff filter is clean (see section “How to remove and clean the fluff filter”).

placing the clothes carefully in the drum pushing them well towards the back and away from the door seal. Close the door.

relevant heat setting (see section “The Controls”).

unlock and open the door and take out the laundry. Clean and replace the fluff filter.

required programme/drying time (See section “The Controls”). The dryer will start.

WHEN SWITCHING electricity ON OR OFF, PLEASE ENSURE THAT

WHEN SWITCHING ELECTRICITY ON

electricity and remove plug from socket. Door Release To open the door, grip the handle and pull towards you. If the door is opened while the Dryer is in use, the drying programme cuts out automatically and the machine stops. When the door is closed the Dryer will restart but you will not need to reset the Timer Control. You can however reset the Timer Control at any stage, should you wish.5 The Controls Setting the Timer Heat selection Heat Switch (OUT low heat, IN high heat) Turn the timer clockwise to select the required drying time. The drying time for both heat settings is controlled by the timer. All you have to do is turn the Timer Control clockwise until the required time appears in line with the indicator. Never wind the timer control anti-clockwise. This operation also starts the dryer, provided the door is closed and the machine is plugged in. The “Guide To Drying Times” section will tell you how much time you’ll need for various loads. Button ‘IN’ High Heat Button ‘OUT’ Low Heat The choice of FULL HEAT or LOW HEAT depends upon the fabric you wish to dry. (see section “Sorting Your Laundry”) Drying Times Drying Guide Timer Knob About 10 minutes before the programme is completed, the heating elements will be switched off, and the programme enters the final ‘Cool Tumble’ phase. During this phase the fabric is cooled. You should always allow the dryer to complete this phase. By opening the door you can check the dryness of the load as often as you wish, and if you want to remove some items before they are fully dry. (This is particularly useful for a mixed load where you want to iron some items but others are to be fully dried). We recommend that the clothes are removed immediately this programme is finished to minimise creasing. Never switch the dryer off with a hot load in the drum. You must terminate every programme with the Cool Tumble Phase. The ‘Cool Tumble’ Phase Sorting your laundry

1. Always separate laundry into the correct fabric groups before

2. See that all zips are closed, hooks and eyes are fastened and

belt, strings etc. are tied loosely in bows, you will normally have done this for each item before the washing stage.

3. It is important to extract as much water as possible from each

item before drying. This saves you time and money.

4. Make sure that the items to be dried are suitable for tumble

drying, or are not of a type requiring ‘special attention’ (see“Wash Care Labels” section). Your dryer will hold a load of 5kg (11lb) dry weight of natural fabrics. if you are drying items of man-made fibres (synthetic or acrylics), the maximum load should not exceed 3kg (6.6lb) dry weight. This difference is that man-made fibres require more space to tumble-dry without creasing. To help you estimate how many items it takes to make up a drying load, the charts below show the approximate weights of some everyday washing items. If you group small cotton or terry-towelling items with a synthetic fabric load they could be damp at the end of the drying cycle. If this happens simply give them an additional short period of drying to finish them off. Maximum load size Typical load

REDUCED DRYING PERFORMANCE AND A POSSIBLE FIRE HAZARD. Clothes Blouse Cotton 150g 5oz Other 100g 31/2oz Dress Cotton 500g 1lb 2oz Other 350g 12oz Jeans 700g 1lb 6oz 10 Nappies 1000g 2lb 3oz Shirt Cotton 300g 101/2oz Other 200g 7oz T-Shirt 125g 41/2oz Household Items Duvet cover Cotton 1500g 3lb 5oz (Double) Other 1000g 2lb 3oz Large Tablecloth 700g 1lb 6oz Small Tablecloth 250g 9oz Tea Towel 100g 31/2oz Bath Towel 700g 1lb 8oz Hand Towel 350g 12oz Double Sheet 500g 1lb 2oz Single Sheet 350g 12oz6 Wash Care Labels Most of today’s fabrics can be tumble dried in your Dryer with no trouble at all, but there are certain fabric finishes which should be dried away from direct heat. The majority of garments now have wash-care labels on them, giving full washing and drying instructions. These should always be followed carefully especially when you are drying something for the first time. Typical symbols are: May be tumble dried Do not tumble dry Or: Tumble dry at high heat setting Tumble dry at low heat setting

• Those containing foam rubber or rubber-like materials or plastic film (e.g. pillows, cushions, PVC rainwear), or any other articles which are inflammable or contain inflammable substances (e.g. towels contaminated with hair lacquer

• Fibreglass (e.g. some types of curtains)

• Items which have been dry cleaned

• Woollens. Woollen items need as much care in drying as they do in washing. The movement of the tumble-drying action causes the woollen fibre to shrink and distort.

• Garments with the ITCL Code (see ‘Items Requiring Special Attention’). Do not tumble dry.

• Large bulky items e.g. continental quilts, sleeping bags, pillows, cushions, double blankets and large bedspreads. These expand when drying and would prevent airflow through the Dryer.

WARNING: THE DRYER IS INTENDED FOR USE ONLY

WHERE WATER SOLUTION IS USED FOR THE CLEANING PROCESS. MISUSE OF A TUMBLE DRYER MAY CREATE A FIRE HAZARD. Items not suitable for tumble drying Items requiring special attention The drying requirements of blankets and bedspreads will, of course, vary tremendously according to size and weight. Some, however are simply too big. if you have difficulty getting them into the Dryer, the machine will have difficulty drying them properly. Blankets (and Garments) made from Acrylic fibres (e.g. Acilan, Courtelle, Orion and Dralon) must be dried with special care on Low heat setting. Overdrying should be avoided to ensure heat creasing does not occur. Your dryer will cope with such clothes very well, but you should always read the manufacturer’s drying instructions attached to the garment before you begin. Starched articles should be dried together in the same load to avoid the distribution of starch to non-starched items. You should use a slightly heavier starch solution than you would when drying the items on the washing line. Make sure that as much of the solution is removed from the load as possible before placing it in the Dryer. Remove the items from the dryer as soon as they reach ironing dampness. If they are overdried the starch will powder, leaving the fabric limp - which rather defeats the purpose of the exercise! To make sure all your tumble dried clothes come out really fresh and soft we recommend you use a liquid fabric conditioner in the final rinse of your wash. A liquid fabric conditioner restores bounce and softness and helps eliminate static cling. Garments with the ITCL code may be cleaned using one of the Home Dry Cleaning Kits available. The instructions supplied with the Home Dry Cleaning Kit must be strictly followed. Blankets and Bedspreads Permanently pleated or creased garments Starched articles Fabric conditioner Home dry cleaning

WARNING: ON NO ACCOUNT SHOULD LIQUID OR SHEET

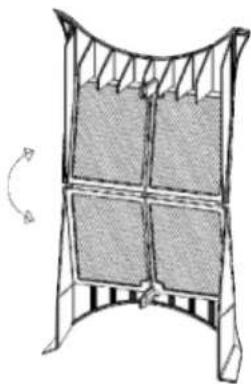

FABRIC CONDITIONER BE ADDED TO THE DRYER ITSELF.7 How to remove and clean the fluff filter Position of filter To remove the filter A very important part of your dryer is the fluff filter at the front edge of the drum. It’s there to trap the parti- cles of lint and fluff which are normally blown away when clothes are dried on the washing-line. if the filter is allowed to become blocked, the passage of warm air through the drum will be severely restrict- ed. This means your clothes will take much longer than normal to dry and the cost of drying them will be increased. it may also damage your dryer. Small items, e.g. babies socks, may fall onto the filter. These should be removed so that the filter is not restricted. Grip the centre rib and pull the filter upwards and for- wards through the door seal (see diagram). Open the filter, and remove the fluff that has collected on the inside. Wash or vacuum clean the filter occasionally. Don’t be alarmed by the amount of fluff you may find on the filter. It’s part of the wearing, washing and drying process. It is essential that the filter is replaced correctly. It must be fitted so that the symbols, shown on the filter above, face towards the front of the dryer. Ensure the filter is fully located into the tumble dryer duct.

FLOW THROUGH THE DRYER

WARNING: DO NOT OPERATE THE DRYER

WITHOUT CLEANING THE FILTER AFTER

WITHOUT THE FILTER IN POSITION. Please note that the Drying Times stated below and on appliance control panel are a GUIDE only and drying times are affected by: Items such as towelling retain a lot of water after spinning, also the suggested wash programme for small items such as T-Shirts may sometimes incorporate a low spin speed which has the same effect. Your drying load may contain the same type of fabric but of different thicknesses. Thinner items will take less time to dry. Some fabrics, such as those used for jeans are of closer texture than others and although light when dry will be heavy after washing and spinning. Single items of clothes or small loads may take disproportionally longer to dry. It is more energy efficient to dry larger loads. As it takes longer to fully dry clothes than to have them ready for ironing, you may wish to remove some clothes when they are slightly damp, ready for ironing and then continue to dry the remainder until they are fully dry. The label on the garment should tell you the correct heat setting to select. See ‘Wash Care Labels’. If the room in which the dryer is situated is cold, your clothes will take longer to dry than if the room is warm. Some bulky items such as padded jackets can be dried, with care, and we do advise that you remove these items several times, shake them and return them to the dryer. THERE ARE HOWEVER SOME ITEMS THAT WE DO NOT ADVISE YOU TO DRY. SEE ‘ITEMS NOT

SUITABLE FOR TUMBLE DRYING’

All fabrics contain a little natural moisture even when ‘dry’ and this natural moisture should not be lost if the clothes are to remain soft and fluffy. Clothes that are dried for too long tend to wrinkle and will need more ironing than usual giving you extra work that the dryer was designed to remove. The amount of water remaining in the clothes after spinning The type of fabric The quantity of clothes to be dried How dry you want the clothes The heat setting you have selected The temperature of the room Bulky items Be careful not to overdry Guide to Drying Times Drying Guide - approximate drying time in minutes (weights specified are when dry)

COTTONS SYNTHETICS ACRYLICS

High Heat High Heat Gentle Heat Drying times 800 - 1000rpm in washing machine Drying times on reduced spin in washing machine Drying times on reduced spin in washing machine 1 kg

When finished After each load As necessary Lubrication Caring for your Dryer Your tumble dryer needs very little attention. The following simple steps will keep it performing well. Switch off electricity and remove plug. Always clean the filter and turn the drum by hand to check that small items like handkerchiefs do not get missed. Clean exterior metal and plastic surfaces with a damp cloth or silicon polish only. Regularly check and clean if necessary, the vent hose and any permanent venting fixture to ensure that there has been no accu- mulation of fluff or lint during the drying process. Clean fluff from the area below the fluff filter and the rear vent tube. Do not use abrasive cleaners, scouring agents, acids, chlorine bleach or metal polish to clean any part of the machine. These could damage the machine. Your tumble dryer uses special bearing components. Lubrication by the user is not necessary and must not be attempted. We strongly recommend that all appliances are regularly checked for electrical and mechanical safety. If something goes wrong First, don’t panic! There may be nothing wrong at all. Look for your problem below, then check the things we suggest. More often than not, this will give you the answer to your problem, and you’ll be able to carry on without having to telephone your Service Office. If after this you still cannot get your machine to work, follow the advice given on the next page. Check these things first

1. Is the machine plugged in and switched on at the socket?

2. Is the Timer Control set to required time?

3. Is the door securely closed?

4. Has the fuse blown? (Try plugging in another appliance to check)

5. Have you used an extension lead? Many are not suitable. Try

plugging the dryer directly into a socket to check.

1. Have you forgotten to clean the filter? It should be cleaned after

2. Have you selected the correct Heat setting for the type of fabric

3. Is the flexible Vent Hose blocked or kinked? Check it for foreign

objects or condensate (water).

4. Is the air inlet obstructed in any way?

5. Permanent venting - is flap on the storm cover obstructed?

6. Were the clothes ‘excessively wet’ when they were put in?

7. Was the correct time selected?

8. Have you overloaded the dryer?

Have you re-read this instruction book? Problem ‘It won’t start’ ‘It is taking a long time to dry’ Any other problem9 If it still won’t work... Spare parts Disposal of your product if something is still wrong with your machine after you’ve been through the check-list on the previous page:

1. Switch off and unplug your machine from the mains.

2. Call your nearest Service Office or local importer.

When you contact us we will want to know the following:

1. Your name, address and postcode.

2. Your telephone number.

3. Clear and concise details of the fault.

4. The model number and the serial number of your dryer.

5. The date of purchase enter the date here.
