10028784 - Barbecue Klarstein - Free user manual and instructions

Product type	Electric barbecue
Brand	Klarstein
Model	10028784
Power supply	220-240 V, 50/60 Hz
Power	1400-1600 W
Cooking surface	Non-stick grill plate
Thermostat	Adjustable, with temperature indicator light
Thermometer	Integrated in the lid
Grease collector	Removable, easy to clean
Lid	With handle and retaining hook
Side shelf	Yes, height-adjustable
Feet	Removable (use with or without feet)
Main material	Steel with non-stick coating on the plate
Cooking temperature	Setting from 1 to 5, preheats in 3 minutes
Recommended use	Domestic, outdoors under cover or indoors
Safety	Removable thermostat, do not immerse, hot surface (burn risk)
Cleaning	Plate and collector washable with soapy water, do not use abrasives
Included accessories	Thermostat with cable, thermometer, screws, washers
Certifications	CE, RoHS (compliant with European directives)

Frequently Asked Questions - 10028784 Klarstein

How to use the barbecue for the first time?

Before the first use, remove all packaging elements and carefully clean the grill plate, grease collector, and lid. Plug in the appliance, set the thermostat to the desired temperature, and wait about 3 minutes for preheating.

How to clean the grill plate without damaging it?

Unplug the appliance and let it cool completely. Clean the grill plate and grease collector with warm soapy water and a damp cloth. Never use steel wool or abrasive brushes to avoid scratching the non-stick coating.

What are the recommended cooking times for steaks?

For a steak/beef, set the thermostat to 5 and let it cook for 15 to 20 minutes. Times may vary depending on weight and use of the lid.

How to know when the desired temperature is reached?

The temperature indicator light turns off automatically when the appliance reaches the preset temperature. This takes about 3 minutes.

Can I use the barbecue without the feet?

Yes, the barbecue can be used with or without feet. Without feet, place it on a stable, flat, heat-resistant surface.

What to do if meat sticks to the plate?

If food sticks, rub the plate with paper towel moistened with a little oil. Make sure to use wooden or plastic utensils to avoid scratching the coating.

Can the barbecue be used in the rain?

No, do not expose the appliance to rain or humidity. Use it only in a dry place sheltered from the weather.

How to maintain the thermostat?

Never immerse the thermostat in water or any other liquid. Regularly check its condition and if it malfunctions, have it replaced with an identical part by a professional.

What types of food can I cook on this barbecue?

This electric barbecue allows you to grill various foods: steaks, chops, chicken (thighs, wings), fish, kebabs, sausages, etc. Use the cooking time table in the manual for optimal results.

How to store the barbecue after use?

Unplug the appliance and let it cool completely. Clean the removable parts, then store it in a dry place. The lid can be folded to the side by hanging it on the hook for compact storage.

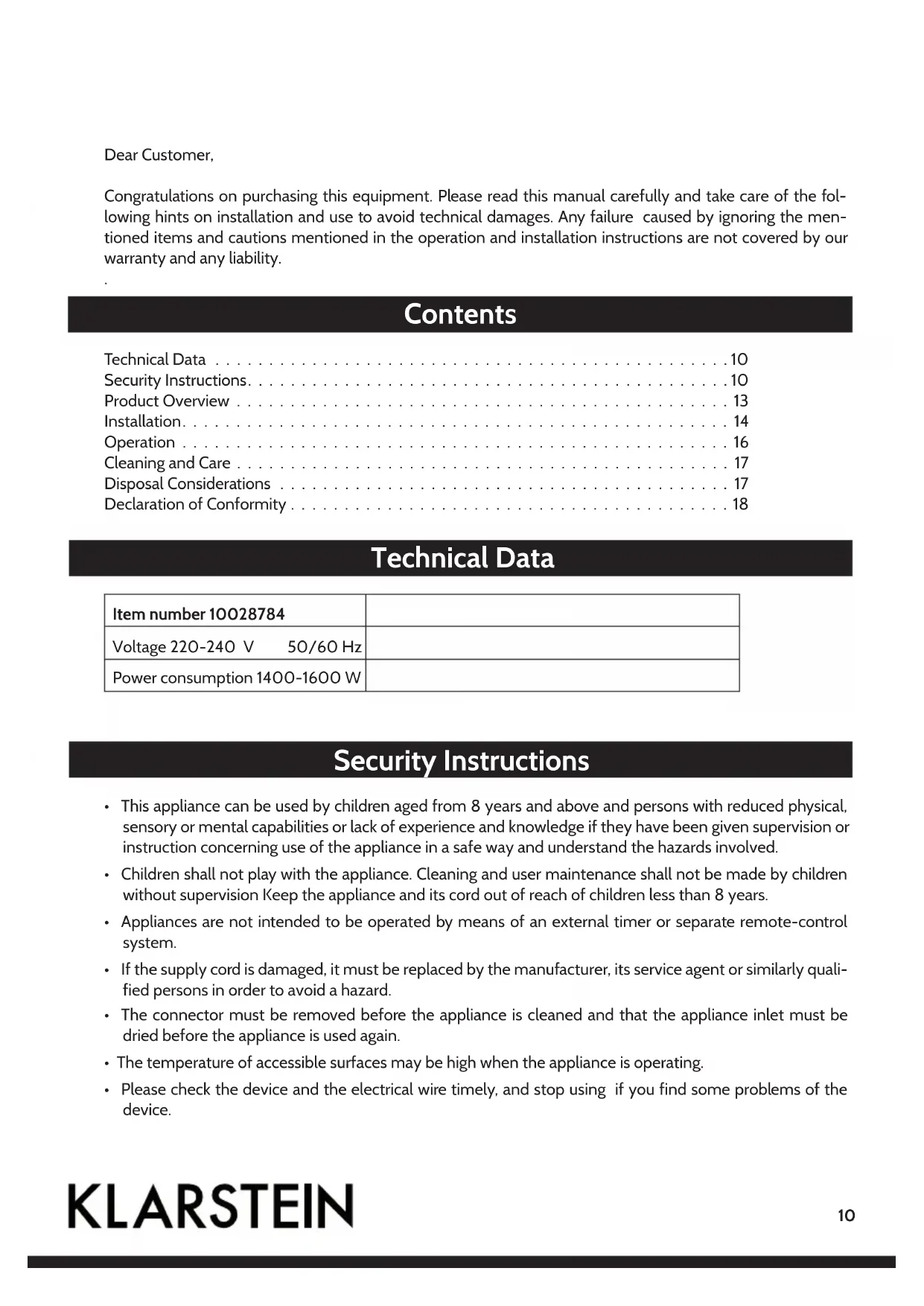

USER MANUAL 10028784 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 10

Security Instructions. 10

Product Overview 13

Installation. 14

Operation 16

Cleaning and Care 17

Disposal Considerations 17

Declaration of Conformity 18

Technical Data

Item number 10028784
Voltage 220-240 V 50/60 Hz
Power consumption 1400-1600 W

Security Instructions

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.
• Appliances are not intended to be operated by means of an external timer or separate remote-control system.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The connector must be removed before the appliance is cleaned and that the appliance inlet must be dried before the appliance is used again.
• The temperature of accessible surfaces may be high when the appliance is operating.

• Please check the device and the electrical wire timely, and stop using if you find some problems of the device.

• Never immerse the appliance with heating element.

• The appliance should be switched off at mains when not in use.
• Use only one appliance per plug and always use an earthed extension cable, with cross section of at least 1.0 mm^2 .
• Do not touch the appliance (cover or grill plate) when cooking in order to prevent any risk of burning.
• The temperature of the surface will be very high when using, please keep it away from tinder.
• This appliance is only use for cooking.
• Never place your appliance on a fragile surface
• Only the appropriate connector must be used.
• The supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.
• The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA .
• The appliance is to be connected to a socket-outlet having an earthing contact.
• Charcoal or similar combustible fuels must not be used with this appliance.
• This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• Remove the lid from the appliances during use.
• The installation of a faulty current protective device with a rated breaking current offers you additional safety by ensuring that 30mA will not be exceeded in the house installation. Let your installation electrician advice you. Danger also exists with appliance which have been switched off, this is why, after use, the plug should be removed for the mains.
• Do not use this appliance near the water contained in bath-tubs, washbasins or other receptacles neither expose it to rain or other humidity.
• The appliance must not be operated (disconnect the mains plug immediately) when:

the appliance, casing or cable is damaged
the appliance shows visible signs of damage.
a fault is suspected after a fall or the like

• Disconnect the main plug:

in case of faults during use.
before cleaning or moving the appliance from place to place.
after use

• Never pull the plug out of the socket by the flex or with wet hands.
• Never carry nor pull the appliance by the flex.
• Don't pull the flex over sharp edges. Don't wedge it.

• Never immerse the mains cord or the thermostat plug in water or any other liquid.

• Only use extension leads after having made sure that their condition is faultless and use an earthed wise with a minimum capacity of 10 A.

• Put the wire so that unintentional touching or drawing is impossible.
• Never bring the extension wire in touch with the hot grill plate.
• Always switch off the appliance before removing the mains plug.
• Before removing attachments or cleaning the grill, allow to cool completely.
• Take care! The grill plate will get very hot, and it stays hot for a long time after it has been switched off. Beware of burns! Do not touch any hot surfaces and take care when handling the appliance after use.
• Do not stand the grill over the edge or corner of the table and avoid contact with the hot surfaces.
• Do not place the appliance on or near a hot gas electrical burner, or in a heated oven.
• Only use the appliance when it is placed on a stable and dry surface.
• Do not leave the appliance unattended.
• Do not use the appliance without the fat collecting bowl or the base.
• Never cover the grill plate with aluminium foil or trays (this might damage the non-stick coating)
• Make sure without fail that the device is installed correctly before you put this into operation (first of all if using the stand).
• Please, ensure that the grill plate must not touch the heating element-injury danger!
• Beware of fat spitting while grilling fat or juicy meat.
• Place the appliance on a surface that is resistant to heat. Keep the electric grill at least 10cm from any walls when in operation.
• Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
• For safety reasons do not use attachments that were not recommended or supplied by the manufacturer.
• Only trained personnel should repair electrical appliances. Unskilled repairs can cause considerable danger to the user.

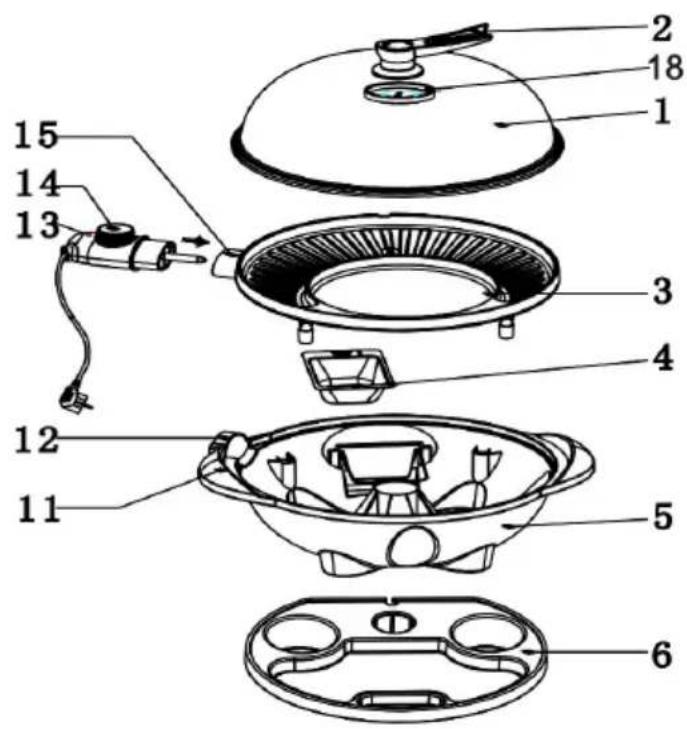

Product Overview

1 Metal grill hood
2 Handle of hood
3 Grill Plate
4 Fat collecting bowl
5 Base of appliance
6 Condiment tray
7 Upper stand tube
8 Decoration
9 Nether stand tube
10 A Stand foot B Stand base
11 Handle of base
12 Opening for appliance socket
13 Temperature indicator lamp
14 Detachable temperature regulator with cable
15 Appliance socket
16 Washer
17 Screws
18 Thermometer

Installation

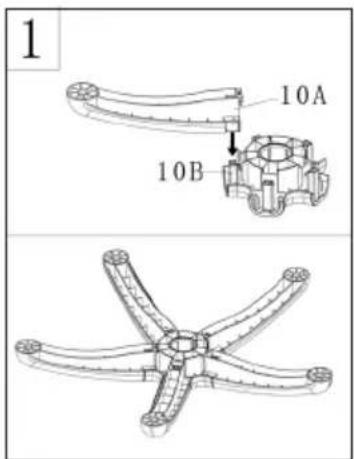

Install the stand feet (10A) into the stand base (10B) properly. There will be a "click" sound when the stand foot is fixed completely

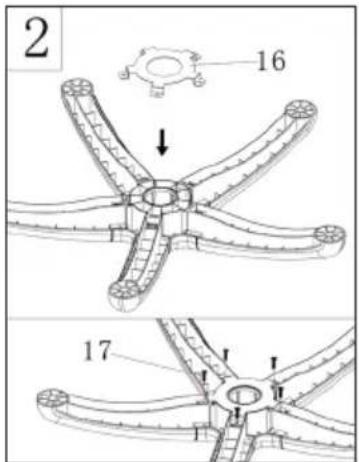

Place the washer (16) onto the stand base, and then install the screws (17) into the washer to fix the stand feet and stand base firmly.

Install half of the threaded rod (a) in the nether tube (9) Put the decoration (8) on the neither tube (9) and assemble both tubes together; ensure that they are fixed well.

Connect the grill stand base (10) and the nether tube (9) together to form the complete grill stand. (The grill can be used with or without this stand).

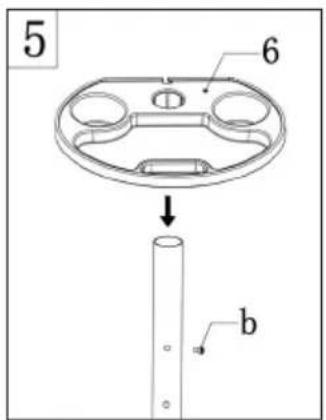

Install the screw (b) into upper tube (7), and then put the condiment tray on the upper tube (Making sure that the tray is fixed well)

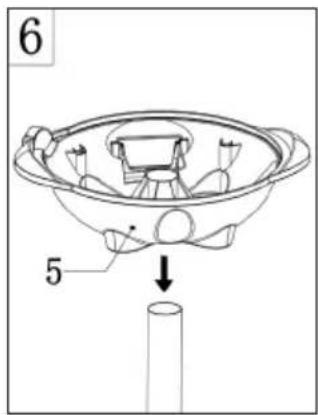

Place the bowl-shaped base of the appliance (5) onto the grill stand.

(Making sure that the grill stand is placed on a dry flat, stable surface).

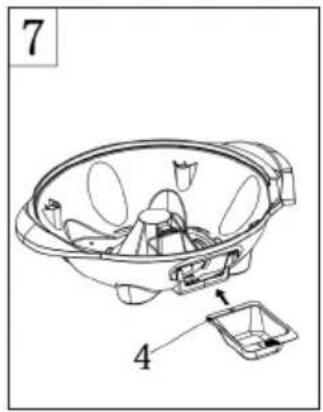

Put the fat collecting bowl (4) into the bracket supplied for it in the base of the appliance, buckle the hole of fat collecting bowl onto the screw to fix it well (The flat collecting bowl can be filled with little water to make it easier to clean).

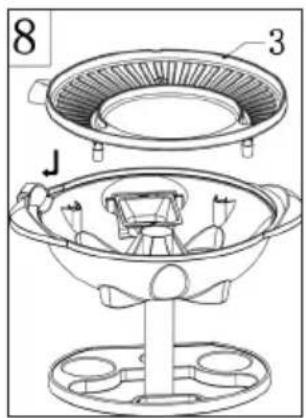

Place the grill plate (3) on the base of the appliance (5). First of all insert the appliance socket (15) into the opening intended for it (12), then set the grill plate horizontally on the appliance base.

Install the handle (1) to the metal hood with the screw (e), gasket (d) and hook (c).

Then place the hood on the grill plate.

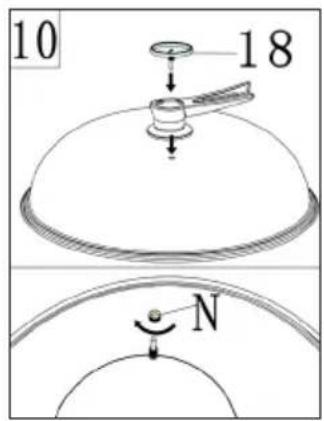

Insert the thermometer (18) into the hole of the grill hood and then fix it with the screw and nut (N) into the back side of the hood.

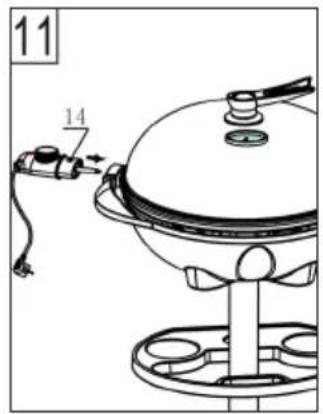

Push the detachable temperature regulator (14) as far as it will go into the grill's appliance socket

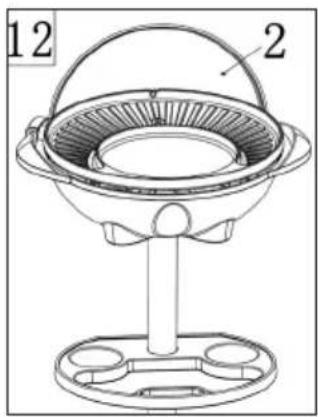

The metal hood (2) can be opened and placed on the side by being hooked up on the edge of grill plate

Operation

Before using the appliance for the first time

• Remove all the packaging materials and wash the grill plate (3), fat collecting bowl (4) and metal grill hood (1) thoroughly.
• Dry all the different parts thoroughly. This applies especially to the appliance socket (14). Never immerse the detachable temperature regulator (13) in water.
• Heat the grill to its maximum setting for about 3-5 minutes, with the metal grill hood closed and without putting any food on it. Residues left from the manufacturing process may cause some smell and smoke when the appliance is used for the first time.

Operating the appliance

1. Connect the appliance to the mains electricity supply.
2. Set the temperature regulator (14) to the required temperature level (it usually takes about 3 minutes to heat up).
3. The temperature indicator lamp (13) will go out as soon as the required temperature has been reached.
4. Place the food to be grilled on the grill plate (3).

Cooking times

The following are recommended cooking times. Different times will be required for different weights and sizes of foods to be grilled, and depending on whether you are grilling with or without the metal grill hood

Food to be grilled Temp erature grade setting Cooking time
Steak/beef 5 15-20 minsLamb 5 12-18 minsChicken drumsticks 5 25-30 mins
Chops 5 20-25 minsChicken wings 5 15-20 minsFillet of pork 4-5 9-10 mins
Whole fish 5 12-15 minsKebabsVarious sausages	3-4 10-12 mins3-4 12-15 mins

Tips for grilling

• Your meat will be tendered if you marinade it overnight before cooking (the marinade is always made of oil (to and moistness), vinegar (to tenderize) and a mixture of seasonings).
• Always use tongs or some form of scoop to turn the grilled food (using a fork to turn the food will dry it out and damage the non-stick coating).
• Only turn meat and fish once during grilling. You do not need to turn it more than once and too much turning dries food out.
• Never cook meat for too long. Even pork is better if it is served when it is still somewhat pink and juicy.
• If cooked food sticks to the grill plate, rub the plate with a piece of kitchen paper soaked in oil from time to time.

Cleaning and Care

1. Disconnect the appliance from the mains electricity supply.
2. Allow the grill to cool completely.
3. Take the detachable temperature regulator (13) out of the appliance socket.
4. Clean the grill plate (3) and grease collecting bowl (4) with warm washing-up water and damp cloth. Do not use steel wool pads, brush or abrasives to avoid any damages to the coating of grill.
5. Wipe the base of the appliance (5) with a damp cloth. Fat splashes can be removed with a mild cleaning agent.

Note: The grill plate has a non-stick coating. Do not scratch this coating during either the grilling or the cleaning stages.

Tip: Protect the appliance from dust and dirt if it is not to be used for a prolonged length of time (wrap it in a plastic bag). Store it in a dry place.

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

This product is conform to the following European Directives:

2004/108/EC (EMC)

2006/95/EC (LVD)

2011/65/EU (RoHS)
