10030038 - Blender Klarstein - Free user manual and instructions

Technical Features	Klarstein 10030038 blender with powerful motor, 1.5 liter capacity, 6 stainless steel blades, multiple speeds.
Usage	Ideal for blending, chopping, and preparing smoothies, soups, and sauces. Easy to use with an intuitive control panel.
Maintenance and Repair	Easy to disassemble for cleaning. Removable parts are dishwasher safe. Regularly check the condition of the blades.
Safety	Equipped with a safety system to prevent accidental start-up. Do not immerse the motor in water.
General Information	Lightweight for easy handling, modern design, 2-year warranty. Optimized energy consumption.

Frequently Asked Questions - 10030038 Klarstein

How do I remove the blades of the Klarstein 10030038 blender for cleaning?

To remove the blades, unscrew the base of the jar by turning it counterclockwise. Carefully remove the blades and clean them under running water.

What should I do if the blender does not turn on?

Check that the device is properly plugged into a working electrical outlet. Also ensure that the jar is properly in place and locked.

How can I prevent food from sticking to the bottom of the blender?

Add liquids first before adding solid foods. This will help create a vortex that prevents food from sticking.

The blender makes a strange noise, what should I do?

An unusual noise may indicate that the blades are damaged or that food is stuck. Turn off the device, unplug it, and check the blades and jar.

What is the maximum continuous usage time for the Klarstein 10030038 blender?

The recommended maximum continuous usage time is 2 minutes. Let the device cool down for a few minutes before using it again.

How can I clean the blender after use?

Add some warm water and a few drops of dish soap to the jar, then blend at low speed for 30 seconds. Then rinse with clear water.

The blender is not blending well, what should I do?

Make sure not to overfill the jar. If necessary, stop the blender and use a spatula to push the food towards the blades.

Is there a warranty for the Klarstein 10030038 blender?

Yes, the blender is generally covered by a 2-year warranty, but please check your user manual for more details.

Where can I find spare parts for my blender?

You can find spare parts on the official Klarstein website or from authorized dealers.

Is the Klarstein 10030038 blender suitable for hot foods?

Yes, but avoid exceeding the indicated fill limit to prevent splashing. Do not use for boiling liquids.

USER MANUAL 10030038 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 12

Safety Instructions 12

Product Overview 14

Use 16

Cleaning 19

Troubleshooting 20

Disposal Considerations 21

Declaration of Conformity 21

Technical Data

Item number 10030038 10030039

Power supply 220-240 V 50Hz

Motor power 1300 W

Heating power 800 W

Safety Instructions

• Do not share an electrical outlet with other high-power
• Do not use damaged power lines, beware of electrocution
• When the plug connector, do not pull the power cord directly
• Please use device under the AC 220V power supply environment
• Do not touch the power lines and electrical appliances with wet hands to prevent leakage
• If any abnormal phenomenon such as fire smoke In the process of electrical operation, please unplug the power cord immediately.
• Please use the product specially equipped power cord, if damaged, Please buy from our company or our designated maintenance department to change the corresponding power cord.

• Do not rinse or directly soaked body.

• Place the machine on a flat hard place, and keep a distance from the wall or other valuables

• Do not use near fire or in places where temperature above 40 degrees.
• Before you take the Jug or into the main body, please cancel the current function or cut off power supply
• The temperature of accessible surfaces may be high when the appliance is operating. Do not touch hot surfaces, use handles and knobs.
  After finished, please cut off the power and then take the jug.
• When you add water, need to pay attention to a cup of ladle scale, add water to the water level between up and down.
• When cleaning, please take precautions against the sharp blade scratch fingers, etc.
• Do not use the machine as for refrigerated quenched, should be cleaned before storing dry naturally after wiping.

Specific safety instructions

• Please read the instructions carefully before using. If you have unclear matters in the instructions, please logging on my web site, or contact seller or customer service.
• Please refer to the manual to select the appropriate function recipes and material ratio
• Make sure to use the voltage as same as the rated voltage showed in Rating label.
• Please use the product specially equipped power cord, if damaged, please purchase power cord from our company or the designated maintenance department for replacement.
  Children should be supervised to ensure that they do not play with the appliance
• When device is in the process of the work, it is forbidden to come into contact with moving parts such as blade and motor, so as to avoid damage or damaged products.
  In order to avoid danger, do not use accessories which is not provided by our company, Such as the glass lid..
• Ensure that the power has been disconnected when you want to Remove the glass jug or other parts.
• Please do not touch the parts with high temperature. You can touch the handler and control panel.
• In the heating mode, please don't touch the glass to avoid burns
• When you want to install, clean or remove the parts of device, you need to make sure the device cooling down.
• The total amount of water and food t shall not exceed the maximum scale of cup of bucket capacity.
• When the device is working, please do not take the jug and open the lid to interrupt the normal work.
• Do not move the working device to avoid ingredients overflow, causing burns, electrocution.
• When the function is completed, please wait for the motor and blade to stop and make sure the power off, then remove the jug.
• The lid may stain after making fruit and vegetable drinks for many times. This is a normal phenomenon without damaging our health.
• The device uses high speed motor, there was a batch of fast and slow crush voice belongs to the normal phenomenon.
• This product is only applicable to personal or family use
• If the device suddenly stops working, It might be caused the motor temperature protection, please disconnect the power supply, cooling 20-30 minutes before using.
• Couplers of jug and main body can not be access to water. if fill, they must be dried before use.
• Do not use the device and the components in the microwave heating
• Don't let this device idling, so as to avoid affecting the service life of the device.
• Do not use the device for other purposes which don't mentioned in this manual.

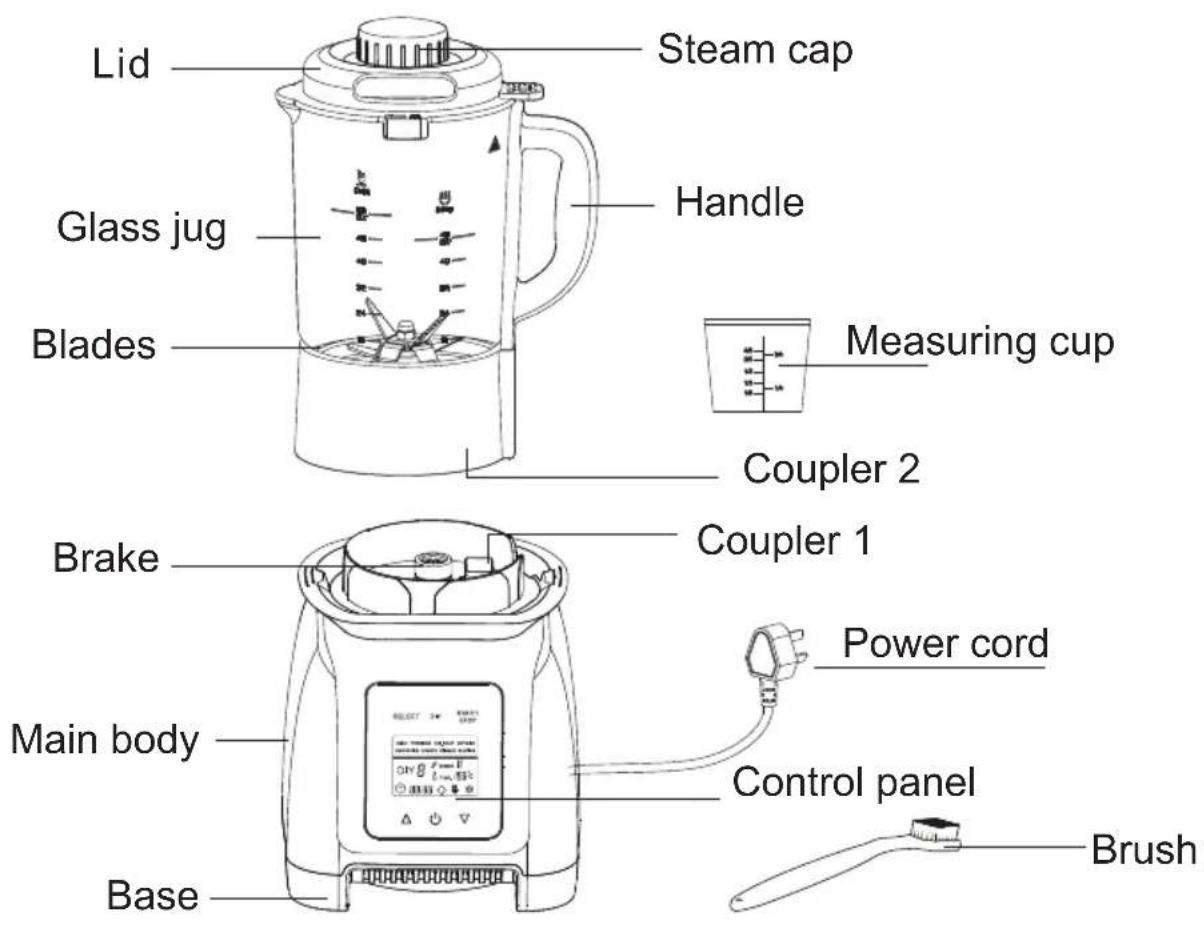

Product Overview

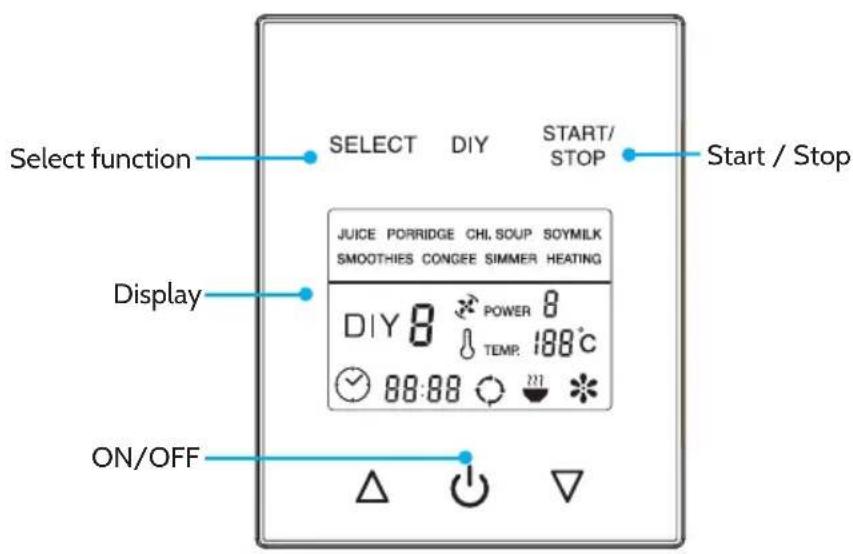

Control panel: to set up and choose functions
- Main body: main part of device, include motor, PCB, ETC.
Blades: Stainless steel material, high hardness, cutting smash all kinds of food
- Measuring cup: measuring ingredients. Do not Excess the max line.
Glass jug: heat-resistant glass material; with heating plate ; The main food container.
- Base : Support product, with non-slip feet at the bottom of body. please placed in the flat surface
- Handle: Hold the jug when you take the jug.
- Coupler 1: Provide power for glass jug. Please note that don't shower water directly.
- Coupler 2: used with coupler 1 together.
- Brush: use to clean jug and lid.

JUICE: To make the juice,milkshake and so on.

PORRIDGE: To make the porridge for supplementing nutrition.

SOUP: To make the delicious soup.

CONGEE: To make congee.

SOYMILK: To make the different tastes of soymilk.

SMOOTHIE: To make the smoothie with different kinds of fruits, using 8 pieces of ice for one time is the best.

CONGEE: To make the healthy congee in the recipe.

SIMMER: Slow cooking.

HEATING: Using for cooking food, such as eggs, bread and so on.

PROG: Using for to self-designing the program which you like. Repeat to press the "PROG" key that can choose the "Speed(speed1-speed9), Time(second), Time(minute)".

"PROG"process(The longest setting time is 5mins):

Press the PROG key then enter into the PROG program, the "Speed" will be flashed. Pressing the / key for regulating the speed and press the PROG key then enter into regulating "Time", the last two digits of the 00:00 will be flashed. Then press the / key, to regulate the seconds, and press the PROG key again, the last front digits of the 00:00 will be flashed, then press the / key for regulating the minutes, press the on/stop key to work

Use

1. Cut the ingredients into 2 cm block size (Trim and cut Meat into strips). As shown in figure 1.
2. Use measuring cup to take right amount of ingredients according to recipe and Personal taste. As shown in figure 2.
3. Put ingredients into jug. Please note that no foreign matter is in the jug. As shown in figure 3
4. Amount of water. You can adjust it according to the recipe. As shown in figure 4.

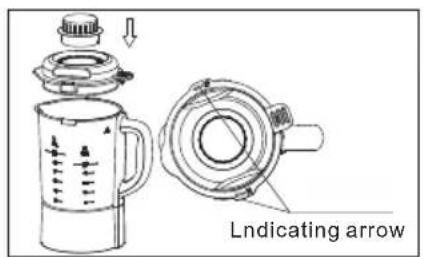

5. Put the lid on the jug and the little round cup on the lid. There is micro-switch in the jug. If the lid is not put in the right position, this device won't work. As shown in figure 5.
6. Put the jug on the right position of main body. As shown in figure 6.
7. Plug in the power cord.

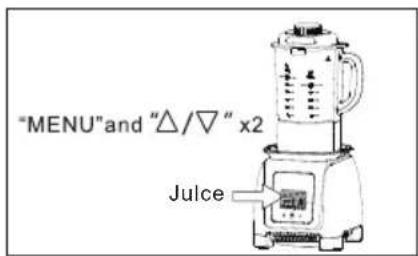

8. When turning on the power supply, the device will send alarm, then the screen lights up. Chose button to start device first. Then press menu to choose the function, such as rice paste, As shown in figure 8.
9. Press ON/OFF button to start to work. The voice of the fast and slow, belongs to the normal phenomenon. As shown in figure 9.
10. After completion of work, function words flashing. Then an alarm sounds. After the alarm was lifted, device will go back to standby mode. As shown in figure 10.
11. Unplug the power cord. Remove the jug and open the lid. Note of steam when open the lid to prevent burns. As shown in figure 11.
12. Pour out food and season food according to personal taste. When pouring out food do not be too urgent to prevent the liquid overflow as shown in figure 12.

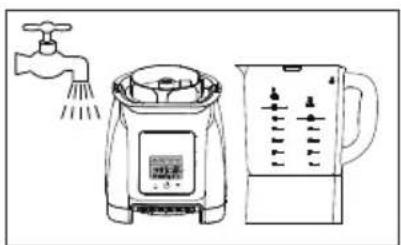

13. Clean the inside of the jug in time. Clean the outer surface of the soup maker with a soft, damp cloth as shown in figure 13.

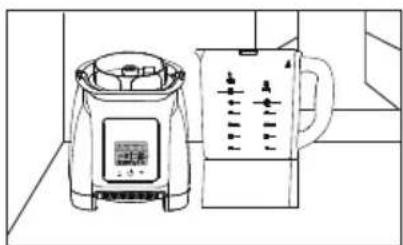

14. Wipe water spots on the surface of device. Separate main body and jug and put them in a cool, ventilated place to dry them and prevent the odour.

1

3

2

4

5

6

7

8

9

10

11

12

13

14

Notes on use

• When making porridge, paste, soup, etc, you must select the corresponding function keys, otherwise it will make bad taste, not cooked well and so on. What's worse, Food will overflow or paste on the bottom of jug.
• If you find functional errors before blending food, you need to switch the function. Press the ON/OFF button, then cancel the current function. If the water is not hot at this time, you can re-set the function directly. If the water temperature is too high (up to 70-80 degrees) Please replace the ingredients, and then re-select the corresponding function.
• Recipe ingredients components are in accordance with the standard level, the user adjust the ingredients and water based on the total amount and type of food. Please note that no exceed 1200 ml for hot drinks and 1500 ml for cold drinks.
• When making fruit and vegetable drinks, make all nuclear ingredients is enucleated. Then add the right amount of water and milk
• Do not use this product directly heated milk, soy milk, cold rice paste or other sticky liquids, otherwise it will cause sticking and other burning situation. Produce peculiar smell.

Cleaning

Cleaning

Safety guidelines

• When not in use or before cleaning, always disconnect the appliance from the mains supply and allow it to cool before handling.
• The blades are not removable and are very sharp; extreme caution should be taken when cleaning the inside of the jug.
• Do not use the tool which is hard to wash the appearance of the product.
• Do not put the base jug cord into the water.
• Please dry the product with the dry cleaning cloth and put it in the shade.
• Do not put the product, cord or rhe other spare part in the sun.
• Do not use chemicals to wipe, such as alcohol.

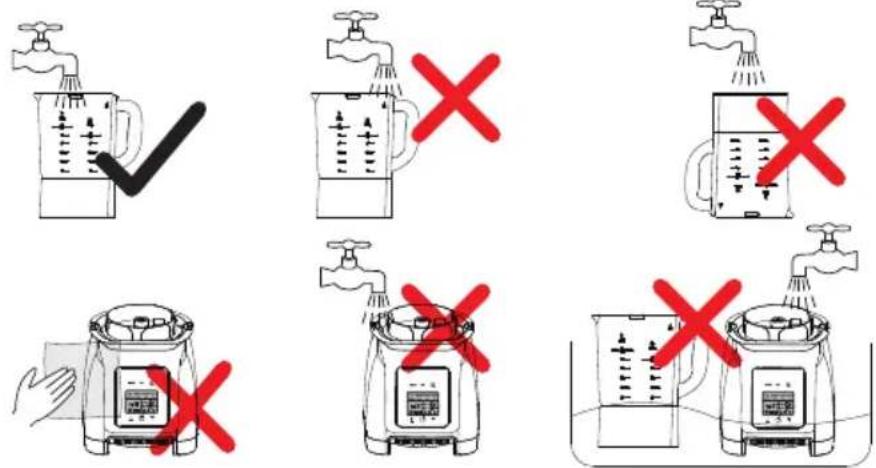

Cleaning

To clean the inside of the jug rinse in clean water for 0.5-1 hour to remove any remaining soup or foodstuff. Wipe away any remaining food with a soft cloth and mild detergent before rinsing again.
Regularly clean the outside of the appliance with a soft damp cloth and dry with a dry towel.
- When the bottom of the stainless steel heating plate is not clean very well for many times, it will have Hazel accumulate attachment layer in the plate.
In this case, the jug need a long soak with water. And then you can use a slightly harder pad, dipped vinegar to clean it.
- Please wipe with a moderate force rotation along its bottom texture.

WARNING: Danger of cutting injury

The blades are extremely sharp. Handle with care.

Troubleshooting

Problem Reason Solution
The operation light does not light.	Power cord not be well plugged.	Check power cord and make it well
	Lid not put in the right position.	Check the lid and re-cover it. When cover is in the right position, you can hear a short alarm.
Indicator light, the product does not work.	Function was selected, but ON/OFF button not pressed.	Choose the function and press ON/OFF button.
Alarm occurred during work.	Food paste on the bottom.	Clean the jug.
	No water in jug.	Please add water to the corresponding water level correctly.
Heating cannot stop. Product failure	Contact the costumer support.
Food not broken.	Too much water of too little water.	Add water to the right water line.
	Supply voltage is loo low. Too much or too little water.	Use home voltage stabilizer.
	Product failure.	Contact the costumer support.
Undercooked food and early alarm.	Too much or to little water and food.	Please add water to the right water line. Add food as standard.
Burnt food.	Jug is not clean.	Please use the to clean cup again.
	Too much food has been added.	Select the correct function and cook as the recipe.
	Press the wrong function button
Abnormal whistle	Friction The occasional whistle belongs to the normal situation.

Disposal Considerations

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
