Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 14

Before first Use 14

Product Overview 15

Assembly and Operation 16

Disassembly 20

Cleaning and Care 20

Hints on Disposal 21

Declaration of Conformity 21

TECHNICAL DATA

Item number 10034215, 10035233
Power supply 220-240 V ~ 50/60 Hz
Power 1800 W
Dimensions (WxDxH) 410x210x426 mm

SAFETY INSTRUCTIONS

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• The device is not intended for commercial use, but only for household and similar environments. This includes kitchens in offices, farms, hotels, motels and Bed & Breakfasts.
• Disconnect the plug before assembling or disassembling the appliance.
• Only use the appliance under supervision when children are present.
• When moving the unit, hold it by the housing with both hands. Never hold it by the hopper plate or any other part of the unit.
• When using the Kibbeh attachment (for minced meat rolls), do not attach a cutter or perforated discs.
• Do not grind hard food such as bones or nuts in the mincer.
• Do not crush fi brous foods such as ginger in the mincer.
• Do not allow the mincer to run for more than 10 minutes at a time. Let it cool for 10 minutes before using it again.
• Wait 30 seconds after finishing the current process before using the reverse switch. Doing so may damage the unit.
  • To avoid blockages, do not press the meat into the funnel under excessive pressure.
• Never attempt to replace or repair permanently installed parts of the appliance yourself.

WARNING

Risk of injury! Never push the meat into the funnel by hand. Always use a food pusher.

BEFORE FIRST USE

• Before use, check the voltage on the device badge. Connect the device only to sockets which correspond to the voltage of the device.
• Wash all accessories with warm water and a little detergent.
• Before plugging the appliance into a wall outlet, make sure that the appliance is switched off.

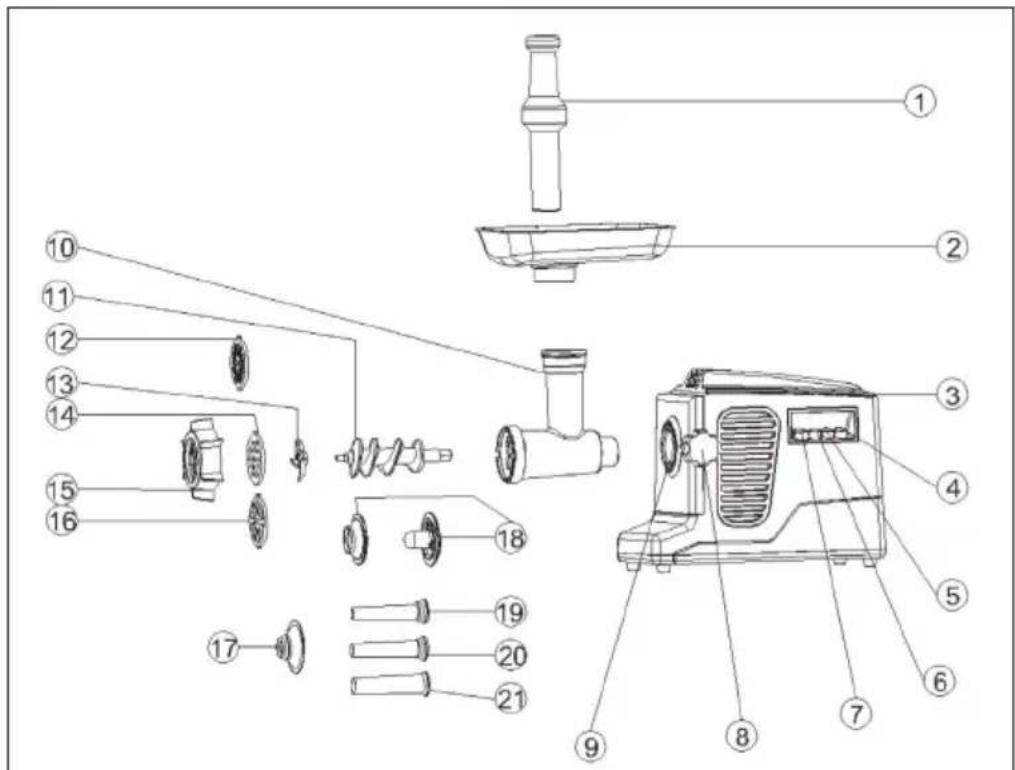

PRODUCT OVERVIEW

Exploded diagram of a kitchen appliance with numbered parts for identification

1	Food pusher	12	Perforated disc (fine)
2	Hopper plate	13	Cutting blades
3	Case	14	Perforated disc (medium)
4	REVERSE button	15	Fixing ring
5	LOW button	16	Perforated disc (coarse)
6	HIGH button	17	Sausage attachment
7	STOP & RESET button	18	Kibbeh attachments
8	Fixing ring	19	Funnel (fine)
9	Head connection	20	Funnel (medium)
10	Head	21	Funnel (coarse)
11	Snail

ASSEMBLY AND OPERATION

1 2

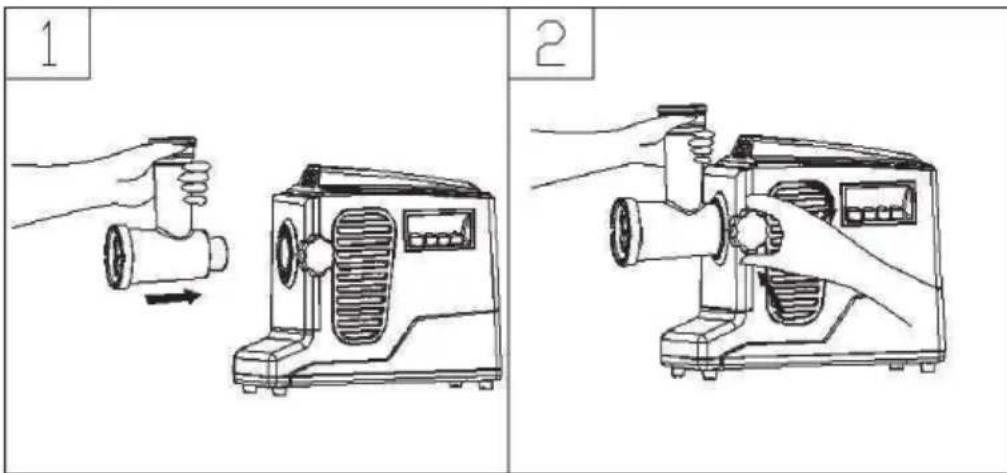

Hold the head and insert it into the connection. When inserting, make sure that the head is slightly inclined (see Figure 1). When you have inserted the head, turn it clockwise until it is firmly seated (see Figure 2).

3 4

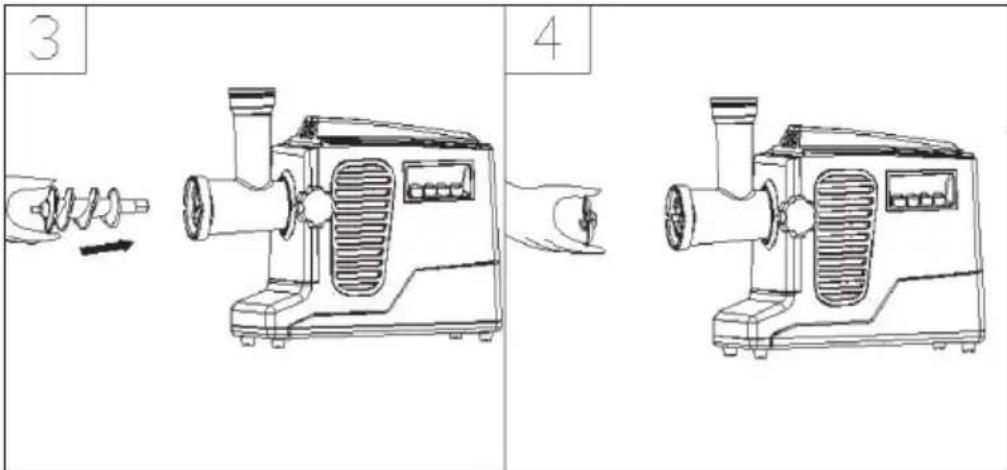

First insert the snail with the long end into the head and turn it slightly until it is seated in the motor housing (see Fig. 3). Place the cutter blade on the snail shaft as shown with the blade facing forward (see Figure 4). If the knife is not mounted correctly, the meat will not be minced.

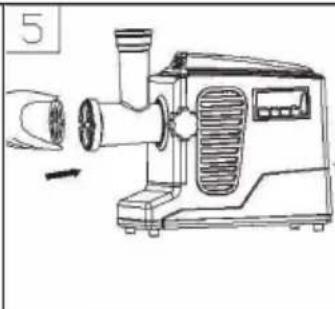

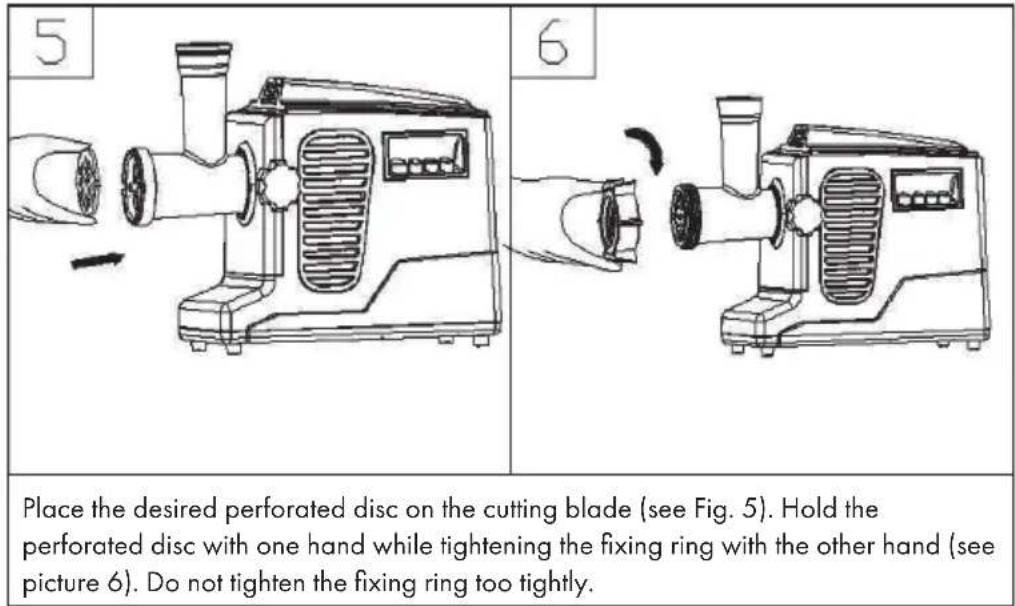

5 6 Place the desired perforated disc on the cutting blade (see Fig. 5). Hold the perforated disc with one hand while tightening the fixing ring with the other hand (see picture 6). Do not tighten the fixing ring too tightly.

7

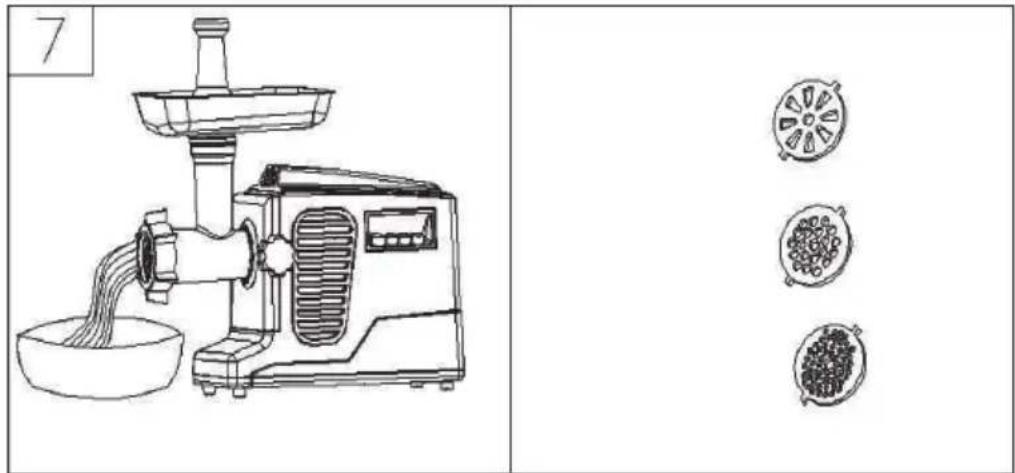

Mount the hopper plate on the head. Place the unit on a solid worktop. The air outlet on the floor and on the side of the motor housing should be kept free and not blocked.

Mincing meat

WARNING

Risk of injury! Never push the meat into the funnel by hand. Always use a food pusher.

Cut all food into pieces. We recommend that you use tendonless, boneless and fat-free meat and cut it to a size of eta 2x2x6 cm so that it fi ts easily into the funnel opening.

• Press the HIGH or LOW button to run the unit at high speed (HIGH) or low speed (LOW).
• Push the food into the funnel with the food pusher.
• After use, press STOP to stop the appliance. Remove meat residues by pressing the REVERSE button. Then pull the plug out of the socket.

Reverse function

If a blockage occurs, press and hold the REVERSE button for 3-6 seconds. Then release the button. Unplug the appliance and remove the food from the head of the appliance.

Making Kibbeh (minced meat rolls)

Agredients
Stuffi ng:	For the rolls:
Mutton 100 gOlive oil 1 1⁄2 tbspOnion 1 1⁄2 tbspFlour 1 1⁄2 tbspSpices to tasteSalt to taste	Lean meat 450 gFlour 150-200 gSpices to tasteNutmeg 1 tspPaprika to tastePepper to taste
Chop the meat three times for the fi lling and three times for the rolls and mix the minced meat with the remaining ingredients in a bowl.

8	9
Before attaching the Kibbeh attachments, remove the perforated disc and the cutting blade.	Place the Kibbeh attachments together on the snail shaft.	Tighten the fastening ring. Do not overtighten it. Put the minced meat mixture for the rolls into the funnel and make minced meat rolls.

Fill the finished minced meat rolls with the minced meat filling as shown below and fry or deep-fry them.

Making sausages

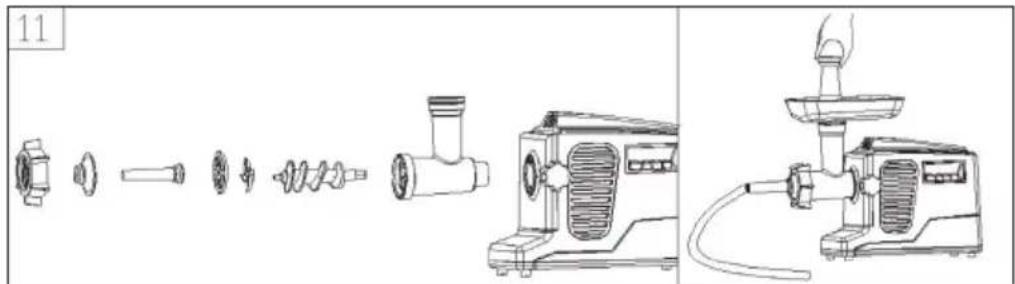

Place the cutting knife, one of the perforated discs (fine, medium, coarse) and the corresponding funnel (fine, medium, coarse) on the screw shaft and screw the fastening ring tight.

11

Thread the sausage skin onto the sausage filling tube and knot the end. Make sure that the sausage casing is loosely filled, as the sausage expands during frying or cooking and the casing can tear open. Press the sausage together at the end with your fingers and turn it once or twice around its own axis.

DISASSEMBLY

• Make sure that the engine is completely stopped.
- Disconnect the plug from the socket.
- Disassemble the parts by performing steps 1-6 in reverse order (see below).

Line drawing of a manual cutting tool with a handle and blade, no text or symbols present

Line drawing of a manual cutting tool with a cylindrical component and fan (no text or symbols)

Line drawing of a manual manual shaver with a hand pointing to it (no text or symbols)

Line drawing of a manual kitchen tool and a mechanical component (no text or symbols)

Line drawing of a hand operating a manual pump device (no text or symbols)

Illustration of a hand holding a cylindrical device next to a portable radio unit (no text or symbols visible)

Note: It is easier to remove the perforated disc by inserting a screwdriver between the cutting blade and the perforated disc to loosen it.

CLEANING AND CARE

• Switch off the device and unplug the plug from the socket.
• Allow the appliance to cool down completely.
• Clean the housing with a damp cloth using a mild detergent. Never clean the housing under running water and never put it in water.
• Do not clean the unit with caustic or abrasive cleaning agents.
• The attachments are not dishwasher safe. These parts should only be cleaned in warm water with a small amount of detergent.
• When you have finished cleaning, attach the cable to the cable holder on the back and store the unit in a dry, clean place where children have no access.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

CE

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
