USER MANUAL Olympus R Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 9

Declaration of Conformity 9

Safety Instructions 10

Hints on Disposal 11

Product Description 12

Control Panel and Key Functions 13

Use and Operation 13

Care and Cleaning 14

TECHNICAL DATA

Item number 10031973, 10031974
Power supply 220-240 V ~ 50-60 Hz
Power consumption 1300 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETYINSTRUCTIONS

• Please confirm whether the local power supply voltage match with the rated voltage or not before connecting electricity.
• Please grasp the plug firstly and then pull it out from power outlet when disconnecting electricity.
• To protect against the risk of electric shock, do not immerse the plug, power cord, the motor base in water or any other liquid.
• Operation should be performed on a clean, flat, hard and dry surface. There should not be tablecloth or plastic or other sundries.

CAUTION

Risk of injury! Do not touch the blade or removable parts while plug in the electricity.

• Please disconnect electricity firstly and then pull the plug out from outlet before
• cleaning up. To protect against the risk of electric shock, do not use wet cloth to clean up, plug in or pull out the electricity plug with wet hands.
• Stop using the appliance in the following case: If the power cord or plug is damaged, if the machine can not work properly, if the machine is dropped or damaged in any manner.
• To protect against the danger, it must be repaired by the manufacturer or other maintenance specialists.
• Please handle the blade with care as it is sharp. Make sure all parts are correctly mounted before switching on the appliance to avoid injury.
• Do not turn on the machine before you lid the cup well.
• Do not use this appliance in outdoor. It's only intended for household use.
• Do not allow the power cord to hang over the edge of table or counter, or contact surface of high temperature.
• Switch it off and pull the plug out from power outlet when not in use or before cleaning.
• Do not make the appliance operating with no supervisory.
• This appliance is not suitable for children or those who with poor physical fitness or weak intelligence, unless they are adequately supervised by a responsible person to educate them how to use the appliance safely.
  Children should be supervised to ensure that they do not play with the appliance.
• Children should be supervised closely while they operate the appliance or are near to it.
• When stirring, do not exceed the max capacity (2/3 of the cup) or exceed 30 seconds.
• Never insert objects other than food into the cup when stirring.
• Do not touch the blades when removing food from the cup or removing the blades for cleaning as they are sharp.

• Do not disassemble any part of blades and do not touch any running parts.

• Stirring rod: Stirring rod can accelerate to solve those which can not be stirred during normal stirring, like big, thick or freeze foods. If the foods can not be stirred, there may be too much foods or bubbles inside. Using stirring rod can prevent against the bubbles and help the foods stirring more effectively. When stirring, do not exceed the max capacity (2/3 of the cup), or subject to the foods that do not overflow from the cup. Do not exceed 30 seconds using stirring rod continuously, for fear that the motor is pressed continuously to affect the normal product performance.

• Do not operate the appliance when there is no water or any other foods inside the cup.
• Do not exceed 1 minute while grinding, and please stop to let it cold down for more than 5 minutes before continue in order to protect the cup preferably and extend the life of the appliance.
• If the motor overload, it will stop automatically. It's because the temperature detection protection system of the motor starts, not malfunction. But starting the motor temperature investment and protection system. Pull the plug out from power outlet, and then cold it down for 45 minutes before continue.
• To protect against risk of electricity shock, it must be repaired by manufacturer or maintenance specialist if the power line is damaged.

Note: Operating the "Pulse Key" one minute on and one minute off in 5 cycles, the machine can be working again only after it cool to room temperature.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

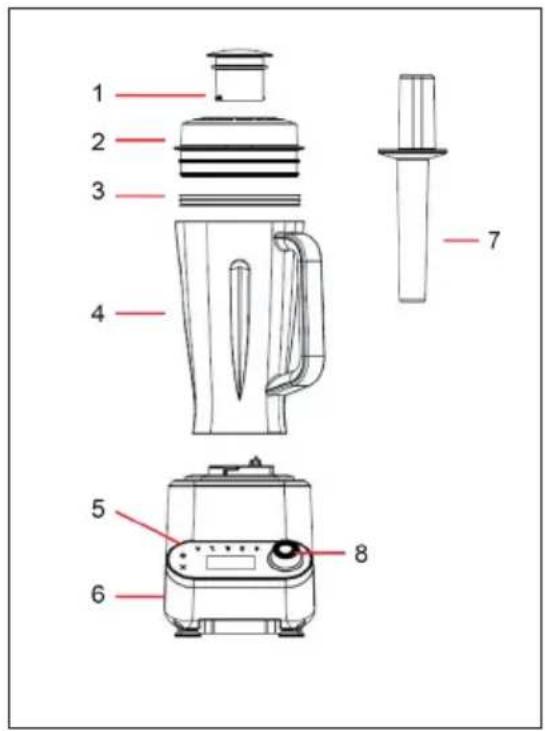

PRODUCT DESCRIPTION

1 Measuring Cup
2 Cup Cover
3 Seal Ring
4 Cup
5 Touch Screen and Display
6 Base
7 Stirring Rod
8 Speed and Time Adjustment

Note: do not operate without this cover in place!

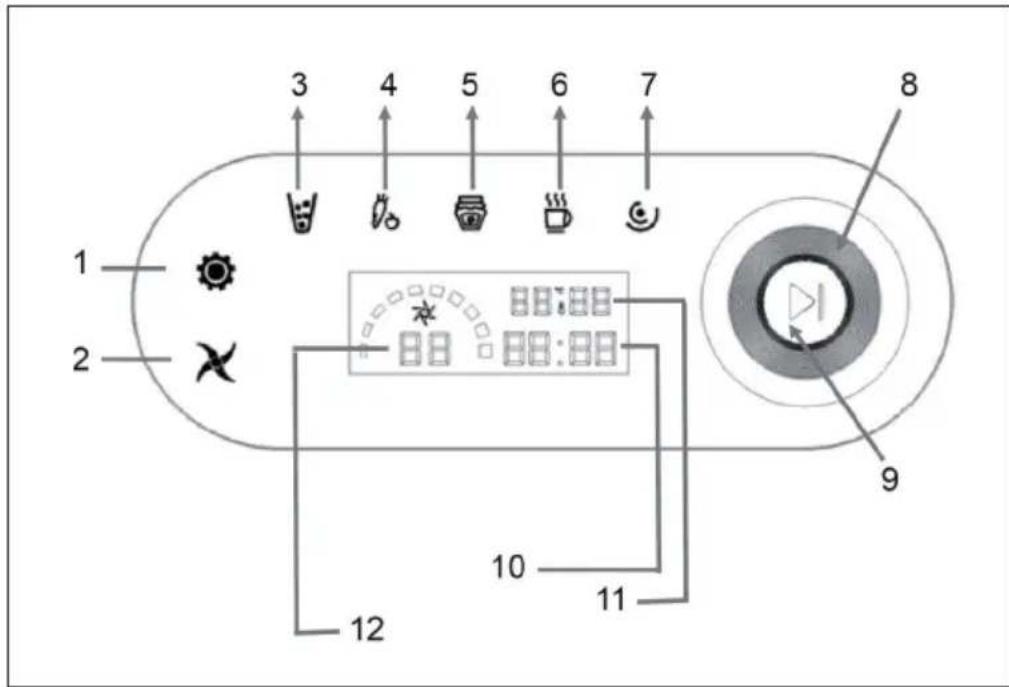

CONTROL PANEL AND KEY FUNCTIONS

1 Time set 7 Puls
2 Speed set 8 Time and Speed adjustment
3 Ice 9 Start key
4 Smoothie 10 Time display
5 Jam 11 Temperature display
6 Heat 12 Speed shift diplay

USE AND OPERATION

Power Switch

The power supply is connected "Power Switch" to (I) position, the all keys icon will light up, and send out a prompt tone, then enter into the standby mode directly. Press the Start key lightly, the all keys icon and time display, temperature display and speed shift display will light in white.

Functions

To deal with the corresponding food can choose one-touch preset function keys to operate the functional keys (3-6). In the wake-up state, press one-touch function key icon and the "Start Key", product will respond immediately.

If the one-touch preset function keys model under the default parameters can't meet the effect of food processing, can touch one of the two keys and rotate the "Time & Speed adjustable" knob to set working hours and speed shift to meet food processing. After the setting again touch the corresponding key to remove set.

Can choose the "Pulse Key" to operate, after finished pulse operation, then press "Start Key" can continue to choose to set the function of the program to continue their work.

If you don't want to use one-touch preset function keys to deal with food, can touch the two keys and rotate the "Time & Speed adjustable" knob to set working hours and speed shift to meet food processing. After setting, press the "Start Key" to start working.

Note: To achieve better effect of food processing, in the process of jam with the stirring rod to help better mixing effect, it will get much better effect for the food.

CARE AND CLEANING

Note: Turn off the unit, and unplug it from the wall outlet before maintenance or cleaning to avoid electric shock.

Base

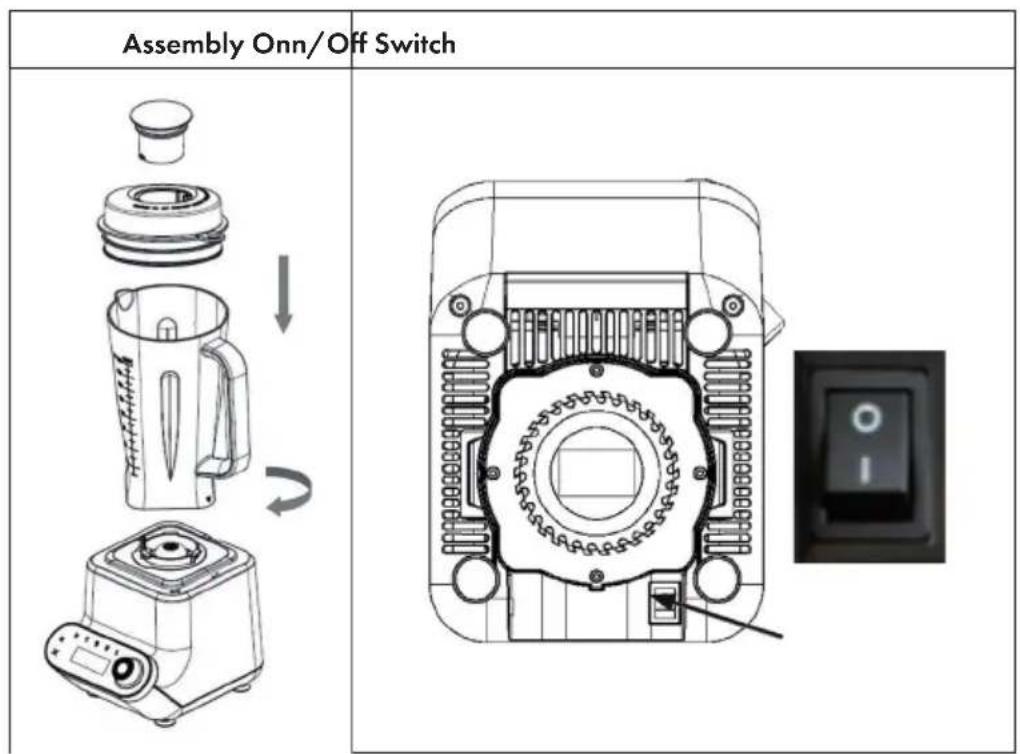

Put the power switch to "OFF" position (As Figure 4), pull plug out from power outlet, and then wipe the external surface with wet cloth. Do not immerse the product in water or any liquid.

Mixing cup

Add 800ml clear water in the product cleaned with the "Smoothie Key", close the machine. Rinse and dry. The cup and stirring rod can also use the dishwasher for cleaning.

Measuring cup and cover

Separate in two parts, clean and dry. The measuring cup and cover can also use the dishwasher for cleaning.
