USER MANUAL Mecablitz 44 AF2 digital METZ

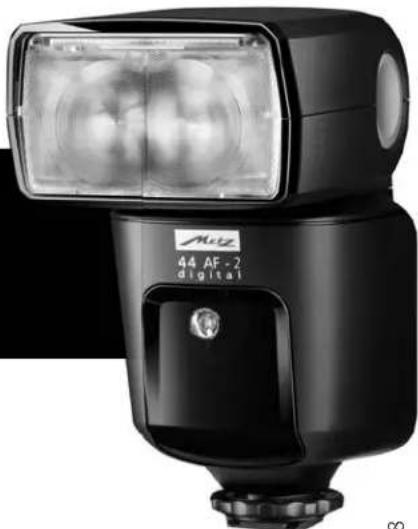

mecablitz 44AF-2 digital

für / for Canon- / Nikon- / Olympus-, Panasonic-, Leica- / Pentax- / Samsung- / Sony- / FUJIFILM-Digitalkameras Bedienungsanleitung, Mode d'emploi, Gebruiksaanwijzing, Operating instruction, Manuale istruzioni, Manual de instrucciones

Black 44 AF-2 digital camera flash unit with no visible text or symbols on body

www.metz-mecatech.de

15/31/28

D

Vorwort....3

6.2 Mecabounce MBM-02....19

44AF-2 Olympus/Panasonic:

6.2 Mecabounce MBM-02

P1/1; P1/2; P1/8; P1/32

60^ 90^ 120^ 150^ 180^

Abmaße in mm (B x H x T):

Ca. 73 x 130 x 106

Gewicht :

- Easy Softbox ESB 40-40

(Bestellnr. 009014047)

44AF-2 Olympus/Panasonic:

P1/1; P1/2; P1/8; P1/32

- Easy Softbox ESB 40-40

(ref. 009014047)

Dimensions : 40 × 40 cm

44AF-2 Olympus/Panasonic:

9.1 Indirect flitsen

P1/1; P1/2; P1/8; P1/32

- Easy Softbox ESB 40-40

(Bestelnr. 009014047)

Afmetingen: 40 × 40 cm

Thank you for choosing a Metz meca-tech product.

We are delighted to welcome you as a customer.

You will of course be impatient to start using the flash unit.

However, it is worthwhile reading the operating instructions and learning how to use the unit correctly.

Proper Use

This flash unit is intended solely for taking pictures of motifs in the photographic field. It may be operated only with the accessories described in this instruction manual or the accessories approved by Metz mecatech.

The flash unit may not be used for any purpose other than that described above.

The 44AF-2 flash unit is built in seven different versions and accordingly suitable for:

• Digital Canon cameras (EOS and PowerShot) with TTL-, E-TTL- and E-TTL-II - flash metering.
• Digital Nikon cameras with TTL and i-TTL flash control.
• Olympus - Digital cameras with TTL flash control and flash socket system, as well as the compatible digital cameras from Panasonic and Leica.
  • Digital Pentax cameras with P-TTL flash control and system flash shoe.
  • Digital Samsung cameras with A-TTL.
  • Digital Sony reflex cameras with TTL preflash and ADI metering.
  • Digitale FUJIFILM System-Kameras with TTL flash control.

The flash unit is not suitable for use with other brands of cameras!

A subsequent system change (e.g. Canon to Nikon) is not possible, even with an additional adapter Take a look at the diagrams at the end of the manual.

1 Safety instructions

• The flash unit is exclusively designed and authorised for use in photographic applications.
• The flash unit may in no event be activated in the vicinity of inflammable gases or liquids (petroleum, solvents etc.). RISK OF EXPLOSIONS!
• Do not flash directly into eyes from a close distance! Direct flashing into the eyes of persons or animals can cause damage to the retina and severe disruption of the vision – up to and including permanent blindness!
• Never use a flash unit to photograph car, bus, bicycle, motorbike or train drivers while they are driving. Blinding the driver can lead to an accident!
• Only use the power sources designated and autho-rised in the operating manual.
• Do not open the batteries or short them!

• In no event the batteries be exposed to high temperatures like direct sunlight, fire or similar!

• Remove the used batteries immediately from the device! Chemicals can escape from used batteries (so-called "leaks") resulting in damage to the device!

• Batteries may not be recharged!
• Do not expose the flash unit to water drops and splashes!
• Protect your flash unit from heat and high air humidity! Do not keep it in the glove compartment of your car.
  • After repeated flashing, do not touch the diffuser. Risk of burns!
• Do not dismantle the flash unit! HIGH VOLTAGE! DANGER TO LIFE! Repairs should only be performed by authorised service personnel.
• Never throw flat/dead batteries into a fire!

• When you activate the flash, there should be no opaque material directly in front of or on the reflector cover (flash window). The intense energy emissions can otherwise lead to scorching or spotting of the material and/or the reflector cover.

• Do not touch the electrical contacts of the flash unit.

• If the housing has been damaged in such a way that internal components are exposed, the flash unit may no longer be used. Remove the batteries! Do not touch any internal components.HIGH VOLTAGE!
  • After a series of flashes with full power and short intervals, a pause of at least 3 minutes must be observed after each series of 20 flashes!
• When taking a series of flash shots at full light output and with rapid recycling times, and with zoom positions of 35mm and less, the diffuser heats up, due to the high level of thermal energy.
• This flash unit may be used in combination with a camera-integrated flash only if the flash can be folded out completely.
• Rapid changes in temperature may lead to condensation. If this occurs, allow time for the unit to become acclimatized.
• Do not use any toxic batteries or rechargeable batteries!

2 Dedicated flash functions

Dedicated flash functions are flash functions that have been specially adapted to a given camera system. Depending on the type of camera, different flash functions are supported.

44AF-2 Canon

• Flash-ready indication in camera viewfinder
  • Automatic flash sync speed control
  • E-TTL / E-TTL II flash mode
  • Automatic fill-in flash control
• Manual flash exposure correction for E-TTL / E-TTL II
• Flash exposure storage FE with E-TTL / E-TTL II
• 1st or 2nd curtain synchronisation (REAR)
  • Automatic motor zoom control
  • Automatic AF measuring beam control
• Programmed auto flash mode (AUTO FLASH)
• Wireless Canon E-TTL remote flash mode
• Wake-up function for the flash unit

44AF-2 Nikon:

• Flash-ready indicator in camera viewfinder/camera display
• Correct exposure indicator in camera viewfinder /camera display
  • Automatic flash sync speed control
• i-TTL and I-TTL-BL flash mode
• Flash exposure measurement memory for i-TTL and I-TTL-BL ^1)
• Manual i-TTL flash exposure correction
• 1st or 2nd curtain synchronisation (REAR) (set on the camera, if possible)
  • Automatic motor zoom control
  • Automatic AF measuring beam control
• Programmed auto flash mode
• Wireless remote flash mode (Nikon Advanced Wireless Lighting)
• Preflash for red-eye reduction (set on the camera, if possible)
• Triggering control / auto flash
• Wake-up function for the flash unit 1) not with Coolpix cameras

44AF-2 Olympus/Panasonic:

• Flash-ready indication in camera viewfinder/camera display
  • Automatic flash sync speed control
• TTL with measuring preflash
• FourThirds - System compatible
  • Automatic flash / triggering control
• Manual flash exposure correction for TTL
  • Automatic fill-in flash control
• 1st or 2nd curtain synchronisation (2nd curtain, SLOW2) (set on the camera, if possible)
  • Automatic motor zoom control
  • Automatic AF measuring beam control
• Programmed flash mode
• Wireless TTL remote slave flash mode
• Preflash function for reducing the red-eye effect
• Wake-up function for the flash unit

44AF-2 Pentax:

• Flash-ready indication in camera viewfinder/camera display
  • Automatic flash sync speed control
• P-TTL flash mode
  • Automatic P-TTL-fill-in flash control
• Manual flash exposure correction
  • Automatic motor zoom control
  • Automatic AF measuring beam control (multi-zone AF measuring beam)
• Programmed flash mode
• Wireless P-TTL remote flash operation as slave flash unit
• Preflash function for reducing the red-eye effect
  • Automatic flash / triggering control
• Wake-up function for the flash unit

44AF-2 Samsung

• Flash-ready indication in camera viewfinder
  • Automatic flash sync speed control
• A-TTL flash mode
  • Automatic fill-in flash control
• Manual flash exposure correction for A-TTL
  • 1st or 2nd curtain synchronisation (REAR)
  • Automatic motor zoom control
• Programmed auto flash mode (AUTO FLASH)
• Wireless A-TTL remote slave flash mode
  • Automatic AF measuring beam control (multi-zone AF measuring beam)
• Wake-up function for the flash unit

44AF-2 Sony:

• Flash-ready indication in camera viewfinder
  • Automatic flash sync speed control
• Preflash TTL and ADI metering
  • Automatic fill-in flash control
• Manual flash exposure correction
• 1st or 2nd curtain synchronisation (REAR) (set on the camera, if possible)
  • Automatic motor zoom control
  • Automatic AF measuring beam control
• Wireless remote flash mode
• Triggering control (AUTO FLASH)
• Wake-up function for the flash unit

44AF-2 Fujifilm:

• Flash-ready indication in camera viewfinder/camera display
  • Automatic flash sync speed control
• TTL with measuring preflash
  • Automatic fill-in flash control
• Manual flash exposure correction (set on the camera, if possible)
• 1st or 2nd curtain synchronisation (2nd curtain, SLOW2) (set on the camera, if possible)
  • Automatic AF measuring beam control (set on the camera, if possible)
• Programmed flash mode
• Preflash function for reducing the red-eye effect
• Wake-up function for the flash unit

It is impossible to describe all camera types and their individual dedicated flash functions within the scope of these instructions. Therefore, please refer to the flash mode description in your camera's operating instructions to find out which functions are supported and which ones have to be set manually on the camera. Using lenses not equipped with a CPU (i.e., lenses without auto focus mode), results in certain functional limitations.

GB

3 Preparing the flash unit for use

3.1 Power supply

Suitable batteries/rechargeable batteries

The flash unit can be operated with any of the following batteries:

• 4 nickel-metal-hydride batteries 1.2V, type IEC HR6 (size AA)
• 4 alkaline-manganese dry cell batteries 1.5V, type IEC LR6 (size AA). Maintenance-free power source for moderate power requirements.
• 4 lithium batteries 1.5V, type IEC FR6 (size AA). Maintenance-free high-capacity power source with a low self-discharge rate.

Please only use the power sources given above. If other power sources are used, there is a risk of damaging the flash unit.

If your flash unit is not going to be used for an extended period of time, remove the batteries.

Replacing the batteries

The rechargeable batteries/batteries are empty or flat when the flash delay exceeds 60 seconds (interval between triggering a full output flash, e.g. in M, and when the flash readiness indicator is relit).

• Switch off the flash unit by pressing the ⏻ button until all LED displays are off.
• Remove the flash device from the camera and slide the battery cover ⑩ downwards.
• Insert the batteries and slide the battery cover ⑩ back into place.

Please ensure the batteries/rechargeable batteries are inserted correctly by checking against the symbols in the battery compartment. Incorrect insertion can terminally damage the unit. Risk of explosion in event of improper use of batteries.

Always replace all batteries with the same high-quality brand batteries of the same capacity. Used batteries and rechargeable batteries should not be

disposed of with domestic waste. Do your bit for the environment and dispose of used batteries/rechargeable batteries at designated collections points.

3.2 Mounting the flash unit Mounting the flash unit on the camera

Turn off the camera and flash before mounting or removing.

• Turn the knurled nut ⑫ towards the flash unit housing as far as it will go. The locking pin in the adapter shoe is now fully retracted into the case.
• Slide the flash unit foot completely into the camera accessory shoe.
• Turn the knurled nut ⑫ towards the camera housing as far as it will go, clamping the flash unit in place. If the camera does not have a locking hole, the spring-loaded locking pin retracts into the adapter case so as not to damage the surface.

Removing the flash unit from the camera

Turn off the camera and flash before mounting or dismounting.

• Turn the knurled nut ⑫ towards the flash unit housing as far as it will go.
• Remove the flash unit from the camera's accessory shoe.

3.3 Switching the flash unit on and off

- Switch on the flash unit by pressing the button ⓑ The unit will revert to the last operating mode and the LED display will light up accordingly.

The button flashes red in standby mode. Switch off the flash unit by pressing the button until all LED displays are off.

In the event that the flash unit will not be required for a longer period of time, we recommend switching the unit off by pressing the (A) button and removing the power supply (batteries, rechargeable batteries).

GB

3.4 Automatic unit shut-off / Auto OFF

The flash unit is configured so that 10 minutes after -

• switching on,
• triggering the flash,
• lightly depressing the camera shutter release,
• switching off the camera flash metering system...

...it switches to standby mode (Auto OFF) in order to both save energy and avoid any unintentional draining of the power source.

The button ⏻ flashes in standby mode.

The flash unit shuts off completely approx. 1 hour after last use.

Automatic shut-off is not active in slave mode.

The operational settings last used are retained following automatic shut-off and are immediately reinstated when the unit is switched back on.

To use the wake up function, simply press any button for approx. 1 second or lightly depress the camera shutter.

The flash unit should always be turned off using the main switch ⏻ if it is not going to be used for an extended period.

4 Flash unit LED displays

4.1 Flash readiness display

The button ① is illuminated green when the flash capacitor is loaded to show the flash is ready.

This means that the flash can be used for the next shot. Flash readiness is relayed to the camera where a corresponding message appears in the viewfinder.

If the photo is taken before the flash readiness message appears in the camera viewfinder, the flash unit will not be triggered and your photo maybe be incorrectly lit in the event that the camera has already activated flash sync control (see 10).

4.2 Correct exposure display

With Samsung cameras is an exposure indicator not possible.

When the shot is correctly lit in TTL operating modes, the correct exposure is displayed by means of the button ⏻ lighting up red for 3 seconds.

If there is no correct exposure message after the shot, it was underexposed and you must select the next smallest f-stop (e.g. f-stop 8 instead of 11) or decrease the distance to the subject or reflective surface (e.g. for bouncing flash) and take the shot again.

4.3 Flash mode display

The configured operating mode will be shown by the appropriate illuminated LED e.g. TTL mode.

4.4 Indication of light output

The four red LEDs above the buttons display the following information:
- Partial flash light output in "M" mode
- Illumination of the video light in "LED" mode
- Firmware status at turn on (only when activated).

1/1 1/2 1/8 1/32

GB

5 Flash modes

Depending on camera type different TTL flash modes, manual mode and remote slave mode are available.

Flash mode can be configured via the appropriate TTL, M or SL button.

5.1 TTL flash modes

In TTL modes, excellent flash exposure is straight-forward. In TTL mode, flash metering is taken care of by a sensor in the camera. It measures reflected light through the lens (TTL).

This enables the camera to automatically determine the flash output required for correct exposure of the shot.

The benefit of TTL flash modes is that all factors which could influence the exposure (filters, changes to aperture and focal length for zoom objectives, extensions for close-ups etc.) are automatically taken into account through flash light adjustment.

If the shot is correctly lit, the button ⏻① will light up red for 3 seconds (see 4.2).

5.1.1 E-TTL- and E-TTL-II - flash mode (Canon)

E-TTL and E-TTL-II flash modes are digital flash modes based on the further development of the TTL flash mode for analogue cameras.

5.1.2 i-TTL / i-TTL-BL flash mode (Nikon)

The i-TTL flash mode is supported by CLS-compatible Nikon cameras.

The i-TTL-BL flash mode are only supported by

CLS-compatible cameras if lenses are used that transmit distance data to the camera

(for example, "D-AF Nikkor lens").

The i-TTL-BL flash is only possible in a 0^ reflector position.

When shooting this data is taken into consideration in addition in adjusting the flash exposure.

Some cameras do not support the BL function in combination with SPOT exposure metering! In these cases, the normal i-TTL flash mode is set.

5.1.3 TTL- flash mode with measuring preflash (Olympus, Panasonic)

The TTL flash mode with measuring pre-flash is a further development of the standard TTL flash mode of analogue cameras.

Depending on the camera model, the preflashes precede the main flash by such a short interval that they practically cannot be distinguished from the main flash! The preflashes do not contribute to the lighting of the shot.

5.1.4 P-TTL- flash mode (Pentax)

The P-TTL flash operation is a type of digital TTL flash operation and a further development of the TTL flash operations of analogue cameras.

5.1.5 A-TTL flash mode (Samsung)

The A-TTL flash mode is supported by compatible Samsung cameras.

5.1.6 Preflash TTL and ADI metering (Sony)

Preflash TTL and ADI metering are digital TTL flash operating modes and refined versions of the TTL flash operation found in analogue cameras.

In the case of ADI metering, additional distance data from the lens is incorporated into the flash exposure process. The selection and/or setting of the pre-flash TTL and ADI metering operating modes are carried out on the camera (see camera operating instructions).

5.1.7 TTL flash mode with measurement pre-flash (FUJIFILM)

The TTL flash mode with measuring pre-flash is a further development of the standard TTL flash mode of analogue cameras.

Configuration procedure

• Switch on the flash unit by pressing the button ⏻.
• Press the “TTL” button⑦ on the flash unit to configure the TTL mode.
• Set a corresponding operating mode on the camera e.g. P, S, A.

5.1.8 Automatic TTL fill-in flash mode

For most camera types, automatic TTL fill-in flash is activated in programmed auto mode P and variable or subject programme in daylight conditions (see camera operating instructions).

With fill-in flash you can remove annoying shadows, and in back-lit shots a balanced exposure can be achieved between subject and background. A computer-controlled measuring system on the camera ensures appropriate combinations of shutter speed, working aperture and flash output.

Ensure that the backlight source is not shining directly into the lens. This will interfere with the camera's TTL metering.

There is no adjustment or display for automatic TTL fill-in flash on the flash unit in this instance.

5.1.9 Manual flash exposure correction in TTL flash mode

This function must be configured on the camera, see camera operating instructions.

The automatic flash in most cameras is set to 25% reflectance (average reflectance of flash subject).

A dark background which absorbs a lot of light or a light background which is heavily reflective (e.g. backlit shots) can cause the subject to be over or underexposed.

To compensate for the above effect, the flash output can be adjusted manually with the correction value of the shot.

The correction value is based on the contrast between the subject and the background.

Hint:

A dark subject in front of a light background

= positive correction value.

A light subject in front of a dark back-ground

= negative correction value.

Exposure correction through alteration of the lens aperture is not possible, as the camera's automatic exposure views the altered aperture as the normal working one.

Manual flash exposure correction in TTL flash modes can only take place if the camera supports this feature (see camera operating instructions).

Don't forget to delete the TTL exposure correction on the camera after the shot.

Highly reflective objects in the intended shot can disturb the camera's automatic exposure. This results in underexposure. Remove reflective objects or set a positive correction value.

5.2 Manual flash mode

In manual flash mode M, full flash output is deployed if no partial lighting is set.

By selecting a suitable partial light output or adjusting the camera's aperture, it is possible to adapt to the ambient situation.

The adjustable range stretches from P 1/1 — P1/32.

Configuration procedure

• Switch on the flash unit by pressing the button ⏻①.
• Press "M" ② to set the manual operating mode M.

Manual partial light output

Partial light output can be configured in manual operating mode M.

Configuration procedure

- Press the "M" b button on the flash unit until the LED illuminates the desired partial light output 1/1, 1/2, 1/8 or 1/32.

The setting is effective immediately and saved automatically.

Various camera types only support manual flash adjustment in manual M camera operating mode.

GB

5.3 Test flash To assess the lighting conditions a test flash can be initiated. Press the „TTL" ⑦ button for approx. 1.5 seconds. The test flash has a strength of around. P = 1/32. 5.4 Video light Use the video light to illuminate shots of moving images at close range. The light's adjustment range extends from P = 1/1; 1/2; 1/8 to 1/32. Setting procedure • Switch on the flash unit with the ① button. • Press "LED" ⑤ key to adjust the Video Light Mode. The brightness for the video light can be adjusted in four stages. • Press "LED" ⑤ key until you reach the desired illumination 1/1, 1/2, 1/8 or 1/32 respectively is displayed. The setting is immediately effective and automatically saved.

6 Motor zoom main reflector The flash unit motor zoom main reflector can illuminate lens focal lengths from 24mm (135 format). By using the integrated wide-angle diffuser i this value is extended to 12mm. Auto zoom The zoom position of the main reflector is automatically adjusted to the lens focal length when the flash unit is used with a camera that transmits the data related to the lens focal length. Automatic adjustment does not occur when the main reflector is pivoted, the wide-angle diffuser i is extended or a Mecabounce (accessory) is attached. Adjustment is automatic for lens focal lengths from 24mm (135 format). When the information on the image processing chip of the camera is transferred to the camera, the motor zoom main reflector is automatically guided to the correct position. If the information on the image processing chip of the camera is not transferred, the shot may be illuminated more than necessary.

The LED button of the mode set flashes as a warning if the shot cannot be completely illuminated. In such a scenario, use the wide-angle diffuser ⑨.

6.1 Wide-angle diffuser

With the integrated wide-angle diffuser ⑨, focal lengths from 12mm can be exposed (135 format).

Flip the wide-angle diffuser ⑨ out of the main reflector as far as it goes and let go.

It will fold down automatically.

The main reflector will be guided to the required position automatically.

Automatic adjustment of the motor zoom main reflector cannot occur when the wide-angle diffuser is in use.

To set the wide-angle diffuser ⑨ to 90° flip it up and slide it in completely.

6.2 Mecabounce 52-90

The Mecabounce (special accessory; see 16) can be attached to the front of the motor zoom main reflector.

The motor zoom main reflector will then only automatically adjust the focal length set for the camera lens if:-

• a digital data exchange occurs between the flash unit and the camera, e.g. by pressing the shutter release.
• the motor zoom main reflector stays in the default position (°0).

The motor zoom main reflector will not automatically adjust the focal length set for the camera lens:

• if the integrated wide angle lens is rotated in front of the reflector.
• if the mecabounce MBM-02 (special accessory) is mounted onto the motor zoom main reflector.

When the head is rotated vertically or horizontally, the motor zoom main reflector moves into an optimal position for indirect flash and stays in this position, independent of the focal length set for the camera lens.

7 Remote slave flash mode

Applicable to all versions:

The slave flash units must be able to receive light from the master or controller flash unit via the integrated sensor ⑥ for remote use.

The flash unit in the camera can function as a master or controller flash unit depending on camera type. Further information regarding settings on the master or controller flash unit can be found in the respective operating instructions.

Canon

The flash unit supports Canon's wireless E-TTL Remote System in slave flash mode.

This means that one or more slave flash units can be controlled remotely from a master (depending on camera model) flash unit on the camera (e.g. mecablitz 64 AF-1C digital) or from the camera master.

Slave flash unit 44AF-2 is always set to slave Group A and all remote channels 1, 2, 3 and 4.

Nikon

In slave mode, the flash unit supports the wireless Nikon remote system and is also compatible with the Nikon

"Advanced Wireless Lighting" system.

This means that one or more slave flash units can be controlled remotely from a master (depending on camera model) flash unit on the camera (e.g. mecablitz 64 AF-1N digital) or from the camera master.

Slave flash unit 44AF-2 is always set to slave Group A and all remote channels 1, 2, 3 and 4.

Olympus

The flash unit is compatible as a slave flash unit with the wireless Olympus RC flash system (RC = remote control or remote mode).

This means that one or more slave flash units can be controlled remotely from a master or controller flash unit on the camera (e.g. mecablitz 64AF-10 digital) or from the camera master.

Slave flash unit 44AF-2 is always set to slave Group A and all remote channels 1, 2, 3 and 4.

Pentax

The flash unit supports Pentax is wireless P-TTL Remote System in slave flash mode.

This means that one or more slave flash units can be controlled remotely from a master or controller flash unit on the camera (e.g. mecablitz 64AF-1P digital) or from the camera master.

Slave flash unit 44AF-2 is always set to all remote channels 1, 2, 3 and 4.

Samsung

The remote slave flash mode is not supported by Samsung cameras.

In this way wireless remote control of one or more slave flash units by a master flash unit (depending on the camera type) on the camera or by the camera's master is possible.

For slave flash unit 44AF-2 slave group A as well as all remote channels 1, 2, 3 and 4 are always set.

Sony

The flash unit supports the wireless Sony remote system in the "CTRL" and "CTRL+ modes.

This means that one or more slave flash units can be controlled remotely from a master or controller flash unit on the camera (e.g. mecablitz 64AF-2S digital) or from the camera master (depending on camera model).

For slave flash unit 44AF-2S, slave group RMT as well as all remote channels 1, 2, 3 and 4 are always set.

Fujifilm

At the time of printing this instruction manual, FUJIFILM cameras does not support the remote slave function.

The 44AF-2 digital automatically switches to the TTL mode of operation after around 1-2 seconds after pressing the "SL" button.

When remote slave mode is supported by FUJIFILM cameras, the 44AF-2 can be used as a slave flash unit after a firmware update. Afterwards, wireless remote control of one or more slave flash units by a master flash unit

(depending on the camera type) on the camera or by the camera's master is possible.

For slave flash unit 44AF-2, slave group A as well as all remote channels 1, 2, 3 and 4 are always set.

Configuration procedure for remote slave flash mode

• Switch on the flash unit by pressing the button ⏻①.
• Press the "SL"④ button on the flash unit to configure the remote slave SL flash mode. The setting is effective immediately and saved automatically.

Checking the remote flash mode

• Position the slave flash unit according to subsequent shooting requirements.
  A flash unit stand S60 (accessories) should be used when setting up the slave flash unit.
• Wait until all involved flash units are ready. When flash readiness is achieved for the slave units, the AF measuring beam ⑬ will start flashing.

- To release a test flash, press the manual firing button ⑦ on the master or controller flash unit. The slave flash units will respond with a test flash. Should a slave not respond, adjust the position of the slave so that the slave sensor f can receive light from the master or controller flash unit.

8 Modelling light (ML)

Modelling light is only possible if the function is integrated into the camera.

Modelling light (ML) uses a high frequency strobe light.

It gives the impression of quasi continuous light for 3 seconds.

Modelling light allows you to evaluate light distribution and shadow prior to the shot.

Modelling light is activated via the camera.

9 Flash techniques

9.1 Bounce flash

Bounce flash illuminates the subject more softly and reduces dense shadows. It also reduces the drop in light from foreground to background that occurs for physical reasons.

The main reflector of the flash unit can be swivelled horizontally and tilted vertically for bounce flash.

To avoid colour cast in your shots, the reflective surface should be colour-neutral or white.

When tilting the main reflector vertically, make sure that it is turned through an angle that is wide enough to prevent direct light from falling on the subject. For this reason the reflector should be tilted at least as far as the 60^ lock-in position. When the reflector head is tilted, the main reflector is moved to a position of greater/equal 70 mm in order to prevent the subject from being additionally illuminated by dispersed light.

9.2 Bounce flash with a reflector card

The use of bounce flash with the integrated reflector card ⑧ can bring out highlights in the eyes of human subjects:

• Tilt the reflector head upwards by 90^ .
• Pull the reflector card⑧ together with the wide-angle diffuser⑨ from above out of the reflector head and forwards.
• Hold the reflector card ⑧ and push the wide-angle diffuser ⑨ back into the reflector head.

9.3 Flash exposure memory FE

Several Nikon and Canon cameras have a flash exposure memory (FV memory).

This is supported by the flash unit in the Nikon i-TTL and i-TTL-BL or in the Canon E-TTL flash modes.

It can be used to define and store the exposure level for the subsequent shot before the shot is actually taken.

This can be useful when, for example, the flash exposure has to be adjusted

GB

to specific details that may not be necessarily be identical with the main subject.

The function is activated on the camera, in some instances as an individual function. The subject detail to which the flash exposure is to be adjusted is sighted and brought into focus with the AF sensor/metering window in the camera.

Pressing the camera's AE-L/AF-L button (Nikon) or FE button (Canon - the description may vary from camera to camera; see camera operating manual) causes the flash unit to fire a test flash.

The stored metering value, for example "EL" or "FEL", is then displayed in the camera viewfinder.

The camera uses the reflected light of the test flash to determine the light output required for the subsequent exposure.

The actual main subject can then be brought into focus with the camera's AF sensor/metering window. When the shutter release is pressed, the picture will be exposed with the previously defined light output of the flash unit!

In Canon cameras the flash exposure memory FE is not supported during the green fully-automatic programme, the Vari programme and the subject programmes!

For more detailed information on adjustments and handling, refer to the camera's operating instructions!

10 Automatic flash sync speed control

Depending on the camera model and camera mode, the shutter speed is switched to flash sync speed when flash readiness is reached (see the camera's operating instructions).

Various cameras have a sync speed range, for example from 1/60 sec to 1/250 sec (see the camera's operating instructions).

Shutter speeds slower than the flash sync speed can be set according to the camera mode and the selected flash synchronisation.

If a camera with a between-the-lens shutter is used, flash sync speed is not controlled automatically. As a result, the flash can be used at all shutter speeds.

10.1 Automatic high-speed synchronisation (HSS)

Various cameras support automatic high-speed synchronisation (see the camera's operating instructions). This flash mode makes it possible to use a flash unit even with shutter speeds that are faster than the flash sync speed. Interesting results may be achieved in this mode when, for example, a wide open aperture (e.g., f/2.0) is used to limit the depth of field in portrait shots taken in very bright ambient light. The flash unit supports high-speed synchronisation in TTL and M flash modes (depending on the type of camera).

For physical reasons, however, high-speed synchronisation significantly reduces the number and the maximum flash range.

High-speed synchronisation is activated automatically if a shutter speed faster than the flash sync speed is set on the camera, whether manually or automatically by the exposure program.

Note that in the case of high speed synchronisation the guide number of the flash unit also depends on the shutter speed.

The faster the shutter speed, the lower the guide number!

11 Automatic AF measuring beam

The automatic AF measuring beam ⑬ is activated in the flash unit by the camera when the ambient lighting conditions become inadequate for automatic focusing.

A striped pattern is projected onto the subject which the camera can use to focus. Depending on the camera's activated AF sensor, the AF beam has a range of approximately 6 m to 9 m (with a standard 1.7/50 mm lens).

Parallax error between lens and AF measuring beam ⑬ limits the close-up range with the AF measuring beam to approximately 0.7 m to 1 m.

To activate the automatic AF measuring beam ⑬ the camera must be set to the „Single-AF (S)“ or „ONE SHOT“ autofocus mode and the flash unit must indicate flash readiness. Some camera models support only the camera’s internal AF measuring beam m. In this case, the automatic AF measuring beam m of the flash unit is not activated (as in the case of compact cameras; see the camera’s operating instructions).

Low-speed zoom lenses can significantly curtail the range of the AF measuring beam!

Some cameras support the AF measuring beam ⑬ in the flash unit only with the camera's central AF sensor.

If a peripheral AF sensor is selected, then the AF measuring beam ⑬ will not be activated in the flash unit!

12 Triggering control (auto-flash)

On some cameras the flash will not be fired when the prevailing light is sufficient for an exposure. When the camera shutter release is depressed, no flash exposure is triggered.

In various cameras the triggering control only works in the full program mode or „P“ program or must be activated on the camera (see camera operating instructions).

13 Care and maintenance

Remove dust and grime with a soft dry cloth or silicon-treated cloth. Do not use cleaning agents as these may damage the plastic parts.

13.1 Firmware updates

Flash unit firmware can be updated via the USB port ⑪ and, within the technical framework, adapted to the functionality of future cameras.

Checking the firmware version

• Switch off the flash unit by pressing the ⏻ ① button until all LED displays are off.
• Hold down the TTL button⑦ on the flash unit whilst pressing the ⏻ ① button.

On the flash unit, the M button ② and the LED for partial light output ③ 1/1 and 1/32 will flash.

The number of flashes shows the firmware version e.g. 1/1 LED flashes once and the 1/64 LED 3 times to install firmware version 1.3.

Further information can be found on the Metz website: www.metz-mecatech.de

13.2 Flash capacitor forming

The flash capacitor built into the flash unit undergoes physical change if the unit is not switched on for a prolonged period. For this reason it is necessary to switch the unit on for approximately 10 minutes at least once every three months. The power supplied by the power source must be sufficient to cause the flash readiness indicator to light up no more than one minute after the flash unit is switched on.

14 Troubleshooting

If the flash unit does not function as it should, switch it off for approx. 10 seconds via the ⏻① button. Check the camera settings and that the flash unit stand is fitted correctly in the accessory shoe.

Replace the batteries with new or freshly charged batteries. The flash unit should function normally again once it is switched back on. If this is not the case, contact your local dealer.

Below is a list of some of the problems that may occur when the flash unit is used. For each item, possible causes and remedies for the problem are listed.

The AF measuring beam of the flash unit is not activated.

• The flash unit is not ready for firing.
• The camera is not in „Single-AF (S)“ or „ONE SHOT“ mode.
• The camera supports only its own internal AF measuring beam, e.g. with compact cameras and bridge cameras.
• Some cameras support the AF measuring beam in the flash unit only with the camera's central AF sensor. If a peripheral AF sensor is selected, then the AF measuring beam will not be activated in the flash unit.
  Activate the central AF sensor.

The reflector position is not automatically adjusted to the current zoom position of the lens.

• The camera is not transmitting any digital data to the flash unit.
• There is no exchange of data between the flash unit and the camera.
  Tap the camera's shutter release.
• The camera is equipped with a lens without CPU.
• The main reflector is swivelled out of its locked normal position.
• The wide-angle diffuser folds out from the main reflector.
• A Mecabounce is mounted in front of the main reflector.

Automatic switching to the flash sync speed fails to occur.

• The camera has a between-the-lens shutter (as do most compact cameras). Switching to sync speed is therefore unnecessary.
• The camera operates with shutter speeds that are slower than the flash sync speed. Depending on the camera mode, there is no switch to flash sync speed (see the camera's operating instructions).

The shots have shadows in the bottom of the image.

- Because of parallax error between lens and flash unit, close-up shots may not, depending on the focal length at the bottom of the image, be fully illuminated. Turn the wide-angle diffuser in front of the reflector.

The shots are too dark.

• The subject is beyond the range of the flash unit. Note: Using bounce flash reduces the range of the flash unit.
• The subject contains very bright or highly reflective areas. The metering system of the camera or flash unit is deceived as a result. Set a positive manual flash exposure correction, e.g., +1 EV.

The shots are too bright.

- When taking close-ups, make sure to preserve specific minimum illumination ranges to avoid overexposure. The minimum distance from the subject should represent at least 10% of the maximum range.

15 Technical data

Max. guide numbers at ISO 100/21°, zoom 105 mm:

In the metric system: 44 In the imperial system: 144

Flash modes:

- Canon: E-TTL, E-TTL II, Manuel M, Remote slave mode, HSS. - Nikon: i-TTL, i-TTL-BL, Manuel M, Remote slave mode, FP. Olympus:

TTL, Manuel M, Remote slave mode, FP.

- Pentax: P-TTL, Manuel M, Remote slave mode, P-TTL-HSS. - Samsung: A-TTL, Manuel M

- Sony: Preflash TTL, ADI metering, Manuel M, remote slave mode, HSS.

- Fujifilm: TTL, Manuell M. Manual partial light output levels: P1/1; P1/2; P1/8; P1/32

Flash durations see table 2, (page 197):

Colour temperature:

approx. 5600 K

Synchronisation:

low-voltage ignition

Flash numbers:

approx. 220 with high-performance alkali-magnesium batteries

approx. 270 with NiMH rechargeable batteries (2100 mAh)

approx. 450 with lithium batteries

(each with full light output)

Flash delay, each with full light output: approx. 3-4 seconds

GB

Motor zoom main reflector illumination:

from 24mm (135 format 24 x 36).

from 12mm with integrated wide-angle diffuser (135 format 12 x 36).

Reflector head pivot range and holding positions:

- Vertical:

45^60^75^90^

- Horizontal anti-clockwise:

60^ 90^ 120^ 150^ 180^

Horizontal clockwise:

60^ 90^ 120^

Video light:

- Illumination: 100 lx at a distance of 1M

- Dimming range: 1/1, 1/2, 1/8, 1/32

- Colour temperature: min. 5000 K

- Illumination:

54° corresponds to 35 mm focal length with regard to 35mm format 24 x 36

- Illumination duration:

Around 4 hours with NiMH rechargeable (2100 mAh) batteries and full light output.

Dimensions W x H x D:

approx. 73 x 130 x 106

Weight:

approx. 306g without power supply.

Accessories:

Flash unit with integrated wide-angle diffuser and reflector card, operating instructions.

16 Optional accessories

We accept no liability for malfunctions of or damage to the flash unit caused by the use of accessories of other manufacturers.

• Mecabounce MBM-02

With this diffuser, soft lighting can be achieved in a very simple manner. It gives your pictures a marvellous soft appearance. Skin tones are captured more faithfully. The maximum working range is reduced by about half in conformity with the loss of light.

• Bounce diffuser 58-23

(Order No. 000058235)

Softens heavy shadows with reflected light.

- Flash unit mounting foot S60

Flash unit mounting foot for slave mode.

- Easy Softbox ESB 60-60

(Order No. 009016076)

Dimensions: 60 × 60 cm

Including front and background diffusers, carrying case and Bowens-compatible adapter to connect to a Metz TL or BL studio flash device

- Easy Softbox ESB 40-40

(Order No. 009014047)

Dimensions: 40 × 40 cm

Including front and background diffusers, carrying case and Bowens-compatible adapter to connect to a Metz TL or BL studio flash device

- Flash device holder FGH 40-60

(Order No. 009094065)

Adapter for compact flash devices and Easy Softboxes Adjustable flash foot height

Connects to Metz lighting tripods LS-247 and LS-200

- Mini Softbox SB 30-20

(Order No. 009013023)

Colour: white, Dimensions: 30 × 20 cm

- Mini Softbox SB 22-16

(Order No. 009012217)

Colour: white, Dimensions: 22 × 16 cm

- Mini Softbox SB 18-15

(Order No. 009011817)

Colour: white, Dimensions: 18 × 15 cm

- Mini Octagon Softbox SB 34-34

(Order No. 009023432)

Colour: white, Dimensions: ∅ 34 cm

- Mini Octagon Softbox SB 20-20

(Order No. 009022029)

Colour: white, Dimensions: ∅ 20 cm

- Mini Octagon Softbox SB 15-15

(Order No. 009021516)

Colour: white, Dimensions: ∅ 15 cm

- Spot bounce diffuser SD 30-26 W

(Order No. 009043021)

Colour: white for neutral light / Dimensions: 30 × 26 cm

- Spot bounce diffuser SD 30-26 S

(Order No. 00904303A)

Colour: silver for cool light / Dimensions: 30 × 26 cm

- Spot bounce diffuser SD 30-26 G

(Order No. 009043048)

Colour: gold for warm light / Dimensions: 30 × 26 cm

• TTL connecting cable for Canon TCC-10

(Order No. 000305118)

The 1.8m long TTL connection cable for compact flash devices provides full TTL lighting control. Equipped with a tripod socket.

- Bag T58

(Bestellnr. 000006581)

Disposal of batteries

Do not dispose of spent batteries with domestic rubbish.

Please return spent batteries to collecting points should they exist in your country!

Please return only fully discharged batteries.

Normally, batteries are fully discharged if:

– they no longer function properly after prolonged use.

To ensure short-circuit safety please cover the battery poles with adhesive tape.

44AF-2 Olympus/Panasonic:

Pure geometric diagram with two labeled points and a central circle, no text or symbols present

P1/1; P1/2; P1/8; P1/32

- Easy Softbox ESB 40-40

(art. no. 009014047)

Misure: 40 × 40 cm

(art. no. 009012217)

(art. no. 009021516)

44AF-2 Olympus/Panasonic

P1/1; P1/2; P1/8; P1/32

- Easy Softbox ESB 40-40

(N° ref. 009014047)

Dimensiones: 40 × 40 cm

Your Metz product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used.

This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime.

Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.

This will help to protect the environment in which we all live.

CE	Note:	GB
Within the framework of the CE approval symbol, correct exposure was evaluated in the course of the electromagnetic compatibility test.
⚠️ Do not touch the SCA contacts !In exceptional cases the unit can be damaged if these contacts are touched.

Aerial view of an industrial complex with multiple factory buildings and solar panels, surrounded by water and trees (no visible text or signage)

Metz mecatech GmbH • Ohmstraße 55 • 90513 Zirndorf / GERMANY • www.metz-mecatech.de • [e-mail]

Close-up of a mechanical ring component with mounting base (no visible text or symbols)

mecablitz mecalightmecastudio

Photography setup with two lighting equipment and a black box on tripod stands (no text or symbols visible)

Black-and-white photo of a DSLR camera mounted on a tripod-mounted stand (no text or symbols visible)

Metz - always first class.

CE

715 47 0078.A1

D F NL GB I E
