Technical Specifications	Klarstein 10032157 Dehumidifier
Dehumidification Capacity	20 liters per day
Room Volume	Up to 120 m
Water Tank	2-liter tank
Weight	10 kg
Dimensions	30 x 50 x 20 cm
Energy Consumption	250 W
Noise Level	35 dB
Usage	Ideal for damp spaces such as basements, bathrooms, and laundry rooms.
Additional Features	Timer function, digital display, continuous mode.
Maintenance	Regular cleaning of the tank and filters.
Safety	Overflow protection, automatic shut-off.
General Information	2-year warranty, user manual included.

Frequently Asked Questions - 10032157 Klarstein

How do I set the desired humidity level on the Klarstein 10032157 dehumidifier?

To set the desired humidity level, use the control panel on the dehumidifier. Press the humidity setting button and select the desired level between 30% and 80%.

The dehumidifier won\'t start, what should I do?

Check if the device is properly plugged in and if the outlet is working. Also make sure the water tank is correctly installed and not full.

How do I clean the dehumidifier\'s filter?

Remove the filter from the dehumidifier and clean it with warm soapy water. Make sure to let it dry completely before reinstalling it.

What is the noise level of the Klarstein 10032157 dehumidifier?

The noise level of the dehumidifier is about 42 dB, making it relatively quiet and suitable for use in bedrooms or offices.

What is the dehumidification capacity of the device?

The Klarstein 10032157 dehumidifier has a dehumidification capacity of up to 12 liters per day, depending on ambient humidity levels.

How do I know if the water tank is full?

The dehumidifier is equipped with a full tank indicator. When the tank is full, a light turns on and the device automatically shuts off.

Can I use the dehumidifier in a cold room?

It is recommended to use the dehumidifier at temperatures between 5 C and 35 C for optimal operation.

Is there a continuous operation mode?

Yes, the Klarstein 10032157 dehumidifier has a continuous operation mode, ideal for high humidity conditions, where it runs uninterrupted until the tank is full.

USER MANUAL 10032157 Klarstein

Technical diagram of a portable air conditioner with numbered parts labeled for identification.

BEDIENFELD UND TASTENFUNKTIONEN

HUMERTY INDICATOR LIGHT TIMER LO OSC UV PLASMA ONISER HIGH LOW ROUTE SMART FAN OPERATION TANK FULL DEFROST

Tastenfunktionen

Illustration showing a hand holding a device and three separate panels (no text or symbols)

Wassertank leeren

Line drawing of a hand using a handheld device to press down an air conditioner unit (no text or symbols visible)

Line drawings of three different air purifiers with a cable, shown from different angles (no text or symbols)

Filterwechsel

Line drawing of a hand opening a cylindrical device with internal grating (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 13

Declaration of Conformity 13

Safety Instructions 14

Product Description 15

Control Panel and Key Functions 15

Use and Operation 18

Care and Cleaning 20

Troubleshooting 21

Hints on Disposal 22

TECHNICAL DATA

Item number 10032157
Power supply 220-240 V ~ 50 Hz
Water tank capacity 4 L

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)

SAFETY INSTRUCTIONS

• If the machine`s power supply cord is damaged, you must entrust the manufacturers of the machine. Maintenance service center or qualified technicians will change for you, in case of any danger. Lassen Sie das Gerät vor dem ersten Betrieb 2 Stunden lang stehen, bevor Sie es einschalten.
• Leave the appliance to stand for at least two hours before power on, especially after transportation.
• Make sure that the voltage matching with the relevant data indicated on the rating label.
  • The socket must be with grounding.
• Keep the appliance dry. Make sure no water on the top or the body. Do not unpin the plug when the appliance is working.
• If moving needed, please switch it off and unpin the plug. Allow a free space of 15 cm around air inlet of the appliance. Do not insert any object into the air inlet or outlet openings.
• Do not place the dehumidifier near a heating source (esp. a radiator) or indirect sunlight.
• Ensure that the appliance does not become hot.
• Empty the water tank regularly. (In extreme conditions the water tank may be full after a few hours operation.) Clean the air inlet filter if it becomes contaminated: the appliance is most effective when
• the filter is clean.
• Please do not expect the air dehumidifier to be effective when too many doors or windows are opened or when something in the room is producing a lot of humidity. The air dehumidifier will come into effect immediately. However, the reduction of humidity many hardly be measureable during the first few days.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
  • Cleaning and user maintenance shall not be made by children without supervision.

This appliance contains the coolant 1,1,1,2-tetrafluoroethane (R134a), an Hydrofluorocarbons (HFC) with insignificant ozone depletion potential and a somewhat lower global warming potential. The use of this coolant has however led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant is dangerous to the human health and can amongst others cause asphyxiation.

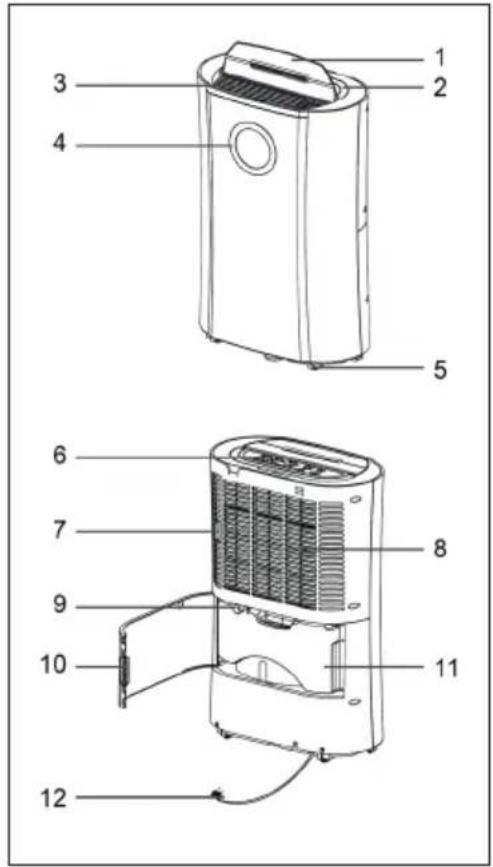

PRODUCTDESCRIPTION

1 Louvers
2 Handle
3 Air outlet
4 Lamp
5 Wheels

6 Control Panel
7 Prefi Iter / Activated Carbon Filter
8 Air inlet
9 Continuous drain port
10 Back cover
11 Water tank

Technical diagram of a portable air conditioner with numbered parts labeled for identification.

CONTROL PANEL AND KEY FUNCTIONS

HUMERTY INDICATOR LIGHT TIMER LO OSC UV PLASMA ONISER HIGH LOW ROUTE SMART FAN OPERATION TANK FILL DEFROST

Key functions

	POWER: Starts or Stops appliance.
	MODE: Select the functions of the unit for:SMART / HIGH / LOW / and FAN. The appliance will go. SMART function the first time it is switched on and remains in this mode until other type of programming is chosen. Depending on your relative humidity conditions, turn the fan speed switch to high or low.
	FAN (Ventilation Key): Press „MODE“ key to select „FAN“, and „FAN” indicator light comes on.
	Humidity Indicator LAMP: Start the appliance, the lamp will turn on automatically. The lamp color will change according to the humidity condition (with 100 seconds as interval between color changing)Red color means high humidity, RH≥80%Green color means comfortable, 80%>RH≥60%Orange color means dry, RH<60%Press “HUMIDITY” key, the lamp will be off or on.
	OSC. (oscillating function): The are three different directions, 45/90 degree and universal, the louvers will move or fixed asselected position.
	UV (Sterilization function): To select „UV“, press the „UV“ key and the light will come on.
	Humidity Setting: Press UP / DOWN key to select the desired relative humidity level, default relative humidity is 55%. Relative humidity 35% is selected, the compressor will not stop until water tank full.

TIMER PLASMA IONISER

TIMER (timer function): Press timer to program time and „TIMER“ light comes on while timer is programmed. Before programming make sure that the timer function has not been activated (the light must be off)! The following timer programs are available. Delayed power-on function (the appliance is in stand-by status) USE key „UP“ and „DOWN“ to set the time period (0\~24 hours) The appliance will start once time reaches setting value. Delayed power-off function (the appliances is in working stantus) The appliance will stop once time reach setting value.

ION.(ionization function): To select "lon", press the "ION" key and the light will come on. Anion can refresh air, it's so called air vitamin.

Indicators

DEFROST TANK FULL

DEFROST: The appliance will defrost automatically as programmed once the coil sensor detects temperature below some figure, and the defrosting indicator will light up at the same time. Once defrosting finishes, the appliance will recover to previous running mode.

TANK-FULL: If the water tank is full, the indicator light comes on and flash

USE AND OPERATION

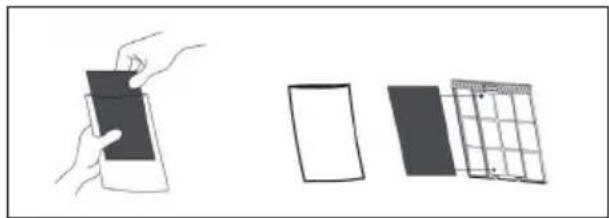

Carbon filter (deodor function)

Take out the carbon filter from bag and insert it on the filter. See picture below. Suggest to change the carbon filter every 3 months, it always keep the room fresh.

Illustration showing a hand holding a rectangular object, three blank panels, and a grid-patterned panel (no text or symbols)

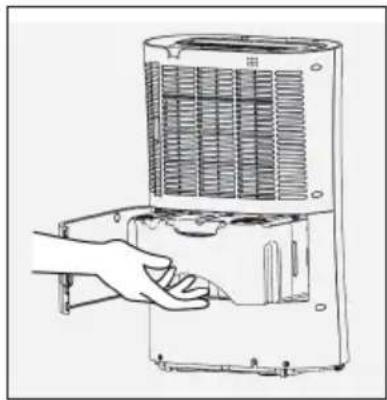

Emptying the water tank

Empty the water tank regularly when full, the air dehumidifier turns off automatically and the tank full indicator is turned on

1 Open the front cover of your device.
2 Hold the water tank by its handle.
3 Pull it out carefully.
4 Empty the water tank.
5 Return the empty water tank to its position after wiping it off from any water residue.

Line drawing of a hand using a portable air conditioner unit to handle the grille (no text or symbols)

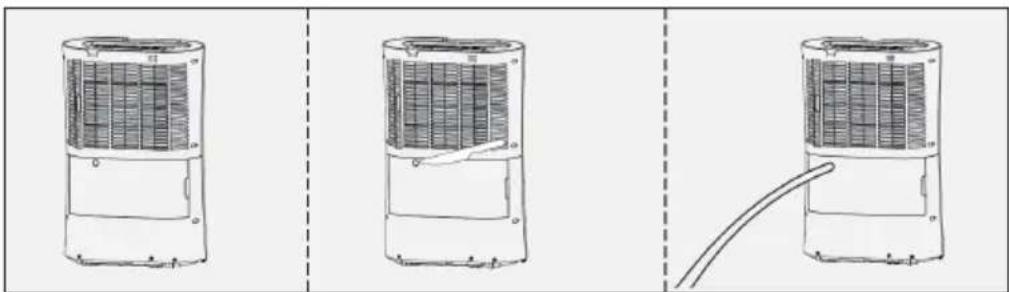

Continuous drainage operation

Your device has a drainage port that allows you to have continuous drainage. Connect a 10mm diameter PVC pipe (optional - not provided in the package) with the drainage port located on back part of the unit, for continuous drainage purpose, as below figure. Ensuring the hose is directed downwards, allowing water to flow by gravity to an external drain. Ensure that the end of the hose is lower than the drain opening, otherwise the water will not drain and flooding may occur.

Line drawings of three different air purifiers with a cable, shown from front, side, and top views (no text or symbols)

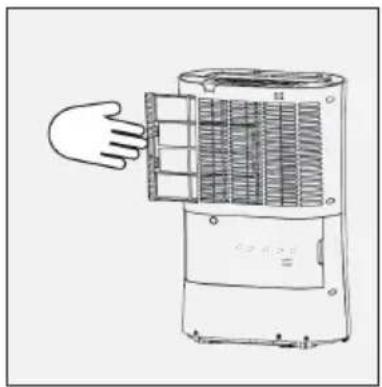

Replacement and maintenance of air filter

When used regularly, the filter may become clogged with dust and particles. Therefore the filter should be cleaned every one or two weeks. Follow these steps

1 Remove the filter by pulling it out carefully.

2 Clean the filter with a vacuum cleaner or with water. Tap the filter to remove excess water and let it dry completely. Once you make sure that your filter is completely dry, re-install it on your device. Do not wash your filter in the dishwasher and never use hair dryers or

Line drawing of a hand opening a device with heat exchanger (no text or symbols)

Genereral description

• The machine uses the temperature range of 5 \~35, please use the machine in this scope, (otherwise it will start the protection action, causing the machine automatically stop running.)
• At room temperature at 5 and the absolute temperature of the environment is very low. It is not necessary to use the machine.
• When the machine is running, it will produce a small portion of the heat, the room temperature will be a little higher, this is a normal phenomenon, please feel at ease.
• If the unit automatically stop running, please send the water in the water drained, and put back to the water tank, the machine will continue to operate.
• In order to ensure the normal operation, do not open the water tank float cover, or place any foreign body in the water tank.

When the machine can not start or unknown cause, please check with the following steps:

1 Ccheck whether the plug or the power cord is normal.
2 Above all is normally, just please re-start the machine after 10 minute.
3 If you are still unable to start, please contact the local dealer or the company's customer service department.

• Air inlet and outlet and the distance between the adjacent material to keep 15 cm above.
• After the machine is stopped, please restart in five minutes to make sure that the machine is used for longer service life.
• if the long time does not use the desiccant, please unplug the power plug.
  • If the machine inlet frosting, automatically defrost.

CARE AND CLEANING

• Do not put the body in the soft, uneven ground, in order to avoid vibration or sound.
• Do not use any fine rod, hard object into the body, so as to avoid failure or danger.
• Clean the body, gently wipe with a damp cloth, do not splash water, to avoid damage to electrical insulation.
• Do not put heavy or water body above the vase, items.
• Please stay away from the fuselage. The heat source side heaters to avoid danger and waste electricity.
• Please close the doors and windows when used to achieve the effect of the desiccant.
• Please clean filter once every two weeks (not to use 40 degrees above the hot water or alcohol, gasoline, toluene and other dangerous flammable liquid).
  • After filtering the net, please do not dry in the sun, so as not to deformation.
• Around the body or out of the air outlet do not put items, to ensure that the effect of the desiccant air.
• Power failure or long-term nouse, please unplug the power cable plug, so as to avoid leakage, and fire.
• Before your moving the machine, pour out the water within the water tank.
• When not in use, please put in the position of ventilation, and unplug the power plug to avoid danger.

TROUBLESHOOTING

Errot codes

Code Description
E1 Room	temperature (ambient temperature) sensor for short circuit
E2 Room	temperature sensor open circuit
E3 Humidity	sensor short circuit
E4 Humidity	sensor open circuit
E5 Coil	sensor short circuit
E6 Coil	sensor open circuit

Troubleshootig

Problem Possible Cause and Suggested Solution
The operation switch is “ON”, but the machine is not operation.	Is the water tank placed in the right position?
	Is the power plug inserted right position?
	Is the fuse broken?
	Is the power off?
The dehumidification amount is too low.	Is the front filter net dirty?
	Is the interior temperature and the humidity too low?
	Is the air outlet and air inlet jammed?
Long time operation can not reach the suitable humidity condition.	Does the door or window too widely open?
	Is there any generated water evaporator?
	Is the interior space too big?
When the machine is making huge noise.	Is the floor flat and hard?
	Is the dehumidifier in the right position?
The lamp is continuously on.	Is the temperature or humidify sensor is damaged or loosen?

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Estimado cliente:

Technical diagram of a portable air conditioner with numbered parts labeled for identification.

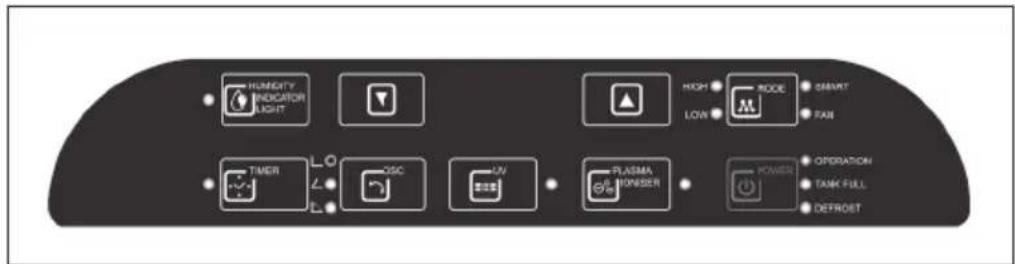

PANEL DE CONTROL Y TECLAS

HUMIDITY INDICATOR LIGHT TIMER LO OSC UV PLASMA PONSER HIGH LOW MODE SMART TAIN POWER OPERATION TANK-FULL DETROST

Teclas de función

Illustration showing a hand holding a device and three separate panels (no text or symbols)

Line drawing of a hand using a handheld device to press down an air conditioner unit (no text or symbols visible)

Line drawings of three different air purifiers with a cable, shown from different angles (no text or symbols)

Cambiar el filtro

Line drawing of a hand opening a cylindrical air conditioner unit (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

Technical diagram of a portable air conditioner unit with numbered parts for identification

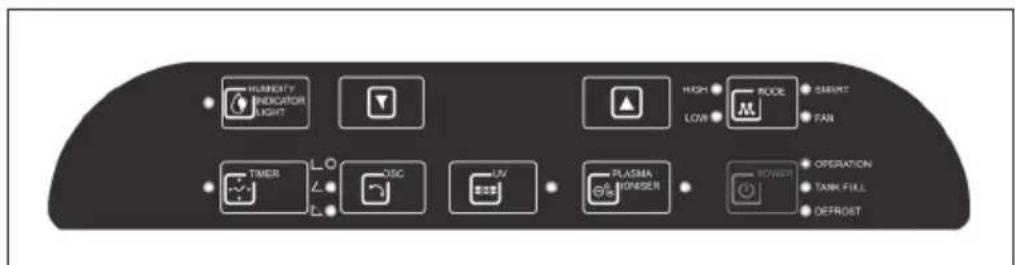

PANNEAU DE COMMANDE ET TOUCHES DE FONCTION
