10032662 - Dehumidifier Klarstein - Free user manual and instructions

Product type	Air dehumidifier
Brand	Klarstein
Model	10032662
Power supply	220-240 V ~ 50 Hz
Power	240 W
Dehumidification capacity	10 liters per day (30 °C, 80% RH)
Water tank	1.8 liters
Dimensions (approx.)	35 × 25 × 50 cm (W × D × H)
Weight (approx.)	10 kg
Timer	Programmable up to 24 h (in 1 h increments)
Operating modes	Automatic dehumidification (AUTO) and continuous drying (CONTINUOUS)
Fan speed	Fast / Slow (adjustable)
Humidity adjustment range	30% to 80% (in 5% increments)
Anti-freeze function	Active below 16 °C (display P1)
Continuous drainage	Possible via a hose (Ø 9 mm, max. length 60 cm)
Air filter	Washable, clean every 2 weeks
Minimum clearance around	20 cm on sides, 50 cm above
Use	Household use only
Full tank indicator	Yes, with audible beep
Maintenance	Clean the tank and surfaces with a damp cloth
Included accessories	Drain hose (not listed, but compatible)

Frequently Asked Questions - 10032662 Klarstein

How do I set the timer on the Klarstein 10032662 dehumidifier?

Press the Timer button. While operating, it allows you to program an automatic shut-off (from 1 to 24 h). When off, it programs a delayed start. The duration is set in one-hour intervals.

How to use the continuous water drainage?

Connect a drain hose (diameter 9 mm, max length 60 cm) to the water outlet at the back of the unit. Make sure the hose is securely attached and the water flows freely. The tank must be removed for this use.

How often should the filter be cleaned?

The filter should be cleaned every two weeks to ensure optimal performance. Use a damp cloth or gently vacuum it. Never use chemical products.

What does the 'P1' display on the screen mean?

The 'P1' display indicates that the anti-freeze function is activated. It activates when the ambient temperature drops below 16 °C. The unit alternates between on and off cycles to prevent freezing.

Why does the unit stop and beep?

This means the water tank is full. Empty it and replace it properly for the unit to restart automatically.

What humidity level is recommended for daily use?

A humidity level between 40% and 50% is generally comfortable and healthy. You can adjust it in 5% increments on the control panel.

Is the dehumidifier noisy?

The noise level is moderate, comparable to a fan. You can reduce noise by selecting the low fan speed.

Where to place the dehumidifier for optimal efficiency?

Place it on a level and stable floor, at least 20 cm from walls and other objects, and 50 cm above. Close doors and windows during use.

How to protect the device from freezing in winter?

The built-in anti-freeze function automatically protects the device between 2 °C and 16 °C. Do not use it below 5 °C and only drain the water if the room is heated.

When to use 'CONTINUOUS' mode instead of 'AUTO'?

Use CONTINUOUS mode for intensive drying (e.g., after water damage) as it runs continuously without considering humidity. AUTO mode adjusts automatically according to the set level.

USER MANUAL 10032662 Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 16
Installation 17
Product Description 17
Control Panel and Keys 18
Operation and Functions 19
Care and Cleaning 21
Troubleshooting 22
Disposal Considerations 23
Manufacturer & Importer (UK) 23

TECHNICAL DATA

Item number 10032040, 10032	662
Power supply 220-240 V ~ 50 Hz
Power consumption 240 W
Dehumidifying capacity 10 L/day (30 °C, RH 80%)
Water tank 1.8 L

SAFETY INSTRUCTIONS

• Please read the operating instructions carefully before using your dehumidifier for the first time and keep it on a safe floor.
• Never immerse the appliance in water or other liquids.
• Place the unit on a stable flat surface to avoid loud noises and vibrations.
• Never operate the appliance if a cable or connector has been damaged, after appliance malfunction or if the appliance was dropped or otherwise damaged.
• The appliance may only be repaired by qualified personal, improper repair work can be a source of considerable danger for the users.
• Pull out the power plug before transporting it and / or before cleaning.
• Operate the appliance only at the voltage specified on the rating label.
• The device may not be connected to a power strip with other household appliances.
• Use the appliance only in the household, and only for the purpose it was developed for.
• Do not operate this unit near heating appliances and flammable or dangerous objects.
• If the dehumidifier is operated in a room with gas driven devices, so the room must be aired regularly and often.
• Please use the function of the internal drying, if the device is not used for a long time. This will prevent formation of mildew and unpleasant smell inside the unit.
• Do not place heavy objects on the appliance.
• Do not hang curtains or wet clothes in front of the air outlet, this will overload the device.
• The drainage hose may not be installed outdoors at low temperatures.
• To prevent spillage, empty the water tank before relocating the appliance.
• Do not tip the appliance to any side as escaping water could damage the appliance.
• If the supply cord is damaged, it must be replaced by a qualified person to avoid a hazard.
• If you smell the smoke during start-up or if you can see the smoke, immediately disconnect the power plug out and contact your dealer.
• The unit should be installed with a minimum distance of 20cm from the wall or other obstacles.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

INSTALLATION

• Empty the water tank before turn on the unit.
• During the operation, keep unit closed to the door and windows closed to save energy.
  Make sure no block at air inlet and outlet
• Place the appliance on a stable surface and allow at least 20~cm of space around the appliance and at least 50~cm in the area to allow air to circulate sufficiently.

PRODUCT DESCRIPTION

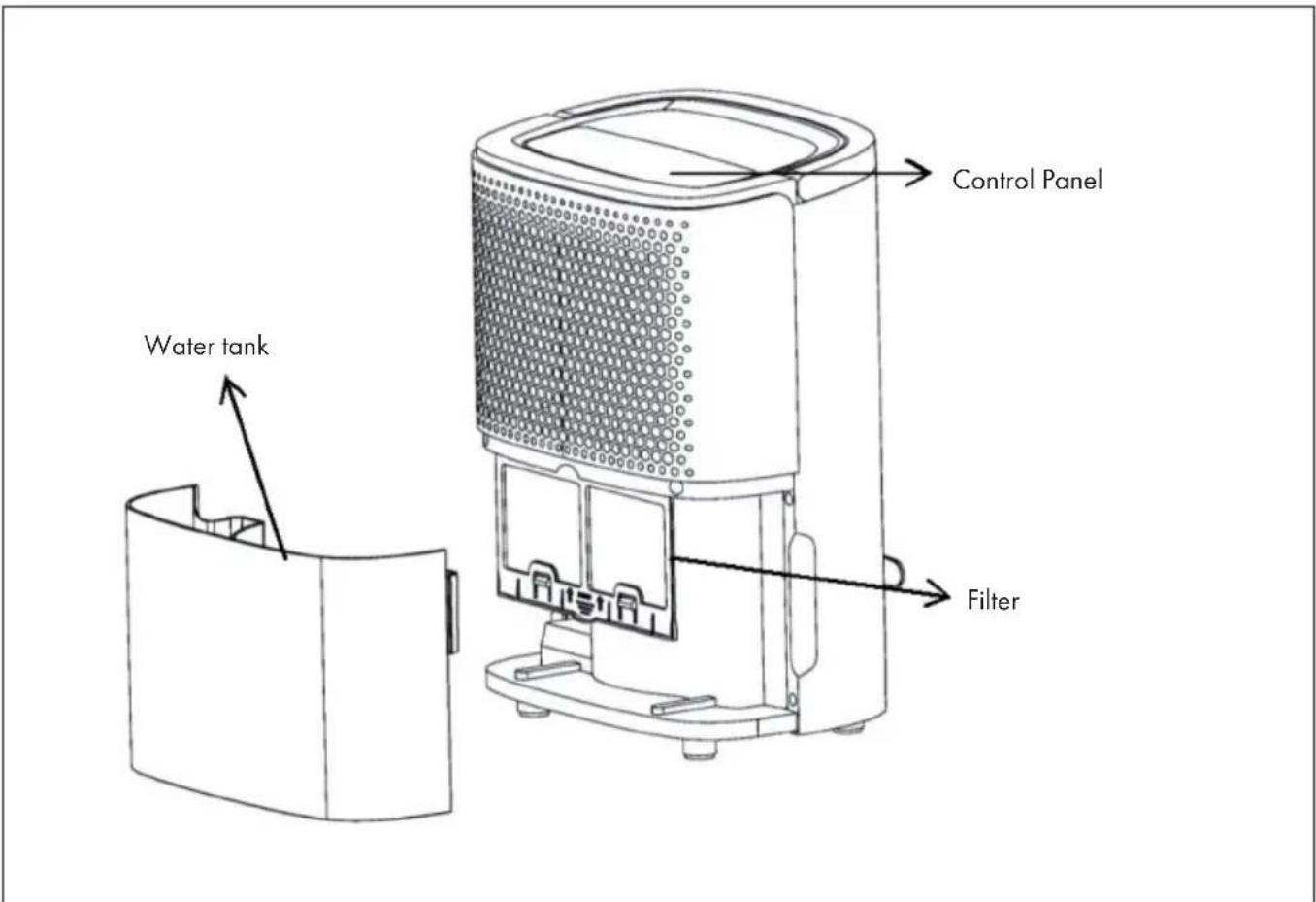

Front

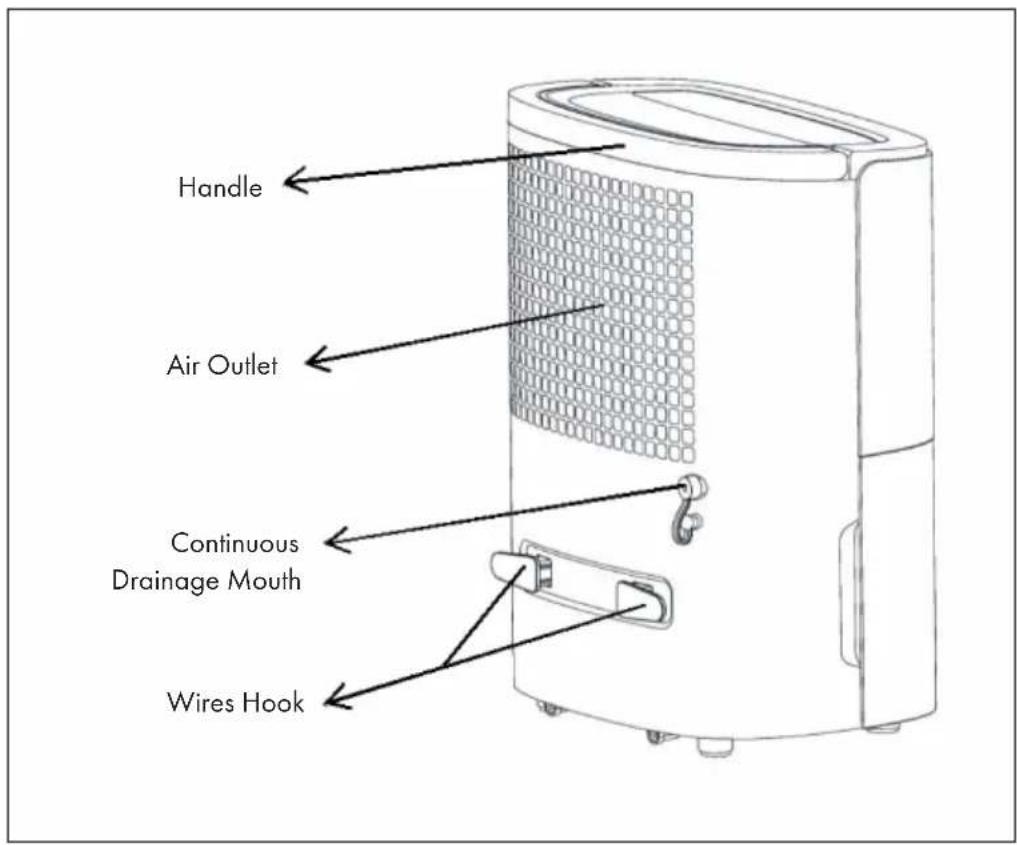

Back

CONTROL PANEL AND KEYS

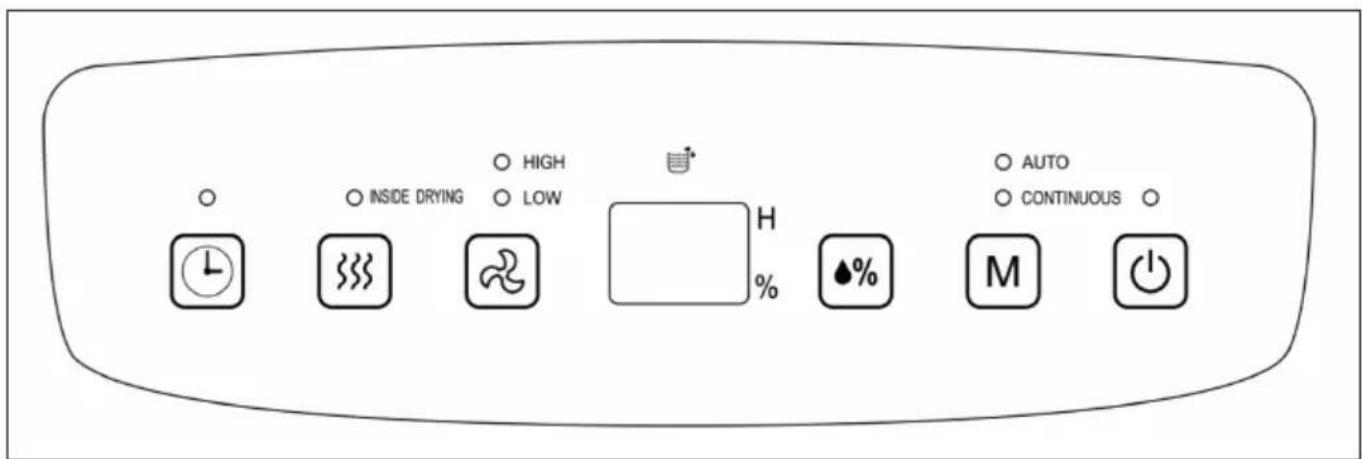

Control Panel

Keys and Functions

	Timer: 24 hours timing, press the key, to set the timing off or timing on, timing range is from 1 to 24hours, it will increase 1hour by each press. Press the key again, timing can be canceled.
	Internal drying function: press the key to start the inside drying function. The drying function prevents molding from forming inside the dehumidifier.
	Fan: In Auto dehumidifying and cloth dry mode, press this button to change fan speed, high-low-high.
	Display screen: In Auto dehumidifying or cloth dry mode, it will indicate the actual room humidity. In timing mode, it indicates the setting time.
	Humidity: In auto dehumidify mode, press the button repeatedly to set humidity from 80 % to 30 % in 5 % increments.
M	Mode: When power on or timing power on, press this button to choose auto dehumidifying or continuous dehumidifying (dry cloth function). The lights will flash when choose the modes.
	On/Off: Press the key to turn on/turn off the unit.

OPERATION AND FUNCTIONS

Timing off

When the dehumidifier is running, press "TIMER" to start the function, then press "TIMER" button to set hours, timing range is from 1 to 24 hours, it will increase 1 hour by each press. When time is up to your setting, unit will turn off. After setting, timer button flashes 5 time for confirmation.

Timing on

When the dehumidifier is in standby state, press "TIMER" to start the function, then press "TIMER" button to set hours, When time is up to your setting, unit will turn on. After setting, timer button flashes 5 time for confirmation.

Auto dehumidifying mode

If the humidity in the room is above 5% of the set humidity, the compressor and fan start. If the humidity in the room is less than 5% of the set humidity, the compressor stops and the fan runs again at the preset speed. When the humidity decreases or increases, the compressor and fan start and stop alternately. The preset humidity is 50% .

Cloth dry mode

Under this mode, the unit will work regardless of the room humidity, compressor works, and fan will work from high speed, fan speed is adjustable.

Drainage manually

• When water tank is full, water-full indicator is on, the unit will stop working, and buzzer will sound 10 times till water is pour off.
  Take out water tank, pour away water.

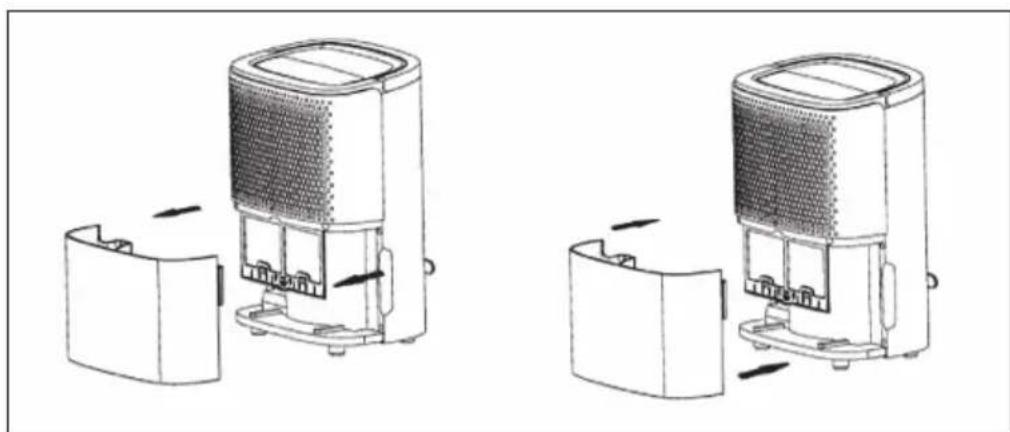

• Replace the water tank, dehumidifier restarts working. Please install the water tank as the following photo.

Note: Before putting in the water tank, please ensure the float is flexible.

Continuous drainage (optional)

• To connect a water pipe in the back, (inner diameter is 9mm ) water can be drained continuously.
• Please check if the pipe is stably connected with the drainage mouth, or water will flow out.

Note: Water pipe cannot be too long (usually 0.6m), the height cannot surpass the height of drainage mouth, or there will be water leakage.

Anti-frost function

This function will be activated when the ambient temperature falls below 16^ . The display will show "P1". It will be activated for a period of 8 minutes every 38 minutes between 2-12 °C. It will also be activated for a period of 5 minutes every 60 minutes between 12-16 °C.

CARE AND CLEANING

• Turn off this appliance and pull out plug before maintaining or repairing.
  Pull out plug if dehumidifier is not used for long time
• Please do not use benzene, alcohol, gasoline or other chemical reagent to clean unit.

Clean the water tank with soft cloth.	Use wet cloth to clean appliance surface, do not use detergent or grinding sponge to damage surface.	Clean filter at least one time every two weeks.

TROUBLESHOOTING

Problem Possible	Cause Suggested Solution
Unit doesn't work.	Is the power plug connected? Put the plug in the socket.
	Water tank is full or water tank is not assembled well.	Pour away the water in water-tank, and put water tank into the unit.
	Operation temperature is too low or too high	Use this dehumidifier under the environment 5-32 °C.
No outlet air. Operation temperature or humidity is too low.		Under dry environment, dehumidifying effect will be not so obvious.
		Is air outlet or air inlet blocked?	Clean the air outlet or air inlet.
No outlet air. Is filter blocked? Clean the filters.
Water leakage. Drainage pipe is not tightly connected.		Check the drainage pipe.
		Pipe is blocked. Clean the debris in pipe.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
