USER MANUAL 10032940 Klarstein

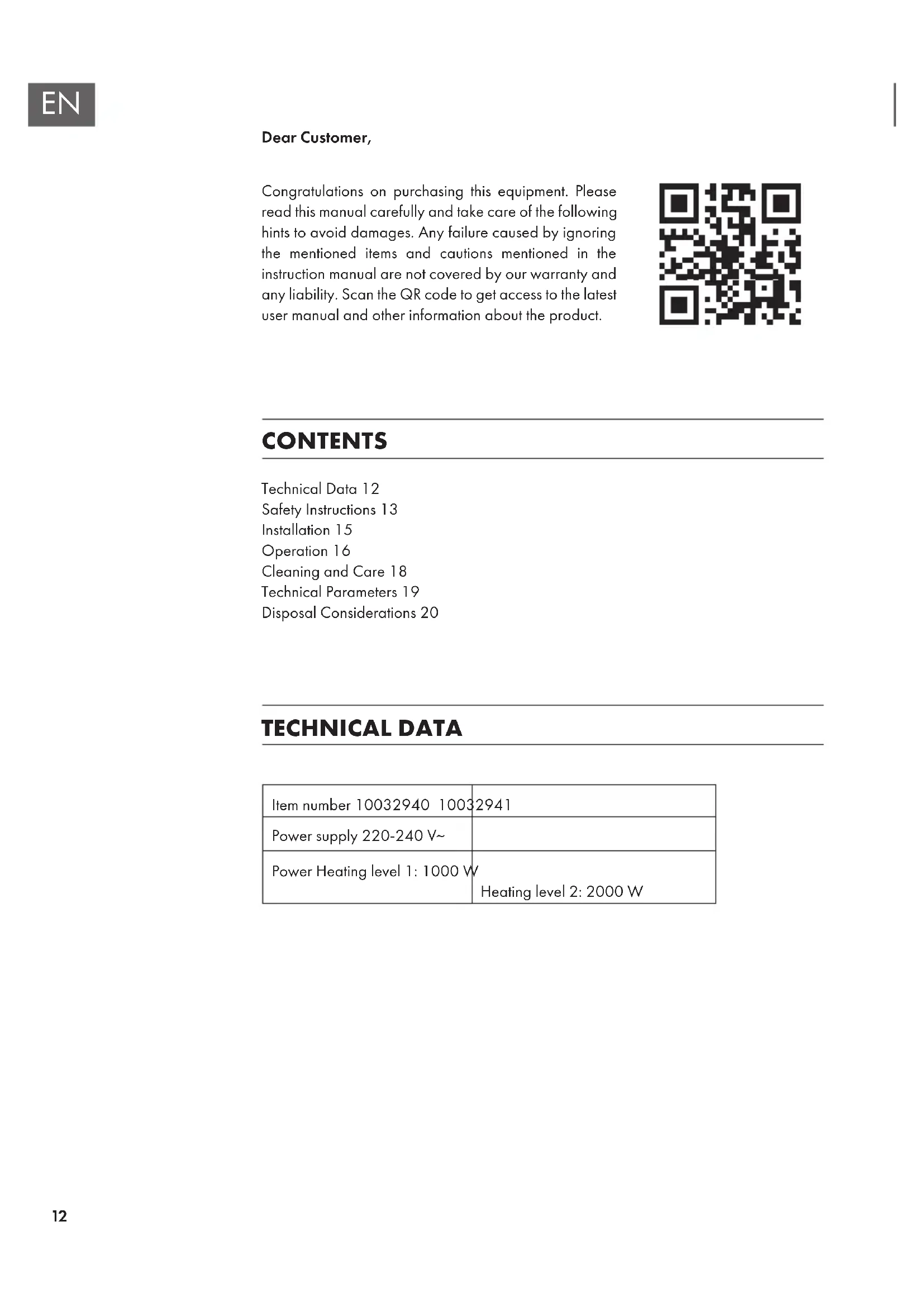

Technical Data 12 Safety Instructions 13 Installation 15 Operation 16 Cleaning and Care 18 Technical Parameters 19 Disposal Considerations 20 CONTENTS TECHNICAL DATA Item number 10032940 10032941 Power supply 220-240 V~ Power Heating level 1: 1000 W Heating level 2: 2000 W Dear Customer, Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.13

• Read and follow all the instructions in this manual even if you feel you are familiar with the product, and nd

• a place to keep it handy for future reference. Read all instructions before using this appliance and keep them

• for future reference.

• When using any electrically powered product, basic safety precautions should always be followed, including the following:

• Use only the voltage specied on the rating plate of the heater.

• Do not cover or restrict airow to the inlet or exhaust grilles in any manner as the appliance may overheat and become a re risk.

• Do not cover grilles, block entry or exhaust of airow by placing appliance against any surface. Keep all object at least 1 meter from the front, side and rear of the appliance.

• Do not place the appliance close to a radiant heat source.

• Do not operate in areas where gasoline, paint or other ammable liquids are used or stored.

• This appliance heats up when in use. To avoid burns, do not let bare skin touch hot surface.

• Switch off and let cooling before moving.

• Do not use the appliance to dry clothes.

• Do not insert or allow foreign object or metal utensils to enter any ventilation or exhaust opening, as this may cause an electric shock, re or damage to the appliance.

• Do not immerse in liquid or allow running into the interior of the appliance, as this could create an electrical shock hazard.

• Do not operate any appliance with a damaged cord, plug or after the appliance malfunctions or has been dropped or damaged in any manner. Return to a qualied electrical person for examination, electrical or mechanical adjustment, service or repair.

• Do not operate appliance with wet hands.

• The most common cause of overheating is deposits of dust or uff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning air vents and grilles.

• Do not use this appliance in a window as rain may cause electric shock.

• Do not use a abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.

• Do not connect the appliance to the mains voltage until completely assembled and adjusted.

• This appliance is not intended for use in outdoor locations.

• Do not use this appliance in the immediate surrounds of a bath, a shower or a swimming pool or other liquids.

• Always operate upright.

• Switch off and let cooling before moving.

• Do not operate with cord set coiled up as a build up of heat is likely, which could14

be sufcient to become a hazard.

• The use of an extension cord with this appliance is not recommended.

• Do not remove plug from power socket until the appliance has been switched off.

• Do not remove plug from power socket by pulling the supply cord-always grip plug.

• Always unplug appliance when not in use.

• This product is NOT suitable to be used on long pile carpets or Flokati rugs.

• Do not allow cord to come in contact with heated surface during operation.

• Do not run cord under carpeting, throw rugs or runners etc. Arrange cord away from trafc areas so that it will not be tripped over.

• Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split. Always ensure that all cord has been removed from any cord storage area.

• Do not use outdoors or whilst standing on a damp oor.

• Do not store appliance while it is still hot.

• This appliance is not intended for use by young children or inrm persons without supervision.

• Young children should be supervised to ensure they do not play with the appliance.

• The appliance must not be located immediately below a socket-outlet.

• Do not use this appliance with another programmer, timer or any other device that switches the heater on automatically, since a re risk exists if the appliance is covered or positioned incorrectly.

• In order to avoid overloading, do not cover the heater.

• To reduce the risk of electric shock, do not immerse or expose the product or exible cord to rain, moisture or any liquid other than those necessary for correct operation of the product.

• The reguard does not give full protection for young children and for inrm persons.

• If the supply cord is damaged, it must be replaced by a qualied electrical persons in order to avoid a hazard.

• Do not use this appliance outdoors or on wet surfaces Avoid spilling liquid on the appliance

• In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such a timer, or connected to a circuit that is regularly on and off by the utility.

• Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause re, electric shock or injury.

• This appliance is intended for household use only and not for commercial or industrial use.15

• The panel convector heaters should be wall-mounted. Some items can be also stand with feet.

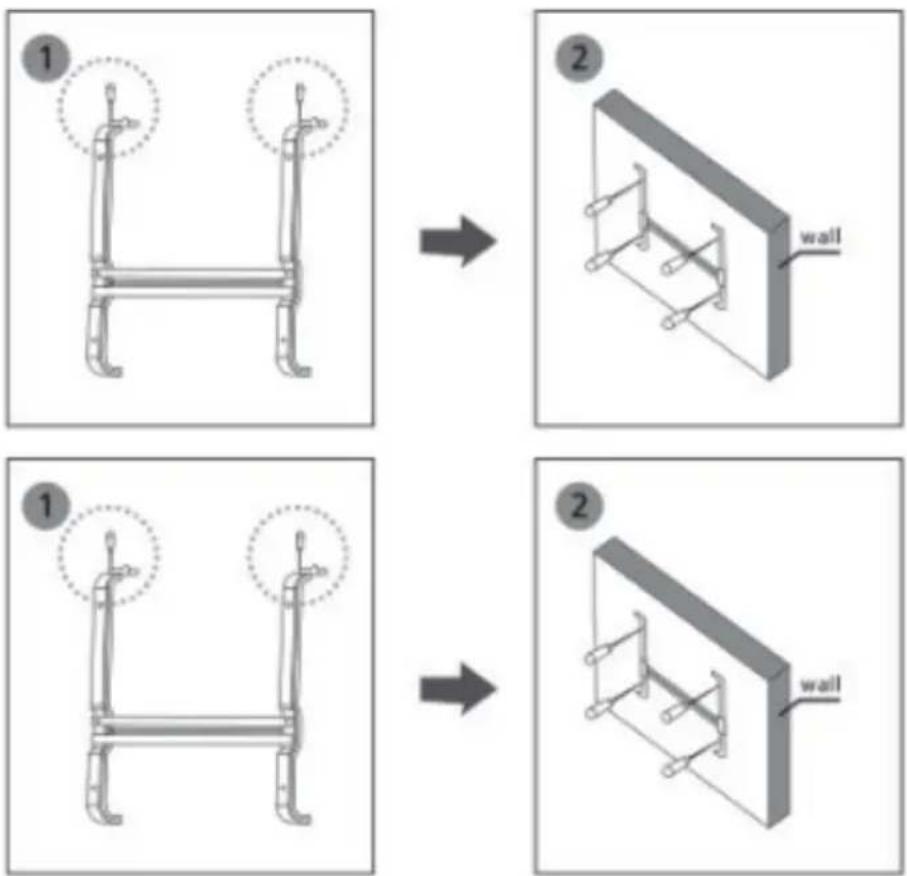

• Mount feet on the baseboard in accordance with inllustration below. a. Uninstall the bracket from the body,see the image1 b. Drill the holes at each sides on the wall,then insert the plastic expanded plugs within. Fix the bracket in the wall with screw,see the image2 c. Fit the heater into suitable position ensuing that the holes align with bracket.see image3 d. Tight the screw on the top of bracket to catch steady,see image4.

• Pay attention to the position of the convector with regard to other objects.

• It is forbidden to place item under the socket.

• The convector has got IP24 degree of protection

• If you place item in bathroom, avoid ingress of water on the surface.16

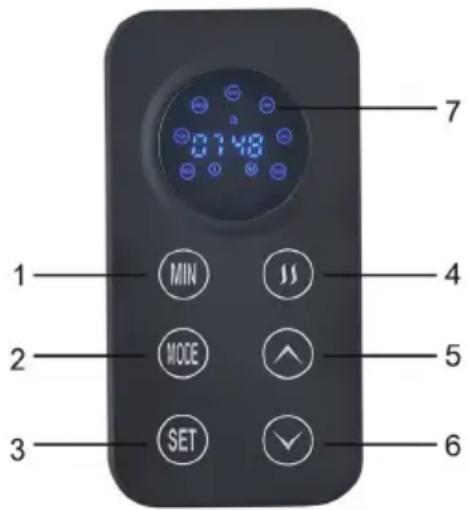

OPERATION Caution: Danger of burns Do not touch the heater during heating operation. The housing gets hot. Operation for Touch Control 1 Minute button 2 Hours button & Mode switched 3 Weekly button &Function selection 4 Power button 5 Temperature up & Timer open 6 Temperature down & Timer close 7 Display The product has 3 modes: A : Normal Closed Mode: Light Icon . In this mode, you can set 1. Week 2. Hour 3. Minute. Method of Operation: Select , on the panel to switch to be lighting, long press ,to set hour, long press to set minute, long press , to set week. B: Weekly Timing Mode: Light Icon . In this mode, the working state and closing state of the following period can be set:

setting, work or closing time can be set separately.

2. Method of Operation: Select on the panel to switch to be lighting, and

then make use of , to switch to one of the 9 working modes under the weekly timing mode. After one of the modes is selected, set the working position in turn, touch ,to shift high and low power. Touch ,to set working time, which is each click for an hour. Touch , to set closing time, which is each click for an hour..17

C: : Normal Open Mode: Light Icon This mode can only be set for temperature and working position.

1. Switch to the weekly timing mode if timing is needed, and nd out the

corresponding day to set up the working time (digital display area). The working position (low level , high level ). The temperature (two digital display in front is current temperature, two digital display behind is setting temperature, display temperature 0-80, setting temperature 5-40).

2. 24 hours of the day should be set to work if no timing is needed.

1. Long press , all keys are locked when the lock mark lighting on the screen.

2. Long press all keys are unlocked when the lock mark off on the screen

Windows Open function The Icon will be lit when the environment temperature is suddenly lower than room setting temperature.18

Warning: Danger of electric shock

Pull the power plug before cleaning.

• Before cleaning the item wait when it cools down and plug out

• Do not use abrasives and solvents. Wipe the product with soft wet cloth

• It is necessary to remove dust from the surface regularly

• Washing the item and placing it in water is forbidden!

• If you are going not to use heater for long time, wipe it surface and put the item in color box.

• It should be placed in dry ventilated room. Avoid high humidity and mechanical impact on the item.19

nom 2 kW manual heat charge control, with integrated thermostat

Minimum heat output (indicative)

min0 0 kW manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output

max 2 kW electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption fan assisted heat output no At nominal heat output (fan motor)

max N/A kW Type of heat output/room temperature control At minimum heat output (fan motor)

min N/A kW single stage heat output and no room temperature control

N/A kW Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control no electronic room temperature control plus day timer

electronic room temperature control plus week timer yes Other control options (multiple selections possible) room temperature control, with presence detection

room temperature control, with open window detection

with distance control option no with adaptive start control yes with working time limitation no with black bulb sensor no Contact details Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany20

DISPOSAL CONSIDERATIONS According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service. Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health. Declaration of Conformity Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany Dieses Produkt entspricht den folgenden Europäischen Richtlinien: 2009/125/EG (ErP) 2011/65/EU (RoHS) 2014/30/EU (EMV) 2014/35/EU (LVD)21
