USER MANUAL 10032777 Klarstein

Note: This product is only suitable for well insulated spaces or occasional use.

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Technical Data 11

Safety Instructions 12

Product Overview 13

Cleaning and Maintenance 16

Disposal Considerations 17

Technical Parameters 18

TECHNICAL DATA

Item number 10032777
Power supply 220-240 V~ 50 Hz
Power max. 2200 W

SAFETY INSTRUCTIONS

Read the safety instructions carefully and keep them for future reference.

To prevent the risk of fire, electric shock, burns and other injuries, it is important to take basic measures when using equipment.

• In order to avoid overheating, do not cover the heater.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The heater must not be located immediately below a socket-outlet.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
  Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

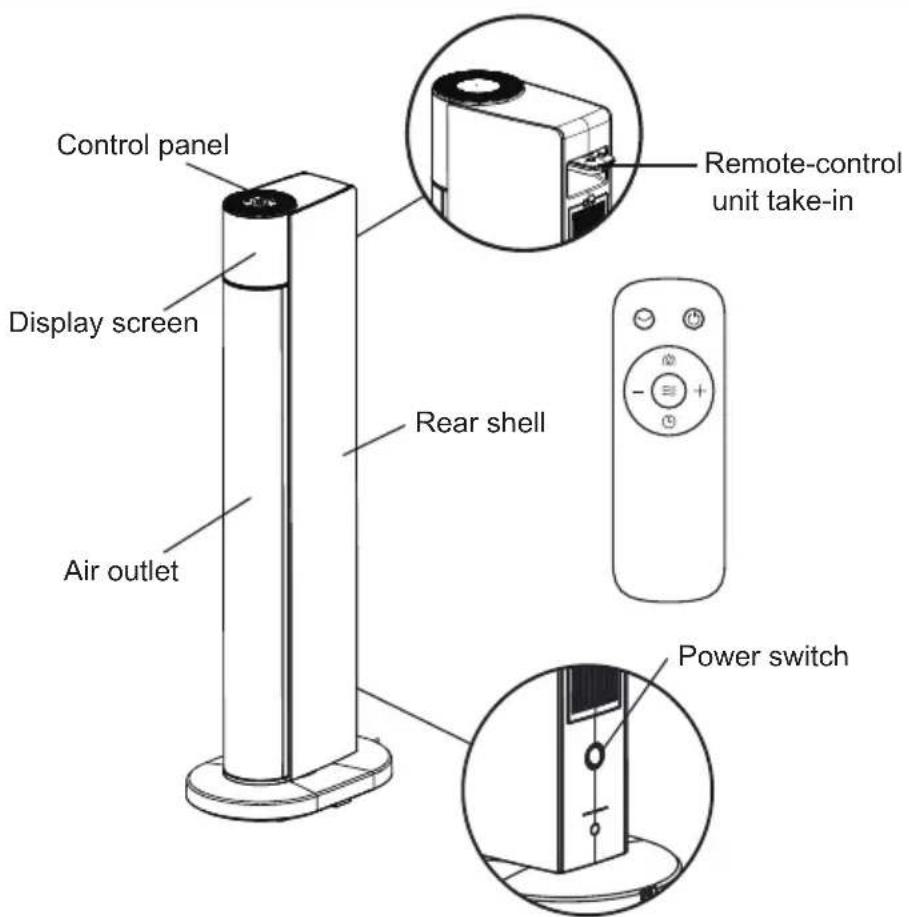

PRODUCT OVERVIEW

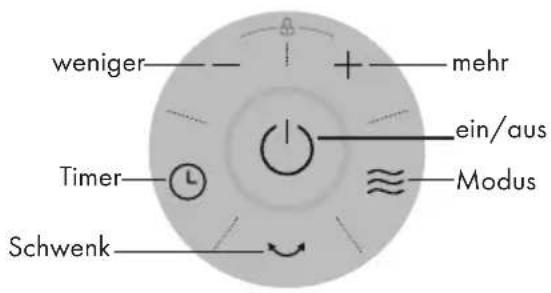

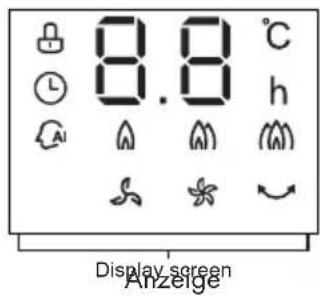

Display

Key Function	Description
Ein/Aus1	On the idle mode, press on-off key to enter the power-on mode, the warmer starts working and the whole machine runs under the previous remembered mode and temperature. On the power-on mode, press on-off key to enter the idle mode, the warmer stops working. (Note: On the heating mode, draught fan will operate for 15 seconds at low wind speed after power off.).
Heizstufe ≈	After power-on, the warmer is in the intelligent mode by default. Repeatedly press the "mode key", the warmer shifts in circular order among "intelligent mode, low warm wind, high warm wind, strong warm wind, breeze, and gentle breeze.
+ und - On the	working state, press "+" or "-" keys to set the working temperature. The temperature setting range is 5 °C - 35 °C and every temperature value is of 1 °C difference. The machine confirms and displays the set temperature value if without operation within 3 seconds after the setting. After room temperature reaches the set temperature, display screen blinks for 10 seconds and heating unit stops working; when temperature is below the set temperature, machine restarts to heat. In low warm wind, high warm wind, and strong warm wind modes, it can be set to without temperature control, whose display icon is "-".
Timer ① the power-on mode, press this key to select the timed shutdown setting. The timing indicator lightsup, the temperature display icon lights off, and display screen blinks and shows the rest time of last setting. Press "+" or "-" keys to set shutdown time, the setting range is 0~24 hours. The machine confirms the time and quits the timing setting state if without pressing within 5 seconds. If the set time is 0, it means cancelling the timing setting; if the set time is not 0, the machine shuts down automatically, enter the idle mode and turns off the timing icon when reaching the set time. Set again the time after time setting, and the machine is retimed. In the idle mode, press this key to set timing power-on, of the same operation as timing shutdown. The time unit of the timer is hour.
Sway key In the	power-on mode, press this key to start sway- ing, and press again to stop swaying..

Light screen off function

When the machine is on the working state, the screen automatically lights off and operating mode icon retains up if without operation within 1 minute. Press at the same time the key and " - " key for 2 seconds to close the light screen off function. Press again at the same time the key and " - " key for 2 seconds to open the light screen off function.

Temperature sensor short circuit and open circuit protection

In whatever mode, when short circuit or open circuit protection occurs to the temperature sensor, digital screen displays E1 or E2 and blinks unceasingly, any key does not work, and buzzer rings for 10 times.

Safety protection

In the power-on mode, when room temperature Th exceeds 50^ , the system closes all outputs, the digital screen displays "FF" and blinks at the frequency of 1 time per second, any key does not work, and only power-off can quit protection.

[Toppling over protection function]

No matter in power-on or power-off mode, when the machine topples over, the system immediately shuts down all heating components and displays "E3", any key does not work.

Close key fancy light and buzzer

In the power-on mode, press at the same time the "timing key" and "shift key" for 2 seconds to close key fancy light and buzzer output. Repeat this action to open them.

Children lock function

No matter in power-on or power-off mode, press "+" and "-" keys simultaneously

for the first time for 2 seconds to open the children lock function. Repeat this action to close it.

Automatic power-off function

Screen displays "---" if the heater is not under Temperature Control mode. When the timer function is off, the heater will automatically shut off with no operation during 12 hours.

Remote-control unit

The use of remote-control unit: Key function is consistent with machine body control panel. Note: Strong warm wind mode can be opened by pressing " " key on remote-control unit.

Intelligent mode

In the Intelligent mode, press "+" and "-" keys to set wanted temperature. When environment temperature is lower than set temperature (by more than 2^ ), the product heats in high warm wind mode; when environment temperature is close to the set temperature (by less than 2 or more), the product heats on low warm wind mode; when environment temperature is higher than set temperature, the product stops heating.

CLEANING AND MAINTENANCE

1. Light accumulated dust may be removed from the heater with a soft cloth. Wipe the exterior surfaces of the heater occasionally with a cloth moistened (not dripping wet) with a solution of mild detergent and water. Dry the case thoroughly with a soft dry cloth before operating the heater.
2. The fan motor is lubricated by the factory, and will require no further lubrication.
3. No other user maintenance is required or recommended. If service is required, send your heater to the nearest authorized servicedepot.
4. Store heater in a clean and dry place when not in use.

REMEMBER - Portable electric heaters are designed for spot heating, or as a supplementary heat source. They are not intended to be main sources of heat during the normal heating season.

Note: There may be trace of smoke or odour when unit is first operated. Do not be on the heating coil during the manufacturing process. It will quickly evaporate, and should not reoccur.

DISPOSAL CONSIDERATIONS

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Declaration of Conformity

Producer:Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2009/125/EC (ErP)

2011/65/EU (RoHS)

2014/30/EU (EMC)

2014/35/EU (LVD)

TECHNICAL PARAMETERS

Model identifier(s):	10032777
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage					local space heaters only
Nominal heat output Pnom 2.2	kW manual	heat charge	control,		with integrated thermostat	no
Minimum heat output (indicative)	Pmin 1.2	kW manual	heat charge	control with room and/or outdoor temperature feedback	no
Maximum continuous heat output	Pmax,c 2	25 kW electronic	heat charge	control with room and/or outdoor temperature feedback	no
Auxiliary electricity consumption					fan assisted heat output no
At nominal heat output (fan motor)	elmax 2.2	kW			Type of heat output/room temperature control
At minimum heat output (fan motor)	elmin 1.2	kW single stage	heat output	and no room temperature control	no
In standby mode	eSB	0.00042	kW		Two or more manual stages, no room temperature control	no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	yes
					electronic room temperature control plus week timer	no
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany
