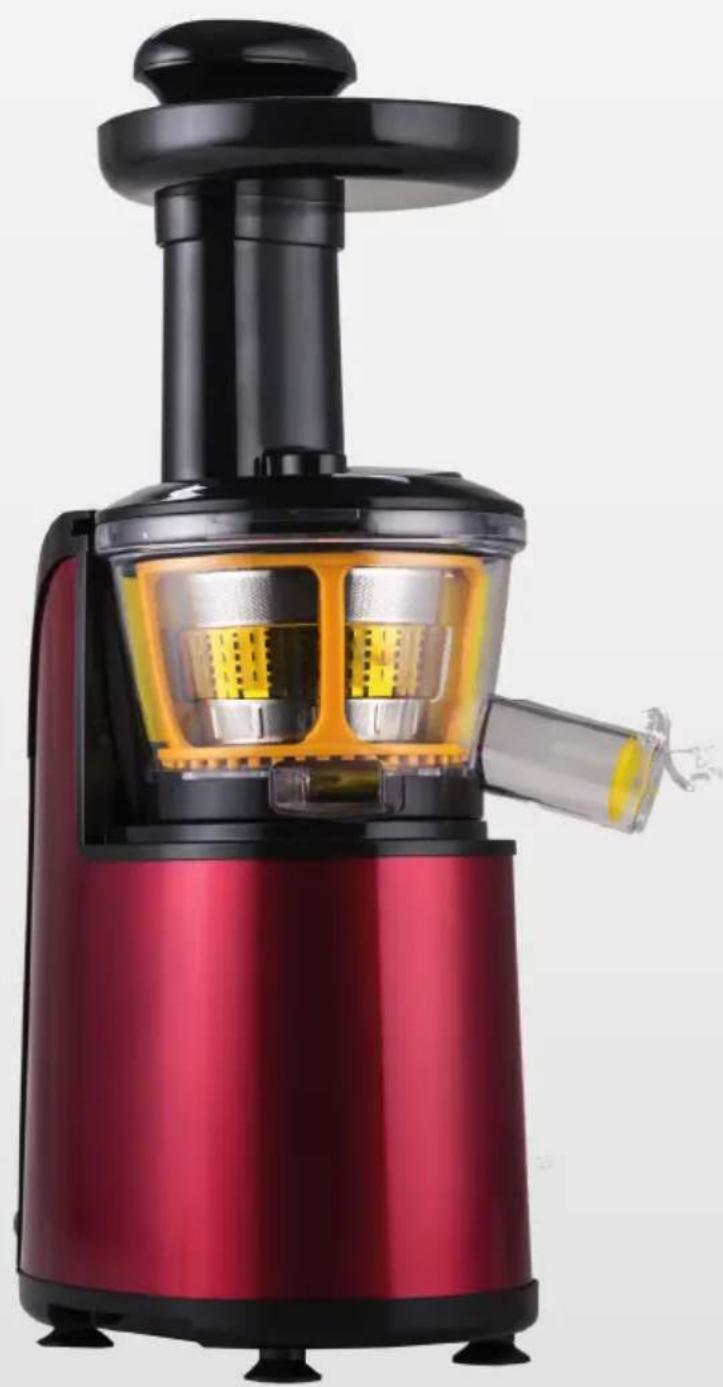

10027696 - Juicer Klarstein - Free user manual and instructions

Brand	Klarstein
Model	10027696
Product type	Auger juicer
Power supply	220-240 V ~ 50-60 Hz
Power consumption	150 W
Bowl material	Plastic
Functions	Forward (ON), Reverse (Rev), Stop (O)
Anti-drip system	Yes, on the pulp outlet
Maximum continuous operation time	10 minutes
Maintenance	Manual cleaning with water, do not put in dishwasher
Included accessories	Bowl, juice auger module, fruit pulp filter, rotating basket, insertion module, pusher, brush, container
Safety	Do not use in rain, do not immerse the chassis, unplug before cleaning
Weight	Approx. 2 kg
Dimensions (L x W x H)	Approx. 25 x 20 x 30 cm
Motor type	Electric motor
Speed	Slow speed to preserve nutrients
Compliance	Directives 2004/108/EC, 2011/65/EU, 2006/95/EC
Recycling	Do not dispose with household waste, follow local regulations
Spare parts	Contact Klarstein customer service
Warranty	Check the warranty conditions provided

Frequently Asked Questions - 10027696 Klarstein

How long can I use the juicer continuously?

Do not use the appliance for more than 10 minutes at a time. Let it cool down before reuse.

How to clean the juicer parts?

Clean all removable parts with the brush provided under running water. Do not use steel wool and do not put in the dishwasher. Clean the chassis with a damp cloth.

What to do if the appliance jams during extraction?

Activate reverse (Rev) for a few seconds, then switch back to forward (ON). If that doesn't work, turn off, disassemble the juice module, clean, and reassemble.

Can I extract juice from all fruits?

Yes, remove pits and hard stems before use. For stone fruits, pit them absolutely.

How to install the bowl and accessories?

Place the bowl on the chassis by turning it slightly to lock it. Insert the rotating basket and fruit pulp filter aligning the red marks. Attach the juice auger module, then the insertion module by turning to the closed position.

Does the appliance have an anti-drip system?

Yes, an anti-drip system is located on the pulp outlet. You can remove it for easier cleaning.

Can I use the juicer outdoors?

No, the appliance should not be used in the rain or exposed to moisture. Use it only indoors on a dry surface.

What to do if the power cord is damaged?

Do not use the appliance with a damaged cable. Contact a qualified person to replace it. Do not attempt to repair yourself.

How to store the appliance after use?

Let all parts dry completely before reassembling. Keep the original packaging for safe transport.

Is the juicer under warranty?

Check the warranty conditions included in the packaging. Damage due to misuse is not covered.

USER MANUAL 10027696 Klarstein

Row of white icons representing kitchen appliances including blender, blender, kettle, refrigerator, air conditioner, fan, air conditioner, and microwave (no text or symbols)

Red and black processed handpan with yellow interior and glass handle (no visible text or symbols)

Entsafter

10027696

Collection of kitchen utensils and containers including a stand, filter, and cup (no text or symbols visible)

Exterior view of a modern office building (no signage)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this Klarstein equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Technical Data

Item number 10027696
Power supply 220-240 V ~ 50-60 Hz
Power consumption 150 W

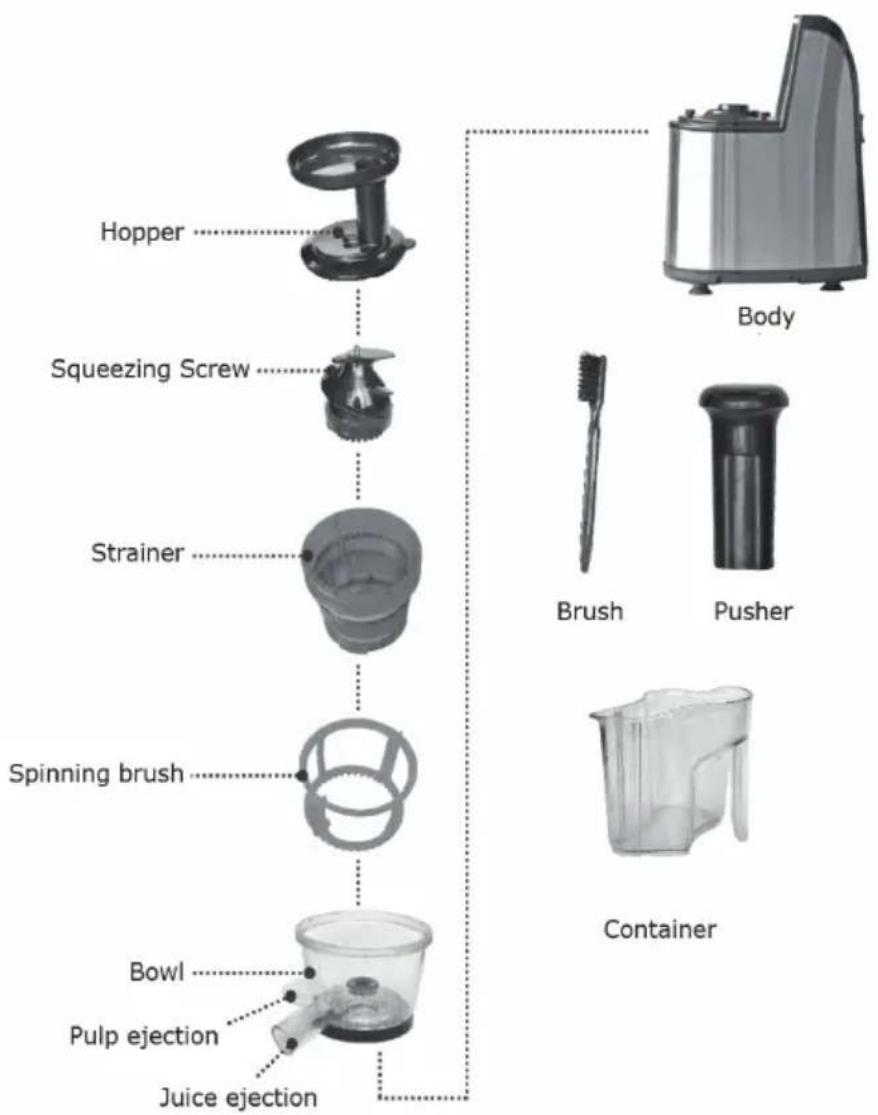

Product Description

Assembly Instruction

1. Assembly the bowl on the base. make sure the bowl is all the way into the shaft of the base. Twist the bowl to close.

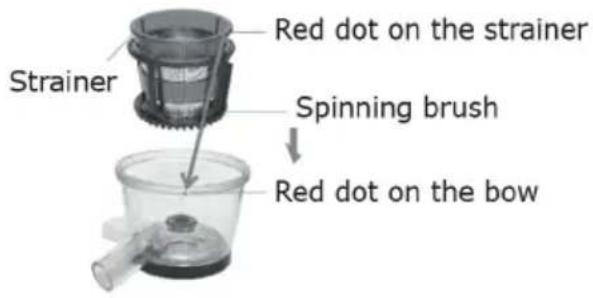

1. Assemble the stainer+spinning brush into the bowl. · Make sure the red dot and the black arrow is aligned.

1. Place the squeezing screw in the center of the bowl.

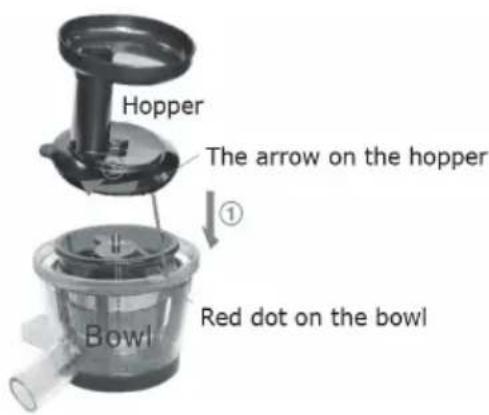

1. Assemble the hopper onto the bowl. Make sure the arrow on the hopper and the red dot on the bowl is aligned.

1. Make sure the arrow on the hopper is pointing to closed sign on the base.

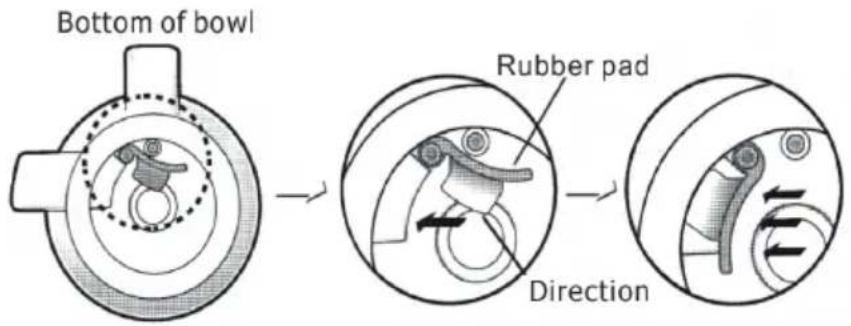

Note:

On the pomace outlet of the bowl there is a drip stop element. This can be swung out of the outlet so that the outlet can be easily cleaned.

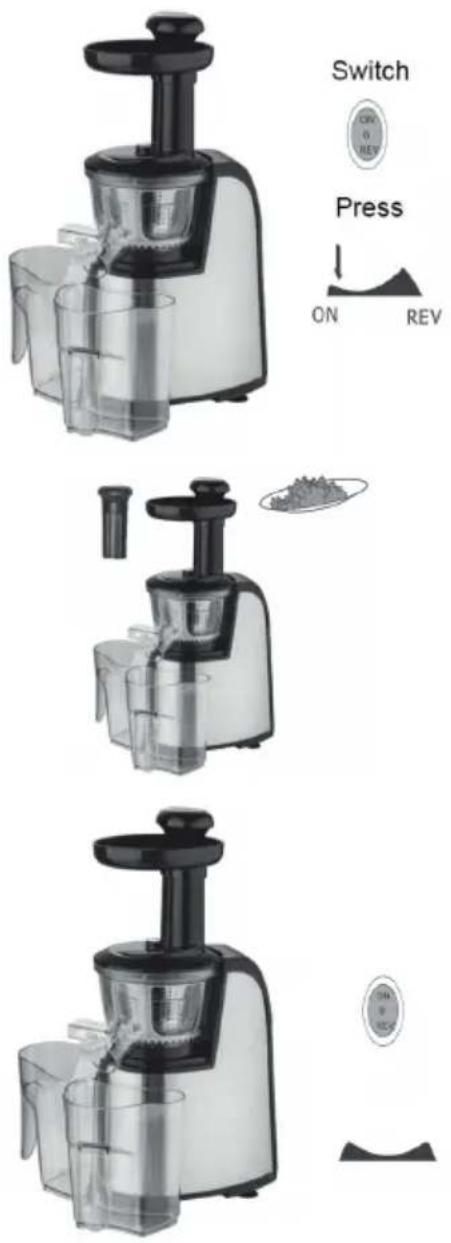

Use and Operation

1. The machine has three settings. "ON" starts motor, Start making juice. "Rev" is reverse. Only use when something is stuck and you need to unclog. "O" is at the center position. This a ON REV llow the machine to turn off.

2. Please rinse everything thoroughly before putting into the machine. After rinsing, put material into the machine using the pusher. Please remove any hard seeds before using.

3. Turn off the machine after using. Please dry your hands before touching the power switch

Warning:

Any unused juice should be refrigerated. Do not operate with wet hands. Do not pre-operate before inputting materials or do not operate with an empty bowl.

Important Hints on Use

• Do not use longer than 10 minutes at a time.
• Do not use anything as a pusher (fork, chopsticks, spoons, etc) other than the pusher itself.
• Remove any hard seeds.
• Do not operate with wet hands.

Rewind Function

1. When the machine is stuck and not operable, please turn off the machine and put it reverse for few seconds then try operating again.
2. When reverse switch does not work, turn off the machine and reassemble following the instructions given. After reassemble, please try turning on the machine.

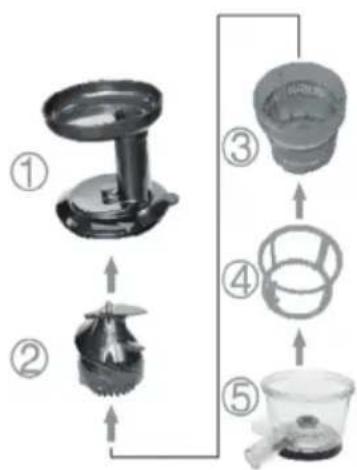

Disassembling

Collection of various kitchen utensils and washers, including a stand, bulb, and cup (no text or labels visible)

Exterior view of a modern office building (no signage)

1. Turn machine "O". Twist the hopper to unlock by grabbing the two ejections. Make sure the arrow is aligned with the open sign before pulling off the bowl. Order to disassemble

2. Use the brush to clean thoroughly after operating. Do not use metal sponge to clean, it will damage the machine. Do not use dish-washer to clean.

3. Do not rinse the base with direct water, use day towel or wet towel to clean. Dry all the parts thoroughly after cleaning.

Disposal Considerations

Symbol of a trash bin crossed out by a diagonal line, representing no waste or discharge (no text or labels)

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: CHAL-TEC Vertriebs- + Handels GmbH, Wallstraße 16, 10179 Berlin, Germany.

CE

This product is conform to the following European Directives:

2004/108/EC (EMC)

2011/65/EU (RoHS)

2006/95/EC (LVD)
