C4446 - Wristwatch Candino - Free user manual and instructions

Product Type	Wrist watch
Brand	Candino
Model	C4446
Movement	Quartz
Battery type	395 (SR927SW, Ø 9.5 mm x 2.6 mm)
Accuracy	+20 / -10 seconds per month
Functions	Time, date, chronograph (1/10 s, minutes, hours), intermediate time measurement, totalization
Quick date correction	Yes, via crown position II
Time setting with seconds stop	Yes
Chronograph	Start/Stop by pusher A, reset by pusher B
Adjustment of chronograph hands in zero position	Yes, by combination of pushers A and B
Crown	3 positions: I (rest), II (date correction), III (time setting)
Pushers	2 (A and B)
Maintenance	Dispose of at WEEE collection point at end of life
Repairability	Entrust to an approved watchmaker for any repair

Frequently Asked Questions - C4446 Candino

How to set the time on the Candino C4446 watch?

Pull the crown to position III (the second hand stops). Turn the crown to display the desired time, then push it back to position I. For a precise setting, do this when the second hand is at 60.

How to use the chronograph?

Press pusher A to start timing, press A again to stop. Press pusher B to reset the hands to zero. You can also time intermediate times by pressing B during timing.

How to quickly correct the date?

Pull the crown to position II (the watch continues to run). Turn the crown until the correct date appears, then push back to position I. Avoid correcting the date between 9 PM and midnight, as the calendar is changing.

What to do if the chronograph hands are not at zero?

Pull the crown to position III to stop the watch. Press pushers A and B simultaneously for at least 2 seconds until the central second hand rotates 360°. Then use A to adjust the hand step by step or continuously, and B to move to the next hand. Repeat for each counter (center, hours, minutes). Once adjusted, push the crown back to position I.

What type of battery does the Candino C4446 use?

The watch uses a 395 (SR927SW) battery, 9.5 mm in diameter and 2.6 mm thick.

What is the accuracy of the watch?

The accuracy is +20 to -10 seconds per month.

How to set the date and time at once?

Pull the crown to position II and set the date to the day before the current date. Then pull to position III (seconds stop), turn until the current date appears, then continue to set the time (respecting the 24-hour cycle). Push the crown back to position I.

Is the watch waterproof?

The manual does not mention water resistance. As a precaution, avoid any contact with water and humidity.

What to do at the end of the watch's life?

In accordance with WEEE regulations, dispose of the watch at an approved collection point for electrical and electronic waste.

Can I replace the battery myself?

It is recommended to have the battery replaced by a professional watchmaker to avoid damaging the movement.

USER MANUAL C4446 Candino

FESTINA-CANDINO WATCH LTD 2501 Bienne Switzerland

a company of the Festina Group www.candino.com

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

MANUALE DELL'ISTRUZIONE D'USO

B

• Description of the display and control buttons 14
• Chronograph 15
• Setting the time....20
• Quickly changing the date 21
• Setting the date and time 22

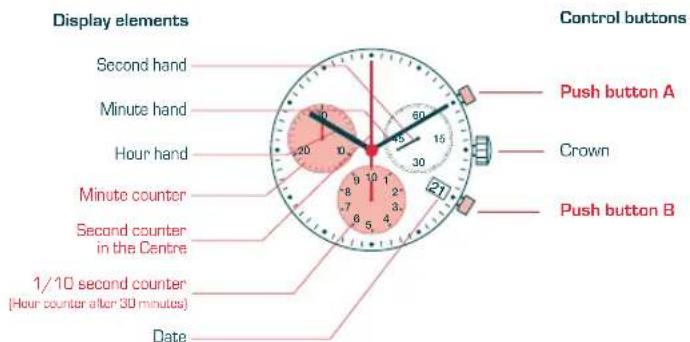

DESCRIPTION OF THE DISPLAY AND CONTROL BUTTONS

14

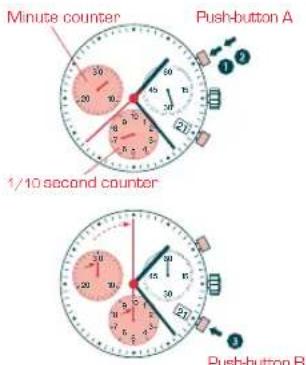

CHRONOGRAFH: BASIC FUNCTION
START/STOP/RESET

Example:

1 Start: Press push-button A.
2 Stop: to stop the timing, press push-button A again hand read the three chronograph counters: 4 min/38 s/7/10 s
③ Zero positioning:

Press push-button B.

(The three hands of the chronograph go back to zero).

15

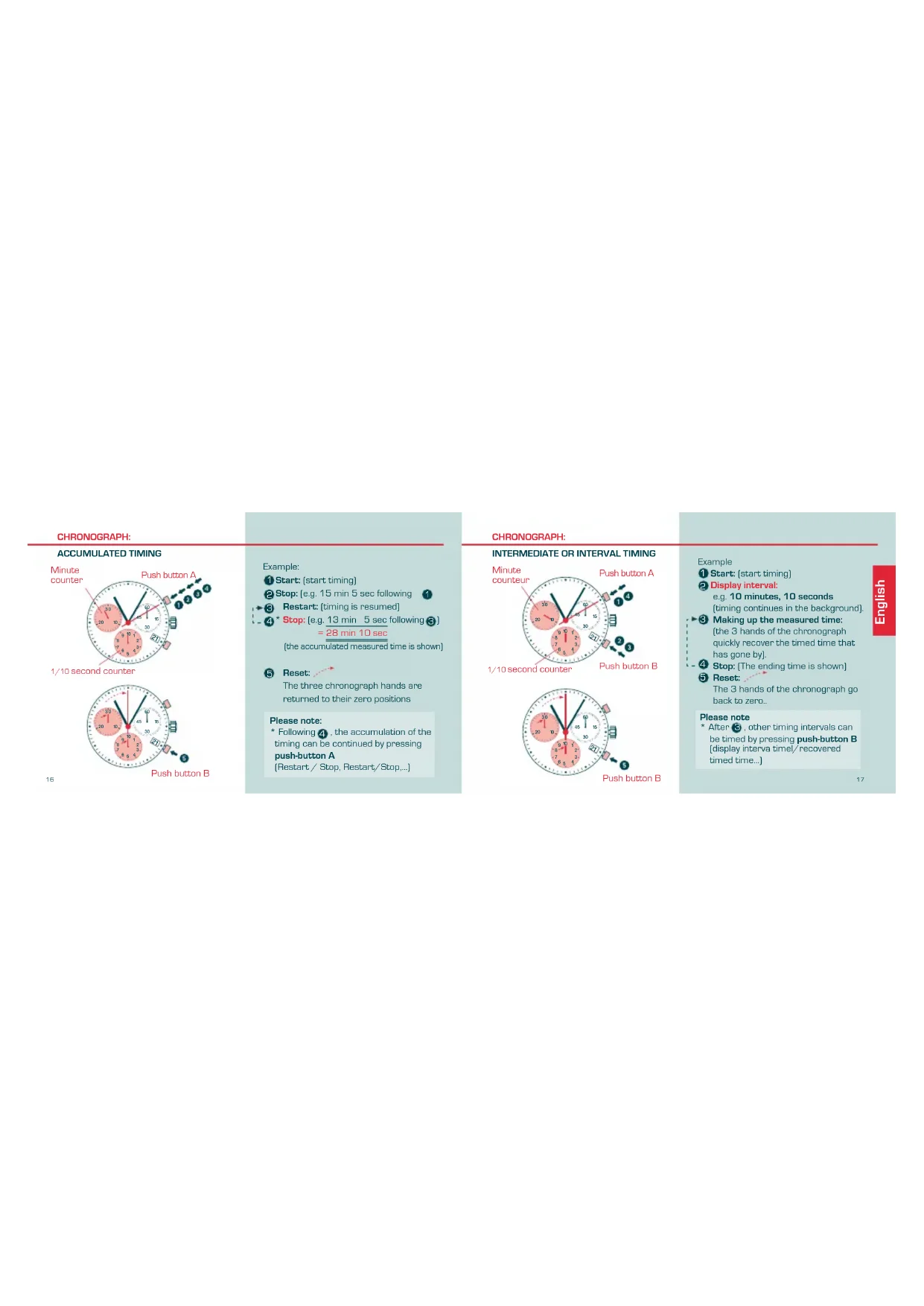

CHRONOGRAPH:

ACCUMULATED TIMING

1/10 second counter

13

Example:

1 Start: (start timing)

② Stop: [e.g. 15 min 5 sec following ①

3 Restart: (timing is resumed)

- 4* Stop: [e.g. 13 min 5 sec following ③]

28 min 10 sec

[the accumulated measured time is shown]

5 Reset:

The three chronograph hands are

returned to their zero positions

Please note:

* Following 4, the accumulation of the

timing can be continued by pressing

push-button A

[Restart / Stop, Restart/Stop,...]

CHRONOGRAPH:

INTERMEDIATE OR INTERVAL TIMING

Push button B

Example

1 Start: (start timing)

2 Display interval:

e.g. 10 minutes, 10 seconds

(timing continues in the background).

▶3 Making up the measured time: (the 3 hands of the chronograph quickly recover the timed time that has gone by).

- 4 Stop: [The ending time is shown]

⑤ Reset:

The 3 hands of the chronograph go

back to zero.

Please note

* After 3, other timing intervals can

be timed by pressing push-button B

(display interval time)/recovered

timed time...

17

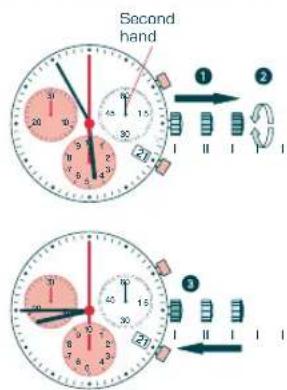

ADJUSTING THE HANDS OF THE

CRONOGRAPH TO THE ZERO POSITION

1/10 second counter

19 19

Example:

One or more of the hand of the chronograph are not in their correct zero position and must be adjusted (ex. after changing the battery)

1 Pull out the crown to position III (all 3 hand of the chronograph go back to their correct or incorrect zero position).
② Push press button A and B at the same time for at least 2 sec (the second counter hand in the centre turns 360° à the corrective mode is activated)

Adjusting the centre stop second Singel step A 1 x short Continuous A long
Adjusting the next hand B
Adjusting the 1/10 second hand counter (position 6h) Single step A=1 x short Continuous A=long
Adjusting the next hand B
Adjusting the minute counter hand (position 9h)
Single step A1 x short Continuous A long
③ Return the crown to position I Finished adjusting the hands of the chronograph (can be done at any time).

SETTING THE TIME

20

1* Pull out the crown to position III [the second hand stops].
② Turn the crown until you reach the correct time 8:45.
3* Return the crown to position 1.

Please Note:

* In order to set the time to the "approximate second", ① must be pulled out when the second hand is in the "60" position (I). After setting hour and minute hands, ③ should be put back in position I at the "approximate second".

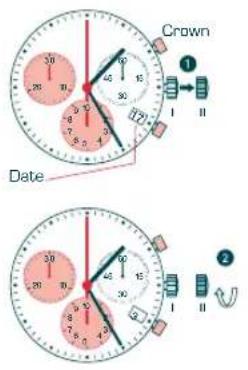

QUICKLY CHANGING THE TIME

1 Pull out the crown to position II (the watch continues to work).
2 Turn the crown until the correct date 1.
3 Push the crown back into position 1.

Please Note:

The date can be changed during the date rollover phase between 9:00 pm and midnight by setting the date of the following day so that the automatic date change does not move ahead automatically from 1 day to midnight.

21

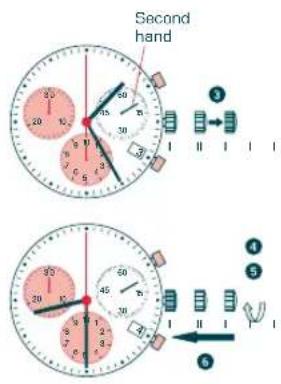

SETTING THE DATE AND TIME

22 23

Example:

- Date/time on the watch: 17 /1:25 AM

- Current date/time: 4 /8:30 PM

1 Pull the crown out to position II (the watch continues to work).
Turn the crown until you reach yesterday's date 3.

③ * Pull out the crown to position III (the second hand stops).
4 Turn the crown until you reach the current date 4.
5**Keep turning the crown until you reach the current time 8:30pm.
Return the crown to position I.

Please note:

* In order to set the time to the "approximate second", see the note in the "Setting the time" section.
**Please observe the AM/PM clock rhythm.

Type of battery: 395 [Ø 9.5 mm x 2.6 mm / SR 927 SW] Accuracy of functioning: +20/-10 seconds per month

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
