C4275 - Wristwatch Candino - Free user manual and instructions

Product Type	Wristwatch
Brand	Candino
Model	C4275
Movement	Analog quartz
Display	Hands for hours, minutes, seconds, date, and chronograph
Main functions	Time, minute, second, date, chronograph (start/stop/reset, split times, totalizer)
Power source	Battery 395 (∅ 9.5 mm x 2.6 mm / SR 927 SW)
Estimated battery life	Approximately 2 to 3 years
Running accuracy	+20 / -10 seconds per month
Quick date correction	Yes, by crown in position II
Time setting	By crown in position III, with stop of seconds hand
Maintenance	Clean with a soft dry cloth; avoid shocks, water, and chemicals
Battery replacement	Entrust to a watchmaker or authorized center
Water resistance	Resistant to splashes (estimate 3 ATM)
Weight	Approximately 80 g
Case diameter	Approximately 40 mm
Glass material	Mineral (estimate)

Frequently Asked Questions - C4275 Candino

How to set the time on the Candino C4275?

To set the time, pull the crown to position III (the seconds hand stops). Turn the crown until the desired time is displayed, then push the crown back to position I. For precise second setting, pull the crown when the seconds hand is at 60.

How to quickly set the date?

Pull the crown to position II (the watch continues running). Turn the crown until the correct date is displayed, then push back to position I.

How to use the chronograph?

Press pusher A to start timing, press A again to stop. Press pusher B to reset the hands to zero. The counters indicate minutes, seconds, and 1/10 second.

How to measure a split time?

While the chronograph is running, press pusher B to display the split time (hands stop but timing continues in the background). Press B again to catch up to real time. Stop with A.

How to reset the chronograph hands to zero if they are misaligned?

Pull the crown to position III. Press A and B simultaneously for at least 2 seconds. The central hand rotates 360°. Use A to adjust the central hand step by step or continuously. Press B to switch to the next hand (hour counter, then minute). Once adjusted, push the crown back to position I.

Which battery to use for the Candino C4275?

The watch uses a 395 battery (SR927SW, diameter 9.5 mm, height 2.6 mm). It is recommended to have the battery replaced by a watchmaker.

What to do if the watch stops?

Check if the battery is dead. If the watch no longer works, replace the battery with a new type 395. If the problem persists, consult a watchmaker.

Is the Candino C4275 water resistant?

The water resistance level is not specified in the manual. As a precaution, avoid any contact with water: do not wear it while showering or swimming. Probably resistant to splashes (3 ATM).

How to clean the watch?

Clean the case and bracelet with a soft dry cloth. Avoid chemicals, alcohol, and water. For stubborn dirt, use a slightly damp cloth then dry immediately.

How to set the date and time simultaneously?

Pull the crown to position II, turn to display the day before the date. Then pull to position III (seconds hand stops), turn to advance the date to the current day, then continue to set the correct time (observe the 24-hour cycle). Push back to position I.

USER MANUAL C4275 Candino

FESTINA-CANDINO WATCH LTD 2501 Bienne Switzerland

a company of the Festina Group www.candino.com

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

MANUALE DELL'ISTRUZIONE D'USO

B

• Description of the display and control buttons 14
• Chronograph 15
• Setting the time....20
• Quickly changing the date 21
• Setting the date and time 22

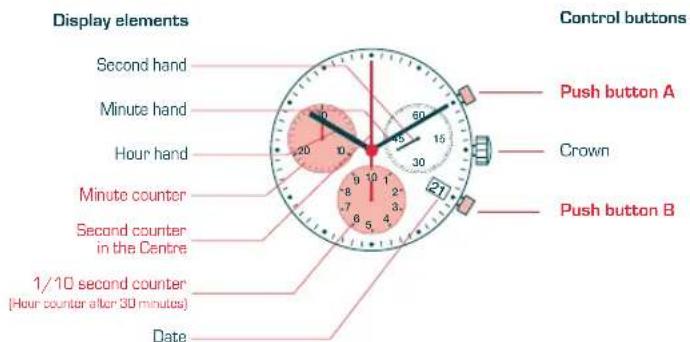

DESCRIPTION OF THE DISPLAY AND CONTROL BUTTONS

14

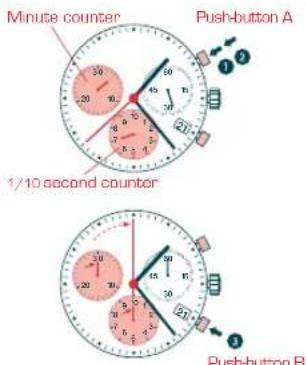

CHRONOGRAFH: BASIC FUNCTION
START/STOP/RESET

Example:

1 Start: Press push-button A.
2 Stop: to stop the timing, press push-button A again hand read the three chronograph counters: 4 min/38 s/7/10 s
③ Zero positioning:

Press push-button B.

(The three hands of the chronograph go back to zero).

15

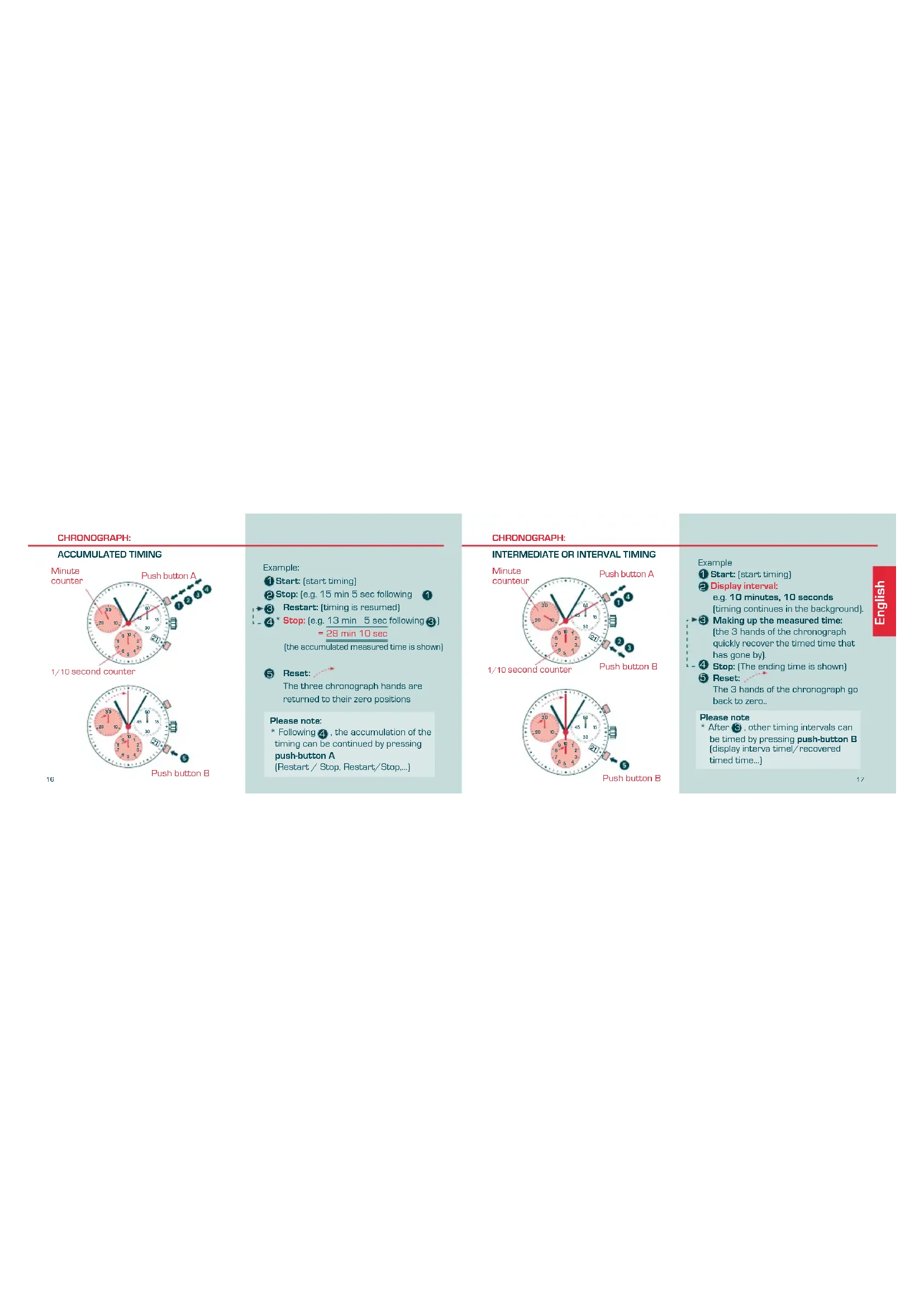

CHRONOGRAPH:

ACCUMULATED TIMING

1/10 second counter

13

Example:

1 Start: (start timing)

② Stop: [e.g. 15 min 5 sec following ①

3 Restart: (timing is resumed)

- 4* Stop: [e.g. 13 min 5 sec following ③]

28 min 10 sec

[the accumulated measured time is shown]

5 Reset:

The three chronograph hands are

returned to their zero positions

Please note:

* Following 4, the accumulation of the

timing can be continued by pressing

push-button A

[Restart / Stop, Restart/Stop,...]

CHRONOGRAPH:

INTERMEDIATE OR INTERVAL TIMING

Push button B

Example

1 Start: (start timing)

2 Display interval:

e.g. 10 minutes, 10 seconds

(timing continues in the background).

▶3 Making up the measured time: (the 3 hands of the chronograph quickly recover the timed time that has gone by).

- 4 Stop: [The ending time is shown]

⑤ Reset:

The 3 hands of the chronograph go

back to zero.

Please note

* After B, other timing intervals can be timed by pressing push-button B (display interval time/ recovered timed time...)

17

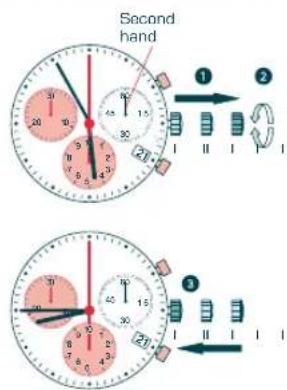

ADJUSTING THE HANDS OF THE

CRONOGRAPH TO THE ZERO POSITION

1/10 second counter

19 19

Example:

One or more of the hand of the chronograph are not in their correct zero position and must be adjusted (ex. after changing the battery)

1 Pull out the crown to position III (all 3 hand of the chronograph go back to their correct or incorrect zero position).
② Push press button A and B at the same time for at least 2 sec (the second counter hand in the centre turns 360° à the corrective mode is activated)

Adjusting the centre stop second Singel step A 1 x short Continuous A long
Adjusting the next hand B
Adjusting the 1/10 second hand counter (position 6h) Single step A1 x short Continuous A long
Adjusting the next hand B Adjusting the minute counter hand (position 9h)
Single step A1 x short Continuous A long
③ Return the crown to position I Finished adjusting the hands of the chronograph (can be done at any time).

SETTING THE TIME

20

1* Pull out the crown to position III [the second hand stops].
② Turn the crown until you reach the correct time 8:45.
3* Return the crown to position 1.

Please Note:

* In order to set the time to the "approximate second", ① must be pulled out when the second hand is in the "60" position (I). After setting hour and minute hands, ③ should be put back in position I at the "approximate second".

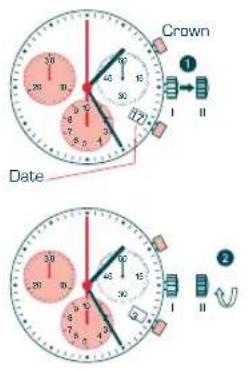

QUICKLY CHANGING THE TIME

1 Pull out the crown to position II (the watch continues to work).
2 Turn the crown until the correct date 1.
3 Push the crown back into position 1.

Please Note:

The date can be changed during the date rollover phase between 9:00 pm and midnight by setting the date of the following day so that the automatic date change does not move ahead automatically from 1 day to midnight.

21

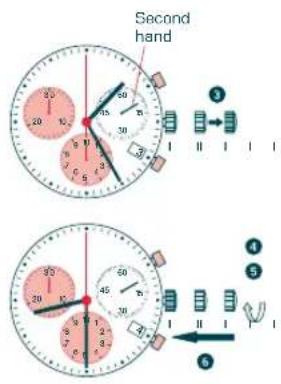

SETTING THE DATE AND TIME

22 23

Example:

- Date/time on the watch: 17 /1:25 AM

- Current date/time: 4 /8:30 PM

1 Pull the crown out to position II (the watch continues to work).
Turn the crown until you reach yesterday's date 3.

③ * Pull out the crown to position III (the second hand stops).
4 Turn the crown until you reach the current date 4.
5**Keep turning the crown until you reach the current time 8:30pm.
Return the crown to position I.

Please note:

* In order to set the time to the "approximate second", see the note in the "Setting the time" section.
**Please observe the AM/PM clock rhythm.

Type of battery: 395 [Ø 9.5 mm x 2.6 mm / SR 927 SW] Accuracy of functioning: +20/-10 seconds per month

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.
