Product type	Wristwatch
Brand	Candino
Model	C4516
Movement	Battery quartz
Display	Analog with three subdials (1/10 s, minutes, seconds)
Main functions	Chronograph (start/stop/reset), date, hour, minute, second
Quick date correction	Yes, via crown in position II
Time setting	Crown in position III, stop of second hand
Chronograph hand adjustment	Zero position adjustable via pushers A and B
Crown positions	3 positions: I (rest), II (date correction), III (time setting)
Pushers	2 pushers (A and B) for chronograph functions
Number of pages in manual	33 pages
Languages of manual	FR, DE, EN, ES, IT
Case diameter (approx)	Approx 40 mm
Case thickness (approx)	Approx 10 mm
Weight (approx)	Approx 60 g
Glass	Mineral
Case	Stainless steel
Battery	1 button cell (type SR626SW or similar)
Care and cleaning	Clean with a soft, dry cloth. Avoid chemicals.
Safety	Avoid strong shocks. Use crown and pushers with care.
Spare parts and repairability	Battery replaceable by a watchmaker. Interchangeable strap.

Frequently Asked Questions - C4516 Candino

How to start the chronograph?

Press pusher A to start timing. The subdial hands begin moving.

How to stop the chronograph?

Press pusher A again to stop timing. Read the times on the three subdials.

How to reset the chronograph to zero?

After stopping timing, press pusher B to reset all chronograph hands to zero.

How to use the cumulative timing function?

Press A to start, then again to stop. To resume without resetting, press A again (Restart). The total time adds up.

How to take split times?

During timing, press B to display the split time (hands stop but timing continues in background). Press B again to catch up to real time.

How to set the time?

Pull crown to position III to stop the second hand. Turn crown to set time. Push crown back to position I at the exact second.

How to set the date?

Pull crown to position II and turn it to scroll the date to the desired day. Push crown back.

What to do if a chronograph hand is not at zero?

Pull crown to position III. Press pushers A and B simultaneously for at least 2 seconds. Use A to adjust the central hand, then B to move to the next hand. Repeat for each hand.

How to change the watch battery?

It is recommended to have the battery replaced by a professional watchmaker. Opening the case back may damage the waterproof seal.

How to clean my Candino C4516 watch?

Use a soft, dry cloth to clean the case and bracelet. Avoid solvents, alcohol, or abrasive products. For leather straps, avoid water.

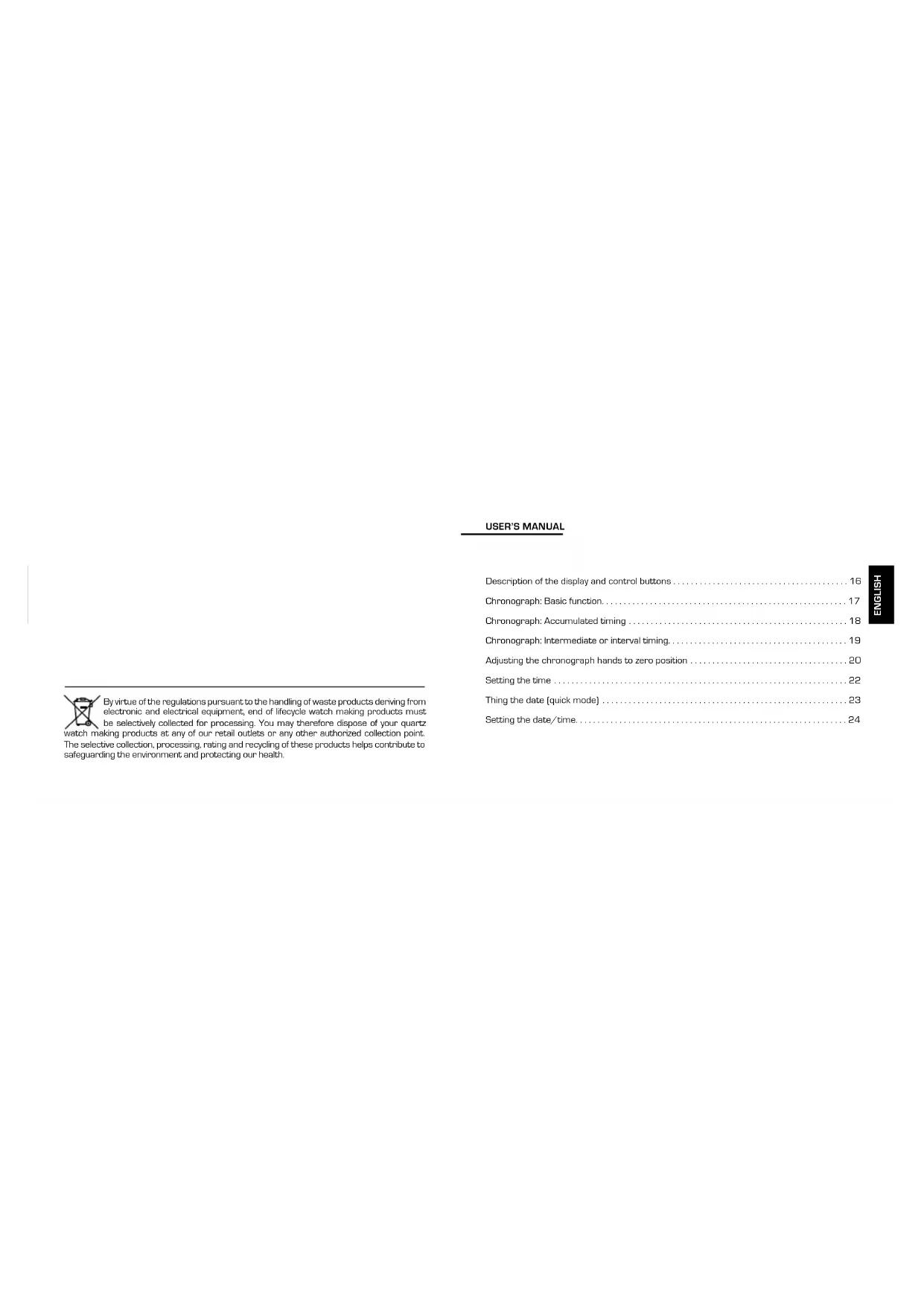

USER MANUAL C4516 Candino

Description of the display and control buttons 16
Chronograph:Basic function. 17
Chronograph: Accumulated timing 18
Chronograph: Intermediate or interval timing. 19
Adjusting the chronograph hands to zero position 20
Setting the time 22
Thing the date [quick mode] 23
Setting the date/time. 24

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must

watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

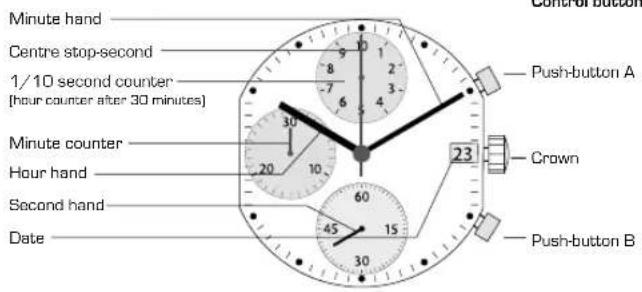

Display elements

16

CHRONOGRAPH: BASIC FUNCTION

[START/STOP/RESET]

Example:
Start: Press push button A.
Stop: To stop the timing, press pushbutton A once more and read the 3 chronograph counters: 4 min/38 sec/7/10 sec

Zero positioning:

Press push-button B

[The 3 chronograph hands will be reset to their zero positions].

17

ADJUSTING THE CHRONOGRAPH

ANDS TO ZERO POSITION

1/10 second counter

Center stop-second

Minute counter

2021

Example:
One or several chronograph hands are not in their correct zero positions and have to be adjusted [e.g. following a battery change].
Pull out the crown to position III [all 3 chronograph hands are in their correct or incorrect zero position].
Keep push buttons A and B depressed simultaneously during 2 segundos como minimo [the centre stop-second rotates by 360^ corrective mode is activated).

Adjusting the centre stop second.
Single step A 1 x short
Continuous A long
Adjusting the next hand B
Adjusting the 1/10 second counter hand (position 6h)
Single step 一 ~ A ~ 1xshort Continuous 一 ~ A ~ long
Adjusting the next hand B
Adjusting the minute counter (position 9h) Single step A 1 x short
Continuous A long

• Returning the crown to position I Termination of the chronograph hands adjustment (can be carried out at any time).

SETTING THE TIME TING THE DATE

Second hand

2223

Pull out the crown to position III (the watch stops).
Turn the crown until you reach the correct time 8:45.
Push the crown back into position!

Please note:

* In order to set the time to the exact second, must be pulled out when the second hand is in position 60] []. Once the hour and minute hands have been set, must be pushed back into position I at the exact second.

[QUICK MODE]

Pull out the crown to position II [the watch continues to run].
um the crown backwards until the correct date I appears.
Push the crown back into position I.

Please note:

The date can be changed during the date changing phase between 08:30 PM and 12:00 PM; please note that the date must be set to the date of the following day as in this case the automatic date changing does not occur at midnight.

Example:

-Date/time on the watch: [17]/ 1:25 AM
- Present data / time: [4] / 8:30 PM

Pull out the crown to position II (the watch continues to run).

Turn the crown until yesterday's date appears (3).

↓

*Pull out the crown to position III [the watch stops].
Turn the crown until the correct date
**Continue to turn the crown until the correct time 8:30 PM appears.
Push the crown back into position L.

Please note:

To set your watch to the exact second, please refer to the chapter entitled "setting the time".
** Please observe the AM/PM clock rhythm
