C4579 - Watch Candino - Free user manual and instructions

Brand	Candino
Model	C4579
Product type	Quartz chronograph wristwatch
Display	Analog (hour, minute, second hands) with date window
Main functions	Time display, chronograph (split time measurement, totalization), quick date correction
Power source	Quartz battery
Dimensions	Approximately 40 mm diameter, 10 mm thickness (estimated)
Weight	Approximately 80 g (estimated)
Water resistance	Not specified in the manual, avoid prolonged contact with water
Care and cleaning	Wipe with a soft dry cloth. Avoid chemicals. Have the battery replaced by a professional
Safety	Do not expose the watch to strong magnetic fields or extreme temperatures
Spare parts and repairability	Strap and battery available from authorized dealers. Repair should be carried out by a qualified watchmaker
General information	User manual available for free download at notice-facile.com

Frequently Asked Questions - C4579 Candino

How to set the time on my Candino C4579?

Pull the crown to position III (the second hand stops). Turn the crown to set the desired time, then push the crown back to position I. For precise setting to the second, pull the crown when the second hand is at 60.

How to use the chronograph?

Press push button A to start and stop timing. Press push button B to reset the chronograph hands to zero. The minute counter (at 9 o'clock) and hour counter (at 6 o'clock) total up to 12 hours.

How to perform a quick date correction?

Pull the crown to position II (the watch continues running). Turn the crown until the correct date is displayed, then push it back to position I. Avoid setting the date between 9 PM and midnight, as the date change mechanism is engaged.

What to do if the chronograph hands are not at zero?

Pull the crown to position III. Press push buttons A and B simultaneously for at least 2 seconds to enter correction mode. Use push button A to adjust the center second hand, then press B to move to the next hand. Repeat for the minute and hour counters. Push the crown back to position I to finish.

After a battery change, how to set the date and time?

Pull the crown to position II to set the day before the current date, then to position III to stop the second hand. Turn the crown to advance to the current date, then continue to the correct time. Observe the 24-hour cycle to avoid AM/PM reversal.

Is my Candino C4579 water-resistant?

The manual does not specify the water resistance level. As a precaution, avoid wearing it in the shower, while swimming, or in a humid environment. If exposed to water, wipe it dry quickly.

How to clean my watch?

Use a soft dry cloth to wipe the case and strap. Never use chemicals, solvents, or ultrasonic cleaners. For leather straps, avoid any contact with water.

Where can I find the complete user manual?

The manual is available for free download in PDF format on notice-facile.com in several languages, including French.

What battery does my Candino C4579 use and how to change it?

The battery type is not specified in the manual. It is recommended to have the battery replaced by a professional watchmaker to avoid damaging the movement.

Why does my watch stop or run slow?

This could be due to a worn-out battery. Replace the battery. If the problem persists, the watch may need servicing. Avoid exposing it to magnetic fields (speakers, magnets) which can affect accuracy.

USER MANUAL C4579 Candino

FESTINA-CANDINO WATCH LTD 2501 Bienne Switzerland

a company of the Festina Group www.candino.com

CANDINO SWISS WATCH

MANUAL DEL USUARIO

USER'S MANUAL

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

MANUALE DELL'ISTRUZIONE D'USD

Diagram of a clock with numbered parts and directional arrows indicating movement or sequence

• Description of the display and control buttons 14
• Chronograph 15
• Setting the time....20
• Setting the date (quick mode)....21
• Setting the date time following a battery change....22

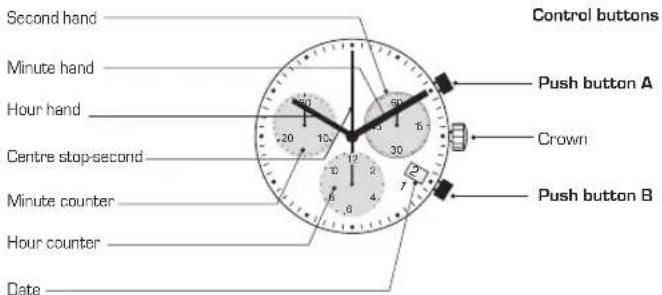

Display elements

Second hand Minute hand Hour hand Centre stop-second Minute counter Hour counter Date Control buttons Push button A Crown Push button B

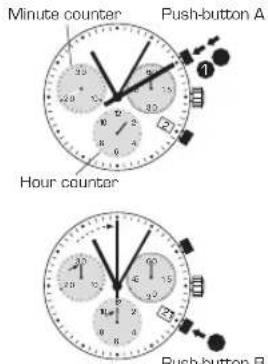

START/STOP/RESET

Minute counter Push-button A Hour counter Push-button B

Example:
1 Start: Press push-button A
2 Stop: to stop the timing, press push button A once more and read the three chronograph hand: T 1h/20min/10sec
③ Zero positioning: Press push-button B.II
(The three chronograph hands will be reset to their zero positions).

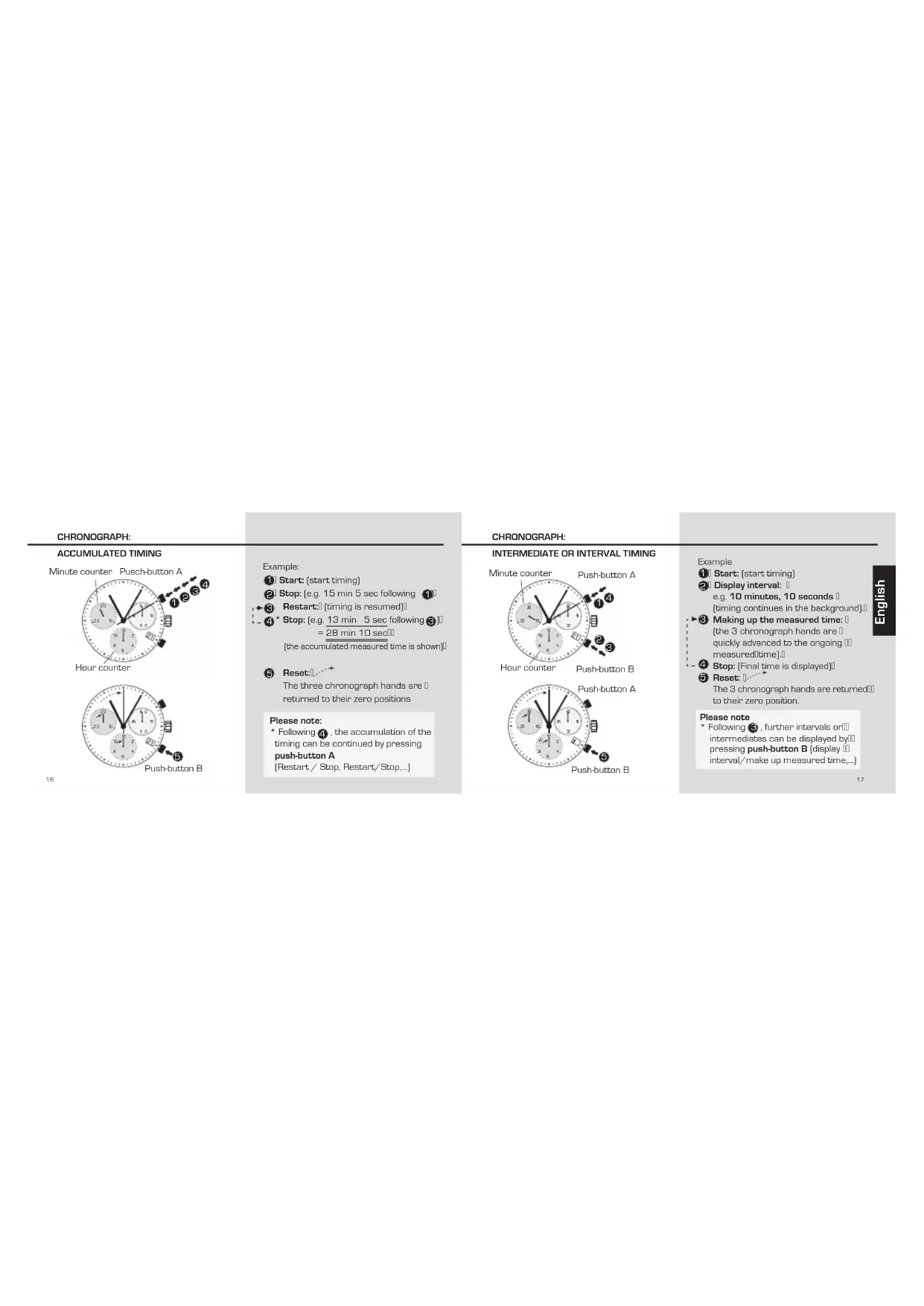

CHRONOGRAPH:

ACCUMULATED TIMING

Minute counter Pusch-button A

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

13

Example:

11 Start: (start timing)

2) Stop: [e.g. 15 min 5 sec following 1]

3 Restart: [timing is resumed]

4* Stop: [e.g. 13 min 5 sec following ③] = 28 min 10 sec[1] [the accumulated measured time is shown]

5 Reset:

The three chronograph hands are returned to their zero positions

Please note:

* Following 4, the accumulation of the timing can be continued by pressing push-button A [Restart / Stop, Restart/Stop,...]

CHRONOGRAPH:

INTERMEDIATE OR INTERVAL TIMING

Minute counter

Push-button A

Hour counter

Push-button B

Push-button B

Example

1 Start: (start timing)

2] Display interval:

e.g, 10 minutes, 10 seconds || (timing continues in the background).

3 Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).

4 Stop: [Final time is displayed]

5 Reset:

The 3 chronograph hands are returned to their zero position.

Please note

* Following Ⓐ, further intervals or T intermediates can be displayed by U pressing push-button B (display M interval/make up measured time,...)

17

ADJUSTING THE CHRONOGRAPH

HANDS TO ZERO POSITION

Minute counter Center stop-second Hour counter

Push-button A ② III Push-button B

19 19

One or several chronograph hand are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

1 Pull out the crown to position III [all 3] chronograph hands are in their correct or incorrect zero position].
2 Keep push-buttons A and B depressed simultaneously for at least 2 seconds [the centre stop-second rotates by] 360^ corrective mode I is activated

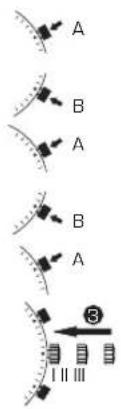

A B A B A 3

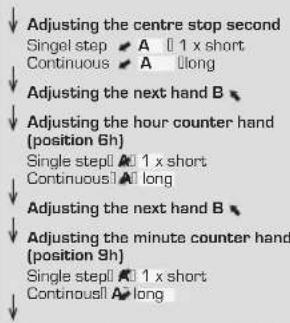

Adjusting the centre stop second Singel step A 1 x short Continuous A long Adjusting the next hand B Adjusting the hour counter hand (position 6h) Single step A 1 x short Continuous A long Adjusting the next hand B Adjusting the minute counter hand (position 9h) Single step A 1 x short Continuous A long

③ Returning the crown to position I Termination of the chronograph hands adjustment (can be carried out at any time)

SETTING THE TIME

Second hand ① ②

20

1* [Pull out the crown to position III][the watch stops].

2 Turn the crown until you reach the correct time 8:45.

3* Push the crown back into position 1.

Please note:

*In order to set the time to the exact second, ① must be pullet out when the second hand is in position "60" [I]. Once the hour and minute hands have been set, ③ must be pushed back into position I at the exact second.

SETTING THE DATE (quick mode)

① [Pull out the crown to position III] [the watch continues to run].

2 Turn the crown until the correct date. 1 appears.

③ Push the crown back into position I.

Please note:

During the date changing phase between 9 PM and 12 PM; the date must be set to the date of the following day.

21

SETTING THE DATE/TIME

FOLLOWING A BATTERY CHANGE

Example:

- Date/time on the watch: 17 /1:25 AM

- Present date/time: 4 /8:30 PMI

1 Pull out the crown to position III (the watch continues to run).
② Turn the crown until yesterday's date appears 3.

Second hand

20 10 60 5 20 4 20 6 ④ ⑤ ⑥

⑧ * [Pull out the crown to position III] (the watch stops).
4 Turn the crown until the correct date 4 appears
⑤**Continue to turn the crown until the correct time 8:30 PM appears!
6 Push the crown back into position I.

Please note:

* To set your watch to the exact second please refer to the chapter D entitled "setting the time".
**Please observe the AM/PM clock rhythm.

MODE D'EMPLOI

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

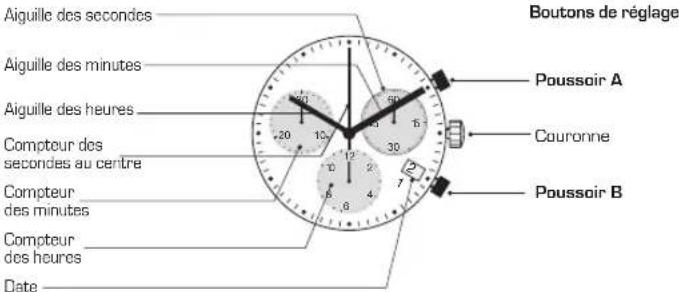

DESCRIPTION DES ORGANES D'AFFICHAGE ET DE COMMANDE

Affichages

Two analog clocks showing hand positions and time markings, labeled ① to ⑦ with clock face numbers and directional arrows.

Diagram of a clock with time and duration markings, showing hand gestures and a numbered sequence from 4 to 6.

NACH BATTERIEWECHSEL

Beispiel:

- Datum/Uhrzeit auf

der Uhr: 1 Y01:25

Diagram of a clock with time and duration markings, showing hand gestures and a numbered sequence from 4 to 6.

Diagram of a clock face with numbered parts and directional arrows indicating movement or sequence
