USER MANUAL S260ABTZ PKM
Guarantee conditions .................................................................................................. 40 A. Technical drawing ....................................................................................................... 59 EU - Declaration of Conformity The products, which are described in this instruction manual, comply with the harmonized regulations. The relevant documents can be requested from the final retailer by the competent authorities. The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.24 The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

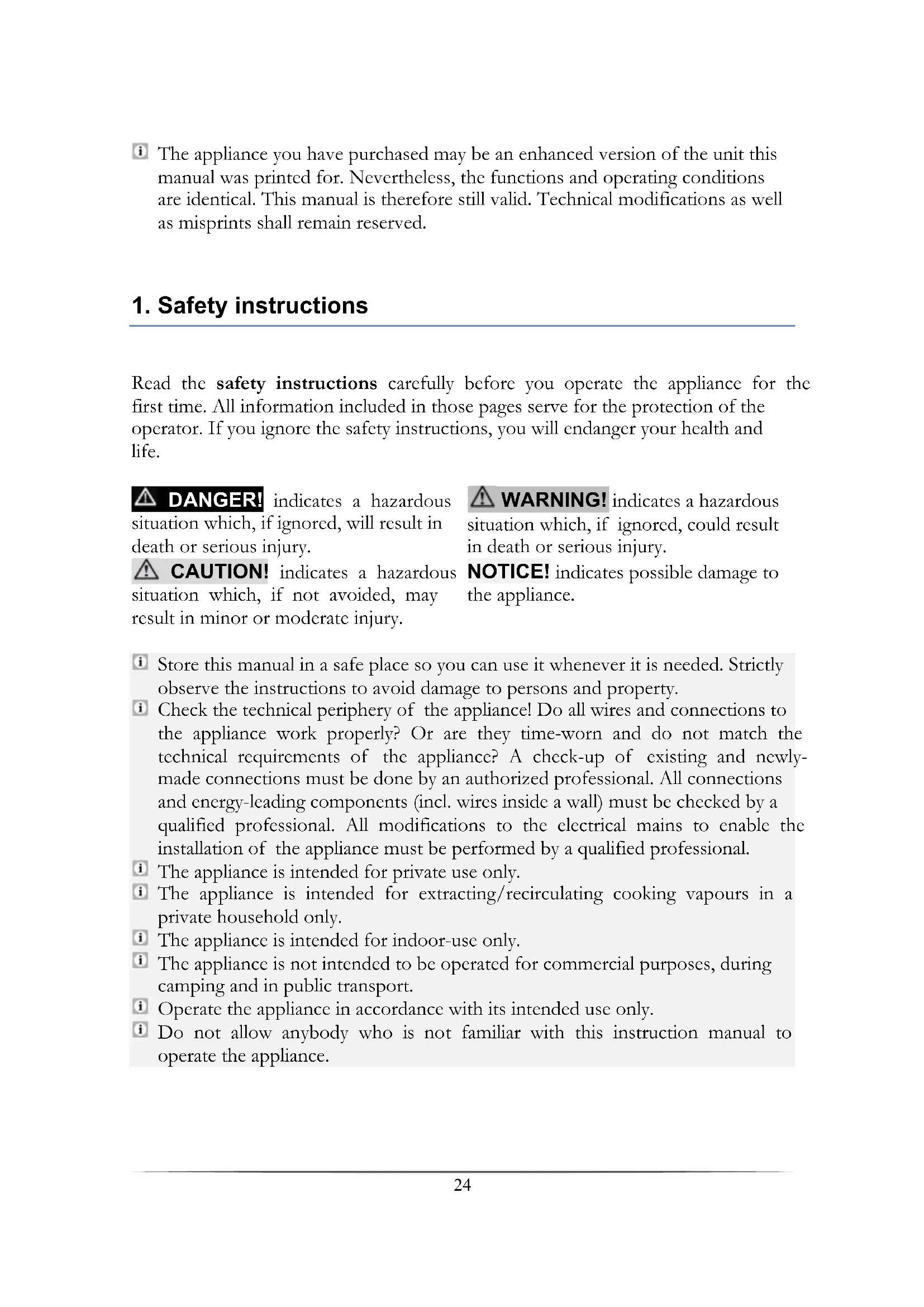

1. Safety instructions
Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life. DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury. WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury. CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE! indicates possible damage to the appliance. Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property. Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly- made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional. The appliance is intended for private use only. The appliance is intended for extracting/recirculating cooking vapours in a private household only. The appliance is intended for indoor-use only. The appliance is not intended to be operated for commercial purposes, during camping and in public transport. Operate the appliance in accordance with its intended use only. Do not allow anybody who is not familiar with this instruction manual to operate the appliance.25 DANGER
1. Do not operate the appliance when it does not work properly, is visibly
damaged, has dropped down or the power cord/plug are damaged.
2. The power cord must be replaced by a qualified professional only.
3. Never repair the appliance yourself.
4. Do not operate any room-air dependent fireplaces while operating the
appliance; otherwise harmful gases will get from the fireplace into your home. Whenever the hood is operated together with chimney-vented fireplaces (e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.
5. If gas is set free in your home:
Open all windows. Do not unplug the appliance and do not use the control panel. Do not touch the appliance until the gas has gone. Otherwise sparks can be generated which will ignite the gas. WARNING!
1. Whenever you use extractor hoods in combination with non electrically-
operated appliances ( gas and oil-fired appliances ) , the negative pressure of the corresponding room must not be more than 4 Pa (4 * 10
2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket
board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.
3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize
risk of electric shock. The technical data of your energy supply must meet the data on the rating label.
5. Your domestic circuit must be equipped with an automatic circuit breaker.
6. Strictly observe the minimum distance between hood and hob:
Minimum distance hood to Ceramic-glass rings/hotplates 65 cm Gas cooker 75 cm Coal / oil / stove wood firing 85 cm
7. Do not cook a la flambé dishes below the extractor hood. The flames may
damage your appliance and/or cause fire.26
8. Do not operate the gas jets of a gas hob without cookware. The flames may
damage your appliance and/or cause fire.
9. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of
auto-ignition rises when using the oil many times.
10. Do not carry out any procedures on the hob using naked light or fire. The
flames may damage your appliance and/or cause fire.
11. The exhaust hose must not be made of flammable materials or contain any
flammable materials.
12. The extracted air must not be conducted by an exhaust pipe of a heater or
similar, not electrically-operated appliances.
13. Operate the appliance with inserted grease filters only. Otherwise recirculating-
transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.
14. Disconnect the appliance from the mains before cleaning and maintenance.
15. While unpacking, the packaging materials (polythene bags, polystyrene pieces,
etc.) should be kept away from children. CHOKING HAZARD!
16. This appliance may be operated by children aged from 8 years and above as
well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user- maintenance must not be carried out by children unless they are supervised.
17. Always supervise children so they will not play with the appliance.
1. Accessible parts of the hood may become hot while cooking.
2. Carry out the installation of the appliance with at least two persons. Risk of
damage. RISK OF INJURY! NOTICE!
1. The appliance must be transported and installed by at least two persons.
2. Unpack the parts of the chimney very carefully; otherwise you will damage the
3. Remove the complete packaging materials before initial operation. The
appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.
4. Clean and maintain the appliance regularly to enable its proper operation and
optimal performance.
5. Take the enclosed parts from the packaging and its polystyrene-
6. Check that the power cord and the appliance are not damaged before electrical
1. The diameter of the exhaust hose must meet the diameter of the connecting
2. If your appliance is equipped with a carbon filter, remove the carbon filter
before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.
3. The exhaust duct should be as short and straight as possible. The diameter of
the exhaust hose should be at least 120/150 mm (look at chapter TECHNICAL DATA). Otherwise you have to expect increased noise and decreased performance of your appliance.
4. The proper maximum bending angle outwards is 120
5. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
6. When the exhaust duct is connected horizontally, a minimum falling gradient of
is required. Otherwise condensate will get into the motor of the hood.
7. When an exhaust duct is used, the ending of the exhaust hose must be adjusted
into the direction of flow.
8. If the exhaust duct passes through cool areas (e.g. an attic), a temperature
gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.
9. Depending on the model the hood is equipped with one ( top ) or two ( top,
10. The idle outlet is covered by a plastic cap. You can remove this cap by turning it
WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. WARNING! Do not damage the wiring in the wall while drilling
1. Drill three 8 mm holes to install the suspension bracket. Fix the suspension
bracket on the wall using the provided screws and dowels. 1 Drilled holes 2 Dowels 3 Suspension bracket 4 Screws 4mm*30mm29
2. For inclined models: Four additional 4*8 mm drillings are required to fix the
3. Hang the appliance on suspension bracket. Fix the appliance (look at step 2).
The appliance must be installed in horizontal position. Check proper position using a spirit level. 1 Suspension bracket 2 Hood 3 Openings for suspension bracket.30
4. Install the one-way-valve on the air outlet of the hood. Then install the exhaust
hose on the one-way-valve as described below.
Installation of the chimney
2. Adjust the chimney to the required height. Then fix bracket 1 using 2 pcs. 4*8
mm screws as described below.
3. Drill two 8 mm holes to install bracket 2. Fasten bracket 2 on the wall using the
4. Fix the chimney using the two screws.
1 Bracket 2 1 4*8 mm screws 2 4*30 mm screws + dowels
5. Insert the grease filters and connect the appliance to the mains
Check the correct position of the hood from front and side perspective. Otherwise the appliance will not work properly.
If the socket is covered by the chimney, you must plug in the appliance at an earlier point in time.32 Installation steps (recirculation mode)
1. If your home is not equipped with an air outlet for extracting exhaust air to the
outside, the exhaust hose is not required. The further installation is similar to the INSTALLATION STEPS (EXTRACTION MODE).
2. You can use carbon filters for odour absorption in recirculation mode only. For
installing carbon filters, remove the grease filter. Press the lock and pull the grease filter downwards.
3. Plug the carbon filter into the appliance and turn in clockwise direction.
WARNING! Unplug the appliance before installing the carbon filter. For recirculating mode only! WARNING! Install the carbon filters safely and properly; otherwise the carbon filters can loosen and cause hazardous situations. NOTICE! The suction capacity is decreased by installed carbon filters. You can order the carbon filters at www.pkm-online.de33
NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the lights to lighten the room. Setting the time of day
1. After connecting the appliance to the power supply, the time of day should be
set. You can set the time when the appliance is not operating.
2. Touch the on/off sensor once.
3. Touch and hold the timer sensor until the hour digits of the LED display flash.
4. Use the speed sensor to increase the hour-digit displayed on the LED or the
light on/off sensor to decrease the hour-digit.
5. When the correct hour-digits appear on the LED display, touch and hold the
light on/off sensor to decrease the minute-digit.
7. When the correct minute-digits appear on the LED display, touch the timer
sensor a third time to confirm the time of day. The timer function
1. When the hood is operating you can set a particular working time. You can
programme the timer from 5 to 60 minutes. The appliance will stop running automatically when the programmed period of time has been elapsed.
2. To programme a working time touch the timer sensor once. The LED display
3. Touch the speed sensor repeatedly to increase the working time by one minute.
To reduce the working time by one minute, touch the light on/off sensor.34
4. Max. value: 59 minutes, min. value: 0 minutes.
5. When you have set the desired working-time, touch the timer sensor once to
confirm the setting. The LED display will begin the countdown and show the remaining working time.
6. When the desired time has been elapsed, the appliance will stop operating
automatically and the time of day will be displayed.
7. The next time you use the hood and touch the timer sensor once, the timer will
automatically programme the working time you most recently set.
4. Cleaning/maintenance
WARNING! Disconnect the appliance from the mains before you clean or maintain it. Ignoring the cleaning and maintenance instructions will cause an increased risk of fire. NOTICE! Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.
1. Clean the housing of the appliance with a suitable detergent. Use such a product
carefully and economically.
2. Do not clean the control panel with a detergent. Use a damp cloth.
Otherwise you may damage the electronic components of the controls.
3. Never use any alcohol-containing detergents to clean matt black painted
appliances as these detergents cause colour-changes.
4. Clean the glass panels
with a suitable detergent only.
5. When you clean or replace the grease filters or the carbon filters also clean all
visible components on the bottom of the appliance with a mild, non- acrid and fat-dissolving detergent.
6. Do not damage the grid of metal-made grease filters. The colour of the metal
surface may change due to frequent cleaning as well as the use of aggressive detergents.
7. Such changes do not influence the capacity of the appliance and are no reason
Equipment depends on model.35
Aluminium filter Clean the aluminium filters once a month by hand or in a dishwasher (30
). Do not use any acrid or corrosive detergents. Do not use any abrasive detergents! Do not use any alkaline dishwasher-detergents! (ph more than 7). Do not put the filter in the dishwasher together with tableware Filters which are blocked with food debris do not carry a guarantee. Dry the filters properly before you reinstall them.
Conventional carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. Find further information on the filter packaging.
4.3 Replacing of the illuminant
1. WARNING! Disconnect the appliance from the energy supply.
2. Let the illuminant cool down before replacing.
3. Remove the grease filters and push out the illuminant. Be especially careful
4. Pull the illuminant carefully out of the hole and
disconnect the energy supply wire.
5. Now connect the new illuminant to the energy
6. Push the wires back into the hole and fix the new
POSSIBLE CAUSE MEASURE
The appliance does not work at all. The plug of the appliance is not connected to the socket. The plug has become loose. The socket is not supplied with energy. The fuse is switched off. Check the corresponding socket by connecting it with another appliance. Check the fuse. The voltage is too low. Compare the data on the model plate with the data of your energy supplier. Light is on but motor does not work. ventilation damper blocked. motor mounting defective. remove blockage. replace motor. Abnormal motor-smells. motor defective replace motor Smear of oil. one-way valve is leaky connection base chimney-telescopic chimney is leaky seal the valve seal the connection with a suitable material Appliance vibrates. motor not properly fixed hood not properly fixed fix motor properly fix hood properly Insufficient extracting capacity. too much distance hood-hob too much draught because of open doors and/or windows lower position of hood close the doors/windows Appliance is unstable. mounting rail is not firmly fixed screws are not firmly tightened fix mounting rail properly tighten the screws If the hood does not work properly and/or you can hear increased operating noise, check the schedule below: Incorrect dimension of the air duct. Obstruction in the air duct. The diameter of the air duct from hood to wall-box inclusive should be 120 mm; otherwise the capacity of the motor may be decreased. If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen. If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.37 Install a cover panel with moveable slats, which do not obstruct the air vent. Check condition and cleanliness of the filters. Check if the air which is extracted by the hood is replaced to avoid negative pressure. When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3-6 months). If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the shop you purchased the appliance at.
Type Cooker hood Material Black painted /glass Installation-width in cm 60.00 Touch control 5 Recirculation/extraction mode*
Annual energy consumption (AEC hood
28,5 Fluid dynamical efficiency category A Lighting efficiency (LE hood
A-rated noise emission ** 56 dB 63 dB Power consumption off (P
Power consumption standby (P
Power consumption lighting system (W
Telescopic chimney extractable from-to 40.00-79.00 cm Dimensions appliance H*W*D in cm Weight net/gross in kg 85,20-124,20*60,00*38,90 15,20/16,6038 Type Cooker hood Material Black painted /glass Installation-width in cm 90.00 Touch control 5 Recirculation/extraction mode*
Annual energy consumption (AEC hood
28,5 Fluid dynamical efficiency category A Lighting efficiency (LE hood
A-rated noise emission **
9 dB 63 dB Power consumption off (P
Power consumption standby (P
Power consumption lighting system (W
- Extraction mode: installation with ventilation stack or air duct outwards only, wall penetration = Ø 150 mm, drilling approx. Ø 160 mm. ** Measured values at minimum/maximum motor speed. *** Optional equipment.
1. While unpacking, the packaging materials (polythene bags, polystyrene pieces,
etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible
recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the
appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these
materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal
facilities. Materials marked with this symbol are recyclable. Please contact your local authorities to receive further information.40
8. Guarantee conditions
for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material- components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property. The guarantee claim does not cover:
1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized
condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product
unless a liability is forced by legal regulations. The validity of the guarantee will be terminated if:
