MXBBM2151 - Blender Mx Onda - Free user manual and instructions

Product type	Stand blender
Brand	Mx Onda
Model	MXBBM2151
Color	Not specified (usually white or silver)
Dimensions (L × W × H)	190 × 180 × 385 mm
Weight	2.8 kg
Motor power	600 W
Power supply	220-240 V ~ 50/60 Hz
Bowl capacity	1.5 liters
Bowl material	Glass
Blade material	Stainless steel (6 blades)
Number of speeds	2 (slow and fast) + pulse mode (P)
Cord length	110 cm
Maximum continuous operation time	2 minutes
Main functions	Mix, grind, emulsify, puree
Safety system	Bowl lock on base (operates only when correctly engaged)
Maintenance and cleaning	Glass bowl dishwasher-safe; blades and accessories hand wash; wipe base with damp cloth; do not immerse base
Spare parts	Glass bowl, blades, gasket, lid, measuring cap available through Mx Onda after-sales service
Repairability	Contact authorized MX ONDA technical service; do not open yourself
Warranty	Standard according to legislation (not specified in the manual)
Included accessories	Glass bowl, anti-drip lid, measuring cap, stainless steel blades, rubber gasket

Frequently Asked Questions - MXBBM2151 Mx Onda

How to assemble the blades of the MXBBM2151 blender?

Insert the rubber gasket into the base of the bowl, place the blades on top, then screw the blade holder counterclockwise until tight. Use the pivots for easy tightening.

What is the maximum capacity of the bowl?

The glass bowl has a capacity of 1.5 liters. Never exceed this amount to avoid overflow.

Can I blend hot food in the blender?

Avoid putting very hot food into the glass bowl to prevent thermal shock. Preheat the bowl with warm water if necessary.

What to do if the blender does not start?

Make sure the bowl is correctly locked onto the base (you should hear a click). Also check that the power outlet works and the speed selector is in a valid position.

How to clean the blender after use?

Unplug the appliance. The glass bowl is dishwasher safe. Wash blades and accessories by hand with hot water and detergent. Wipe the base with a damp cloth; never immerse it.

Can I use the blender continuously for a long time?

No, never use the blender for more than 2 minutes continuously to avoid overheating. Let it cool before using again.

What to do if the rubber gasket is deformed?

During prolonged storage, slightly loosen the blade holder to avoid permanent pressure on the gasket. If deformed, replace it through Mx Onda after-sales service.

How to use pulse mode (P)?

Turn the speed selector to position P. The blender operates at high speed only while you hold the selector turned. Release to stop.

Which foods should not be blended in the blender?

Do not use the blender for very hard foods like bones, frozen meat, or unshelled nuts. Cut ice cubes before blending.

Where to find after-sales service for this blender?

Contact MX ONDA technical service by phone at [phone] or by email at [e-mail]. Do not attempt to repair the appliance yourself.

USER MANUAL MXBBM2151 Mx Onda

MANUAL DE INSTRUÇões

Mx Onda

BATEDEIRA

MODELO: MX-BBM2151

C E

ANTES DE SEU USO LEIA ATENTAMENTE Este MANUAL

ATENÇAO

Ajustando as láminas:

MANUEL D'INSTRUCTIONS

MxOnda

MIXEUR SUR PIEDS

MODELE: MX-BBM2151

C E

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

ATTENTION

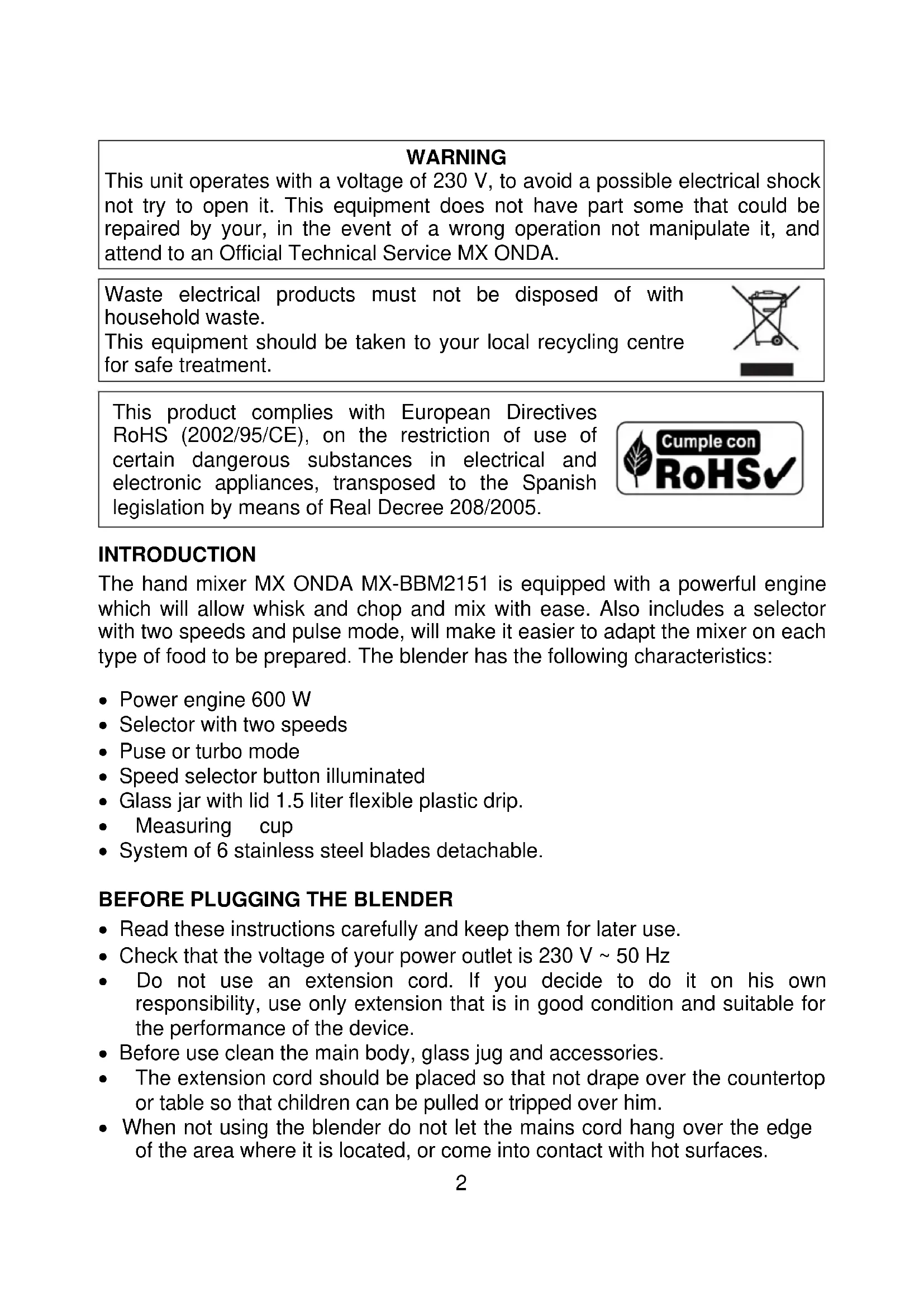

This unit operates with a voltage of 230V , to avoid a possible electrical shock not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA.

Waste electrical products must not be disposed of with household waste.

This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2002/95/CE), on the restriction of use of certain dangerous substances in electrical and electronic appliances, transposed to the Spanish legislation by means of Real Decree 208/2005.

INTRODUCTION

The hand mixer MX ONDA MX-BBM2151 is equipped with a powerful engine which will allow whisk and chop and mix with ease. Also includes a selector with two speeds and pulse mode, will make it easier to adapt the mixer on each type of food to be prepared. The blender has the following characteristics:

Power engine 600 W
- Selector with two speeds
- Puse or turbo mode
- Speed selector button illuminated
Glass jar with lid 1.5 liter flexible plastic drip.
- Measuring cup
- System of 6 stainless steel blades detachable.

BEFORE PLUGGING THE BLENDER

• Read these instructions carefully and keep them for later use.
• Check that the voltage of your power outlet is 230V 50Hz
• Do not use an extension cord. If you decide to do it on his own responsibility, use only extension that is in good condition and suitable for the performance of the device.
• Before use clean the main body, glass jug and accessories.
• The extension cord should be placed so that not drape over the countertop or table so that children can be pulled or tripped over him.

• When not using the blender do not let the mains cord hang over the edge of the area where it is located, or come into contact with hot surfaces.

• Do not place the blender on or near gas burners or electric hot plates.

• To reduce the risk of fire or electric shock, do not remove the cover from the base unit.
• To protect against risk of electric shock and personal injury, do not immerse cord, plug or main body in water or any other liquid.
• After removing the packaging, check that the device is not damaged. If in doubt do not use the appliance and contact the technical support staff.
• The packaging materials (plastic bags, polystyrene foam, etc.) Should not be left within reach of children as they are a potential source of danger.
• The manufacturer disclaims any liability for damages resulting from improper use, improper or careless of the device.

SAFETY INFORMATION

When using electrical appliances, should always be basic safety measures to reduce the risk of electric shock and / or bodily injury. These measures include:

• This unit can not be used by children or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have received proper instructions on using the equipment and shall be supervised by an adult or responsible person.
• This appliance is only for domestic use, not professional. MX ONDA do not accept responsibility and the guarantee will not apply in case of misuse or failure to follow instructions.
• This product is designed for indoor use, do not expose this appliance to rain or moisture and do not use with wet hands.
• For working with the blender, placed the blender on a dry, stable and level.
• Do not touch moving parts when it is connected to the main.
• While the blender is connected and running, do not neglect their vigilance and keep out of reach of children.
• To disconnect the mains blender pull the plug. Never pull on the cable do.
• The use of accessories not recommended by the appliance manufacturer may cause fire, electric shock or injury.

The blender has moving parts and therefore very sharp during handling or cleaning the most extreme precautions to avoid personal injury.

• Never use the blender in continuous operation for more than 2 minutes.
• Unplug the blender, whenever do not use, insert foods or ingredients into the jar, a cut of electrical source, before coming to the own cleaning of maintenance

• Do not use the blender with food how hard bones, frozen meat, etc.

• Do not get in the glass jug too hot and prevent damage to it because of a "thermal shock". We recommend you preheat the glass jug, place the glass jug under the faucet with hot or warm water.

• Never use the mixer in continuous operation for more than 2 minutes.
• If for some reason when using the blender you need to open the lid of it, remove the jar from the base or disconnect it from the mains.
• In case of failure, abnormalities, the blender itself is dropped, the plug or other parts are considered impaired, or the cable is damaged, do not use the appliance and do not attempt to repair it yourself. Contact our Customer Service nearest MX ONDA.

BEFORE USING THE MIXER FOR THE FIRST TIME

• Carefully read all sections of this manual.
• Remove the jug and remove the cover and the measuring cup.
• Remove the blades of the mixer (as described in the INSERT AND REMOVE THE STEEL BLADES section).
• Wash with soap and warm water jug, the lid, the measuring cup and the blades (extreme caution when washing this piece).
• Then carefully dry all parts and reassemble in the blender.
• It is possible that the first few times you use the blender, a slight odor occurs. This is normal and is because the device is new, it will disappear shortly after use.
• The gear selector only illuminate when the jar is properly engaged and the engine is running.

SAFETY SYSTEM AND PLACEMENT OF GLASS JUG

The blender includes a safety system that prevents operation of the same while the glass jug is not attached properly on the base.

Inserting the glass jug

The base or set motor 7 has two grooves and two small slits in the top and the glass jug 3 has two tabs and two small tabs at the base of it. Place the jar on top of the base or motor assembly matching big eyelashes pitcher with big cracks in the base or motor assembly. Then make a small turn in the direction of clockwise, until you feel small "click" indicating that the jar is properly docked.

Removing the glass jug

To remove the glass jug make a little twist counterclockwise, then pull up the glass jug.

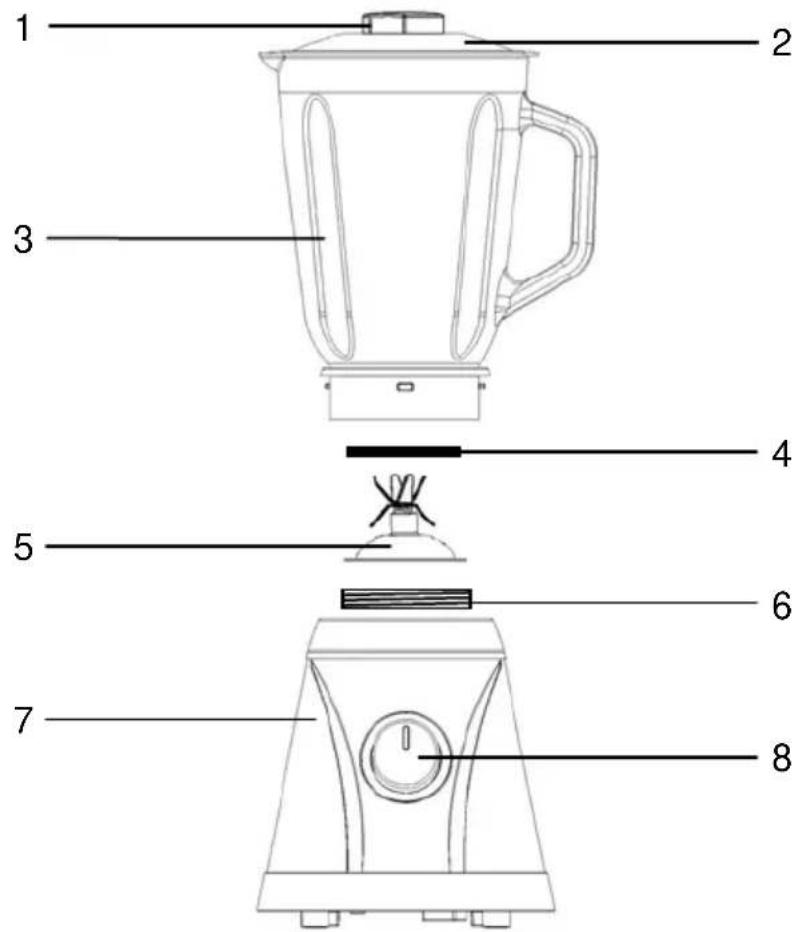

CONTROLS AND ELEMENTS

1 Measuring cup 5 Steel blades
2 Jug cover 6 Support of steel blades
3 Glass jug 7 Main body
4 Rubber ring 8 Control panel

USING THE BLENDER

This appliance is designed for domestic use, so to avoid overheating do not use the blender continuously for more than 2 minutes.

Never exceed the maximum capacity of 1.5 liters jug.

INSERT AND REMOVE THE STEEL BLADES

How to remove the steel blades:

1. Turn clockwise support of steel blades 6, use the pins "A" to loosen it without difficulty.
2. After removing the steel blades support, very carefully remove the steel blades 5 and rubber ring 4.

How to insert the steel blades:

1. Insert the rubber ring 4 in the bottom of the glass jug and place it so that it sits perfectly on the glass base. Otherwise placing the blades and the support thereof, the rubber can be pinched and damaged. It can also happen that being misplaced the spilled liquid elements.

2. With caution place the steel blades 5 above the rubber ring 4, check properly on the rubber ring.

3. Place the blades support 6 and turn it counterclockwise, use the pins "A" to tighten properly.

Note:

To avoid damaging the threads of the glass jug 3 or the blades support 6 to place the support not use excessive force, find the thread gently turning the holder counterclockwise, once found continue turning the screw support until you feel more pressure at that time should be tightened more strongly support the blades.

OPERATION

1. Make sure mixer is unplugged and the jar is properly attached to the base.
2. Place the ingredients in the jar and if required, using the measuring cup to control the amount thereof (sugar, flour, etc.).
3. Before operating the blender place the lid and insert the measuring cup over it, turning it clockwise until the clock is retained. When you want to remove the measuring cup rotate in the opposite direction to clockwise.
4. Plug mixer to a network outlet.
5. By the sped selector 8 choose the desired 1 slow speed or 2 fast speed. Turning the sped selector to the position, the mixer will run at the fastest speed, but only for the time you have turned to this position the button, release the button as soon as the engine stops.
6. After the drawing, unplug mixer from outlet.

TIPS AND SUGGESTIONS

Creams, smoothies or vegetables (cucumbers, tomatoes, etc.)

For a smooth and creamy texture blending avoid hard foods such as potatoes, cucumbers, etc., with more soft (tomatoes, peppers, etc.). Prepare them separately.

Mayonnaise and sauces

For the preparation of mayonnaise, use the ingredients at room temperature. Example: If you use cold eggs, mayonnaise can be watery or very runny. During the development process, remove the measuring cup to pour through the gap in the lid oil or other ingredients.

Smoothies with milk and fruit, ice cream, coffee, etc.

As these more milk shakes made up an additional ingredient (fruit, ice cream, etc.), you must keep in mind that citrus fruits cut milk.

If you use ice as an additional ingredient, you must first chop.

Liquid or semi-liquid mass, dough or batter crepes.

Once prepared the dough for pancakes, let stand about 10 minutes. After that time and prior to use, re- beat it for 1 or 2 seconds.

Pureed fruit or vegetables, porridge or pates.

During the preparation of baby food purees or to the desired consistency you may need to add water or milk, for which remove the measuring cup and pour the liquid through the hole in the lid.

Coffee grind, crush or grind nuts cookies.

In order to obtain a uniform texture add no more than 100 grams (approximately) every time crush or grind .

Before grinding nuts, be sure to remove the hard shell of the same.

CLEANING

• Before cleaning unplug the blender to power supply.
• Do not immerse main body in water or another liquid.
• The glass jug can be washed in the dishwasher. The rest of the accessories can be washed with warm water and detergent.
• The plastic surface of the main body of the mixer can be cleaned with a damp cloth. Do not use alcohol or abrasives.

STORAGE

To storage your blender, make sure it is clean and dry.

We recommend that if you are not using the blender for an extended period of time, slightly loosen the blades support 6 so that the rubber ring is not constantly pressured to avoid deformation or deterioration. Remember that when you want to use must correctly tighten the blades support.

Store your blender along with accessories in a dry, dust-free, within their own packaging or cover with plastic wrap, paper, etc.

TECHNICAL SPECIFICATIONS

Operating voltage 220 - 240 V ~ 50 Hz
Maximum power 600 W
Glass jug capacity 1.5 litres
Speed numbers 2 + PULSE
Working time 120 seconds
Cord length 110 cm
Dimensions 190 x 180 x 385 mm (w, Weight 2.8 Kg

Specifications subject to change without notice.

This product complies with the European Directives 2004/108/EC (EMC - Electromagnetic Compatibility) and the 2006/95/EC (LVD - Low Voltage Directive) relative to Low Tension Security.

"MX, MX ONDA" and its logos are trademarks of MX ONDA, S.A.

MX ONDA, S.A.
Isla de Java, 37
28034 - MADRID (SPAIN)

Telephone of information and Technical Service: 902 551 501

E-MAIL: [e-mail]
http://www.mxonda.es
