Features	Details
Device type	Juicer
Power	150 W
Speed	1 speed
Pulp container capacity	1.5 L
Juice container capacity	1 L
Body material	Plastic
Dimensions	30 x 15 x 15 cm
Weight	2.5 kg
Ease of cleaning	Removable parts, dishwasher safe
Included accessories	Recipe collection, cleaning brush
Warranty	2 years
Energy consumption	Class A
Safety	Overheat protection system
Recommended use	Fresh fruits and vegetables

Frequently Asked Questions - MXLI2100 Mx Onda

How do I assemble the Mx Onda MXLI2100 juicer?

To assemble the juicer, start by placing the motor on a flat surface. Then attach the collection bowl by turning it clockwise until it is securely in place. Finally, place the lid on the bowl and make sure it is properly locked.

Why won't the juicer start?

Check if the device is properly plugged in and if the outlet is working. Also make sure the lid is properly locked, as the juicer will not start if the lid is not in place.

How do I clean the Mx Onda MXLI2100 juicer?

Disassemble all removable parts, including the bowl, lid, and filter. Wash them with warm soapy water or in the dishwasher if they are dishwasher safe. Wipe the motor with a damp cloth. Do not immerse the motor in water.

Can I juice leafy vegetables with this juicer?

Yes, the Mx Onda MXLI2100 is designed to extract juice from leafy vegetables. It is recommended to cut them into smaller pieces for better results.

Does the juicer make noise during operation?

Some noise is normal, but if the device produces excessive or strange noises, check that it is properly assembled and that nothing is blocking the blades.

What should I do if the juice is not coming out properly?

Make sure the filter is not clogged. Clean it if necessary and check that the fruits or vegetables you are using are suitable for juicing.

What is the maximum capacity of the juicer?

The maximum capacity of the collection bowl is 1.2 liters. Do not exceed this capacity to avoid overflow.

Can I use whole fruits in the juicer?

It is recommended to cut fruits into smaller pieces to ensure optimal operation and avoid blockages.

Is the juicer covered by a warranty?

Yes, the Mx Onda MXLI2100 comes with a 2-year warranty against manufacturing defects. Keep your proof of purchase to benefit from the warranty.

How should I store the juicer when not in use?

Disassemble the parts and store them in a dry, cool place. Avoid leaving juice residues in the device to prevent odors.

USER MANUAL MXLI2100 Mx Onda

MANUEL D'INSTRUCTIONS

MxOnda

MÉLANGEUR

MODELE: MX-LI2100

C E

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

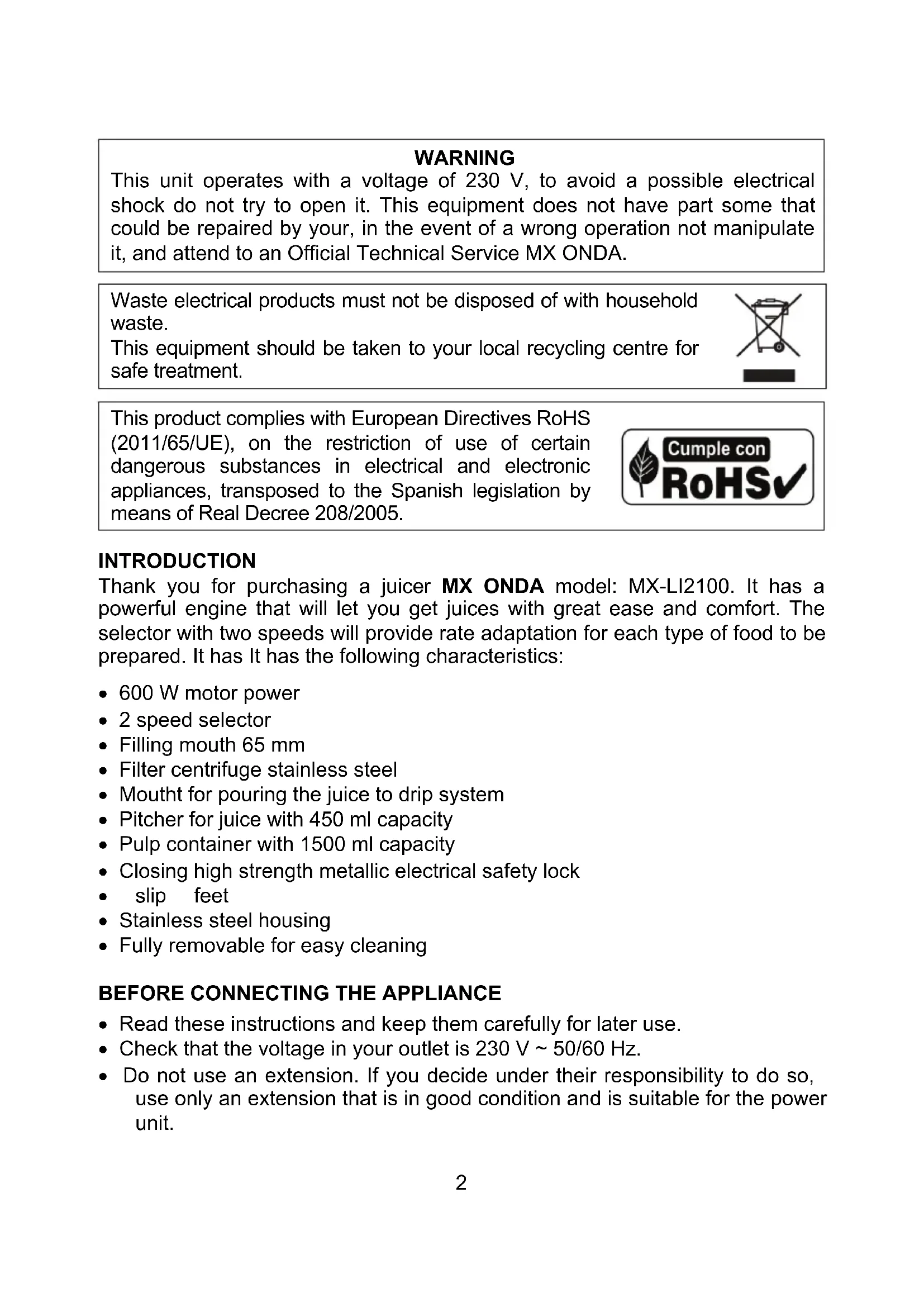

ATTENTION

This unit operates with a voltage of 230V , to avoid a possible electrical shock do not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA.

Waste electrical products must not be disposed of with household waste.

This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances, transposed to the Spanish legislation by means of Real Decree 208/2005.

Cumple con

RoHSV

INTRODUCTION

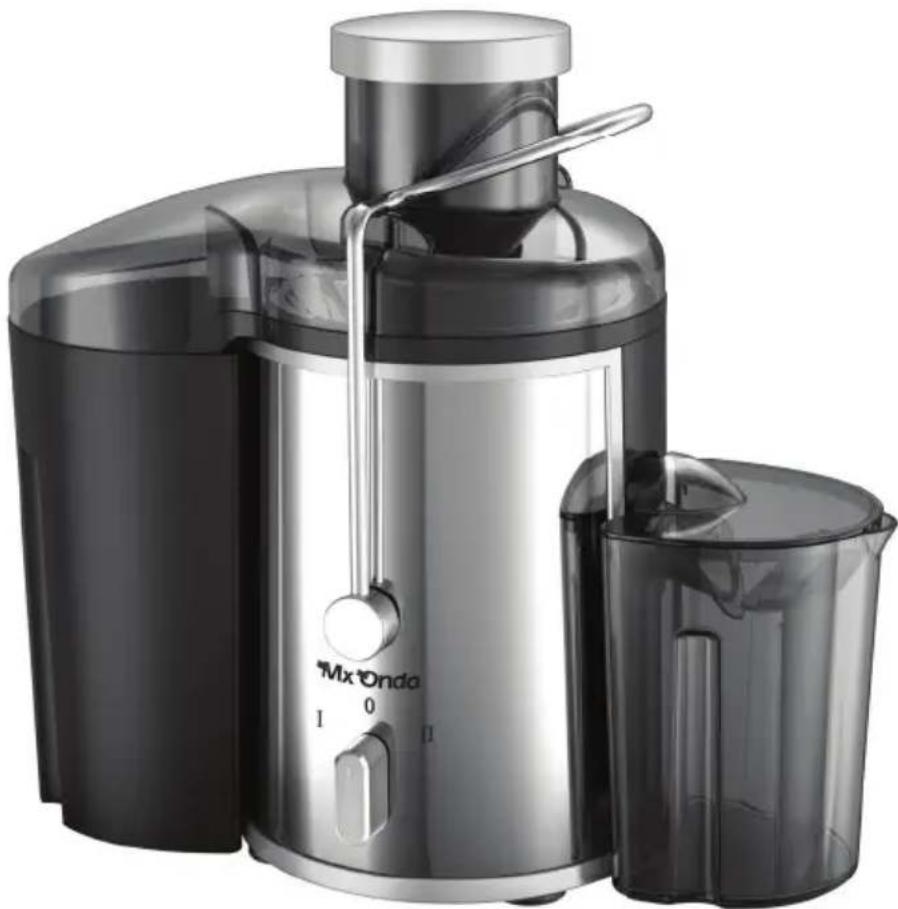

Thank you for purchasing a juicer MX ONDA model: MX-LI2100. It has a powerful engine that will let you get juices with great ease and comfort. The selector with two speeds will provide rate adaptation for each type of food to be prepared. It has It has the following characteristics:

• 600 W motor power
  2 speed selector
• Filling mouth 65 mm
• Filter centrifuge stainless steel
• Moutht for pouring the juice to drip system
• Pitcher for juice with 450ml capacity
• Pulp container with 1500 ml capacity
  Closing high strength metallic electrical safety lock
• slip feet
• Stainless steel housing
• Fully removable for easy cleaning

BEFORE CONNECTING THE APPLIANCE

• Read these instructions and keep them carefully for later use.
• Check that the voltage in your outlet is 230V 50 / 60Hz

• Do not use an extension. If you decide under their responsibility to do so, use only an extension that is in good condition and is suitable for the power unit.

• The extension should be placed so that it does not hang off the counter or table so that children can pull it or you can trip over it.

• When not using the juicer do not let the mains cord hang over the edge of the surface where it is located, or come into contact with hot surfaces.
• Do not place the juicer on or near a gas burner or electric hot plates.
• To reduce the risk of fire or electric shock, do not remove the cover from the base unit.
• Before use clean all accessories (except motor unit) with warm soapy water.
• To protect against risk of electric shock and personal injury, do not immerse cord, plug or the motor assembly in water or other liquid.
• After removing the packaging, check that the appliance is not damaged. If in doubt do not use the appliance and contact the technical support staff.
• Packaging materials (plastic bags, polystyrene foam, etc.) should not be left within reach of children as they are a potential source of danger.
• The manufacturer declines all responsibility for damages caused by improper, incorrect or careless use of the appliance.

IMPORTANT SAFETY INFORMATION

When using electrical appliances, it should always be a basic safety precautions to reduce the risk of electric shock and / or injury. These measures include the following:

• This device can not be used by children or people with or without experience and knowledge reduced physical, sensory or mental capabilities, unless you have received proper instructions on using the device and be supervised by an adult or responsible person.
• This appliance is intended for household use only and not professional. MX ONDA not accept any responsibility and the guarantee will not apply in case of misuse or failure to follow instructions.
• This device is designed for indoor use, do not expose this appliance to rain or moisture and do not use with wet hands.
• During handling place the juicer on a dry, stable and level surface.
• Do not touch the spin filter when the juicer is connected to the mains.
• Never use your fingers to push food must always use the pushing bar 1.
• Do not use the juicer abroad.
  While juicer is running on or not disregard their vigilance and keep it out of reach of children.

• To disconnect the juicer from the mains pull the plug from the socket. You do never pull on the cable.

• The use of accessories not recommended by the appliance manufacturer may cause fire, electric shock or injury

The spin filter contains very sharp edges so during handling or cleaning the most extreme precautions to avoid personal injury

• Unplug the juicer, if you are not using a power outage occurs, or "skip" a fuse or circuit and before the own maintenance cleaning.
• Never use the juicer in continuous operation for more than 1 minute, thus prolong the life of the blender.
• If for some reason when using the juicer need to open the top cover of it, disconnect the juicer from the mains.
• In case of failure, anomalies, if the juicer is dropped, the plug or other parts are considered impaired, or the cable is damaged, do not use the appliance and do not attempt to repair it yourself. Contact the Service Department nearest MX ONDA.

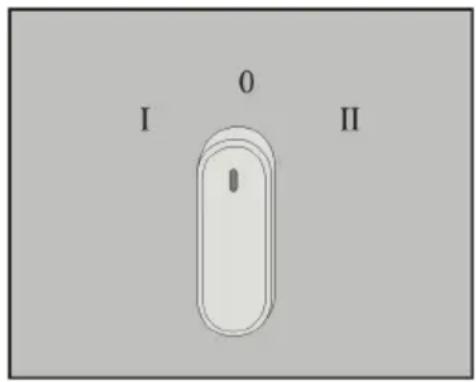

SPEED SELECTOR

In the main body of the juicer is located button on / off and speed selector. When the gear selector is in position 0 juicer remain off.

Turning the knob to the position I the juicer will operate at the minimum speed. This speed is ideal for soft foods such as cantaloupe, watermelon, grapes, tomatoes, cucumbers, raspberries, strawberries, etc.

Turning the power on / off and speed selector to position II the juicer will run at full speed. This speed is suitable for food with a harder texture such as pineapple, apple, grapefruit, carrots, etc.

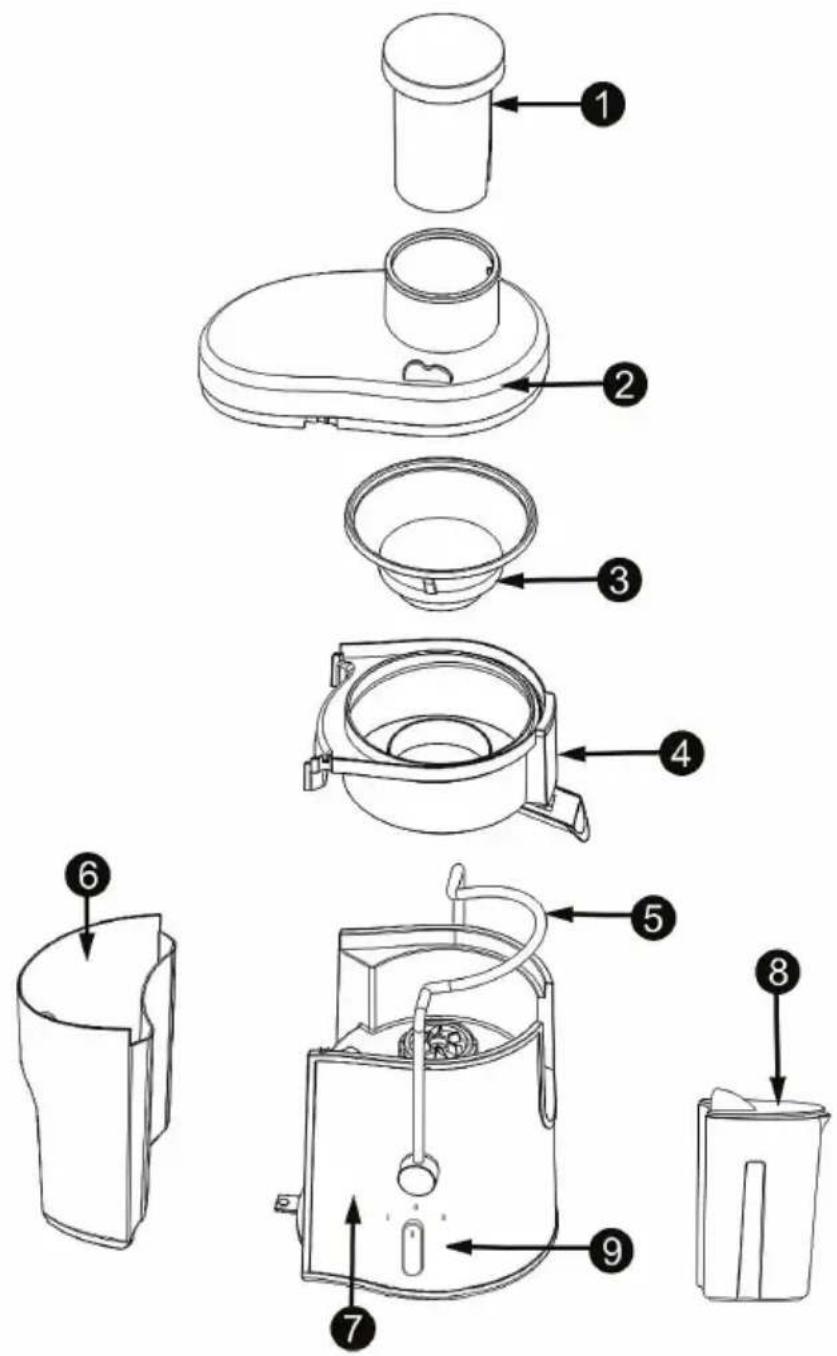

CONTROLS AND FUNCTIONS

1. Pushing bar
2. Transparent cover
3. Spin filter
   4.Middle ring
4. Handle
5. Residue barrel
6. Main machine
7. Juicer jug
8. Speed selector

SECURITY SYSTEM

The juicer incorporates a safety system that prevents operation of the same while the top cover is not fitted on the lower bracket and the shutter is not properly locked in the top cover.

BEFORE USING FOR THE FIRST TIME

• Carefully read all sections of this manual.
• Remove the juicer (as described below) and wash with warm water and soap container for pulp, the pusher, the top cover, the bottom bracket, the pitcher for juice and filter centrifuge (extreme precautions to wash this piece). Do not use metal scouring pads or abrasive cleaning liquids. Then carefully dry all parts and reassemble in the juicer.

DISASSEMBLE AND ASSEMBLING THE JUICER

To disassemble the juicer, follow these steps:

1. Remove the pushing bar.
2. Press the top lid filler slightly.
3. Gently pull the metal handle close to the outside.
4. Remove the top cover.
5. Hold the filter spin on the top edge and pull it upward. Note that the spin filter is subject to the motor shaft through three areas of pressure, so you will need to use some force to remove it.
6. Remove the lower bracket with outlet for pouring juice.
7. Remove the pulp container.

To assemble the juicer, follow these steps:

1. Place in position the pulp container.
2. Insert the bottom bracket housing.
3. Place the spin filter in place by pressing down until you hear a "click" which will indicate that it is retained. Gently pull the filter to ensure it is properly retained.
4. Place the top cover so that it snaps into the bottom bracket and the pulp container.
5. Making light pressure on the top cover replace the shutter so that this snaps between the two upper tabs on the cover.

Note:

If the shutter is not properly seated on the upper cover, the security system prevents motor operation.

1. Place the pushing bar in its housing.

USE OF JUICER

This appliance is designed for domestic use, so to avoid overheating the engine and prolong its life, do NOT use the juicer continuously for more than 1 minute followed. Pause for about 1 minute.

If you notice while using the pulp container centrifuge or filter are too full of waste, turn off the juicer, unplug it from the mains and proceed to clean them before continuing to use the operation.

STARTUP

• Make sure all the components of the juicer are perfectly matched and that the shutter is properly seated in the top cover.
• Plug the juicer to the main power.
• Slide down the outlet for pouring juice and put the jug for juice.
• Remove the pushing bar.
• Previously he must have cut food so that they can enter the filler neck.
• By the gear selector choose the right speed and wait a few seconds for the engine revolutions to acquire adequate.
• Place the ingredients for the filling mouth and insert the pusher gently introduced to the food is processed.

Note: Never use your fingers or other tool to push food through the filler neck, use only the supplied pusher.

• After the extraction of juice from foods, remove carafe for juice and lift out for pouring the juice, this will prevent other accumulated in the drip juicer.

CLEANING

• Before to cleaning the juicer unplug it from the main power.
• Do not immerse the motor assembly base or in water or under running water.
• The container for the pulp, juice jug and spin filter can be washed in a dishwasher. The other accessories should be washed with warm water and detergent.
• The surface of the base or juicer motor assembly can be cleaned with a damp cloth. Do not use alcohol or abrasives.

Very important:

The spin filter contains very sharp edges so during handling or cleaning the most extreme precautions to avoid personal injury.

STORAGE

To storage her juicer, make sure it is clean and dry. Store your juicer in a dry, dust-free, within their own packing or cover it with a protective plastic bag, paper, etc.

THERMAL PROTECTOR

The juicer has an internal protection (thermal switch) which can be reached reactivated when the engine overheats, what will motivate the automatic engine stop. If this happens unplug the juicer and wait about 30 minutes before reconnecting, or until the engine has cooled.

TECHNICAL SPECIFICATIONS

Power supply	220 - 240 V ~ 50/60 Hz
Power consumption	600 W
Juice jug capacity	450 ml
Pulp container capacity	1500 ml
Diameter filler	65 mm Ø
Number of speeds	2
Working time	1 minute (continuous)
Cable length	120 cm
Dimensions (without juicer jug)	276 x 182 x 298 mm (w, d, h)
W e i g h t	2 , 4 K g

Technical specifications are subject without notice.

This product complies with the European Directives 2004/108/EC (EMC-Electromagnetic Compatibility) and the 2006/95/EC (LVD - Low Voltage Directive) relative to Low-Tension security.

"MX, MX ONDA" and his logo are trademarks of MX ONDA, S.A.

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

Telephone of information and Technical Service: 902 551 501

E-MAIL: [e-mail] http://www.mxonda.es
