Features	Details
Device type	Juicer
Power	150 W
Speed	1 speed
Pulp container capacity	1.5 L
Juice container capacity	1 L
Material	Stainless steel and plastic
Dimensions	30 x 20 x 40 cm
Weight	3.5 kg
Ease of cleaning	Dishwasher-safe removable parts
Safety	Safety locking system
Warranty	2 years
Included accessories	Grinder, cleaning brush
Recommended use	Fresh fruits and vegetables
Energy consumption	Energy class A

Frequently Asked Questions - MXEZ2230 Mx Onda

How do I disassemble the Mx Onda MXEZ2230 juicer for cleaning?

To disassemble the juicer, first unplug it. Then carefully remove the lid, filter, and pulp container. Refer to the user manual for detailed instructions.

Why won\u0027t my juicer turn on?

Check if the device is properly plugged in and if the outlet is working. Also ensure all components are correctly assembled, as the juicer won\u0027t start if the lid isn\u0027t properly secured.

How can I prevent fruits and vegetables from clogging the juicer?

Cut fruits and vegetables into smaller pieces before inserting them into the juicer. Avoid using very hard or fibrous foods that can cause blockages.

Can I wash the juicer parts in the dishwasher?

Yes, most removable parts of the Mx Onda MXEZ2230 are dishwasher safe. However, it is recommended to check the manual for specific instructions and to hand wash delicate parts.

What should I do if my juicer\u0027s motor overheats during use?

If the motor overheats, turn off the device and let it cool down. Avoid overloading the juicer and take regular breaks during prolonged use.

How can I get clearer juice with the juicer?

To get clearer juice, use a finer filter or strain the juice through a sieve after extraction to remove remaining pulp.

What warranty comes with the Mx Onda MXEZ2230?

The Mx Onda MXEZ2230 typically comes with a 2-year warranty. Please check your receipt or the manufacturer\u0027s website for more warranty details.

My juicer makes a strange noise, what should I do?

A strange noise may indicate a blockage or motor issue. Unplug the device, check for any stuck debris, and ensure all parts are properly assembled before plugging it back in.

USER MANUAL MXEZ2230 Mx Onda

Exterior view of a stainless steel coffee maker with a handle and spout (no text or symbols visible)

CE

ANTES DE SU USO LEA ATENTAMENTE ESTE MANUAL

ATENCIÓN

Technical diagram of a coffee maker with numbered parts for identification

DESMONTAJE Y MONTAJE DEL EXPRIMIDOR

Diagram of a hand holding a car seatbelt with a downward arrow indicating force or motion (no text or symbols)

Exterior view of a modern stainless steel coffee maker with a handle and spout (no visible text or symbols)

CE

PLEASE READ THIS MANUAL BEFORE OPERATION

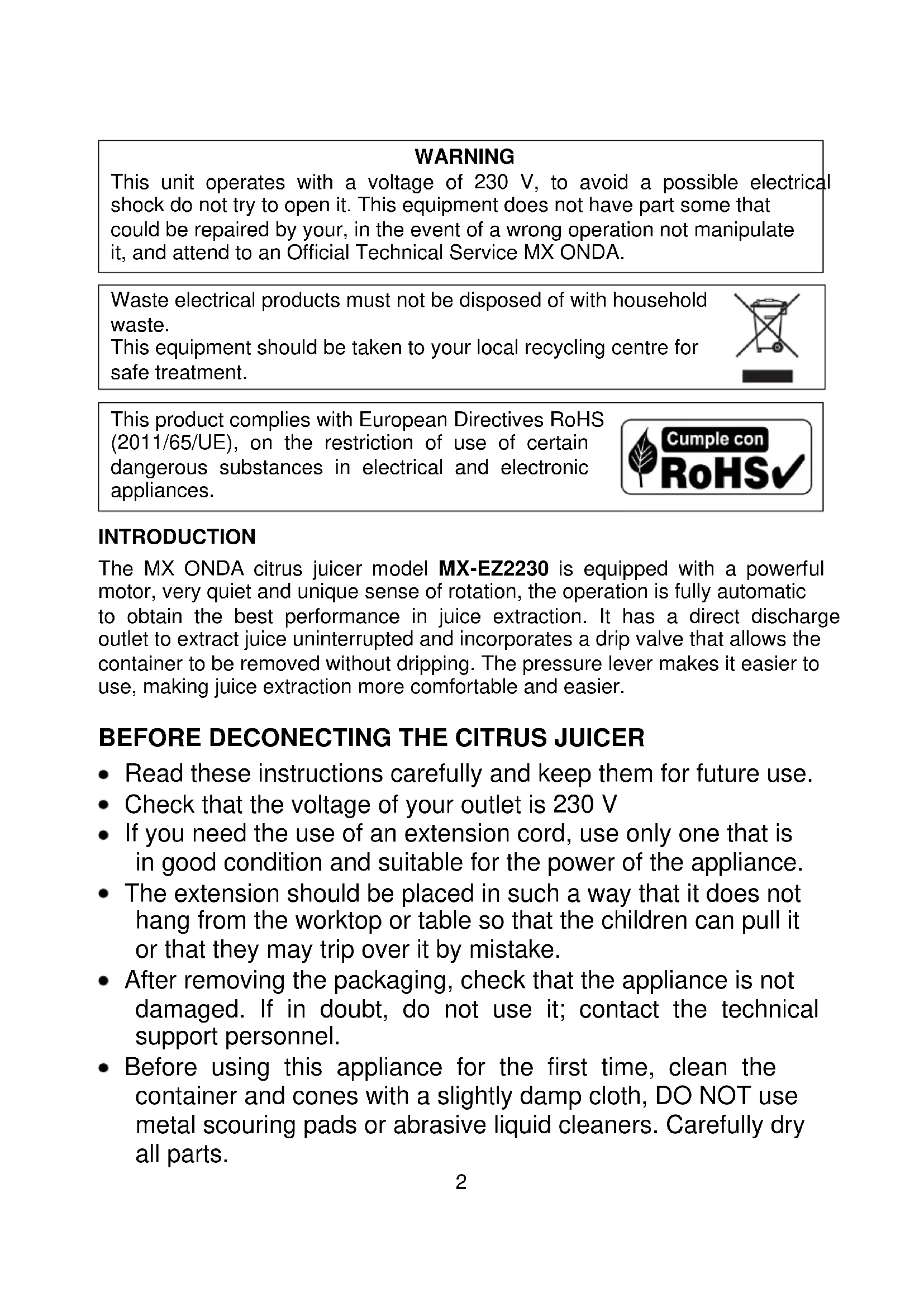

WARNING

This unit operates with a voltage of 230 V, to avoid a possible electrical shock do not try to open it. This equipment does not have part some that could be repaired by your, in the event of a wrong operation not manipulate it, and attend to an Official Technical Service MX ONDA.

Waste electrical products must not be disposed of with household waste.

This equipment should be taken to your local recycling centre for safe treatment.

This product complies with European Directives RoHS (2011/65/UE), on the restriction of use of certain dangerous substances in electrical and electronic appliances.

Cumple con RoHS✓

INTRODUCTION

The MX ONDA citrus juicer model MX-EZ2230 is equipped with a powerful motor, very quiet and unique sense of rotation, the operation is fully automatic to obtain the best performance in juice extraction. It has a direct discharge outlet to extract juice uninterrupted and incorporates a drip valve that allows the container to be removed without dripping. The pressure lever makes it easier to use, making juice extraction more comfortable and easier.

BEFORE DECONNECTING THE CITRUS JUICER

• Read these instructions carefully and keep them for future use.
• Check that the voltage of your outlet is 230 V
• If you need the use of an extension cord, use only one that is in good condition and suitable for the power of the appliance.
• The extension should be placed in such a way that it does not hang from the worktop or table so that the children can pull it or that they may trip over it by mistake.
• After removing the packaging, check that the appliance is not damaged. If in doubt, do not use it; contact the technical support personnel.

• Before using this appliance for the first time, clean the container and cones with a slightly damp cloth, DO NOT use metal scouring pads or abrasive liquid cleaners. Carefully dry all parts.

• Do not place juicer or cord on or near hot gas burners or hot plates.

• Packaging materials such as plastic bags, polystyrene foam, etc., should not be left out of the reach of children, as they are a potential source of danger.
• The manufacturer declines all responsibility for damages resulting from improper, incorrect or reckless use of the appliance.

IMPORTANT SAFETY INFORMATION

When using electrical appliances, it should always be a basic safety precautions to reduce the risk of electric shock and / or injury. These measures include the following:

• Children should not play with this appliance.
- The cleaning and maintenance to be performed by the user can not be performed by children, unless they are over 8 years old and are supervised.
- This appliance may not be used by children (under 8 years of age) or persons with reduced physical, sensory or mental capacities or with no experience and knowledge unless they have received appropriate instructions on the use of the appliance and are supervised by an adult.
- This appliance is designed for domestic, non-professional use only. MX ONDA will not accept any responsibility and the warranty will not be valid in case of improper use or failure to comply with the instructions.
- This appliance is intended for indoor use only, do not expose this apparatus to rain or moisture and do not use it outdoors or with wet hands.
- The juicer incorporates a short power cord to reduce the risk of bodily injury that may occur when tangled or tripping over long wires.
- Do not touch the moving parts of the appliance when it is plugged into the mains.

• Always place the juicer on a dry, stable and level surface.
- To protect yourself against the risk of electric shock and personal injury, do not insert the cord, plug or main body of the juicer into water or any other liquid.
- To unplug the appliance from the mains, gently pull the mains plug. Never do this by stretching the cable.
- Unplug the juicer whenever it is not in use, when there is a power outage, "fuse" or automatic fuse and before cleaning itself.
- While the juicer is connected or operating, do not neglect its supervision and keep it out of the reach of children.
- Make sure that the cord does not hang over the edge of the table, countertop, or counter, or touch hot surfaces.
- The use of accessories not recommended by the appliance manufacturer may result in fire, electric shock, or personal injury. Only use this juicer with the supplied accessories.
- In the event of a malfunction, if the juicer has been dropped, the plug or other parts are damaged, or the cable is damaged, do not plug in the appliance and do not attempt to repair it yourself. Contact the nearest MX ONDA Technical Service Center.

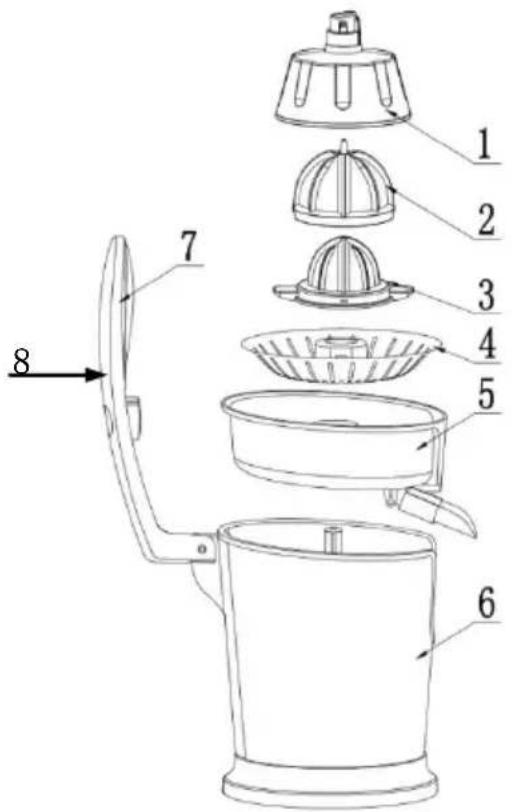

CONTROLS AND FUNCTIONS

1. Pressure cone
2. Big cone
3. Small cone with blades
4. Strainer
5. Container with direct discharge outlet and drip system
6. Base with cable collection
7. Pressure lever
8. Hole to accommodate the pressure cone

Technical diagram of a coffee maker with numbered parts for identification

REMOVING AND ASSEMBLING THE CITRUS JUICER

To removing and assembling the citrus juicer (for cleaning the juicer, for example), follow these steps:

1. Fully raise pressure lever 7.
2. Hold the pressure cone and press lightly on the pressure cone holder 8, located in the middle of the pressure lever. The pressure cone will be ejected.
3. Remove the large cone and small cone assembly with blades 2 and 3.
4. Then pull up strainer 4.
5. Remove the container with direct discharge outlet 5.
6. To install the juicer, proceed to place the different elements that make up the juicer in reverse to the disassembly.

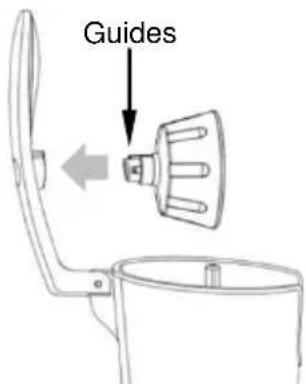

Note:

To place the pressure cone on the pressure lever, you must match the two guides located in the pressure cone in the groove of the hole 8 of the pressure lever. In the event that the pressure cone is not correctly coupled to the lever, it will not be retained.

Guides

USING THE CITRUS JUICER

This appliance can extract juice from any citrus fruit: oranges, lemons, grapefruits, etc. Do not use this appliance with other types of fruit.

By means of the pressure lever, you will be able to extract all the juice from the citrus fruit without any effort, the extraction of the juice is done in a comfortable, simple way and without hardly exerting any pressure on the lever.

Previous preparation

Before using the juicer for the first time, you must clean the pressure cone, the two cones, the strainer and the container. See the CLEANING AND MAINTENANCE section of this manual.

Choice of cones

This juicer incorporates two cones of different sizes, depending on the size of the fruit to be squeezed, you must use the appropriate cone.

• If the fruit size is small, use only the small cone.
• If the fruit to be squeezed has a considerable size, you must insert the large cone over the small cone.

Insertion and removal of the large cone

Very important: The process of insertion or removal of the large cone must be carried out with the juicer unplugged.

At the bottom of the large cone there are two grooves and at the base of the small cone are the blades. To insert the large cone over the small cone, make the grooves of the large cone coincide on the blades of the small cone, press down slightly until you hear a "click" which will indicate that it is correctly coupled and retained.

To remove the large cone, hold the small cone by the blades and pull out the large cone.

Start up the juicer

• Insert the power plug into an outlet on the mains.
• Set the direct pouring outlet down to allow juice out. Put a glass, jug, etc. below the exit.
• If you want to keep the juice inside the container, set the direct pouring outlet up. But keep in mind that the capacity of the container is 400 ml and should never exceed the capacity of it.
• Break the citrus in half and place it centered on the cone.

Diagram of a hand pressing down on a car interior with an arrow indicating downward motion (no text or symbols)

• Hold the pressure lever by the handle and lower it gently over the citric, increasing the lever pressure gradually.
• The engine will automatically spin and begin to extract the juice from the fruit.
• When you stop pressing the lever on the citric, the engine will stop and remain in the idle state.
• When the work is finished, unplug the juicer from the mains.
• Set the direct discharge outlet up until you hear a "click" and you can remove the container without dripping.

Attention:

• When you want to squeeze out a lot of citrus, you should often pull out the strainer and remove excess stored pulp.
• Remember that the capacity of the container is 400 milliliters, be careful not to exceed the capacity of it.

CLEANING AND MAINTENANCE

• To prevent electrocution, before cleaning the juicer, disconnect it from the mains.
• Do not wipe the base of the juicer with water or soak it.
• Plastic and metal surfaces can be wiped with a damp cloth, do not use abrasives.
• Dry pulp is difficult to remove, so it is recommended that immediately after use, clean the different parts of your juicer.
• Do not insert the elements that make up the juicer (cones, strainer, transparent container or the juicer body) into the dishwasher.
• For ease of cleaning the motor shaft, container, strainer and cones can be removed. Once these parts are clean and completely dry, reassemble them.
• Once the juicer has been cleaned and dried, you can pick up the cord at the base of the juicer if you wish.

TECHNICAL SPECIFICATIONS

Power supply 230 V \~ 50 Hz

Power consumption 160 W

Container Capacity 400 ml

Motor Single direction of rotation

Cable length 100 cm

Dimensions 1779 x 260 x 288 mm (w, d, h)

Weight 2 kg

Technical specifications are subject without notice.

This product complies with the European Directives 2004/108/EC (EMC-Electromagnetic Compatibility) and the 2006/95/EC (LVD - Low Voltage Directive) relative to Low-Tension security.

"MX, MX ONDA" and his logo are trademarks of MX ONDA, S.A.

MX ONDA, S.A.

Isla de Java, 37

28034 - MADRID (SPAIN)

Telephone of information and Technical Service: 902 551 501

E-MAIL: [e-mail]

http://www.mxonda.es

MANUAL DE INSTRUÇÕES

Mx Onda

ESPREMEDOR DE CITRICOS COM ALAVANCA DE PRESSÃO E SAIDA DIRETA DE SUCO

MODELO: MX-EZ2230

Exterior view of a stainless steel coffee maker with a handle and spout (no text or symbols visible)

CE

ANTES DE SEU USO LEIA ATENTAMENTE ESTE MANUAL

ATENÇÃO

Technical diagram of a coffee maker with numbered parts for identification

REMOVINDO E MONTANDO O ESPREMEDOR

Para remover e instalar o espremedor (para limpar o espremedor, por exemplo), siga estes passos:

Diagram of a hand gripping a car seatbelt, with a downward arrow indicating motion (no text or symbols)

MANUEL D'INSTRUCTIONS

Mx Onda

PRESSE-AGRUMES AVEC LEVIER À PRESSION ET SORTIE DIRECTE DE JUS

MODÉLE: MX-EZ2230

Exterior view of a stainless steel Mix Ondo coffee maker with handle and spout (no text or symbols on body)

CE

AVANT D'UTILISER CE MANUEL DE LIRE ATTENTIVEMENT

ATTENTION

Technical diagram of a coffee maker with numbered parts for identification

ÉLIMINATION ET ASSEMBLAGE DU PRESSE-AGRUMES

Diagram of a hand gripping a car seat with a downward arrow indicating motion (no text or symbols)

Exterior view of a modern stainless steel coffee maker with a handle and spout (no visible text or symbols)

CE

PRIMA DI UTILIZZARE IL MANUALE DI LEGGERE ATTENTAMENTE

ATTENZIONE

Technical diagram of a coffee maker with numbered parts for identification

SMONTAGGIO E MONTAGGIO DELLO SPREMIAGRUMI

Diagram of a hand gripping a car seatbelt, with a downward arrow indicating force or motion (no text or symbols present)

Exterior view of a stainless steel coffee maker with open lid and base (no visible text or symbols)

CE

VOR DER NUTZUNG LESEN SIE DIESES HANDBUCH SORGFÄLTIG

ACHTUNG

Labeled diagram of a coffee maker with numbered parts for identification

Diagram of a hand holding a car interior with a downward arrow indicating motion (no text or symbols)
