USER MANUAL Black Pegasus PALSON

Color palette bar with grayscale shades and a central crosshair (no text or symbols)

Color gradient bar transitioning from black to white (no text or symbols)

E ESPAÑOL 2

GB ENGLISH 9

F FRANÇAIS 15

AR 英语語 اللغة العربية 22

RU РУССКИЙ 29

1. Cubeta
2. Cesta
3. Botón de liberación de la cesta
4. Asa cesta
5. Temporizador
6. Control de temperatura
7. Luz de encendido
8. Luz de calentamiento
9. Entrada y salida de aire
10. Separador de alimentos

11. Soporte cesta/ cubeta

12. Bowl

13. Basket
14. Basket release button
15. Basket handle
16. Timer
17. Temperature control
18. Power light
19. Heating light
20. Air inlet and outlet
21. Food separator

22. Basket/bowl support

23. Cuve

24. Panier
25. Bouton de libération du panier
26. Poignée du panier
27. Minuterie
28. Contrôle de la température
29. Voyant d'allumage
30. Voyant de chauffage
31. Entrée et sortie de l'air
32. Séparateur des aliments
33. Support panier/ cuve

.1

scale .2

.3. زر تحرير Csلاة

.4. مبيض السلة

مُزْفَت .5

.6. مُنَظَمْ حراري.

Exploded view diagram of a smart air fryer with labeled parts including handle, fan, and plate

E

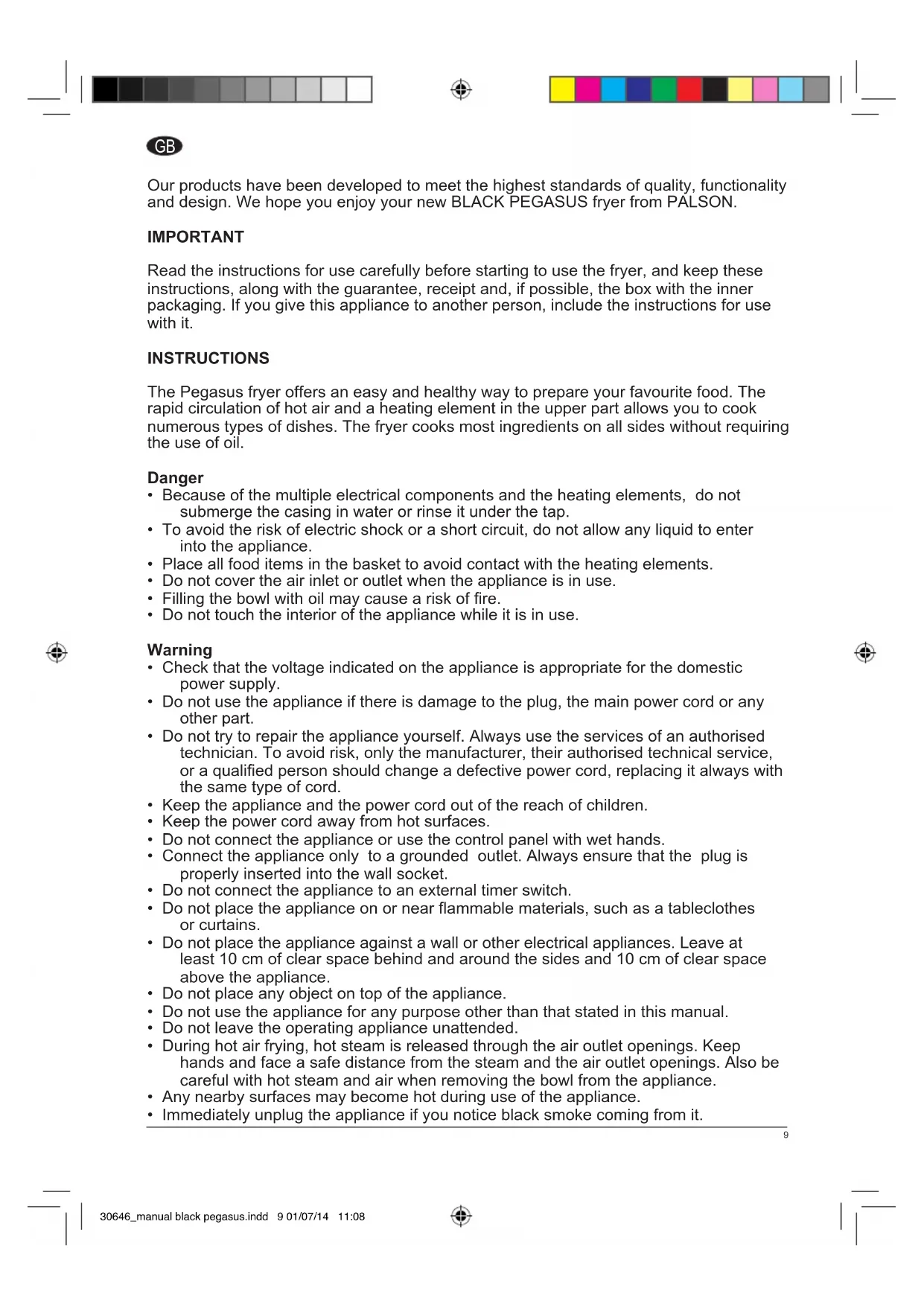

Our products have been developed to meet the highest standards of quality, functionality and design. We hope you enjoy your new BLACK PEGASUS fryer from PALSON.

IMPORTANT

Read the instructions for use carefully before starting to use the fryer, and keep these instructions, along with the guarantee, receipt and, if possible, the box with the inner packaging. If you give this appliance to another person, include the instructions for use with it.

INSTRUCTIONS

The Pegasus fryer offers an easy and healthy way to prepare your favourite food. The rapid circulation of hot air and a heating element in the upper part allows you to cook numerous types of dishes. The fryer cooks most ingredients on all sides without requiring the use of oil.

Danger

• Because of the multiple electrical components and the heating elements, do not submerge the casing in water or rinse it under the tap.
• To avoid the risk of electric shock or a short circuit, do not allow any liquid to enter into the appliance.
• Place all food items in the basket to avoid contact with the heating elements.
• Do not cover the air inlet or outlet when the appliance is in use.
• Filling the bowl with oil may cause a risk of fire.
• Do not touch the interior of the appliance while it is in use.

Warning

• Check that the voltage indicated on the appliance is appropriate for the domestic power supply.
• Do not use the appliance if there is damage to the plug, the main power cord or any other part.
• Do not try to repair the appliance yourself. Always use the services of an authorised technician. To avoid risk, only the manufacturer, their authorised technical service, or a qualified person should change a defective power cord, replacing it always with the same type of cord.
• Keep the appliance and the power cord out of the reach of children.
• Keep the power cord away from hot surfaces.
• Do not connect the appliance or use the control panel with wet hands.
• Connect the appliance only to a grounded outlet. Always ensure that the plug is properly inserted into the wall socket.
• Do not connect the appliance to an external timer switch.
• Do not place the appliance on or near flammable materials, such as a tableclothes or curtains.
• Do not place the appliance against a wall or other electrical appliances. Leave at least 10 cm of clear space behind and around the sides and 10 cm of clear space above the appliance.
• Do not place any object on top of the appliance.
• Do not use the appliance for any purpose other than that stated in this manual.
• Do not leave the operating appliance unattended.
• During hot air frying, hot steam is released through the air outlet openings. Keep hands and face a safe distance from the steam and the air outlet openings. Also be careful with hot steam and air when removing the bowl from the appliance.
• Any nearby surfaces may become hot during use of the appliance.
• Immediately unplug the appliance if you notice black smoke coming from it.

- Wait until the steam has stopped coming out before removing the bowl from the appliance.

Precautions

• Make sure the appliance is placed on an horizontal, flat and stable surface.
• This appliance is designed solely for domestic use. It is not suitable to be safely used in environments such as farms, motels, or other non-residential environments.
• The guarantee will not be valid if the appliance is used for professional or semi-professional purposes.
  • Always unplug the appliance when not in use.
• The appliance requires 30 minutes to cool down before it can be cleaned.

Automatic disconnection

The appliance is fitted with a timer. The appliance will switch off automatically when the timer ⏻ makes a bell sound. You can manually change the timer by turning the button in an anti-clockwise direction.

Electromagnetic fields

The appliance complies with all standards regarding electromagnetic fields (EMF). When handled properly there is no risk to the human body, according to available scientific evidence.

BEFORE FIRST USE

1. Remove all packaging materials, stickers and labels.
2. Clean the basket (2) and the bowl (1) with hot water and a little detergent, using a non-abrasive sponge. These parts are suitable for cleaning in a dishwasher.
3. Clean the interior and exterior of the appliance with a cloth.

Preparation for use

1. Place the appliance on a horizontal, even, and stable surface. Do not place the appliance on non-heat-resistant surfaces.
2. Place the basket (2) in the bowl (1).
3. Do not fill the bowl with oil or any other liquid. Do not put anything on top of the appliance as it would interrupt the airflow.

Hot-air frying

1. Connect the fryer to a grounded outlet.
2. Carefully remove the bowl from the fryer.
3. Place the food in the basket.
   Note: Do not overload the basket with food (see the “Configuration” section in this chapter), as it could affect the quality of the food.
4. Put the bowl (1) back into the fryer. Never use the fryer without the basket (2) in place.
   Precaution: Do not touch the basket (2) during or immediately after use, as it is very hot. Take hold of the bowl (1) by the handle (4).
5. Turn the control knob to the required temperature.
6. Determine the cooking time required for the food (see the "Configuration" section in this chapter).
7. To switch on the appliance, turn the timer button to the required cooking time.

Add 3 minutes to the cooking time if the fryer is cold.

Note: if you wish, you can also pre-heat the appliance without any food inside. In this case, turn the timer button until it indicates 3 minutes and wait until the heating light goes off. Then fill the basket and turn the timer button to the required temperature.

- When the light comes on (7), the fryer starts to heat up.

- The timer (5) starts to count down the cooking time.

• During the frying with hot air, the heating light (8) comes on and goes off constantly. This indicates that the fryer has reached the optimum temperature, maintaining the temperature within.

• Excess oil from the food is collected in the lower part of the bowl.

• Some food items need to be stirred during cooking for an optimum result (see the "Configuration" section in this chapter). Remove the bowl (1) from the appliance using the basket handle (4) and stir. Next, slide the bowl (1) back into the fryer.

Important: Do not press the button on the handle during removal to stir the food.

Tip: If you set the timer to half the cooking time, you must stir the food when you hear the timer bell. However, this means that you have to reset the timer for the remaining cooking time after carrying out this step.

1. When you hear the timer bell (5), it will indicate that the cooking time has elapsed. Pull the bowl (1) out of the appliance and place it on the basket/bowl support (4).

Note: You can also turn the appliance off manually. Turn the temperature control button (6) to the required position Ⓓ.

1. Check that the food is ready.

If the food is not yet ready, set it for a couple more minutes.

1. To take out small food items, press the basket release button (3) and remove them.

Do not put the basket face down with the bowl attached, as any excess oil collected in the bottom of the bowl will fall onto the food.

Food residue and food items are hot after air frying. Depending on the type of food used in the fryer, the steam may come out of the bowl (1).

1. Empty the basket (2) into a recipient or onto a plate.
   Tip: To remove large or delicate food items from the basket (2), use a pair of tongs.
2. When you have finished frying the food, the fryer is immediately ready for its next use.

CONFIGURATION

This table will help you select the basic settings for the food.

Note: Keep in mind that these settings are indications. Food items differ in origin, size and shape; we cannot guarantee the best preparation for your food.

Because the rapid air technology instantly reheats the air inside the appliance, briefly removing the bowl during frying barely affects the process.

Tips:

• Small food items require slightly less cooking time than larger items.
• A larger amount of food ingredients requires a slightly longer cooking time, while a lesser quantity requires slightly less cooking time.
• Stirring the smaller ingredients halfway through the cooking time optimises the final result and can prevent the food from frying unevenly.
• Add a little oil to fresh potatoes to make them crispy. Fry the food in the fryer after adding the oil.
• Do not prepare very greasy foods such as sausages.
• Food suitable for the oven can be cooked in this fryer.
• The optimal amount for cooking chips is 500g.
• Use pre-cooked foods for preparing snacks quickly and easily. Pre-cooked foods require less time than those prepared at home.
• Place a mould or baking dish in the basket of the fryer if you want to bake a cake or a quiche.
• You can also use the fryer to reheat food. For reheating, set the temperature at 160^ C for a maximum of 10 minutes.

Cooking homemade chips

To make chips, follow these steps:

1. Peel and cut the potatoes.

2. Wash and dry the cut potatoes with a paper towel.

3. Pour 12 tablespoon of olive oil in a bowl, add the potatoes and toss to cover them with the oil.
4. Remove the potatoes with a kitchen utensil so that the excess oil is left in the bowl. Put them into the basket (2) of the fryer. Note: Do not tilt the bowl over the fryer basket, as the oil will fall into it.
5. Fry the potatoes according to the instructions in this chart.

	Min-Max quantity (g)	Time (Min.)	Temperature (C)	Stir More information
Chips
Frozen 300-700	9-16 200			✓
Thin frozen 300	-700 11-20 200			✓
Homemade (8x8mm)	300-800 16	-10 200		✓	Add 1/2 spoonful of oil
Homemade spicy potatoes	300-800 18	-22 180		✓	Add 1/2 spoonful of oil
Cooked potatoes	250 15-18	200		✓	Add 1/2 spoonful of oil
Gratin 500 15-	18 200			✓
Meat and poultry
Steak 100-500	8-12 180
Beef chops 100	-500 10-14 180
Hamburgers 100	-500 7-14 180
Empanadillas (small pasty)	100-500 13	-15 200
Chicken breast	100-500 10	-15 180
Snacks
Spring rolls 100	-400 8-10 200			✓	Use as with an oven
Frozen chicken croquettes	100-500 6-	10 200		✓	Use as with an oven
Frozen fish fingers	100-400 6-	10 200			Use as with an oven
Frozen breaded cheese bites	100-400 8-	10 180			Use as with an oven
Stuffed vegetables	100-400 10		160
Baking
Cake	300 20-25	160
Quiche	400 20-22	180
Muffins	300 15-18	200
Sweet bites	400	20	160

Note: Add 3 minutes to the cooking time from when it starts to operate until the fryer is not hot.

Cleaning

Clean the appliance after each use. Do not clean the bowl, basket or inside of the appliance with metal kitchen utensils or abrasive cleaning materials, as they could damage the non-stick coating.

1. Unplug the appliance from the socket and let it cool down. Note: Remove any food residue from the basket so that it cools down more quickly.
2. Clean the exterior of the appliance with a damp cloth.
3. Clean the bowl (1), the separator (10) and the basket (2) with a little liquid detergent and a non-abrasive sponge.

You can remove any remaining dirt using a degreasing liquid.

Note: The separator (10) and the basket (2) are suitable for the dishwasher.

Tip: If there is food residue stuck to the basket (2) or the bottom of the bowl (1); fill it with hot water and a little liquid detergent. Place the basket (2) into the bowl (1) and let it soak for 10 minutes.

1. Clean the inside of the appliance with hot water and a non-abrasive sponge.
2. Clean the heating element with a cleaning brush to remove any food residue.

Storage

1. Unplug the appliance and let it cool down.
2. Make sure all the parts are clean and dry.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The fryer doesn’t work 1. It is not plugged in.2. The timer is not set.		1. Connect the appliance to a grounded outlet.2. Turn the timer button to the required cooking time to turn on the appliance.
Food fried with the fryer does not cook.	1. There is too much food in the fryer.2. The temperature set is too low.3. The cooking time is too short.	1. Put less food in the basket. Less food will cook more evenly.2. Turn the temperature control button to the required position (see the “Configuration” section in the chapter on how to use the fryer).3. Turn the timer button to the required cooking time (see the “Configuration” section in the chapter on how to use the fryer).
The food ingredients fry unevenly.	1. Certain types of food should be stirred halfway through the cooking time.	1. The food in the part above the other food ingredients (for example, the potatoes) should be stirred halfway through the cooking time (see the “Configuration” section in the chapter on how to use the fryer).

The fried foods are not crispy when they leave the fryer.	1. You have used food intended to be cooked in a traditional fryer.	1. Use food meant to be cooked in an oven or add a little oil for a crispier result.
I can't put the bowl into the appliance properly.	1. There is too much food in the basket.2. The basket does not go into the tray properly.	1. Do not fill the basket as much.2. Push the basket in until you hear a click.
White smoke is coming from the fryer.	1. Greasy food is being fried.2. The recipient still contains fat residues from the previous use.	1. When you fry greasy foods in the fryer, a large amount of oil falls to the bottom. Oil produces white smoke when heated. This is normal. This does not affect the appliance or the final result.2. The white smoke is caused by hot fat in the bowl. Make sure you clean the bowl after each use.
Fresh potatoes do not fry evenly in the fryer.	1. You are not using the correct type of potato.2. You have not dried the potatoes properly after cleaning them.	1. Use fresh potatoes that you can remove the starch from.2. Rinse the potatoes well to remove the starch.
The fresh potatoes are not crispy when they leave the fryer.	1. The crispy texture of chips depends on the amount of oil and water on the chips.	1. Make sure you dry the potatoes well before adding the oil.2. Cut the potatoes into smaller sizes for a crispier result.3. Add a little more oil for a crispier result.

ENVIRONMENT

Do not throw the appliance out with normal household rubbish if it is broken. You must take it to an official collection point for recycling. By doing this, you contribute to protecting the environment.

GUARANTEE AND SERVICE

If you need service or information, or you have a problem, please visit our website www.palson.com or contact your distributor.

Thank you your confidence in choosing one of our products.

F

Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collection programs)

This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources. For more detailed information about the recycling of this product, please contact your local city office, household waste disposal service or the retail store where you purchased this product.
