Mixcella - Blender PALSON - Free user manual and instructions

Product type	Immersion blender
Brand	PALSON
Model	Mixcella
Power supply	Mains, 220-240 V ~ 50 Hz
Power	500 W (estimated)
Chopper bowl capacity	500 ml
Main functions	Mixing, chopping, whisking
Speeds	2 speeds (I and II) with variable speed
Included accessories	Whisk, chopper bowl with blade, measuring cup
Bowl material	Food-grade plastic
Cord length	Approximately 1 m (estimated)
Weight	Approximately 1 kg (estimated)
Safety	Very sharp blades, do not immerse the base, max operation 1 min (mixing) / 10 sec (chopping)
Care and cleaning	Motor base cleaned with a damp cloth; other parts dishwasher safe
Spare parts and repairability	Not specified
General information	Household use, do not process foods without liquid

Frequently Asked Questions - Mixcella PALSON

How to use the immersion blender?

Firmly attach the whisk to the motor base. Insert the blender into the container. Select the speed using the dial and press the I button (slow speed) or II button (fast speed). Do not exceed 1 minute of continuous use.

How to chop food with the container?

Place the blade in the container, add the food, close the lid and attach the motor base. Select a speed and press I or II. Do not chop for more than 10 seconds for hard foods and take a 2-minute break.

How to use the whisk?

Insert the whisk accessory onto its support and attach it to the motor unit. Choose the speed and use the I or II buttons. Do not whisk for more than 2 minutes at a time.

What are the important safety precautions?

Never immerse the motor base in water. Always unplug before cleaning or changing accessories. The blades are very sharp, handle them with care. Supervise children.

How to clean the blender?

The motor base can be cleaned with a damp cloth. All other parts (whisk, bowl, lid) are dishwasher safe. If you chop colored foods, clean first with vegetable oil.

What is the capacity of the chopper bowl?

The chopping container has a capacity of 500 ml. Do not fill beyond the recommended quantities (e.g., meat 250 g, nuts 100 g).

Can I blend hot foods?

It is not recommended to blend very hot foods. The blender is designed for room temperature or cold ingredients. Do not place the motor base on hot surfaces.

What to do if the cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, its after-sales service, or a qualified technician to avoid any hazard.

Can you blend ice cubes or coffee beans?

No, do not chop overly hard foods such as ice cubes, coffee beans, or grains. This could damage the blades and the motor.

How to change accessories?

Unplug the appliance. To remove the whisk, press the side buttons on the motor base. For the chopper bowl, remove the motor base then carefully disassemble the blade. All accessories simply snap into place.

USER MANUAL Mixcella PALSON

Hand food processor blender

Mixeur plongeant

Labeled diagram of a kitchen appliance with numbered parts for identification

FIG. 1

Diagram illustrating three stages of a laboratory apparatus: stirring, heating, and mixing with a glass bowl containing liquid.

FIG. 2

Technical diagram illustrating four stages of a mechanical device with directional arrows and warning symbols

FIG. 3 FIG. 4

Diagram illustrating four stages of a kitchen cleaning procedure: mixing, pouring, washing, and pouring into a water tap.

E

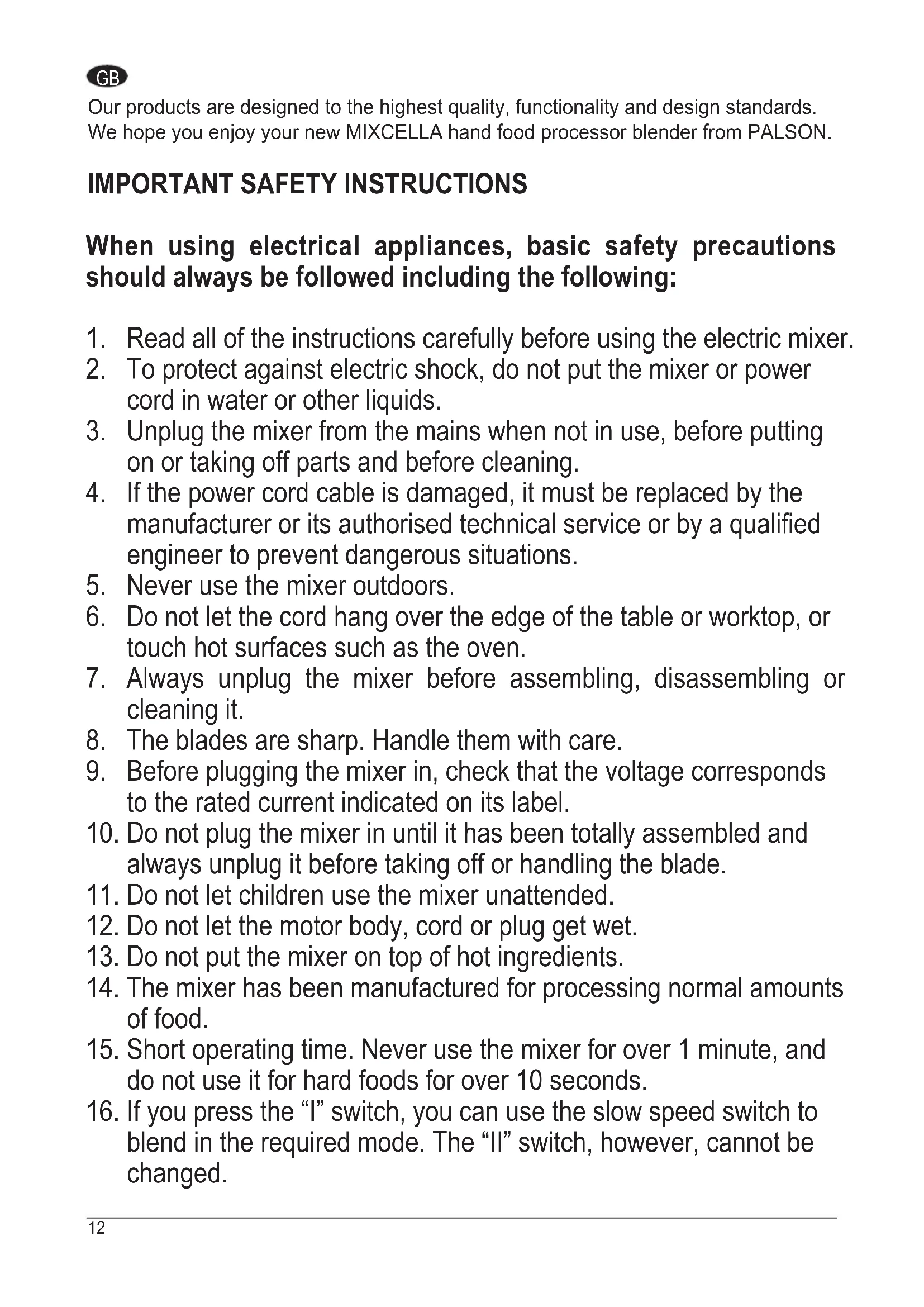

Our products are designed to the highest quality, functionality and design standards. We hope you enjoy your new MIXCELLA hand food processor blender from PALSON.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

1. Read all of the instructions carefully before using the electric mixer.
2. To protect against electric shock, do not put the mixer or power cord in water or other liquids.
3. Unplug the mixer from the mains when not in use, before putting on or taking off parts and before cleaning.
4. If the power cord cable is damaged, it must be replaced by the manufacturer or its authorised technical service or by a qualified engineer to prevent dangerous situations.
5. Never use the mixer outdoors.
6. Do not let the cord hang over the edge of the table or worktop, or touch hot surfaces such as the oven.
7. Always unplug the mixer before assembling, disassembling or cleaning it.
8. The blades are sharp. Handle them with care.
9. Before plugging the mixer in, check that the voltage corresponds to the rated current indicated on its label.
10. Do not plug the mixer in until it has been totally assembled and always unplug it before taking off or handling the blade.
11. Do not let children use the mixer unattended.
12. Do not let the motor body, cord or plug get wet.
13. Do not put the mixer on top of hot ingredients.
14. The mixer has been manufactured for processing normal amounts of food.
15. Short operating time. Never use the mixer for over 1 minute, and do not use it for hard foods for over 10 seconds.

16. If you press the "I" switch, you can use the slow speed switch to blend in the required mode. The "II" switch, however, cannot be changed.

17. Always unplug the mixer from the mains if you have to leave it unattended and before assembling, disassembling or cleaning it.

18. Improper use may result in injuries.
19. Be careful with the sharp blades when you empty the container and when you wash it.
20. Turn the mixer off and unplug it from the mains before changing the accessories or coming close to parts that move when operating.
21. Adults or children must not operate this appliance without help or supervision if they are physically, sensorially or mentally incapable of doing so safely. Children should be supervised to ensure that they do not play with the appliance.
22. Keep hands and utensils away from the container when blending, and away from the cutting blade when chopping food to avoid being seriously injured or damaging the appliance. You can use a spatula, but only when the mixer is not working.

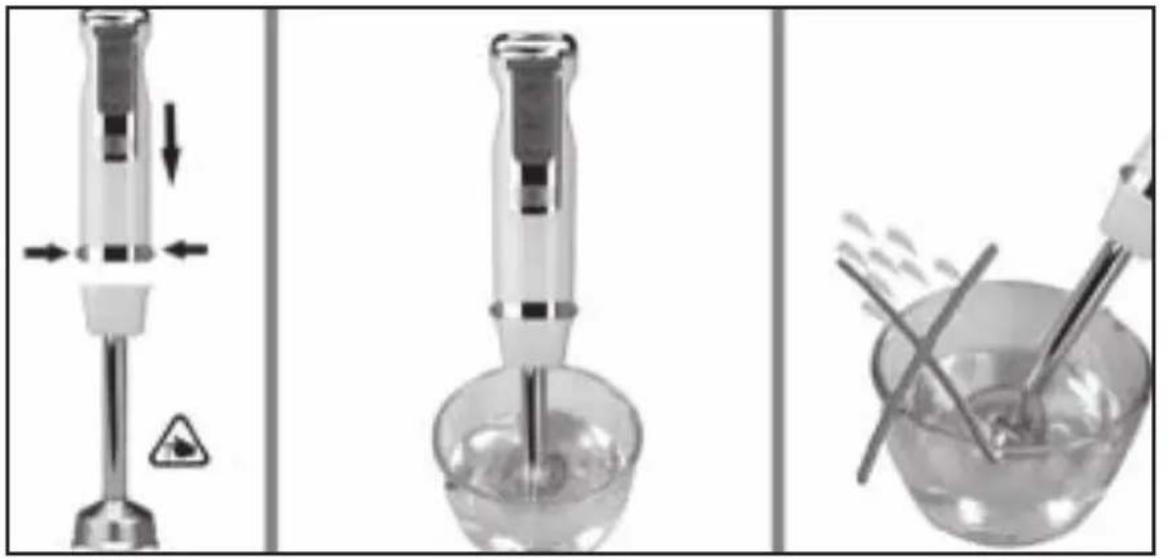

HOW TO USE THE MIXER (fig. 1)

The mixer is perfect for making sauces, soups, mayonnaise and baby food, and for mixing and making shakes and batters.

1. Fasten the shaft firmly into the motor body.
2. Put the mixer into the jug. Choose the required speed turning the selector above the operating buttons.
3. Press the side buttons (5) at the same time to release the shaft. You can use the mixer in the measuring jug or any other container.
4. Never use the mixer for over 1 minute continuously. Leave it to stand for 1 minute after use.

PRECAUTION: The blade is very sharp.

PRECAUTION: Do not use food without water or liquid.

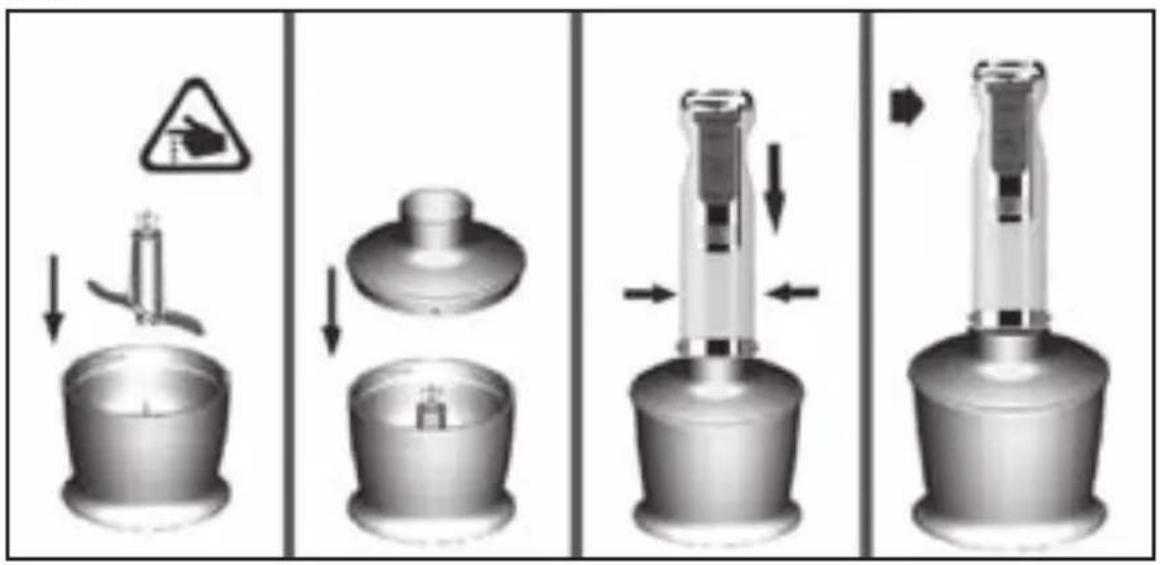

HOW TO USE THE CHOPPER BOWL (fig. 2)

1. The chopper is perfectly suitable for hard foods, such as meat, cheese, onions, garlic, carrots, walnuts, almonds, etc.
2. Do not chop extremely hard foods, such as ice cubes, coffee grains or grains.

GB

Before chopping:

1. Carefully remove the chopper's plastic lid.
   PRECAUTION: The blade is very sharp. Always pick it up using the top plastic part.
2. Put the blade into the centre part of the chopper bowl. Push the blade in and lock the bowl. Always place the cutting bowl on the nonslip base.
3. Put the food into the bowl.
4. Put the lid onto the bowl.
5. Firmly attached the motor body into the bowl's lid.
6. Select the speed and press the "I" switch or "II" switch to use the chopper. During processing, hold the motor body with one hand and the chopper bowl with the other.
7. Remove the motor body from the chopper bowl after use.
8. Remove the blade with care.
9. Do not chop hard food for more than 10 seconds. Leave it to stand for 2 minutes after use.

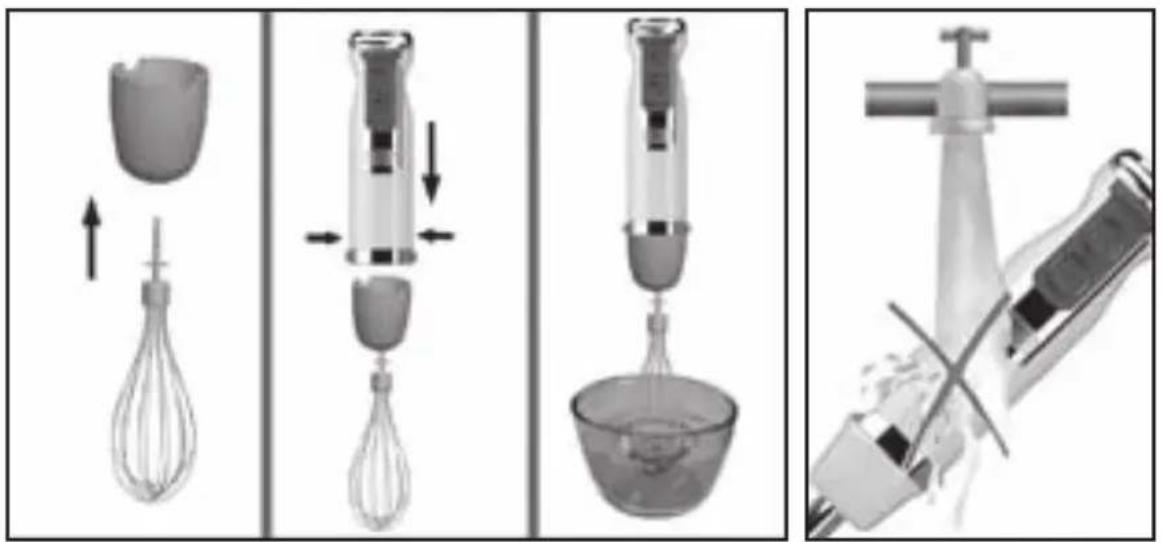

HOW TO USE THE WHISK ATTACHMENT (fig. 3)

Only use the whisk to whip cream, whisk egg whites and mix sponge mixtures and ready-made deserts for whisking.

1. Put the whisk attachment into its holder, and firmly fasten it into the motor body.
2. Select the speed turning the selector above the operating buttons and press the "I" switch or "II" switch to select the maximum speed.
3. Do not use the whisk for more than 2 minutes. Leave it to stand for 2 minutes after use.
4. Turn the gearbox to remove the motor body after use. Remove the whisk from the gearbox.

CLEANING AND MAINTENANCE (fig. 4)

Clean the motor body and chopper bowl only with a damp cloth.

Do not submerge the motor body in water.

1. Unplug the mixer before cleaning it.
2. All other parts can be washed in the dishwasher. However, the blades should be immediately cleaned after processing very salty foods.
3. You should also attempt to avoid using too much detergent or limescale cleaners.
4. Processing hot food can decolour the mixer's plastic parts. Clean these parts with vegetable oil before putting them in the dishwasher.
5. The blade is very sharp, handle it with care.
6. Unplug the mixer before cleaning it.

PROCESSING GUIDE (FOR THE CHOPPER BOWL)

Food Maximum Operating time
	500 ml chopper bowl
Meat 250 g 8 sec
Walnuts 100 g 8 sec
Cheese 100 g 5 sec
Bread 80 g 5 sec
Onions 150 g 8 sec
Biscuits 150 g 6 sec
Fruit 200 g 6 sec

PROTECTING THE ENVIRONMENT

Electric products should not be thrown away with domestic rubbish. This appliance should be taken to a local recycling centre for safe treatment.

Thank you for choosing one of our products.

F

Disposal of old Electrical & Electronic Equipment (Applicable throughout the European Union and other European countries with separate collection programs)

This symbol, found on your product or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent negative consequences to the environment and human health, which could otherwise be caused by inappropriate disposal of this product. The recycling of materials will help to conserve natural resources. For more detailed information about the recycling of this product, please contact your local city office, household waste disposal service or the retail store where you purchased this product.
