DO465FR - Deep fryer DOMO - Free user manual and instructions

Technical Features	Air fryer, 4.5-liter capacity, 1800 W power
Usage	Ideal for frying, roasting, grilling, and cooking with little or no oil
Maintenance and Repair	Removable and dishwasher-safe basket and drip tray
Safety	Overheat protection system, heat-resistant handle
General Information	Compact, modern design, easy to store, ideal for small kitchens

Frequently Asked Questions - DO465FR DOMO

How do I clean my DOMO DO465FR fryer?

To clean your fryer, unplug it and let it cool down. Remove the basket and the pan, then wash them with warm soapy water. Wipe the outside of the appliance with a damp cloth. Never immerse the appliance in water.

What is the capacity of the DOMO DO465FR fryer?

The DOMO DO465FR fryer has a capacity of 2.5 liters of oil.

How do I prevent food from sticking to the basket?

To prevent food from sticking, you can dry it thoroughly before immersing it in hot oil and use a little oil on the basket.

What temperature should I set to fry fries?

To fry fries, set your fryer temperature to about 180°C.

What should I do if the fryer does not heat up?

If the fryer does not heat up, check if it is properly plugged in and if the thermostat is set. If the problem persists, contact customer service.

Can I use olive oil in my fryer?

It is recommended to use oils with a high smoke point, such as sunflower or rapeseed oil. Olive oil may not be suitable for high-temperature frying.

How long does it take to preheat the fryer?

It takes about 5 to 10 minutes for the fryer to reach the ideal temperature, depending on the amount of oil used.

Can I fry frozen foods?

Yes, you can fry frozen foods, but adjust the cooking time as it may take longer.

How do I know if the oil is at the right temperature?

You can test the oil temperature by dipping a small piece of bread; if it rises and starts to bubble, the oil is ready.

What type of safety does the DOMO DO465FR fryer offer?

The fryer is equipped with an overheat protection system and a lid with an odor filter.

What is the ideal cooking time for doughnuts?

The cooking time for doughnuts is generally 3 to 5 minutes, depending on their size.

USER MANUAL DO465FR DOMO

CONDITIONS DE GARANTIE

This appliance has a 10 year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 10-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be.

The accessories and parts can also still be obtained at the store where you bought the appliance.

• Enkel in Belgie, Nederland, Luxemburg, Frankrijk en Duitsland.
• Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
• Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
• Only in Belgium, the Netherlands, Luxembourg, France and Germany.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

PROBLEM EN OPLOSSING

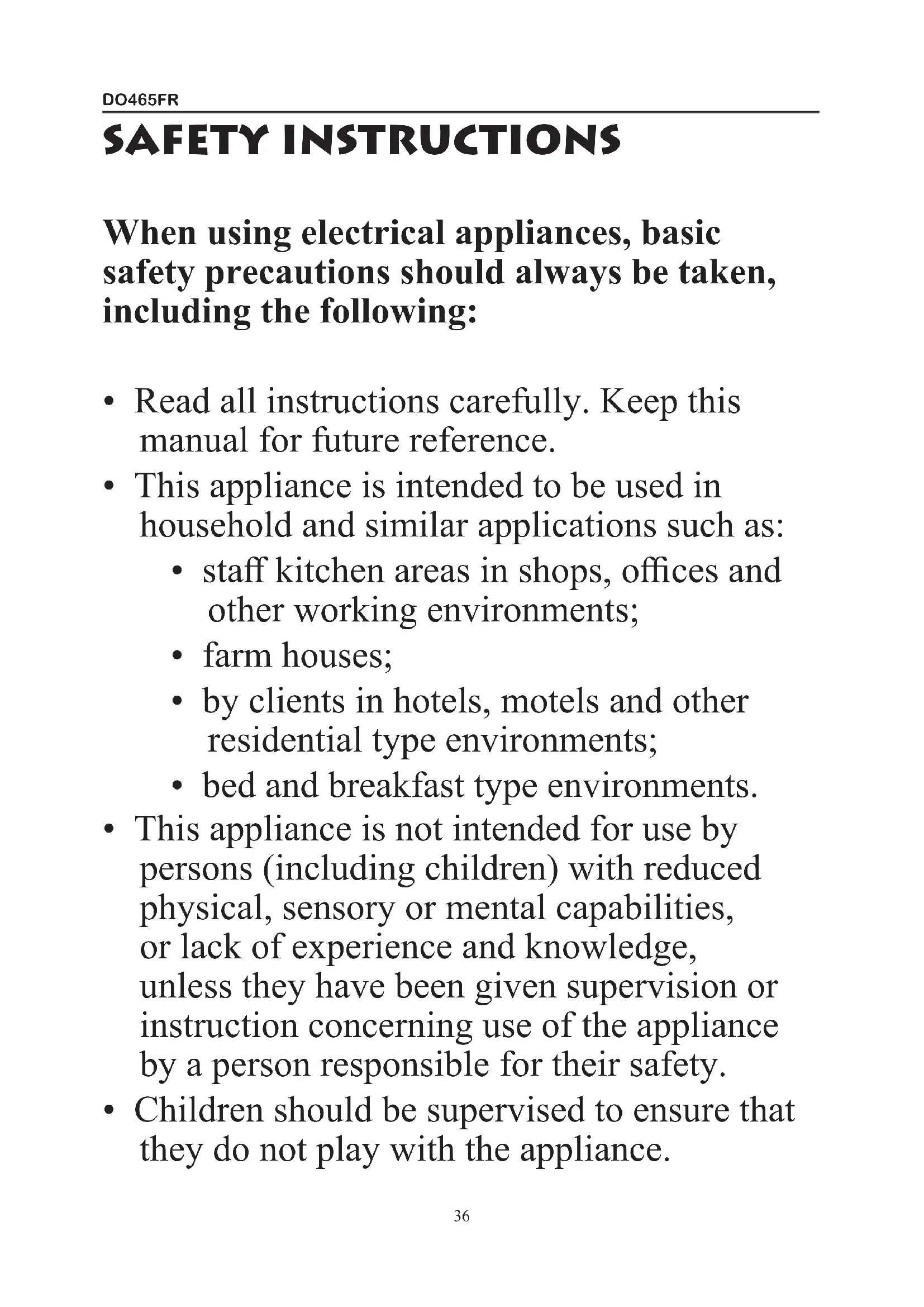

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance must not be used by children from 0 to 16 years. This appliance can be used by children aged from 16 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 16 years. Cleaning and user maintenance shall not be carried out by children.

• This appliance should be positioned in a stable situation with the handles positioned to avoid spillage of the hot liquids.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

• The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
• Never leave the appliance unattended while it is functioning.
• Do not use or store this appliance outdoors.
• Do not move the appliance while in use or when the oil is still hot. Allow to cool before moving the appliance.
• Do not use this appliance for other than intended use.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• This appliance is to be operated filled with frying oil to at least the minimum oil level and not exceeding the maximum level marked on the appliance.

• We only recommend the use of frying oil for this appliance. We recommend you never use frying fat. Neither the manufacturer, importer, or the supplier may be held liable for any injury or damage caused by the usage of wrong oil.

• Only use the connector or unit with incorporated thermostat delivered with the appliance.

• Only use the utensils delivered with the appliance.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.
• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquids.
• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Do not allow the power cord supply to run underneath or around the unit.
• Do not place on or near a hot gas or electric burner or sink, or in a heated oven.
• Do not place near flammable materials, gases or explosives.
• Do not place near objects that may catch fire such as curtains, towels ...
• Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "0" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• It is necessary to replace the oil after 7 to 10 frying sessions.
• Do not use the appliance if there is any water in it or if the parts are still wet after cleaning.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.
• During frying, hot steam may come through the filter, or slight splashing may occur. Keep hands and face at a safe distance during operation.
• To avoid oil splashes, you must first remove the excess ice from frozen foods.
• In case of fire, never try to extinguish with water. Remove the cord, close the lid and smother the flames with a damp cloth.
• Any injury or damage caused by failure to comply with these rules are at your own risk.
• Neither the manufacturer, importer, or the supplier may be held liable.
• CAUTION: the lid of the fryer is a dust cover and may only be put on the device when it is cold and not in operation.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

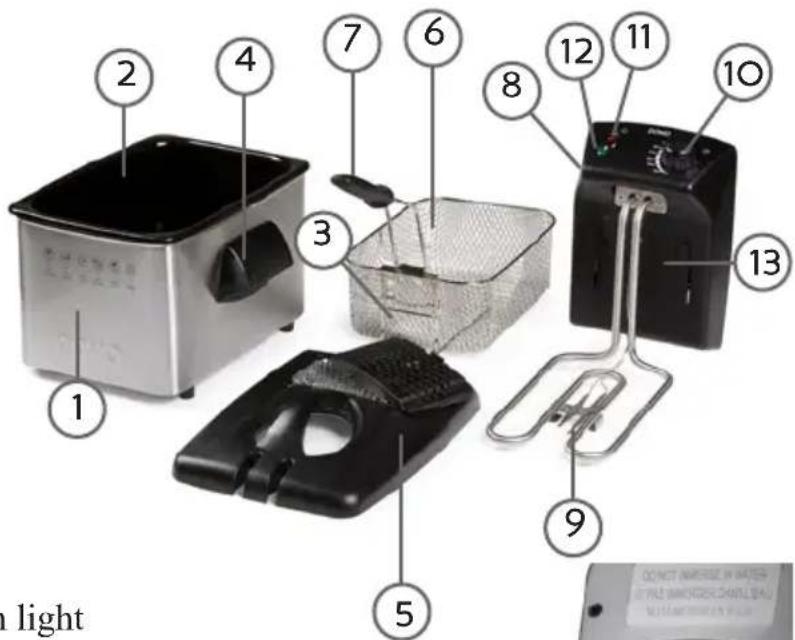

COMPONENTS

1. Stainless steel housing
2. Removable oil container
3. Support
4. Handles
5. Lid with grip and filter
6. Frying basket
7. Foldable basket handle
8. Control panel
9. Heating element
10. Temperature control
11. Red power indication light
12. Green temperature indication light
13. Sliding brackets with safety switch

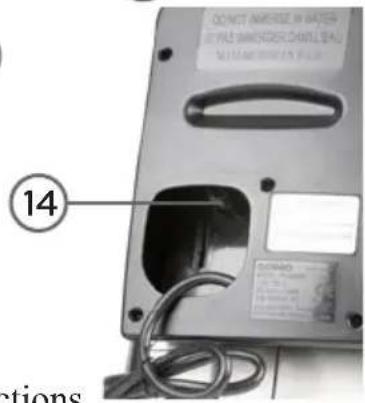

14. Reset button

USE OF THE APPLIANCE

1. Remove all packaging materials.
2. Before first use clean the deep fryer according to the instructions.
3. Place the deep fryer on a horizontal, heat-resistant surface.
4. Place the handle in the horizontal position until it clicks.
5. Open the lid and remove the basket.
6. Fill the frying pan with liquid oil, suitable for heating, until the oil level is situated between the "MIN" and "MAX" level indicated on the frying pan. Don't ever use the appliance when there is too much or to little oil in the pan.
7. Place the basket back in the pan.
8. Place the plug in the outlet. The red light will go on.
9. Switch the appliance on by turning the temperature knob.
10. Select the desired temperature with the temperature knob. The oil will start to heat up. The green light will go on when the desired tempeature is reached. The deep fryer is now ready for use. When the oil temperature gets too low, the indication light of the temperature will switch off and will light up again when the desired temperature is reached again.
11. Place the food you wish to fry in the basket, place the basket carefully back into the oil. Only fill half of the basket, for a better baking result. Note: to preserve the quality of the oil, it is recommended to spice the food after frying.
12. Remove the basket carefully out of the oil and check if the food is thoroughly cooked.
13. Let the food drip for 10 to 12 seconds.

AFTER USE

1. Turn off the appliance by turning the temperature knob to the minimum position.
2. Remove the plug from the outlet.
3. Place the basket back in the frying pan.
4. Close the lid.
5. Wait for the deep fryer to cool down completely before storing it.

CLEANING THE APPLIANCE

Unplug the appliance before cleaning it.

CLEANING THE OUTSIDE OF THE APPLIANCE

Clean the outside of the deep fryer after every use with a damp cloth, soaked in a bit of soapy water. The control panel must not be immersed in water or any other liquid.

CLEANING THE INSIDE OF THE APPLIANCE

Clean the inside of the deep fryer every time you change the oil. Clean it as described below, to keep your deep fryer in optimal condition.

1. Remove the lid.
2. Take out the frying basket.
3. Remove the heating element from the pan.
4. Pour the oil out of the pan. Remove the sticky parts with household paper.
5. The tough spots can be removed with a kitchen sponge, nylon brush or cloth, with mild soapy water.
6. The frying basket, lid with filter and frying pan are dishwasher safe.
7. Dry the lid, frying basket and pan thoroughly before placing them back into the deep fryer.

MAINTENANCE OF THE APPLIANCE

1. The temperature and the frequency in use are the most important factors for deterioration of the frying oil.
2. For tasteful and healthy frying it is advisable to change the oil regularly. Furthermore a regular changing of the oil will make cleaning of the pot and the basket easier.
3. Some foods such as foods coated with breadcrumbs or spicy foods and meats, can make the oil deteriorate faster. Change the oil when ut gets dark or dirty or starts smoking or foams abnormally.
4. Always exchange the oil completely, don't mix old oil with new oil.
5. Regularly filtering the oil will improve the quality of the fried foods, but won't make the oil deteriorate slower.

6. Store the frying oil in a cool, dark place. When you seldomly use your deep fryer, change the oil every 5 to 6 months.

7. Dispose of the frying oil according to the regulation in your town. Never pour old oil into the sink or toilet. This can cause a blockage of the drainpipe and is not ecologically responsible.

RECOMMENDATIONS

Deepfrying oil/fat change

Groundnut oil: after 8 to 10 baking sessions

Vegetable oil: after 10 to 12 baking sessions

Olive oil: after 8 to 10 baking sessions

Note: The above mentioned recommendations are based on an average family and a normal use.

CULINARYTIPS

1. Every time you heat up the oil, it will diminish the quality of the oil. Switch off the deep fryer after every use.

2. Replace the oil or fat regularly, especially when the fat is dark or dirty, or when it foams abnormally.

FRENCH FRIES

1. Use thick, not too new potatoes. Cut them up in sticks. Clean the sticks under running water and dry them off.

2. Bake your fries in two times:

3. First frying: 150 - 160^ : 5 to 10 minutes (depending on the amount)
   Second frying: 175^ 2 to 5 minutes

4. Let them drip thoroughly before serving.

FROZENFOODS

1. Frozen foods cool of the oil or fat strongly. Therefore don't use any large portions.
2. Shake the foods above the sink to remove most of the ice.
3. Set the temperature knob to 175^ . Place the basket slowly and gently into the frying pan, to prevent strong bubbling of the oil.

PROBLEM AND SOLUTION

PROBLEM SOLUTION
The fryer is no longer heating up.	There is a safety feature in the recess for the cord storage. If the oil in the appliance becomes too hot, this safety will be activated. This means that the device will turn itself off. Allow the appliance to cool and then press this button again to reset the appliance. It will then be possible to use the fryer again. The safety switch on the sliding brackets has not been pressed in. The control panel with heating element has not been correctly mounted onto the sliding brackets, or the basket is not correctly seated. Check the fryer is correctly mounted.
The oil is smoking or boiling over.	The oil has gone off or expired. Change the oil. Check the oil packaging for its maximum usage life, or reuse it a maximum of 10 times. The thermostat is set too high. Select a lower temperature.
The oil is bubbling fiercely.	There are too many ice crystals or too much water in the oil. Remove any excess ice from frozen food before dropping in the oil. Thoroughly pat dry freshly cut potato fries after rinsing.

PRECAUCIONES IMPORTANTES

CISTENI VNEJSI STRANY

Vycistete ji po kazdém pouziti mekkym hadrem navlhcenym v mydlovem roztoku.

CISTENI VNITRNISTRANY
