USER MANUAL DO7054S DOMO

MODEL: ETA-67 Read instruction manual carefully before using the appliance IMPORTANT SAFEGARDS Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions and save it for future reference.

2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating

3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you

turn a steam iron upside down as there may be hot water in water tank.

4. If any part is damaged it must be replaced by the manufacturer or an authorized service

agent or a qualified technician in order to avoid a hazard.

5. Don’t operate any appliance with a damaged cord or plug or after the appliance malfunctions,

or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. 6.Do not let cord hang over edge of table or hot surface.

4. Make sure steam button is on dry position. (See fig 3), then place the iron vertically (See

fig 4). Figure 3 Figure 4

5. Once soleplate temperature has reached the preset temperature, indicator light will be off,

then set steam button to your desired steam output or dry position and begin ironing.

WARNING: Not touch hot soleplate at any time before cooling down!

6. Press spraying water button a couple of times to moisten the laundry if necessary, before

spraying make sure that there is enough water in water tank.

7. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.

8. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the

iron will stop coming out steam automatically and no water droplets can come out from soleplate.

9. “Steam shot” can also be applied when holding the iron in a vertical position, so this is useful for8

MODEL: ETA-67 Read instruction manual carefully before using the appliance IMPORTANT SAFEGARDS Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions and save it for future reference.

2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating

3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you

turn a steam iron upside down as there may be hot water in water tank.

4. If any part is damaged it must be replaced by the manufacturer or an authorized service

agent or a qualified technician in order to avoid a hazard.

5. Don’t operate any appliance with a damaged cord or plug or after the appliance malfunctions,

or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. 6.Do not let cord hang over edge of table or hot surface.

4. Make sure steam button is on dry position. (See fig 3), then place the iron vertically (See

fig 4). Figure 3 Figure 4

5. Once soleplate temperature has reached the preset temperature, indicator light will be off,

then set steam button to your desired steam output or dry position and begin ironing.

WARNING: Not touch hot soleplate at any time before cooling down!

6. Press spraying water button a couple of times to moisten the laundry if necessary, before

spraying make sure that there is enough water in water tank.

7. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.

8. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the

iron will stop coming out steam automatically and no water droplets can come out from soleplate.

9. “Steam shot” can also be applied when holding the iron in a vertical position, so this is useful for16

MODEL: ETA-67 Read instruction manual carefully before using the appliance IMPORTANT SAFEGARDS Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions and save it for future reference.

2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating

3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you

turn a steam iron upside down as there may be hot water in water tank.

4. If any part is damaged it must be replaced by the manufacturer or an authorized service

agent or a qualified technician in order to avoid a hazard.

5. Don’t operate any appliance with a damaged cord or plug or after the appliance malfunctions,

or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. 6.Do not let cord hang over edge of table or hot surface.

4. Make sure steam button is on dry position. (See fig 3), then place the iron vertically (See

fig 4). Figure 3 Figure 4

5. Once soleplate temperature has reached the preset temperature, indicator light will be off,

then set steam button to your desired steam output or dry position and begin ironing.

WARNING: Not touch hot soleplate at any time before cooling down!

6. Press spraying water button a couple of times to moisten the laundry if necessary, before

spraying make sure that there is enough water in water tank.

7. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.

8. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the

iron will stop coming out steam automatically and no water droplets can come out from soleplate.

9. “Steam shot” can also be applied when holding the iron in a vertical position, so this is useful for24

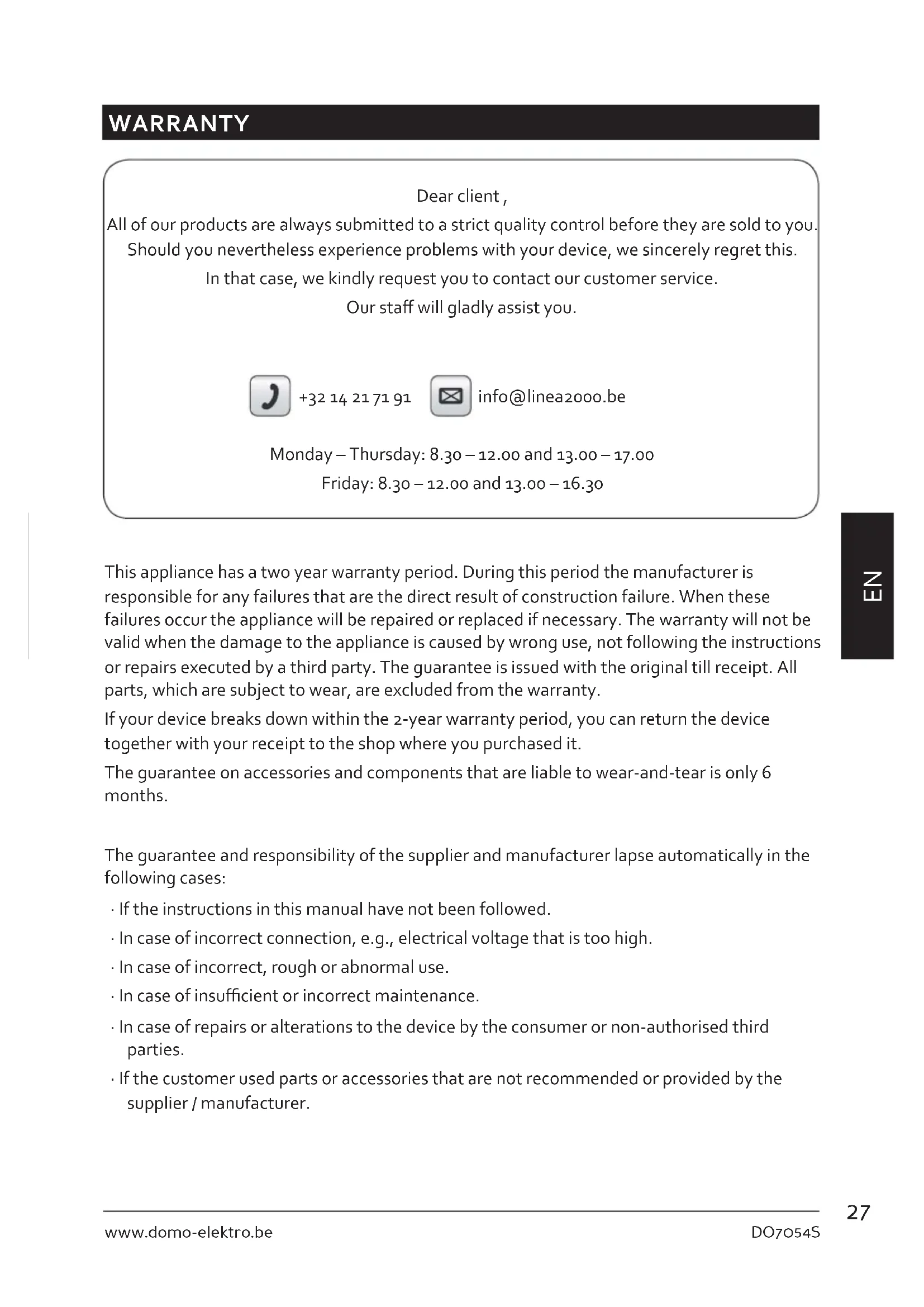

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.28 DO7054S

SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking o parts, and before cleaning the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and o by the utility.

• The iron must not be left unattended while it is connected to the supply mains.

• The plug must be removed from the socket-outlet before the water reservoir is lled with water.

• The iron must be used and rested on a at, stable surface and resistant to heat and hot steam.

• The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking. Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.29 DO7054S www.domo-elektro.be

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

• Do not use or store this appliance outdoors.

• Do not move the iron while in use or when still hot. Allow to cool before moving the iron or before maintenance.

• Do not use this appliance for other than intended use.

• Do not ll the water reservoir with any other liquid than water.

• Do not use the steam function of the iron without water in the reservoir. This might cause damage to the iron.

• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

• Only use the utensils delivered with the appliance.

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Do not operate the appliance with wet hands.

• Unwrap the cord completely to prevent overheating of the cord.

• Do not let the power supply cord touch hot surfaces.

• Only ll the water reservoir with no other liquid than water.

• Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to “MIN” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

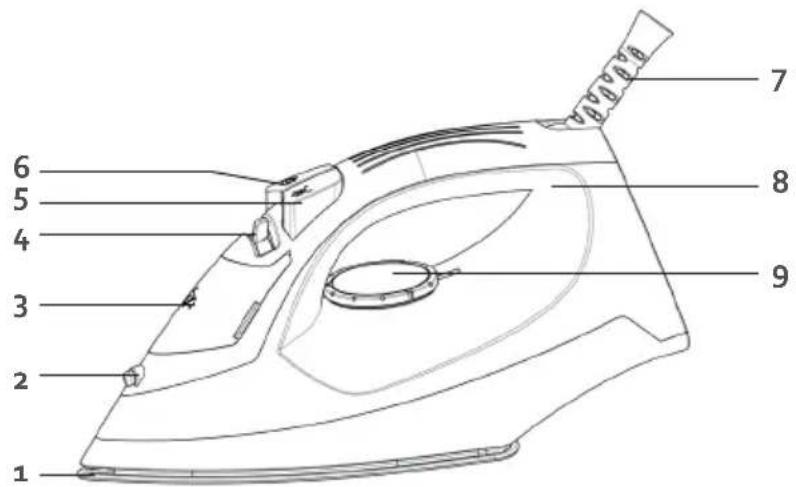

PARTS 1. Sole of iron2. Spray opening3. Water reservoir4. Steam regulator + self-cleaning5. Spray button6. Steam boost button7. Cord8. Indication light9. Temperature button

BEFORE THE FIRST USE

• The iron must always be at “Min” if you put the plug in or take it out of the outlet. · Never pull on the cord but on the plug itself. · Remove the plastic protection from the sole of the iron (if present) and clean the sole of the iron with a soft cloth. · Remove the plastic protection from the sole of the iron (if present) and clean the sole of the iron with a soft cloth. · Some parts of the iron have been greased lightly, so the device may emit a slight odour and some smoke with initial use. This is normal and will not happen after initial use. · Keep the sole of the iron smooth and be careful for scratches. Do not slide with the sole of the iron over metal surfaces, such as the edge of the ironing board, buttons or zippers. · Before using for the rst time, iron an old towel at the maximum temperature to remove all residues of the manufacturing process. USE
• Fill the water reservoir as indicated in “Filling the water reservoir”. · Put the plug of the device in the outlet, the indicator light will light up. · Make sure that the steam regulator is set to the no steam position. · Turn the temperature regulator to the desired position: see “Temperature selection”. The indicator light will turn o when the appliance has reached the selected temperature.IRONING WITH STEAM · Turn the temperature regulator to a temperature that includes steam . This is for “cotton” and “linen”. · Make sure that the water reservoir is always at least ¼ full. If the water level is too low, steam will not be produced. STEAM IRON I N STRUC TI O N M AN UAL

MODEL: ETA-67 Read instruction manual carefully before using the appliance IMPORTANT SAFEGARDS Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions and save it for future reference.

2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating

3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you

turn a steam iron upside down as there may be hot water in water tank.

4. If any part is damaged it must be replaced by the manufacturer or an authorized service

agent or a qualified technician in order to avoid a hazard.

5. Don’t operate any appliance with a damaged cord or plug or after the appliance malfunctions,

or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. 6.Do not let cord hang over edge of table or hot surface.

• The steam regulator allows you to either use or not use steam:

: ironing without steam

: continuous low steam

: continuous high steam

• After use, turn the temperature regulator to MIN, move the steam regulator button to the “ironing without steam” position and remove the plug from the outlet.

FILLING THE WATER RESERVOIR

• Remove the plug from the outlet.

• Set the steam regulator to ironing without steam

• Hold the iron at a slant and ll the water reservoir through the opening. So not ll it beyond the MAX level.

• If you live in an area with hard water, it is recommended you use 50 % tap water and 50 % demineralised or distilled water. Do not use chemically modied water or perfumed water.

• Never store the device with a lled water tank. TEMPERATURE CHOICE

• Check the ironing instructions on the item of clothing that you wish to iron.

• Materials with a separate shiny layer or other extra nishings should be ironed inside out at the lowest temperature.

• If your item of clothing consists of several fabrics, always follow the indications pertaining to the fabric that has to be ironed at the lowest temperature. An item of clothing of, e.g., 60% polyester and 40% cotton should be ironed at the temperature indicated for polyester without steam.

• Sort your laundry by type of fabric and temperature at which it must be ironed. Begin with the items of clothing for low temperatures and end with the laundry for the highest temperature.

• If you turn the temperature down, give the appliance time to cool o.

• Wools and other delicate fabrics such as silk, velour, etc., can best be ironed with a pressing cloth to prevent the fabric from being damaged. Nylon Nylon Silk Silk Wool Wool Cotton Cotton Linen Linen

4. Make sure steam button is on dry position. (See fig 3), then place the iron vertically (See

fig 4). Figure 3 Figure 4

5. Once soleplate temperature has reached the preset temperature, indicator light will be off,

then set steam button to your desired steam output or dry position and begin ironing.

WARNING: Not touch hot soleplate at any time before cooling down!

6. Press spraying water button a couple of times to moisten the laundry if necessary, before

spraying make sure that there is enough water in water tank.

7. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.

8. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the

iron will stop coming out steam automatically and no water droplets can come out from soleplate.

9. “Steam shot” can also be applied when holding the iron in a vertical position, so this is useful for32

Comment: the indicator will turn on and o while ironing. This is to maintain a constant temperature. This is normal. SPRAYING

• Pushing the spray button will cause water to be sprayed out of the opening and moisten materials dicult to iron.

• To prevent staining, it is recommended not to use the spray function on delicate materials such as silk.

• This function can be used with every temperature and will not interfere with the other functions.

• With the rst use of the spray button, it will need to be pressed several times to activate it.

• Make sure there is always enough water in the reservoir. STEAM BOOST

• You can remove stubborn wrinkles with a steam boost.

• The steam shot works best with the temperature regulator set at MAX.

• Press on the steam boost button. Wait a few second for the steam to penetrate the fabric before you press again.

• The steam shot can also be used when the iron is upright. This allows you to remove wrinkles from garments or curtain that are hanging up.

• Note: Do not use the steam boost button more than three times in a row in order to maintain optimal steam quality. Using the steam boost several times in a row will cool the iron. For this reason, pay attention to the temperature indicator light before and after you use this function.

EMPTYING THE WATER RESERVOIR

• Pull the plug from the outlet.

• Set the steam regulator to ironing without steam

• Open the water reservoir and remove the water. Shake the iron to remove the excess water.

CLEANING AND MAINTENANCE

SELF-CLEANING This function removes the lime scale and minerals that build up in the steam chamber. This treatment is best done once a month to keep the iron in optimal working condition. Depending on the hardness of the water, this treatment may have to be done more than once a month.33 DO7054S www.domo-elektro.be

1. Fill the iron as described in “Filling the water reservoir”. Fill the water tank halfway.

Caution: Never ll the iron with vinegar or other liquid decalciers.

2. Place the iron straight up on a at surface.

3. Put the plug in the mains.

4. Put the device on at the max. temperature. Wait until the device is at temperature.

5. Hold the iron horizontally above the sink.

6. Move the steam regulator to the self-cleaning position: ‘CALC CLEAN’. Keep it pressed in.

Steam and boiling water will come out of the holes in the sole of the iron, rinsing the lime scale and minerals out.

7. Move the iron gently back and forth, until the water tank is empty.

8. Release the steam regulator button when you are nished cleaning.

9. Place the iron in a vertical position and allow it to cool completely

10. Dry the sole with a cold, damp cloth.

Note: Make sure you do not come into contact with the hot water.

• Remove the plug from the outlet and allow the appliance to cool completely before cleaning it.

• Clean the sole of the iron with a damp, clean cloth. Do not use any sharp object or aggressive cleaning products. STORAGE

• Allow the iron to cool completely.

• Remove the water from the water reservoir as indicated under “Emptying the water reservoir”.

• Store the iron in an upright position.34 DO7054S

ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.35 DO7054S www.domo-elektro.be

MODEL: ETA-67 Read instruction manual carefully before using the appliance IMPORTANT SAFEGARDS Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions and save it for future reference.

2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating

3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you

turn a steam iron upside down as there may be hot water in water tank.

4. If any part is damaged it must be replaced by the manufacturer or an authorized service

agent or a qualified technician in order to avoid a hazard.

5. Don’t operate any appliance with a damaged cord or plug or after the appliance malfunctions,

or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. 6.Do not let cord hang over edge of table or hot surface.

4. Make sure steam button is on dry position. (See fig 3), then place the iron vertically (See

fig 4). Figure 3 Figure 4

5. Once soleplate temperature has reached the preset temperature, indicator light will be off,

then set steam button to your desired steam output or dry position and begin ironing.

WARNING: Not touch hot soleplate at any time before cooling down!

6. Press spraying water button a couple of times to moisten the laundry if necessary, before

spraying make sure that there is enough water in water tank.

7. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.

8. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the

iron will stop coming out steam automatically and no water droplets can come out from soleplate.

9. “Steam shot” can also be applied when holding the iron in a vertical position, so this is useful for40

MODEL: ETA-67 Read instruction manual carefully before using the appliance IMPORTANT SAFEGARDS Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions and save it for future reference.

2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating

3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you

turn a steam iron upside down as there may be hot water in water tank.

4. If any part is damaged it must be replaced by the manufacturer or an authorized service

agent or a qualified technician in order to avoid a hazard.

5. Don’t operate any appliance with a damaged cord or plug or after the appliance malfunctions,

or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. 6.Do not let cord hang over edge of table or hot surface.

4. Make sure steam button is on dry position. (See fig 3), then place the iron vertically (See

fig 4). Figure 3 Figure 4

5. Once soleplate temperature has reached the preset temperature, indicator light will be off,

then set steam button to your desired steam output or dry position and begin ironing.

WARNING: Not touch hot soleplate at any time before cooling down!

6. Press spraying water button a couple of times to moisten the laundry if necessary, before

spraying make sure that there is enough water in water tank.

7. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.

8. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the

iron will stop coming out steam automatically and no water droplets can come out from soleplate.

9. “Steam shot” can also be applied when holding the iron in a vertical position, so this is useful for47

MODEL: ETA-67 Read instruction manual carefully before using the appliance IMPORTANT SAFEGARDS Before using the electrical appliance, the following basic precautions should always be followed including the following:

1. Read all instructions and save it for future reference.

2. Before using check that the voltage of wall outlet corresponds to the one shown on the rating

3. Burns may occur from touching hot metal parts, hot water, or steam. Use caution when you

turn a steam iron upside down as there may be hot water in water tank.

4. If any part is damaged it must be replaced by the manufacturer or an authorized service

agent or a qualified technician in order to avoid a hazard.

5. Don’t operate any appliance with a damaged cord or plug or after the appliance malfunctions,

or is dropped or damaged in any manner, Return the appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment. 6.Do not let cord hang over edge of table or hot surface.

4. Make sure steam button is on dry position. (See fig 3), then place the iron vertically (See

fig 4). Figure 3 Figure 4

5. Once soleplate temperature has reached the preset temperature, indicator light will be off,

then set steam button to your desired steam output or dry position and begin ironing.

WARNING: Not touch hot soleplate at any time before cooling down!

6. Press spraying water button a couple of times to moisten the laundry if necessary, before

spraying make sure that there is enough water in water tank.

7. Steam shot function had better be used at max temperature, as it helps remove stubborn creases.

8. The iron has an anti-drip function: if ironing garments for long time, soleplate temperature will fall off, the

iron will stop coming out steam automatically and no water droplets can come out from soleplate.

9. “Steam shot” can also be applied when holding the iron in a vertical position, so this is useful for54

OHĽAD NA ŽIVOTNÉ PROSTREDIE
