USER MANUAL DO9204KS DOMO

HET APPARAAT STOPT AF EN TOE

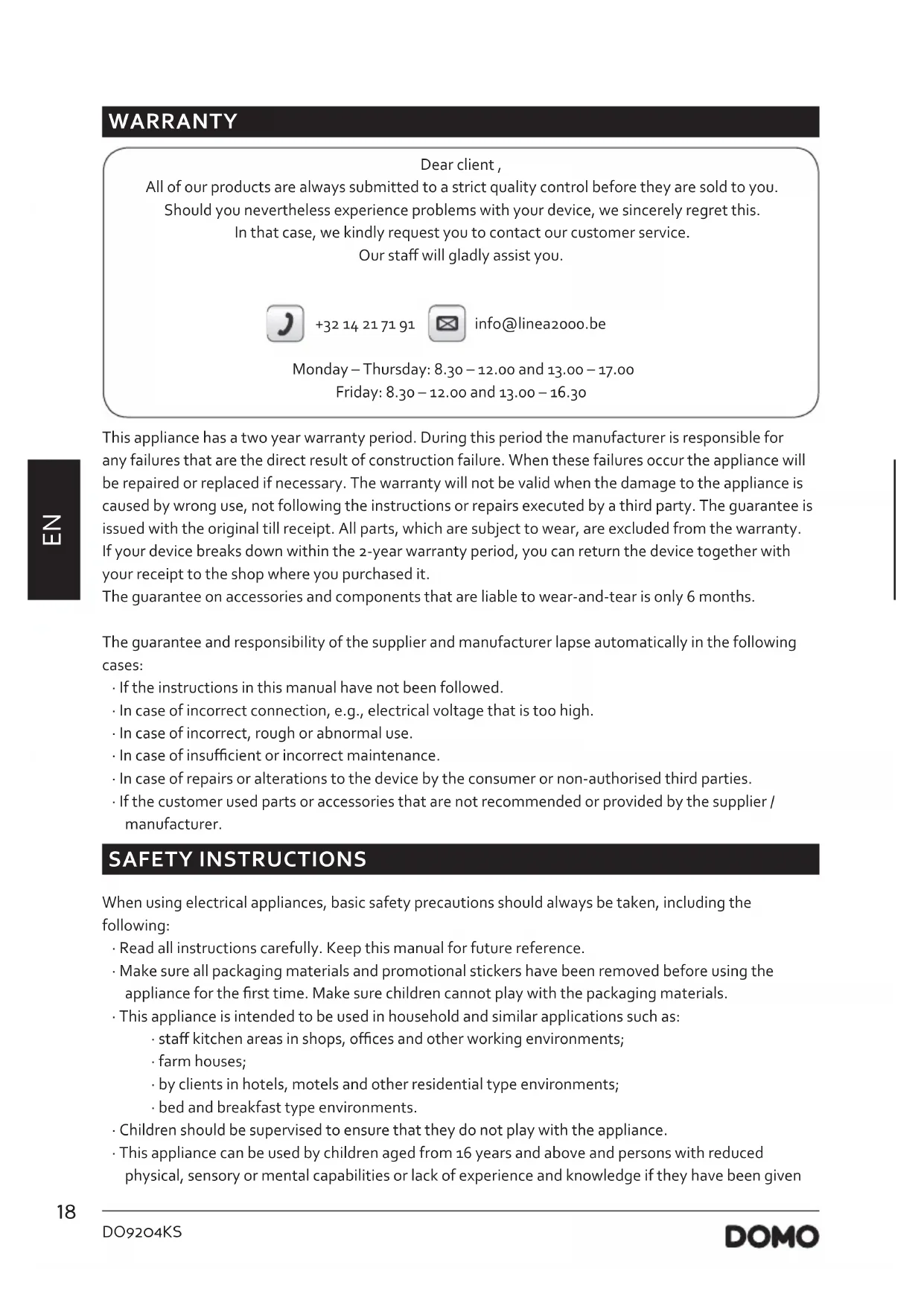

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given19 DO9204KS www.domo-elektro.be

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• Do not touch the moving parts of the appliance.

• Before connecting or disconnecting the appliance, make sure that the appliance is in the “o” position.

• The knife sharpener is designed to sharpen kitchen knives, penknives and most sports knives. Do not attempt to sharpen axes, crampons or other objects that do not t into the slots on the sharpener.

• When the appliance is being operated, the sharpener must always be placed on a stable surface.

• Sharpened knives are sharper than you think. Be very careful to avoid injury. Do not cut in the direction of your ngers, hands or face and do not slide your nders across the edge of the blade.

• Switch the appliance on before place a blade in the slots. Never sharpen more than one blade at a time.

• When you sharpen knives, you must exert light downward pressure on the blade. Too much pressure may result in jamming the motor.

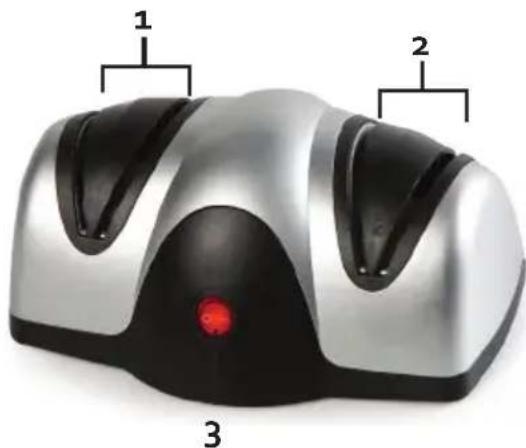

• It is not necessary to use a lubricant such as oil or water. PARTS

• Only sharpen clean knives. If the knife is dirty, you must wash and dry it before sharpening.

• When sharpening, exert light downward pressure.

• When moving the knife against the grindstone, maintain a constant speed and don’t interrupt the movement.

• Each time, move the knife from the left slot to the right slot, except for blades that must be sharpened on one side only.

• To sharpen the tip of the knife, you must raise the handle of the knife when you reach the tip so that the side of the blade remains in contact with the grindstone.

USE Plug the appliance in and switch on using the on/o button.

STEP 1: “COARSE” SHARPENING

1. Slide the knife into one of the “coarse” sharpening slots

(2 slots on the left-hand side of the appliance carrying the number 1) placing the knife handle as close as possible to the appliance.

2. Pull the knife regularly in the blade-guide slot.

As soon as the knife comes into contact with the sharpening stone, you must pull the handle slowly towards you, exerting constant, light pressure downwards. If you sharpen a knife with a curved blade, you must raise the handle slightly when approaching the tip of the blade so that it remains in contact with the grindstone. Change slot with each stroke. It takes 4 to 5 seconds for a 20 cm blade, 2 to 3 seconds for a shorter blade and 6 seconds for a blade longer than 20 cm in length. Three strokes per slot are enough for the rst step. IMPORTANT;

• Pull the knife toward you as soon as you slide the blade into the slot.

• Never push the blade in the opposite direction.

• Make sure that the pressure you exert is sucient to keep the blade in contact with the grindstone.

STEP 2: “FINE” SHARPENING

1. Slide the knife into one of the “ne” sharpening slots (2 slots on the right-hand side of the appliance

carrying the number 2).

2. Place the knife handle as close as possible to the appliance and pull towards you. This takes about 3

seconds. Change slot each time and carry out three strokes per slot. If, after sharpening, metal fragments remain on your blade, you can remove these as follows:

• Switch o the appliance.

• Slide the blade into the ne sharpening slot again.

• Pull the knife towards you, once on each side.

• The particles that came loose when sharpening will have now disappeared. FREQUENT QUESTIONS I HAVE FOLLOWED ALL THE INSTRUCTIONS AND YET MY KNIVES ARE NOT SHARP. When knives have not been sharpened for a long time, or when they have been sharpened incorrectly, you may need to perform all of the above steps again. Hardened steel knives take more time to become sharp. In this case, you must repeat the steps above until the knives are sharp. We recommend that you sharpen your knives regularly to make sure they are always ready to use. THE APPLIANCE STOPS FROM TIME TO TIME. This is a safety feature. You may have exerted too much pressure on the grindstone. Light downward pressure is sucient, just enough to ensure that the knife stays in contact with the grindstone. If you exert too much pressure, you will not achieve an even result.21 DO9204KS www.domo-elektro.be

HOW DO I GET REALLY GOOD RESULTS? Leave the knife to rest in the slot. This way, the knife will be positioned diagonally against the grindstone. If you sharpen both sides this way, you’ll achieve good results. I SOMETIMES SEE SPARKS COMING OFF THE GRINDSTONE. This happens more frequently with knives that have a high carbon content (generally good quality knives) than with cheaper knives. This is completely normal. CAN I USE THIS APPLIANCE TO SHARPEN KNIVES WITH SERRATED BLADES? It is possible, except for electric knives or knives that are serrated on both sides. For knives with serrated blades, you can only use the right had side of the appliance. We recommend that you only sharpen the smooth side of the knife. If you sharpen the serrated edge of the knife, the teeth will disappear over time, but you will still be able to use the knife.

CLEANING AND MAINTENANCE

• This appliance operates using an electronic motor and does not require lubricant.

• To clean the appliance, do not use detergents or abrasive cleaning products, but simply rub the appliance with a damp cloth.

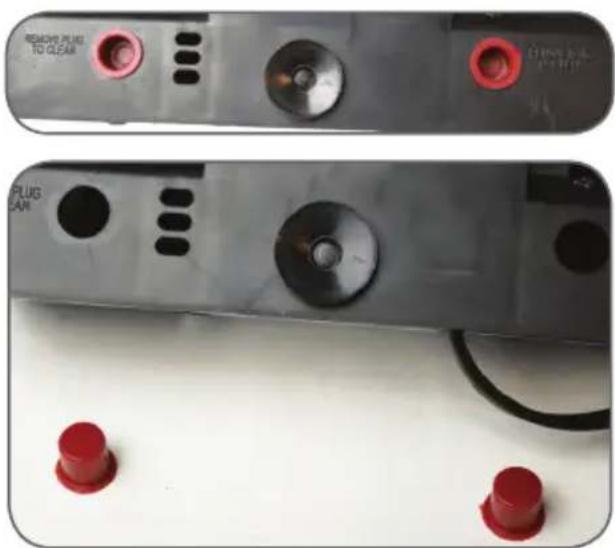

• The sharpening dust collects in the lower part of the appliance. We recommend that you remove after a few uses. Remove the small red caps under the appliance and shake to extract the dust.22 DO9204KS

ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.23 DO9204KS www.domo-elektro.be
