Product Type	Air Purifier
Brand	Danby
Model	DAP120BBWDB
Power Supply	120 V, 60 Hz (polarized plug)
Main Functions	Air purification with UV lamp, 3-speed fan, washable air filter
Air Filter	Washable (clean with brush or vacuum), periodic replacement
UV Lamp	UV-C lamp, model ZWD-01, annual replacement recommended
Control Panel	On/off, fan speed, UV buttons, indicator lights
Safety Distance	At least 170 cm from walls and furniture, 50 cm from metal objects
Safety	Polarized plug, do not use with dimmer, do not immerse, unplug before servicing
Housing Maintenance	Warm damp cloth with mild detergent, dry with lint-free cloth
Filter Maintenance	Clean with brush or vacuum, do not use water
Filter Reset	Press UV button for 3 seconds after cleaning
Replacement Parts	Filters: www.danbyapplianceparts.com ; UV Lamp: model ZWD-01, contact customer service
Warranty	2 years (24 months) in workshop, plastic parts 30 days
Intended Use	Residential indoor only
Country of Manufacture	Not specified

Frequently Asked Questions - DAP120BBWDB DANBY

How to install the filter in the Danby DAP120BBWDB air purifier?

Remove the filter at the back of the unit. Remove the filter packaging. Reinsert the filter into the unit, ensuring the arrow on the filter points toward the unit. Make sure it is properly seated before using the unit.

How to clean the air filter?

Unplug the unit. Remove the filter. Clean it with a brush or vacuum. Do not use water, as the plastic may deform. Replace the filter and reset the indicator by pressing the UV button for 3 seconds.

When should the UV lamp be replaced?

The UV lamp should be replaced once a year. Replacement must be performed by a qualified technician. Contact Danby customer service at 1-800-263-2629. The replacement lamp is model ZWD-01, not covered under warranty.

What to do if the purifier does not turn on?

Check that the plug is properly inserted into the wall outlet. Check the fuse or circuit breaker. If the cord is damaged, have it replaced by a professional. Do not use an extension cord.

Why is the airflow low?

The air filters may be dirty. Clean or replace the filter. Ensure the air inlet and outlet are not blocked. Check that the unit is at least 170 cm from walls.

How to reset the filter indicator after cleaning?

After cleaning or replacing the filter, plug in the unit and press the UV button for 3 seconds. The flashing UV light will turn off and the unit will reset.

What are the important safety instructions?

Do not use outdoors. Do not insert objects into the grilles. Do not cover the openings. Do not use with a speed controller. Unplug before any maintenance. Keep out of reach of children. Do not store flammable materials nearby.

Where can I buy replacement filters?

Replacement filters are available at www.danbyapplianceparts.com (USA) or www.danbyapplianceparts.ca (Canada). You can also call consumer service at 1-800-263-2629. They are not covered under warranty.

How to clean the exterior of the purifier?

Unplug the unit. Clean the housing with a warm damp cloth and mild detergent. Dry with a dry lint-free cloth. Do not use gasoline, thinner, or chemicals. Do not wash directly under water.

What to do if there is an odor coming from the unit?

Replace the air filter. In households with pets or smokers, clean the filter more often. If the odor persists, contact customer service.

USER MANUAL DAP120BBWDB DANBY

Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty.

You must provide the original purchase receipt to validate your warranty and receive service.

Model Number:

Serial Number:

Date of Purchase:

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner's manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

1-800-26-Danby (1-800-263-2629)

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not store or use combustible materials such as gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

Do not insert fingers or other objects into grills or openings in the appliance.

Do not cover or block the intake and exhaust openings.

Do not operate the appliance without the filter installed.

Do not operate the appliance near heat sources.

This appliance is intended for indoor, residential applications only. Do not use this appliance outdoors. Do not use this appliance for commercial or industrial applications.

WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.

WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this appliance. Always disconnect power before replacing the lamp or servicing the appliance. Replace Lamp With Lamp Model No. ZWD-01 Manufactured for Danby Products Ltd.

SAFETY REQUIREMENTS

Do not connect the appliance to extension cords, adapters or together with another appliance in the same wall outlet.

Do not splice the power cord. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a licensed electrician to install the proper outlet. Do not alter the plug in any way.

To avoid risk of electric shock, do not operate this appliance in an area that is likely to accumulate standing water. If this condition develops, disconnect the power supply before stepping into the water.

This appliance complies with the maximum allowable concentration of ozone of 0.05 parts per million by volume in a 24 hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on an average of 8 hours, is 0.02 ppmv or less when tested in a sealed, controlled room approximately 30 m^3.

IMPORTANT

This appliance contains a UV emitter. Do not stare directly at the light source.

INSTALLATION INSTRUCTIONS

FILTER INSTALLATION

Ensure that the filter is properly installed before using the appliance.

1. Remove the filter from the back of the appliance.
2. Remove the packaging from the filter.

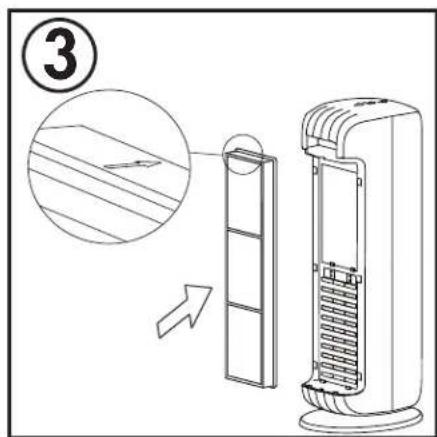

3. Replace the filter in the appliance. Ensure that the arrow is on the top of the filter and is pointing into the appliance.

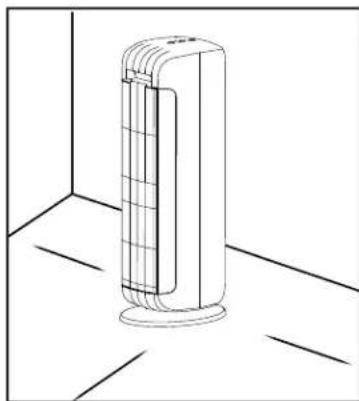

LOCATION

To achieve the most efficient results and allow for proper air flow, keep the appliance at least 170 cm (67 inches) away from all walls and furniture.

To avoid interference from metal objects, keep the appliance at least 50 cm (20 inches) away from metal objects and electrical appliances.

FEATURES

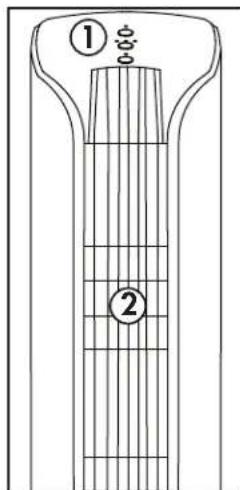

Front

1. Control panel
2. Air outlet

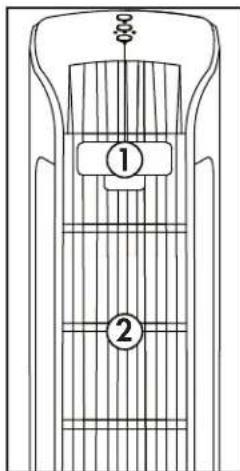

Rear

1. Handle
2. Air intake and air filter

OPERATING INSTRUCTIONS

CARE & MAINTENANCE

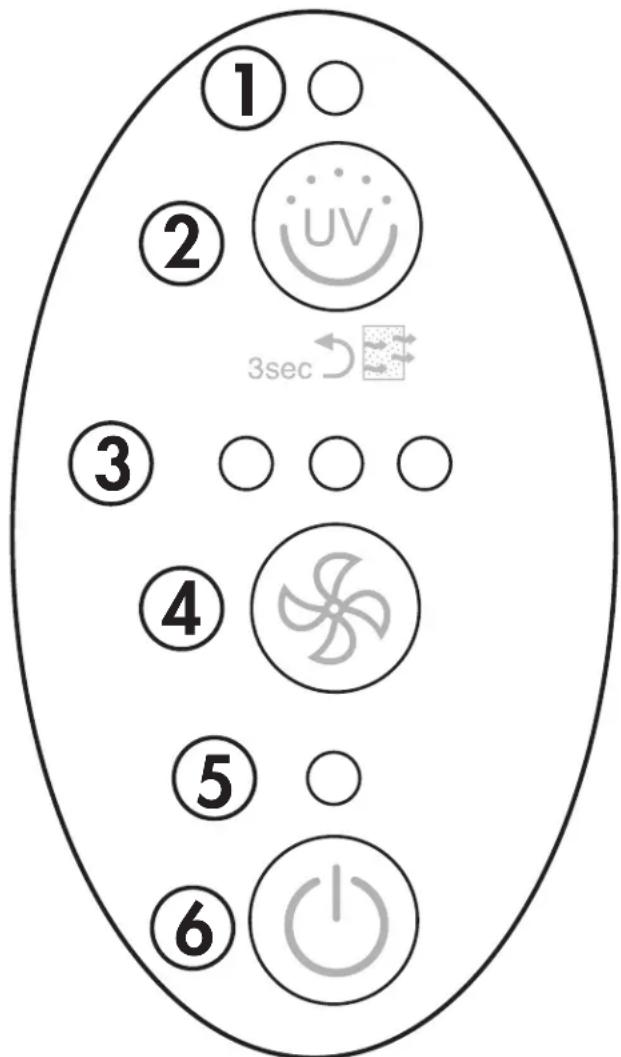

CONTROL PANEL

1. UV indicator light: Illuminates when UV light is activated. This light will flash when the filter needs to be cleaned.
2. UV light button: Press to activate the UV light. After cleaning or replacing the filter, press and hold this button for three seconds to reset the appliance.
3. Fan speed indicator lights: Illuminates to indicate fan speed.
4. Fan button: Press to set the fan speed. Options will cycle through Low, Mid, and High.
5. Power indicator light: Illuminates to indicate the appliance is turned on.
6. Power button: Press to turn the appliance on or off.

CLEANING

• Unplug the appliance before cleaning or servicing.
• Clean the cabinet with a lukewarm damp cloth and neutral detergent. Dry the cabinet with a lint-free dry cloth.
• Do not use gasoline, paint thinner or other chemicals to clean the appliance.
• Do not wash the appliance directly under a tap or using a hose. It may cause electrical damage.

AIR FILTER

The air filter should be cleaned when the filter light on the control panel illuminates. Unplug the appliance before removing or cleaning the filter.

The filter can be cleaned with a brush or vacuum. Do not use water on the filter as the plastic can deform.

Install the filter in the appliance, then press and hold the UV button for 3 seconds to reset the filter.

In households with pets or smokers, the filter may need to be cleaned more often to remove smells.

Replacement filters can be purchased through one of the following methods:

• Visit www.danbyapplianceparts.com
• Visit www.danbyapplianceparts.ca Call consumer care at 1-800-263-2629.

NOTE: Replacement filters are not covered under warranty and must be purchased separately.

UV LIGHT REPLACEMENT

The UV light should be replaced once a year and should be replaced by an authorized service technician. Visit www.Danby.com or call consumer care at 1-800-263-2629 for more information.

NOTE: Replacement UV lights are not covered under warranty and must be purchased separately.

DISPOSAL

This appliance should not be treated as regular household waste. Check for local regulatory compliance regarding the approved and safe disposal of this appliance.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE
Appliance will not operate • Plug is not fully inserted	into the wall outlet • Blown fuse or circuit breaker
Insufficient air purification	• Air filter is dirty or needs to be replaced • blocked air flow • Appliance size is too small for application
Appliance will not resume functioning after cleaning the fi liter	• Press and hold the ionizer button for 3 seconds to reset the fi liter
Odors • Replace the air fi liter

LIMITED "CARRY IN" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 24 months: During the first twenty-four (24) months, any functional parts of this product found to be defective will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service: Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

It is the responsibility of the purchaser to transport the appliance to the nearest authorized service depot.

Transportation charges to and from the service location are not covered by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure. 2) Damage in transit or when moving the appliance. 3) Improper power supply such as low voltage, defective house wiring or inadequate fuses. 4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (i.e., extremely high or low room temperature). 5) Use for commercial or industrial purposes (i.e., if the appliance is not installed in a domestic residence). 6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods, etc. 7) Service calls resulting in customer education. 8) Improper installation (i.e., building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.
