DAP152BAW-I - Air purifier DANBY - Free user manual and instructions

USER MANUAL DAP152BAW-I DANBY

OWNER'S MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL PROPIETARIO

AIR PURIFIER

Owner's Manual....1 - 6

PURIFICATEUR D'AIR

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9

Danby Products Inc. Findlay, Ohio, U.S.A. 45840

www.danby.com

f in x p

Printed in China | Imprimé en Chine | Impreso en China

2025.03.06

Welcome to the Danby family.

We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance.

You are entitled to the warranty coverage as described in the owner's manual provided with your new appliance.

1. Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
2. Register your product online and receive a FREE 2 MONTH WARRANTY EXTENSION after filling out a product survey, at www.danby.com/support/product-registration/

Model Number:

Serial Number:

Date of Purchase:

Need Help?

1. Read your Owner's Manual for installation help, troubleshooting, and maintenance assistance.
2. Visit www.Danby.com to access self-service tools, FAQs and much more by searching your model number in the search bar.
3. For the Quickest Customer Service, please fill out the web form at www.danby.com/support. Your submission will go directly to an expert on your particular appliance. Our average response times are between 20 minutes and 2 hours, during EST business hours.
4. Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one hour.

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not store or use combustible materials such as gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

Do not insert fingers or other objects into grills or openings in the appliance.

Do not cover or block the intake and exhaust openings.

Do not operate the appliance without the filter installed.

Do not operate the appliance near heat sources.

This appliance is intended for indoor, residential applications only. Do not use this appliance outdoors. Do not use this appliance for commercial or industrial applications.

Warning - To reduce the risk of fire or electric shock do not use this fan with any solid-state speed control device.

SAFETY REQUIREMENTS

Do not connect the appliance to extension cords, adapters or together with another appliance in the same wall outlet.

Do not splice the power cord. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a licensed electrician to install the proper outlet. Do not alter the plug in any way.

To avoid risk of electric shock, do not operate this appliance in an area that is likely to accumulate standing water. If this condition develops, disconnect the power supply before stepping into the water.

This appliance complies with the maximum allowable concentration of ozone of 0.05 parts per million by volume in a 24 hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on an average of 8 hours, is 0.001 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

INSTALLATION INSTRUCTIONS

FILTER INSTALLATION

When unpacking the unit and before first-time use, please ensure that the plastic film on the filter is removed.

Installation Steps:

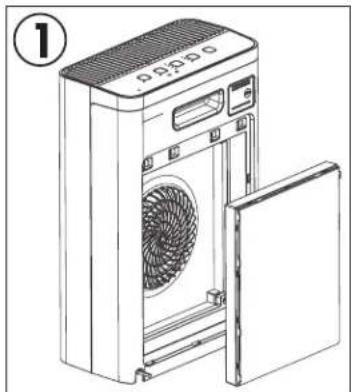

1. Remove the filter from the air purifier.
2. Remove the packaging from the filter.

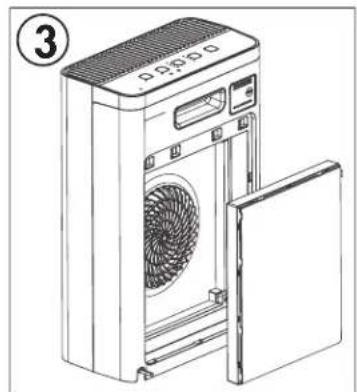

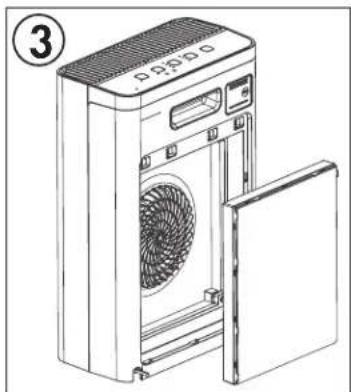

3. Install the filter - ensure the arrow at the top of the filter is facing inwards

Please ensure that the filter is properly installed before using the appliance.

NOTE: It is recommended that you change the HEPA filter after 720 hours of continuous usage

Line drawing of a washing machine with fan and door, no text or symbols present

Simple line drawing of a jar with scissors cutting the lid (no text or symbols)

Line drawing of a washing machine with fan and door, no text or symbols present

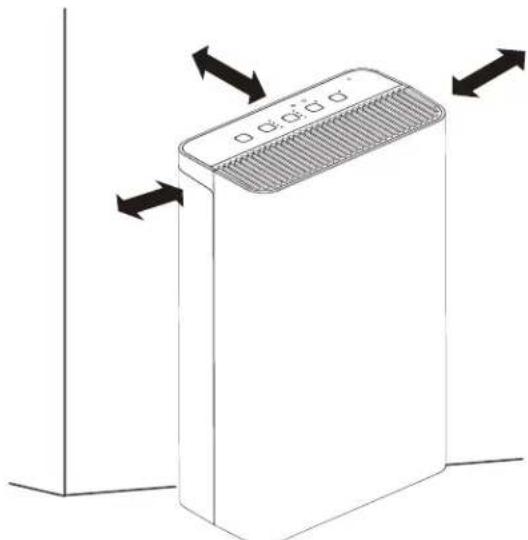

LOCATION

To achieve the most efficient results and allow for proper air flow, keep the appliance at least 30 cm (12 inches) away from all walls and furniture.

To avoid interference from metal objects, keep the appliance at least 50 cm (20 inches) away from metal objects and electrical appliances.

Diagram of a rectangular electronic device with heat exchanger and directional arrows indicating airflow or movement (no text or symbols)

OPERATING INSTRUCTIONS

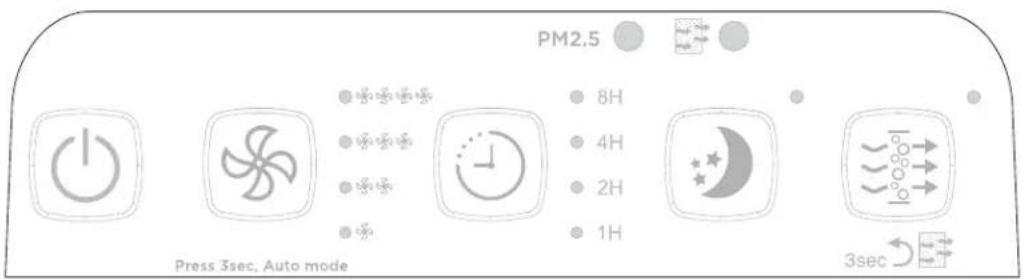

CONTROL PANEL

PM2.5 8H 4H 2H 1H Press 3sec, Auto mode 3sec

1. Power button: Press to turn the air purifier on or off.
2. Fan button: Press to set the fan speed. Press and hold for 3 seconds to set auto mode. In auto mode the air purifier will automatically adjust the purification quantity based on internal sensors.
3. Timer button: Press repeatedly to set the timer amount. The adjacent indicator light will show the timer amount. The air purifier will run for the set amount of time and then shut off.
4. Sleep button: Press to set the sleep feature. The sleep feature will dim the control panel lights except for the sleep light.
5. Ionizer button: Press to set the ionizer feature. Press and hold for 3 seconds to reset the filter after cleaning.

CARE & MAINTENANCE

AIR FILTER

Unplug the appliance before removing or cleaning the filter.

The filter can be cleaned with a brush or vacuum. Do not use water on the filter as the plastic can deform.

Press and hold the ionizer button for 3 seconds to reset the filter after cleaning.

In households with pets or smokers, the filter may need to be cleaned more often to remove smells.

The air filter should be replaced when the filter light on the control panel flashes.

Replacement filters can be purchased through one of the following methods:

• Visit www.danbyapplianceparts.com
• Visit www.danbyapplianceparts.ca
• Call consumer care at 1-800-263-2629.

NOTE: Replacement filters are not covered under warranty and must be purchased separately.

Filter model number: DAP152I-F

CLEANING

• Unplug the appliance before cleaning or servicing.
• Clean the cabinet with a lukewarm damp cloth and neutral detergent. Dry the cabinet with a lint-free dry cloth.
• Do not use gasoline, paint thinner or other chemicals to clean the appliance.
• Do not wash the appliance directly under a tap or using a hose. It may cause electrical damage.

DISPOSAL

This appliance should not be treated as regular household waste. Check for local regulatory compliance regarding the approved and safe disposal of this appliance.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE
Appliance will not operate	Plug is not fully inserted into the wall outletBlown fuse or circuit breaker
Insufficient air purification	Air filter is dirty or needs to be replacedBlocked air flowAppliance size is too small for applicationEnsure that all packaging has been removed from the filter
Appliance will not resume functioning after cleaning the filter	Press and hold the ionizer button for 3 seconds to reset the filter
Odors • Replace	the air filter

Danby.

Limited "Carry-In" Warranty

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

Terms of Warranty

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 24 months

During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service

Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

It is the responsibility of the purchaser to transport the appliance to the nearest authorized service depot. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

Exclusions

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

General Provisions

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1. Power failure.
2. Damage in transit or when moving the appliance.
3. Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4. Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).
5. Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6. Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7. Service calls resulting in customer education.
8. Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

When unpacking the unit and before first-time use, please ensure that the plastic film on the filter is removed.

Installation Steps:

1. Remove the filter from the air purifier.
2. Remove the packaging from the filter.
3. Install the filter - ensure the arrow at the top of the filter is facing inwards

Please ensure that the filter is properly installed before using the appliance.

NOTE: It is recommended that you change the HEPA filter after 720 hours of continuous usage

Line drawing of a portable air conditioner unit with fan and door (no text or symbols)

Simple line drawing of a container with scissors placed on top, no text or symbols present

Line drawing of a portable air conditioner unit with fan and door, no text or symbols present

EMPLACEMENT

Diagram of a rectangular electronic device with heat exchanger and directional arrows indicating airflow or movement (no text or symbols)

INSTRUCTIONS D'UTILISATION

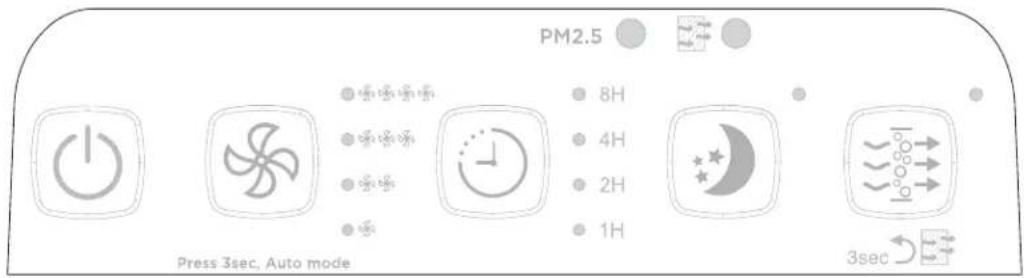

PANNEAU DE CONTRÔLE

PM2.5 8H 4H 2H 1H Press 3sec, Auto mode 3sec

When unpacking the unit and before first-time use, please ensure that the plastic film on the filter is removed.

Installation Steps:

1. Remove the filter from the air purifier.
2. Remove the packaging from the filter.
3. Install the filter - ensure the arrow at the top of the filter is facing inwards

Please ensure that the filter is properly installed before using the appliance.

NOTE: It is recommended that you change the HEPA filter after 720 hours of continuous usage

Line drawing of a washing machine with fan and door, no text or symbols present

Simple line drawing of a jar with scissors cutting the lid (no text or symbols)

Line drawing of a washing machine with fan and door, no text or symbols present

UBICACIÓN

Diagram of a rectangular electronic device with heat exchanger and directional arrows indicating airflow or movement (no text or symbols)

PM2.5 8H 4H 2H 1H Press 3sec, Auto mode 3sec

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9 Danby Products Inc. Findlay, Ohio, U.S.A. 45840

www.danby.com
