USER MANUAL MS 7240 GRUNDIG
2004/108/EC,2006/95/EC
2009/125/EC and 2011/65/EU.
Stromversorgung:
100 - 240 V~, 50/60 Hz, 0.5A
Ausgang: 3.6V, 1.2A

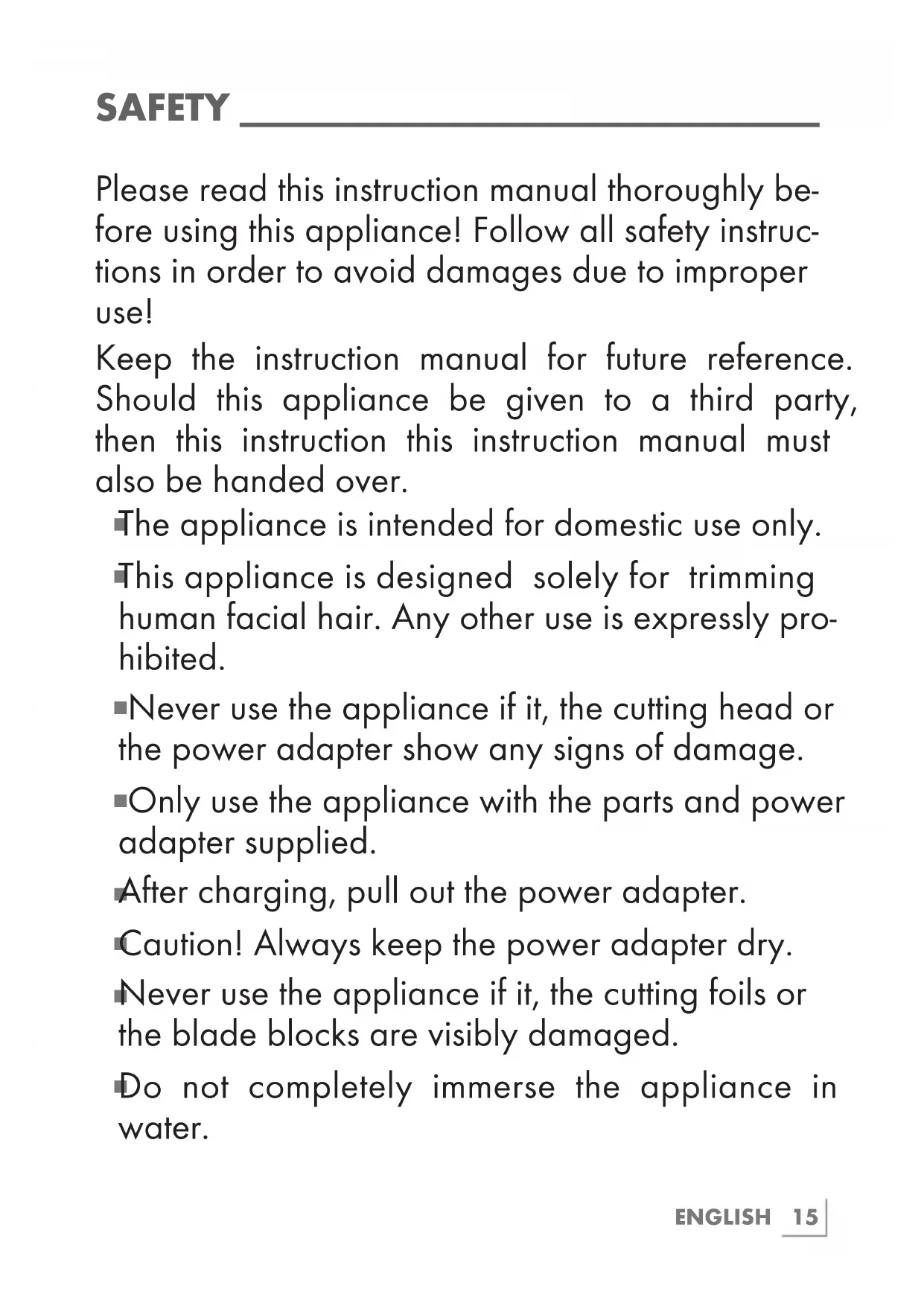

Please read this instruction manual thoroughly before using this appliance! Follow all safety instructions in order to avoid damages due to improper use!
Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction this instruction manual must also be handed over.
The appliance is intended for domestic use only.
This appliance is designed solely for trimming human facial hair. Any other use is expressly prohibited.
- Never use the appliance if it, the cutting head or the power adapter show any signs of damage.
- Only use the appliance with the parts and power adapter supplied.
After charging, pull out the power adapter.
Caution! Always keep the power adapter dry.
- Never use the appliance if it, the cutting foils or the blade blocks are visibly damaged.
Do not completely immerse the appliance in water.
After charging always disconnect the power adapter from the wall socket.
Do not drop the appliance.
Always keep the appliance out of the reach of children.
Our GRUNDIG Household Ap pliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by a service centre to avoid any dangers. Faulty or unqualified fied repair work may cause danger and risks to the user.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
- Detach the hand-held part from the supply cord before cleaning it under water.
AT A GLANCE
Dear Customer,
Congratulations on the purchase of your MS 7240 men's shaver.
Please read the following user notes carefully to ensure you can enjoy your quality GRUNDIG product for many years to come.
A responsible approach!
GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees
and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.
For a future worth living.
For a good reason. Grundig.
Controls and parts
See the figure on page 3.
A Triple cutting system (foil - trimmer - foil)
B Foil frame side lock buttons
On/Off switch
LED battery indicator
Power adapter socket
F Pop-up trimmer
G Detachable blade blocks
H Oscillator/holder for mounting blade blocks
Accessories
Protective cap
J Storage bag
K Power adapter
Rechargeable battery operation
When operating the appliance with the built-in nickel metal hydride battery, only use the power adapter supplied for charging.
The power adapter has an automatic 100 - 240V 50 - 60Hz transformer which works anywhere in the world. This allows it to adjust to all international AC voltages.
1 Push the On/Off switch to switch off the appliance.
2 Plug the power adapter K into the power adapter socket E and the power adapter plug into the wall socket.
- During the charging process, the LED battery indicator lights up blue.
- When the appliance is fully charged, all of the five LEDs light up.
3 Pull the power adapter K out of the power adapter socket E and the power adapter plug out of the wall socket.
Notes
Before first use or if you have not used them for a long time, charge up the batteries completely (about 14 hours).
18 ENGLISH
After each further use, charging time is approx. 2 hours.
The ambient temperature should be between 15^ and 35^ .
If you switch on the appliance while it is charging, charging will be interrupted.
- When fully charged, the appliance works for around 50 minutes. It is not advisable to charge the batteries after each use. Generally, you should only charge the batteries when they are completely discharged. This increases their service life.
The LED battery indicator indicates the remaining battery charge levels 100% 80% 60% 40% 20% . When the "20%" level LED is flashing, the batteries are almost flat and you should charge the appliance.
- You can use the appliance with the adapter connected to the wall socket or in battery mode.
Shaving
1 Remove the plastic protective cap.
Caution
The foils and blade blocks must be intact. Replace any damaged parts before shaving.
2 Push the On/Off switch to switch on the appliance.
3 Shave with slow, gentle movements against the direction of beard growth. Hold the appliance at a 90^ angle to your skin. Make sure both foils touch the skin.
Caution
Do not press too hard as you may damage the foils.
4 After use, switch off the appliance with the On/Off switch and put the plastic protective cap back on.
Trimming
Use the pop-up trimmer for longer hair on your face and neck as well as on the beard, moustache or sideburns.
1 Push the On/Off switch to switch on the appliance.
2 Push up the switch below the pop-up trimmer F completely until it latches in.
3 After use, push the trimmer F back down by sliding down the switch below the trimmer.
4 Switch off the appliance with the On/Off switch and put the plastic protective cap back on.
Hints and tips
Always pull the skin taut when shaving difficult areas such as your lower jaw.
Always cut against the natural direction of beard growth.
In the case of thick or copious beard growth which cannot be removed by just one shave, do one quick shave and then a more thorough second one.
Cleaning and care
General information
The appliance must be cleaned regularly so that you can continue to enjoy its top performance and optimum results. Clean the housing with a soft cloth and a mild detergent. Do not use any cleaning agents.
Cleaning with water
1 Push the On/Off switch to switch off the appliance.
Caution
The appliance must be disconnecte ed from the power adapter.
2 To remove the foil frame, push the side lock buttons B with your thumb to lift up the foil frame.
3 Rinse out the foil frame under running water.

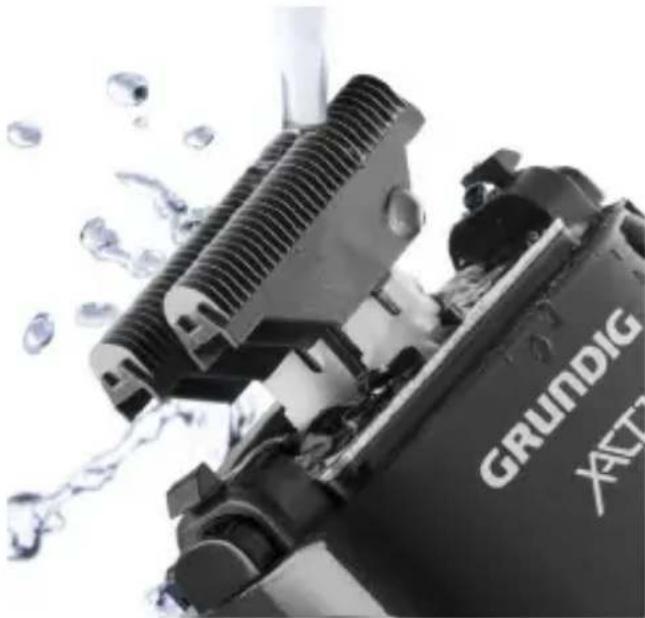

4 To remove all hair, hold the blade blocks under running water and switch on the appliance.
5 Gently shake out the remaining moisture and then dry off the appliance with a clean cloth.
6 Replace the foil frame and let it latch into place.
Cleaning with the brush
1 Turn the appliance off.
Caution
The appliance must be disconnected from the power adapter.
2 Remove the foil frame. To do so, push the side lock buttons B
3 Remove the blade blocks G for cleaning by pulling them upwards off the oscillator H.
4 Carefully brush hair clippings out of the blade blocks, the foils and the housing.
Caution
The foils can be irreparably damaged during cleaning. Only press very gently.
5 Attach all parts again after cleaning.
Caution
To ensure smooth operation, the foil frame must be properly seated in the housing. Never take the foils out of the frame.
Replacing the foil frame and blade blocks
You can replace the foil frame and blade blocks. The appropriate replacement shaving system (containing two blade blocks and one foil frame) is article number MSR 72. Ask your specialist dealer about it.
Replacing the foil frame
1 Remove the foil frame. To do so, push the side lock buttons B.
Fix the new foil frame in the housing.
Caution
Ensure that the foil frame is firmly in position and cannot move within the housing.
Replacing the blade blocks
1 Remove the blade blocks G by pulling them upwards off the oscillator H.
2 Place the new blade blocks on the oscillator.
Caution
Ensure that the blade blocks are firmly in position on the holder.
Note
For an optimum shaving experience, always replace foil frame and blade blocks at the same time
Storage
If you do not plan to use the appliance for a long period of time, please store it carefully.
Make sure that it is unplugged and is completely dry.
Store the appliance in the original storage bag in a cool and dry place.
Make sure the appliance is kept out of the reach of children.
Environmental note
This product is manufactured from high-quality parts and materials which can be reused and recycled.
Therefore, do not dispose of the device and the built-in rechargeable battery along with normal household waste at the
end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment where the battery is taken out of the device and disposed separately. This is indicated by this symbol on the product, in the operating manual and on the packaging.
Please find out about collection points operated by your local authority. Help protect the environment by recycling used products.
Technical data
This product conforms to European directives
2004/108/EC,
2006/95/EC, 2009/125/EC and 2011/65/EU.
Power supply:
100 - 240 V~, 50/60 Hz, 0.5A
Output: 3.6V, 1.2A
Batteries: Nickel metal hydride
Ni-MH
Power adapter
Washable (IPX4)
Suitable for cleaning under running water.
Technical and design modifications reserved.
