Product type	Combined refrigerator/freezer
Brand	Severin
Model	KS 9701
Dimensions (H x W x D)	1500 x 600 x 650 mm
Weight	55 kg
Power supply	See rating plate (220-240 V ~50 Hz)
Energy efficiency class	A++
Annual consumption	179 kWh/year
Refrigerator capacity	173 L
Freezer capacity	54 L
Freezing capacity	6 kg/24h
Storage time in case of power failure	18 hours
Climate class	ST (16-38 °C)
Noise level	40 dB(A)
Interior lighting	LED, not user-replaceable
Refrigerator defrost	Automatic
Freezer defrost	Manual
Refrigerant	R600a (isobutane, flammable)
Reversible door	Yes, left or right opening
Adjustable feet	Yes
Included accessories	Door bins, vegetable drawer, egg tray, ice cube tray, cleaning tool
Warranty	2 years

Frequently Asked Questions - KS 9701 SEVERIN

What to do if the appliance does not cool?

First check that the thermostat is not set to '0' and that the plug is working. If the problem persists, contact customer service.

How to set the temperature?

Turn the thermostat knob: clockwise for colder, counterclockwise for less cold. A medium setting is generally suitable.

How to defrost the freezer?

Unplug the appliance, remove food, leave the door open. Use a container of hot water to speed up the process. Clean and plug in again after reinserting the drain hose.

Can the door opening direction be reversed?

Yes, the door is reversible. Follow the instructions in the manual (unscrew hinges, transfer handles, etc.). Two people are recommended.

How to clean the appliance?

Unplug before cleaning. Use lukewarm water and a mild detergent. Do not use abrasive products. Clean the interior once a month.

Why does water accumulate at the bottom?

The drain hose is probably blocked. Clean it with the provided tool. Make sure the defrost water drains properly.

What to do in case of prolonged absence?

Empty the appliance, unplug it, clean it, and leave the door open to prevent mold and bad odors.

The appliance makes an unusual noise, is this normal?

Motor sounds (Brrr) and refrigerant sounds (Blubb) are normal. If the noise changes, check that the appliance is level and that there are no objects vibrating.

What is the maximum freezing capacity per day?

The maximum freezing capacity is 6 kg per 24 hours. Do not exceed this limit.

Can I freeze carbonated drinks?

No, never freeze bottled carbonated drinks. They could explode during freezing.

USER MANUAL KS 9701 SEVERIN

Exterior view of a white refrigerator with two doors and side panels (no visible text or symbols)

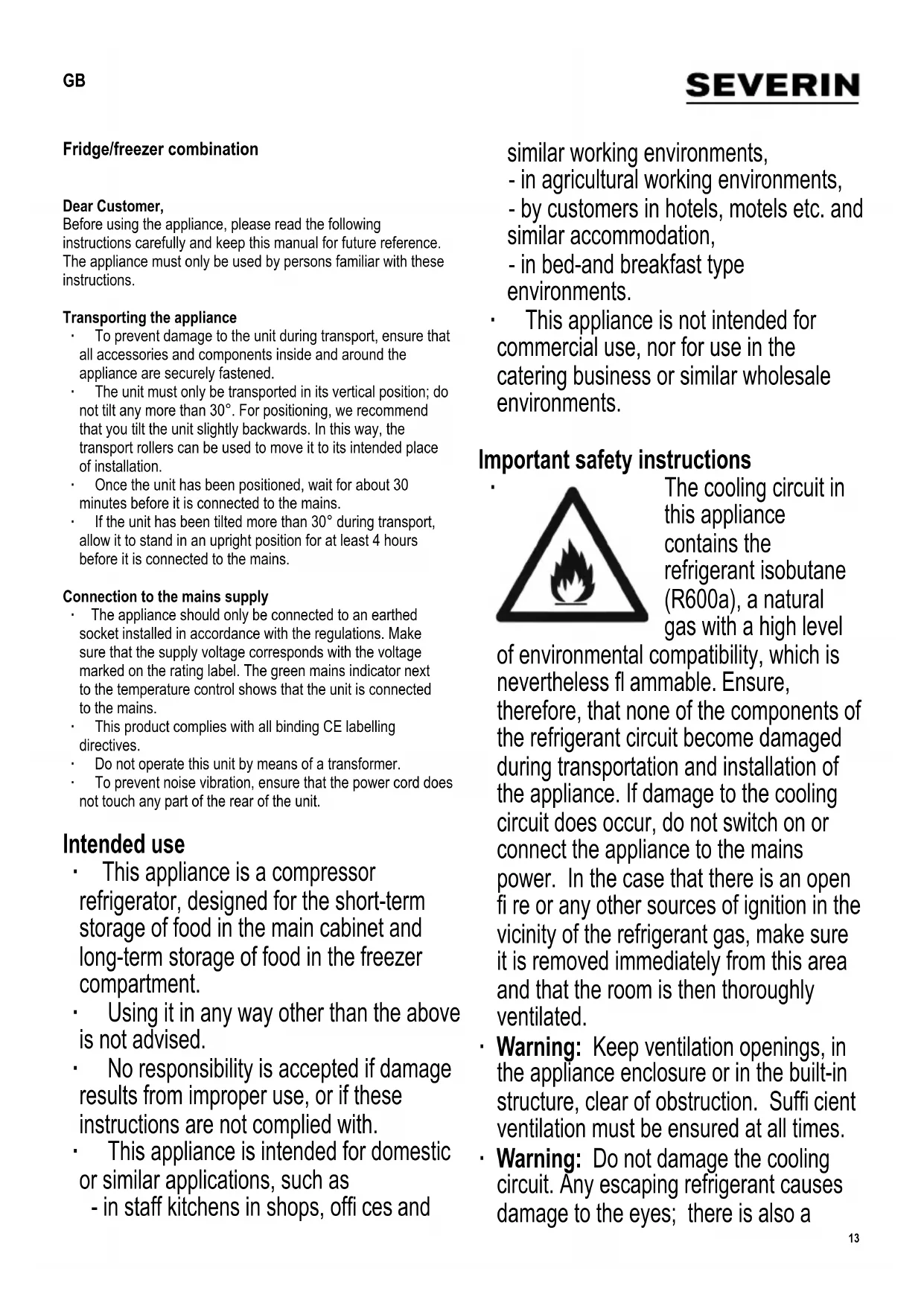

GB Instructions for use Fridge/freezer combination 13

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Diagram showing two labeled components (1 and 2) with downward arrows indicating motion or force, no text or symbols present.

Line drawing of a kitchen sink with a bowl and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a magnified detail (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement paths.

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Transporting the appliance

• To prevent damage to the unit during transport, ensure that all accessories and components inside and around the appliance are securely fastened.
• The unit must only be transported in its vertical position; do not tilt any more than 30°. For positioning, we recommend that you tilt the unit slightly backwards. In this way, the transport rollers can be used to move it to its intended place of installation.
• Once the unit has been positioned, wait for about 30 minutes before it is connected to the mains.
• If the unit has been tilted more than 30^ during transport, allow it to stand in an upright position for at least 4 hours before it is connected to the mains.

Connection to the mains supply

• The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. The green mains indicator next to the temperature control shows that the unit is connected to the mains.
• This product complies with all binding CE labelling directives.
• Do not operate this unit by means of a transformer.
• To prevent noise vibration, ensure that the power cord does not touch any part of the rear of the unit.

Intended use

• This appliance is a compressor refrigerator, designed for the short-term storage of food in the main cabinet and long-term storage of food in the freezer compartment.
• Using it in any way other than the above is not advised.
• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.
• This appliance is intended for domestic or similar applications, such as - in staff kitchens in shops, offices and

similar working environments,

• in agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,
• in bed-and breakfast type environments.

- This appliance is not intended for commercial use, nor for use in the catering business or similar wholesale environments.

Important safety instructions

Warning sign depicting a flame symbol inside a triangle, commonly used in safety or hazard prevention.

The cooling circuit in this appliance contains the refrigerant isobutane (R600a), a natural gas with a high level of environmental compatibility, which is nevertheless fl ammable. Ensure, therefore, that none of the components of the refrigerant circuit become damaged during transportation and installation of the appliance. If damage to the cooling circuit does occur, do not switch on or connect the appliance to the mains power. In the case that there is an open fire or any other sources of ignition in the vicinity of the refrigerant gas, make sure it is removed immediately from this area and that the room is then thoroughly ventilated.

• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Suffi cient ventilation must be ensured at all times.
• Warning: Do not damage the cooling circuit. Any escaping refrigerant causes damage to the eyes; there is also a

danger of the gas igniting.

- Warning: Do not use any external device (e.g.; heaters or heating fans) to accelerate de-frosting; follow only the methods recommended in this manual.

- Warning: Do not operate any electrical appliances (e.g. ice makers) inside the storage compartment that are not specifically permitted in these instructions.

- Before it is connected to the mains power, the unit must be thoroughly checked for transport damage, including its power cord. In the event of any such damage being found, the appliance must not be connected to the mains.

- This appliance is not designed for the storage of explosive substances such as aerosol cans with a fl ammable propellant.

- If the unit is sold, handed over to a third party or disposed of at a suitable recycling facility, attention must be drawn to the presence of the insulation agent ‘cyclopenthane’ as well as to the refrigerant R600a. For additional information on correct recycling please refer to the Disposal section.

- In order to comply with safety regulations and to avoid hazards, any repairs or modifications to this unit must be carried out by our authorised service personnel, including the replacement of the power cord.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have

been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

• Children must not be permitted to play with the appliance.

• Children must not be permitted to carry out any cleaning or maintenance work on the appliance.

- For frequent cleaning we recommend the use of warm water with some mild detergent. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.

- Caution: Do not remove the cover of the interior LED light. If there should be any malfunction, please contact the customer service for assistance (see appendix).

- To prevent the risk of personal injury or damage to the unit, it must only be transported while in its original packaging. Two people are required for unpacking and installation.

- Caution: Keep any packaging materials well away from children: there is a risk of suffocation.

- The ice removed from the unit during de-frosting or cleaning is not suitable for human consumption.

- The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.

- To avoid the risk of fire, do not place any electric appliances on top of the unit. Do not place liquid containers on top of the unit, to prevent any leaking or escaping liquid damaging the electrical insulation.

This unit is designed for storing food only.

- Alcoholic substances may be stored only in properly sealed containers and in upright positions.

- Do not store any glass bottles containing liquids, especially carbonated ones, which are liable to freeze in the freezer compartment: such bottles may burst during the freezing process.

- To avoid the risk of food poisoning, do not consume food after its storage time has expired. Thawed foods must not be frozen a second time.

- Do not lean or put undue weight on the shelves, compartments, door etc.

- Protect the inside of the refrigerator at all times from open flames and any other sources of ignition.

- Remove the plug from the wall socket

- in case of any malfunction,

- before de-frosting,

- during cleaning,

- before maintenance or repair work is carried out.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- If the unit is not used for an extended period of time, we recommend keeping the door open.

• We reserve the right to introduce technical modifications.

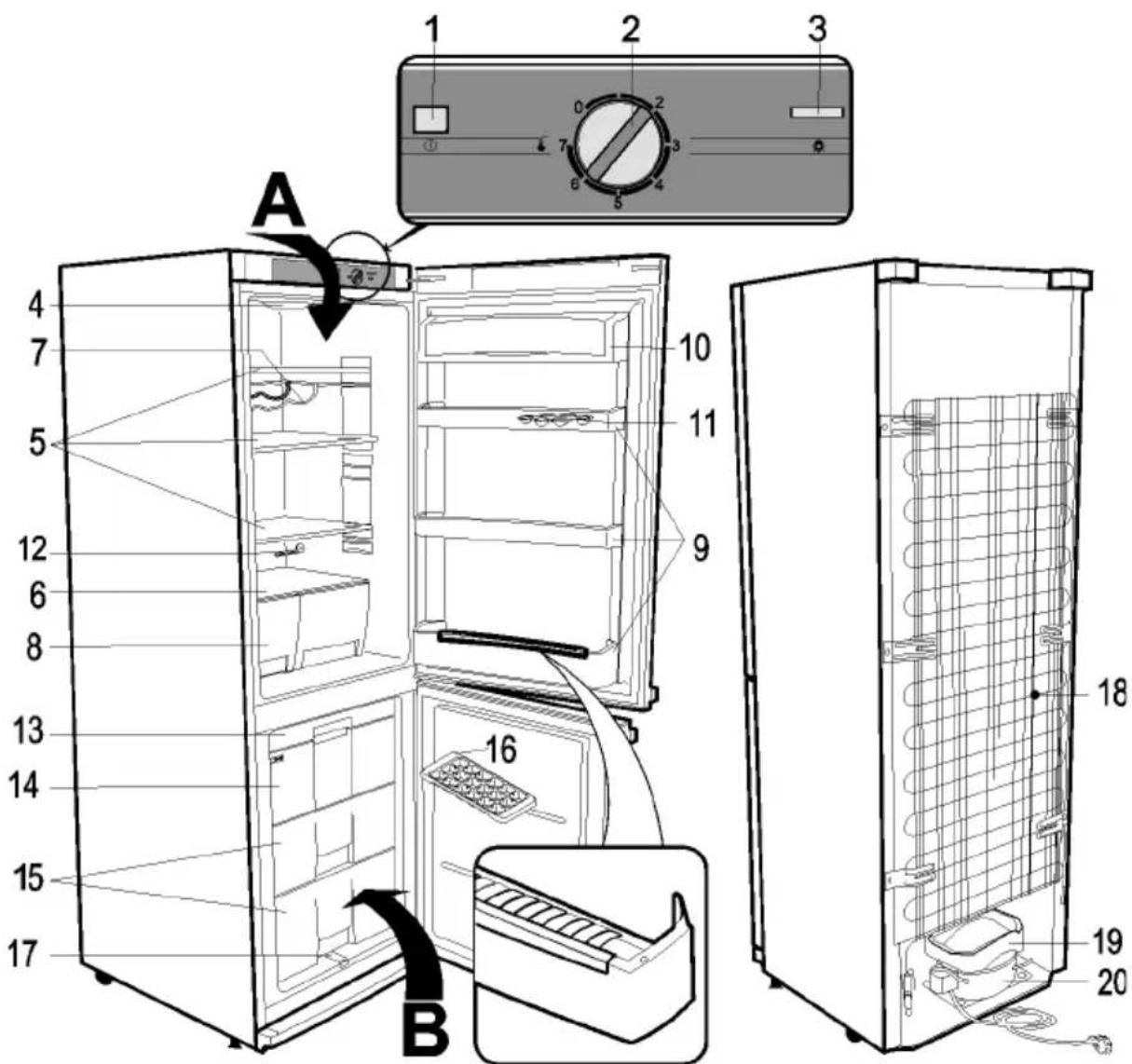

Familiarisation

- The components of your refrigerator-freezer unit may differ in quantity and design from those described here. This description refers to a unit of the group of two-compartment refrigerator-freezer combinations. The unit consists of two parts: Refrigerator (A) and Freezer cabinet (B).

- The quick-freeze compartment inside the freezer cabinet carries the symbol Fast Freeze.

1 2 3 A 0 2 7 6 5 4 10 11 9 4 7 5 12 6 8 13 14 15 16 B 18 19 20

1. Mains indicator light (green)
2. Temperature control
3. On/Off switch for interior light
4. Interior light
5. Storage shelves (height-adjustable)
6. Glass storage shelf
7. Bottle rack
8. Vegetable/fruit fresh storage compartment
9. Door storage
10. Butter/cheese storage compartment
11. Egg storage
12. Drain channel cleaning tool

13. Freezer tray

14. Quick-freeze compartment

15. Freezer compartments
16. Ice-cube tray
17. Freezer unit melt-water drain
18. Condenser
19. Melt-water evaporation tray
20. Compressor

Before using for the first time

• Remove any exterior and interior packaging materials completely, including the red transport securing devices.
  • The packaging materials must be properly disposed of.
  NOTE: When the door to the freezer unit is opened, a small red component will fall out; this is for transport only and can be disposed of.
• Fit the two spacer elements (1, provided) into the corresponding guide slots (2) on the rear.

Diagram showing two labeled components (1 and 2) with downward arrows indicating motion or force, no text or symbols present.

• Before it is connected to the mains, the unit must be thoroughly checked for transport damage, including its power cord.
• Clean the unit as described in the section De-frosting and cleaning.
• When the unit is first switched on, a slight 'new' smell may be noticed. However, this will disappear once the cooling process has begun.

Installation

• The appliance should be set up in a well-ventilated, dry room.
- It should be operated in conditions where the relative humidity is no more than 70 %.
- Refrigeration appliances are classified into certain climate classes. This classifi cation indicates the ambient temperature at which the device can be operated. Please refer to the product data sheet for information on the classifi cation for this unit; the data sheet can be found at the end of this manual.
• Do not use the appliance outdoors.
- Ensure that the plug is accessible and can be removed from the wall socket at any time.
- Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc). If this cannot be avoided, however, suitable insulation must be in installed between the heat source and the unit.
- The unit must not be installed inside a cabinet, nor directly below a hanging cupboard, shelf or similar object.
- In the case of uneven floors, the adjustable front feet on the unit can be used to compensate and ensure optimum stability.
- If the unit is installed next to a wall, a minimum lateral distance of 225 mm is necessary, so that the doors can open wide enough for the drawers to be taken out.

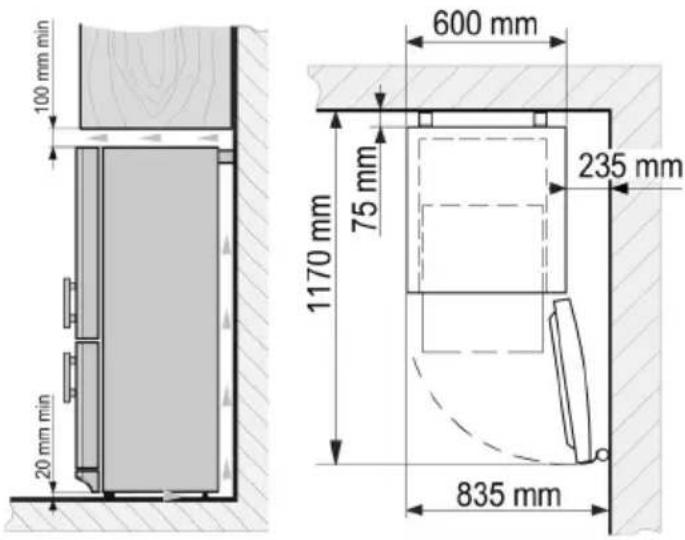

Set-up dimensions

100 mm min 20 mm min 600 mm 75 mm 1170 mm 235 mm 835 mm

Ventilation

Ensure that there is enough space around the unit so that the air circulation round and behind it is not obstructed. (Rear, sides and top 100 mm.)

Temperature control

• The unit is re-activated by connecting it to the mains. It is only switched off completely when the plug is removed from the wall socket. In position '0', the cooling function is switched off, though the appliance is still connected to the mains.
• The temperature in the refrigerator cabinet can be adjusted by setting the temperature control. Turning the control clockwise will decrease the temperature, while turning it anticlockwise will increase it.
• The medium settings are usually most suitable for home use.
  • We recommend using a thermometer to check the actual temperature inside the cabinet and make adjustments as necessary.
• Following a power interruption, or if the unit has been switched off on purpose, it may take around 5 minutes before it switches on again.

Interior lighting

Caution: Do not remove the cover of the interior LED light. If there should be any malfunction, please contact the customer service for assistance.

Storing and freezing food

The temperatures inside the refrigerator cabinet and freezer compartment depend mainly on the ambient temperature, the temperature control setting and the amount of food stored. It should also be noted that the interior temperature may increase every time the door is opened.

Main cabinet

- Different areas of the refrigerator cabinet are affected differently by the cooling effect. The warmest area is around the door in the higher part of the cabinet, the coldest around

the rear wall and in the lower part of the cabinet.

• The food should therefore be stored as follows:
- On main cabinet shelves (from top to bottom): bakery items, ready meals, dairy products, meat, fi sh and cold meats/sausages.
• In the vegetable compartment: vegetables, salad and fruit.
- In the door (from top to bottom): butter, cheese, eggs, tubes (eg mustard), small bottles, large bottles, milk and fruit-juice tetra-packs.
- Liquid or strong-smelling food, or food which is likely to absorb strong odours (e.g. cheese, fi sh, butter), should be stored separately or in hermetically sealed containers.
- Warm food should be left to cool down to room temperature before being placed in the refrigerator.
- Always ensure that the door is properly closed and that the seal is not obstructed by food stored inside the cabinet or door.

Freezer compartment:

• The freezer compartment is designed for deep-freezing and long-term storage of frozen food, and for making ice cubes.
• To ensure that nutritious elements such as vitamins are not lost, fresh food should be deep-frozen right through as quickly as possible. For this reason, prepared food should be put in the quick-freeze compartment, spaced out in one or two rows. The quick-freeze area inside the freezer compartment is marked Fast Freeze, where we recommend you first put the food to be frozen for quick-freezing, before moving it to other compartments (as appropriate) after 24 hours.
• To ensure sufficient distribution of cold air, keep a minimum distance of 3 cm between the vapouriser assembly and the tray containing the food to be frozen.

3 cm Mn

• Do not allow unfrozen food to come into contact with food that is already frozen.
• Caution: Do not exceed the maximum freezing capacity per day. The product data sheet at the end of this manual contains details of the maximum daily freezing capacity.
• For quick-freezing, set the temperature control to Max. After 24 hours, once the food is well frozen, the temperature control can be set back to its original position.
• The time required to freeze food may be shortened by dividing it into smaller portions.
• Suitable packaging materials for frozen food are transparent (i.e. non-coloured) plastic wrap or bags, or aluminium foil. The packaging materials should be well aired before use; check that the package is air-tight before freezing the food. We strongly recommend that you label every item stored in the freezer with all relevant information such as type of food, freezing date and use-by date.
• Do not attempt to deep-freeze carbonated beverages, warm food or any kind of bottled liquids.

- Frozen food can be defrosted in the refrigerator. This way, the food is defrosted at a slower rate, retaining its taste. Furthermore, the frozen food helps to keep the temperature inside the refrigerator at its intended level.

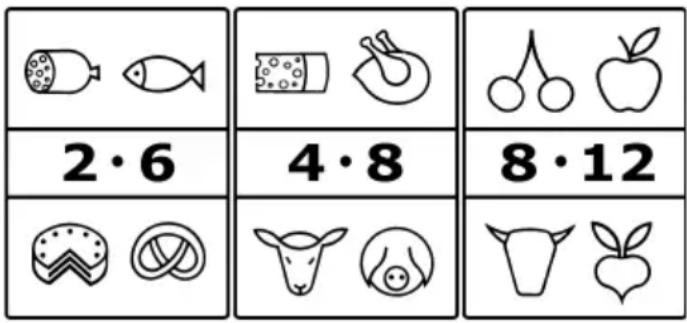

Use-by dates for frozen food are specified (in months) in the table below.

2·6 4·8 8·12

• Do not exceed these storage times.
• However, always observe the manufacturer's use-by dates for the frozen food.
• If the unit remains switched off for an extended period (eg during a power failure), the door should be kept closed; this will help to maintain the lowest possible temperature in the cabinet. The product data sheet contains detailed information of the maximum safe storage time in case of malfunction. Even a slight rise in the inside temperature will shorten the storage life of the food.

Freezer tray

The freezer tray allows for gentle freezing of delicate foods such as herbs and fruit, while preventing them from sticking together. Place the goods to be frozen onto the tray individually and freeze them. After 8-10 hours, remove the frozen items and put them into suitable containers.

Making ice cubes

A special ice-cube tray is provided for making ice cubes. Fill the tray up to 34 with drinking water and place it in the freezer compartment for a few hours. The ice cubes are easier to remove from the tray if the tray is left standing at room temperature for 5 minutes.

De-frosting and cleaning

- Always remove the plug from the wall socket before cleaning.

• Do not pour water over or inside the unit.
• For frequent cleaning we recommend the use of warm water with some mild detergent. To prevent any unpleasant odour within the refrigerator, it should be cleaned about once a month.
• Any accessories should be cleaned separately with soapy water. Do not put them in a dishwasher.
• Do not use abrasives or harsh cleaning solutions or any cleaning agents that contain alcohol.
  • After cleaning, thoroughly clean all surfaces with fresh water before wiping them completely dry.
• When re-inserting the plug into the wall socket ensure that you have dry hands.

• Take care not to remove or damage the rating plate inside the cabinet during cleaning.

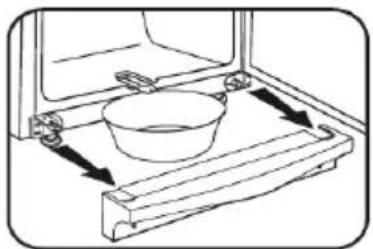

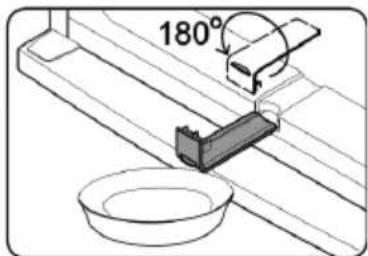

De-frosting the freezer compartment

• After a certain period of operation and depending on several factors (e.g. how often the door has been opened), a layer of ice will form on the evaporators located below the drawers and on the drawer fronts themselves. Once the build-up of ice has reached a thickness of 3 to 5 mm, the unit must be de-frosted, as the build-up of ice increases the power consumption of the appliance.
• The freezer should be thoroughly cleaned at least twice a year.
  • Always remove the plug from the wall socket before cleaning.
• Remove all food from the compartment and store it in a cool location, eg together with pre-frozen freezer-packs in a closed plastic container. Note that, even with a slight increase in temperature, the storage life will be shortened and the food should be used as soon as possible.
• Keep the door open.
• Remove the cover panel.

Line drawing of a kitchen appliance with a bowl and directional arrows indicating motion (no text or symbols)

- Pull out the drain channel from the freezer cabinet, turn it 180^ and secure it (see diagram). Place a suitable container underneath the channel outlet.

180°

• To accelerate defrosting, one or several containers with hot (but not boiling) water may be placed inside the freezer compartment. Do not pour water over or inside the unit.
• Warning: Do not use any external device or other means (e.g. heaters or heating fans) to accelerate de-frosting.
• Clean the unit with a damp cloth and a little detergent. Wipe thoroughly dry afterwards.
• Replace the drain channel and cover panel.
• Set the temperature control to its maximum position. After 24 hours, it may turned back to its normal setting.

Defrosting the refrigerator cabinet :

• The refrigerator cabinet does not require de-frosting, but only proper cleaning.
• The integral vapouriser is sealed in foam in the rear wall; you may therefore notice a build-up of frost around the rear area. This layer of frost will start melting when the compressor is not working. Through a system of hoses,

the melt-water drains into the collection tray below the compressor, where it will be absorbed into the surrounding air.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

• To enable the melt-water to drain freely, always ensure that the channel and discharge opening in the cabinet are free of any blockage.
  • Any water collecting in the bottom should be removed.

Energy saving tips

• The appliance should be set up in a well-ventilated, dry room.
• Do not expose the appliance to direct sunlight, and do not position it next to any heat sources (radiators, cookers etc.). If this cannot be avoided, however, suitable insulation must be installed between the heat source and the unit.

- Ensure sufficient air circulation around the sides of the unit.

• The compressor (at the rear) should be cleaned at regular intervals. Accumulated dust causes an increase in energy consumption.
  • Warm food should be allowed to cool down before it is stored inside.
  • To prevent an increased build-up of ice, do not leave the doors of the unit open for too long when loading or taking out
• Frequent de-frosting helps to save energy. For detailed information on cleaning the appliance, please refer to the section De-frosting and cleaning.
• Do not set a lower-than-necessary temperature. For detailed information on the temperature settings, please refer to the section Temperature control.

Operating noise

• Certain typical sounds can be heard when the appliance is switched on. These sounds are:
• caused by the electrical motor within the compressor assembly; during compressor start-up the sound level will be slightly higher for a limited period of time.
  caused by the cooling agent flowing through the circuit.

Trouble-shooting

The following table lists possible malfunctions and their probable causes and solutions. In the event of operational problems, check first whether a solution can be found using this table. If the problem persists, disconnect the appliance from the mains power and contact our Customer Service Department.

Problem Possible cause and solution
The appliance is not working at all.	· The temperature control is set to ‘0’. → Use a higher temperature setting.· The wall socket is defective. → Check the fuse. If necessary, have the wall outlet checked by a qualified electrician.
The temperature inside the refrigerator cabinet or freezer compartment is not low enough.	· Too much food has been stored in the appliance. → Do not store excessive food (see product data sheet).· The doors are not properly closed. → Ensure that the doors are properly closed.· The door seals are defective. → Check the door seals and contact our Customer Service if necessary.· There is too much dust on the condenser. → Clean the condenser regularly.· Insufficient ventilation: the unit is too close to a wall or other structure or object. → see section ‘Ventilation’.· The temperature control is set too low. → Use a higher setting.
The normal operating sound changes or becomes louder.	· The unit is not firmly set on the floor. → Use the adjustable front feet to align the unit properly.· Adjacent furniture or objects are affected by the running of the cooling unit (i.e. causing them to vibrate). → Keep the stated clearances.· Any objects on top of the unit might be vibrating → Remove such objects.
Water is collecting on the bottom of the unit.	· The melt-water drain system is blocked. → Remove the blockage and clean the system.
Excessive build-up of frost on the rear of the main cabinet.	· Hot food has been stored inside the cabinet. → Let the food cool down before putting it in.· The door seals are defective. → Check the door seals and contact our Customer Service, if necessary.· The temperature control is set too high. → Use a lower temperature setting.
Excessive build-up of frost inside the freezer compartment.	· It is necessary to de-frost the freezer compartment manually. → See ‘De-frosting and cleaning’· See ‘Excessive build-up of frost on the rear of the main cabinet’ (above).

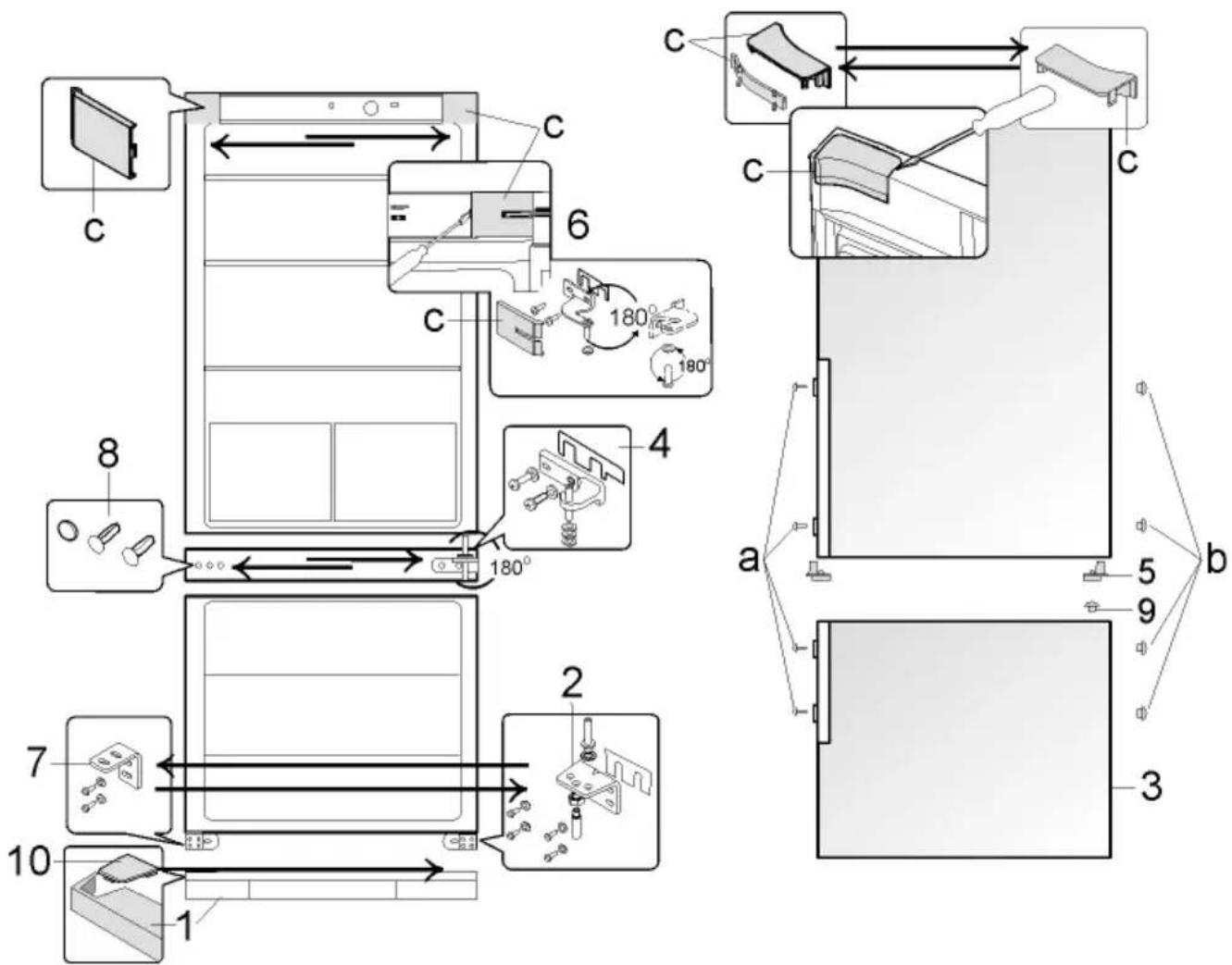

Reversible door

• If required, the door may be reversed, i.e. from right-hinged (default installation) to left.
  • To avoid the risk of personal injury or damage to the unit, two people are needed to reverse the door.
• Warning: Always disconnect the unit from the mains before any maintenance or repair work is carried out.
  • Before you start, please note the following:
  • Always ensure that the correct number of washers is used on all hinge bolts and screws.

• So that the doors can close tightly against the frame, take the utmost care that they are properly aligned during re-assembly.

• Remove the four covers C from the housing and inside of the door.

• Unscrew the hinge bolt on the inside of the door in the area C/6. Caution: Support the door.
• Take off the refrigerator door.
• Take out the fixing screws and remove the upper bracket
• Note the small plastic plate underneath the bracket.
• Turn the bracket 6 including the small plastic plate through 180° and replace it on the other side of the refrigerator, using the two screw holes adjacent to each other.

• Place the refrigerator door on a soft surface. Remove the hinge support 5 from the underside of the door and fit the hinge support provided on the opposite side.

• Take out the covering caps and then remove the hinge support in the middle 4. Note the small plastic plate underneath the bracket. Caution: Support the door.

• Take off the freezer door 3.

• Remove the lower panel 1 by lifting it up slightly.

• Take out the fixing screws and remove the bracket 2 with its hinge bolt. Note the small plastic plate underneath the bracket.

• Unscrew the hinge bolt, together with the washers, from the bracket, and fit it into the corresponding opening on the opposite side of the bracket.
• Remove the bracket 7 and replace it with the holding bracket 2 with its hinge bolt.
• Now install the holding bracket 7 in the previous position of the bracket 2.
• Take out the sealing plugs 8 from the partition separating the refrigeration and freezer compartments and replace them in the openings on the opposite side.
• Take out sealing plugs 9 from the freezer door and replace it in the opening on the opposite side.
• Place the freezer door onto the hinge bolt on holding bracket 2. Caution: Support the door.
• Turn the holding bracket 4 with its hinge bolt and plastic plate through 180°.
• Replace the bracket bolt on the opposite side of the freezer door and secure it with the screws.
• Replace the covering caps over the screw heads.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement paths.

1. Place the refrigerator door onto the hinge bolt on holding bracket 4. Caution: Support the door.
2. Re-insert the hinge bolt of the bracket 6 into the refrigerator door and secure it with the screws.
3. Fit the four covers C over the bracket and the openings.
4. Take out the screws a holding the door handles and then pull the handle off.
5. Fit the handles on the opposite side, using the fixing screws to secure them (note that the screws need to go through the sealing plugs b). Push the sealing plugs provided (b) into the now empty openings in the door.
6. Take out the cover 10 from the lower panel 1 and replace it on the opposite side.
7. Replace the panel 1 on the appliance.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled.

Proper disposal protects the environment and human

health. Your local authority or retailer can provide information on the matter. The refrigerant and the chemical agent in the insulation foam must be disposed of through a competent agency. Take special care not to damage the cooling circuit before the unit is handed over for such disposal.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.

Information needed by the Customer Service Department Should repairs to the appliance become necessary, please contact our Customer Service Department, providing a detailed fault description and quoting the model number KS ... on the rating plate of the appliance (see picture). This information will help us to handle your request efficiently.

In case of any malfunction or other problem, please contact our Customer Services Department. The address can be found in the appendix to this manual.

Product data sheet for refrigerating appliances *

Art. no. KS 9701, 9702, 9703, 9704, 9705, 9706
Household refrigerating appliance category 7 - Fridge/freezer
Energy efficiency classification	A++
Energy consumption in kWh/year ** 179
Usable capacity - Refrigerator (litres) 173
Usable capacity - Zero-degree zone compartment (litres) ---
Usable capacity * * * * - Freezer unit (litres) (without drawers)	54
Frost-free : refrigeration unit yes
Frost-free : freezer unit no
Safe storage time in case of malfunction, hrs. 18
Freezing capacity, kg/24h 6
Climate classifi cation ST
Ambient temperature range, °C 16-38
Noise emission in dB(a) 40
Dimensions (H x W x D) in mm	1500 x 600 x 650
Weight (kg)	55
Electrical specifi cations	See rating plate

* In accordance with EU directive 1062/2010 Annexe III
** The actual consumption depends on the pattern of use and the location of the appliance

Chère cliente, Cher client,

Warning sign depicting a flame symbol inside a triangle, indicating hazardous material

Diagram showing two labeled components (1 and 2) with arrows pointing to a rectangular object on a base, no text or symbols present.

Compartiment congélation

Line drawing of a kitchen sink with a bowl and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Technical diagram showing assembly steps of a refrigerator with labeled components and directional arrows indicating movement.

Warning symbol of a flame inside a triangle (no text or numbers)

Diagram showing two labeled components (1 and 2) with downward arrows pointing to a rectangular object on a flat surface (no text or symbols beyond labels)

Vriezer compartiment:

Simple line drawing of a kitchen sink with a bowl and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement or assembly.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Diagram showing two labeled components (1 and 2) with downward arrows pointing to a rectangular object on a base, no text or symbols present.

Simple line drawing of a kitchen appliance with a bowl and directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement or assembly.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous or hazardous hazard.

Diagram showing two devices connected by wires, with arrows indicating direction (no text or symbols)

Line drawing of a kitchen sink with a bowl and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a structural component with an inset showing a magnified view of a circular feature (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement or assembly.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Diagram showing two labeled components (1 and 2) with arrows pointing to them, no text or symbols present.

Line drawing of a kitchen sink with a bowl and directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a structural beam or support bracket (no text or symbols)

Diagram showing a hand inserting a circular component into a mechanical part, with no visible text or symbols.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement paths.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous material

Diagram showing two labeled components (1 and 2) with downward arrows pointing to them, no text or symbols present.

Line drawing of a kitchen sink with a bowl and directional arrows indicating motion (no text or symbols)

Simple line drawing of a structural beam or support component (no text or symbols)

Diagram showing a hand holding a circular object with an arrow pointing to it, overlaid on a grid-like structure (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement paths.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Diagram showing two labeled components (1 and 2) with arrows pointing to them, no text or symbols present.

Line drawing of a kitchen sink with a bowl and directional arrows indicating movement (no text or symbols)

Simple line drawing of a structural beam or support (no text or symbols)

Diagram showing a hand inserting a circular component into a mechanical part, with no visible text or symbols.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement paths.

Osteochemical Warning

Diagram showing two labeled components (1 and 2) with downward arrows indicating motion or force, no readable text or symbols present.

Regulator temperature

Line drawing of a kitchen sink with a bowl and directional arrows indicating movement (no text or symbols)

Simple line drawing of a structural beam or support (no text or symbols)

Diagram showing a hand inserting a circular component into a mechanical part, with no visible text or symbols.

Regulator temperature.

Poziom hałasu

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement paths.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Diagram showing two labeled components (1 and 2) with downward arrows pointing to a surface, no text or symbols present.

Line drawing of a kitchen appliance with a bowl and directional arrows indicating motion (no text or symbols)

Simple line drawing of a structural beam or support (no text or symbols)

Diagram showing a hand pressing down on a circular component with a striped pattern, no text or symbols present

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement paths.

Warning sign depicting a flame symbol inside a triangle, indicating hazardous risk.

Diagram showing two labeled components (1 and 2) with arrows pointing to a surface or component, likely illustrating a process or assembly.

Simple line drawing of a kitchen sink with a bowl and directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a structural beam or support bracket (no text or symbols)

Diagram showing a hand inserting a circular component into a mechanical part, with no visible text or symbols.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating movement paths.

2/F., Block A, Dong He Industrial Building

Yue He Street, Sha Shen Road, Sha Tou Jiao

Shenzhen

Tel.: [phone] or 25550852

Fax: [phone] or 25357498

eMail: [e-mail]

Web: http://www.severinchina.com

Czech Republic

BVZ Commerce s.r.o.

Parkerova c.p. 618

CZ 25067 Klecany

Tel.: [phone]

Fax: [phone]

Danmark

F&H of Scandinavia A/S

Gl. Skivevej 70

DK-8800 Viborg

Tel.: [phone]

Fax: [phone]

F-67210 OBERNAI CEDEX

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: http://www.severin.fr

Greece

BERSON

C. Sarafi dis Bros. S.A.

Agamemnonos 47

176 75 Kallithea, Athens

Tel.: [phone]

Philippos Business Center

Service Post of Thermi

570 01 Thessaloniki, Greece

Tel.: [phone]

Hong Kong

Pacifi c Coff ee Company

7/F Hollywood Centre, 233 Hollywood Road,

Sheung Wan, Hong Kong

Tel.: [phone]

Fax: [phone]

eMail: espresso@pacifi ccoff ee.com

India

Zansaar

1210, 2nd Floor

Fawar Manor, 100ft Road

Indiranagar, Bangalore 560 038

Tel.: [phone]

eMail: [e-mail]

Web: http://www.zansaar.com

Iran

IRAN-SEVERIN KISH CO. LTD.

No. 668, 7th. Floor

Bahar Tower

Ave. South Bahar

TEHRAN - IRAN

Tel.: 009821 - 77616767

Fax: [phone]

[e-mail]

www.iranseverin.com

Iraq

Al JOUD Home Appliances Manufacturing Co. Ltd

PIC: Eng. Ahmad Al-Sharabi

Al Joud Building Karadat Kharej

Baghdad - Iraq

Tel.: [phone]

[phone]

[phone]

Ireland

Bluestone Sales & Distribution Ltd

26 Oaktree Business Park

Trim Co Meath Ireland

Tel.: [phone]

Fax: [phone]

Web: www.bluestone.ie

Italia

via Dino Col 52r-54r-56r,

I - 16149 Genova

Green Number: 800224155

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Jordan

J.L.C.

P.O. Box 910330

Mecca Street, Jaber Complex Building No. 193

Amman 11191 Jordan

Tel: [phone]

Korea

Jung Shin Electronics co., Ltd.

501, Megaventuretower 77-9,

Moonrae-Dong 3ga, Yongdeungpo-Gu

Seoul, Korea

Tel: [phone]\~7

Fax: [phone]

Service Hotline: [phone]

Kuwait

Mohammed Abdulrahman Al Bahar

Al Bahar Building P.O. Box 148

Safat 13002 Kuwait

Tel: [phone]

Latvia

SERVO Ltd.

Mr. Janis Pivovarenoks

Tel: [phone]

Lebanon

Khoury Home

7th Floor, Cité Dora 3 Building, Dora

P.O.Box 70611

Antelias, Lebanon

Tel: [phone]

Fax:[phone]

eMail: [e-mail]

Internet: www.khouryhome.com

Luxembourg

Ser-Tec

GHALA 112, P.O. Box 996

Muscat Sultanate of Oman

Tel.: [phone]

Fax.: [phone]

Philippines

COLOMBO MERCHANT PHILIPPINES, INC.

Mezzanine 1, South Center Tower

2206 Venture Street, Madrigal Business Park

Alabang, Muntinlupa City

Tel.: [phone]

eMail: [e-mail]

Polska

SERV- SERWIS SP. Z 0.0.

UL. WSCHODNIA 4

46-070 CHMIELOWICE K/OPOLA

Tel: [phone]

Fax: [phone]

Serbia and Montenegro

tel: + 381-21-524-638

tel: [phone]

fax: [phone]

Singapore

Beste (S) Pte. Ltd.

Tagore Building

6 Tagore Drive, #03-04

Singapore 787623

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Slovenia

SEVTIS d.o.o.

Smartinska 130

1000 Ljubljana

Tel: [phone]

Fax: [phone]

Slowak Republic

PREMT,s.r.o.

Skladová 1

917 01 Trnava

Tel: [phone]

Fax: [phone]

eMail: [e-mail]

South Africa

AL.CD. Ashley (Pty) Ltd

ABSA on Grove

Grove Avenue

Claremont, Cape Town 7708

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: www.alcdashley.co.za

Svenska

Rakspecialisten HS

Möllevångsgatan 34

214 20 Malmö

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Switzerland

VB Handels Sàrl GmbH

Postfach 306

1040 Echallens

Tel: [phone]

Fax: [phone]

mail: [e-mail]

Syria

Joud Industries Domestic Appliances Co.

P.O. Box 199 or 219

Motorway entrance

Lattakia - Syria

Tel.: [phone]

[phone]

Fax: [phone]

Thailand

Verasu Ltd. part.

83/7 Wireless Rd., Lumpini,

Patumwan, Bangkok 10330

Tel.: [phone]

eMail: [e-mail]

United Arab Emirates

Juma al Majid Est

P.O. Box 156

Dubai U.A.E.

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Web: www.al-majid.com

United Kingdom

Homespares Centres Limited

Firwood Industrial Estate

Thicketford Road

Bolton, BL2 3TR

Tel.: [phone]

Fax: [phone]

eMail: offi [e-mail]

Web: www.hscl.info

Vietnam

Brand Partner

W.22, D. Binh Thanh

180/38 Nguyen Huu Canh Street

Ho Chi Minh City. Vietnam

Tel.: [phone]

Fax: [phone]

eMail: [e-mail]

Stand: 08.2014 (Special Edition)
